Volume Button Flex Cable for OnePlus Ace 2V

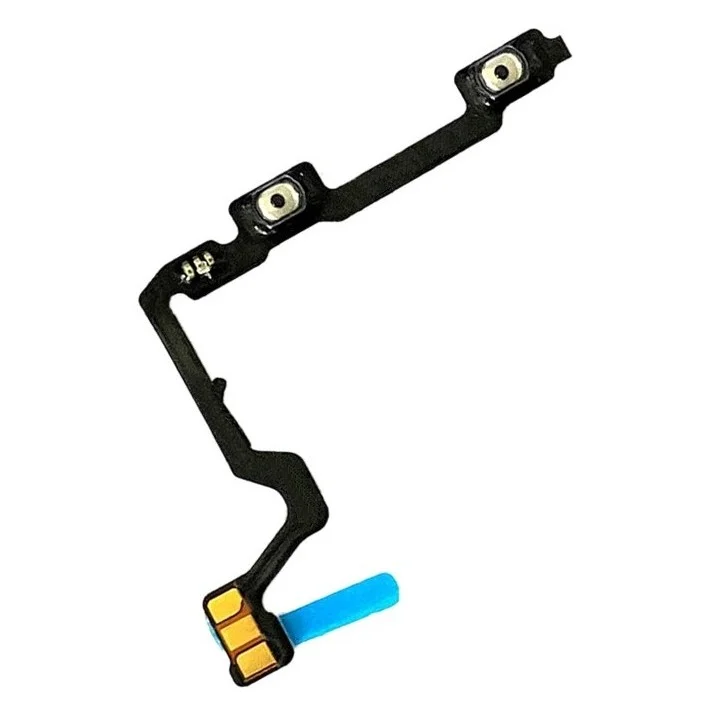

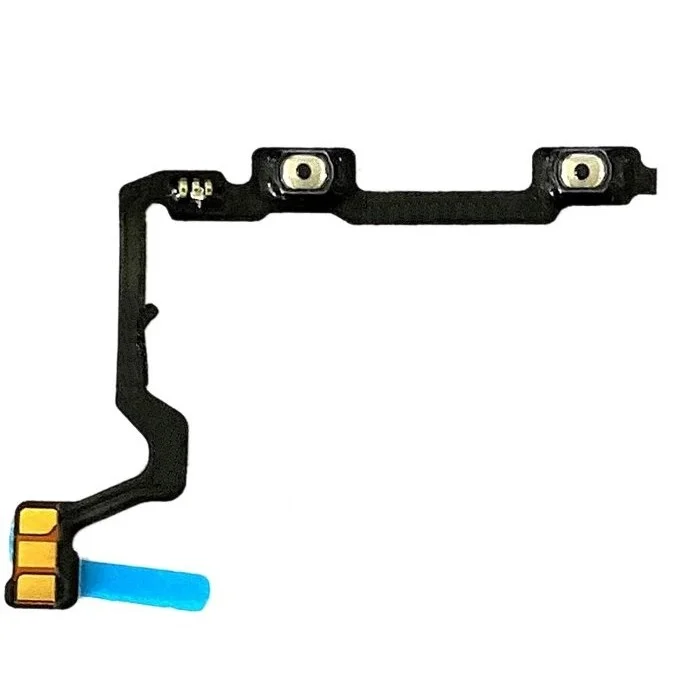

The Volume Button Flex Cable / Patta in your OnePlus Ace 2V is the ribbon cable assembly that carries volume up and volume down button press signals from the physical button caps to the motherboard. On most OnePlus Ace 2V devices, the dome switches for both volume buttons are integrated directly onto this flex cable — meaning a single flex controls both volume up and volume down functions. When it is damaged, both volume buttons may stop responding simultaneously on your OnePlus Ace 2V.

Yes — if only one section of the flex cable or one integrated switch dome is damaged, only the corresponding button may fail. For example volume up may work while volume down does not, or vice versa on your OnePlus Ace 2V. If both buttons fail together, the connector end of the flex is more likely damaged than an individual switch dome.

Yes. The connector type, integrated switch specification, cable dimensions, and routing are model-specific. This listing is designed for OnePlus Ace 2V only. A flex from a different model will not connect correctly and may not include the correct switch dome configuration for your device.

It is a moderate repair requiring the phone to be opened — typically involving removal of the side frame or battery to access the volume button flex routing on your OnePlus Ace 2V. No soldering is required in most cases. Care is needed to route the new cable correctly without kinking.

Yes — a 7-day replacement warranty covering manufacturing defects is included. An unboxing video is mandatory for all warranty claims. Flex cables showing physical damage from improper installation are not covered under warranty. For more information, check out SAHII's Return Policy.
