Redmi Note 9 Pro Rear Glass Replacement
This repair guide is for replacing a broken rear glass on the Xiaomi Redmi Note 9 Pro smartphone. Replacement adhesive will be required to secure components properly during reassembly.
Step 1 | Heat the rear glass
Prepare an iOpener and apply it to the rear glass for at least two minutes to loosen adhesive.
- Alternatively, use a hair dryer, heat gun, or hot plate with caution.
Avoid overheating the phone as the display and internal battery are susceptible to heat damage.
Step 2 | Insert an opening pick
Secure a suction handle to the rear glass's bottom edge, near the edge.
If the rear glass is cracked, try lifting it with strong tape or superglue the suction handle in place and allow it to cure before proceeding.
- Lift the rear glass with the suction handle to create a small gap between the back cover and frame.
- Apply more heat if necessary, following iOpener instructions to avoid overheating, to further soften the adhesive.
Insert an opening pick into the created gap and slide it to the bottom right corner to slice the adhesive.
Leave the opening pick in place to prevent the adhesive from resealing.
Step 3 | Slice the adhesive
- Insert a second opening pick at the phone's bottom edge.
- Slide this pick towards the bottom left corner, slicing the adhesive.
Leave the opening picks in place to prevent resealed adhesive.
Step 4 | Slice the adhesive
Reheat the adhesive with an iOpener for 1-2 minutes if it becomes hard to cut.
- opening pick at the bottom left corner of your phone.
Step 5
Insert the opening pick into the top left corner.
- Slide it along the top edge, slicing the adhesive.
- Leave the pick in place at the top right corner.
Step 6
- Place a fifth opening pick at the top right corner.
- Slide the opening pick along the right edge of the rear glass to cut the remaining adhesive.
Step 7 | Remove the rear glass
Remove the rear glass.
- Clean areas with isopropyl alcohol (>90%) and apply new adhesive as needed.

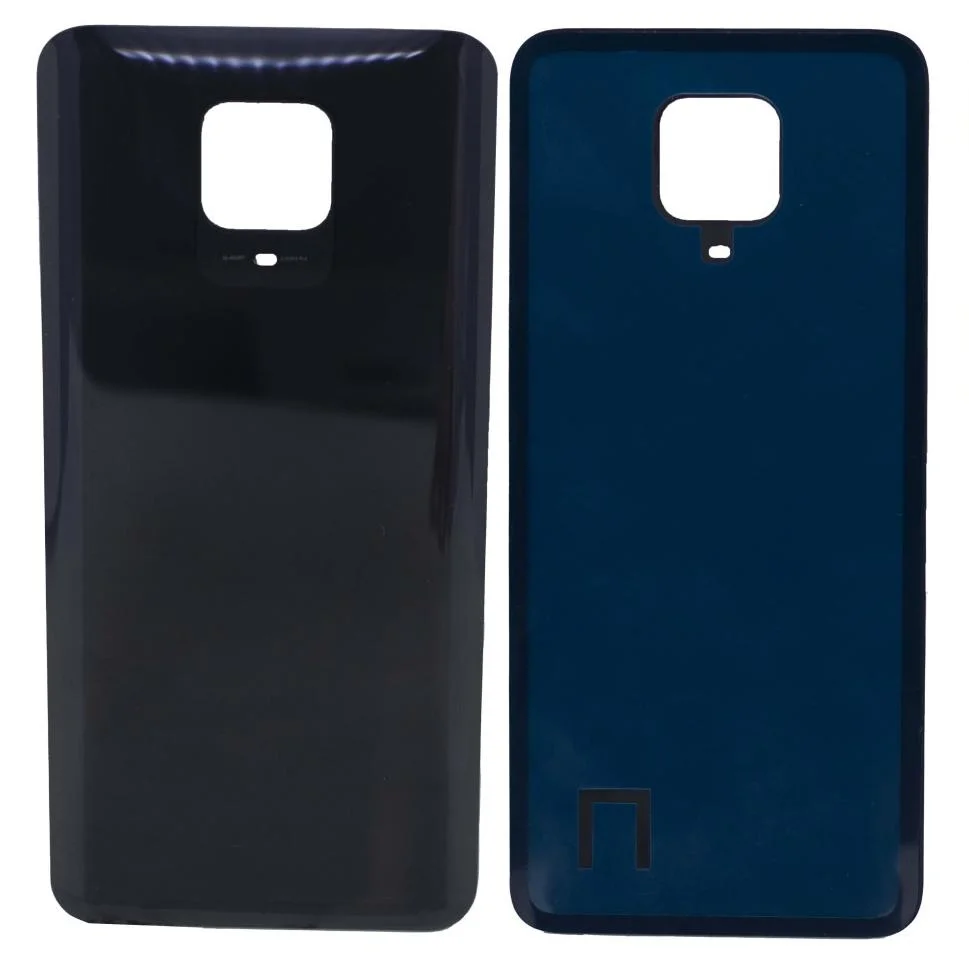

- Secure the new rear glass using pre-cut adhesive or double-sided tape.
Apply steady, strong pressure to your phone for several minutes after installation.
- A stack of heavy books can help apply even pressure.
