Xiaomi Redmi Note 13 Pro Plus 5G Daughterboard Replacement

Be cautious when handling electrical components — risk of damage or injury.

  • Verify your Xiaomi Redmi Note 13 Pro Plus 5G model (23090RA98C, 23090RA98G, 23090RA98I) and its issue with the USB-C charging port, SIM card reader, or microphone.

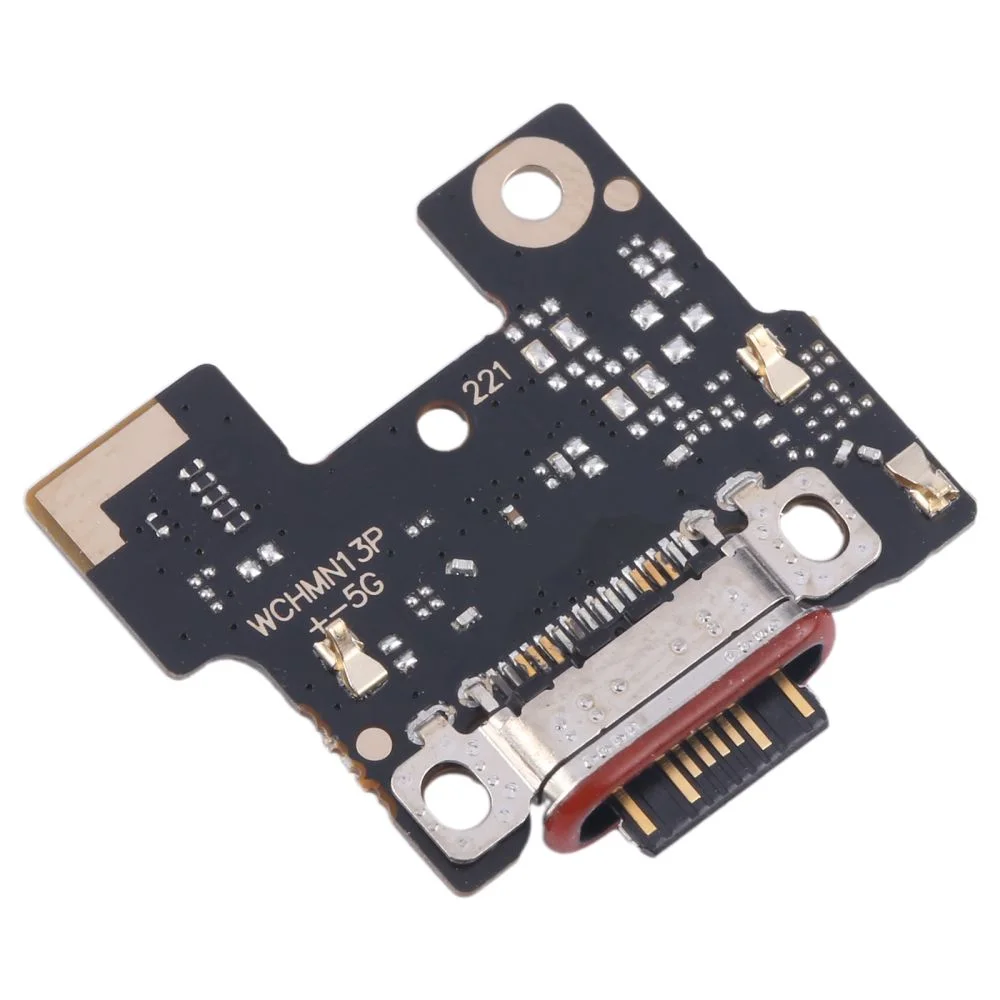

The daughterboard is a small circuit board connecting to the motherboard, enabling communication between components such as the USB-C charging port dock board, auxiliary port, microphone, SIM card reader, and fingerprint recognition. This guide will remove the daughterboard from your device.

  • Use an iOpener to melt the adhesive holding the back panel in place.
  • Disconnect the phone from all external power sources before disassembling.

Step 1 | Back Panel

Step 1 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Ensure the device is powered down.

  • Use a SIM card eject tool to remove the SIM card tray.

Step 2

Step 2 image
  • Heat the iOpener until warm.
  • Apply the heated iOpener to each edge of the phone, allowing the adhesive underneath the back panel to soften.

Step 3

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert suction handle onto back panel.

  • Lift suction handle, inserting opening tool into gap created by pulling.
  • Pry open space between back panel and phone to allow insertion of opening picks.
  • Insert at least two opening picks when space is wide enough.

Step 4

Step 4 image
Thumbnail 1
Thumbnail 2
  • Use opening picks to carefully drag along the edges of the back panel.
  • The panel will pop free; remove it.

Step 5 | Battery

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove seven 5.2 mm black motherboard cover screws using a JIS #000 screwdriver.

One screw might be covered by a red warranty sticker.

  • Remove the three 4.4 mm grey motherboard-cover screws using a JIS #000 screwdriver.
  • Using picks, carefully remove the motherboard cover, taking care to detach and remove the black strip covering the battery simultaneously.
  • Lift up the two ribbons holding the battery in place.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove eight 5.3 mm black ringer-cover screws using a JIS #000 screwdriver.

Use a JIS #000 screwdriver for both 5.3 mm and 4.5 mm screws to avoid stripping the heads.

  • Remove the 4.5 mm grey ringer-screw using a JIS #000 screwdriver.
  • Using an opening tool, carefully remove the ringer-cover and its attached blue wire.
  • Disconnect the blue wire by unclipping its metal head.

Step 7

Step 7 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Lift the two press connectors above the battery using an opening tool.

  • Peel off the stickers on either side of the battery.
  • Note the orange sticker on the right side, which should separate into A and B labels.
  • Pull on the "A" orange sticker to lift the battery. If necessary, use an opening tool for assistance.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove the battery.

  • Pull the "B" orange sticker to peel it off.

Step 9 | Daughterboard

Step 9 image
Thumbnail 1
Thumbnail 2

Disconnect the press connectors. Lift them upwards.

Step 10

Step 10 image
Thumbnail 1
Thumbnail 2

Unclip the metal head of the black wire.

Step 11

Step 11 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Use the reverse tweezers to lift out the fingerprint reader.

  • Lift up the nearby press connector
  • Continue to use the tweezers for this step.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2

Remove the SIM card reader by pulling it upwards.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2

Remove the USB-C charging port dock board by lifting it up.
