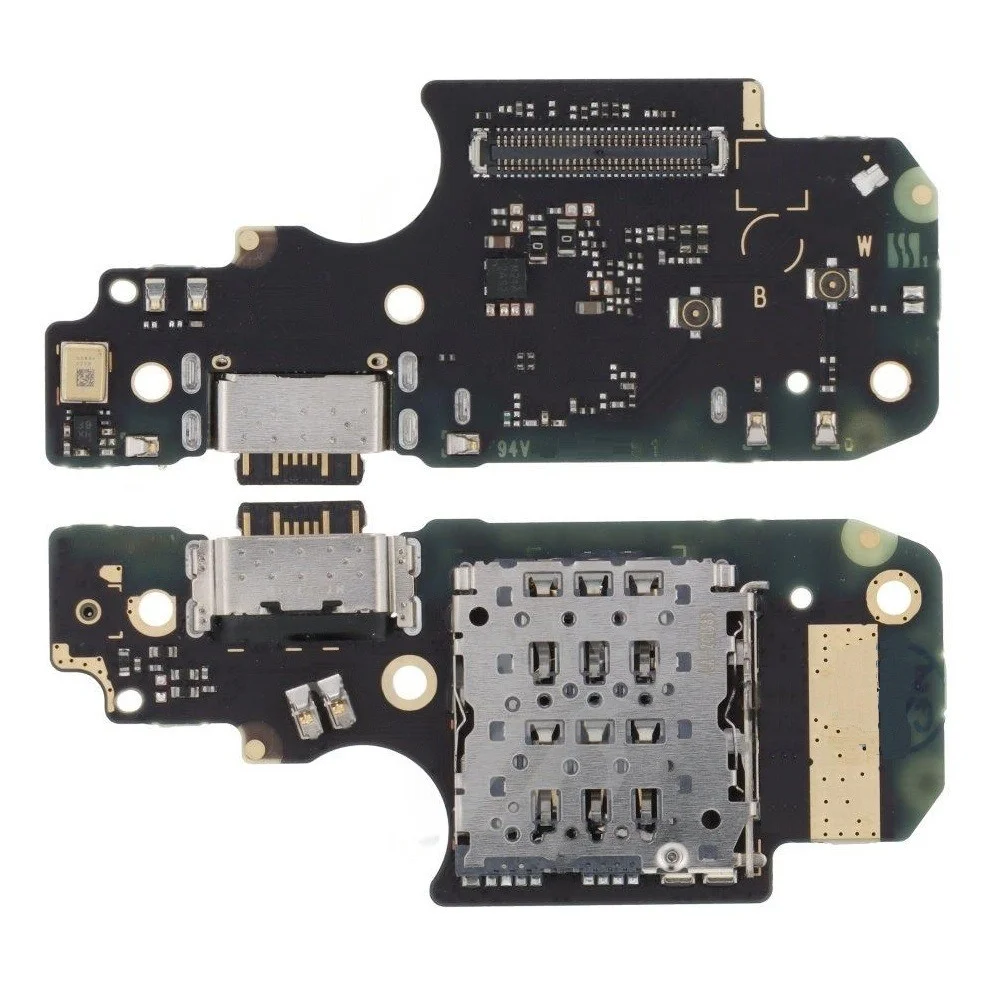

Xiaomi Redmi Note 11 Pro Charging Board Replacement

Apply a iOpener to the rear glass for at least two minutes to loosen adhesive.

• Alternatively, use a hair dryer, heat gun, or hot plate, but exercise caution to avoid overheating the phone.
• Note: The display and internal battery are prone to heat damage.

Secure a suction handle to the bottom edge of the rear glass, as close to the edge as possible.

If the rear glass is cracked, the suction handle may not stick; try lifting it with strong tape or superglue the suction handle in place and allow it to cure.

• Lift the rear glass with the suction handle to create a small gap between the back cover and the frame.
• If you're having trouble creating a gap, apply more heat to further soften the adhesive. Use caution: follow the iOpener instructions to avoid overheating.

• Insert an opening pick into the created gap.
• Slide the opening pick to the bottom right corner to slice the adhesive.
• Leave the opening pick in place to prevent resealing of the adhesive.

Insert a second opening pick at the bottom edge.

• Slide it to the bottom left to cut the adhesive.
• Leave both picks in place to keep the adhesive from sealing again.

Adhesive may cool down and become hard to cut, use iOpener for 1-2 minutes to reheat.

• Insert a third opening pick at bottom left corner of phone.
• Slide opening pick along left edge to slice adhesive.
• Leave pick in top left corner to prevent resealing.

Insert a fourth opening pick into the top left corner of your phone.

• Slide the opening pick along the top edge to cut through the adhesive.
• Leave the opening pick in place at the top right corner to prevent resealing.

• Insert a fifth opening pick under the top right corner.
• Slide it along the right edge of the rear glass to cut the remaining adhesive.

If there's still resistance, use an opening pick to separate any remaining adhesive around the edges.

Remove the rear glass.

• Clean the relevant areas with isopropyl alcohol (greater than 90%).
• Apply new adhesive to cleaned areas as needed.
• Secure the new back cover using either pre-cut adhesive or double-sided tape.

Apply strong, steady pressure for several minutes after installing the back cover — improper adhesion can lead to damage and leakage.

• Use a stack of heavy books for additional pressing pressure, if needed.

Do not insert the SIM eject tool into the microphone holes.

• Insert a SIM card eject tool, SIM eject bit, or straightened paper clip into the hole on the SIM tray at the bottom edge of the phone.
• Press directly into the hole to eject the SIM card tray.
• Remove the SIM card tray.

If you insert the tool into a microphone hole, do not worry; damage is unlikely.

Remove the seventeen 3.6 mm Phillips screws using a Phillips screwdriver.

Careful not to damage the SIM card slot.

• Insert a opening pick into the gap between the midframe and front panel assembly on the bottom left edge of the phone, near the SIM tray slot.

Release of midframe clips may require significant force.

• Insert an opening pick at the bottom left phone corner.
• Slide the opening pick around the edge to release the plastic midframe clips.

Slide the opening pick along the left edge of the phone.

This will release the plastic clips.

Use an opening pick to pry the top left corner and then slide it along the top edge of the phone.

• The goal is to release the plastic clips that hold the screen in place.

Slide a pick around the top right corner and along the right edge of the phone.

• This will release the remaining plastic clips.

• Do not attempt to remove the midframe entirely yet — the midframe cable remains connected to the motherboard.

Open the midframe to the left, like opening a book's cover.

• Allow access to the cable connector.
• Position the midframe next to the front panel assembly's left edge.

Disconnect the midframe cable using a spudger.

• Pry the connector straight up from its socket.

Remove the midframe.

• Disconnect the left battery cable using a spudger, prying straight up.
• Repeat for the right battery cable.

Remove the loudspeaker mounting screw with a Phillips screwdriver.

Remove the loudspeaker by prying it up from the right edge with a spudger.

• Insert the spudger underneath the right edge of the loudspeaker.
• Pry the loudspeaker gently upwards using the spudger.

• Remove the loudspeaker using either your fingers or a pair of tweezers.

Insert tweezers under black coaxial cable, snug against metal connector.

• Pry black coaxial cable straight up from charging board with tweezers.
• Loosen cable from routing on charging board and bend to side using tweezers.

Disconnect the interconnect cable using a spudger, prying the connector straight up from its socket.

Locate the left edge of the charging board.

• spudger underneath.
• charging board using your spudger.

Hold the tweezers or use your fingers to carefully lift out the charging board.
