Samsung Galaxy S9 Plus Fingerprint Sensor and Camera Lens Cover Replacement

Switch off your phone.

• Apply an iOpener for at least two minutes to loosen rear glass adhesive.
• If needed, repeat this step several times during back cover removal.

Use extreme caution when applying heat: the AMOLED display and internal battery are susceptible to damage.

If iOpener is insufficient, use a hair dryer, heat gun, or hot plate. However, be careful not to overheat your phone.

Prying or slicing in this area may damage the fingerprint sensor flex cable.

• Identify and slice through thick portions of adhesive as shown.
• Similarly, target thin areas of adhesive for cutting.

Apply strong tape or superglue to the suction cup if rear glass is cracked.

• Press a suction cup onto the back cover.
• Lift the bottom edge with your suction cup, creating a slight gap.
• If needed, apply more heat and try again as adhesive cools quickly.
• Insert an opening pick in the gap and slide it to the bottom right corner.

Insert a second opening pick near the top right edge and slide it down to the bottom left corner.

• Insert a third opening pick at the bottom end of the phone, positioning it for rear glass removal.
• This opening pick will remain in place throughout the procedure to prevent adhesive resealing.

Insert the opening pick into the bottom left corner.

• Slide the pick along the left side, stopping halfway up.
• Leave the pick in place without moving it further.
• Repeat this process for the bottom right corner, leaving the pick stationary.

Insert a fourth opening pick at the right side and slide it to the top right corner.

• Slide a fifth opening pick along the left side to the top left corner.
• Use an opening pick to cut adhesive under the upper rear glass.

Do not fully open the phone yet, as the flex cable for the fingerprint reader is still connected.

Locate the volume button on the rear glass.

• Lift the glass at this point using care.
• Pry up the fingerprint sensor flex cable with a spudger's edge.

Remove the rear glass.

• When reassembling, refer to the guide for replacing the adhesive and reinstalling the rear glass.
• To replace the rear glass, follow the guide on transferring the rear camera bezel, including the fingerprint sensor.

Be cautious of overheating — risk of damage.

• Apply a heated iOpener to the rear camera lens cover for at least two minutes.
• If necessary, use a hair dryer, heat gun, or hot plate instead of an iOpener.

• Slide an opening pick between the top edge of the bezel and the rear glass.

• If you encounter difficulty, try cutting the adhesive with a playing card instead.
• Opening pick - use to cut the adhesive beneath the upper part of the bezel.

Insert opening pick under the right side of the rear camera bezel.

• Slide the opening pick along the bezel to cut adhesive.
• Twist the opening pick sideways to pry up the rear camera bezel, including fingerprint sensor.

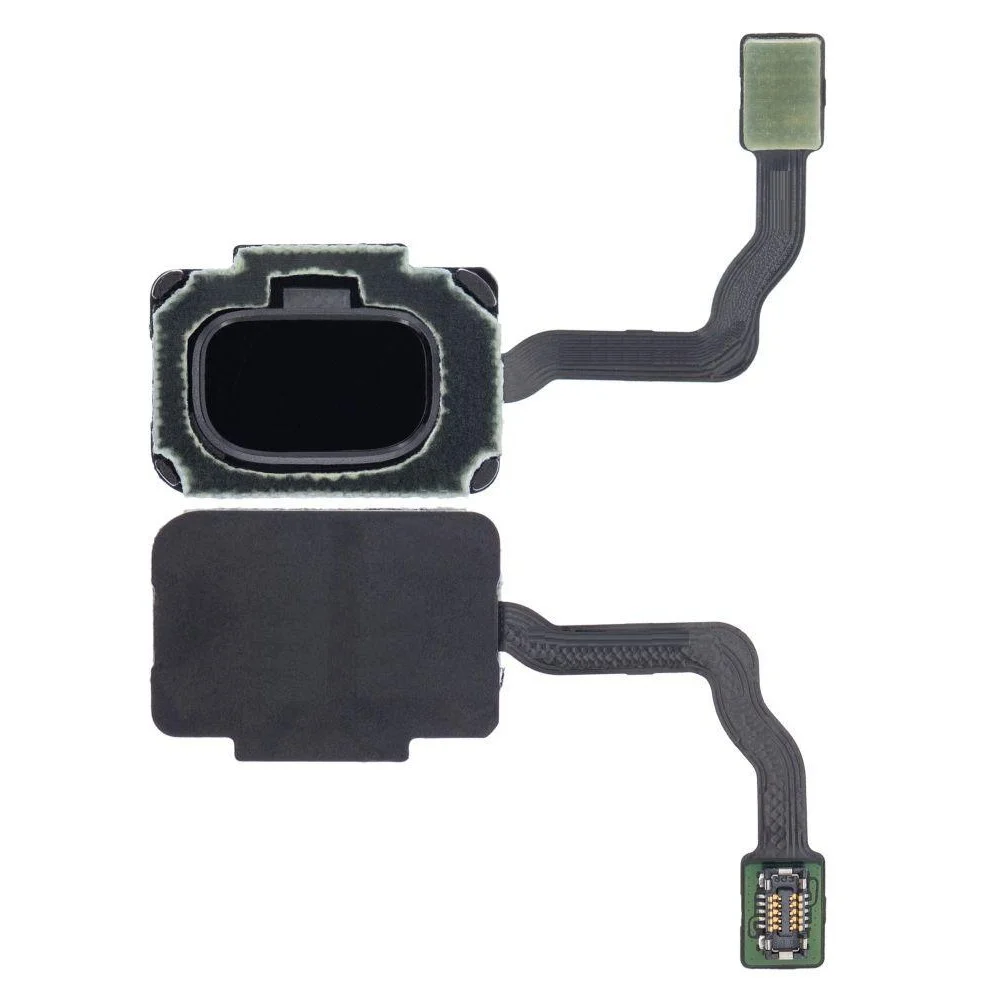

Use tweezers to remove the rear camera bezel, including the fingerprint sensor.

• If using new adhesive, remove remaining adhesive from the bezel with a lint-free cloth and isopropyl alcohol.
• For applying new adhesive, refer to the official guide.
