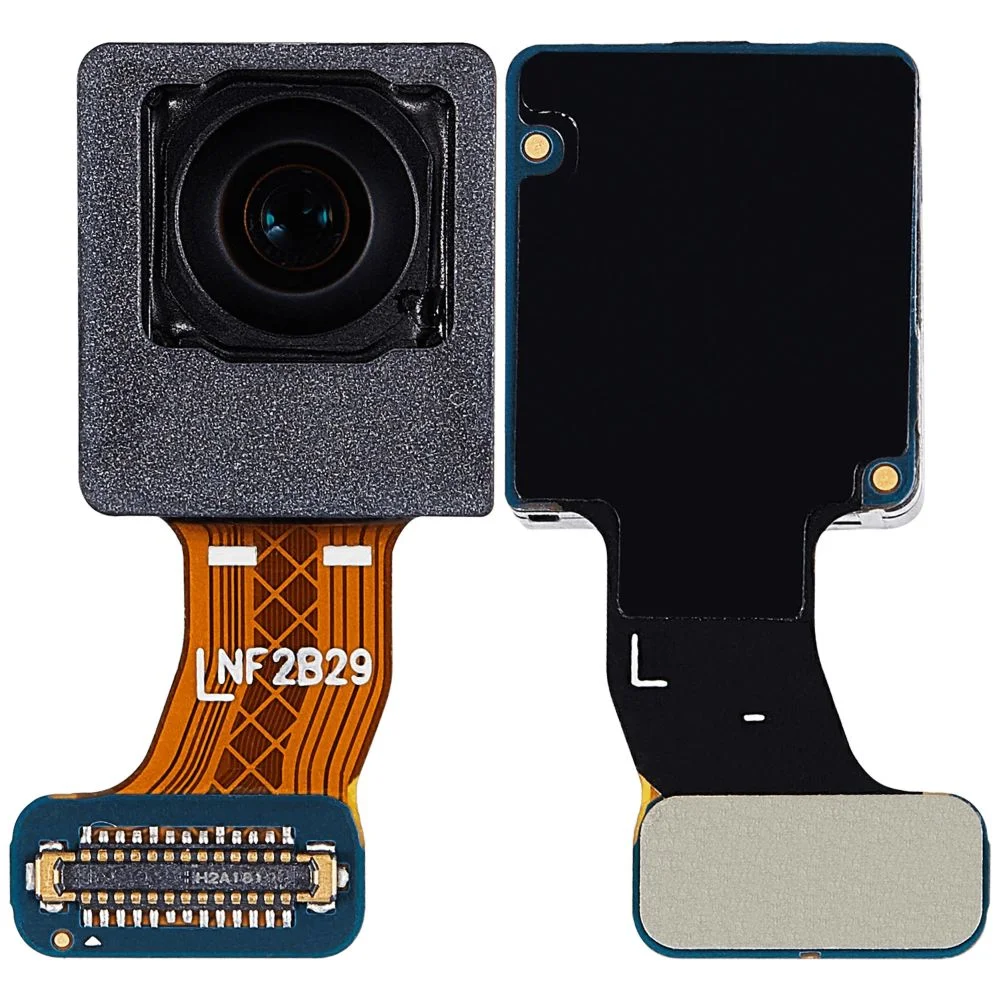

Samsung Galaxy S24 Front Camera Replacement

Replacing the front camera may compromise your Samsung Galaxy S24's water resistance and void its IP rating. To proceed:

  • Follow this guide for step-by-step instructions.

Reapplying the back cover adhesive carefully will help minimize loss of water resistance.

Step 1 | Prepare your phone for disassembly

Step 1 image
Thumbnail 1
Thumbnail 2

Allow the phone's battery to discharge below 25% to avoid potential fire hazards with a damaged lithium-ion battery.

  • Power off the phone completely.
  • Remove all connected cables.

Step 2 | Heat the right edge

Step 2 image

Do not apply excessive heat, as this may cause battery damage.

  • Apply the iOpener or use a hair dryer to heat the right edge of the back glass for two minutes.
  • Wait until the edge is hot to the touch, but avoid overheating the phone.

Step 3 | Insert an opening pick

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Apply a suction handle near the center of the right edge.

  • Pull up on the suction handle with strong force to create a gap.
  • If needed, reapply heat for additional adhesive softening.
  • Insert an opening pick into the gap.

Step 4 | Separate the right adhesive

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert an opening pick into the right edge, moving it along the border to separate the back cover from the frame.

Leave the opening pick in place at the bottom right corner to prevent re-adhesion.

Step 5 | Heat the bottom edge

Step 5 image

Reheat your iOpener and apply it to the bottom of the back cover for two minutes.

Step 6 | Separate the corner adhesive

Step 6 image
Thumbnail 1
Thumbnail 2

Use a precision opening pick and rotate it around the bottom right corner of the device.

Apply gentle prying motions to avoid damaging the surrounding components.

Step 7 | Separate the bottom adhesive

Step 7 image
Thumbnail 1
Thumbnail 2

Insert a second opening pick to the left of the first, sliding it along the bottom edge.

Be careful not to press too hard and damage the device.

Leave the original opening pick in the bottom left edge to prevent resealing.

Step 8 | Heat the left edge

Step 8 image

Reheat the iOpener and apply it to the left side of the back cover for 2 minutes.

Step 9 | Separate the corner adhesive

Step 9 image
Thumbnail 1
Thumbnail 2

Position the opening pick at the bottom left corner of the device.

  • Rotate the opening pick slowly while applying gentle pressure.
  • The adhesive will begin to separate, allowing for easy access.

Step 10 | Separate the left adhesive

Step 10 image
Thumbnail 1
Thumbnail 2

Insert a third opening pick above the last one, and slide it along the left edge.

  • Make sure not to insert the pick more than 4 mm deep to avoid damaging the rear cameras or flash.
  • Leave the pick in place in the top left corner to prevent resealing of the adhesive.

Step 11 | Heat the top edge

Step 11 image

Reheat the iOpener and apply it to the top of the back cover for two minutes.

Step 12 | Separate the corner adhesive

Step 12 image
Thumbnail 1
Thumbnail 2

Hold the pick at the top left corner and gently rotate it.

Apply gentle pressure only — excessive force may damage the screen.

Step 13 | Separate the top adhesive

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Place a fourth opening pick in the top left corner, inserting it at the same depth as the others.
  • Guide this new pick along the top edge and around the top right corner to cut through the adhesive.

Step 14 | Separate the flash adhesive

Step 14 image
Thumbnail 1
Thumbnail 2

Insert a fifth opening pick directly above the camera flash cutout.

  • The opening pick should be inserted under the top of the back cover until it starts to snag on the flash adhesive.
  • Continue to insert the pick deeper into the phone, stopping when you feel the adhesive separate from the back cover completely.

Do not insert the pick any deeper than its center point to avoid damaging the rear cameras.

Step 15 | Remove the back cover

Step 15 image
Thumbnail 1
Thumbnail 2

Remove the back cover by lifting its edges.

  • If still stuck, use an opening pick to gently pry the cover from the frame around the perimeter.

Power on and test all functions before reassembling.

Ensure your phone is completely powered down before proceeding with further disassembly.

  • Remove any remaining adhesive chunks using tweezers or fingers.
  • Apply heat and 90%+ isopropyl alcohol if necessary to aid removal.

For custom-cut adhesives, refer to the specific guide provided.

For double-sided tape, consult the associated guide for reapplication instructions.

Step 16 | Disconnect the wireless charging coil

Step 16 image
Thumbnail 1
Thumbnail 2

Remove the wireless charging coil press connector from the motherboard using a spudger.

  • To reconnect, align the press connector over its socket on the motherboard.
  • Press down gently with your fingertip on one side of the connector, then the other, until it clicks into place.
  • Do not force the connector – risk of damage to the motherboard or press connector.

Step 17 | Remove the wireless charging coil and loudspeaker screws

Step 17 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove the thirteen 3.5 mm screws using a Phillips screwdriver.

  • Six screws secure the wireless charging coil.
  • Seven screws secure the loudspeaker.

Step 18 | Remove the wireless charging coil and loudspeaker

Step 18 image
Thumbnail 1
Thumbnail 2

Locate the notch on the left edge of the loudspeaker assembly.

  • Insert the point of a spudger into the notch.
  • Pry up the loudspeaker to release its clips.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Use a spudger or fingernail to carefully pry up the wireless charging coil and loudspeaker assembly.

  • Remove the assembly from your phone.
  • During reassembly, press around the edges of the loudspeaker to secure it in place before replacing the screws.

Step 20 | Disconnect the battery

Step 20 image
Thumbnail 1
Thumbnail 2

Insert the flat end of a spudger under the battery cable press connector located on the motherboard, then pry up to disconnect it.

Step 21 | Disconnect the earpiece speaker

Step 21 image
Thumbnail 1
Thumbnail 2

Locate the earpiece speaker connector on the left side.

  • Insert the tip of a spudger under the connector.
  • Pry upwards to release the connection.

Step 22 | Remove the earpiece speaker screws

Step 22 image
Thumbnail 1
Thumbnail 2

Remove the earpiece speaker using a Phillips screwdriver. The speaker is secured with five 3.5 mm-long screws.

Step 23 | Remove the earpiece speaker

Step 23 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Locate the earpiece speaker assembly on the chassis.

  • Pry up the earpiece speaker assembly using a flat-end spudger inserted at its bottom edge.
  • Once loose, carefully lift out and remove the earpiece speaker.

Step 24 | Disconnect the front camera

Step 24 image
Thumbnail 1
Thumbnail 2

Insert a spudger into the space beside the front camera press connector and carefully pry it loose.

Step 25 | Heat the front camera

Step 25 image

Avoid applying excessive force which could damage the circuit board.

  • Apply gentle heat to the camera using a hair dryer or heat gun for 90 seconds.

Work slowly, increasing heat as needed if the camera feels stuck due to strong adhesive.

Step 26 | Remove the front camera

Step 26 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Apply consistent force with the flat end of a spudger to pry the front camera from its recess.

If the camera doesn't loosen, use the point of your spudger to scrape away the surrounding epoxy.

  • During reassembly, secure the replacement part with new adhesive or thin, double-sided tape if available.
