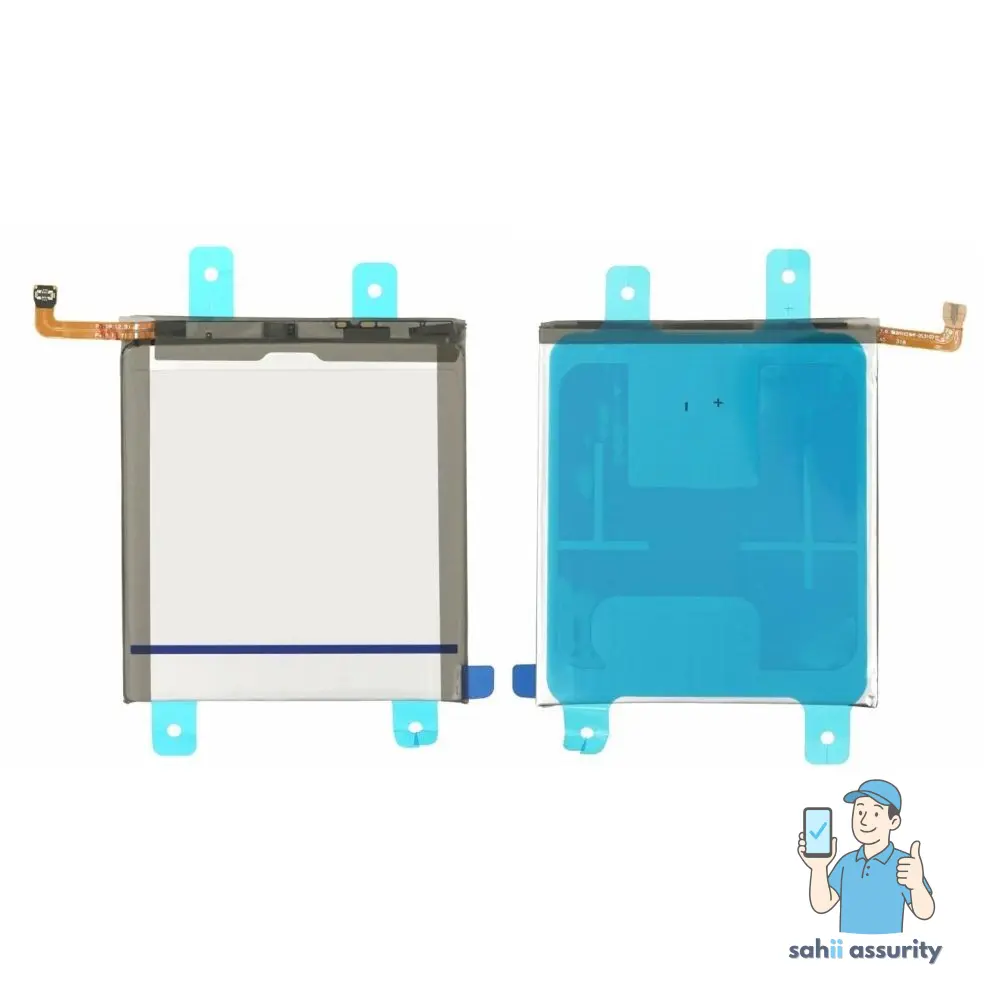

Samsung Galaxy S22 Battery Replacement

This guide is intended for replacing the battery only. If you need to replace the entire OEM screen and battery assembly, follow a different guide.

Step 1 | Heat the bottom edge

Step 1 image

A lithium-ion battery must drain below 25% before starting this repair.

  • Apply a heated iOpener to the bottom edge of the back cover for two minutes.
  • Alternative heating methods: hair dryer, heat gun, or hot plate, but be careful not to overheat the phone.

Step 2 | Adhesive information

Step 2 image
Thumbnail 1
Thumbnail 2

Identify the adhesive securing the back cover along the perimeter of the frame.

  • The adhesive is particularly strong at the bottom right and top left corners.

Step 3 | Insert an opening pick

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Apply a suction handle near the bottom edge of the back cover.

  • Pull up on the suction handle with strong, steady force.
  • When creating a gap, apply more heat if necessary.
  • Follow iOpener instructions to avoid overheating.

  • Insert an opening pick into the created gap.

Step 4 | Slice the bottom adhesive

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Slide a pick back and forth along the bottom edge to cut through the adhesive.
  • Leave the pick in the bottom left corner to prevent further adhesion.

Step 5 | Heat the left edge

Step 5 image

Heat a iOpener and apply it to the left edge of the back cover for 2 minutes.

Step 6 | Slice the left adhesive

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert a second opening pick at the bottom left corner.

  • Slide the pick along the camera bezel's bottom edge to separate the adhesive.
  • Do not insert more than 5 mm of the pick, as it may damage the antenna flex cable or the power button cable.

  • Leave the pick in place to prevent re-adhesion.

Step 7 | Heat the right edge

Step 7 image

Heat an iOpener and apply it to the right edge of the back cover for 2 minutes.

Step 8 | Slice the right adhesive

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert a third opening pick at the bottom right corner.

  • If the adhesive has resealed, insert the pick closer to the bottom edge.
  • Be prepared for this step to take some time and patience.
  • Slide the pick to the top right corner to slice the adhesive.
  • Leave the pick in place at the top right corner to prevent resealing.

Step 9 | Heat the top edge

Step 9 image

Apply heat from an iOpener to the top edge of the back cover for 2 minutes.

Step 10 | Slice the remaining adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Insert a pick into the gap at the top right edge.
  • Slide the pick along the top edge and around the top left corner to remove adhesive.
  • Only insert the pick up to 4 mm to avoid damaging rear cameras or flash.

Step 11 | Remove the back cover

Step 11 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Grab and remove the back cover.

  • If still attached, use an opening pick to slide along the perimeter until completely separated.
  • During reassembly:
    • Power on your phone and test functions before sealing.
    • Make sure to power down your phone completely before proceeding.

  • Remove any adhesive chunks with tweezers or fingers, applying heat if necessary.
  • To reapply new adhesive, refer to the provided guide.

Step 12 | Disconnect the wireless charging coil

Step 12 image
Thumbnail 1
Thumbnail 2

Use a spudger to pry up the wireless charging coil from the motherboard.

  • To reattach press connectors, carefully align them and press down on one side until it clicks into place.
  • Repeat the process on the other side. Do not press in the middle of the connector.

Misaligned connectors can cause permanent damage to the pins.

Step 13 | Unfasten the wireless charging coil

Step 13 image

Remove the wireless charging coil's six 3.5 mm-long screws using a Phillips screwdriver.

Step 14 | Unfasten the loudspeaker

Step 14 image

Remove the loudspeaker's 7 3.5mm screws with a Phillips screwdriver.

Step 15 | Unclip the loudspeaker

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Place the pointed tip of a spudger at the upper left corner of the loudspeaker, between it and the frame.
  • Pry gently to release the loudspeaker from its mounting.
  • During reassembly, press around the perimeter of the loudspeaker to secure it in place using the spring clips.

Step 16 | Remove the charging coil and loudspeaker assembly

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Separate parts at the frame, do not disconnect internal components.

  • Remove the wireless charging coil.
  • Remove the loudspeaker, keeping it connected to the wireless charging coil.

Step 17 | Disconnect the battery

Step 17 image
Thumbnail 1
Thumbnail 2

Insert the pointed end of the spudger into the battery press connector and gently pry it loose.

Step 18 | Disconnect the interconnect cables

Step 18 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Hold the spudger with the pointed tip facing the interconnect cables on the motherboard.

  • Pry up the first cable using a gentle twisting motion.
  • Disconnect the second interconnect cable from its socket.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Use the pointed end of your spudger to carefully pry up and disconnect both interconnect cables from the charging board.

Step 20 | Remove the interconnect cables

Step 20 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove the two interconnect cables from the frame.

  • Disconnect the cable ends by pulling them away from the frame.
  • During reassembly, position the cables with "main" ends toward the top and "sub" ends toward the bottom of the phone.

Step 21 | Disconnect the power and volume buttons

Step 21 image
Thumbnail 1
Thumbnail 2

Use the pointed end of your spudger to gently pry up and release the power and volume button press connector.

Step 22 | Disconnect the left 5G mmWave antenna

Step 22 image
Thumbnail 1
Thumbnail 2

Locate the left 5G mmWave antenna press connector and use the pointed end of your spudger to carefully pry it loose.

  • During reassembly, ensure this cable is routed underneath the battery cable.
  • Position the power and volume button cable below the battery cable as well.

Step 23 | Unfasten the antenna

Step 23 image
  • Remove the two 3.5 mm screws securing the left 5G mmWave antenna using a Phillips screwdriver.

Step 24 | Remove the antenna

Step 24 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert the pointed end of a spudger between the lower screw mount of the antenna bracket and the frame.

  • Pry up on the bracket until you can grab it with tweezers or your fingers.
  • Remove the left 5G mmWave antenna.

Step 25 | Disconnect the screen cable

Step 25 image
Thumbnail 1
Thumbnail 2
  • Locate the screen press connector on the motherboard.
  • Pry it loose using the pointed end of a spudger.

Step 26

Step 26 image
Thumbnail 1
Thumbnail 2

Insert the pointed end of the spudger into the space between the phone's frame and screen.

  • Pry gently upwards to release the screen press connector.
  • The connector should come free, allowing you to proceed with disassembly.

Step 27 | Remove the screen cable

Step 27 image

Disconnect the screen cable.

Step 28 | Apply isopropyl alcohol

Step 28 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove the strong adhesive securing the battery to the .

  • Apply 1-2 drops of high-concentration (90% or higher) isopropyl alcohol between the right edge of the battery and frame using a pipette or syringe.
  • Using too much alcohol can damage the display.

  • Elevate the right edge of the phone for one minute to allow the isopropyl alcohol to flow under the battery and soften the adhesive.

Step 29 | Separate the battery adhesive

Step 29 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Do not puncture the battery, as this can cause a fire hazard or chemical leak.

  • Apply a suction cup to the right edge of the battery, centered if possible.
  • Insert an opening pick between the right edge of the battery and frame.
  • Pivot the opening pick down and rotate it so that its long end is between the battery and frame.

Step 30

Step 30 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Do not crease or bend the battery — risk of chemical leak or fire.

  • Pry up the battery using a steady, strong force with the suction cup and opening pick.
  • Maintain constant pressure until the battery separates from the frame, allowing time for the adhesive to release.
  • If the battery is stubborn, add more isopropyl alcohol and try again.

Step 31 | Remove the battery

Step 31 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove the battery.

Wait 10 minutes if using isopropyl alcohol for cleaning.

  • Allow alcohol to fully evaporate before proceeding.
  • Follow the installation guide for your new battery.
