Samsung Galaxy S20 FE 5G Earpiece Speaker Replacement

This guide replaces a faulty earpiece speaker on Samsung Galaxy S20 FE 5G devices. Replace the earpiece if it's silent or sounds poor quality.

  • The speaker is attached to the motherboard cover.

If your replacement part includes wireless charging coil and loudspeaker, follow the wireless charging assembly guide instead.

You'll need new back cover adhesive for reassembly.

Step 1 | Before you begin

Step 1 image
Thumbnail 1
Thumbnail 2

Let your battery discharge below 25% before proceeding — a charged lithium-ion battery may be hazardous to handle.

  • Switch off your device using the power button.
  • Disconnect all external power and data cables.

Step 2 | Heat the bottom edge

Step 2 image

Apply heat carefully — excessive heat may damage the back cover.

  • Use an iOpener or a hair dryer to heat the bottom edge of the back cover for two minutes.
  • (Using a hair dryer: be cautious, as extreme heat can warp the back cover.)

Step 3 | Insert an opening pick

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Apply excessive heat carefully as it may cause damage.

  • Attach a suction cup to the center of the back cover's bottom edge, aligning with the edge for maximum effect.
  • Pull up firmly on the suction handle until a gap forms between the cover and frame.

If unsuccessful, apply additional heat and try again.

  • Insert an opening pick into the created gap.

Step 4 | Slice the bottom adhesive

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert an opening pick at the bottom edge and slide it along to cut the adhesive.

Avoid removing the opening pick entirely, as this may cause the adhesive to seal back over.

  • Leave the opening pick in place, inserted into the bottom right corner.

Step 5 | Heat the right edge

Step 5 image

Do not apply excessive heat that may warp the back cover.

  • Apply a heated iOpener to the right edge of the back cover for two minutes.
  • Alternatively, use a hair dryer, but with caution and moderate temperature settings.

Step 6 | Slice the right adhesive

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Slide the opening pick along the bottom right corner, then continue up the right edge to cut the adhesive.
  • Leave the opening pick lodged at the top right corner for future use.

Step 7 | Heat the top edge

Step 7 image

Excessive heat may warp the back cover.

  • Apply a heated iOpener to the top edge of the back cover for two minutes.
  • Alternatively, use a hair dryer, but be cautious of extreme heat.

Step 8 | Slice the top adhesive

Step 8 image
Thumbnail 1
Thumbnail 2

Insert an opening pick into the top left corner.

  • Slide the pick around the top right corner, then along the top edge to slice the adhesive.

Step 9 | Heat the left edge

Step 9 image

Use caution when applying heat to avoid warping the back cover.

  • Apply a heated iOpener to the left edge of the back cover for two minutes.
  • Alternatively, use a hair dryer but be careful not to apply extreme heat.

Step 10 | Slice the left adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Insert an opening pick at the top-left corner of the device.
  • Guide it down along the left edge, using a gentle prying motion to cut through any remaining adhesive.

Step 11 | Remove the back cover

Step 11 image
Thumbnail 1
Thumbnail 2

Remove the back cover.

If still attached, carefully use a spudger or credit card to pry the back cover away from the frame.

  • Slide an opening pick around the perimeter to loosen any remaining adhesive.

Step 12 | Reassembly information

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Power on your device and test all functions before sealing it up during reassembly.

Be sure to power down completely before continuing work.

  • If reinstalling old back cover, use tweezers or fingers to peel off adhesive from frame.
  • Use highly-concentrated isopropyl alcohol (over 90%) and microfiber cloth to remove remaining residue.
  • Follow guide to apply new custom-cut adhesive.

If installing new back cover, peel off liners and press firmly around perimeter to secure to frame.

Step 13 | Unfasten the wireless charging assembly

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

The wireless charging assembly consists of the motherboard cover, wireless charging coil, and loudspeaker. Remove these components together as a single unit.

  • Use a Phillips screwdriver to remove the following screws:
  • Nine 4 mm-long screws securing the motherboard cover.
  • Seven 4.5 mm-long screws securing the loudspeaker.

Step 14 | Unclip the motherboard cover

Step 14 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert a pick under the bottom right edge of the motherboard cover.

  • Twist the pick to release the clips securing the cover.
  • Insert and twist an opening pick on the bottom left edge of the cover to release the remaining clips.

When reassembling, press down firmly around the perimeter of the motherboard cover to engage the clips securely.

Step 15 | Reposition the motherboard cover

Step 15 image
Thumbnail 1
Thumbnail 2

Rotate the motherboard cover to gain access to the battery and wireless charging press connectors.

Step 16 | Disconnect the battery

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Careful alignment is crucial to prevent damage when re-attaching press connectors.

  • Use the flat end of a spudger to carefully pry up and disconnect the battery and wireless charging press connectors from the motherboard.
  • To reconnect, align one side of the connector and press down until it clicks into place. Repeat on the other side.
  • Avoid pressing down in the middle, as this can cause misalignment and damage to the pins.

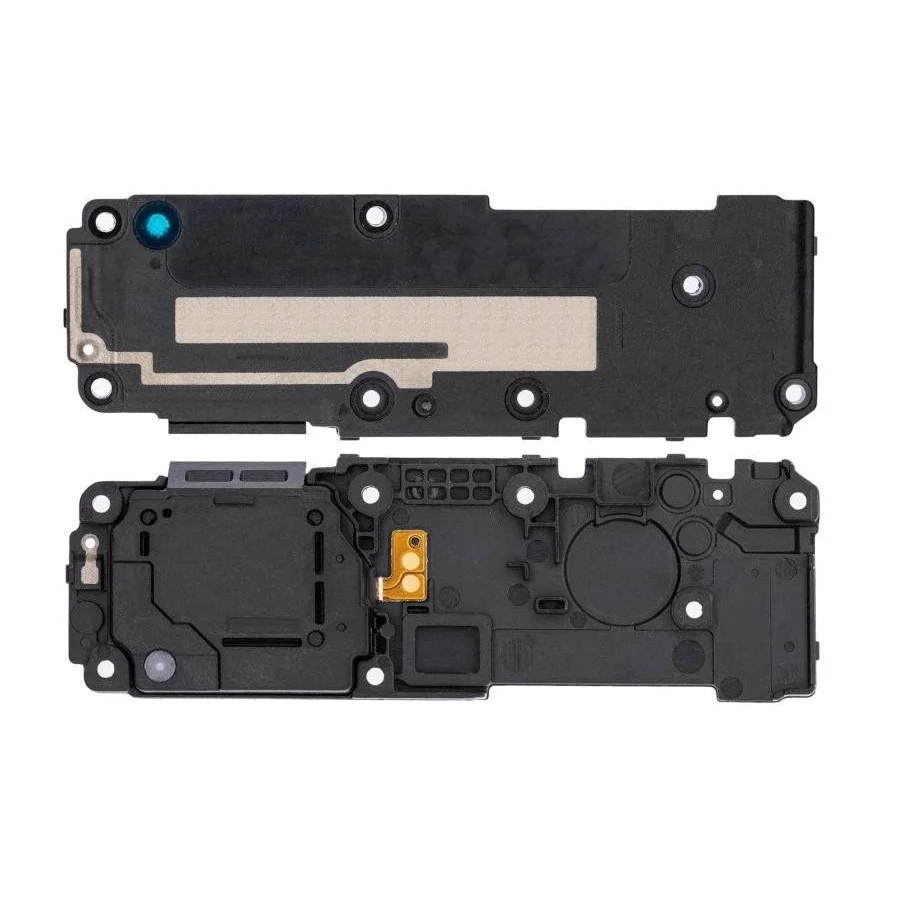

Step 17 | Unclip the loudspeaker

Step 17 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert a spudger point into the bottom left speaker corner.

  • Pry up to release the clips on the left edge of the loudspeaker.
  • Pry up the bottom right speaker corner to disengage the remaining clips.

During reassembly, ensure tight seating around the perimeter by pressing down firmly on the loudspeaker with your hands.

Step 18 | Remove the wireless charging assembly

Step 18 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Remove the wireless charging assembly.

Step 19 | Heat the graphite tape

Step 19 image
Thumbnail 1
Thumbnail 2

Apply heat to the graphite tape using an iOpener or a hair dryer.

  • Position the iOpener on the tape and let it sit for a few minutes.
  • If using a hair dryer, apply gentle heat to the tape until it becomes soft and pliable.

Step 20 | Remove the wireless charging coil

Step 20 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Adhesive may be strong; proceed with care.

  • Peel the wireless charging coil slowly from the motherboard cover.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2

Compare the new earpiece speaker to the original part.

  • Remove any adhesive backings from the new earpiece speaker.
  • Verify that all components are present and match the original part.
