Samsung Galaxy Note20 Front-Facing Camera Replacement

Discharge the battery to below 25% before disassembly to prevent damage and thermal events.

  • If your phone has a swollen battery, take necessary precautions when handling it.

Step 1 | Heat the rear cover

Step 1 image

Completely power off your phone.

  • Heat an iOpener and apply it to the left side of the rear cover for one minute.
  • Alternatively, use a hair dryer, heat gun or hot plate with caution: never overheat, as this can damage the screen, internal battery or plastic rear cover.

Step 2 | Insert an opening pick

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Apply a suction cup to the heated edge of the rear cover, as close to the edge as possible.

  • Pull up on the suction cup with strong, steady force to create a gap between the rear cover and the frame.
  • If necessary, apply more heat to the edge and try again, depending on your phone's age.

Insert an opening pick into the gap, but be cautious not to push it more than 5 mm into the phone to avoid damaging internal components.

Step 3 | Begin to cut the adhesive

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert pick no deeper than 5mm to avoid damage.

  • Slide pick along left edge towards bottom left corner.
  • Leave pick inserted in bottom left corner to prevent re-sealing.

Step 4 | Cut along the perimeter of the rear cover

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Continue heating and cutting the adhesive along the remaining three sides of the rear cover.

  • Insert new opening picks in the gaps left by previous picks in each corner.
  • Leave a pick in each corner to prevent re-sealing as you progress.

If still attached, try re-cutting the adhesive with an opening pick.

Step 5 | Remove the rear cover

Step 5 image
Thumbnail 1
Thumbnail 2

Remove rear cover by lifting it straight up.

Step 6 | Remove the motherboard shield

Step 6 image

Remove six 4.0 mm Phillips screws securing the motherboard shield using a Phillips screwdriver.

Screws may be difficult to remove due to threadlocker.

Label and track each screw for correct reassembly.

Step 7

Step 7 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Be cautious when handling the motherboard shield due to its sharp, thin edges.

  • Lift up and flip back the motherboard shield using a pair of tweezers.

Step 8 | Disconnect the battery

Step 8 image
Thumbnail 1
Thumbnail 2

Never apply pressure to the middle of a press connector.

  • Use a spudger to pry up the battery press connector, carefully targeting only under its edge.
  • Hold the motherboard shield aside with tweezers.
  • To reattach, align and press one side until it clicks, then repeat on the other side.
  • Avoid misalignment to prevent pin bending and permanent damage.

Step 9 | Disconnect the wireless charging coil

Step 9 image
Thumbnail 1
Thumbnail 2
  • Hold the motherboard shield away from the work area with a pair of tweezers.
  • Pry up the wireless charging coil press connector using the pointed end of a spudger.

Step 10 | Remove the wireless charging coil

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Hold the motherboard shield firmly in place.

  • Pry the wireless charging coil away from the device, starting at one edge.
  • The wireless charging coil may be secured with light adhesive; take care not to damage it.
  • Remove the wireless charging coil once it is free.

Step 11 | Remove the earpiece speaker screws

Step 11 image

Remove the earpiece speaker using a Phillips screwdriver.

  • Remove the five 4.0mm screws from the frame

Step 12 | Remove the earpiece speaker

Step 12 image
Thumbnail 1
Thumbnail 2
  • Slide the flat spudger under the earpiece speaker's bottom edge.
  • Pry up on the spudger to loosen the earpiece speaker from its frame.
  • The earpiece speaker clips along the top edge of the frame.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2

Remove the earpiece speaker.

Step 14 | Disconnect the front-facing camera

Step 14 image
Thumbnail 1
Thumbnail 2

Be prepared for the front-facing camera to detach and potentially fly out.

  • Pry up the front-facing camera press connector using a spudger's pointed end.
  • The camera is only secured by this connector, so be cautious of ejection.

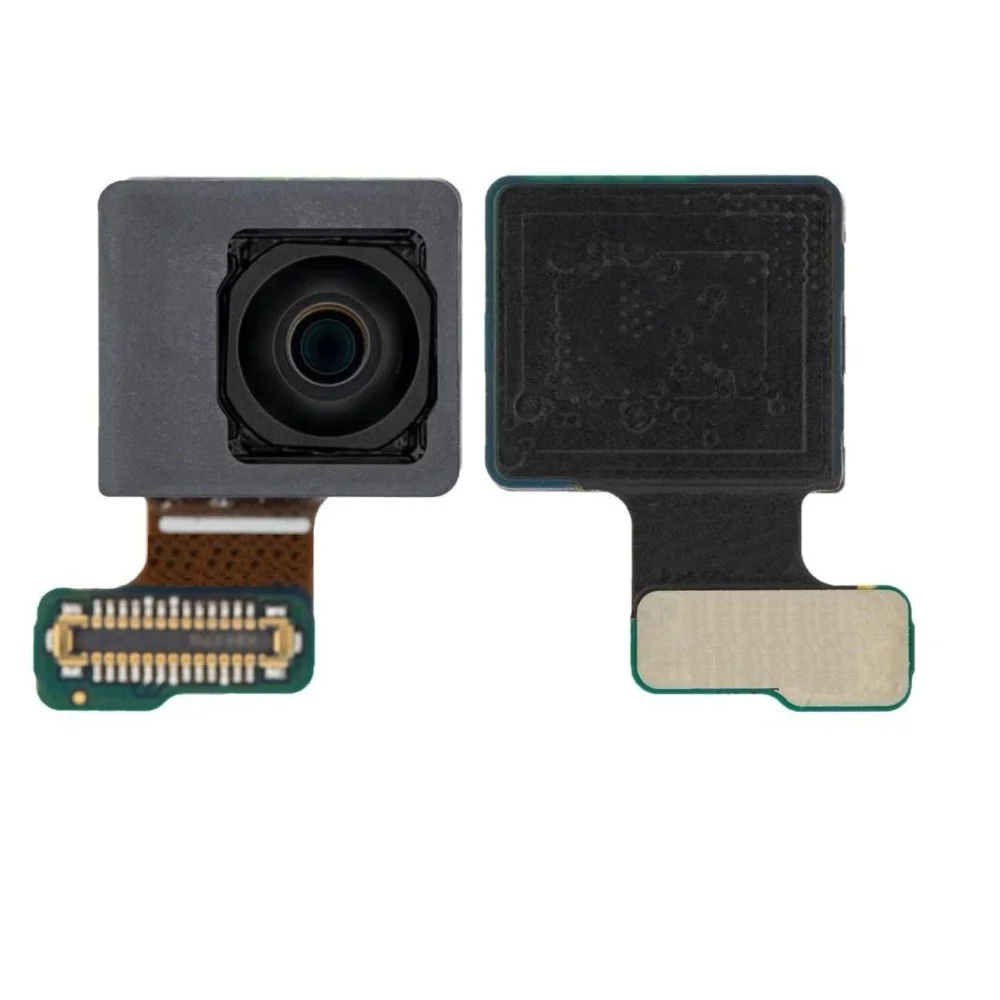

Step 15 | Remove the front-facing camera

Step 15 image
Thumbnail 1
Thumbnail 2

Remove the front-facing camera with a pair of tweezers.
