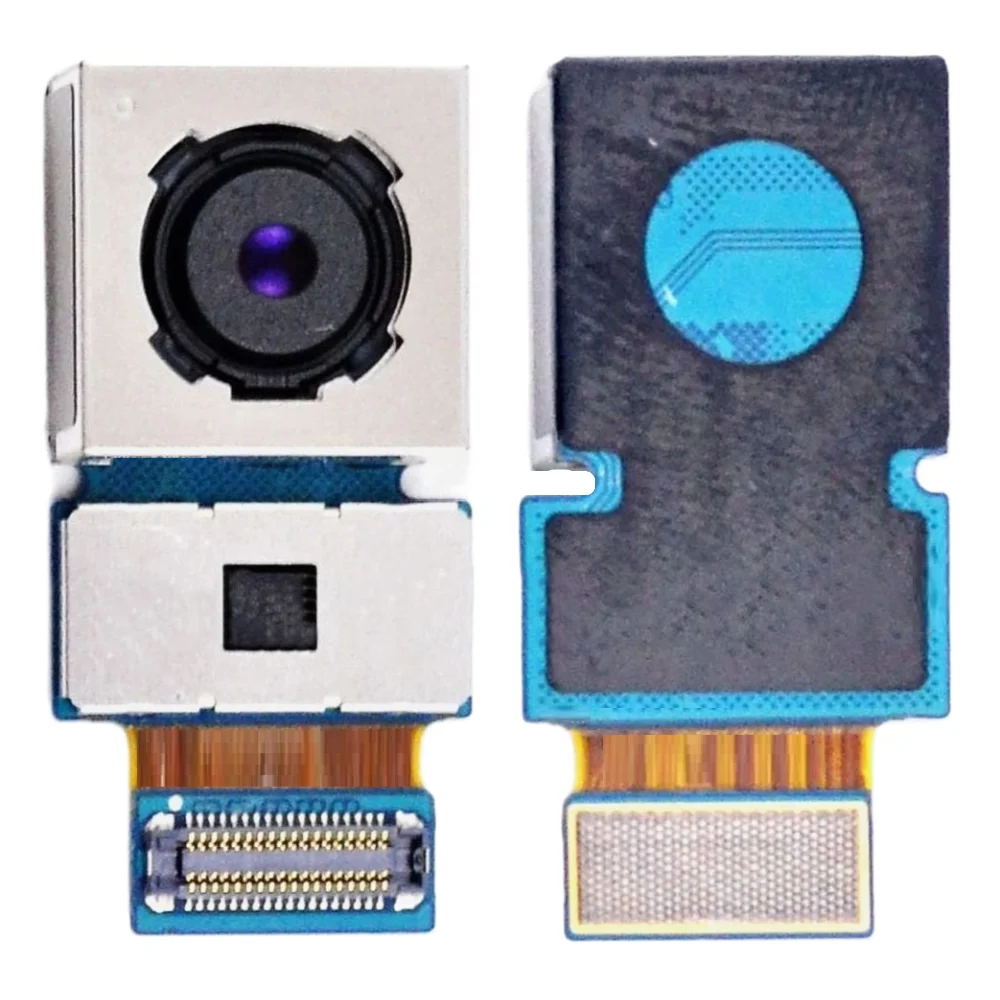

Samsung Galaxy Note Edge Rear Facing Camera Replacement

Turn off your device completely.

• Face the screen downwards when placing the phone on a clean, flat surface.

Locate the notch in the top left corner of the phone.

• Use your Supdger to remove the back cover.
• The next notch is located underneath the battery; use your Supdger to disconnect it.

Note that we were unable to complete this step as our device was without a battery.

Remove the SIM Card from its holder by sliding it horizontally.

• Slide the SIM Card out of its slot using a gentle horizontal motion.
• Next, remove the stylus from its holder located nearby.

Use a Phillips #000 Screwdriver to remove fifteen 4mm screws securing the rear chassis.

• Insert a spudger into the stylus socket and pry the midframe from the phone.
• Maintain the edge of the phone with your spudger, carefully prying the midframe until entirely separated.

• Disconnect the pink and white wires using the pointed end of your spudger.
• Use the pointed end of your spudger to disconnect the fingerprint scanner cable above them.

Use the Spudger's pointed end to carefully pry off the leads connecting the:

• Front Facing Camera
• AMOLED Display Screen
• AMOLED Capacitive Screen

Insert the spudger's pointed end at the top end.

• Lift the motherboard up gently.
• Disconnect the cable connecting the daughter board, which is attached to the underside of the motherboard.
• Remove the motherboard from the device.

Disconnect the rear-facing camera connector using a spudger.

Perform this step on a flat surface to prevent the camera from falling.

• Locate the cable to the right of the camera module.
• Remove the rear-facing camera once the connector has been disconnected.
