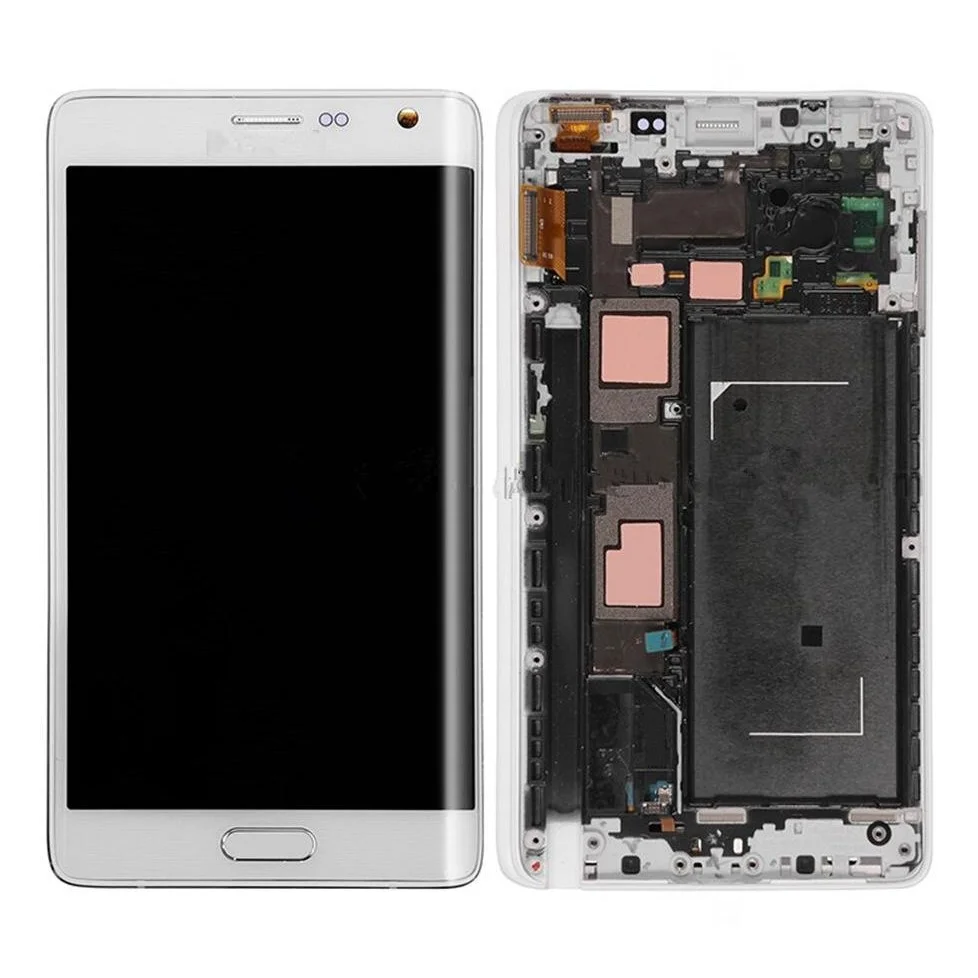

Samsung Galaxy Note Edge Display Assembly Replacement

Switch off the device.

• Remove the back cover.
• Disconnect and remove the battery.

Remove the SIM card, Memory card, and S Pen.

• Use a Screwdriver Phillips #00 to remove the screws.
• Utilize a plastic opening tool to carefully remove the Back Frame.

• Remove the coaxial antenna cables (2).
• Disconnect the Home Button flex cable.
• Release the Display Flex cable.
• Separate the Stylus Sensor flex cable.
• Detach the Front Camera flex cable.

Prise open the connector on the rear edge of the board.

• Gently lift out the logic board.

Before installing the new part, test it separately to ensure it works properly.

• Disconnect the Power button/Loud speaker flex cable.
• Motherboard installation follows.
• Verify the display is working correctly after installation.
• To prevent damage, install the back frame before testing the new part.

• Inspect the thermal pads for quality, if replacing with a non-original part.
• If needed, transfer the thermal pads from the old assembly to the new one.

Never touch the capacitor terminals — risk of electric shock.

• Locate and disconnect the battery connector.
• Next, remove the circuit board cover to access internal components.
• Use a screwdriver to carefully loosen any retained screws holding the circuit board in place.

Locate the black Phillips screw and remove it.

• Remove the charging port plate.
• Disconnect both coaxial antenna cables.
• Be cautious of other cables, disconnect the Home buttons flex cable.
• Use a plastic opening tool and hot air to remove the Charging Port flex assembly.

Reassembly requires following original disassembly steps in reverse.
