Samsung Galaxy J3 Emerge Speaker Replacement

Apply heat to the screen edges using a hair dryer.

• Insert the iFixit Opening Tool between the screen and body, starting at an edge.
• Work the tool around the entire screen to break the adhesive.

Careful not to damage the screen.

• Lift the screen up from the bottom.
• Pry the gray cover open using a tool.

Remove the connector from the motherboard with a clean nail or an iFixit opening tool.

Remove the eleven Phillips #00 3.5mm screws.

• If a screw becomes stuck, apply tape to the head and remove it.
• The tape should come off with the screw, freeing it from the device.

Flip the phone over and press firmly on the area where the battery resides.

A loud clicking sound is expected upon applying sufficient pressure.

Insert the iFixit Opening Pick between the motherboard and the panel.

• Work the iFixit Opening Pick around the outside edge of the motherboard.

Be careful not to damage the motherboard or surrounding components.

• Pry the motherboard gently away from the phone using your fingers.

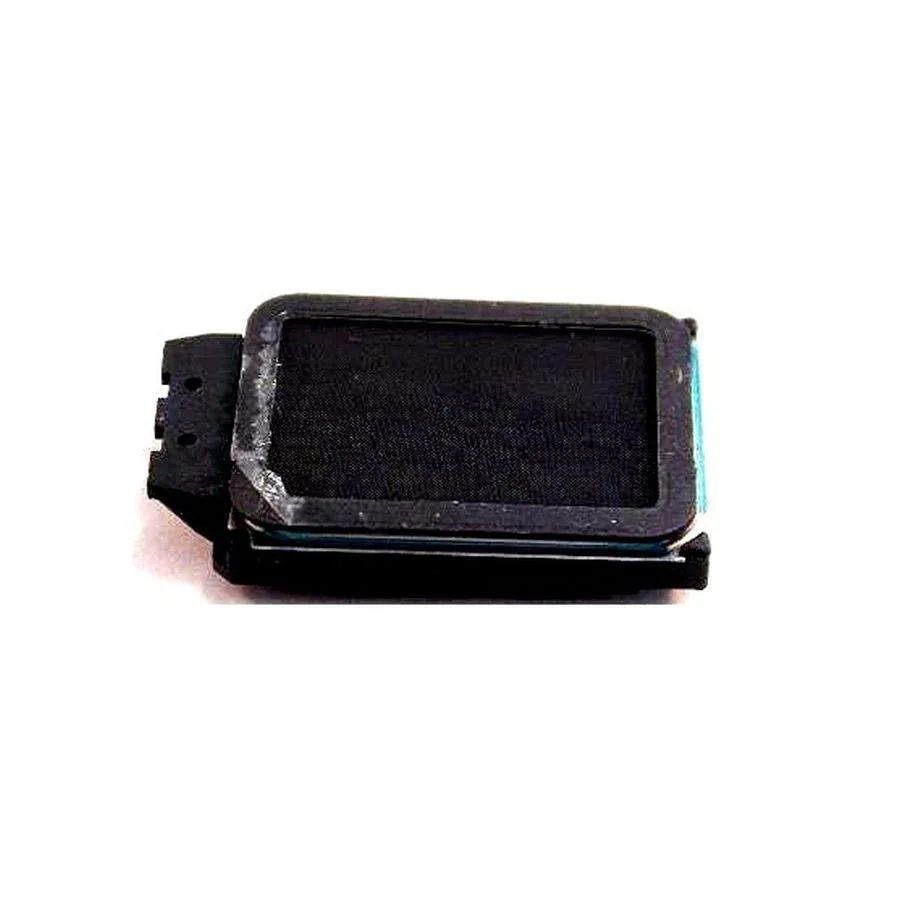

• Use a iFixit Opening Pick to carefully pry the speaker loose from the back.
• Either manually grasp and remove the speaker, or use tweezers for more precision.
