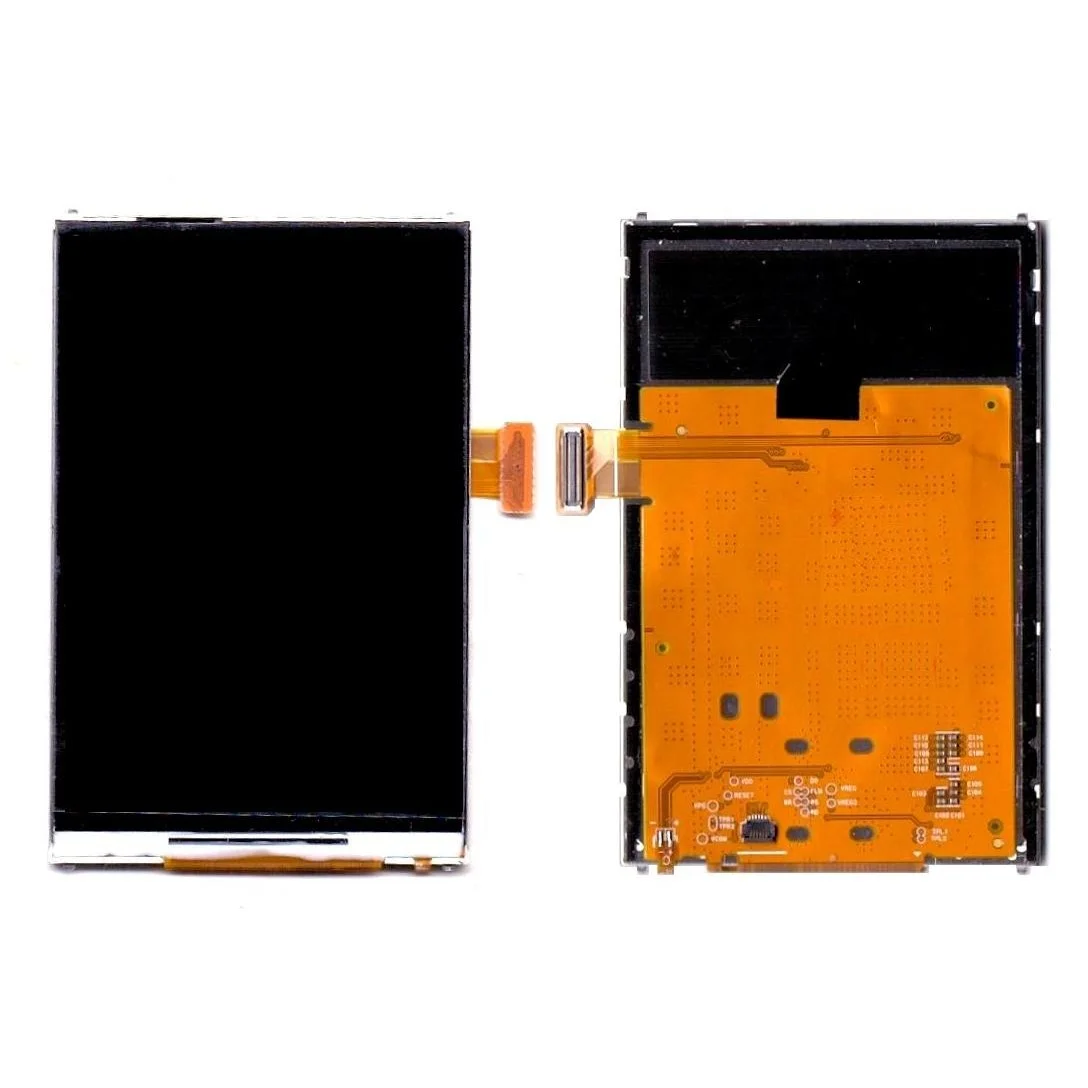

Samsung Galaxy Fame S6812i LCD Screen Replacement
Step 1 | Remove the Battery Cover
Locate the small indentation at the top of the device.
- Use a plastic opening tool or your fingernails to pry the cover away from the mid-frame.
Step 2 | Remove the Battery
Identify the battery compartment's bottom left corner.
- Lift the battery using your fingers or a plastic opening tool.
Step 3 | Remove the Mid-Frame
Breaking the reflective foil or damaging any internal components will void the warranty.
- Remove five 3mm screws along top and bottom edges with a Philips #00 screwdriver.
- The middle screw may be hidden under reflective foil; proceed with caution.
- Use the plastic removal tool to carefully pry the mid-frame from the device.
- Work slowly around edges, applying gentle pressure as needed.
Step 4 | Unplug LCD Screen from the Motherboard
Use the pointed end of the spudger carefully to disconnect the ribbon connections on the motherboard.
Step 5 | Remove the Motherboard
Insert the plastic opening tool between the motherboard and front plate.
- Pry the motherboard and chassis away from the front plate.
Step 6 | Remove Damaged LCD Screen
Remove the LCD from the front plate using one side of a pair of tweezers.
- Work in a clean environment to prevent damage and contamination.
- Avoid touching the inside of the plastic screen cover or the face of the new LCD Screen, as they cannot be cleaned once reassembled.
Avoid touching sensitive components — oil from skin can cause damage.
