Samsung Galaxy Note10+ Vibration Motor Replacement

Power down your phone completely before disassembly.

• Apply an iOpener to the left edge of the rear cover for one minute.
• Alternatively, use a hair dryer, heat gun, or hot plate, but exercise caution to avoid overheating, which can damage the display and internal battery.

Apply a suction cup to the heated edge of the rear cover as close to the edge as possible.

• If the rear cover is badly cracked, apply a layer of clear packing tape first for better adhesion.
• Alternatively, use strong tape instead of the suction cup or superglue it directly.

Be cautious when using superglue as it can damage other components.

• Pull up on the suction cup with strong, steady force to create a gap between the rear cover and frame.
• Apply more heat if necessary, especially for older phones that may require extra assistance.
• Insert the point of an opening pick into the created gap.

Slide the opening pick along the left edge towards the bottom left corner to slice the adhesive.

Never insert more than halfway into the phone, as this may damage internal components.

Leave the pick inserted in the bottom left corner to prevent re-sealing of the adhesive.

Continue with the heating and cutting process for each of the remaining three phone sides.

• Leave an opening pick on each side before moving on to the next, preventing resealing of the adhesive.

The rear cover may detach from the phone as all sides are completed.

Remove the rear cover by lifting it straight up.

• For reinstalling the rear cover, refer to the provided guide on adhesive replacement.

Turn on your device and test the repair before applying new adhesive or resealing the device.

When using Tesa tape for reattachment, follow the instructions in this guide.

Remove the wireless charging coil by unscrewing its five 4 mm Phillips screws.

Use tweezers to carefully lift and flip back the metal shield over the battery connector.

Hold the metal shield away from the area.

• Pry up the battery connector with the pointed end of a spudger.

Disconnect the wireless charging coil connector from the motherboard using the pointed end of a spudger.

Peel the wireless charging coil upwards, releasing it from the light adhesive.

• Tilt the metal shielding up to access the coil.
• Grip the metal shielding with your fingers and gently pry the coil free.
• Remove the wireless charging coil from the device.

Remove the loudspeaker by unscrewing the five 4 mm Phillips screws

Use tweezers to carefully extract the loudspeaker.

• Use the pointed end of a spudger to disconnect the main interconnect cable from the motherboard.
• Disconnect the secondary interconnect cable from the motherboard.

• Use the pointed end of a spudger to disconnect the main interconnect cable from the daughterboard.
• Disconnect the secondary interconnect cable from the daughterboard.

Disconnect both interconnect cables.

Remove the three 4 mm screws securing the charging assembly daughterboard using a Phillips screwdriver.

Use the pointed end of a spudger to gently pry the daughterboard free from its mounting.

Remove the daughterboard using a pair of tweezers.

When using tweezers near the battery, avoid puncturing it — risk of damage.

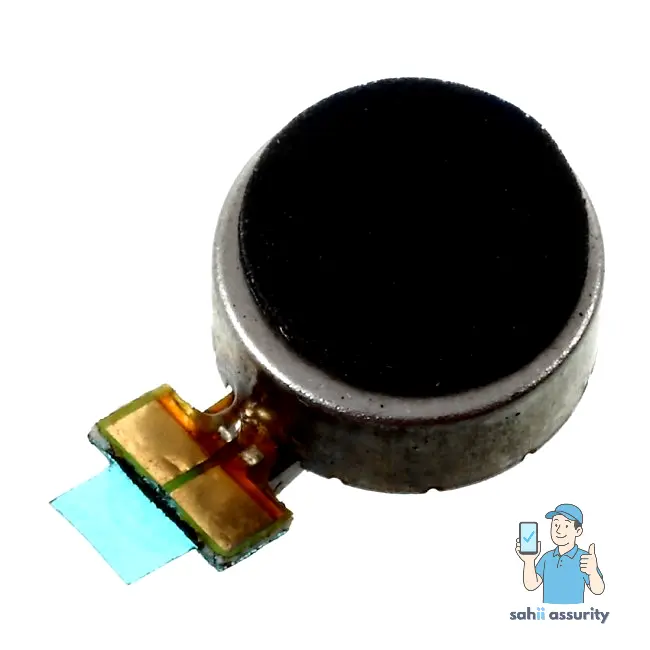

• Use a pair of tweezers to carefully pull out the vibration motor from its recess in the frame.
• The vibration motor is secured with light adhesive.
• Remove the vibration motor.
