OnePlus Nord N10 5G Camera Lens Replacement

Insert SIM card eject tool into hole on side of phone.

Press firmly to release SIM tray, then pull it out completely.

Apply heat from a heat gun to loosen the adhesive holding the back cover in place.

• Target the main areas of attachment first, then move on to the surrounding areas for complete loosening.
• Optional: You can also heat the glue around the fingerprint button at this time if it will make future steps easier.

Position the suction cup on the rear panel and compress it.

• Gently pull the suction cup away from the device.
• Use a prying tool to carefully pry between the back cover and one side, scraping off any remaining adhesive.
• Continue to slowly remove the back panel.

Acquire a screwdriver.

• Align the screwdriver's tip, marked with a plus sign, with the corresponding symbol on each screw.
• Insert the driver and rotate counterclockwise to loosen the screws. Repeat this process for all four screws surrounding the camera lens.

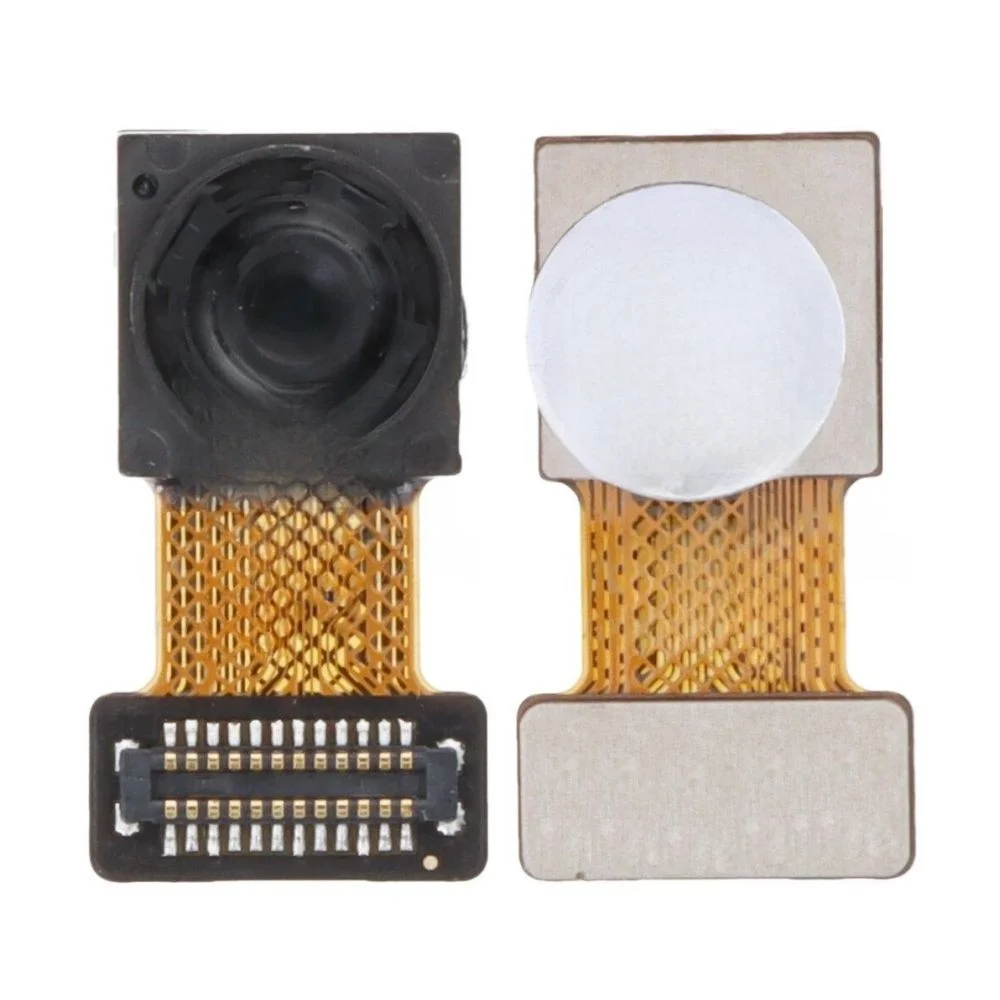

Carefully remove the lens as it may be fragile.
