OnePlus 3 Fingerprint Scanner Replacement

Some illustrations may depict unnecessary component removal; proceed with only required steps.

  • Remove the daughterboard.
  • The most challenging aspect is releasing the .

Step 1 | SIM Card Tray

Step 1 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Insert a SIM eject tool, bit, or straightened paperclip into the hole between the SIM card slot and power button.

  • Press firmly to eject the SIM card tray.
  • During reinstallation, ensure proper orientation of the SIM card tray as it fits in only one direction.

Step 2 | Back Cover

Step 2 image

Remove the two 2.6 mm T2 screws located at the bottom edge of the phone.

Step 3

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Improper opening procedure may damage display panel.

  • Read these instructions carefully before proceeding.
  • Pry at the frame seam, not the display panel seam.

Do not pry at the display panel seam to avoid separating and damaging it.

Be aware of the fourteen clips securing the frame to the rear case as you proceed.

Step 4

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Avoid powering on the phone accidentally during disassembly.

  • Turn off the phone if it powers on unintentionally before continuing.
  • Position a suction cup near the display's bottom edge.

Apply strong steady force to pull on the suction cup.

  • Pierce the frame seam with an opening tool, pressing straight in near the suction cup.
  • The tool should wedge between the frame and the back cover's lip.

Be aware that this requires considerable force due to tight tolerances.

  • Using a new opening tool with an intact edge will aid in this process.
  • Avoid using metal tools, as they may crack the screen.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Slide the opening tool along the bottom edge of the phone.

Keep the tool's edge within the seam to avoid damaging the surrounding components.

  • Guide the tool around the left corner of the phone while maintaining a smooth motion.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2

Continue sliding the opening tool along the long edge, releasing clips as you go.

The last clip near the alert switch may be recessed; use patience and a flat-ended spudger or opening pick for assistance.

Step 7

Step 7 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Wiggle the frame gently to release the top and right edge clips.

  • Lift the screen up and remove it.

Test your phone's functionality before securing the back cover during reassembly.

  • Align the top edge of the frame to the back cover.
  • Ensure the top clips slip into place.
  • Squeeze along the long edges to snap the remaining clips into place.

Step 8 | OnePlus 3 Battery Disconnect

Step 8 image
Thumbnail 1
Thumbnail 2

Never press down on the middle of a reconnecting press connector.

  • Use the point of a spudger to pry up and disconnect the battery connector from its socket.
  • Bend the connector away from the socket to prevent accidental contact.
  • To re-attach: align, press one side until it clicks, then repeat on the other side.
  • If misaligned, pins can bend and cause permanent damage.

Step 9 | OnePlus 3 Interconnect Cable Disconnect

Step 9 image
Thumbnail 1
Thumbnail 2
  • Remove the 3 mm Phillips screw holding the cable bracket in place.
  • Take out the cable bracket.

Step 10

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Use the point of a spudger to pry up and disconnect the interconnect flex cable from the motherboard, located above the battery.
  • Repeat the process to disconnect the daughterboard flex cable from the motherboard.

Step 11 | Daughterboard

Step 11 image
Thumbnail 1
Thumbnail 2
  • Insert the point of the spudger between the interconnect flex cable and the daughterboard.
  • Pry gently to release the cable from its connection.

Step 12

Step 12 image

Disconnect the interconnect flex cable.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Use a spudger to carefully disconnect the capacitive buttons connector.

  • Pry up the connector from the daughterboard, located below the battery.
  • Repeat this process for the fingerprint scanner connector.

Step 14

Step 14 image
Thumbnail 1
Thumbnail 2

Insert the spudger under the antenna interconnect cable and gently pry up to release its connection with the daughterboard.

Step 15

Step 15 image

Remove the two 3 mm black screws and five 2.9 mm silver screws holding the daughterboard in place.

  • Identify the correct screws by their length and color.
  • Use a screwdriver with a suitable tip size for each type of screw.

Step 16

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Locate the plastic clips holding the daughterboard in place.

  • Insert the flat end of a spudger under the loudspeaker vent.
  • Gently twist the spudger to release the daughterboard from its clips.

Step 17

Step 17 image

Remove the daughterboard.

  • To reinstall, align one side edge with the phone and press down on the other until it clicks.
  • If not clicking into place easily, check for trapped flex cables or antenna cables.

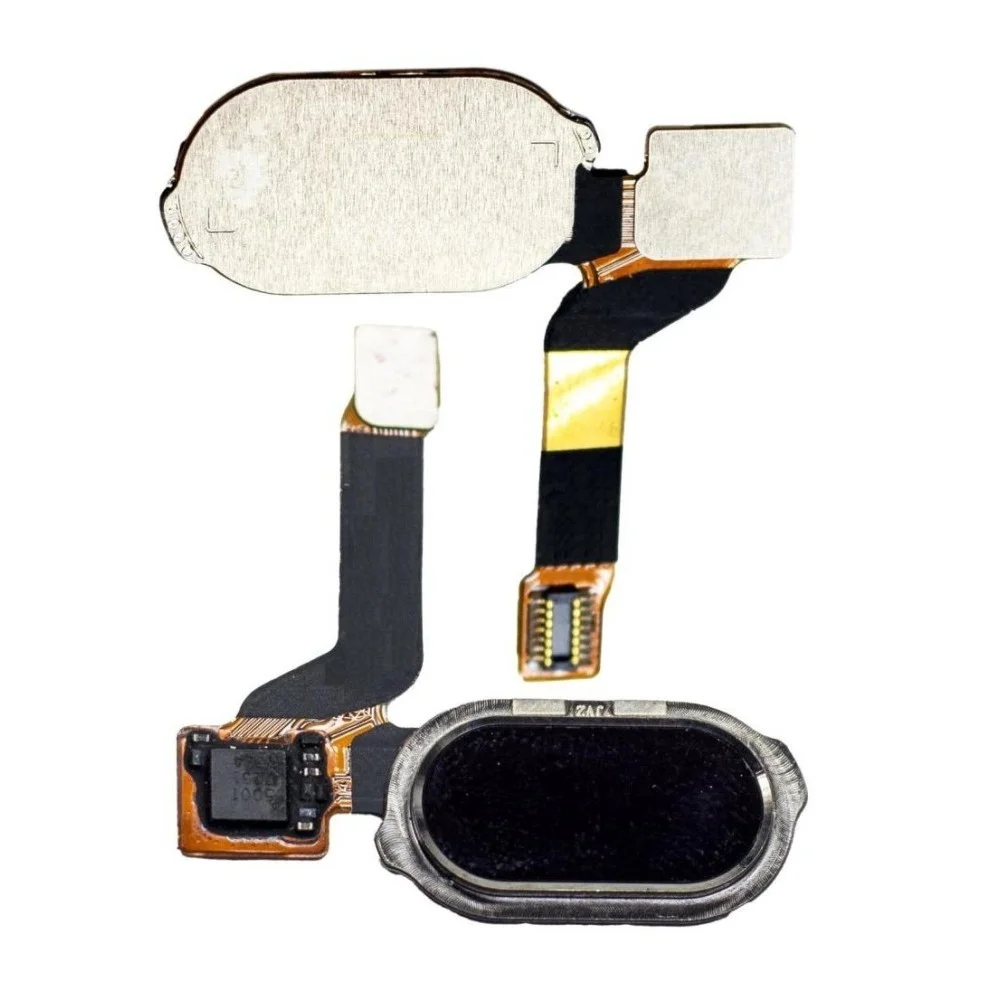

Step 18 | Fingerprint Scanner

Step 18 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Insert an opening tool under the fingerprint scanner cover at the bottom edge of the frame.
  • Pry up to dislodge the cover, then remove it completely.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2

Push the fingerprint scanner with your fingertip from the front of the display until it comes loose.

  • Locate the fingerprint scanner's recess on the front of the display.
  • Firmly press the fingerprint scanner in this area with your finger until it dislodges.

Step 20

Step 20 image

Peel the fingerprint scanner along with its tape from the .

  • Continue by removing the fingerprint scanner.
