OnePlus 2 Front and Rear Camera Replacement

Power off the phone before proceeding.

• Remove the external casing using:
• A Opening Pick
• Your thumbnail
• A Spudger

Be careful not to push too hard — risk of damage.

Locate the SIM Card Tray on the back of the device.

• Position your thumb near the edge of the tray.
• Gently slide the tray out with a smooth motion.

Ensure you have a SIM card ejector tool before proceeding, as attempting to force it may damage the phone.

• Pry open the SIM card tray gently using the SIM card ejector tool.
• Continue prying until the SIM card tray is free from the phone.

The SIM card tray will now be accessible for removal or replacement.

• Remove 6 Rubber Screw Covers with your Tweezers.

• Use the tweezers to prevent damaging the covers.

Next, remove 18 Mid Frame Screws using a suitable driver.

• Use a Plastic Opening Tool to gently pry up the mid frame.

Work slowly, releasing clips along the entire phone perimeter to avoid damage.

• Remove all retaining clips carefully to free the frame completely.

• Pry up the battery using a spudger.
• The battery should break free from its adhesive.
• Pry the connection to the phone loose with a spudger, top right side.

Use a spudger to carefully pry the bottom-right camera connections loose — be gentle to avoid damage.

• Target two separate connections: one for power and one for data.
• Pry both connections before lifting the wiring assembly.

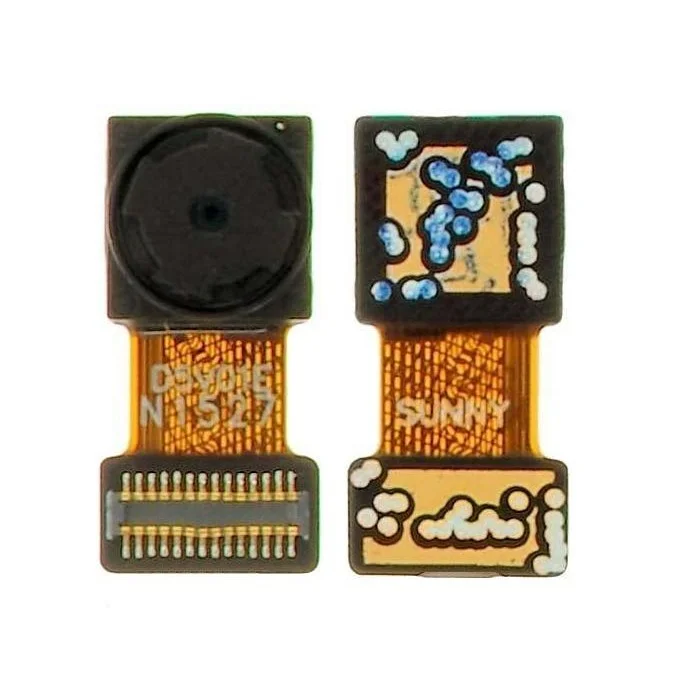

Use a spudger to carefully pry off the front facing camera connector from its mounting point on the left side.

Hold the camera steady with a pair of tweezers.

• Guide the camera upwards, using its long, flat base for reference.

Remove the front-facing camera connector using a spudger.

• Pry off the connection located below the front-facing camera.
• Use tweezers to carefully remove the camera from its groove.
