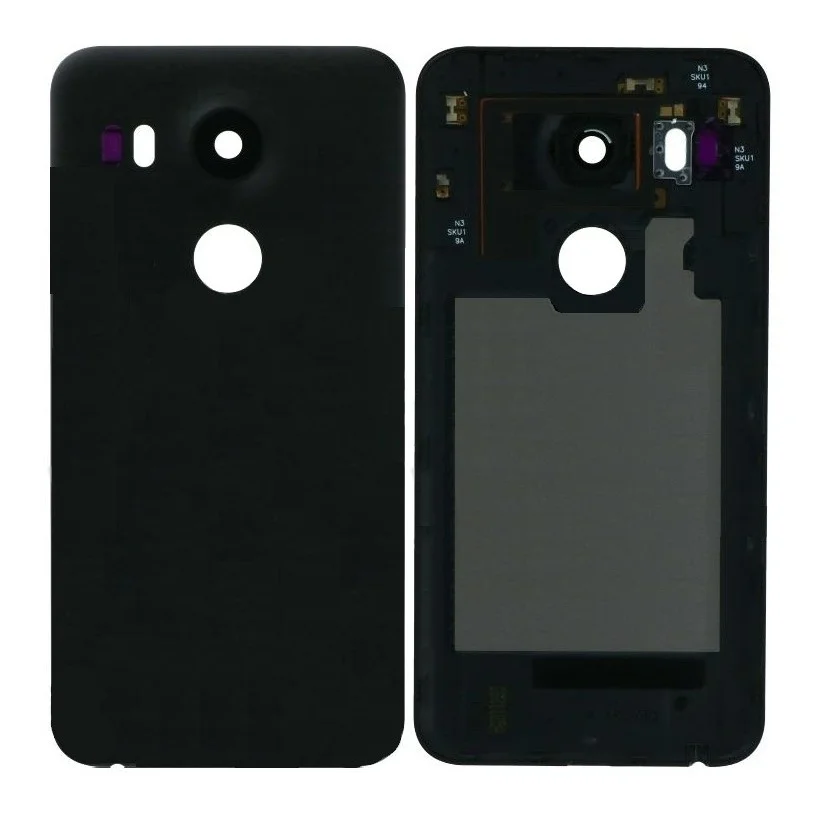

Nexus 5X Rear Panel Replacement

Insert the SIM card ejection tool into the hole on the SIM card tray, located on the left edge of the phone.

• Press in to eject the SIM card tray.
• Remove the ejected SIM card tray.

Insert an opening pick into the SIM card tray slot.

• Twist the pick sideways to disengage the first plastic clip.
• Slide the pick around the top edge of the phone to release the remaining plastic clips.

Slide the opening pick around all sides of the phone, releasing all clips securing the rear panel.

Align the opening pick and tilt it slightly to lift the rear panel.

Be cautious of additional plastic clips near the fingerprint sensor.

• Gently pull the rear panel to release the clips.
• Continue pulling until the rear panel is completely removed.
