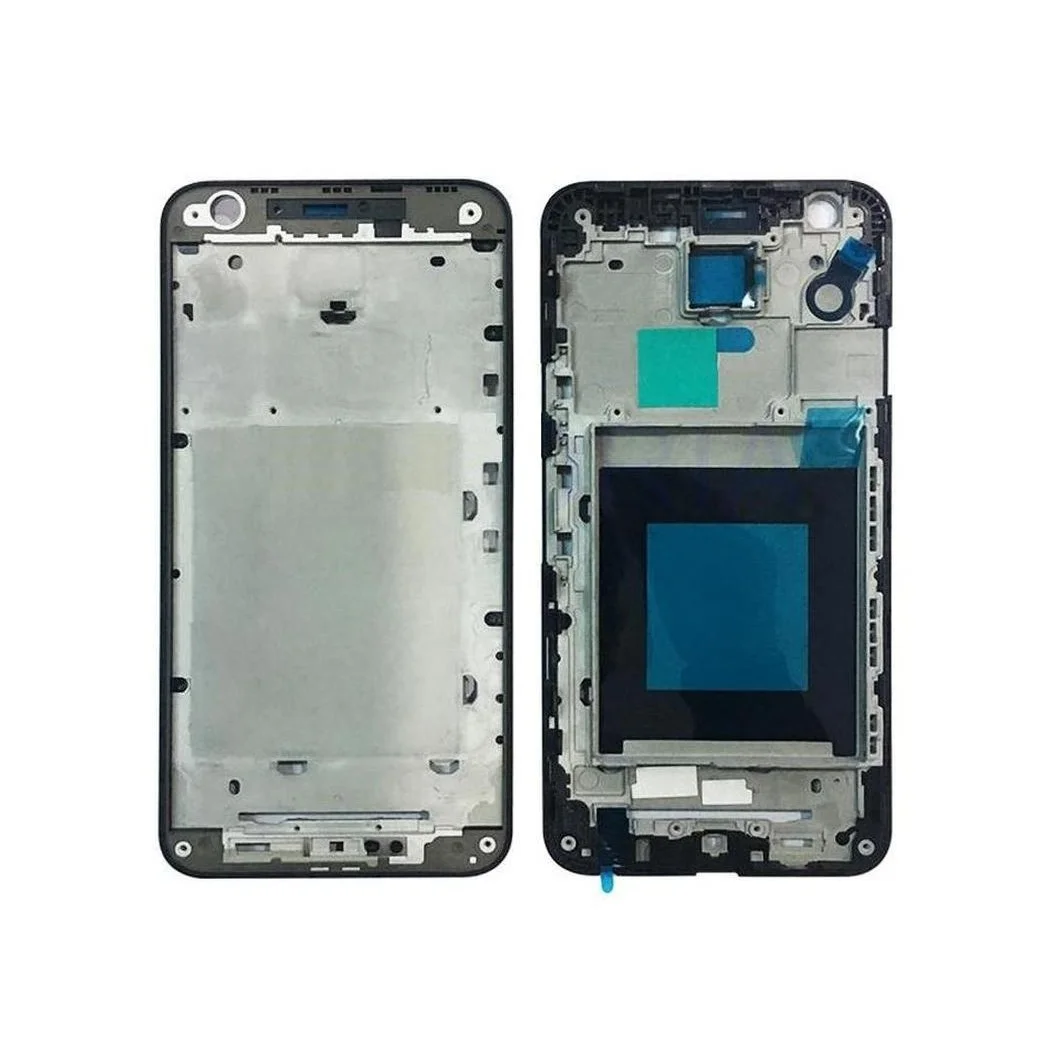

Nexus 5X Midframe Replacement
This guide is for replacing the midframe on your Nexus 5X. Follow along carefully to achieve a successful repair.
Step 1 | SIM Card Tray
- Insert a SIM card ejection tool into the hole on the SIM card tray, located on the left edge.
Press in carefully to avoid damaging the SIM card or tray.
- Remove the ejected SIM card tray.
Step 2 | Rear Panel
Insert an opening pick into the SIM card tray slot and twist it to dislodge the first plastic clip.
- Slide the opening pick along the top edge of the phone to release the remaining plastic clips.
Step 3
Slide the opening pick around all edges of the phone, working slowly and carefully to release the clips holding the rear panel in place.
- Check each side for a "click" as you move the pick, indicating a clip has released.
Step 4
Insert the opening pick and tilt it to lift the rear panel slightly.
- Identify the two plastic clips adjacent to the fingerprint sensor.
- Pull the rear panel gently to release these clips.
Remove the entire rear panel carefully, taking note of any remaining clips or connectors.
Step 5 | Midframe
Remove the 10 3.6 mm Phillips screws securing the midframe.
Step 6
Insert an opening pick into the SIM card tray slot and twist it sideways.
- The plastic clips should release as you continue twisting the pick.
Step 7
Slide the opening pick along the top edge of the midframe, releasing the plastic clips.
Step 8
The midframe is prone to breakage at the long edge plastic clips, so proper disconnection is crucial.
- Use a plastic pick to pry open the plastic clips on the long edge of the midframe.
- Ensure the clips are fully released, particularly those at the long edge.
Step 9
Ensure all clips are released.
- Remove the midframe with caution.
