LG K30 Front-Facing Camera Replacement
Careful handling is required to avoid damaging wire connections.
- Follow the steps below to replace the front-facing camera for the LG K30.
- This repair is relatively straightforward, but proceed with caution to prevent accidental damage to wires or connectors.
Step 1 | Battery
Never attempt to remove a fully charged lithium-ion battery, as it may catch fire or explode if punctured.
Charge your LG K30 to below 25% before disassembly.
- Power off the Phone before starting disassembly.
- Use a Jimmy and a Metal Spudger to carefully pry open the back case.
Step 2
Remove the thirteen 3.4 mm Phillips #00 screws that secure the midframe to the display assembly.
Step 3
Remove the outer cover with a metal spudger or plastic opening tool.
Step 4
Detach the battery connector from the logic board using the flat end of a spudger.
Step 5
Never bend or puncture the battery, as this can cause damage.
- Use a spudger to carefully pry the battery from the phone.
- Gently separate any adhesive on the back of the battery and the phone to avoid damaging either component.

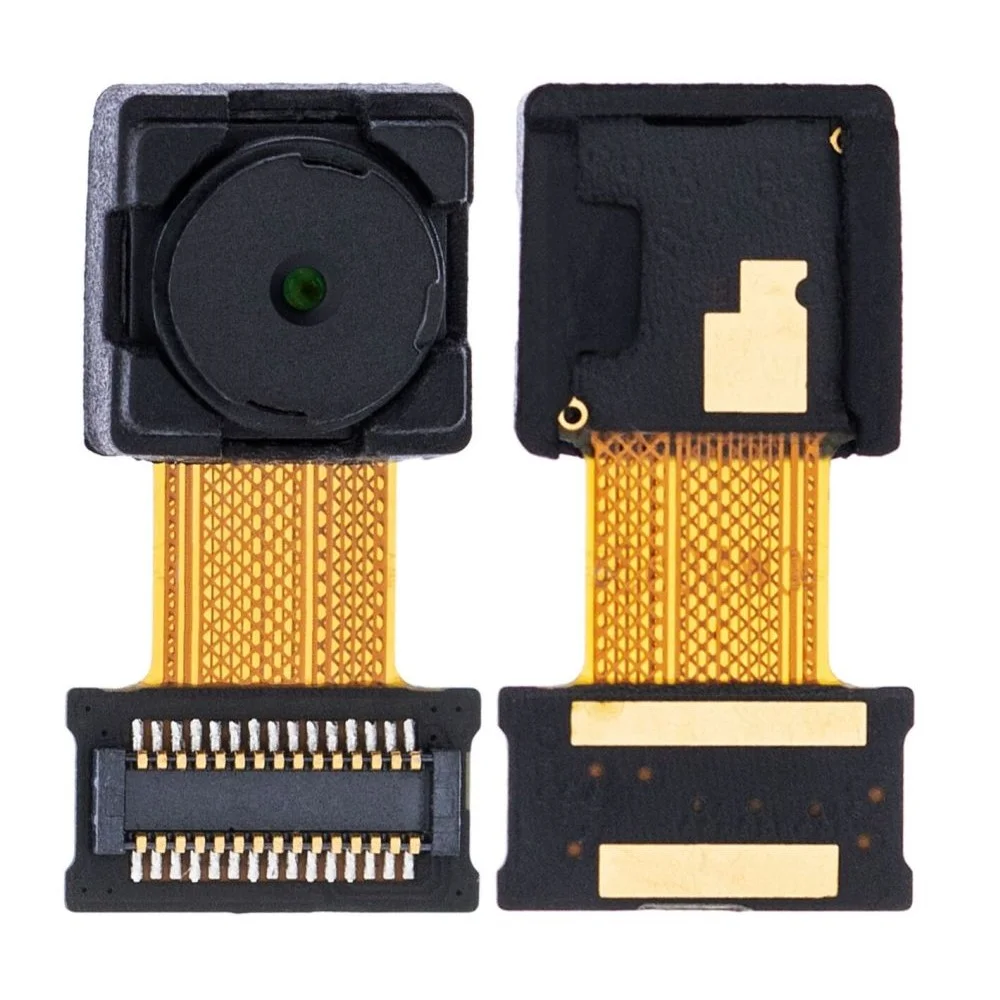

Step 6 | Front-Facing Camera
Disconnect the cable connector with the plastic spudger.
Step 7
Use a spudger to carefully pry the front-facing camera away from the device.
