LG K30 Battery Replacement
If the battery is swollen, take precautions before proceeding.
- Back panel assembly removal: Peel away the display cables for safe access.
- For optional alternative: Carefully support the display while removing the battery.

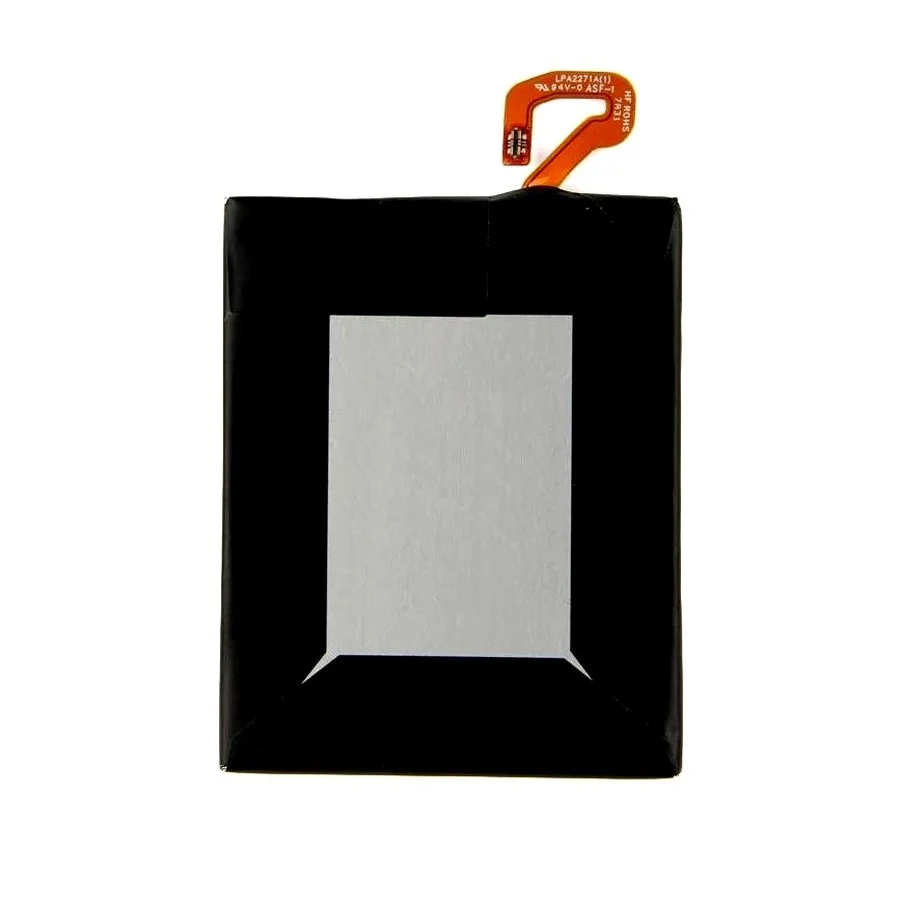

- Remove the battery from the LG K30.
Calibrate your new battery:
- Charge to 100%, then keep charging for at least two hours.
- Use your LG K30 until it shuts off due to low power.
- Uninterruptedly charge the battery back to 100%.
Step 1 | Battery
Discharge the battery below 25% to prevent explosion or fire.
- Power off your phone before starting disassembly.
- Use a Jimm and Metal Spudger to carefully pry open the back case from the outside.
Step 2
Remove all thirteen 3.4mm Phillips #00 screws from the midframe.
Step 3
Insert metal spudger or plastic opening tool into gap and gently pry open outer cover.
Step 4
Use the flat end of a spudger to release the battery connector from the logic board.
Step 5
Prying force may cause battery puncture or damage.
- Use a spudger to carefully pry the battery from the phone.
- Be cautious of adhesive between the battery and phone, and apply gentle prying pressure.
- Avoid bending or puncturing the battery.
