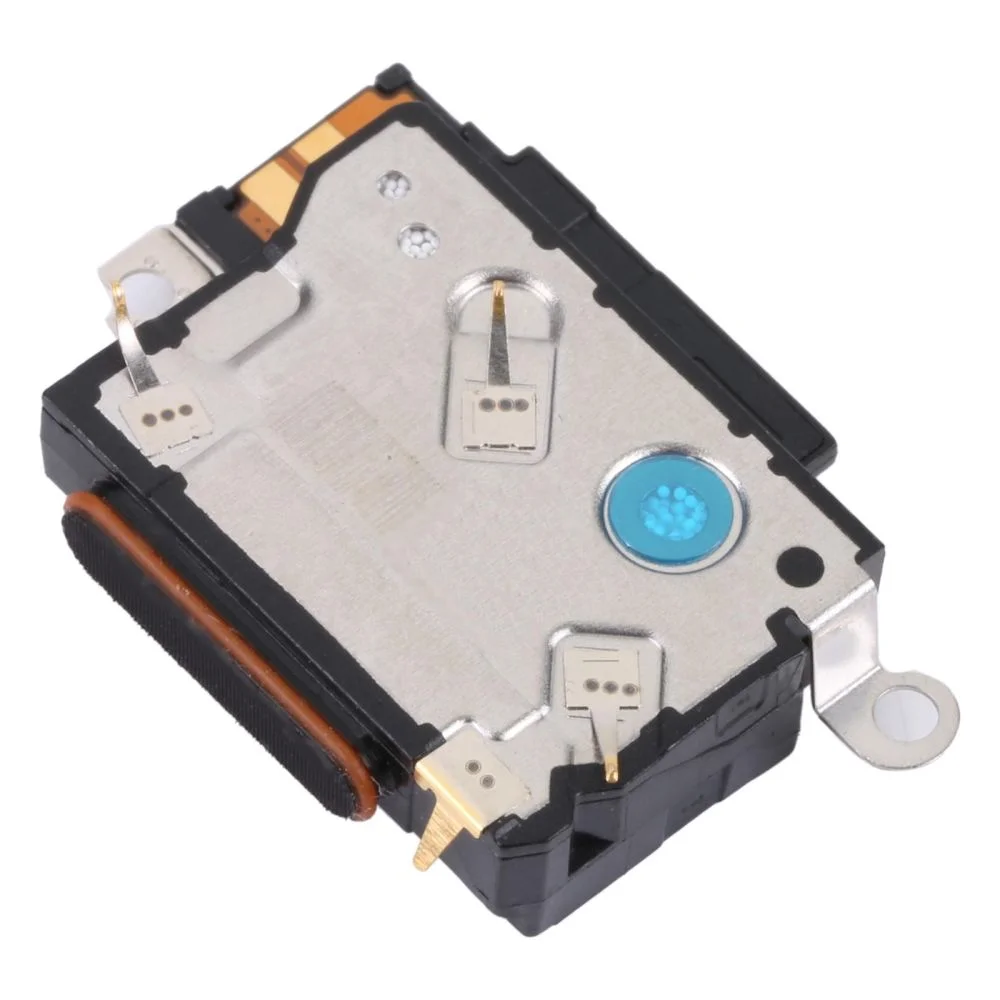

Google Pixel 7 Pro Loudspeaker Replacement - Google Pixel 7 Pro

Step 1 | Safety precautions

Make sure the battery is not above 25% charge before starting.

Power off your device completely.
Unplug all cables from your phone.

Step 2 | Screen removal information

Do not pry at the screen seam — risk of damaging the phone's internal components.

Identify the bezel seam, where the plastic bezel meets the frame and is held by plastic clips.
Pry at the bezel seam to release the plastic clips holding the screen in place.

Insert opening picks ~3.5 mm deep only to avoid damaging internals or interfering with plastic clips.

Avoid inserting picks too deeply, as this can block them under the screen and damage the phone's internal components.
Several plastic clips secure the screen; be cautious not to insert picks too far underneath.

Step 3 | Anti-Clamp instructions

For users with the Anti-Clamp tool, proceed with steps 4-6.

Apply clear packing tape over cracked screen to aid suction cup adhesion.
Anti-Clamp: Pull blue handle backwards to unlock arms.
Slide arms over phone's left or right edge.

If the surface is too slippery, use tape to create a grippier surface before proceeding.

(For Anti-Clamp users)
Position suction cups near phone's bottom edge (front and back).
Squeeze cups together to apply suction.

Step 4

Lock the arms by pulling the blue handle forward.

Turn the handle clockwise for 360 degrees or until the suction cups start to stretch.
Ensure the suction cups remain aligned; if they slip out of alignment, loosen them and realign the arms.

Step 5

Apply heat with caution as extreme temperatures can damage the display and/or internal battery.

Heat an iOpener or use a hair dryer/heat gun, but proceed carefully.
Fold the iOpener to apply it along the bottom edge of the phone.

Wait one minute for the adhesive to release and create an opening gap.

Insert an opening pick under the screen frame when a sufficient gap is created by the Anti-Clamp.
If necessary, reapply heat and rotate the handle clockwise half a turn.

Apply gentle pressure in small increments to avoid damaging the device.

Step 6 | Loosen the display adhesive

Apply a heated iOpener to the screen for at least 3 minutes to loosen the adhesive underneath.

Alternatively, use a hair dryer, heat gun, or hot plate, but be careful not to overheat the device.

The edge should feel slightly too hot to the touch.

Step 7 | Insert an opening pick

Apply a suction handle to the bottom edge of the screen when it's warm to the touch.

For badly cracked displays, cover with clear packing tape for better adhesion or use very strong tape instead of suction cup, but superglue as last resort.

Lift the screen, including safety frame, with suction handle, creating a small gap between screen and phone assembly.
Apply more heat if having trouble, especially for older phones.

Insert an opening pick into the created gap.

Step 8 | Prevent damage to your phone

Insert your pick no more than 2.5 mm into the screen adhesive.

Be cautious near the screen cable, located about halfway up the left edge of the phone.
Avoid bending or damaging the many spring contacts around the perimeter of the phone.

Step 9 | Slice the bottom edge adhesive

Insert an opening pick at the bottom right corner of the screen and slide it along the edge.

Ensure the opening pick remains in place to prevent adhesive resealing.

Step 10

Do not allow the adhesive to reseal.

Insert an additional opening pick at the bottom edge, and slide it towards the bottom left corner.
A plastic clip may be in your way; use only the tip of the opening pick (~1 mm) to work around it.

Keep the initial opening pick in place at all times.

Step 11 | Release the left clips

Insert a third opening pick under the bottom left corner of the screen.

Slide the opening pick along the left edge to slice the adhesive and release clips.
Leave the opening pick in the top left corner to prevent resealing.

Step 12 | Slice the top edge adhesive

Reheat the adhesive if it becomes hard to cut by using your iOpener or heat gun for 1-2 minutes.

When slicing near the front facing camera, insert only the tip of the opening pick (~2.5 mm) to avoid damaging or smearing the camera.
Insert a fourth opening pick at the top left corner of the screen.
Slide the opening pick along the top edge of the phone to slice the adhesive.

Leave the opening pick in the top right corner to prevent the adhesive from resealing.

Step 13 | Release the right clips

Insert a fifth opening pick into the right edge of the phone.

Slide it along the right edge to slice remaining adhesive and release plastic clips.

Do not disconnect the display yet, as it remains connected by a flex cable.

Step 14 | Open up the phone

Apply gentle pressure to lift the right edge of the screen upwards towards the left side.

Avoid twisting the screen or moving it excessively, as this may damage the flex cable.

Securely rest the screen upside down and parallel to the frame.

Step 15 | Release the display cable bracket

Use caution when releasing the display cable bracket, as it can be stuck tightly.

Insert one arm of a tweezers into the opening at the upper end of the display cable bracket.
Pry up on the bracket while pushing it inwards to release it.

Step 16 | Remove the display cable bracket

Use a pair of tweezers to pull the display cable bracket out from under the midframe, towards the camera.

Step 17 | Disconnect the display cable

Careful: Pressing down in the middle can cause pin damage.

Disconnect the display flex cable using a spudger by prying up on the connector.
To reconnect, align the connector and press down one side until it clicks; repeat on the other side.
Avoid pressing in the middle to prevent pin damage.

Step 18 | Screen information

The Pixel screen is extremely fragile and can be damaged easily.

Grip the screen only by its edges to prevent damage.
Place the screen on a soft, lint-free cloth to protect it from scratches or dents.

Step 19 | Separate the screen

Do not touch the screen during the boot-up calibration process to avoid improper touch calibration.

Separate the screen from the phone assembly.
During reassembly, verify that all screws are tightened and there are no loose parts.
Reconnect the screen and test your phone to ensure it works properly.
Power down your phone and continue reassembly.

When applying new adhesive:

Clean relevant areas with isopropyl alcohol (>90%).
Apply new adhesive as needed, following manufacturer instructions for custom-cut adhesives or pre-cut adhesive cards.

Step 20 | Peel off the graphite foil

Do not puncture or bend the battery — risk of chemical leak or fire.

Use a pair of tweezers to carefully peel off the graphite foil.
If stuck, apply a heated iOpener to the back for two minutes to loosen adhesive.

Step 21 | Unfasten the charging port bracket screws

Remove the Torx T3 screws securing the charging port bracket using a Torx T3 screwdriver.

The screws are each 5.1 mm long.

Step 22 | Remove the charging port bracket

Remove the charging port bracket with a pair of tweezers.

Step 23 | Unfasten the midframe screws

Remove the Torx T3 screws with a Torx T3 screwdriver.

The screws are located at the midframe.
There are six screws, each measuring 5.1 mm long.

Step 24 | Remove the midframe

Use tweezers to remove the midframe.

During reassembly, inspect the thermal pad for damage.
If damaged, replace it:

Remove the old thermal pad.
Clean the area with a microfiber or lint-free cloth and high-concentration (greater than 90%) isopropyl alcohol.
Apply a new thermal pad.

Step 25 | Disconnect the battery cable

Disconnect the battery cable using a spudger to pry it straight up.

Step 26 | Heat the battery's adhesive

Apply a heated iOpener to the back of the device for at least 3 minutes.

The iOpener should loosen the adhesive underneath, making it easier to remove.

Alternative heating methods include a hair dryer, heat gun, or hot plate, but be careful not to overheat the device.

Check for temperature by touching an edge of the device; it should feel slightly too hot to the touch.

Step 27 | Separate the battery pull tabs

Peel the plastic pull tabs away from the battery using tweezers or your fingers.

Step 28 | Separate the battery's adhesive

Hold the pull tabs and slide upwards until contact with the adhesive is felt.

Lift straight up to separate the battery from its adhesive.

Work slowly, as it's easy to lose grip and accidentally pull the tab up from under the battery.

Using gloves can provide extra grip if needed.

Apply more heat and wait for the adhesive to loosen if separation is difficult.
Have a friend hold the phone down while lifting, if possible.

If the release strip is lost or torn, or the adhesive is too strong, follow the next step's alternative method.

Step 29 | How to remove a stuck battery

Applying too much alcohol can damage internal components.

Apply 2-3 drops of high concentration (90%+) isopropyl alcohol to the top edge of the battery.
Wait 1 minute for the adhesive to weaken.
Use a spudger or opening pick to gently lift the top edge of the battery, then grasp it with your fingers.

Avoid applying excessive force or puncturing/bending the battery, which can cause leaks or fires.

Step 30 | Remove the battery

Remove the old battery by tilting it out of the device.

Dispose of damaged or deformed batteries to prevent safety hazards.
Secure the replacement battery using pre-cut adhesive or double-sided tape on the battery well, not directly on the battery.

Temporarily reconnect the battery to align it correctly, then disconnect after seating.

Verify correct installation: ensure the battery is centered with even gaps around it.

Press the new battery firmly into place.

Step 31 | Unfasten the mmWave antenna bracket screw

Remove the Torx T3 screw using a Torx T3 screwdriver.

The screw is approximately 5.1 mm long.
It secures the mmWave antenna bracket.

Step 32 | Remove the mmWave antenna bracket

Use tweezers to carefully remove the .

Step 33 | Disconnect the mmWave antenna cable

Disconnect the mmWave antenna cable by using a spudger to pry the connector straight up from its socket.

Step 34 | Loosen the mmWave antenna cable

Release the mmWave antenna cable from the motherboard's adhesive.

Start by inserting an opening pick at the bottom end of the mmWave antenna cable.
Gently pry the mmWave antenna cable away from the motherboard using the opening pick.

Step 35 | Remove the mmWave antenna assembly

Use tweezers to carefully lift the mmWave antenna, including its cable, out of its recess.

Grasp the mmWave antenna assembly with the tweezers and gently pull it upwards.
Once removed, set the mmWave antenna assembly aside for future reference.

Step 36 | Remove the thermal paste

Scrape off thermal paste from mmWave antenna using flat end of spudger.

Clean with isopropyl alcohol and a coffee filter or lint-free cloth.
Repeat cleaning process for thermal paste on mmWave antenna bracket.

Follow reassembly thermal paste application guidelines for mmWave antenna to ensure correct reapplication.

Step 37 | Unfasten the rear camera assembly screws

Use a Torx T3 screwdriver to remove the two 5.1 mm screws holding the rear camera assembly.

Step 38 | Remove the spring

Remove the top camera spring using a pair of tweezers.

Step 39 | Disconnect the telephoto camera cable

Disconnect the telephoto camera cable using a spudger. Prying the connector, go straight up from its socket.

Step 40 | Disconnect the front facing camera

Disconnect the front facing camera cable using a spudger, prying the connector straight up from its socket.

Fold the camera cable upwards, taking care to avoid damage.

Do not bend the cable sharply.

Step 41 | Disconnect the wide and ultrawide lens cables

Disconnect the wide and ultrawide camera cables using a spudger.
Pry the connectors straight up from their sockets.

Step 42 | Remove the rear camera assembly

Remove the rear camera assembly.

Step 43 | Unfasten the earpiece speaker screw

Remove the earpiece speaker's retaining screw with a Torx T3 screwdriver.

Step 44 | Loosen the earpiece speaker adhesive

Apply a iOpener to the camera glass and heat it for at least 1 minute.

The goal is to loosen the adhesive underneath the earpiece speaker.
Make sure the iOpener stays on the glass for the full 1-minute heating time.

Step 45 | Pry up the earpiece speaker

Insert the pointed end of a spudger into the top left corner of the earpiece speaker, beside the frame.

Pry carefully upwards to release the earpiece speaker.

Step 46 | Remove the earpiece speaker

Use tweezers to carefully extract the earpiece speaker.

Step 47 | Remove the front facing camera

Remove the front facing camera with a pair of tweezers.

Step 48 | Disconnect the white antenna cable

Grasp the white antenna cable at the top left corner of the motherboard using tweezers.
Lift the coaxial connector straight up to disconnect the white antenna cable.

Be careful not to damage the coaxial connector during disconnection.

Loosen the retaining clips using your tweezers.

Step 49 | Disconnect the black antenna cable on the left

Slip tweezers under the black antenna cable at the left antenna board.

Lift the coaxial connector straight up to disconnect the black antenna cable.
Use the tweezers to carefully loosen the cable from the retaining clips.

Step 50 | Disconnect the NFC antenna cable

Disconnect the NFC antenna cable using a spudger. Pry the connector straight up from its socket.

Step 51 | Disconnect the antenna and microphone interconnect cable

Disconnect the antenna and microphone interconnect using a spudger, carefully prying the connector straight up from its socket.

Step 52 | Disconnect the black antenna cable on the right

Insert tweezers under black antenna cable at right antenna board, ensuring they're snug against metal connector.

Lift coaxial connector straight up to disconnect black antenna cable.

Use tweezers to loosen cable from retaining clips.

Step 53 | Eject the SIM card tray

Insert a SIM eject tool, SIM eject bit, or a straightened paper clip into the SIM card tray hole.
Press it firmly to eject the SIM card tray.

Step 54 | Remove the SIM card tray

Remove the SIM card tray.

Step 55 | Unfasten the motherboard screws

Remove the Torx T3 screws from the motherboard using the Torx T3 screwdriver.

The screws are 4 in number and have a length of 3.1 mm.

Step 56 | Pry up the motherboard

Ensure there's clear access around the motherboard for cable management.

Insert a spudger under the top edge of the motherboard.
Pry upwards gently to loosen the motherboard and make it easily removable by hand.

Step 57 | Remove the motherboard

Grasp the top end of the motherboard firmly with your fingers.

Pull the motherboard towards the top edge of the frame to dislodge the charging port from its recess.
Continue to pull the motherboard out completely.
Inspect your new replacement part and compare it to the original. Be prepared to transfer components, such as antenna cables, if necessary.

Step 58 | Pry up the loudspeaker

Insert the pointed end of a spudger under the top right edge of the loudspeaker.

Pry upwards gently to loosen the loudspeaker.

Step 59 | Remove the loudspeaker

Remove the loudspeaker using a pair of tweezers.
