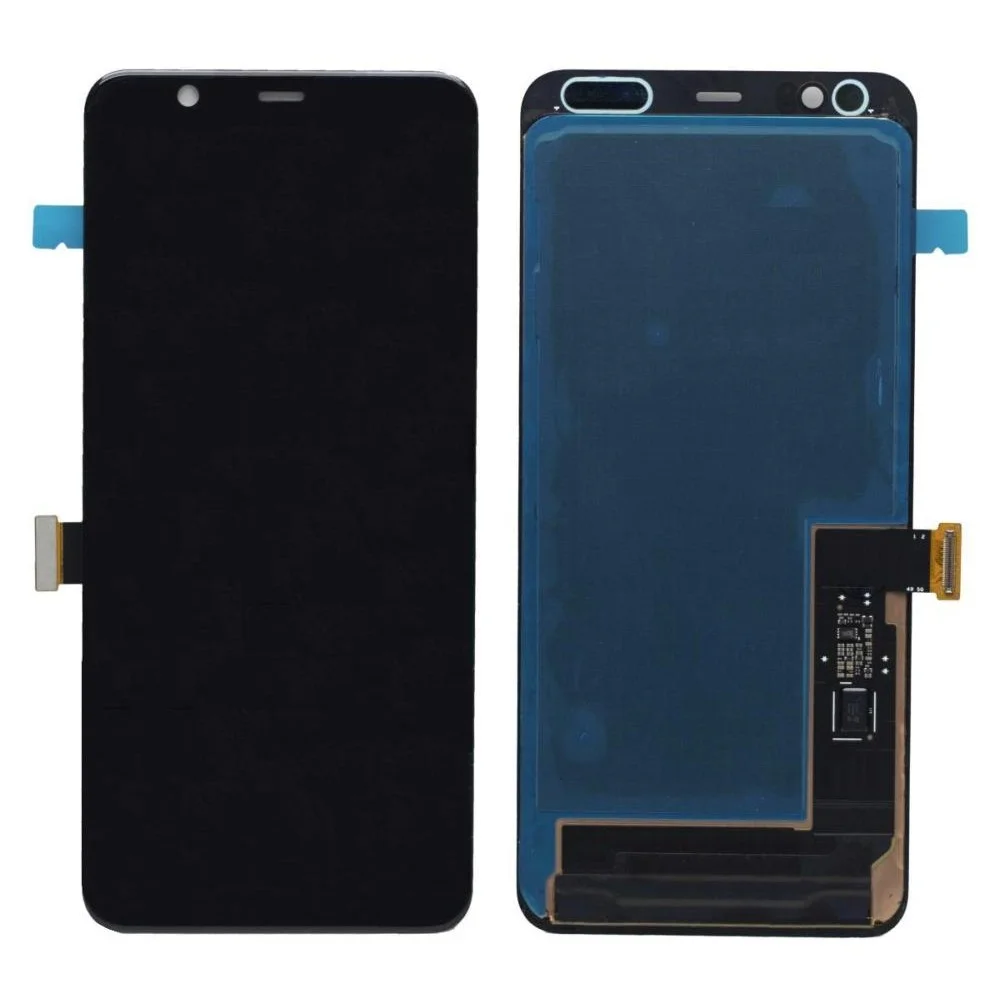

Google Pixel 4 XL Display Assembly Replacement

Ejecting the SIM card tray may cause data loss if not done properly.

• Insert a SIM eject tool, SIM bit, or a straightened paper clip into the small hole on the SIM card tray on the left edge of the phone.
• Press firmly to eject the tray.
• Remove the SIM card tray from the phone.

Apply heat to the back panel's bottom edge using an iOpener for 1 minute.

• Alternatively, use a hair dryer, heat gun, or hot plate.

Be cautious not to overheat the phone and cause damage to the display or internal battery.

Apply a suction cup to the heated edge of the back panel by pressing down firmly to create suction.

• Position it as close to the edge as possible for maximum grip.
• Optional: Cover badly cracked glass with clear packing tape for better suction.

If neither method works, use superglue to secure the suction cup in place.

Apply strong, steady force upwards with the suction cup.

• If needed, reapply heat to loosen the edge.
• Once a gap forms, insert the opening pick into it carefully.

Insert an opening pick at the bottom edge and slide it towards the left corner.

• Slice the adhesive by sliding the pick along the bottom edge, starting at the left corner.
• With the pick still in place, continue to slice the adhesive by sliding it from the left to the right corner.

Leave the pick inserted in the right corner to prevent re-sealing of the adhesive.

Apply iOpener to the left edge of the phone for exactly 1 minute.

Insert a opening pick under the back panel, positioning it over the charge port.

• Slide the opening pick towards the bottom left corner of the phone.

Insert an opening pick into the bottom left corner.

• Slice along the left side of the phone using a gentle sawing motion.
• The adhesive may be gummy; push the pick in and out as needed to help it slice smoothly.

Continue until you reach the top left corner, near the camera, then leave the pick inserted.

Never apply excessive heat — risk of damage to phone components.

• Heat a section of the iOpener until the glass is pliable (approximately 1 minute).
• Apply the heated iOpener along the right edge of the phone for one minute.

Insert a third opening pick at the bottom right side.

• Slide it upwards, cutting the right-side adhesive.
• Leave it in place at the top right corner.

Insert the third opening pick into the top right corner and slide it along the top edge to separate the final strip of adhesive.

Carefully lift the right edge of the back cover, opening it like a book.

Do not attempt to remove the panel at this time – it remains connected to the phone.

Swing open the back panel until it rests on the left edge of the phone.

• Be mindful of the attached ribbon cable when positioning the panel.
• During reassembly, power on your phone and test all functions before sealing it up.

Power down your phone completely before continuing work.

Remove the four T3 Torx screws securing the battery connector shield:

• 1.8 mm T3 Torx
• 4.1 mm T3 Torx
• 4.4 mm shouldered T3 Torx
• 4.0 mm shouldered T3 Torx

Keep track of each screw for reassembly purposes, to ensure it returns to its original position.

Remove the battery connector shield with a pair of tweezers.

Puncturing the battery with a spudger can be hazardous.

• Use the pointed end of a spudger to pry the battery connector straight up from the motherboard.
• To reconnect, align and press down on one side of the press connector, then repeat on the other. Avoid pressing the center.

Use the flat end of a spudger to carefully fold the battery cable out of the way.

Accidental contact can cause damage or electric shock, so be cautious.

• Remove the two 4.1 mm screws with a T3 Torx driver.

Remove the back panel connector cover with a pair of tweezers.

Use the pointed end of a spudger to carefully pry up and then disconnect the back panel connector.

• Remove the back panel.
• For reassembly with custom-cut adhesives: Follow the guide.
• For reassembly with pre-cut adhesive cards: Follow the accompanying guide.

Locate and gently lift the battery adhesive pull tab to clear access to the underlying screws.

Locate and remove three T3 Torx screws: one 2.7 mm, one 4.1 mm, and one 4.2 mm.

• For the correct screw sizes, consult your device's documentation or online resources.
• Use a T3 Torx driver to avoid damaging the surrounding area.

Use tweezers to remove the rear-facing camera connector cover.

Remove the following T3 Torx screws from the front-facing camera connector cover:

• 4.1 mm T3 Torx screw
• 4.0 mm shouldered T3 Torx screw
• 4.1 mm shouldered T3 Torx screw

Remove the front-facing camera connector cover with a pair of tweezers.

Use the pointed end of a spudger to carefully lift the camera and sensor connectors straight up from the motherboard.

Be careful not to damage the cable or its connector.

• Use a gentle prying motion to remove the adhesive securing the cable to the phone.
• Disconnect the additional sensor connector.

Remove the T3 Torx screws.

• Two 2.7 mm screws secure the front camera and sensor assembly.
• One 3.1 mm screw secures the front camera and sensor assembly.

Remove the front camera and sensor assembly with a pair of tweezers.

Remove the display connector cover using a T3 Torx driver.

• Loosen and then remove the four 3.5 mm screws.

Use a pair of tweezers to carefully remove the display connector cover.

Disconnect the display connector from the motherboard using the flat end of a spudger.

Prepare an iOpener and apply it to the right edge of the display near the power button for exactly 1 minute.

This process will likely destroy the OLED display panel; only proceed if replacing a broken assembly.

• Apply a suction cup to the heated edge of the display, or use strong tape instead for cracked displays.
• If necessary, apply heat and try again for difficult separations.
• Insert an opening pick into the gap created by pulling up on the suction cup with strong force.
• If initial separation is hard, reapply heat and increase force as needed.

Insert a precision pick into the gap between the screen and phone case at the bottom right.

Continue to gently pry along the seam with the pick, working your way around the edge of the device.

Leave the pick in place, lodged in the lower-right corner of the phone for further prying.

Insert a second opening pick under the display assembly in the top left corner.

• If needed, reapply an iOpener to the upper edge.
• Slide the pick around the corner and down the left side, stopping halfway.

• Insert a third opening pick on the right edge, midway along the display assembly.
• Twist the pick to pry the display assembly loose.

Do not disconnect the display cable at this time.

• Tilt the display assembly up along the left edge of the phone.
• Leave it attached to prevent damage to the display cable.

Separate the display assembly by sliding the display connector out of its slot near the motherboard.

• Tilt the display assembly gently from side to side if necessary, to help the connector clear the phone's frame.
• The connector should slide out smoothly without applying any force.

Remove the display assembly.

• Thread the replacement assembly's display cable through the motherboard cutout

If trouble persists, consider loosening and partially removing the motherboard

• Consult the guide for applying adhesive to the replacement display assembly.

Verify repairs before affixing the display assembly with adhesives.

• If using Tesa tape, follow the specified reattachment instructions.

During boot-up, refrain from touching the display assembly during calibration to prevent touch issues.
