Asus Zenfone 10 USB-C Charging Port Replacement
The USB-C charging port has a persistent reliability issue despite testing with multiple working power adapters and cables, and after attempting physical cleaning and inspection.
- Verify that all connections are secure and the cable is properly seated in the port.
- Check for signs of wear or damage on the USB-C connector and surrounding area.
Step 1 | Remove SIM card tray
Power off the device.
- Remove the SIM card tray using a proper tool.
Step 2 | Remove back cover
Warm the adhesive with a heat gun for 30 seconds.
- Insert an opening pick along the edge of the phone.
- Work the opening pick around the phone to separate the back cover.
Step 3 | Remove top cover
Be careful when handling the special-purpose screw highlighted in red.
- Remove the nine Phillips #000 screws, highlighted in blue, using a Phillips #000 Screwdriver or bit.
- Use a sharp instrument like a flathead screwdriver bit to remove the decal from the screw highlighted in orange.
Step 4 | Remove bottom cover
Remove the six highlighted screws using a Phillips #000 Screwdriver or a bit.
- The orange-decaled screw requires removal of the decal first; use a sharp instrument like a flathead screwdriver bit.
- Proceed to remove all six screws.
Step 5 | Remove bottom circuit board
- Use an opening pick to carefully remove the circuit board.
- Next, use the same opening pick to disconnect the two flat cables.

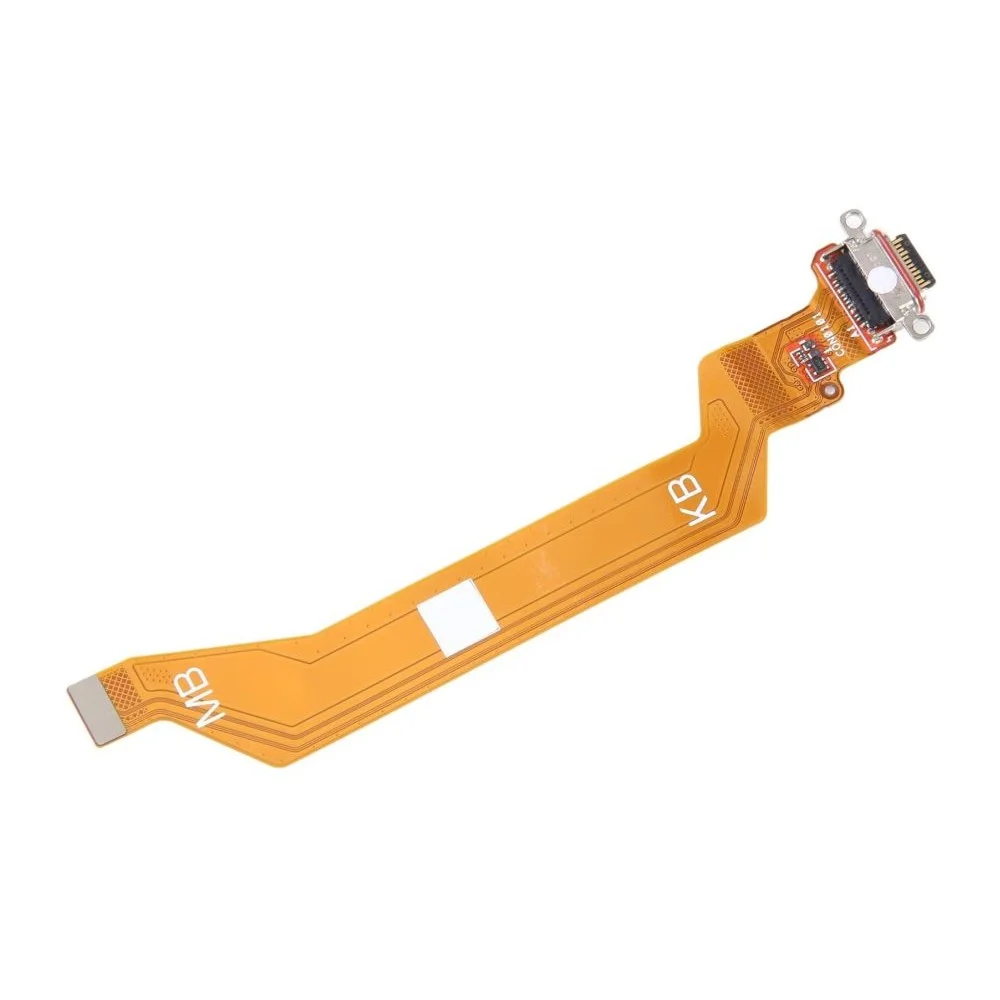

Step 6 | Replace the USB-C port
Detaching the flat cable from the case frees up the USB-C port.
- Apply heat to loosen any stuck adhesive on the flat cable.
- Install the replacement part in its original location.
- Remember to remove the blue protective film covering the adhesive before installing the new cable.
