iPhone 15 Pro Screen Replacement
Follow these instructions to substitute a damaged, fractured, or malfunctioning display panel on yourApple iPhone 15 Pro.
- To finish the screen replacement, ensure you have new adhesive strips available.
Following Apple’s component pairing limitations, functionality including True Tone and automatic brightness will be unavailable after screen replacement on devices running iOS 17.6 or older versions, regardless of whether an authentic Apple screen is used.Carefully handle the display assembly, a component with dimensions of 16.07 x 7.15 cm, ensuring no scratches or damage occur during the repair process.Depending on your iOS software version, the functionality might be re-enabled without manual intervention; however, users with older operating systems may need to take further action.Carefully handle the Apple display panel, ensuring no scratches or damage occur during the repair process.Employing the Repair Assistant application on your iPhone allows for calibration.
Step 1 | Prepare your iPhone for disassembly
- Allow the battery to discharge to a level belowOne-quarter.To prevent potential fire hazards, ensure the lithium-ion battery is handled with extreme caution; a damaged, fully charged battery presents a fire risk.
- Disconnect all wires and cords connected to the device.
- To shut down the device, simultaneously press the power button and one of the volume buttons, then slide your finger across the screen to initiate the power-off sequence.
Step 2 | Tape over any cracks
- To prevent injury and simplify the repair process when dealing with a cracked screen or rear glass, apply several layers of packing tape, ensuring they overlap, across the damaged areas.
- Ensure a flat surface, approximately the size needed for suction cup adhesion, exists close to the lower border.
Step 3 | Mark your opening picks
- To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; to assist with this, mark the pick at the appropriate insertion point.
- Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
- Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
- Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end.
Step 4 | Remove the pentalobe screws
Employ a P2 pentalobe screwdriver and detach the two.Seven millimeters.Secure the charging port with the two long screws, one on each side.
Step 5 | Screen bezel information
- Carefully position your pick in the designated area for the following procedures.
- Position your pick beneath the screen's plastic bezel, which is located on its underside and rests against the frame, ensuring the pick is fully inserted.
- Avoid inserting a pick into the joint where the plastic bezel meets the display panel, as doing so will cause them to detach, making the repair process more difficult.
Step 6 | Heat the bottom edge
- Apply warmth to the screen's lower border using a hair dryer or heat gun, ensuring the surface reaches a temperature that is noticeably warm when touched.
- To prevent heat-related battery damage, ensure the device's temperature remains below the specified limit.
Step 7 | Insert an opening pick
- Using a suction tool, secure the lower screen edge.
- Apply firm, consistent upward pressure to the handle to separate the screen from the frame.
- Carefully slide the pointed end of a prying tool into the separation.
Step 8 | Screen information
- Exercise caution when separating the screen with the adhesive release tool, paying particular attention to regions susceptible to damage.
- Two thin, easily damaged wires secure the display assembly to the device; one is located directly over the action button, while the other is positioned approximately midway along the left side.
- To prevent damage, exercise caution when using your opening tool near the numerous spring contacts lining the phone's edge; ensure the tool's insertion depth remains within the recommended limit in each area to prevent contact bending.
Step 9 | Separate the bottom edge adhesive
- Avoid pushing the 3.5mm connector into the receptacle with excessive force, as this could damage the connector or the receptacle.Use a specialized tool designed for prying, often referred to as an opening pick.The indentation must not exceed 3 millimeters in depth at the lower edge.
- Carefully move the component in a linear direction.Select the component.Carefully slide the tool along the lower border, working to release the adhesive bond.
- Allow the component to remain in its current position.Select.To avoid the adhesive re-bonding, position a small tool in the lower-right corner.
Step 10 | Heat the right edge
Apply heat to the screen's right side until its surface reaches a temperature that is comfortable to touch.
Step 11 | Position the opening pick
- Avoid pushing the tool into the area.Use a specialized tool designed for prying, often referred to as a pick.The right edge's depth must not exceed 5 mm.
- Carefully move the component in a linear direction.Select the component.Carefully slide the screen assembly downward, near the lower-right corner and in the direction of the power button, noting the resistance as a retaining clip engages.
- Turn the component until it aligns with the specified markings, ensuring a full 90-degree movement and observing all safety precautions.Select the component.Position the tool's straight edge directly beneath the display panel.
Step 12 | Release the right clip
- Rotate theSelect the component.Carefully separate the display from the housing by widening the space until the retaining clip on the right side disengages.
- Employ a secondUse a specialized tool designed for prying, often referred to as a pick.Position yourself directly adjacent to the initial tool selected.
Step 13 | Separate the right edge adhesive
- Position the first pick tool so its tip rests against the lower right edge of the display.
- Using the second pick, carefully work it into the screen's upper-right corner to release the adhesive bond.
- Maintain the presence of these picks to stop the adhesive from bonding again.
Step 14 | Heat the top edge
Apply heat to the screen's upper border until its surface reaches a temperature that is comfortable to touch.
Step 15 | Separate the top edge adhesive
- Avoid pushing the tool beyond the specified depth.Three millimeters.Position the component along the uppermost boundary.
- Using a pick, carefully disengage the adhesive and two clips holding the component in place by working it loose along the top edge and around the upper right corner.
Step 16 | Heat the left edge
Apply heat to the screen's left side until its surface reaches a temperature comfortable enough to be touched.
Step 17 | Separate the left edge adhesive
- Avoid pushing the tool beyond the specified depth.Two millimeters.To prevent damage, maneuver along the phone's left side, carefully bypassing the two cables that link the display assembly to the device.
- Using a pick, move it in a circular motion around the screen's upper-left corner.
- Using a pick, carefully work your way along the lower left edge of the screen to release the adhesive bond.
Step 18 | Prop up the screen
- To facilitate cable disconnection, position a small container or a collection of books on the left side of the device to provide screen support.
- Lift the right screen edge upward, mirroring the motion of opening a book's cover.
- Carefully work around the device's edges with an opening pick to release any lingering adhesive if the display doesn't move freely.
- To prevent damage, support the display panel while working on the connectors.
Step 19 | Unfasten the logic board cover
Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring you observe all safety precautions and handle the component with care.Use a Y000 screwdriver.Using a screwdriver, detach the logic board cover by unscrewing the six fasteners that hold it in place.
- Use four screws, each measuring 1.6 millimeters in length.
- Use screws, each measuring 1.3 millimeters in length.
Step 20 | Remove the logic board cover
- To detach the logic board cover, turn its lower edge in a counterclockwise direction, then disengage the upper left corner by sliding it away from beneath the ambient light sensor cable.
- To ensure proper alignment during reassembly, route the cover's upper left corner beneath the ambient light sensor cable.
Step 21 | Disconnect the battery
- Employ the specified tool to perform the action.Using a pick, carefully lever the battery press connector away from the logic board's lower right corner.
- Carefully position the press connector above its receptacle and apply even downward pressure on one lateral surface until you hear a distinct click, then repeat the process on the opposite side. Verify that the connector lies flush against the receptacle; the surrounding rubber insulation may impede complete engagement.
Step 22 | Disconnect the screen
- Employ the specified tool to perform the action.Using a fine-tipped opening pick, carefully lift the screen cable connector away from the logic board's central connection point.
Step 23 | Disconnect the ambient light sensor
- Using a specialized opening pick, carefully insert the tip beneath the ambient light sensor cable, located on the logic board's upper left side.
- To release the connector, raise the cable.
Step 24 | Remove the screen
- Carefully detach the display panel, ensuring no damage occurs.
- Carefully reattach all components in the reverse order of disassembly, ensuring that all fasteners are tightened to the specified torque of 8 Nm using a 1/4-inch torque wrench, and that any rubber gaskets are properly seated to prevent leaks, paying particular attention to the warning regarding potential pinch points during alignment.To proceed with screen replacement, carefully adhere to the subsequent instructions for applying fresh adhesive and completing the installation.
- Exercise caution to prevent any harm to the spring contacts during the cleaning process.
Step 25 | Ambient light sensor information
- Verify the replacement display includes the ambient light sensor component.
- Should the sensor fail to function correctly, proceed with the subsequent instructions to detach it from the original display and relocate it to the new one.
Step 26 | Remove the ambient light sensor cover screws
Employ a Phillips head screwdriver, size 000.Detach the pair.Screws measuring 1.4 millimeters in length.Ensure the ambient light sensor cover is firmly in place.
Step 27 | Remove the ambient light sensor cover
Carefully detach the ambient light sensor cover.
Step 28 | Heat the ambient light sensor adhesive
- To prevent damage, avoid excessive heat when working with the screen, as the plastic parts are susceptible to melting at high temperatures.
- Apply warm air from a hair dryer or heat gun.Apply heat to the ambient light sensor surface until it reaches a temperature detectable as warmth by hand.
Step 29 | Pry up the sensor
- Exercise extreme caution when manipulating theThe surrounding illumination level is detected by the ambient light sensor.Handle with care, because the connecting wire is exceptionally delicate.
Carefully employ the tool's straight, planar edge.Use a plastic pry tool, often referred to as a spudger.Carefully raise theThe surrounding illumination level is detected by the ambient light sensor.Carefully remove the component from its housing.
Step 30 | Reheat the ambient light sensor
- The sensor should now be at ambient temperature.
Continue heating the area until the adhesive securing the sensor feels warm when touched.
Step 31
- Carefully guide the pointed end of a screwdriver into.Use a specialized tool designed for prying, often referred to as an opening pick.Locate the sensor's lower right edge.
Carefully insert a pick beneath the sensor, raising it until you can grasp it securely by hand.
Step 32 | Remove the ambient light sensor
- Carefully lift and detach the component using manual dexterity, proceeding gradually.Employ a multimeter to verify the continuity of the sensor, ensuring a reading within the specified range of 10 to 30 ohms, and observe all safety precautions when handling electrical components..
Step 33 | Disassembly complete
With the device now disassembled, proceed to the following instructions to reassemble your iPhone.
Step 34 | Prepare the ambient light sensor
- Employ the specified tool to perform the action.Employ fine-tipped pliers or similar instruments for manipulation.Ensure the ambient light sensor’s surrounding area is free of excess adhesive; reposition any displaced adhesive to create a clean border directly adjacent to the white, rectangular sensor housing.
To compensate for adhesive failure or residue left from the previous display, apply a 1 mm wide band of thin, double-sided adhesive tape to the lower edge.
Step 35 | Place the ambient light sensor
- Carefully position the ambient light sensor so that it fits snugly within the designated cavity on the rear surface of the screen.
Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and apply even pressure to prevent damage to the bolt head, and subsequently remove the component.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Carefully position the ambient light sensor into its designated slot, using your finger for precise alignment.
Step 36 | Press the ambient light sensor
- Apply gentle heat to the adhesive securing the ambient light sensor and its cable, using either a hair dryer or heat gun, ensuring the temperature remains moderate to prevent damage.
- Apply downward pressure to the ambient light sensor cable using a fingertip.
- To secure a loose ambient light sensor cable, use several small sections of thin, double-sided adhesive tape.Apply Tesa adhesive tape.Connect the sensor cable to the designated port located on the rear of the assembly.
Step 37 | Install the ambient light sensor bracket
- Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.Position the ambient light sensor bracket, ensuring the foam-backed surface faces downward and the screw holes are properly aligned.
- Employ a 3/8-inch socket wrench to securely tighten the fastener to a torque of 15 Nm, ensuring the correct clamping force and preventing damage to the component.Use a Phillips-head screwdriver.Secure the pair using the provided fasteners.Screws measuring 1.4 millimeters in length.Affix the ambient light sensor bracket using the provided fasteners.
Step 38 | Remove the screen adhesive
- Stubborn adhesive residue on the device's surface can be challenging to eliminate. To aid in removal, gently warm the area with a.Utilize a device designed to emit warm, directed airflow, ensuring the unit's wattage is no greater than 1500W and its cord is undamaged, to gently warm the component.orApply heat using a tool designed to generate warm air, ensuring the temperature remains consistent..
- Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you do not exceed 25 Nm of torque during removal, and be aware that the spring clip may dislodge; reinstallation requires careful alignment.Use a plastic spudger.Carefully lift the screen's adhesive using a spudger to create a secure grip.Employ fine-tipped pliers or similar precision instruments..
- Employ pliers to grasp.Employ fine-tipped pliers or similar precision instruments.Carefully use a plastic opening tool, or your fingertips, to detach the adhesive sealant completely encircling the iPhone's edge.
Step 39
- To maintain the iPhone's water resistance, ensure the frame is perfectly even; meticulously remove any contaminants.
- Carefully dispense a small quantity ofIsopropyl alcohol with a concentration exceeding 90% is required.Apply to a swab made of cotton or a cleaning cloth that doesn't leave behind fibers.
- Using a clean cloth, carefully remove any remaining adhesive from the frame's edges.
- Allow several minutes for any remaining alcohol to fully dissipate before continuing the repair.

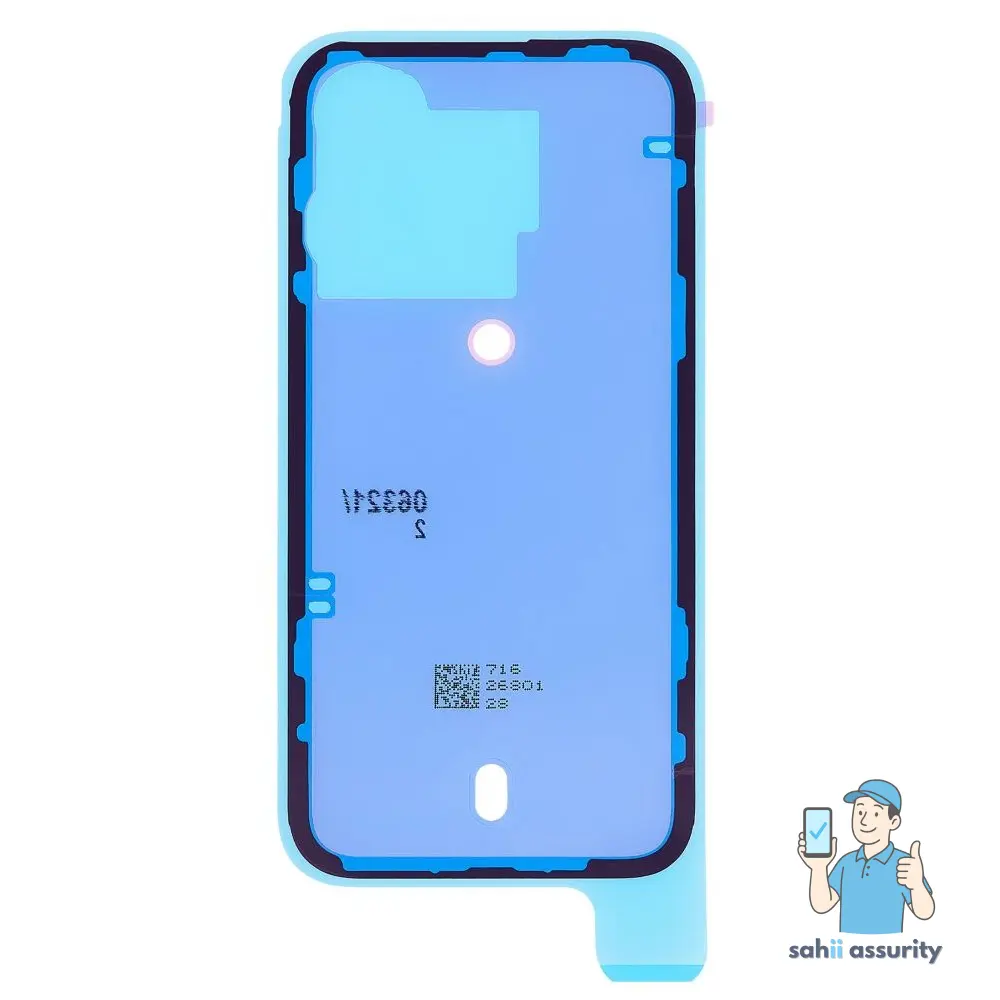

Step 40 | Orient the adhesive
Carefully position the adhesive sheet adjacent to the device, aligning it with openings such as those for the spring contacts and front-facing camera to ensure proper placement.
Step 41 | Apply the adhesive
- After ensuring proper alignment, apply firm pressure to secure the adhesive.Movement is not possible.Carefully detach the component, as the existing adhesive has failed; replacement with fresh adhesive is then required.
- Starting at the lower edge, gently lift the backing liner using the provided pull tab, exposing only a portion of the adhesive surface without completely separating the liner.
- Ensure the back liner remains displaced, then precisely position the adhesive's visible border against the iPhone's lower frame edge.
- Carefully position the adhesive so it’s even, then gently lower it onto the surface, ensuring contact with the lower edge.
Step 42
- As you position the adhesive around the iPhone's frame edges, gradually remove the protective backing liner.
- Proper alignment of the adhesive's lower edge ensures the side and top edges seat correctly; if misalignment occurs, discard the adhesive and reapply with fresh material.
- Reassembly without the original adhesive is permissible if a replacement isn't immediately available; however, the device will no longer offer water resistance until new adhesive is applied.
Step 43 | Press the adhesive into place
Employ the tool's straight, planar edge.Use a plastic pry tool to gently separate.Ensure the adhesive strip is fully seated by applying even pressure across its entire perimeter on the iPhone.
Exercise caution to avoid applying pressure to the camera module, spring contacts, or any other internal parts.
Step 44 | Remove the top liner
- To detach the upper liner, raise the tab located on the frame's upper right side, then carefully peel away the liner and discard it.
Carefully check the position of the pull tab, as its placement can vary; ensure you detach the complete upper liner assembly, avoiding separation of the thinner liners found along the perimeter.
Step 45 | Adhesive information
- After removing the outermost protective layer, you will find three thin liners situated above the adhesive, each featuring a pull tab located close to the lower border.
- The location of the retaining tabs can vary.
- The absence of the pull tabs indicates the thin liners were likely removed prematurely; avoid contact with the now-visible adhesive surface.
Step 46 | Prop up the screen
To prevent damage, use a stable support, like a small box, to hold the iPhone's display securely in place, positioning it against the left side of the device's frame.
Step 47 | Connect the screen and ambient light sensor
Gently depress the component with a fingertip or a tool featuring a broad, planar surface.Use a spudger.Secure the screen and ambient light sensor by firmly attaching their respective connectors.
Step 48 | Connect the battery
Gently depress the component with a fingertip or a tool featuring a broad, planar surface.Use a spudger.Attach the battery connector by pressing it into place.
Step 49 | Install the logic board cover
Position the logic board cover so that its upper-left corner fits beneath the ambient light sensor cable, ensuring the screw holes are properly aligned before securing it.
Step 50 | Fasten the logic board cover
- Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and avoid over-tightening during reassembly, as excessive force could damage the threaded insert.Use a Y000-type screwdriver.Using the Phillips head screwdriver, fasten the logic board cover in place with the six screws provided.
- Use four screws, each measuring 1.6 millimeters in length.
- Use screws, each measuring 1.3 millimeters in length.
Step 51 | Remove the final adhesive liners
After removing the liners, the adhesive backing will be visible and vulnerable to unintended contact; avoid any accidental adhesion.
Carefully detach the two thin adhesive strips, which protect the adhesive, from the frame's right edge, as well as its top and bottom surfaces, using tweezers.
Step 52
Carefully position the screen above the phone, ensuring it doesn't contact the adhesive, to allow access to the remaining liner located on the left side of the frame.
Carefully detach the last adhesive liner strip from the frame's left side using tweezers or your fingertips.
Step 53 | Place the screen
Carefully position the screen so it's centered on the frame, subsequently easing it downwards until it's fully seated.
Step 54 | Press the screen
Apply even pressure across the screen's perimeter to secure the clips and activate the adhesive bond.
Step 55 | Install the pentalobe screws
Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring the torque does not exceed 15 ft-lbs to prevent damage to the threaded insert; subsequently, carefully remove the fan assembly.Use a P2 screwdriver with a pentalobe tip.Secure the pair using the specified fasteners.Screws measuring 7 millimeters in lengthLocate the two components flanking the charging port.
Step 56 | Heat the screen
- Warm the screen's perimeter with a hair dryer or heat gun, ensuring the surface reaches a temperature comfortable to the touch to promote proper adhesive adhesion.
- Should you encounterSecure the display panel using specialized vise clamps.To ensure a strong connection, apply pressure with these tools. Otherwise, continue with the following methods for screen attachment.
Step 57 | Press the back glass
- Ensure uniform pressure across the iPhone's surface during compression and bonding of the screen to the frame, taking into consideration the camera module's protrusion.
- Using the iPhone's original packaging, position the box's top section on a level surface.
- Since the original packaging is unavailable, proceed to the alternative procedure instead.
- Position the iPhone within the box's lid, ensuring the display faces upward and the camera lens aligns with the designated indentation.
- Using an item approximately the dimensions of an iPhone, but exceeding the box's side height, position it atop the iPhone. Then, add several substantial weights on top of that.
- Allow the components to remain undisturbed for a minimum of thirty minutes; for optimal results, wait until the following morning.
Step 58
- To ensure uniform pressure on the display when the original packaging is unavailable, use the following procedure instead.
- Position the iPhone on a level, non-abrasive surface with the display facing downward.
- To prevent damage to the rear glass's surface, affix masking tape across its exterior.
- To ensure even pressure during adhesion, position three flat objects of comparable thickness to coins—such as washers or shims—directly on the adhesive tape, aligning them with the perimeter of the rear glass.
- Arrange the coins so they are uniformly spread and possess a minimum thickness matching the height of the camera protrusion.
Step 59
- To apply downward pressure evenly across the iPhone's surface, position several books or a similar substantial weight on top of it.
- To prevent marking or damage, avoid placing the coins directly on delicate or valuable surfaces.
- Allow the components to remain undisturbed for a minimum of 30 minutes; extended periods, up to overnight, are preferable.
