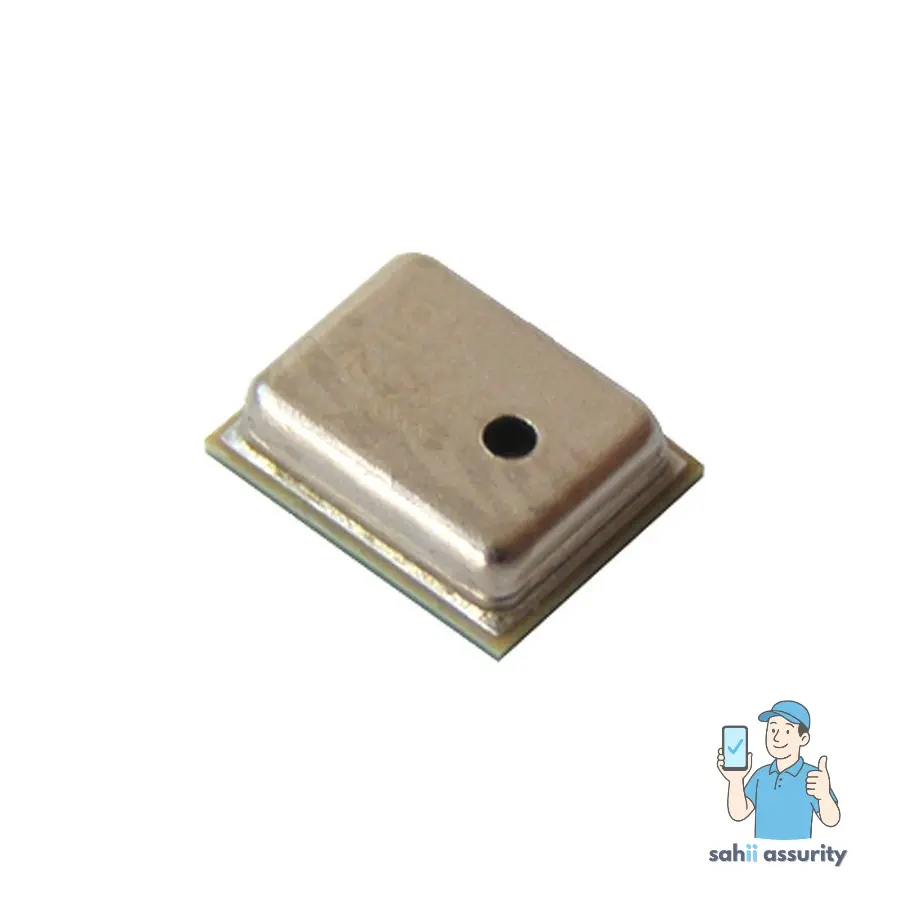

iPhone 15 Microphone Replacement
This document details the procedure for microphone replacement within an iPhone 15.
A faulty microphone could be the cause of voice recording problems or inconsistent audio quality on your iPhone, and replacement may be necessary.Employing appropriate caution, connect the microphone, ensuring its output level remains within the specified range of -60dB to 0dB, utilizing the provided XLR connector and compatible cable.This guide focuses on the main microphone, which is a separate component and can be replaced individually. The charging port and power button assemblies each incorporate a separate microphone as well.
- To finish the repair, ensure you have new adhesive specifically designed for the back glass.
Step 1 | Prepare your phone for disassembly
- To optimize battery health, ensure the charge level drops to a minimum of 75% remaining.A fully charged lithium-ion battery presents a potential safety risk..
- Disconnect all connected wires from the device.
- Simultaneously press and maintain the power button along with one of the volume buttons, then physically move the device to initiate the power-off sequence.
Step 2 | Tape over any cracks
- To prevent injury and simplify the repair process when the display or rear glass exhibits severe cracking, apply strips of packing tape, ensuring they overlap, across the damaged areas.
- Ensure a flat surface, approximately the size required for suction cup adhesion, exists close to the lower perimeter.
Step 3 | Mark your opening picks
- To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; therefore, use this procedure to identify the maximum insertion point for the pick.
- Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
- Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
- Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end.
Step 4 | Remove the pentalobe screws
Employ a P2 pentalobe screwdriver to detach the two.Screws measuring 7.7 millimeters in length.Flanking the charging port are components located on both the left and right sides.
Step 5 | Heat the bottom edge
- Apply heat evenly along the lower perimeter of the rear glass panel using a hair dryer or heat gun, continuing until the surface is warm enough to be comfortably held.
- To prevent heat-related battery damage, ensure the device's temperature remains below the specified limit.
Step 6 | Insert an opening pick
- Using a suction handle, secure it firmly to the lower edge of the rear glass panel.
- Apply firm, consistent upward pressure to the handle to separate the rear glass from the frame.
- Carefully slide the pointed end of a prying tool into the separation.
Step 7 | Back glass information
Exercise caution when separating the adhesive bonds holding the rear glass in place during the subsequent procedures, specifically avoiding damage to these locations.
- To prevent damage to the fragile cable linking the rear glass assembly and the device, refrain from using a prying tool in the area adjacent to the volume down button.
- To prevent damage, exercise caution and limit the depth of your tool insertion during each step, as the phone's edge features several delicate spring contacts.
Step 8 | Separate the bottom edge adhesive
To prevent damage, limit the insertion depth of the opening pick to a maximum of 5 millimeters when working along the bottom edge.
Carefully work a prying tool along the lower border, using a back-and-forth motion to release the adhesive bond.
To stop the adhesive from bonding again, maintain a pick's position in the lower right area.
Step 9 | Heat the right edge
Apply heat to the right side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.
Step 10 | Separate the bottom right corner adhesive
- Ensure the pick does not penetrate beyond a depth of 7 millimeters.Position yourself on the right-hand side.
- Carefully maneuver a pick along the lower right edge, inserting it between the device housing and the rear glass until resistance is met from a substantial clip that holds the glass in place.
- Avoid cutting beyond the area containing the volume buttons.Protect the wireless charging cable from harm.
- Maintain the presence of this tool within the mechanism.Avoid allowing the adhesive to re-bond.
Step 11 | Heat the left edge
Apply heat to the left side of the rear glass panel until the surface reaches a temperature that is comfortable to touch.
Step 12 | Separate the left edge adhesive
- Starting at the left-hand side, proceed.Ensure the tool's insertion depth remains at or below 5 millimeters..
- Position another opening pick near the lower margin.
- Using a pivoting motion, position the second pick so its tip engages the lower left edge.
- Using the pick, gently move it upwards towards the upper left edge to release the adhesive bond.
- Maintain the pick's position within the assembly.Avoid adhesive re-bonding by ensuring complete separation.
Step 13 | Heat the top edge
Apply heat to the upper perimeter of the rear glass panel until its surface temperature is high enough for you to feel it with your hand.
Step 14 | Separate the top edge adhesive
- Avoid pushing the tool beyond the specified depth.Three millimeters.Position the component along the uppermost boundary.
- Using the second opening pick, move it in a circular motion from the upper-left area to the upper-right area to release the adhesive bond.
- A clicking sound and a slight movement may occur when the uppermost two retaining clips disengage.
- Maintain the positioning of the pick to avoid the adhesive re-bonding.
Step 15 | Heat the top right corner
Apply heat to the upper-right quadrant of the rear glass panel until the surface reaches a temperature that is comfortable to touch.
Step 16 | Separate the top right corner adhesive
- Avoid pushing the tool beyond the specified depth.Four millimeters.Position yourself on the right-hand side.
- Using the second opening pick, maneuver it to the upper right corner, then advance it toward the volume up button to release the adhesive bond.
Step 17 | Open the back glass
- Carefully pivot the rear glass cover away from the device's right side, raising it to access the internal components.
- Carefully inspect the entire edge of the rear glass, as resistance may indicate unreleased clips or remaining adhesive needing removal.
- To prevent stress on the cable, support the rear glass on an elevated platform during the repair.
Step 18 | Unfasten the lower connector cover
- Carefully organize all screws during disassembly, noting their original locations to ensure correct reassembly.
- Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring the specified torque is achieved to prevent damage and maintain secure attachment.Use a Y000-sized tri-point screwdriver.Detach the pair of fasteners.Screws measuring 1.3 millimeters in length.Ensure the lower connector cover is firmly attached.
Step 19 | Remove the lower connector cover
- Gently maneuver the cover using tweezers, moving it upwards to release the latch securing it to the logic board.
- Detach the protective housing.
Step 20 | Disconnect the battery
- Using one hand to stabilize the rear glass in a vertical position, pivot it slightly to expose the battery press connector located directly beneath the volume buttons.
- The connector's head features embossed plus and minus markings.
- Employ the pointed end of a screwdriver to carefully depress the retaining clip, ensuring the clip remains secure until the connector is fully disengaged, and avoiding damage to the clip or connector, which could require replacement.Use a specialized tool designed for prying, referred to as an opening pick.Using a prying tool, carefully lift the battery press connector to release it from its socket on the logic board.
Step 21 | Unfasten the middle connector cover
Employ a Y000-sized tri-point screwdriver.Detach the component.A screw measuring 0.9 millimeters in length.Fasten the central connector cover, ensuring it is properly aligned and tightened.
Step 22 | Remove the cover
- Employ the tool's planar edge or a fingertip.Slide the cover downwards along the phone's body, releasing the retaining clips located at the top edge during the movement.
- Carefully detach the protective housing..
Step 23 | Disconnect the wireless charging coil
Employ a prying tool to initiate separation.Carefully use a prying tool to release and detach the wireless charging coil and NFC connector.
Step 24 | Remove the back glass
Carefully detach the rear panel, which is the back glass..
Step 25 | Unfasten the loudspeaker
- Employ a Y000-sized tri-point screwdriver.Detach the component.A screw measuring 1.3 millimeters in length.Attach the grounding clip and loudspeaker, ensuring proper connection.
- Employ a Phillips head screwdriver, size 000, for this step.Detach the four screws.Screws measuring 1.6 millimeters in length.Affix the loudspeaker using the provided four M4 screws, ensuring each is tightened to a torque of 1.2 Nm with a screwdriver.
Step 26 | Pry up the loudspeaker
Carefully insert the flat spudger edge beneath the loudspeaker's right side and gently lift to release its adhesive, allowing for a finger grip.
Step 27 | Remove the loudspeaker
Detach the loudspeaker..
Step 28 | Remove the Taptic Engine connector cover
- Employ a Phillips head screwdriver, size 000, for this step.Detach the pair of fasteners.Screws measuring 1.9 millimeters in length.Ensure the Taptic Engine press connector cover is firmly in place.
- Detach the protective housing..
Step 29 | Disconnect the Taptic Engine
- Employ the specified tool to carefully manipulate the component, ensuring adherence to the indicated dimensions of 1.5 inches by 0.75 inches, and observe the safety precautions regarding potential electrical shock hazards while handling the part.Establish a precise location.Regarding the component in question.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Carefully lever and detach theConnect the Taptic Engine's electrical connector..
Step 30 | Unfasten the Taptic Engine
- Employ the provided 3/8-inch socket wrench to engage and turn the fastener, ensuring a torque of 15 Nm to avoid damage.Use a Phillips head screwdriver, size 000.Detach the component.A screw measuring 1.9 millimeters in length.Ensure the component is firmly fixed.The device incorporates a Taptic Engine..
Step 31 | Remove the Taptic Engine
- Carefully detach the component using tweezers or your fingertips.The device incorporates a Taptic Engine..
Step 32 | Disconnect the microphone
- Carefully insert the tip of your spudger to lift and separate theConnect the microphone by pressing its connector firmly into place..
Step 33 | Unfasten the microphone
- Employ the provided 3/8-inch socket wrench to securely tighten the fastener.Use a Y000-sized tri-point screwdriver.Detach the component.A screw measuring 1.3 millimeters in length.Attach the microphone and its grounding clip, ensuring a firm connection.
- Employ the specified tool to proceed.Use a Phillips head screwdriver with a 000 size tip.Detach the component.A screw measuring 1.3 millimeters in length.Affix the microphone to its lower right corner.
- Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; subsequently, carefully detach the component.Use the provided standoff driver to install or remove the threaded standoffs.Detach the pair of fasteners.Standoff screws, each measuring 3.0 millimeters in length, are required.Affix the microphone's upper portion, ensuring it is firmly attached.
- Ensure a suitable replacement is available if the original component is missing.Use the provided standoff driver to secure the component.Employing a slender, flathead screwdriver is acceptable for this step; however, exercise caution to avoid damaging the screw head recesses.
Step 34 | Pry up the microphone
To attach the microphone, use a robust adhesive gasket, exercising caution to avoid deforming the delicate grounding tabs during installation.
Using the tool's straight edge, carefully slide it into the designated space.Use a spudger.Locate the microphone's upper border.
Carefully apply upward force to release the microphone from its adhesive attachment.
Step 35 | Remove the microphone
Carefully lift and detach the microphone component using your fingers or tweezers.
Step 36 | End of disassembly
The device is now fully separated into its component parts.Follow the subsequent instructions to put your device back together.
To ensure a secure connection, position the connector precisely above its receptacle and apply even pressure, initially on one side using your fingertip or a spudger, then repeat on the opposite side, listening for the audible click confirming proper seating. Avoid applying excessive force; if resistance is felt, realign the connector and retry the process.
To ensure a secure connection, position the connector precisely above its receptacle and apply even pressure, initially on one side using your fingertip or a spudger, then repeat on the opposite side, listening for the audible click confirming proper seating. Avoid applying excessive force; if resistance is felt, realign the connector and retry the process.
Step 37 | Remove the old adhesive
- Employ either tweezers or your fingertips for manipulation.Carefully eliminate the existing adhesive residue from the frame's lower surface.
To remove any adhesive residue from the frame, gently wipe the affected area with a coffee filter or lint-free cloth dampened with isopropyl alcohol having a concentration exceeding 90%.
Step 38 | Remove the white liner
- The microphone may have pre-applied adhesive.Proceed directly to the subsequent steps, bypassing the pair immediately following.
Carefully secure the microphone adhesive with one hand, then use your fingers or tweezers to detach the white liner.
Step 39 | Apply the adhesive to the microphone
- Maintain a firm grip.Position the microphone with its metallic surface oriented upwards.
Ensure the pull tab faces upward as you attach the adhesive to the microphone.
Step 40
- Carefully peel away the blue protective backing from the microphone adhesive..
Step 41 | Install the microphone
- Position the microphone, tilting it downwards, to ensure the adhesive creates a secure bond with the frame surrounding the sound channel.
Ensure the microphone is seated securely.
Step 42 | Install the microphone screws
- Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you apply a steady force to avoid damaging the threads; subsequently, carefully remove the fan assembly, noting its orientation for reinstallation, and be aware that the unit may contain sharp edges.Use a Y000-sized tri-point screwdriver.Secure the component using the specified fasteners, ensuring proper alignment and adherence to the indicated torque of 8 Newton-meters, and referencing the parts list for correct identification.Employ a 1.3-millimeter screw.Attach the microphone and its grounding clip, ensuring a firm connection.
Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; subsequently, carefully remove the component.Use a Phillips head screwdriver, size 000.Secure the component using the specified fasteners, ensuring proper alignment as indicated by the measurements and employing the designated tools while observing all safety precautions.A screw with a diameter of 1.3 millimeters.Affix the microphone to its lower right corner.
Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you apply consistent pressure to avoid damaging the threaded connection and following all safety precautions outlined in section 4.2 regarding pinch points.Use the provided standoff driver to secure the component.Secure the pair using the provided fasteners.Use screws with a 3-millimeter standoff height.Affix the microphone's upper portion using the provided screws, ensuring they are tightened to a torque of 1.5 Nm with a 4mm hex key, and observe the caution regarding potential damage to the housing if overtightening occurs.
Ensure a suitable replacement is available if the original component is missing.Use the provided standoff driver to secure the component.Employing a slender, flathead screwdriver is acceptable, but exercise caution to avoid damaging the delicate screw head recesses.
Step 43 | Connect the microphone
Carefully engage the microphone press connector using the flat edge of a spudger or a fingertip.
Step 44 | Place the loudspeaker
Carefully position the loudspeaker within the designated cavity on the frame.
Step 45 | Install the loudspeaker screws
- Employ the specified tool to proceed.Utilize a Y000-sized tri-point screwdriver.Secure the component using the specified fasteners, ensuring proper alignment as indicated by the manufacturer's measurements.A screw measuring 1.3 millimeters in length.Affix the grounding clip and loudspeaker, ensuring proper connection.
Employ the provided 3/8-inch socket wrench to securely tighten the fastener.Use a Phillips head screwdriver, size 000.Secure the four.Screws measuring 1.6 millimeters in length.Affix the loudspeaker using the four provided M4 screws, ensuring each is tightened to a torque of 1.5 Nm with a screwdriver.
Step 46 | Remove the back glass adhesive
Exercise caution to prevent any harm to the spring contact points during the cleaning process.
Before finalizing the phone's enclosure, verify the repair's functionality by temporarily reattaching the battery and back glass, powering on the device to confirm expected operation, then shutting it off and removing those components to proceed with the remaining reassembly steps.
To eliminate the challenging removal of adhesive and any resulting residue from your phone, use a hair dryer or heat gun to gently warm the area if necessary.
Carefully insert the tapered tip of the tool.Use a plastic pry tool, often referred to as a spudger, to separate components.Apply firm, even pressure while manipulating the adhesive to achieve a consistency suitable for handling with tweezers.
Carefully detach the adhesive from the phone's surface using tweezers.
Before finalizing the phone's enclosure, verify the repair's functionality by temporarily reattaching the battery and back glass, powering on the device to confirm expected operation, then shutting it off and removing those components to proceed with the remaining reassembly steps.
To eliminate the challenging removal of adhesive and any resulting residue from your phone, use a hair dryer or heat gun to gently warm the area if necessary.
Carefully insert the tapered tip of the tool.Use a plastic pry tool, often referred to as a spudger, to separate components.Apply firm, even pressure while manipulating the adhesive to achieve a consistency suitable for handling with tweezers.
Carefully detach the adhesive from the phone's surface using tweezers.
Step 47
To maintain the iPhone's water resistance, completely remove any remaining adhesive or debris from the frame.
To protect the tip and prevent scratching, cover it with a microfiber cloth or a cloth free of lint.Use a plastic pry tool to gently separate the component.Dampen the cleaning cloth with several drops of isopropyl alcohol, ensuring the alcohol concentration exceeds 90%.
Using a clean cloth, remove any remaining adhesive by gently wiping along the frame's edges, maintaining a consistent direction.
Allow several minutes for any residual cleaning alcohol to fully dissipate.
To protect the tip and prevent scratching, cover it with a microfiber cloth or a cloth free of lint.Use a plastic pry tool to gently separate the component.Dampen the cleaning cloth with several drops of isopropyl alcohol, ensuring the alcohol concentration exceeds 90%.
Using a clean cloth, remove any remaining adhesive by gently wiping along the frame's edges, maintaining a consistent direction.
Allow several minutes for any residual cleaning alcohol to fully dissipate.
Step 48 | Orient the adhesive
Carefully position the adhesive strip adjacent to the device, aligning it with the spring contact openings and the rear camera to ensure proper orientation.
Variations in appearance are possible for the adhesive material.
Variations in appearance are possible for the adhesive material.
Step 49 | Apply the adhesive
Because the adhesive bonds immediately upon contact, any adjustments after placement are impossible; instead, the application must be completely removed and redone using fresh adhesive.
- Initiate the liner removal process by grasping the designated pull tab and gently separating the backing from the adhesive, commencing at the lower edge, ensuring the liner remains partially attached.
- Position the liner aside, then carefully align the adhesive strip with the lower edge of the iPhone.
- Carefully position the adhesive's lower edge within the frame's designated groove, verifying that the iPhone’s spring contacts correspond precisely with the liner’s openings.
Step 50
Carefully position the adhesive, then apply even pressure along its lower border using the spudger's flat end or a fingertip.
Step 51
As you remove the adhesive backing, ensure firm contact with the iPhone's frame edges.
- Proper alignment of the adhesive's lower edge ensures the side and top edges seat correctly; if misalignment occurs, discard the adhesive and repeat the process using fresh adhesive.
- Should the adhesive strip be incorrectly positioned and a replacement isn't immediately available, the iPhone can be reassembled and used as normal without it; however, be aware that the device's water resistance will be reduced until replacement adhesive is applied.
Step 52 | Press the adhesive into place
Verify correct liner placement by confirming that each spring contact and the rear camera are situated within their designated openings; if misaligned, discard the adhesive and repeat the process using a fresh liner sheet.
- Carefully apply pressure around the frame's edges with the spudger's flat tip to secure the adhesive.
- Avoid contact with the spring terminals extending through the pink liner.
Step 53 | Remove the top liner
Carefully peel away the adhesive backing layer.
- The liner's construction varies based on the adhesive used; it may consist of several sections or be a continuous piece.
Step 54 | Prop up the back glass
To prevent damage, secure the rear glass on the device’s right side with a stable support, such as a small, rigid container.
- Carefully engage the wireless charging coil connector using the flat edge of a spudger or a fingertip.
- Connect the battery press to its designated connector.
Step 55 | Place the middle connector cover
Position the connector cover, ensuring it extends beyond the bottom clip slot on the logic board, and align it with the wireless charging coil connector.
Step 56
- Apply downward pressure to the cover using a fingertip.
- Apply downward pressure and then move the cover in an upward direction, ensuring the metal clips align and engage with their corresponding locations on the logic board.
Step 57 | Place the lower connector cover
- Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.Align the upper edge of the lower connector cover and slide it down into the corresponding receptacle on the logic board.
- Position the lower connector cover so it overlaps the press connectors.
Step 58 | Install the cover screws
- Employ the specified tool to perform the action.Use a Y000-sized screwdriver with a three-pronged tip.Secure the component using the specified fasteners, ensuring proper alignment with the designated mounting points and adhering to the torque specification of 8 Newton-meters.A screw measuring 0.9 millimeters in length.Affix the central connector cover, ensuring it is properly aligned and fastened.
- Employ the specified tool to perform the action.Utilize a Y000-sized screwdriver with a three-pointed tip.Secure the pair using the specified fasteners.Screws measuring 1.3 millimeters in length.Use a 5mm hex key to fasten the lower connector cover, ensuring all screws are tightened to the specified torque.
Step 59 | Remove the final adhesive liners
Carefully detach the lower frame's retaining tabs, located close to the charging port, by gently manipulating them with tweezers or your fingertips.
Step 60
Carefully detach the thin liner, measuring approximately the width of the left edge and the full length of the top edge, which protects the adhesive applied to the frame.
Step 61
- Position the replacement back glass above the device, ensuring no contact with the adhesive to allow access to the remaining adhesive strips located on the right side.
- Carefully detach any remaining liners from the right side of the device using tweezers or your fingertips.
Step 62 | Install the back glass
- Carefully position the back glass flat against the frame, applying even pressure until the retaining clips click into place.
- Apply even pressure along the edges of the rear glass to secure all retaining clips.
Step 63 | Heat the back glass
- Warm the perimeter of the rear glass by applying heat with an iOpener, hair dryer, or heat gun until the surface feels warm.
- To ensure a strong seal, apply consistent pressure across the entire edge of the rear glass; for enhanced adhesion, utilize screen vise clamps if available, otherwise proceed with alternative securing methods detailed below.
Step 64 | Press the back glass
Ensure uniform pressure during iPhone reassembly and secure the rear glass to the frame by considering the camera module's protrusion.
Using the iPhone's original packaging, position the lid on a level surface.
Since the original packaging is unavailable, proceed to the alternative procedure instead.
Position the iPhone, camera lens facing upward, within the box's lid, ensuring the camera bump aligns with the designated indentation.
Employ an object approximately the dimensions of a standard iPhone in height and width, but exceeding the box's side walls in vertical length. Position this object atop the iPhone, then add several substantial weights on top of it.
Allow the items to remain undisturbed for a minimum of thirty minutes; reduce their weight necessitates a longer waiting period. For optimal results, maintain the stacked arrangement overnight.
Step 65
- Lacking the original packaging, use the subsequent three steps to apply uniform pressure across the rear glass.
- Position the iPhone on a level, non-abrasive surface with the display facing downward.
- To prevent damage to the rear glass surface, affix masking tape across its exterior.
Step 66
- To ensure consistent separation, position flat, uniform items—such as coins—at regular intervals along the tape's perimeter, abutting the rear glass.
- Ensure the combined thickness of the shims creates a uniform elevation exceeding the camera module's protrusion.
Step 67
- To apply downward pressure evenly across the iPhone's surface, position several books or a similar weighty item on top of it.
- To avoid marking or damaging delicate surfaces, use only inexpensive materials as a base.
- Allow the components to remain undisturbed for a minimum of thirty minutes; reduce the required time if the items are heavier. For optimal results, maintain the stacked configuration overnight.
Step 68 | Install the pentalobe screws
Employ a 3/8-inch socket wrench to tighten the fastener to a torque of 15 Nm, ensuring caution is exercised to prevent damage to the retaining clip.Use a P2 driver with a pentalobe tip.Secure the pair using the specified fasteners.Screws, each measuring 7.7 millimeters in length, are required.Locate the two components flanking the charging port.
