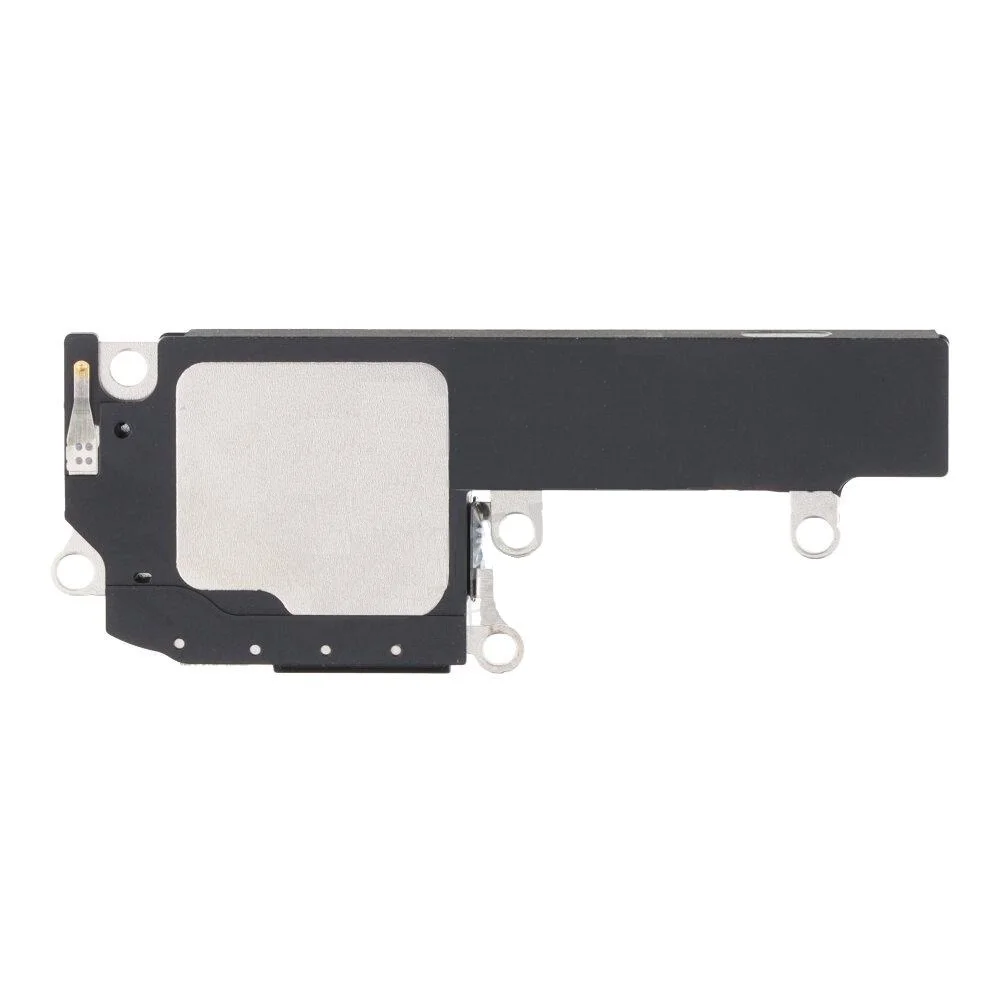

iPhone 15 Loudspeaker Replacement

• To optimize battery health, ensure the charge level drops to a minimum of 75% remaining.A fully charged lithium-ion battery presents a potential safety risk..
• Disconnect all wires and connectors attached to the device.
• Simultaneously press and maintain the power button along with either volume button, and then move your finger across the device to initiate the power-off sequence.

• To prevent injury and simplify the subsequent repair process when the display or rear glass exhibits severe cracking, apply multiple layers of packing tape, ensuring they overlap, across the damaged areas.
• Ensure a flat surface, approximately the size needed to accommodate a suction cup, exists close to the lower perimeter.

• To avoid potential damage to your device, ensure the opening pick does not extend beyond a safe depth; therefore, mark the pick to indicate this limit.
• Determine the dimension using an appropriate measuring tool.Three millimeters.Using a permanent marker, clearly indicate the opening point on the pick.
• Alternative corner markings on the pick can be added, using the same measurement tools to ensure accuracy.
• Securely affix a coin to the tip of a pick using adhesive tape.Three millimeters.Beginning at the very end, proceed.

Employ a P2 pentalobe screwdriver to detach the two.Screws measuring 7.7 millimeters in length.Locate the two components flanking the charging port.

• Apply heat evenly along the lower perimeter of the rear glass panel with a hair dryer or heat gun, ensuring the surface reaches a temperature that is comfortable to touch.
• To prevent heat-related battery damage, ensure the device's temperature remains below the specified limit.

• Using a suction handle, secure it firmly to the lower edge of the rear glass panel.
• Apply firm, consistent upward pressure to the handle to separate the rear glass from the frame.
• Carefully slide the pointed end of a prying tool into the separation.

• Exercise caution while separating the adhesive bonds holding the rear glass in place during the subsequent procedures, specifically avoiding damage to these locations.
• To prevent damage to the fragile cable linking the rear glass assembly and the device, refrain from using your opening tool in the area adjacent to the volume down button.
• To prevent damage, exercise caution and limit the depth of your tool insertion during each step, as the phone's edge features several delicate spring contacts.

• To prevent damage, limit the insertion depth of the opening pick to a maximum of 5 millimeters when working along the lower edge.
• Using a pick, gently work along the lower edge, moving it back and forth to release the adhesive bond.
• To stop the adhesive from bonding again, maintain a pick in the lower right area.

• Apply heat to the right side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

• Avoid pushing the tool beyond the specified depth.Seven millimeters.Position yourself on the right-hand side.
• Carefully maneuver a pick along the lower right edge, inserting it between the casing and back glass, and advance it towards the volume down button, stopping when you encounter a rigid barrier indicating the location of a substantial retaining clip.

Avoid cutting deeper than the volume control buttons.Protect the wireless charging cable from harm.

Maintain the tool's position within the gap to stop the adhesive from bonding shut.

• Apply heat to the left side of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

• Avoid pushing the pick past the left-hand border.Five millimeters..
• Position another opening pick near the lower extremity.
• Using a prying motion, reposition the second pick to the lower left area.
• Using the pick, gently move it upwards toward the upper left edge to release the adhesive bond.

Maintain the pick's position during adhesive curing to avoid unintended bonding.

Apply heat to the upper perimeter of the rear glass panel until its surface is warm enough to be comfortably held.

• Avoid pushing the tool beyond the specified depth.Three millimeters.Position the component along the uppermost boundary.
• Using the second opening pick, move it in a circular motion from the upper left to the upper right, releasing the adhesive bond.
• Expect to perceive audible clicks and a slight movement indicating the two uppermost retaining clips are disengaging.
• Maintain the positioning of this tool to avoid the adhesive bonding again.

Apply heat to the upper right quadrant of the rear glass panel until its surface temperature is high enough to be felt as hot when touched.

• Avoid pushing the tool beyond the specified depth.Four millimeters.Position yourself on the right-hand side.
• Using the second opening pick, maneuver it to the upper right corner, then advance it toward the volume up button to release the adhesive bond.

• Carefully pivot the rear glass cover away from the device's right side, using a lifting motion.
• Carefully inspect the entire edge of the rear glass, as resistance may indicate unreleased clips or remaining adhesive.
• To prevent cable stress, support the rear glass on an elevated platform during the repair.

• Carefully organize all screws during disassembly, noting their original locations to ensure correct reassembly.
• Employ a 3/8-inch socket wrench to securely tighten the fastener to a torque of 15 Nm, ensuring no damage occurs to the surrounding components and observing all safety precautions.Use a Y000 tri-point screwdriver.Detach the pair of fasteners.Screws measuring 1.3 millimeters in length.Affix the lower connector cover, ensuring it is properly seated and fastened.

• Carefully employ tweezers to move the cover upwards, releasing its connection from the logic board.
• Detach the protective housing.

• Using one hand to stabilize the rear glass in a vertical position, pivot it slightly to expose the battery press connector located immediately beneath the volume buttons.
• The connector's head features embossed plus and minus markings.
• Employ the pointed end of a screwdriver to carefully apply pressure.Use a specialized tool designed for prying, referred to as an opening pick.Using a prying tool, carefully release and detach the battery press connector from the logic board.

Employ the provided 3/8-inch socket wrench to securely tighten the fastener to a torque of 15 Nm, ensuring you observe all safety precautions outlined in section 4.2 regarding pinch points and wear appropriate eye protection.Use a Y000-sized tri-point screwdriver.Detach the component.A screw measuring 0.9 millimeters in length.Affix the middle connector cover, ensuring it is properly seated and fastened.

• Carefully slide a spudger's flat end, or your fingertip, along the top edge of the cover, applying pressure downwards to release the clips securing it to the phone's chassis.
• Detach the protective housing.

Employ a 5/32-inch hex key to loosen the retaining screw, then carefully detach the component, observing that a torque of 3.2 Nm should be applied when reinstalling it, and always wear safety glasses to protect against potential debris.Use a specialized tool designed for prying, referred to as an opening pick.Carefully use a prying tool to release and detach the wireless charging coil and NFC connector.

Carefully detach the rear glass panel, ensuring no damage to surrounding components.

• Employ the provided 3/8-inch socket wrench to securely tighten the fastener.Use a Y000 tri-point screwdriver.Detach the component.A screw measuring 1.3 millimeters in length.Attach the grounding clip and loudspeaker, ensuring proper connection.
• Employ the provided 3/8-inch socket wrench to engage and turn the fastener.Use a Phillips head screwdriver, size 000.Detach the four screws.Screws measuring 1.6 millimeters in length.Affix the loudspeaker using the four provided M4 screws, ensuring each is tightened to a torque of 1.5 Nm with a screwdriver.

You've successfully taken the device apart; the following instructions detail the reassembly process.
Ensure proper alignment of the connector above its receptacle before applying downward pressure with a fingertip to secure the connection.Use a plastic pry tool, often called a spudger, to avoid scratching surfaces.Align the connector, working incrementally on each side until you hear a distinct click, indicating secure engagement. Avoid applying excessive force; if resistance is encountered, readjust the connector's position and attempt the installation again.

• Employ the specified tool to proceed.Use a Y000 tri-point screwdriver.Secure the component using the specified fasteners, ensuring proper alignment with the designated mounting points and adhering to the torque specification of 8 Newton-meters, while observing all safety precautions.A screw measuring 1.3 millimeters in length.Attach the grounding clip and the loudspeaker, ensuring proper connection.
• Employ the provided 3/8-inch socket wrench to tighten the fastener to a torque of 18 Nm, ensuring you observe all safety precautions outlined in section 4.2 regarding pinch points and wear appropriate eye protection.Use a Phillips head screwdriver, size 000.Secure the fourScrews measuring 1.6 millimeters in length.Affix the loudspeaker using the four provided M4 screws, ensuring each is tightened to a torque of 1.5 Nm with a screwdriver.

• Before finalizing the phone's reassembly and securing the rear enclosure, verify the repair's functionality by temporarily reconnecting the battery and back glass, then activating the device to confirm expected operation. Following this test, deactivate the phone, detach the battery and back glass, and proceed with the remaining assembly steps.
• To eliminate the challenging-to-remove adhesive and any resulting residue on your phone, use a hair dryer or heat gun to gently warm the area if removal proves difficult.
• Carefully use the tip of a spudger to apply pressure and manipulate the adhesive, allowing it to become accessible for grasping with tweezers.
• Carefully remove the adhesive securing the phone using tweezers.

• Using a microfiber or lint-free cloth to protect the surface, carefully apply a small amount of lubricant to the tip of the spudger.Isopropyl alcohol with a concentration exceeding 90% is required.Apply the material.
• Using a cloth, remove any remaining adhesive from the frame's edges by wiping consistently in a single direction.
• Allow several minutes for any remaining alcohol to fully dissipate before continuing.

• Variations in appearance are possible for the adhesive product.

• Starting at the lower edge, gently lift the backing liner using the provided pull tab, exposing only a portion of the adhesive surface without completely separating the liner.
• Position the liner aside, then carefully align the adhesive strip with the iPhone's lower edge.
• Carefully position the adhesive's lower edge within the frame's designated groove, ensuring the iPhone’s spring contacts precisely match the corresponding openings in the liner.

• As you apply the adhesive, gradually remove the protective backing liner, ensuring firm contact with the iPhone's frame edges.
• Proper alignment of the adhesive's lower edge ensures the side and top edges seat correctly; should misalignment occur, discard the adhesive and repeat the process using fresh adhesive.
• Should the adhesive strip become improperly positioned and a replacement isn't immediately available, the iPhone can be reassembled and used as normal without the adhesive; however, be aware that the device's water resistance will be reduced until replacement adhesive is applied.

• Verify correct liner positioning by confirming that each spring contact and the rear camera are situated within their designated openings; if misaligned, discard the adhesive and repeat the process using a fresh liner sheet.
• Employ the tool's straight, planar edge.Use a plastic pry tool, often referred to as a spudger, to gently separate components.Ensure the adhesive makes full contact with the frame's edges by applying firm, even pressure around its entire circumference.
• Avoid contact with the spring terminals extending through the pink liner.

• Carefully peel away the adhesive backing layer.
• The liner's construction varies based on the adhesive used; it may consist of several sections or be a continuous piece.

• To prevent damage, secure the rear glass on the device’s right side with a stable support, such as a small, rigid container.
• Employ the tool’s flat end toUse a plastic pry tool to gently separate the component.To establish a wireless charging connection, engage the wireless charging coil with your finger, subsequently securing the battery connector.

Position the connector cover centrally atop the wireless charging coil connector, ensuring a slight extension beyond the logic board's bottom clip opening.

• Apply downward pressure to the cover using a fingertip.
• Apply downward pressure and move the cover in an upward direction until the metal clips engage with their corresponding locations on the logic board.

• Carefully position the upper edge of the lower connector cover and secure it within its designated slot on the logic board using tweezers.
• Position the lower connector cover so it overlaps the press connectors.

• Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply even pressure to avoid damaging the retaining clip and observe the torque specification of 12 Nm as indicated in the service manual, and wear safety glasses to protect your eyes.Use a Y000-sized screwdriver with a three-pronged tip.Secure the component using the specified fasteners, ensuring proper alignment with the designated mounting points and adhering to the torque specification of 3.2 Nm, while observing all safety precautions.A screw measuring 0.9 millimeters in length.Fasten the central connector cover, ensuring it remains properly aligned and tightened.
• Employ a 3/8-inch socket wrench to securely tighten the fastener to a torque of 15 Nm, ensuring proper engagement and preventing damage to the component.Use a Y000-sized screwdriver with a three-pronged tip.Secure the pair using the specified fasteners.Screws measuring 1.3 millimeters in length.Affix the lower connector cover, ensuring it is properly aligned and fastened.

Carefully detach the retaining tabs located at the frame's base, close to the charging port, utilizing either tweezers or your fingertips.

• Position the replacement back glass against the device's rear surface, ensuring it doesn't contact the adhesive to allow access to the protective liners still covering the right-hand edge.
• Carefully detach any remaining liners from the right side of the device, employing either tweezers or your fingertips.

• Align the back glass flat against the frame's surface, applying even pressure until the retaining clips lock into place.
• Apply even pressure along the edges of the rear glass to secure all retaining clips.

• Warm the perimeter of the rear glass with an iOpener, hairdryer, or heat gun, ensuring it reaches a temperature that is noticeably warm to the hand, to facilitate proper adhesive adhesion.
• To ensure a strong seal, apply consistent pressure across the entire edge of the rear glass; for enhanced adhesion, utilize screen vise clamps if available, otherwise proceed with alternative securing methods detailed below.

• Ensure uniform pressure across the iPhone's chassis during reassembly and bonding of the rear glass to the frame, taking into consideration the camera module's protrusion.
• Using the iPhone's original packaging, position the lid on a level surface.
• Since the original packaging is unavailable, proceed to the alternative procedure instead.
• Position the iPhone, camera lens facing upward, within the box's lid, ensuring the camera bump aligns with the designated indentation.
• Employ an object approximately the dimensions of a standard iPhone in height, but exceeding the box's side walls in length. Position this object atop the iPhone, and then add several substantial weights on top of it.
• Allow the items to remain undisturbed for a minimum of thirty minutes; reduce the duration if the objects are heavy. For optimal results, maintain the stacked arrangement overnight.

• Lacking the original iPhone packaging, use the subsequent three steps to achieve uniform pressure on the rear glass.
• Position the iPhone on a level, non-abrasive surface with the display facing downward.
• To prevent damage to the rear glass's surface, affix masking tape across its exterior.

• Using items of consistent thickness, such as coins, arrange them along the perimeter of the rear glass, ensuring they are distributed at regular intervals.
• Ensure the combined height of the shims equals a measurement exceeding the camera module's protrusion.

• To apply downward pressure evenly across the iPhone's surface, place several books or a comparable weight on top of it.
• To prevent marking or damage, avoid placing the coins directly on delicate or valuable surfaces.
• To ensure proper adhesion, allow the applied items to remain undisturbed for a minimum of thirty minutes; reduce the weight of the items being used, extend this waiting period. For optimal results, maintain the stacked configuration overnight.

• Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; subsequently, carefully detach the component.Use a P2 driver bit designed for pentalobe screws.Secure the pair using the provided fasteners.Screws measuring 7.7 millimeters in length.Locate the two components situated adjacent to the charging port.
