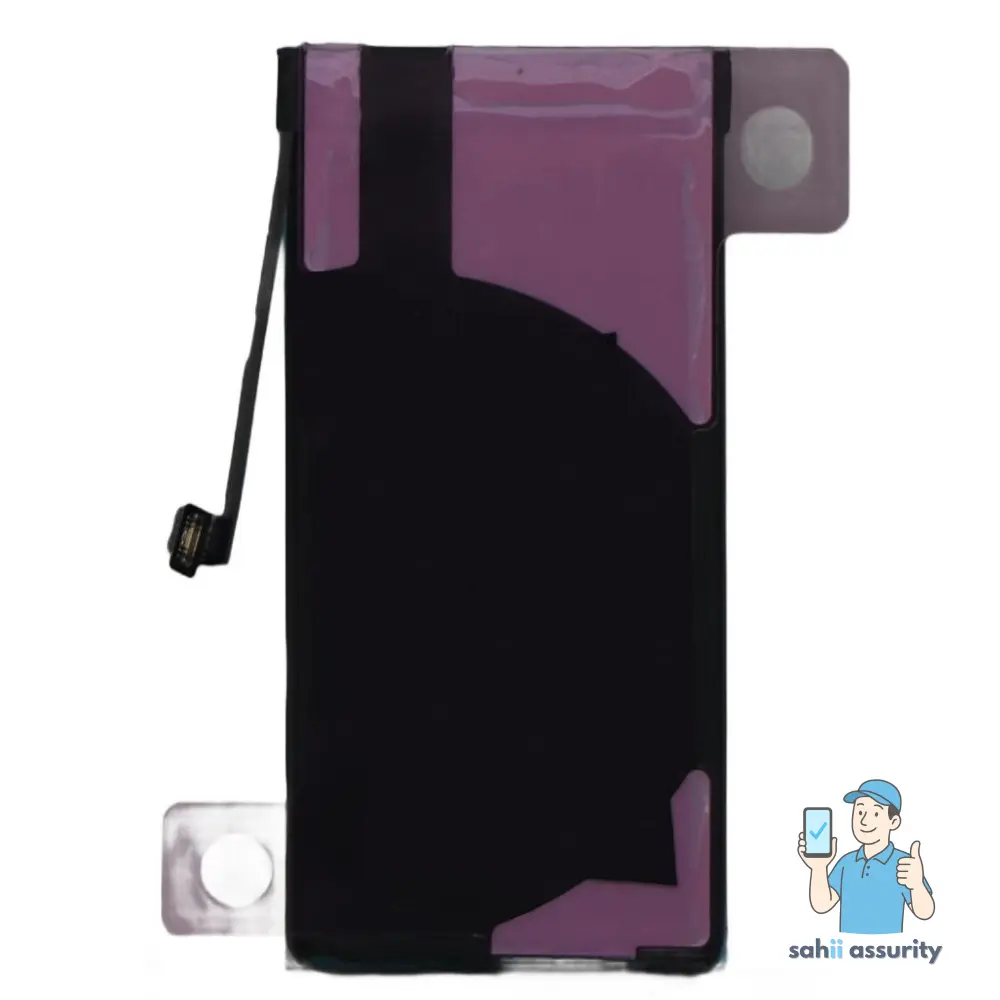

iPhone 13 mini Battery Replacement
The iPhone battery's capacity is specified asAchieve a charge level of no less than eighty percent.They can hold a maximum volumeThe battery is designed to maintain its performance for 500 complete charge and discharge cycles.Its operational lifespan is approximatelyReplace the filter cartridge every 18 to 24 months.To ensure optimal operation, be aware that a degraded battery can necessitate more frequent charging and trigger iOS notifications indicating reduced device speed; this guide details the battery replacement process to return your iPhone 13 mini to its original performance level.
To address a battery exhibiting swelling, exercise necessary safety measures.
For Apple's mobile operating system, iOS,Seventeen point six.Following the repair, iPhones manufactured before a certain date might show a notification indicating the battery’s authenticity, despite utilizing genuine Apple components; if the device operates as expected, this message can be disregarded within the iOS operating system.18To verify the legitimacy of replacement batteries acquired for more recent devices, utilize the Apple Repair Assistant application.
To ensure proper reassembly and secure component attachment, use fresh adhesive during the process.
Step 1 | Remove the screws
To minimize the potential for a hazardous thermal event resulting from accidental battery damage during disassembly, ensure the battery's charge level is below 25%; if the battery exhibits swelling, handle it with extreme care.
- Ensure the iPhone is completely de-energized by powering it down prior to commencing the disassembly process.
- Using appropriate tools, detach the two pentalobe P2 screws, each measuring 6.8 mm in length, located along the iPhone's lower border.
Step 2 | Mark your opening picks
To avoid potential damage from over-insertion, it's crucial to limit the pick's depth within the device; therefore, establish a depth marker on the pick to ensure proper insertion and prevent harm.
- Using a permanent marker, note the location of a 3 mm distance from the tip on the opening pick.
- Alternative corner markings, using the same measurement tools, can be applied to the remaining corners of the pick.
- To create a makeshift tool, affix a coin to a pick, positioning it 3 millimeters from the pick's pointed end.
Step 3 | Tape over any cracks
To minimize additional damage and protect yourself from injury while repairing a cracked iPhone screen, apply tape across the affected glass area.
- Apply strips of transparent packing tape across the iPhone screen, ensuring complete coverage by layering them until the entire display surface is protected.
- To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
- Should the suction cup fail to adhere during the subsequent procedures, create a handle by folding a durable tape—like duct tape—and use this improvised handle to raise the screen.
- As a last resort, apply a small amount of superglue to adhere the suction cup directly to the screen.
Step 4 | Anti-Clamp instructions
To simplify the opening process, the following three steps utilize the Anti-Clamp tool; if you do not have this tool, proceed to the instructions three steps later for an alternative approach.
- Refer to the accompanying manual for detailed procedures regarding Anti-Clamp operation.
- To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
- Position the arms so they clear the left or right side of the iPhone, then move them into place.
- Secure the iPhone using suction cups, placing one close to the lower front edge and another near the lower back edge.
- Apply vacuum to the targeted surface by pressing the cups firmly against each other.
- To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 5
- Activate the lever identified by its blue coloration.Advance the mechanism to engage the locking arms.
- Rotate theGrasp firmly.Rotate the component a full revolution, ensuring it turns consistently until you observe the edges of the cups beginning to expand.
- Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
Step 6
- To facilitate the subsequent procedures, stabilize your iPhone on a solid, flat surface—like a hardcover book—allowing for hands-free operation and ensuring it remains level.
- Apply heat to the lower edge of the iPhone's casing with a hair dryer; the surface temperature should reach a level where it feels uncomfortably warm to the touch.
- Refer to this separate document for a detailed explanation of the hair dryer's operation.
- Allow a full minute for the adhesive to soften and create a separation.
- Once sufficient separation is achieved by the Anti-Clamp tool, slide a prying tool beneath the plastic trim surrounding the display.
- To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
- Allow the Anti-Clamp device to function for a full minute after each adjustment, and limit each rotation to a maximum of 90 degrees.
- Proceed directly to the sequence of actions following these instructions, bypassing the subsequent three.
Step 7 | Heat the bottom edge
- Apply warmth to the lower perimeter of the iPhone's display using a hair dryer or heat gun, monitoring the temperature to reach a point where the surface feels noticeably warm but remains within a comfortable range for brief contact.
- Ensure the device remains unattended while it is operating.Utilize a device designed to emit warm, directed airflow, typically employing a heating element and fan, ensuring the unit's wattage is appropriate for the task (commonly 1500W or less) and maintaining a safe operating distance from flammable materials.Avoid prolonged contact with a single surface.
Step 8 | Apply a suction handle
Position the single suction handle firmly against the phone's lower edge, ensuring it's situated as near to the edge as possible.
Step 9 | Insert an opening pick
- Apply steady, even force to lift the suction cup, generating a small separation between the display assembly and the device's surrounding frame.
- Using a specialized opening tool, gently pry the plastic bezel away from the display screen, inserting the tool's tip into the space separating the two components.
- Carefully slide a pick into the gap separating the plastic bezel from the metal frame; avoid inserting the pick between the glass screen and the plastic bezel.Applying excessive force risks screen damage..
- Due to the robust nature of the watertight adhesive securing the screen, substantial force is required to initially separate it. Should you encounter resistance when attempting to create a gap, apply additional heat and gently oscillate the screen in a vertical motion to soften the adhesive, allowing for sufficient separation to insert your tool.
Step 10 | Separate the bottom adhesive
- Ensure the opening pick does not penetrate beyondThree millimeters.Position the component along the lower perimeter.
- Using a pick, gently work along the lower edge, moving it back and forth to release the adhesive bond.
- To stop the adhesive from bonding again, maintain a pick in the lower right area.
Step 11 | Heat the right edge
Apply warm air from a hair dryer to the right side of the iPhone—the area containing the power button—until the surface temperature reaches a point where it's uncomfortably warm to the touch.
Step 12 | Separate the right adhesive
- Using the opening pick, carefully separate the display from the iPhone body by working it into the gap at the lower-right corner, then moving it along the right side to sever the adhesive securing the display.
- Limit pick insertion depth to avoid damage.Three millimeters.Avoid pushing the component through areas where adhesive hasn't been warmed, as this could cause it to slide and potentially harm the internal parts.
- Before proceeding, ensure the plastic pick remains positioned in the upper right corner.
Step 13 | Heat the top edge
Apply warm air from a hair dryer to the iPhone's top edge, ensuring the surface temperature reaches a point just below the threshold of comfortable touch.
Step 14 | Separate the top adhesive
- Using the opening pick, carefully work it along the upper right edge of the iPhone to release the adhesive securing the display assembly.
- Ensure the pick's insertion depth remains limited toThree millimeters.Exercise caution to prevent harm to the upper sensors.
- Before proceeding, ensure the plastic pick remains positioned in the upper left corner.
Step 15 | Heat the left edge
Apply warm air from a hair dryer to the left side of the iPhone’s display, carefully monitoring the temperature until it reaches a level that is just uncomfortable to briefly touch.
Step 16 | Separate the left adhesive
- To avoid damage, carefully insert your opening tool no more than 5mm into the left side of the iPhone, as fragile wiring is located there.Two millimeters.Handle these wires with care to prevent potential damage.
- Using a pick, move it in a circular motion near the upper-left corner of the display.
- Using a pick, carefully release the adhesive bond by inserting it into the lower-left corner of the screen.
- To ease detachment if adhesive bonding proves difficult, apply heat to the left-hand side.
Step 17 | Remove the suction cup(s)
To detach the suction cup, grasp the small projection extending from its surface and apply traction, thereby releasing its adhesion to the front panel.
Step 18 | Open the iPhone mini
- Orient the device so that its right side is positioned directly in front of you.
- Using a prying tool, carefully lift the display assembly upwards, initiating the separation from the rear enclosure along the right edge, mirroring the action of opening a book's cover.
- Before completely disconnecting the display, be aware that multiple delicate ribbon cables, which link it to the iPhone’s logic board, remain attached.
- To allow for hands-free operation during the repair process, temporarily support the display using an external object.
- To reassemble, position the display and ensure the top edge clips are properly aligned, then gently push the top edge downwards before securing the remainder of the display. Should you encounter resistance, inspect the display's perimeter clips for any bends and correct them as needed.
Step 19 | Unscrew the battery and display connector cover
- Detach the component using the specified tool, ensuring all connections are fully disengaged and observing the indicated measurements and part names.One point two millimeters.Use a Y000 screwdriver to remove the long screw that holds the battery and display connector cover in place.
- Carefully organize all screws during disassembly, noting their original locations, as incorrect reassembly can cause iPhone damage.
- Before permanently securing the display, it's advisable to activate the iPhone and verify all features are operating correctly; afterward, fully deactivate the device to proceed with the remaining assembly steps.
Step 20 | Remove the cover
- Employing tweezers, carefully detach the battery and display connector cover.
Step 21 | Disconnect the battery and the OLED display cable
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe a torque of 6 in-lbs per screw.Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; subsequently, carefully detach the component.Use a plastic pry tool, often called a spudger, to avoid scratching surfaces.Use a prying tool to carefully lift the battery and OLED panel cable connectors away from their corresponding sockets on the logic board.
- Care must be taken to avoid harming the black silicone seals located around all board connections, as these are critical for preventing water and dust from entering.
- To avoid unintended power-up during the repair process, carefully angle the connector outward, distancing it from the socket and the logic board.
Step 22 | Unscrew the front sensor connector cover
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4 in-lbs is applied to each screw to prevent damage.Using a screwdriver, detach the three screws, each measuring 1/4 inch in length.Fasten the front sensor assembly cover using the provided 3.5mm Phillips head screwdriver, ensuring all screws are tightened to the specified torque of 5 in-lbs to prevent damage to the sensor or cover.):
- Begin the process with a single unit.A screw, measuring 1.4 mm in length, requires a PH000 screwdriver for installation or removal.
- Begin the process with a single unit.A screw measuring 1.8 millimeters in length, designated Y000.
- Begin the process with a single unit.A 1.2 mm-length screw, designated Y000.
Step 23 | Remove the cover
Using a 5/32-inch hex key, carefully tighten the four M4x8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.8 Nm to prevent damage.Carefully detach the front sensor assembly connector cover using tweezers.
Step 24 | Disconnect the front sensors
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.Employ a 3/8-inch socket wrench to loosen the fastener, ensuring you apply consistent pressure to avoid damaging the retaining clip and observe the torque specification of 12 Nm as indicated in Table 2.Use a plastic spudger.Carefully separate the electrical connector securing the front sensor assembly wiring harness.
Step 25 | Remove the display assembly
Carefully align the 4mm hex key to the setscrew located on the motor shaft, then tighten it to a torque of 3.2 Nm using the torque wrench, ensuring the motor remains securely fastened and avoiding damage to the shaft threads.Carefully detach the display assembly, ensuring no damage occurs.
- If you intend to substitute the existing waterproof adhesive that seals the display perimeter, halt the process at this point.
Step 26 | Unscrew the speaker
Using the appropriate size screwdriver, detach the four screws.A measurement of one and one-half millimeters.The speaker is fastened with lengthy Phillips head screws.
Step 27 | Remove the speaker
Carefully extract the speaker using tweezers.
Step 28 | Remove the stretch-release adhesive
Three adhesive strips, designed to expand and contract, hold the battery in place against the back cover.Secure the battery with two fasteners along its lower border and a single fastener positioned along its upper edge.
- Carefully lift the edge of the initial battery adhesive pull-tab to separate it from the battery's lower edge.
Step 29
- Using tweezers or your fingertips, carefully detach the initial pull-tab, drawing it steadily away from the battery and in the direction of the iPhone’s lower edge.Use a 13-millimeter wrench..
- Apply firm, consistent pressure to keep the strip taut while easing it away from beneath the battery, allowing ample time for the adhesive to release.
Ensure the strip remains smooth and free of creases; distribute tension uniformly across its entire length during handling, avoiding concentrated force on any specific area or edge.
To prevent the strip from catching on the battery's perimeter, exert traction at a shallow angle.
Carefully recover any detached adhesive strip fragments with your fingers or blunt tweezers, maintaining a pulling motion; avoid applying force beneath the battery.
Should any adhesive strips detach from beneath the battery and prove irretrievable, continue by removing the remaining strips and following the subsequent steps.
Step 30
Using blunt nose tweezers, carefully grasp the extended pull tab and draw it downwards, away from the battery and towards the iPhone’s lower edge.
Step 31
- Using your fingers, detach the second pull-tab by moving it downwards, away from the battery and towards the iPhone’s lower edge.
- Maintain the same technique used for the prior strip, ensuring the battery isn't compressed, the strip remains smooth and without creases, and apply gentle, angled tension while removing it.
Should the adhesive securing the battery become detached and be unrecoverable, proceed to the subsequent instruction.
Step 32
Using tweezers, gently detach the pull tab located on the battery's upper surface, drawing it upwards and away from the battery towards the iPhone's top edge.
Step 33
- Following the previously described method, extend the remaining tab to detach the adhesive strip securing the battery, being careful to avoid any contact that could damage the adhesive.
- Should the battery adhesive detach and become inaccessible, carefully introduce a small quantity of isopropyl alcohol—with a concentration exceeding 90%—beneath the battery's edge, specifically targeting the location of the fractured adhesive strip(s).
- Allow approximately sixty seconds for the isopropyl alcohol to reduce the bonding strength of the adhesive.
- Employ the tool's planar edge.Use a plastic pry tool, often referred to as a spudger.Carefully raise the battery, avoiding any abrupt movements.
- To prevent damage, avoid using excessive force when removing the battery. If the adhesive is still holding it in place, add a small amount of alcohol to help loosen it. Ensure the battery remains undamaged; do not bend or puncture it.Use a prying tool..
Step 34
- Disconnect the power source by extracting the battery.
- To prevent damage, ensure all traces of the alcohol solution are removed by wiping with a clean cloth or letting it evaporate completely prior to battery installation.
- Follow these instructions to apply replacement adhesive strips to the battery.
- Following reassembly, execute a forced restart to proactively resolve potential problems and streamline any subsequent diagnostic procedures.
