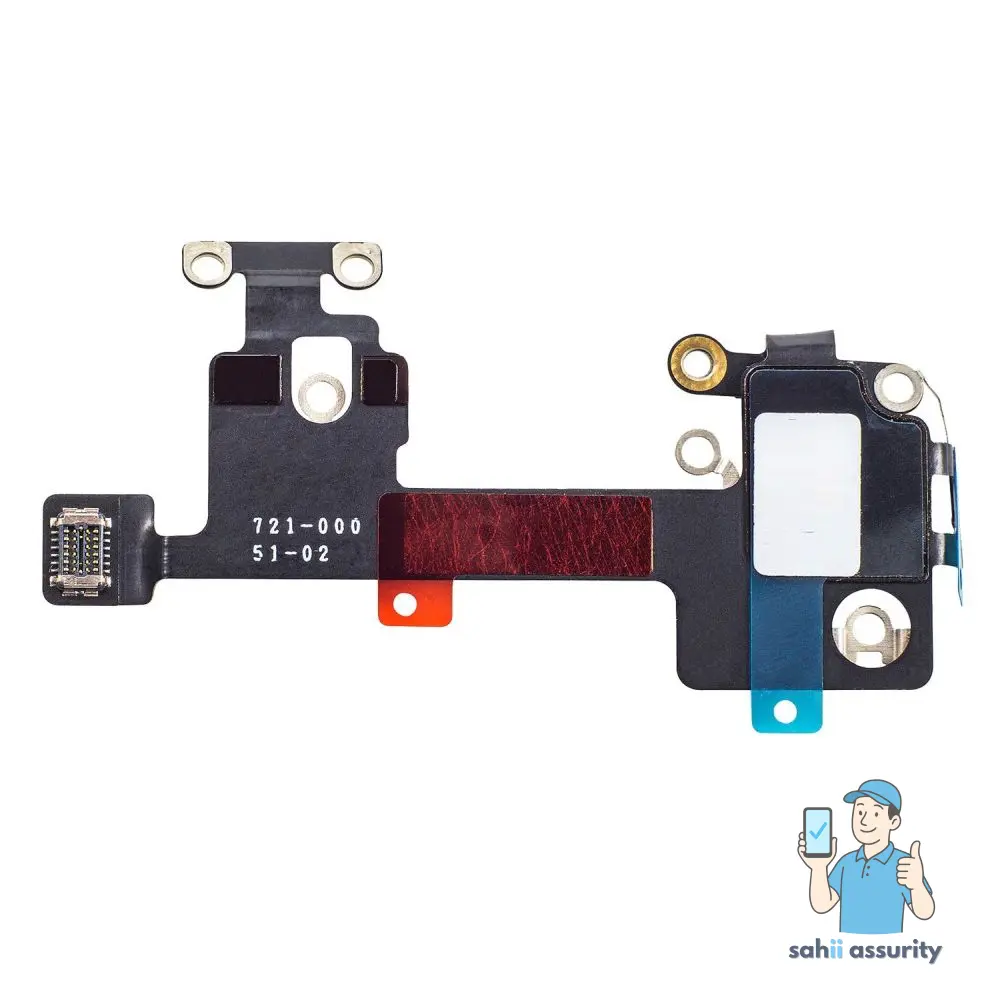

iPhone X WiFi Antenna Replacement

• To begin, slide a SIM card eject tool, or a straightened paperclip, into the tiny aperture situated on the SIM card tray, which is positioned close to the side button along the iPhone's edge.Apply consistent pressure to release the tray from its slot.
• The tray will then pop out.

• Extract the SIM card tray from the iPhone's housing.
• The SIM card should detach from the tray with minimal effort.
• During the process of putting the SIM card back, confirm its correct alignment with the tray's design.
• A flexible, rubber seal encircles the SIM tray, offering defense against water and dust; should this seal be compromised or absent, substitute it or the SIM tray assembly to safeguard the iPhone's internal components.

As a crucial safety precaution prior to commencing the repair, ensure the iPhone's battery is depleted to a level below 25%; a fully charged lithium-ion battery presents a significant fire or explosion hazard if it sustains accidental physical damage.
To prevent electrical hazards and ensure proper disassembly, completely power down the iPhone.
Begin by eliminating the two6.9 mm in length pentalobe screwslocated along the iPhone's lower edge.

• Should the screws exhibit signs of damage or stripping, substitute them with replacements.

Separating the iPhone's display assembly will irreversibly damage the integrated waterproof seals; therefore, prepare replacement seals in advance, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the device without new seals.

To avoid potential harm to your device, ensure the opening pick does not penetrate excessively; this procedure details how to mark the pick to ensure safe insertion.
Determine3 mmfrom the pick's tip and use a permanent marker to create a visible indication on the opening pick.
For enhanced precision, consider marking additional corners of the pick with varying measurements.
As an alternative method, affix a coin to the pick's tip, positioning it precisely 3 mm from the end.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
  Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
• Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent steps, create a handle by folding a robust tape, like duct tape, and employ it to gently elevate the screen.
• As a last resort, you may adhere the suction cup to the screen using superglue to achieve the necessary grip.

• To release the Anti-Clamp's gripping arms, retract the blue handle towards the rear.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to establish a secure hold on the intended area.
• Should the iPhone's surface prove excessively smooth, hindering the Anti-Clamp's ability to maintain grip, applying adhesive tape can provide a more textured interface.

• Position the iOpener so that it rests along the lower edge of the iPhone’s frame.
• Allow a sixty-second interval to elapse, enabling the adhesive to loosen and facilitating the creation of a separation.
• Introduce an opening pick beneath the display and the surrounding plastic frame, ensuring it does not contact the screen’s surface directly.
• Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the region and incrementally rotate the handle by ninety degrees.
• Avoid rotations exceeding ninety degrees at a time, and incorporate a sixty-second waiting period between each rotation, allowing the Anti-Clamp and time to effectively separate the device.

• Employing a hairdryer, heat gun, or iOpener is recommended; direct heat to the lower edge of the iPhone for approximately one minute to reduce the adhesive's tackiness.
• Excessive heat application with a hairdryer or heat gun poses a risk of screen damage, so avoid overheating.

• Maintain steady, consistent upward force on the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
• Carefully position an opening tool into the created space, ensuring it is inserted beneath the plastic trim that borders the display, and avoiding direct contact with the display surface itself.
• Due to the robust, waterproof sealant securing the display, establishing this initial separation requires considerable force; should you encounter difficulty, apply additional heat and gently oscillate the display in an upward and downward motion to reduce the adhesive's strength, allowing for sufficient gap creation to accommodate your tool.

• Carefully maneuver the opening pick along the bottom-left perimeter of the iPhone, then upward along the left side, severing the adhesive securing the display assembly.
• Ensure the pick's insertion depth remains under 3 millimeters to prevent potential harm to the delicate internal components.

• Fragile wiring is situated along the right-hand side of the iPhone; avoid inserting any tools in this area to prevent potential cable damage.

• To proceed with disengaging the adhesive, re-position your opening tool at the lower boundary of the iPhone's display and advance it upwards along the right-hand side.
• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips together fasten the upper boundary of the screen.
• Employ the opening tool to move along the upper corner of the display, applying slight downward pressure with a gentle pulling or oscillating motion towards the Lightning connector.
• Excessive force will cause the retaining clips to fracture; therefore, proceed with caution and allow ample time.
• Avoid inserting the tool beyond a depth of 3 millimeters to prevent potential damage to the front panel sensor array.
• Continue the tool's movement to the opposing corner, severing any residual adhesive holding the display in place.

• To access the internal components, initiate the display opening process by pivoting the screen upwards from the left edge, mimicking the action of opening a book's cover.
• Refrain from completely detaching the display assembly at this stage, because multiple delicate ribbon cables remain connected to the iPhone's main circuit board.
• Confirm, as illustrated, that the frame lifts away from the device alongside the display, preventing it from becoming lodged inside.
• Secure the display in an upright position using a support to maintain access to the internal components during the repair.
• When reattaching the display, position it correctly, ensuring the clips along the top edge are properly aligned, and then gently apply pressure to the top edge before securing the remainder of the display. Should the display not seat easily, inspect the condition of the clips around the display's perimeter to verify they are not deformed.

• To detach the logic board connector bracket, initially extract the five Y000 screws that hold it in place, noting their specific lengths below.
  Specifically, three screws measure 1.1 millimeters in length.
  A single screw is 3.1 millimeters long.
  Additionally, one screw has a length of 3.7 millimeters.

During the entire repair process, meticulously organize each screw and confirm its correct replacement location to prevent potential damage to your iPhone.

• Detach the bracket.
  The bracket might be subtly affixed; employ a careful yet resolute upward motion to disengage it.

As you reassemble the device, it's advisable to activate your iPhone and verify the operational status of all features prior to securing the display. Ensure your iPhone is fully powered off before proceeding with further repairs.

• Employ the tip of a spudger tool, or a similarly shaped clean fingernail, to carefully lift the battery connector away from its corresponding receptacle on the logic board.
  Exercise caution to avoid harming the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.

Slightly deflect the connector outward from the logic board's surface to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

• Employ the tip of a spudgeror a fingernailfor separating the OLED panel cable connector.
• To secure the connection, apply pressure in this manner: initially, precisely position the connector and depress one edge until a distinct click is heard, subsequently repeating the process on the opposing side. Avoid applying pressure to the central portion of the connector; misalignment can result in pin deformation and irreversible damage.

• Employ the tip of a spudgerto lift the digitizer cable connector from its receptacle.
• Due to the connector's deeply situated design, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle fingertip pressure to secure it—initially on one side, then the other—until an audible click confirms its proper engagement.
• Should any portion of the screen exhibit a lack of touch responsiveness following the repair, initially detach the battery, then re-engage this connector, verifying a complete click and confirming the absence of dust or any other impediment within the socket.

A small amount of adhesive secures the front panel sensor assembly flex cable to its location.
Gently raise the cable to release the adhesive bond.

• Detach the display unit from the device.
• When putting the device back together, halt at this stage should you desire to substitute the water-resistant adhesive that seals the display's perimeter.

• Exercise caution to avoid contact with the three rows of grounding contact areas located close to the base of the iPhone.
• Detach the bracket situated beneath the Taptic Engine and speaker by unscrewing the seven fasteners it holds in place.
  • Two screws of the Y000 type, measuring 1.9 mm in length.
  • A single Y000 screw with a length of 1.2 mm.
  • One Y000 screw, measuring 1.6 mm in length.
  • A Phillips-head screw, 2.4 mm in diameter.
  • A Phillips screw, 1.7 mm in diameter.
  • A Phillips screw, measuring 1.5 mm in diameter.

• To begin, elevate the mounting bracket, starting from the side closest to the battery.
• Avoid complete removal at this stage, because a short, flexible cable maintains its connection.

• To prevent interference, secure the bracket aside, then utilize the tip of a spudger to carefully lift and detach the flex cable situated below.

• Detach the2.1-millimeter Y000 screwwhich fastens the speaker connector cover in place.

• Employ the pointed end of a spudgerto carefully lift and detach the speaker's electrical connector.

Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached; if needed, secure the cable to the side to facilitate speaker removal.

• Position a spudger beneath the upper boundary of the speaker, located close to the iPhone's casing.
• Apply slight upward pressure and elevate the speaker's upper edge with care.

During reinstallation, verify the flex cable's alignment and confirm it remains unobstructed from being pinched beneath the speaker.

Grasp the speaker assembly using its lateral edges, gently oscillating it back and forth to break the adhesive bond that holds it in place along the iPhone's lower perimeter.

• Continue moving the speaker outward from the iPhone's base until the adhesive gasket, which provides a seal, disengages.

Detach the speaker component from the device.

The speaker's sealing gasket is designed for single use and cannot be reused; adhere to the following procedure when replacing it.

• Employing tweezers, detach and eliminate all remnants of the existing gasket material from both the speaker and its surrounding frame.
• Thoroughly cleanse any adhesive residue left by the previous gasket from the speaker and frame surfaces utilizing a microfiber cloth dampened with isopropyl alcohol.
• Prior to installing the replacement gasket, identify its correct positioning on the speaker's underside; the substantial recess should align with the speaker grille's mesh pattern.
• Detach the larger, transparent protective layer from the gasket and, with the assistance of tweezers, meticulously position the gasket onto the speaker's underside.
• To prevent contamination of the adhesive surface, exclusively handle the gasket by its liner's peripheral sections.
• Employing your fingertips or a specialized spudger tool, apply firm pressure to the gasket, ensuring it adheres securely to the speaker via its adhesive.
• Discard the remaining liner and reinstall the speaker assembly, verifying that the speaker connector remains free from obstruction.

• To detach the component, eliminate the 2.3-millimeter Phillips screwwhich holds the Taptic Engine in place.

• Employing a spudger, carefully release the Taptic Engine flex cable connector by applying upward pressure directly above the socket.

• Carefully detach the Taptic Engine component.

Four strips of stretch-release adhesive fasten the iPhone X's battery to the back cover; specifically, one secures the upper battery cell, while three affix the lower portion.

• Detach the initial battery adhesive tab from the battery's lower border.
• If grasping the tab proves difficult, utilize a tool to pass through the small loop situated centrally on each tab.
• Exercise caution to prevent puncturing the battery with any pointed instruments, as damage could result in the release of hazardous substances or ignition.

• To detach the remaining two adhesive tabs, perform the previously described procedure once more, ensuring they are fully separated from the battery's lower edge.
• Exercise caution during this process to prevent any harm to the speaker cable connector, which is situated directly beneath the central adhesive tab.

The subsequent instructions detail how to gently extend each adhesive tab, facilitating separation of the adhesive layer from the battery's underside. This unique stretch-release adhesive diminishes its stickiness when elongated, subsequently detaching from the device and into your hand, simplifying battery removal.

Should any of the adhesive strips fracture, remain composed; their functionality isn't guaranteed. Proceed to the subsequent instructions for alternative removal methods when dealing with damaged strips.
To maximize the likelihood of a successful repair:
Avoid applying downward pressure to the battery; instead, maintain a secure grip on the iPhone's lateral surfaces.
Ensure the strips remain smooth and free from creases during the pulling process.
Exercise extreme caution and pull with deliberate slowness, allowing sufficient time for the strip to extend and release its bond; each strip typically requires 15 to 30 seconds of stretching for complete removal.
Maintain a shallow pulling angle to prevent the strip from catching on the battery's lower perimeter.
Should a strip fragment detach and become inaccessible beneath the battery, proceed to the remaining strips and then follow the supplementary instructions provided afterward.

• Carefully detach one of the external battery adhesive strips by gently drawing it away from the battery surface, directing the movement towards the iPhone's lower edge.
• Apply consistent, even force while pulling the strip, ensuring it remains taut until it disengages from the space between the battery and the rear enclosure.
• Expect the adhesive strip to elongate significantly, potentially stretching to several times its initial size; if needed, reposition your grip closer to the battery to maintain traction while pulling.
• Should the battery adhesive tabs tear during removal, utilize your fingers or flat-tipped tweezers to collect any detached adhesive fragments and resume the pulling action.
• Should any adhesive strip fragments become lodged beneath the battery and are inaccessible, attempt to remove the remaining strips and then follow the subsequent instructions.

• Detach the central portion of the component.
• Exercise caution to prevent the speaker flex cable from being damaged during removal.

• The last retaining tab is situated in close proximity to the Face ID components, and any harm to it is critical.Due to the complexity of the system, Face ID functionality necessitates repair exclusively by Apple technicians., therefore, proceed with meticulous attention to detail.
• Carefully detach and lift the pull tab from the uppermost adhesive strip, which is positioned along the top border of the upper battery cell.

• Detach and eliminate the last adhesive strip.
• During separation, the strip could propel the battery from the iPhone; therefore, position your hand above the battery to maintain its stability, but avoid applying downward pressure, as this may cause the adhesive strip to fracture and remain beneath the battery.
• Should you successfully remove all four adhesive strips, proceed past the following instruction.
• Should the adhesive become detached from beneath the battery and be unrecoverable, introduce a small quantity of high concentration (exceeding 90%) isopropyl alcohol beneath the battery's edge, specifically targeting the location of the fractured adhesive strip(s).
• Allow approximately one minute for the alcohol to diminish the adhesive's strength. Subsequently, utilize the planar end of a spudger to delicately elevate the battery.
• Refrain from employing excessive force to dislodge the battery. If necessary, introduce additional drops of alcohol to further reduce the adhesive's hold; under no circumstances should you deform or perforate the battery with your prying instrument.
• Exercise caution to prevent damage to the ribbon cables or the wireless charging coil situated directly beneath the battery.
• For different techniques to release the battery from the chassis, refer to the subsequent instructions.

• Should any of the adhesive strips detach, yet the battery persists in its adherence to the rear case, ready an iOpener or employ a hair dryer to apply heat directly to the rear case's surface behind the battery.
• Warm the iPhone until the rear case reaches a temperature that is marginally uncomfortable to touch; avoid excessive heat, as this could potentially trigger combustion of the battery.
• Return the iPhone to its original orientation and carefully slide a durable string – such as dental floss or a slender length of guitar string – beneath the battery.
• Protect your fingers by enveloping the string's ends within a cloth or by utilizing gloves.
• Employ a sawing motion, drawing the string laterally across the battery's entire length, to sever the adhesive bond; recognize that the adhesive’s slow yielding requires persistence, but it will eventually release without damage to the battery.
• Should you opt to utilize prying implements to extract the battery from the iPhone, exercise utmost care to prevent harm to the delicate ribbon cables or the wireless charging coil situated directly beneath the battery.

• Securely hold the battery from its lower edge and detach it from the iPhone's internal components.
• To prevent potential damage, thoroughly eliminate any residual alcohol solution from within the device, either by wiping it away gently or permitting it to evaporate completely, prior to installing the replacement battery.
• Prior to installing a new battery, ensure the Taptic Engine and speaker are reinstalled. This step is crucial for maintaining proper battery alignment throughout the installation process.
• To guarantee accurate positioning within its designated space, briefly reconnect the battery connector to the logic board socket before securing the replacement battery in place.
• After applying adhesive to the battery, sever the connection and proceed with reassembling the device.
• Should your replacement battery lack pre-applied adhesive, consult this guide for detailed instructions on replacing the adhesive strips.
• Following complete reassembly, execute a forced restart to proactively address potential problems and streamline any necessary troubleshooting.

1. Employing the planar edge of a spudger tool, carefully release the connectors securing the three cables linked to the front camera assembly.
   • The dot projector component.
   • The front-facing camera module.
   • The infrared camera sensor.

The camera cables are affixed to the midframe with a minimal adhesive.
Employing the pointed end of a spudger, initiate the separation process at the connector, then carefully move the spudger's tip in between the infrared camera cable and the device casing to detach the cable.
Perform this detachment procedure again for the front camera cable.

To release the bonding agent securing the front camera module, direct heat onto its surface.

Carefully detach the front-facing camera module.

• To proceed with the repair, first, carefully detach the listed cable connectors.
  Specifically, remove the connector associated with the WiFi antenna.
  Next, separate the connector linked to the wide-angle camera.
  Subsequently, disconnect the connector that serves the power button, flash, and microphone functions.
  Following that, detach the connector for the telephoto camera.
  Then, carefully release the connector connected to the dock flex assembly.
  Afterwards, disconnect the connector responsible for the button and wireless charging features.
  Finally, separate the connector associated with the cellular antenna.

To proceed, detach the WiFi antenna cable from its connector.

• To proceed with the logic board removal, first, detach the Dock Flex cable connector.
• Carefully flex the cable's form,creating a 90-degree angle,then position it vertically to provide sufficient space for the logic board's extraction.

• To proceed with the repair, first detach the connector of the cellular antenna cable.
• Carefully maneuver the cable aside to prevent obstruction.

Ensure the SIM card tray is extracted before attempting to detach the logic board, as its presence will obstruct removal. Should you have been unable to do so previously, extract it at this juncture.
Detach the two Phillips screws that secure the component.
A single Phillips screw with a 2.7 mm head is required.
A single Phillips screw with a 2.1 mm head is also necessary.
Remove the 2.0 mm Phillips grounding screw.
Carefully extract the grounding tab.

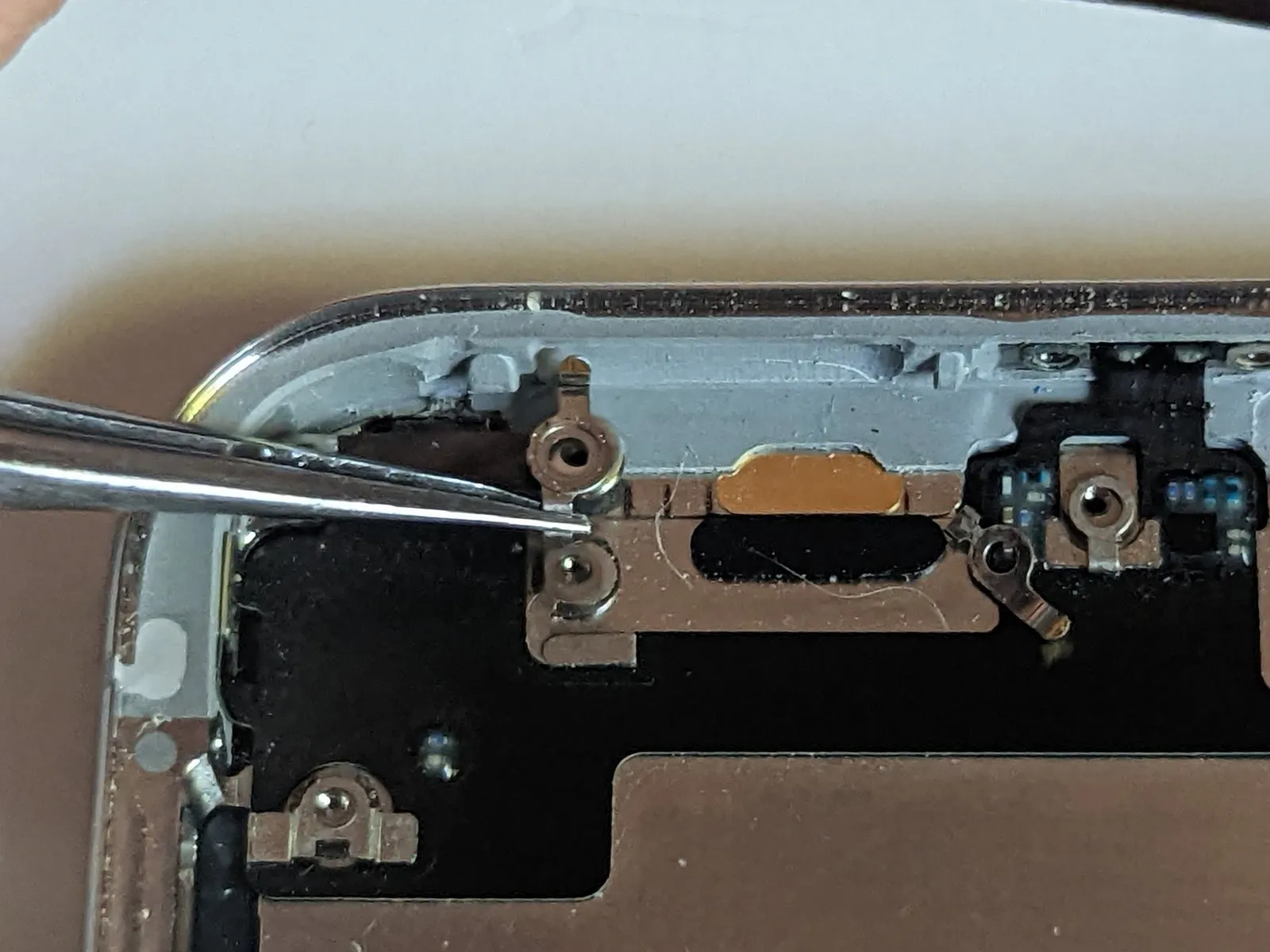

Reinstall the metal grounding tab, maintaining its original alignment.

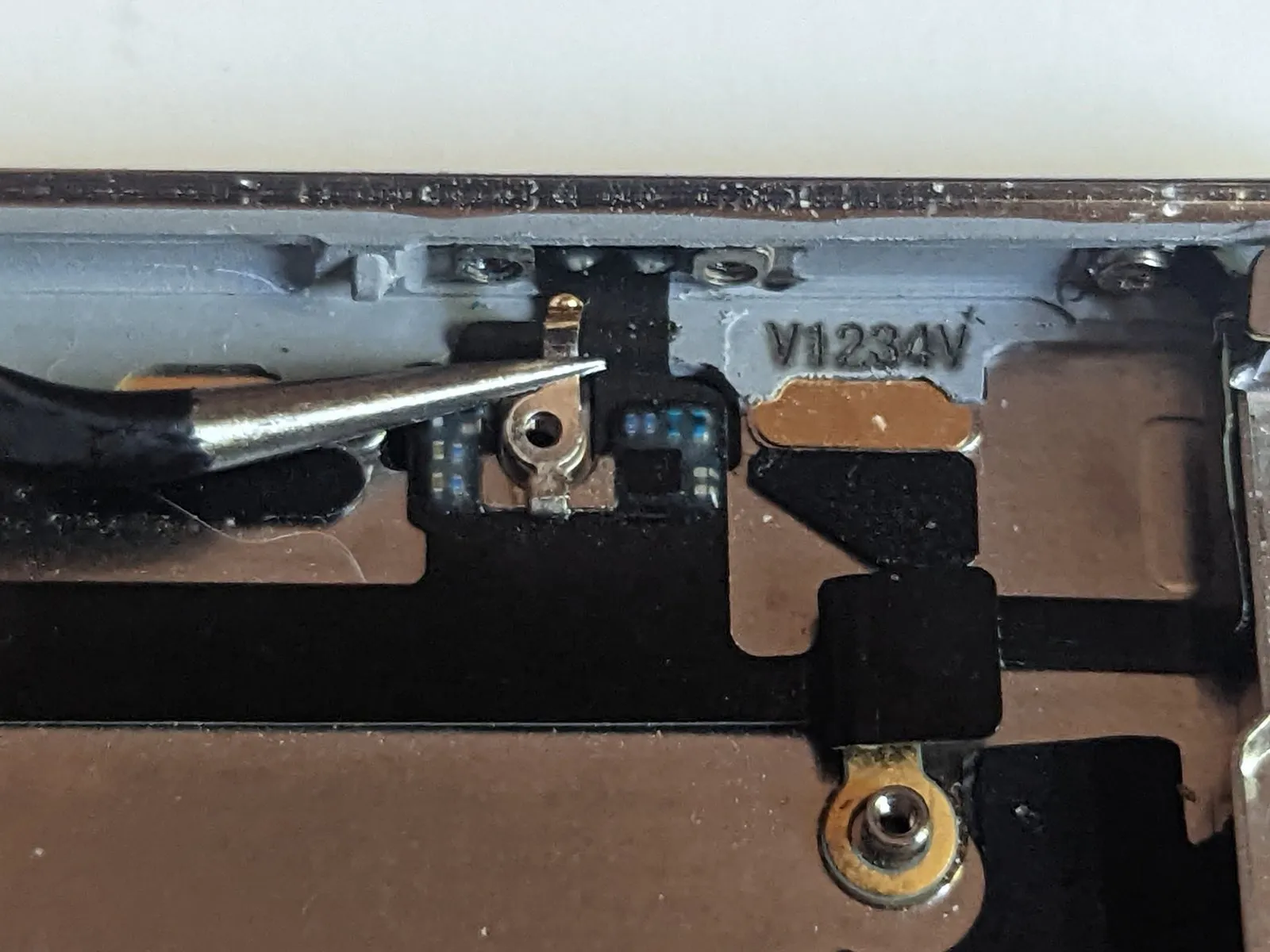

Upon SIM card removal, a retaining pin extends from the device's structure, engaging the release lever within the SIM card holder. To facilitate logic board extraction, this pin must be manually retracted back into its housing, preventing obstruction.

• Employing specialized, precision-tipped tweezers is necessary to carefully move the SIM card release mechanism in a direction parallel to the device's exterior casing.tweezersThe SIM card eject lever's final position should match the provided visual reference, ensuring the retaining pin no longer obstructs the logic board's subsequent removal.
• The pin will no longer block the removal of the logic board.

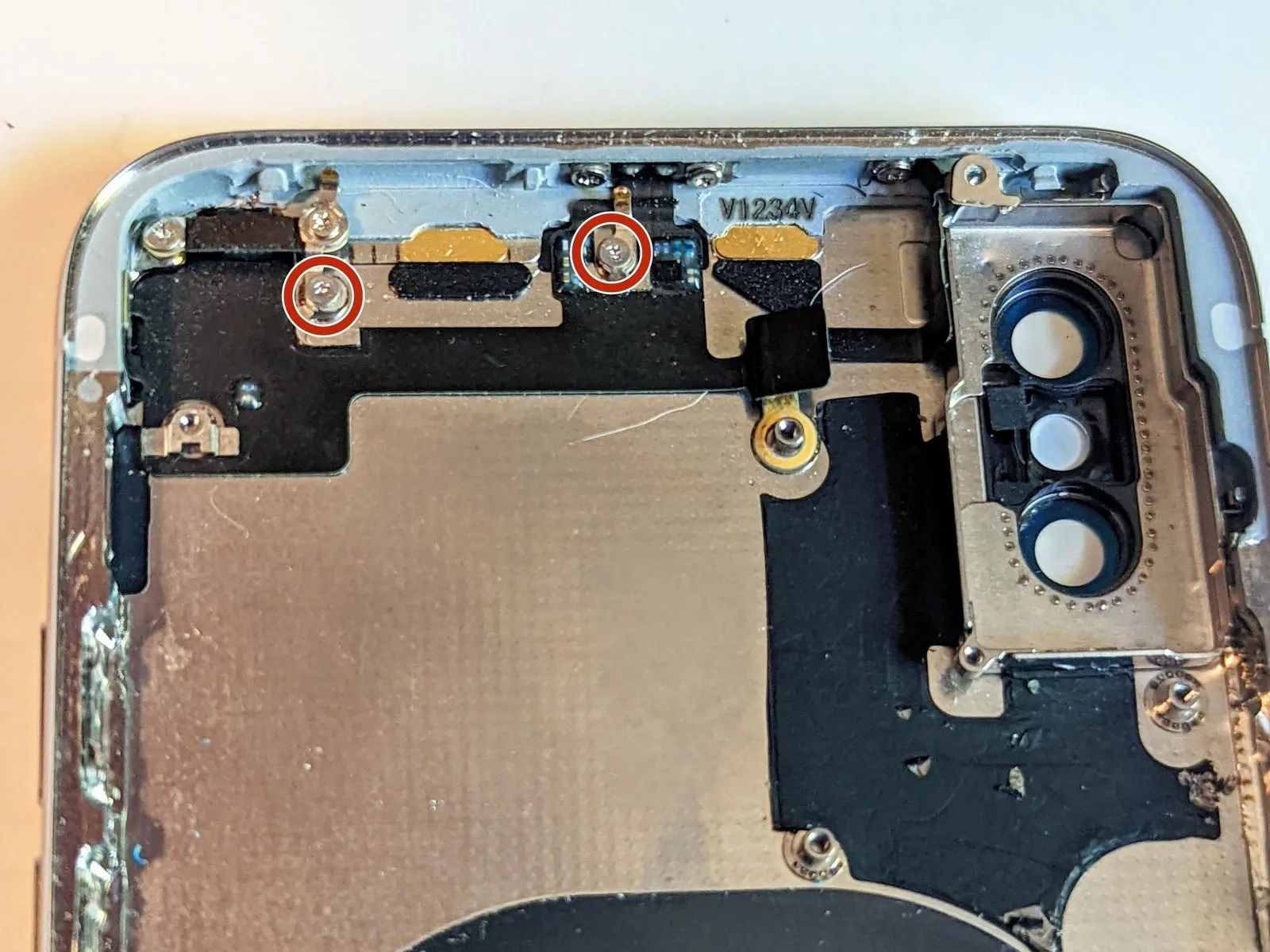

• Using a 1.4 mm Phillips screwdriver, detach the screw securing the initial grounding tab.Phillips screw holding the first grounding tab.
• Carefully extract the grounding tab from its position.
• Pay close attention to the tab's original alignment, ensuring accurate placement when reassembling the device.

• To disassemble, initially detach the four screws, each measuring 1.5 millimeters in diameter, using a Phillips head screwdriver.These fasteners are secured with a Phillips screwdriver..

• Detach the pair of 1.1-millimeter Y000 screws.

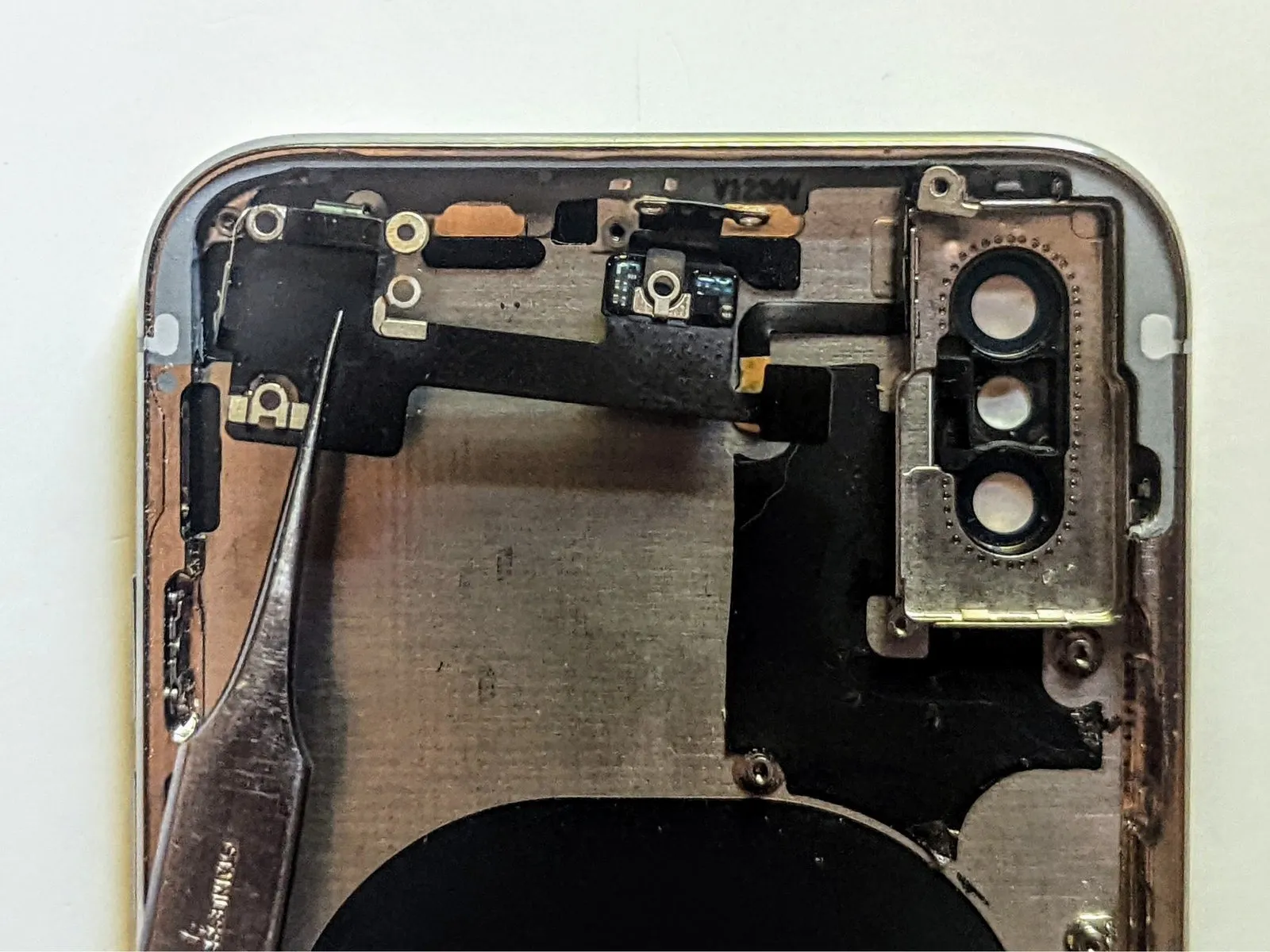

• Carefully extract the two grounding tabs.
• Pay close attention to the tabs' original positioning; ensure they are reinstalled in the identical configuration.

• Apply heat to the rear of the device enclosure utilizing an iOpener, or direct heat towards the WiFi antenna employing a hot air gun or hair dryer.iOpenerTo detach the WiFi antenna from the case, use a hot air gun or hair dryer.

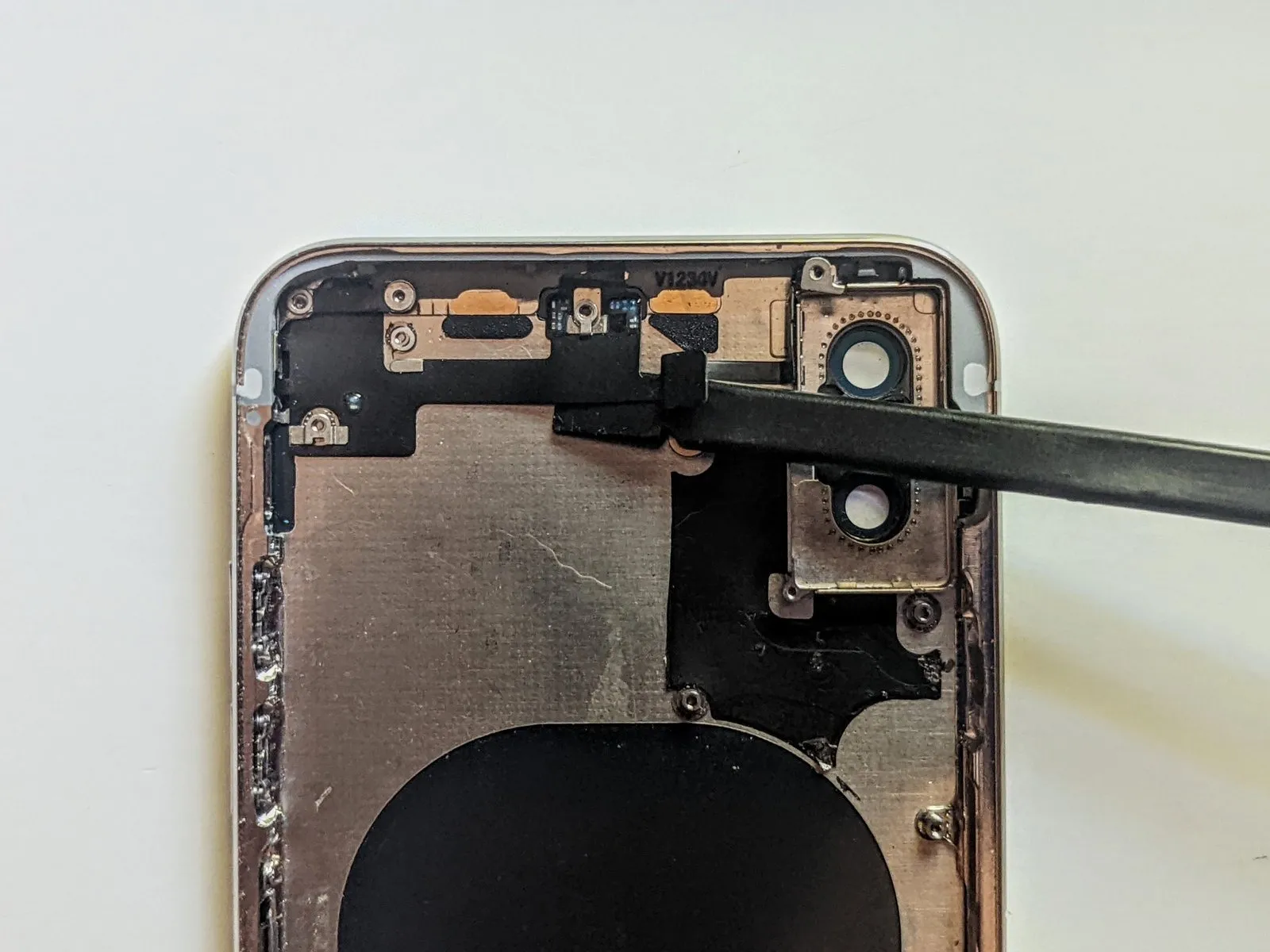

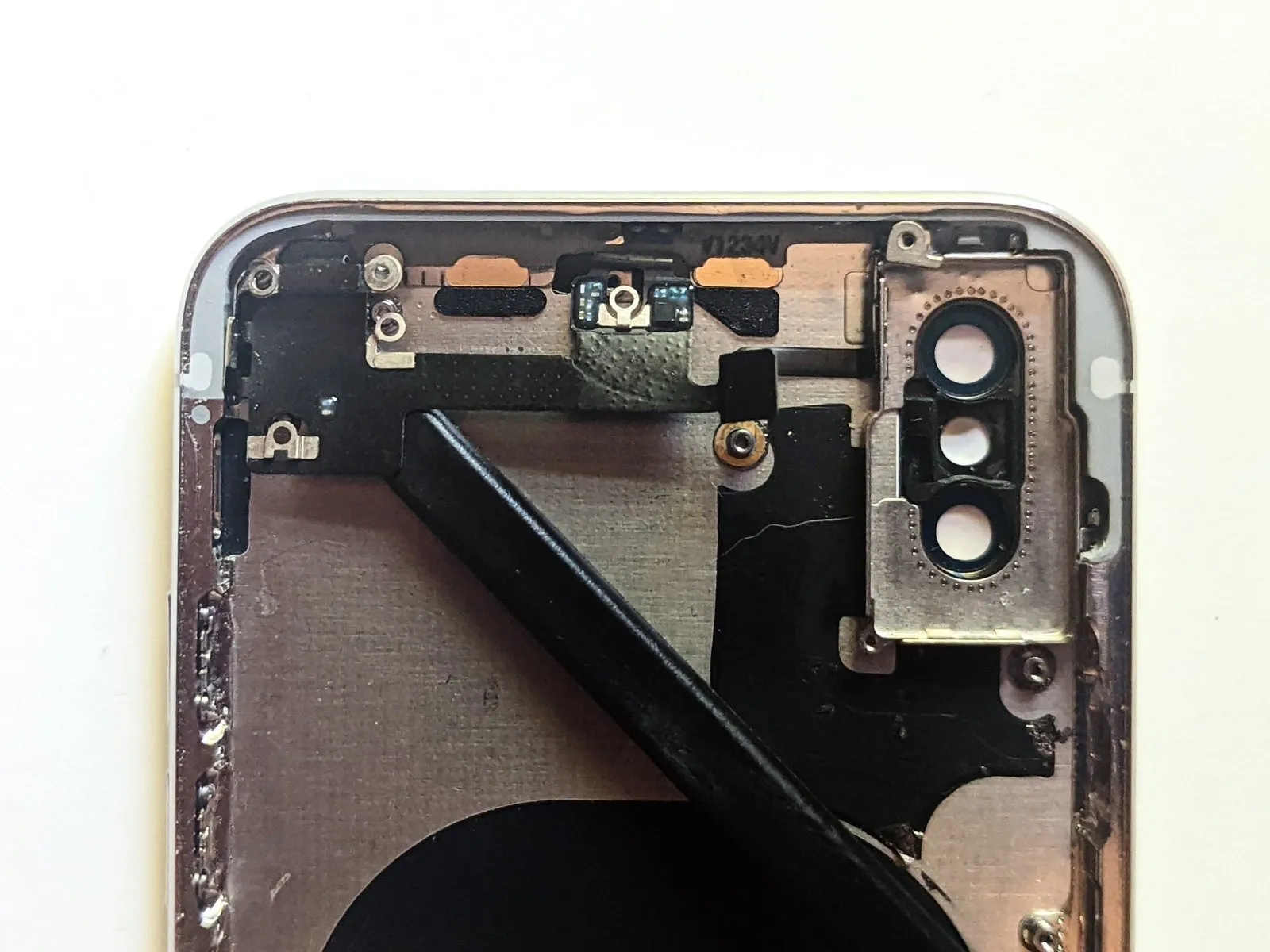

• Carefully separate the WiFi antenna from the enclosure's surface using aspudger.

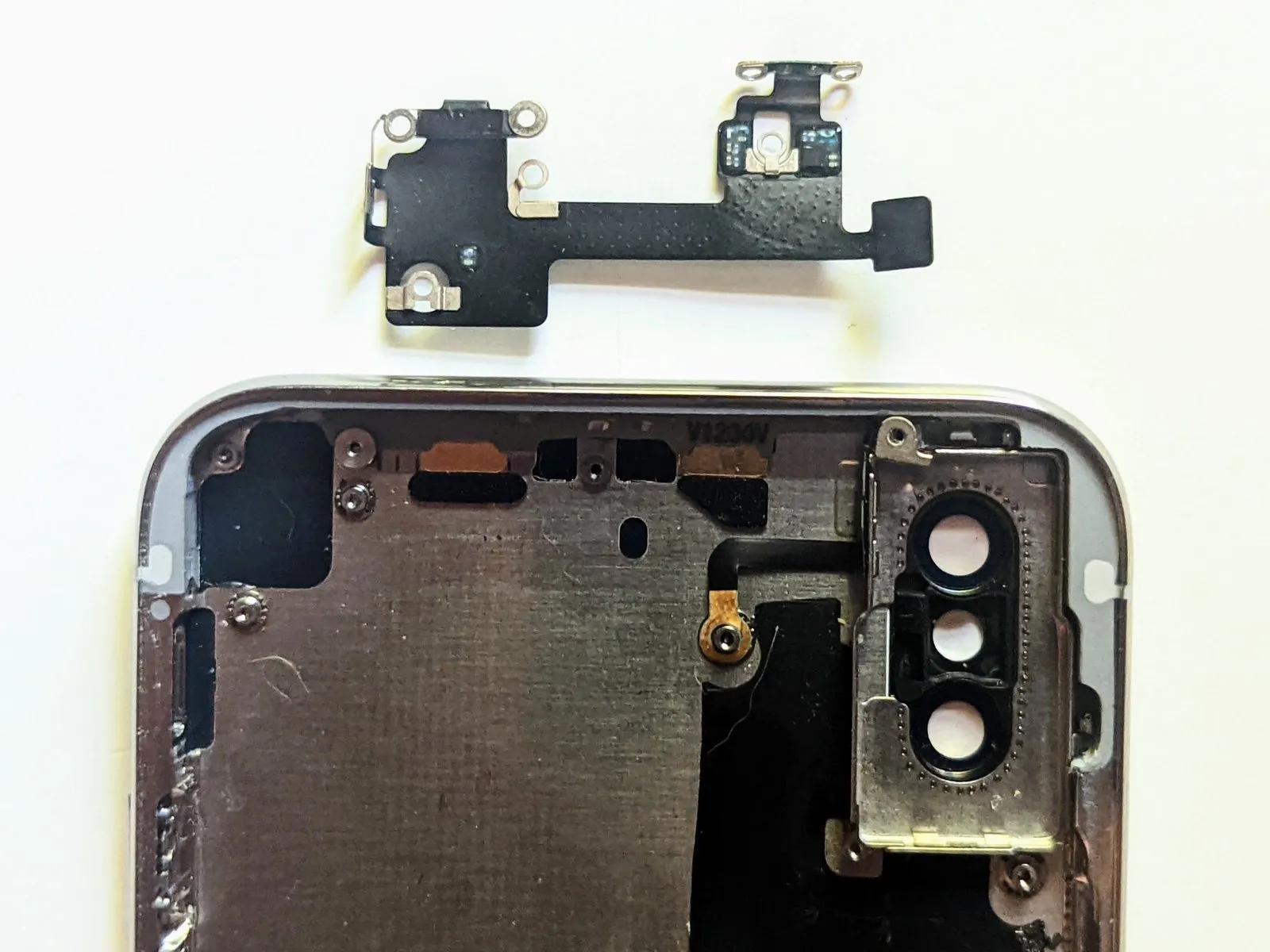

• Disconnect the wireless network antenna.
