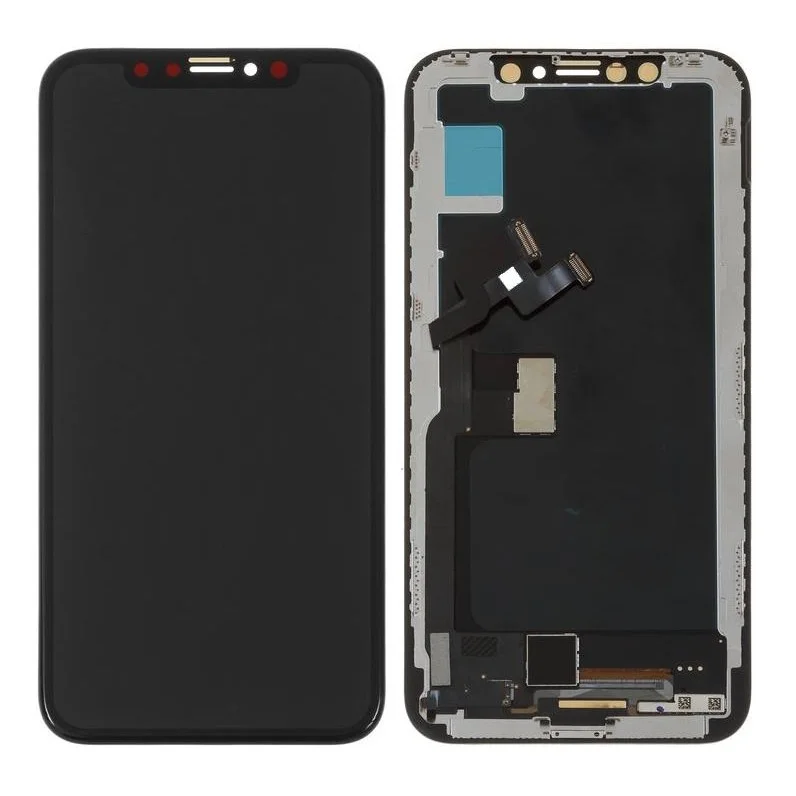

iPhone X Screen Replacement

• To start the repair process, ensure your iPhone's battery is depleted to a level below 25%.A lithium-ion battery that has been chargedposes a risk of ignition and/or detonation if it sustains accidental physical damage.
• Deactivate your iPhone by powering it down prior to commencing the disassembly process.
• Carefully extract the two pentalobe screws, each measuring 6.9 mm in length, located along the iPhone's lower edge.
• Should the screws exhibit signs of damage or stripping, it will be necessary to substitute them with replacements.replacements.
• Separating the iPhone’s display assembly will negatively impact its water resistance; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent moisture ingress if you intend to reassemble the iPhone without new seals.

• To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended insertion depth; this procedure details how to mark the pick to ensure safe operation.
• Determine the distance of3 mmoriginating from the pick's tip, then use a permanent marker to create a visible indicator on the opening pick.
• Distinct markings can also be applied to the pick's other corners, each representing a differentmeasurement.
• As an alternative method, affix a coin to the pick's tip, positioning it precisely 3 mm from the end.

• To minimize additional damage and potential injury when addressing a cracked iPhone screen, secure the glass with tape to restrict fragmentation.
• Apply multiple layers of transparent packing tape across the iPhone's display surface, ensuring complete coverage of the entire front face.
• Protect your vision by utilizing safety eyewear, as it will guard against potential hazards.fragments ofshattered
• Should the suction cup fail to adhere properly during subsequent procedures, create a handle by folding a robust tape, like duct tape, and use this to carefully separate the screen.
• As a last resort, you may secure thedevice's suction cupdirectly to the screen using superglue.

The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process; should you choose not to utilize this tool, proceed to the steps located three sections later for an alternative approach.

• Detailed guidance regarding the operation of the Anti-Clamp, can be found in this separate document.
• To release the locking mechanism, draw the blue handle rearward, which will disengage the Anti-Clamp's arms.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to generate suction onto the intended area.
• Should the iPhone's surface prove excessively smooth, preventing the Anti-Clamp from maintaining a secure hold, applying adhesive tape can create a more textured interface.

• To engage the locking mechanism, draw the blue handlein a forward direction.
• Rotate the handlethrough a complete rotation of 360 degrees, or until you observe the suction cups beginning to deform.
• Maintain proper alignment of the suction cups with one another; should they become misaligned, a minor adjustment of the suction cups is necessary to reposition the arms.

• Employing warmth, utilize aniOpenerand guide it between the arms of the Anti-Clamp device.
  Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, exercise caution as excessive temperatures can potentially harm the display assembly and/or the internal battery.
• Position theiOpenerin a folded position, ensuring it rests along the lower edge of the iPhone’s casing.
• Allow a sixty-second interval to permit the adhesive bond to weaken and create a separation.
• Carefully slide an opening tool beneath the screen and the surrounding plastic bezel, avoiding direct contact with the display surface.
• Should the Anti-Clamp not generate a satisfactory separation, increase the heat applied to the area and rotate the handle by ninety degrees.
  Refrain from rotating the handle beyond a ninety-degree increment at any point, and observe a sixty-second pause between rotations; allow the Anti-Clamp and time to facilitate the separation process.
• Proceed past the subsequent three instructions.

Applying warmth to the iPhone's bottom edge facilitates the loosening of the adhesive that holds the display in place, thereby simplifying the opening process.
Employ ahairdryerorheat gunalternatively, ready aniOpenerand direct it toward the iPhone's lower edge for approximately one minute to reduce the adhesive's tackiness.
When utilizing a hairdryer or heat gun, exercise caution against excessive heat, as this could potentially harm the display.

When employing a solitary suction handle, position it against the lower rim of the device's display, ensuring the curved glass area remains untouched.The suction handle should be affixed to the lower edge of the phone's screen, carefully circumventing the rounded glass section.To prevent damage, attach the suction handle to the phone's lower border, steering clear of the curved glass surface.

• Apply steady, consistent upward force to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
• Carefully slide a specialized opening tool into the space formed beneath the screen's decorative plastic border, ensuring it does not contact the display surface directly.
• The screen is secured by a robust, waterproof sealant; overcoming this bond requires considerable effort. Should you encounter difficulty in establishing this initial separation, utilize additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength, allowing for sufficient gap creation to accommodate your tool.

• Carefully maneuver the opening pick along the bottom-left perimeter of the iPhone, then upward along the left side, severing the adhesive that secures the display assembly.
• Ensure the pick's insertion depth remains limited to3 mmto prevent potential harm to delicate internal parts.

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

• To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's enclosure, then advance it upwards along the right side.
• Ensure your opening pick does not penetrate beyond 3 mm, to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips together fasten the uppermost boundary of the screen assembly.
• Employing a separation tool, maneuver it along the upper corner of the display, concurrently applying slight downward traction or oscillating movement towards the Lightning connector’s location.
• Excessive force applied to the retaining clips will result in their fracture; therefore, proceed with caution and allow ample time for the process.
• Limit the pick’s insertion depth to a maximum of 3 millimeters to prevent potential harm to the front panel sensor array.
• Continue the separation tool’s motion to the opposing corner, severing any residual adhesive that holds the display in place.

• To access the internal components, initiate the opening process by pivoting the display upwards from the left edge, mimicking the action of opening a book's cover.
• Refrain from completely disconnecting the display at this stage, because multiple delicate ribbon cables remain attached, linking it to the iPhone's main circuit board.
• Confirm, as illustrated, that the frame detaches alongside the display, preventing it from becoming lodged within the device's casing.
• Secure the display in an upright position using a support to maintain access to the internal components during the repair process.
• When reassembling the device, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge before securing the remainder of the display. Should the display not easily engage, inspect the clips surrounding the display's border for any signs of deformation.

• Detach the bracket that holds the logic board connector by first removing five screws, each requiring a Y000 screwdriver.
• Utilize three screws, each measuring 1.1 millimeters in length.
• A single screw with a 3.1-millimeter dimension is also needed.
• Additionally, one screw with a 3.7-millimeter measurement will be required.

• Detach the bracket.
• Thebracketmight be subtly affixed; apply a delicate yet resolute upward force to disengage it.

As you reassemble the device, it's advisable to activate your iPhone at this juncture and verify all operational capabilities prior to securing the display. Ensure your iPhone is fully powered off before proceeding with further repairs.

• Employ the tip of a spudgeror a pristine fingernail to elevate the battery connector from its corresponding receptacle on the logic board's surface.
• Exercise caution to avoid harming the black silicone sealant that encases this and other board connections, as this material offers supplemental defense against water and particulate contamination.
• Slightly deflect the connector away from the logic board to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

Employing the tip of a spudger or a fingernail, carefully separate the front panel sensor assembly connector.spudgerDisconnect the front panel sensor assembly connector by utilizing the pointed end of a spudger or a fingernail.

• Employ the tip of a spudgeror a fingernail to release the OLED panel cable connector's latching mechanism.
• For re-attachment, position the connectors similarly, meticulously aligning and applying pressure to a single edge until a distinct click is heard; subsequently, repeat this process on the opposing edge. Avoid applying pressure to the central portion of the connector; misalignment can result in pin deformation, potentially leading to irreversible damage.

• Employ the tip of a spudgerto carefully lift the digitizer cable connector from its receptacle.
  Due to the connector's deeply set position, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle pressure with your fingertip to secure it – initially one side, then the other – until you hear a distinct clicking sound indicating proper engagement.
  Should any area of the screen exhibit a lack of touch responsiveness following the repair, initially detach the battery, then re-engage this connector, verifying a full click and confirming the absence of dust or any other impediment within the socket.

The assembly containing the front panel sensor is secured with a delicate adhesive along its flex cable.
Gently raise the cable, ensuring the adhesive bond releases without damage.

Detach the display assembly from the device.
When putting the device back together, halt at this stage should you desire to substitute the waterproof sealantadhesive that borders the display's perimeter.

To proceed, extract the 1.2 mm Y000 screw, which is situated on the rear surface of the display assembly, close to the infrared camera connection.The specified screw is a Y000 type, measuring 1.2 mm in size.This fastener's location is on the display assembly's back, in the vicinity of the infrared camera port.

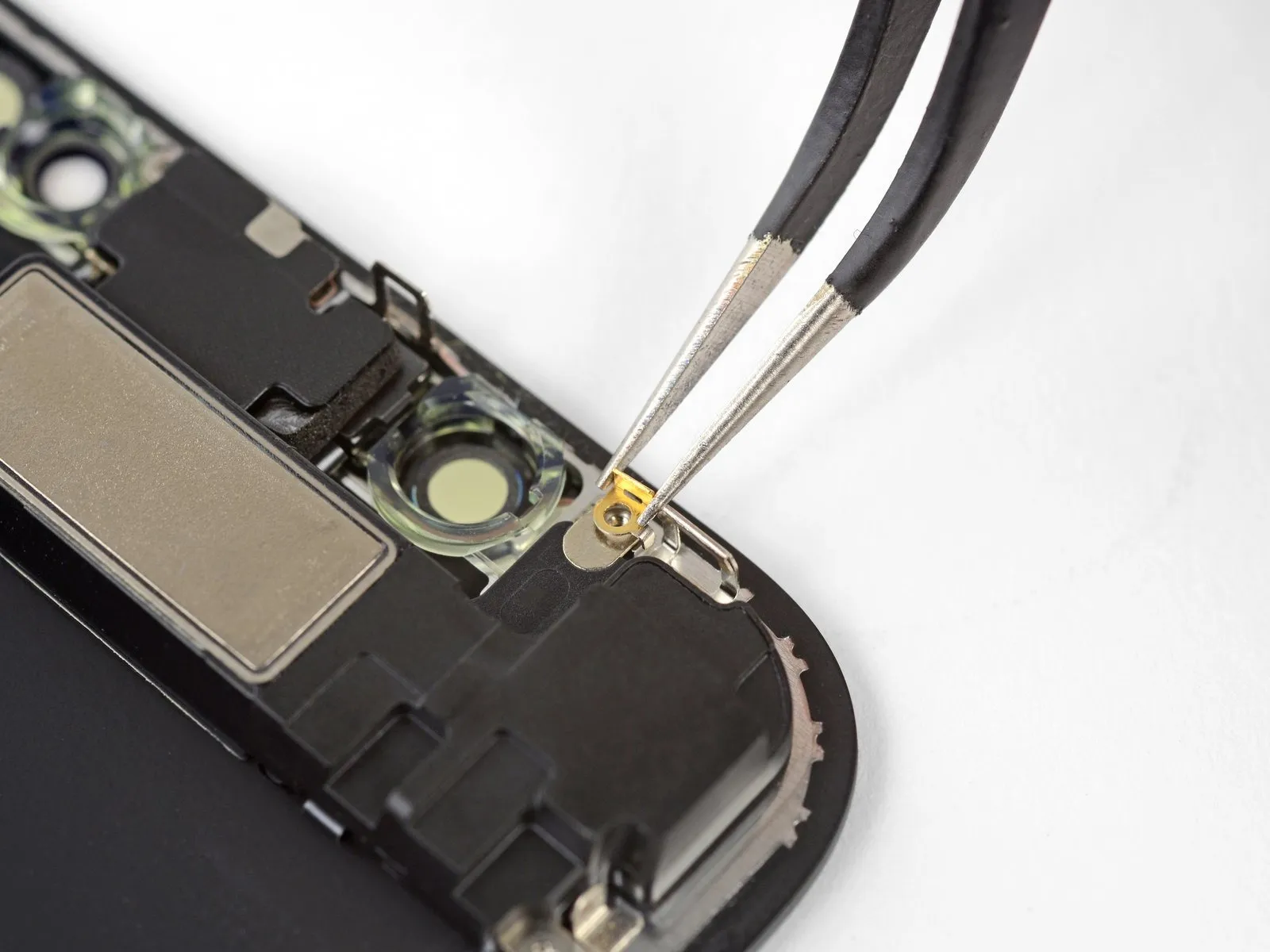

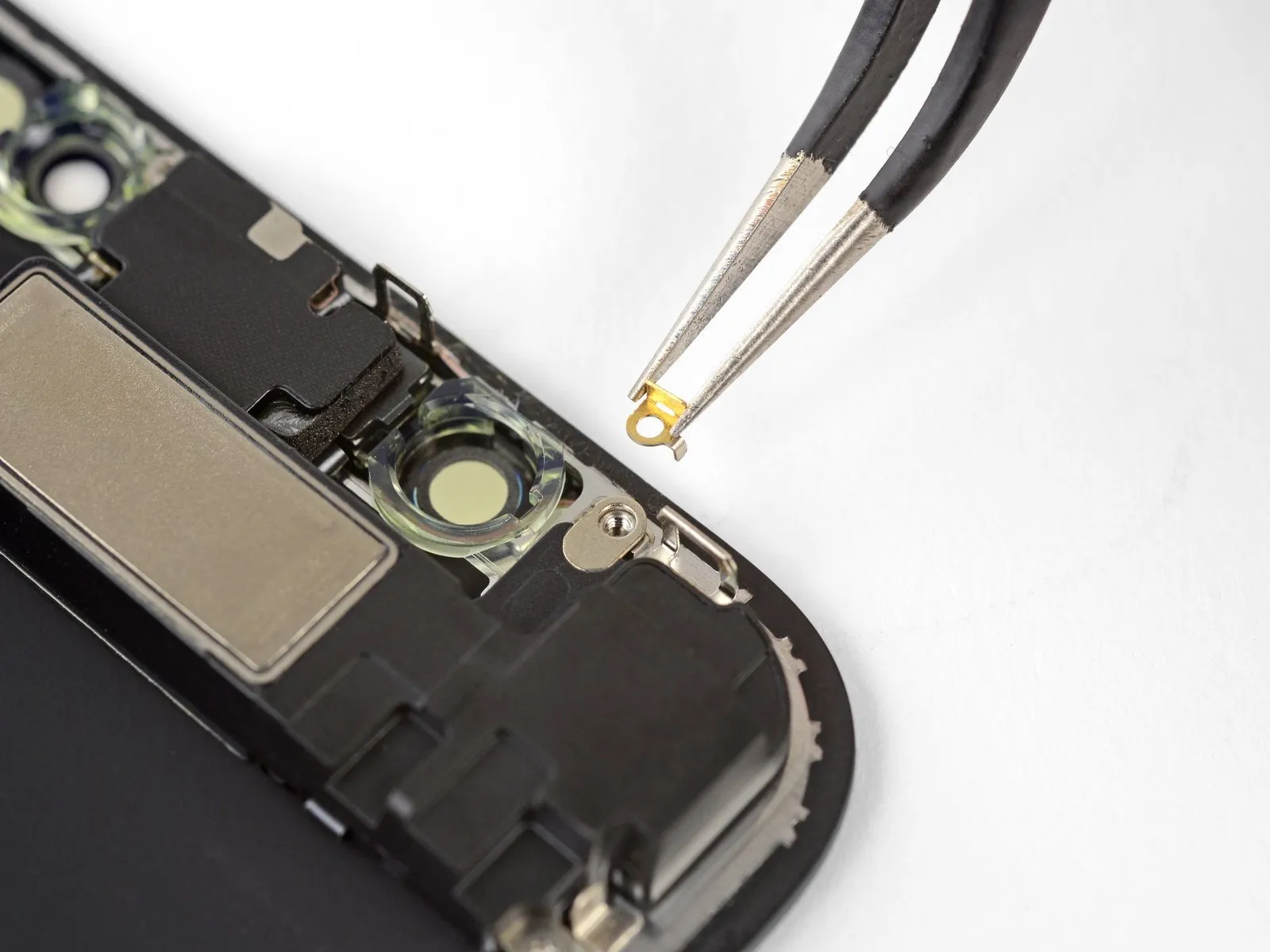

1. A tiny metal grounding clip is situated directly under the screw that was just taken out; ensure its removal if it remains attached.
   • When putting the device back together, position the clip precisely as illustrated.
   • Maintain the clip's placement while securing the screw with tightening.

• To detach the speaker/sensor assembly, eliminate two additional Y000 screws that hold it in place.
• One 1.6 mm screw
• One 1.3 mm screw

A minimal adhesive secures the earpiece speaker's position.

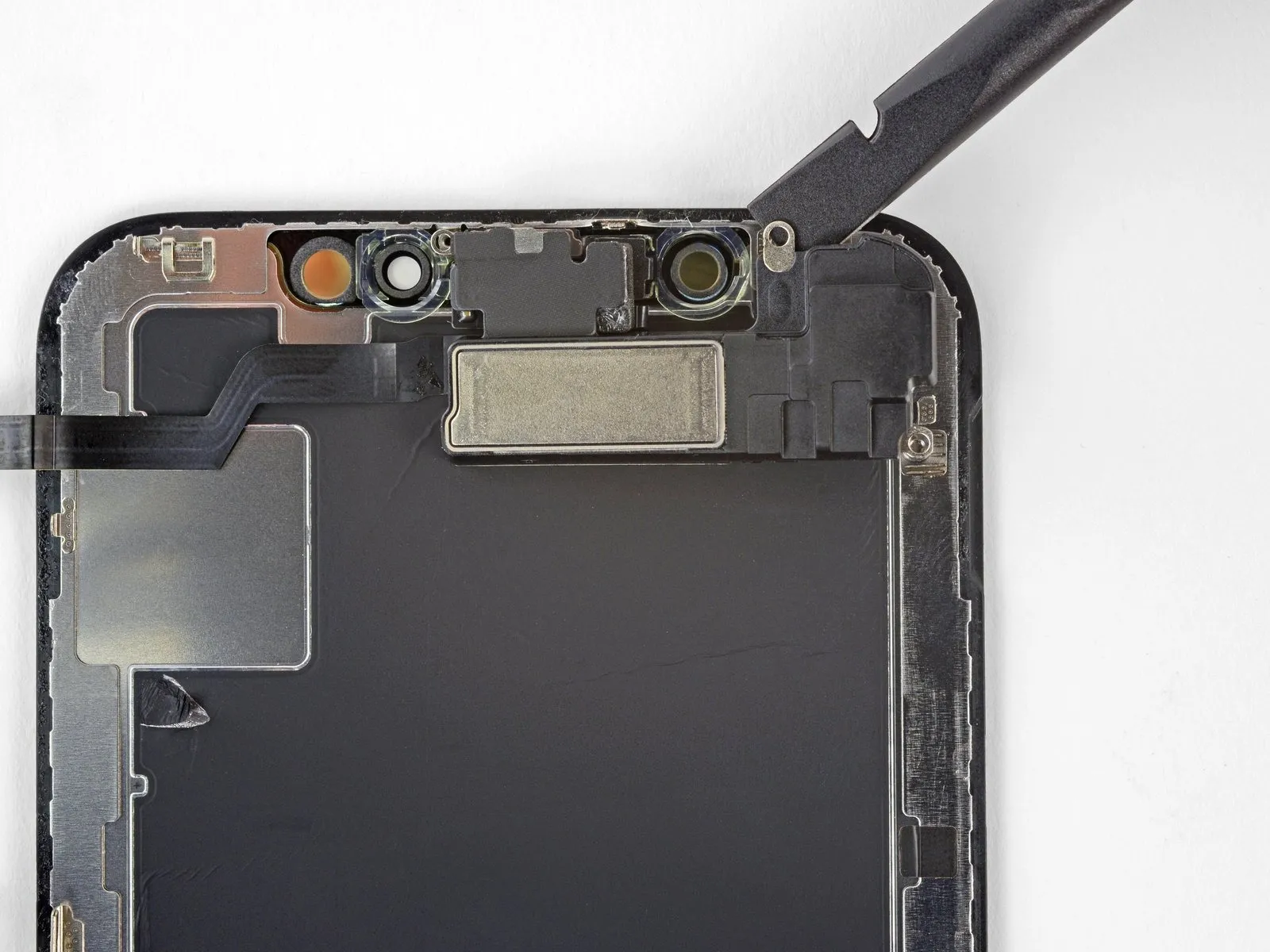

Employing a spudger tool, carefully lift the speaker assembly from its location by levering it from the display's upper boundary, pivoting it downwards.

The speaker is connected with a delicate flex cable; exercise caution to prevent undue stress or harm to this cable.

To loosen the adhesive bonds holding the sensors in place, apply heat using a hairdryer, heat gun, or an iOpener to the upper frontal surface of the display for approximately one minute.

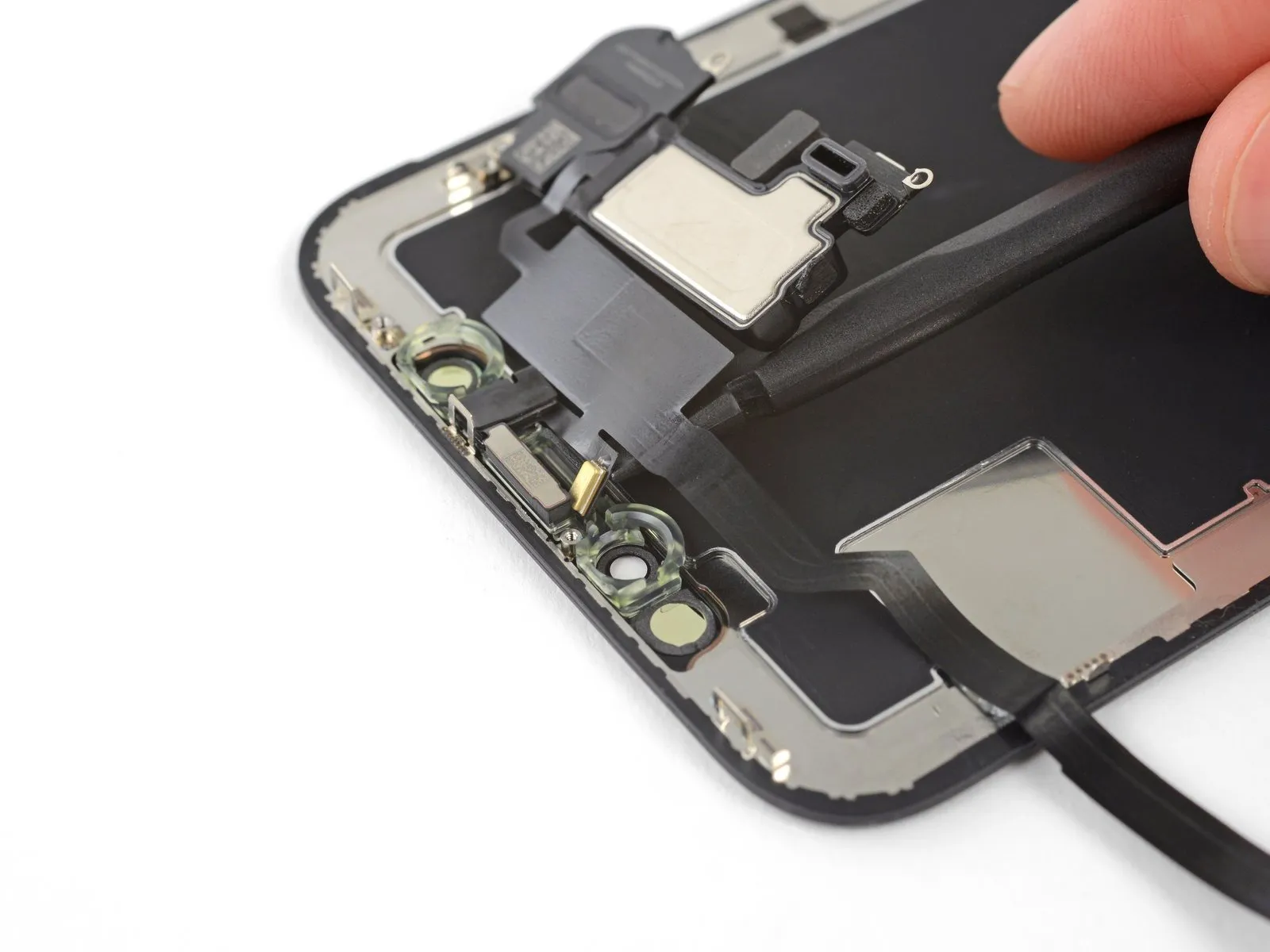

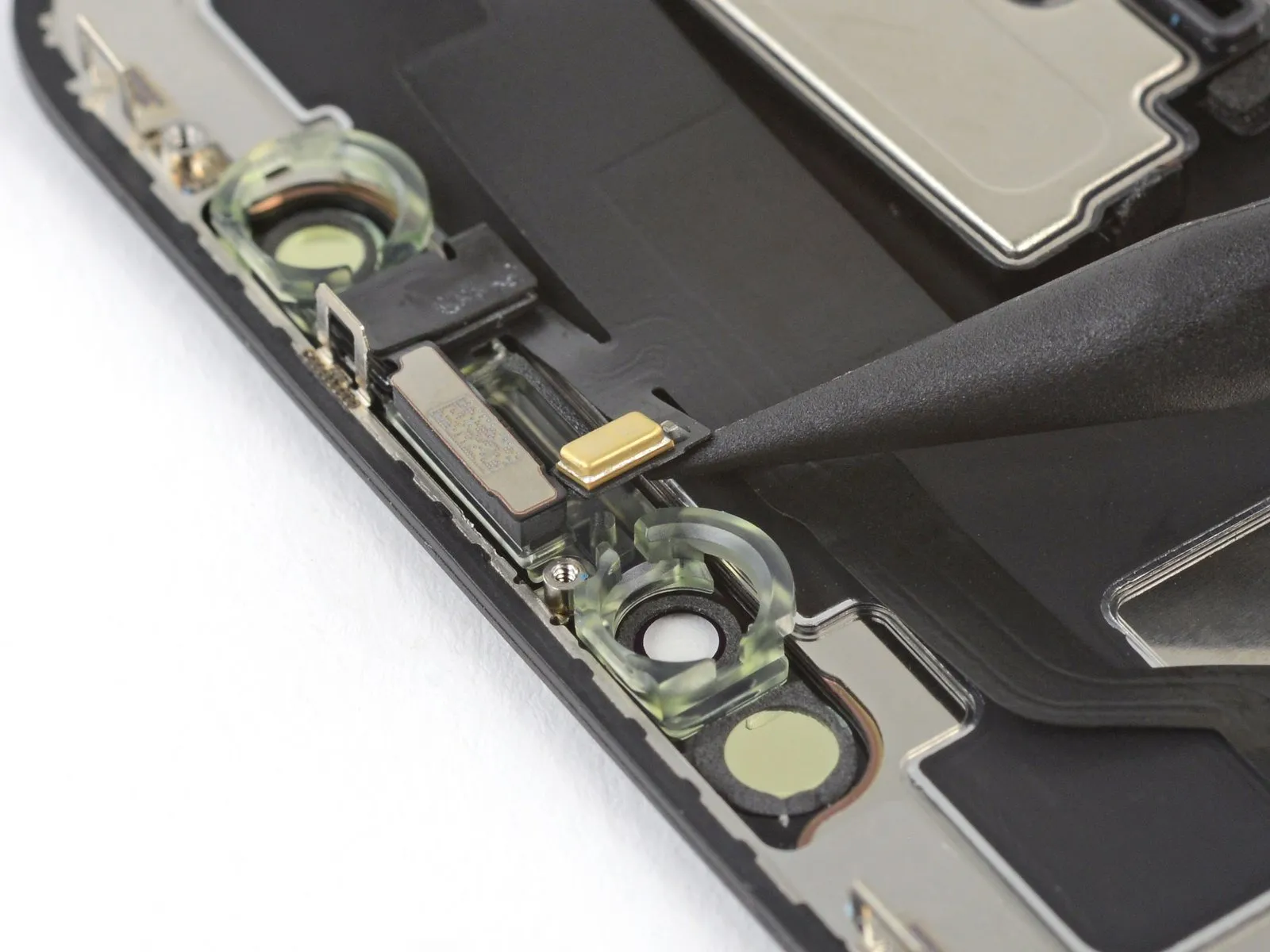

• Employing caution, maneuver the straight side of yourspudgerbeneath the flexible cable situated adjacent to the microphone.
• Apply slight rotational force to detach the microphone, ensuring you avoid undue stress or harm to the flexible cable.
• Should additional assistance be required, utilize the tip of thespudgerto complete the microphone's disengagement from its recess within the front panel.

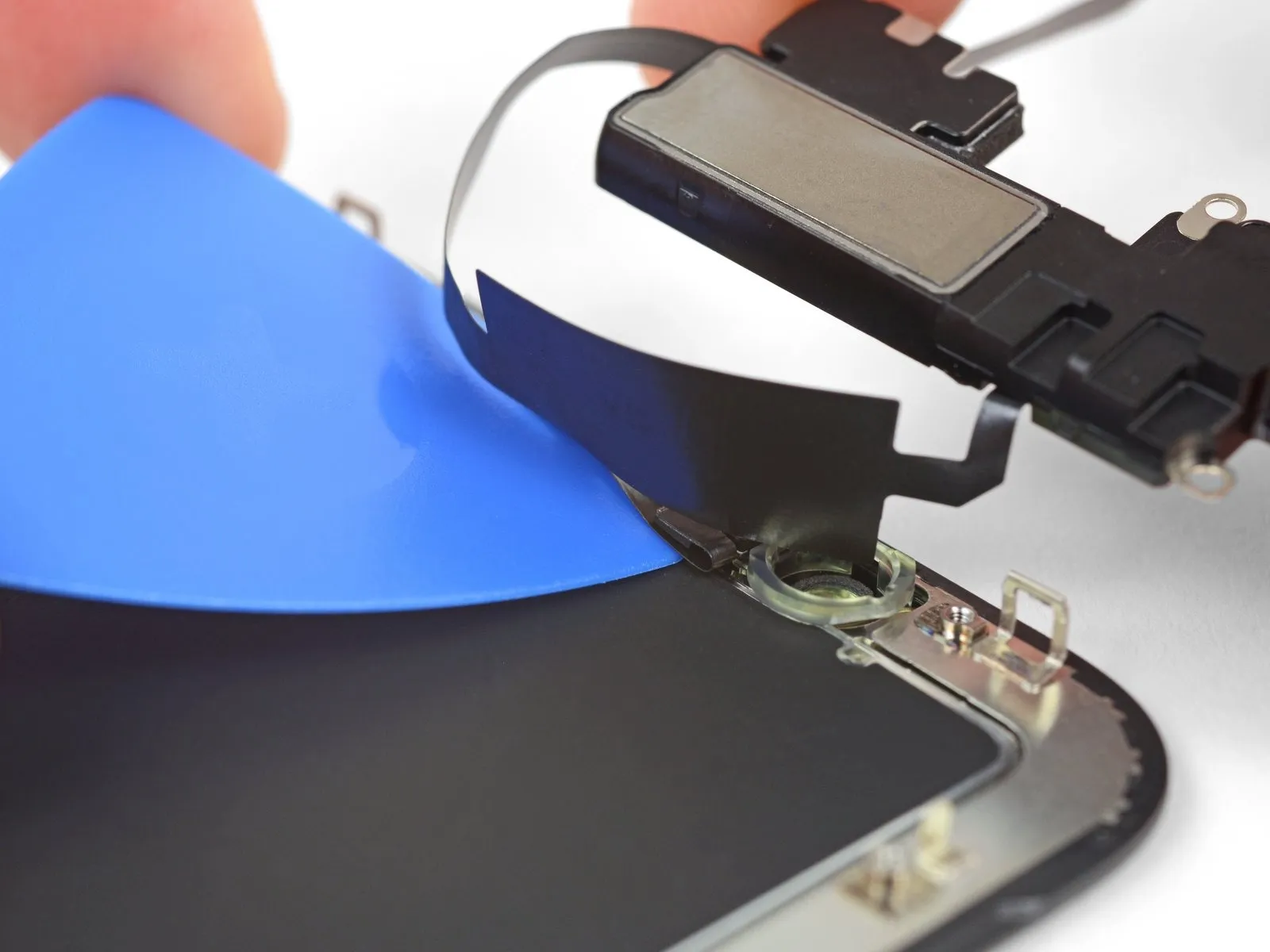

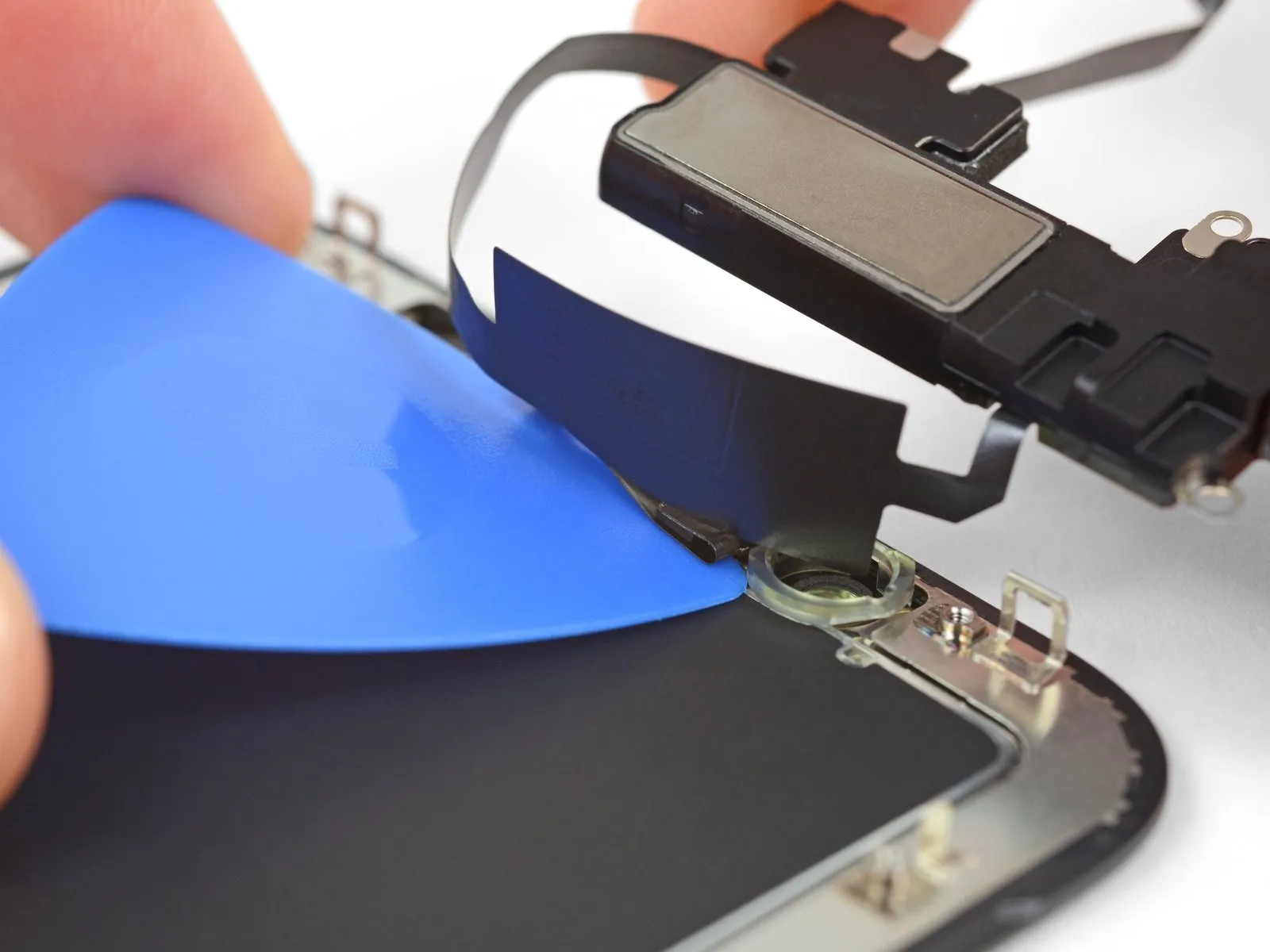

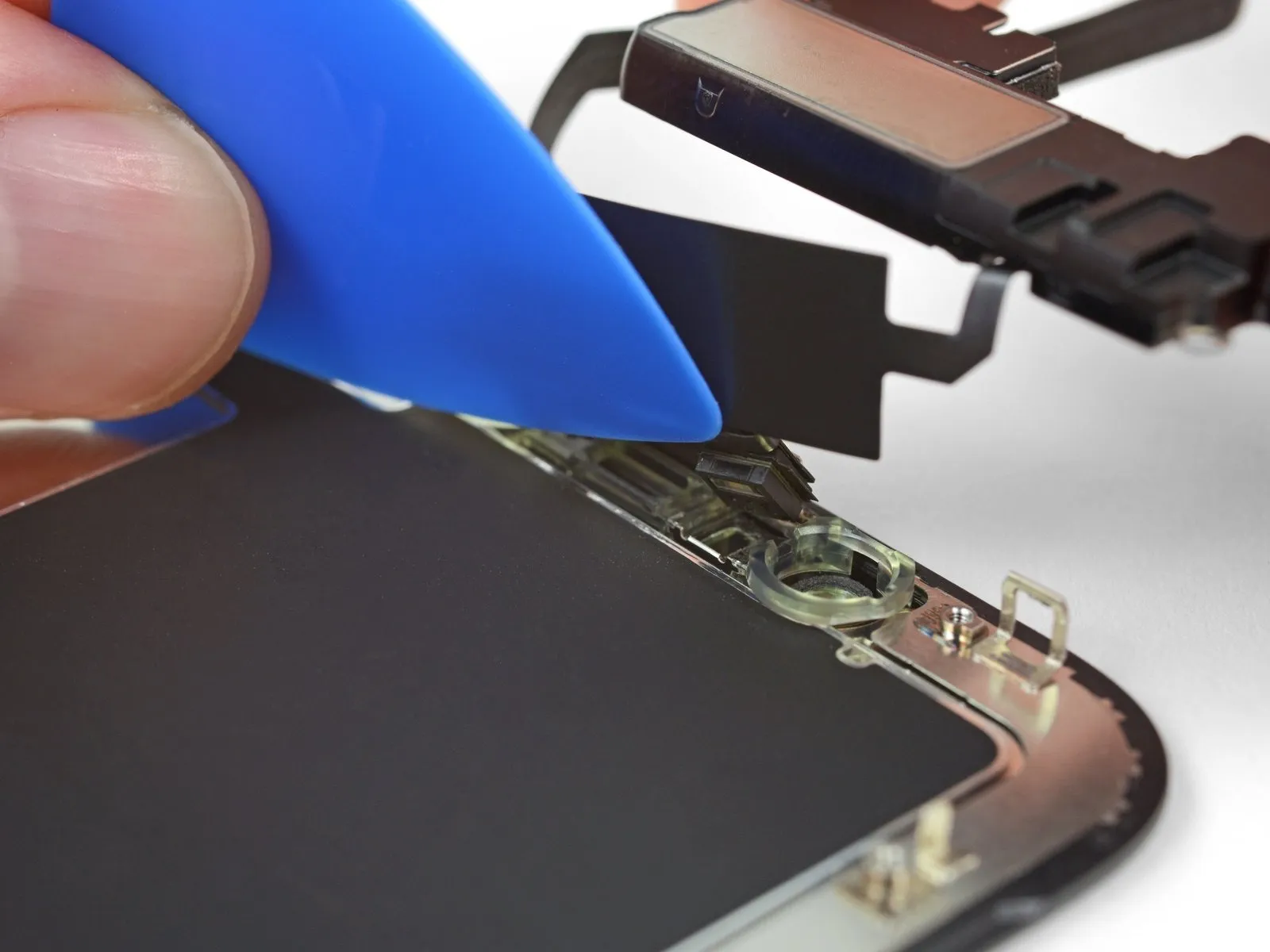

• Commencing with the left side and progressing to the right, insert a separation tool beneath the flexible cable and also beneath the proximity sensor and flood illuminator module assembly.

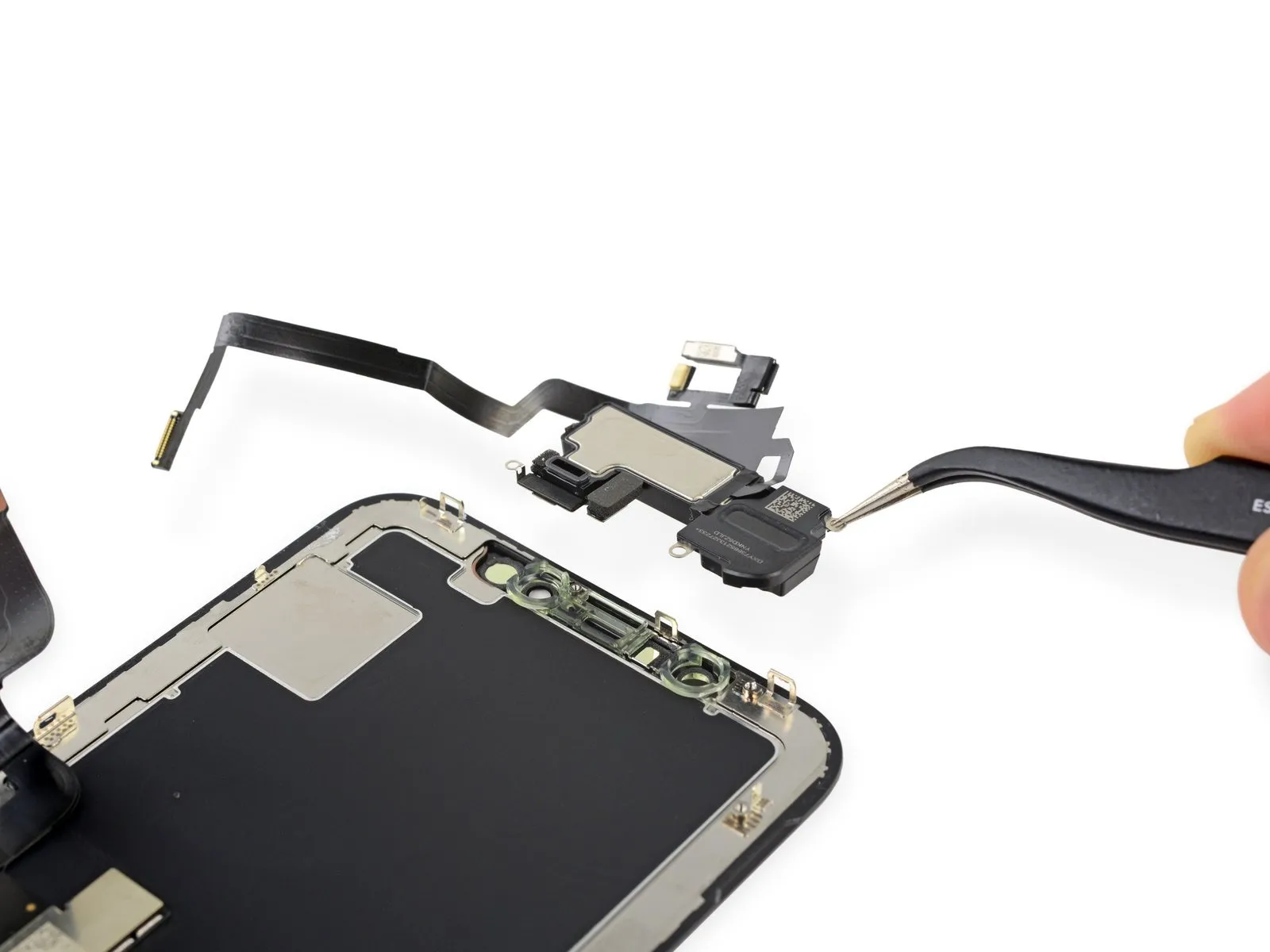

• Employing a delicate wiggling motion, elevate the module to disengage it from its corresponding recess within the front panel.
• To facilitate access, supporting the speaker by lifting and holding it can be advantageous; however, exercise caution to avoid applying tension to the slenderflexible cable during the repair process.

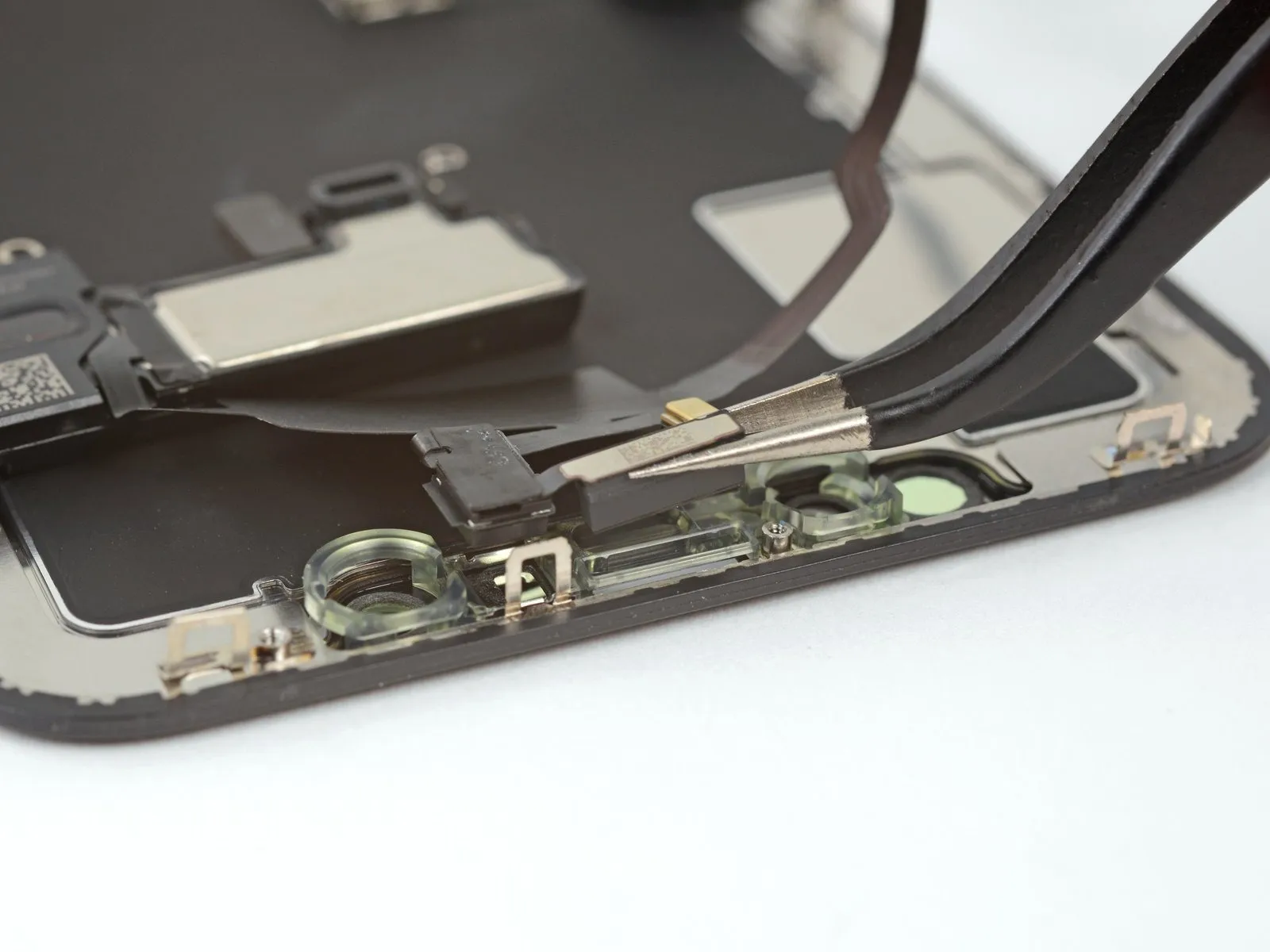

• Employ tweezers to gently maneuver the ambient light sensor, detaching it from its designated slot within the display.
• This sensor is connected to the broader sensor assembly through an exceptionally delicateflexible cableExercise caution to prevent undue stress or harm to this cable.

• Following complete removal of the ambient light sensor, as depicted in the initial image, proceed to the subsequent instructions.
• Should the white diffuser strip become separated and remain lodged within the display assembly, as illustrated in the second photograph, employ a slender blade or prying instrument to gently dislodge it from the upper boundary. Applying warmth beforehand could potentially simplify this process.
• For reassembly, initially position the diffuser within the display, ensuring correct orientation; the front surface is visible in the first image, while the rear surface is shown in the third image.
• Subsequently, place the ambient light sensor atop the diffuser, maintaining its position while securing the earpiece/sensor assembly with screws. Upon tightening these fasteners, the sensor will remain affixed and function as intended.

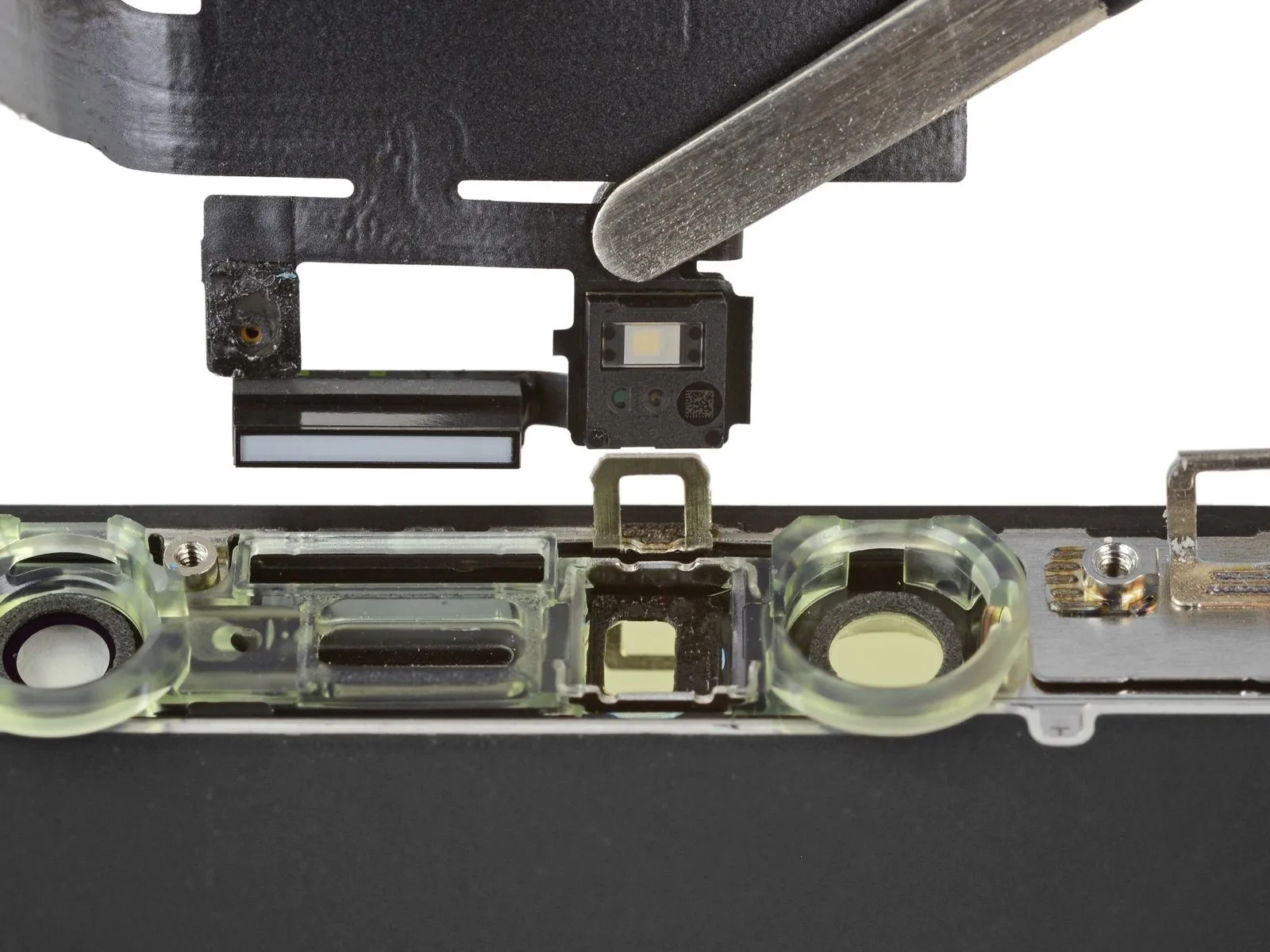

• This refers to the proximity sensor.
• This designates the flood illuminator.
