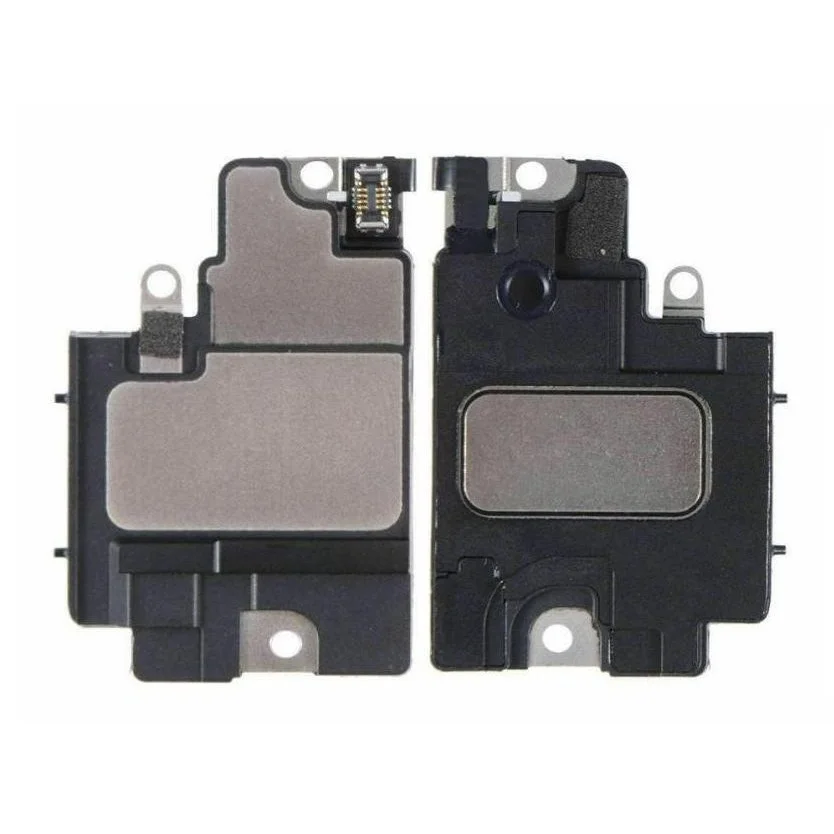

iPhone X Lower Speaker Replacement

To generate a stereo audio experience, the iPhone X integrates both the main speaker and the earpiece speaker. This repair manual details the procedure for substituting the primary speaker located on the device's lower edge. Addressing this speaker's failure can rectify problems including diminished audio output, degraded sound fidelity, and sound distortion.loudspeaker and the earpiece speaker together to produce stereo sound. Use this guide to replace the primary loudspeaker at the bottom of the phone only. Replacing this speaker can help resolve issues such as loss of sound, poor sound quality, and distorted sound.

Step 1 | Pentalobe Screws

Step 1 image
  • As a preliminary precaution, ensure your iPhone's battery level drops below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire and/or explosion hazard if it sustains accidental physical damage, such as a puncture.
  • Deactivate your iPhone by powering it down completely before starting the disassembly procedure.
  • Detach the pair of pentalobe screws, each measuring 6.9 mm in length, located along the iPhone's lower edge.
  • Should the screws exhibit signs of damage or stripping, it is essential to substitute them with replacements.
  • Separating the iPhone's display assembly will irreversibly damage its integrated waterproof seals; therefore, procure replacement seals beforehand and be prepared to proceed with extreme caution to prevent liquid ingress if you intend to reassemble the device without new seals.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended insertion depth; this procedure details how to identify a safe insertion point on the pick to mitigate such risks.
  • Determine the distance of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indicator on the opening pick.
  • For enhanced precision, consider marking additional points along the pick's edges with varying measurements.
  • As an alternative method, affix a coin to the pick's shaft,3 mmaway from its tip.

Step 3 | Tape over any cracks

Step 3 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To limit additional damage and safeguard against potential injury while servicing an iPhone with a fractured display, secure the shattered glass with adhesive tape.
  • Apply successive layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
  • Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
  • Should the suction cup fail to maintain adhesion during subsequent procedures, create a handle by folding a robust tape, like duct tape, and employ this to elevate the screen.
  • As a last resort, secure the suction cup to the screen's surface using superglue.

Step 4 | Anti-Clamp instructions

Step 4 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process; should you choose not to utilize this tool, proceed past these three steps to an alternative approach.
  • Detailed guidance regarding the Anti-Clamp's operation can be found within this supplementary document.
  • Grasp theblue handleand move it in a rearward direction to disengage the Anti-Clamp's securing arms.
  • Carefully position the arms across either the left or right side of your iPhone.
  • Place the suction cups in close proximity to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
  • Apply pressure by compressing the cups together to establish a secure suction hold on the intended area.
  • Should the iPhone's surface prove excessively smooth, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can provide a more textured surface for improved grip.

Step 5

Step 5 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To engage the locking mechanism, draw the blue handlein a forward direction.
  • Rotate the handlethrough a complete 360-degree rotation, or until you observe the suction cups beginning to deform.
  • Maintain proper alignment of the suction cups with one another; should they become misaligned, a minor adjustment of the suction cups is necessary to reposition the arms.

Step 6

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Employ a iOpener by introducing it between the Anti-Clamp’s arms. Alternative heating methods, such as a hair dryer, heat gun, or hot plate, are acceptable; however, exercise caution as excessive heat poses a risk of damage to the display assembly and/or the internal battery.
  2. Position the iOpener to rest along the lower edge of the iPhone’s casing.
    Allow a sixty-second period to elapse, enabling the adhesive to soften and facilitating the creation of a separation.
  3. Carefully slide an opening tool beneath the display and the surrounding plastic frame, ensuring it does not contact the screen's surface.
  4. Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the area and rotate the handle by ninety degrees.
    Avoid excessive rotation, limiting adjustments to ninety-degree increments, and pause for sixty seconds between each rotation. Rely on the Anti-Clamp’s pressure and time to achieve separation.
  5. Proceed past the following three sequential procedures.

Step 7

Step 7 image
  • Applying warmth to the iPhone's bottom edge facilitates the loosening of the adhesive that holds the display in place, which simplifies the opening process.
    Employ ahairdryerorheat gunor alternatively, ready aniOpenerand direct it towards the iPhone's lower edge for approximately one minute to reduce the adhesive's tackiness.
  • When utilizing ahairdryerorheat gun, exercise caution to avoid excessive heat, as this may cause damage to the display.

Step 8

Step 8 image
Thumbnail 1
Thumbnail 2

Secure one suction handle to the lower edge of the device's frame, ensuring it does not contact the rounded glass surface.

Step 9

Step 9 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Apply steady, forceful upward pressure to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
    Carefully slide an opening tool into the space formed beneath the screen's plastic trim, ensuring it does not contact the display surface itself.

Due to the robust, waterproof sealant securing the screen, establishing this initial separation requires considerable effort; should you encounter difficulty, apply additional heat and gently oscillate the screen in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

Step 10

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Using a separation tool, maneuver it along the bottom-left perimeter of the iPhone and upward along the left side, severing the adhesive securing the display assembly.
    Ensure the separation tool's insertion depth remains under 3 millimeters to prevent potential harm to the device's internal components.

Step 11 | Screen information

Step 11 image

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

Step 12

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To proceed with separating the adhesive, re-position your opening pick along the lower edge of the iPhone's casing, then advance it upwards along the right side.
    Exercise caution and limit pick insertion to a maximum depth of 3 millimeters to prevent potential harm to the delicate display cable connections.

Step 13

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Adhesive and retaining clips both hold the display's upper boundary in place.
  • Employing a specialized opening tool, maneuver it along the display's upper corner, applying slight downward traction or oscillation towards the Lightning connector.
  • Excessive force applied to the retaining clips will result in their breakage; therefore, proceed with caution and deliberate care.
  • Limit pick insertion depth to a maximum of 3 millimeters to prevent potential damage to the front panel sensor array.
  • Continue sliding the tool to the opposing corner to sever any residual adhesive that is still bonding the display.

Step 14

Step 14 image
To detach the suction cup from the front panel, grasp and exert force on the small protrusion located on its surface.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • To access the internal components of the iPhone, initiate the opening process by pivoting the display upwards from the left side, employing a motion similar to opening a book's cover.
  • Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
  • Confirm, as illustrated in the provided visual guide, that the frame is disengaged along with the display, preventing it from remaining adhered within the device's casing.
  • Secure the display in an upright position using a support to maintain stability during the repair procedure.
  • When reassembling the device, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge before securing the remainder of the display. Should the display not readily engage, inspect the clips surrounding the display's perimeter to verify they are not deformed.

Step 16 | Display Assembly

Step 16 image
  • Detach the logic board connector bracket by first extracting the five Y000 screws that hold it in place.
  • Utilize three screws, each measuring 1.1 millimeters in length.
  • A single screw with a 3.1-millimeter length is also required.
  • Additionally, one screw with a 3.7-millimeter length will be necessary.
During the entire repair process, meticulously organize and document the location of each screw, ensuring they are reinstalled in their original positions to prevent potential damage to your iPhone.

Step 17

Step 17 image
  • Detach the bracket.
  • Thebracketmight be subtly affixed; carefully elevate it with a steady motion to disengage it.

As you put the iPhone back together, it's advisable to activate the device and verify all its features before securing the display. Ensure the iPhone is fully powered off prior to proceeding with the repair.

Step 18

Step 18 image
Thumbnail 1
Thumbnail 2
  • Employ the tip of a spudgeror a pristine fingernail to lift the battery connector's retaining clip from its corresponding receptacle on the logic board's surface.
  • Exercise caution to avoid harming the black silicone sealant that encases this and other board interfaces, as it offers supplemental defense against moisture and particulate contamination.
  • Slightly deflect the connector away from the logic board to ensure it remains disconnected and prevents unintended power delivery to the device during the repair process.

Step 19

Step 19 image
Thumbnail 1
Thumbnail 2

Employing the tip of a spudger or a fingernail, carefully separate the front panel sensor assembly connector.spudgerDisconnect the front panel sensor assembly connector by utilizing the pointed end of a spudger or a fingernail.

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
  • Employ the tip of a spudgeror a fingernail to release the OLED panel cable connector's connection.
  • For reattachment, position the connectors similarly, meticulously aligning and applying pressure to one edge until a click is heard, then repeat the process on the opposing edge; avoid applying pressure to the central portion. Incorrect alignment risks pin deformation, potentially leading to irreversible component failure.

Step 21

Step 21 image
Thumbnail 1
Thumbnail 2
Procedure Step 21:Employ the tip of a spudger to lift the digitizer cable connector away from its receptacle.
  • Due to the connector's deeply situated design, reattachment can be challenging; proceed deliberately, ensuring precise alignment before applying gentle pressure with your fingertip to secure it – initially one side, then the opposite.
  • A distinct audible click will indicate successful engagement.
Should any area of the screen exhibit a lack of touch responsiveness following the repair, first remove the battery, then re-engage this connector, verifying a complete click and confirming the absence of dust or any foreign material within the socket.

Step 22

Step 22 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Phase 22:The flexible cable connecting the front panel sensor assembly is secured with a minimal amount of adhesive.
  • Gently raise the cable, ensuring the adhesive bond releases.

Step 23

Step 23 image
Proceed to step 23.Detach the display unit.
  • If you intend to substitute the waterproof sealant bordering the display's perimeter during reassembly, halt the process at this juncture.

Step 24 | Lower Speaker

Step 24 image
Thumbnail 1
Thumbnail 2
Proceed to step 24.Exercise caution to avoid contact with the three rows of grounding contacts located close to the base of the iPhone.
  • Detach the bracket positioned beneath the Taptic Engine and speaker by removing the screws that hold it in place.
    • Utilize two screws of type Y000 with a 1.9 mm head.
    • Employ one screw of type Y000 with a 1.2 mm head.
    • Use one screw of type Y000 with a 1.6 mm head.
    • Apply one Phillips head screw measuring 2.4 mm.
    • Securely remove one Phillips head screw with a 1.7 mm dimension.
    • Extract one Phillips head screw with a 1.5 mm measurement.

Step 25

Step 25 image
Thumbnail 1
Thumbnail 2
Phase 25:Carefully raise the mounting bracket, beginning at the side closest to the battery.
  • Avoid complete detachment at this stage, because a short, flexible cable remains attached.

Step 26

Step 26 image
Thumbnail 1
Thumbnail 2
  • To prevent interference from the bracket, secure it aside, then utilize the tip of a spudger to carefully lift and detach the flex cable located beneath.

Step 27

Step 27 image
  • Detach the bracket from its existing location.

Step 28

Step 28 image
Thumbnail 1
Thumbnail 2
  • To detach the speaker connector cover, utilize a 2.1 mm Y000 screwdriver to unscrew the securing screw.

Step 29

Step 29 image
  • To access the speaker terminals, detach the protective cover.

Step 30

Step 30 image
Thumbnail 1
Thumbnail 2
  • Employ the pointed end of a spudgerto carefully lift and detach the speaker's electrical connector.

Step 31

Step 31 image
Thumbnail 1
Thumbnail 2

Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached; if needed, secure the cable to one side to facilitate speaker removal.
Introduce a spudger. Position the spudger beneath the upper boundary of the speaker, situated close to the iPhone's casing.
Apply slight upward pressure and elevate the speaker's upper edge with care.
During speaker reinstallation, verify the flex cable's alignment and confirm it remains free from entrapment beneath the speaker.

Step 32

Step 32 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Grasp the speaker assembly using its lateral edges, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower perimeter.
    Continue moving the speaker outward from the iPhone's base until the adhesive gasket, which provides a seal, completely detaches.

Step 33

Step 33 image
Thumbnail 1
Thumbnail 2
Detach the speaker component from the device.

Step 34 | Replace the speaker gasket

Step 34 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Thespeaker's gasketBecause it cannot be used again, a replacement is necessary during reassembly.
  • Employing tweezers, detach and eliminate all remnants of the previous gasket from both the frame and the speaker itself.
  • Thoroughly cleanse any adhesive residue left by the old gasket from the frame and speaker surfaces utilizing a microfiber cloth dampened with isopropyl alcohol.
  • Prior to the installation of thespeaker gasket, determine its correct positioning on the speaker's underside; the substantial aperture in the gasket should align with the speaker grille mesh.
  • Detach the larger, transparent protective layer from the gasket and, with the aid of tweezers, position the gasket precisely on the speaker’s bottom surface.
  • To prevent contact with the adhesive, only handle the gasket by its liner's outer perimeter.
  • Employing your fingers or a spudger, apply firm pressure to thegasket to ensure it adheres securely via its adhesive backing.
  • Discard the remaining liner and position the speaker, verifying that the speaker connector remains free from obstruction.
