iPhone X Front Panel Screen Retainers Replacement

• Position a SIM card eject tool, or a straightened paperclip, into the recessed aperture situated on the SIM card tray, which is positioned close to the side button along the iPhone's edge.Apply consistent pressure to release the tray from its housing.
• The tray will be dislodged as a result of this action.

• Extract the SIM card tray from the iPhone's casing.
• The SIM card should detach from the tray with minimal effort.
• During the process of placing the SIM card back into the tray, confirm its correct alignment.
• A flexible, thin seal made of rubber encircles the SIM tray, offering defense against water and dust; should this seal be compromised or absent, substitute it or the SIM tray assembly to safeguard the iPhone's internal components.

As a crucial safety precaution prior to commencing the repair, ensure the iPhone's battery is depleted to a level below 25%. A fully charged lithium-ion battery presents a significant fire and/or explosion hazard if it sustains accidental physical damage.
To ensure safety and prevent short circuits, completely de-energize the iPhone by powering it down before you start disassembling it.
Begin the repair process by removing thetwo pentalobe screws, each measuring 6.9 mm in length,which are located at the lower edge of the iPhone’s casing.

• Should the screws exhibit signs of damage or stripping, it is essential to substitute them with replacements to maintain structural integrity.

Disassembly of the iPhone’s display assembly will inevitably damage the factory-installed waterproof seals; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent liquid ingress if you intend to reassemble the device without new seals.

To avoid potential harm to your device, ensure the opening pick does not extend beyond its intended insertion depth; this procedure details how to identify a safe insertion point on the pick to mitigate such risks.
Determine the distance of3 mmfrom the pick's foremost edge, then use a permanent marker to create a visible indicator on the opening pick.
For enhanced precision, consider marking additional points along the pick's edges with varying measurements.
As another option, affix a coin to the pick, positioning it precisely 3 mm from the tip.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
  Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
• Always utilize eye protection, specifically safety glasses, to guard against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to maintain adhesion during subsequent steps, create a handle by folding a durable tape, like duct tape, and employ this to carefully elevate the screen.
• As a last resort, secure the suction cup to the screen's surface using superglue.

• To disengage the Anti-Clamp's securing arms, draw the blue handle in a rearward direction.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups in close proximity to the lower edge of the iPhone, ensuring one is situated on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to establish a secure suction hold on the intended area.
• Should the iPhone's surface exhibit excessive slipperiness, hindering the Anti-Clamp's ability to maintain adhesion, applying adhesive tape can provide a more textured interface.

• Position the iOpener so that it rests along the lower edge of the iPhone's casing.
• Allow a sixty-second interval to elapse, permitting the adhesive to loosen and creating a separation.
• Carefully introduce an opening pick beneath the display and the surrounding plastic frame, ensuring it does not contact the screen's surface.
• Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the region and incrementally rotate the handle by ninety degrees.
• Avoid rotations exceeding ninety degrees at a time, and observe a sixty-second pause between each adjustment, allowing the Anti-Clamp and time to facilitate the separation process.

• Employing a hairdryer, heat gun, or iOpener is recommended; direct it towards the lower edge of the iPhone for approximately one minute to reduce the adhesive's tackiness.
• Excessive heat from a hairdryer or heat gun can harm the display; therefore, avoid overheating.

• Maintain steady, consistent upward force on the suction cup to generate a small separation between the display assembly and the device's surrounding structure.
• Carefully position an opening tool within the newly formed space, ensuring it is inserted beneath the plastic trim surrounding the display, and not the display panel itself.
• Due to the robust, waterproof adhesive securing the display, establishing this initial separation requires considerable force; should you encounter difficulty, apply additional heat and gently oscillate the display to loosen the adhesive until a sufficient gap is achieved for tool insertion.

• Employ the opening pick, maneuvering it along the bottom-left periphery of the iPhone and vertically up the left side, to sever the adhesive securing the display assembly.
• Ensure the pick's insertion depth remains under 3 millimeters to prevent potential harm to the delicate internal components.

• Fragile wiring is situated along the right-hand side of the iPhone; avoid inserting any tools in this area to prevent potential cable damage.

• To proceed with separating the adhesive, re-position your opening tool at the lower boundary of the iPhone's display and advance it upwards along the right-hand side.
  Exercise caution and limit the insertion depth of your tool to a maximum of 3 millimeters to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips both fasten the uppermost border of the screen assembly.
  Employing a separation tool, maneuver it along the upper corner of the screen while applying slight downward pressure, directing the movement towards the Lightning connector.
  Excessive force applied to the retaining clips will result in their breakage; therefore, proceed with caution and allow ample time.
• Limit the insertion depth of your separation tool to a maximum of 3 millimeters to prevent potential damage to the front panel sensor array.
  Continue the separation tool's movement to the opposing corner, severing any residual adhesive that holds the display in place.

• To detach the suction cup from the front panel, grasp the diminutive projection located on its surface and apply traction.

• To access the internal components, initiate the opening process by pivoting the display upwards from the left edge, mimicking the action of opening a book's cover.
• Refrain from completely disconnecting the display at this stage, because multiple delicate ribbon cables remain attached to the iPhone's main circuit board.
• Confirm, as illustrated, that the frame moves with the display assembly and remains detached from the internal chassis.
• Secure the display in an upright position using a support to prevent it from shifting during the repair procedure.
• When reassembling the device, position the display, ensure proper alignment of the retaining clips along the upper edge, and gently apply pressure to the top edge before securing the remainder of the display. Should the display not easily engage, inspect the condition of the clips around the display's perimeter to verify they are free from deformation.

• To detach the logic board connector bracket, initially extract the five Y000 screws that hold it in place, noting the varying lengths of each fastener.
  Specifically, three screws measure 1.1 millimeters in length.
  A single screw has a length of 3.1 millimeters.
  Additionally, one screw is 3.7 millimeters long.

During the entire repair process, meticulously organize and document the location of each screw, ensuring correct reinstallation to prevent potential damage to your iPhone.

• Detach the bracket.
  The bracket could be subtly affixed; apply a careful, yet resolute upward force to disengage it.

As you put the iPhone back together, it's advisable to activate the device and verify all operational capabilities prior to securing the display. Ensure the iPhone is fully powered off before proceeding with further repairs.

• Employing the tip of a spudger or a pristine fingernail, carefully lift the battery connector away from its corresponding socket located on the logic board.
  Exercise caution to avoid harming the black silicone seals that encircle this connector and others on the board, as they offer supplemental defense against water and dust penetration.

To ensure the phone remains powered off during the repair process, gently deflect the connector slightly away from the logic board, thus preventing unintended electrical contact with the socket.

• Employ the tip of a spudgeror a fingernailfor separating the OLED panel cable connector.
• To secure the connector, apply pressure in this manner: initially, precisely align the components and depress one edge until a distinct click is heard, subsequently repeat this process on the opposing side. Avoid applying pressure to the central portion; misalignment risks bending the pins, potentially resulting in irreversible damage.

• Employ the tip of a spudgerto carefully lift the digitizer cable connector from its receptacle.
• Due to the connector's deeply set position, reattachment can be challenging; proceed deliberately, ensuring precise alignment, and then apply gentle pressure with your fingertip to secure it – initially on one side, subsequently on the other, until you perceive a distinct clicking sound indicating proper engagement.
• Should any portion of the screen exhibit a lack of touch responsiveness following the repair procedure, initially detach the battery, then re-engage this connector, verifying a full click and confirming the absence of dust or any other impediment within the socket.

The assembly containing the front panel sensor is secured with a minimal amount of adhesive.
Gently raise the cable, ensuring the adhesive bond releases.

• Detach the display unit from the device.
• If you intend to substitute the water-resistant adhesive that seals the display's perimeter, halt the reassembly process at this juncture.

• Exercise caution to avoid contact with the three rows of grounding contacts located close to the base of the iPhone.
• Detach the bracket situated beneath the Taptic Engine and speaker by removing the seven screws that hold it in place.

  • Utilize two screws of the Y000 type, each measuring 1.9 mm in length.
  • Employ one Y000 screw with a length of 1.2 mm.
  • Use one Y000 screw, measuring 1.6 mm in length.
  • Securely remove one Phillips-head screw with a diameter of 2.4 mm.
  • Detach one Phillips-head screw, measuring 1.7 mm in diameter.
  • Remove one Phillips-head screw, measuring 1.5 mm in diameter.

• To begin the repair, elevate the mounting bracket, starting from the side closest to the battery.
• Avoid complete removal of the bracket at this stage, because it remains tethered by a short, flexible cable.

• To prevent interference, secure the bracket aside, then utilize the tip of a spudger to carefully lift and detach the flex cable located beneath it.

• Detach the2.1-millimeter Y000 screwwhich fastens the speaker connector cover in place.

• Employ the pointed end of a spudgerto carefully lift and detach the speaker's electrical connector.

Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached; if needed, secure the cable to the side to facilitate speaker removal.

• Position a spudger beneath the upper border of the speaker, situated close to the perimeter of the iPhone's housing.
• Apply a delicate upward force and elevate the speaker's top edge.

During the speaker's reinstallation, verify the flex cable's alignment and confirm it remains free from entrapment beneath the speaker.

Grasp the speaker firmly along its lateral borders, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower rim.

• Continue moving the speaker outward from the iPhone's base until the adhesive gasket releases completely.

Detach the speaker component from the device.

The speaker's gasket is a single-use component; therefore, it must be replaced during reassembly, adhering to the following procedure.

• Employing tweezers, detach and eliminate all remnants of the previous gasket from both the frame and the speaker.
• Thoroughly cleanse any adhesive residue left by the old gasket from the frame and speaker surfaces utilizing a microfiber cloth dampened with isopropyl alcohol.
• Prior to installing the replacement gasket, identify its correct positioning on the speaker's underside, ensuring the substantial recess aligns with the speaker grille mesh.
• Detach the larger, transparent protective liner from the gasket and, with the assistance of tweezers, meticulously position the gasket onto the speaker's underside.
• To prevent contamination of the adhesive surface, exclusively handle the gasket by its liner's peripheral sections.
• Apply firm pressure with your fingers or a spudger to embed the gasket securely within the adhesive.
• Eliminate the remaining liner and install the speaker, verifying that the speaker connector remains free from obstruction.

• To detach the component, eliminate the 2.3-millimeter Phillips screwthat holds the Taptic Engine in place.

• Employ a spudger tool to release the Taptic Engine flex cable connector, carefully lifting it vertically away from its connection point.

• Detach the Taptic Engine component.

Four strips of stretch-release adhesive fasten the iPhone X's battery to the back cover; specifically, one secures the upper battery cell, while three affix the lower portion. A small, black pull-tab, lightly bonded to the battery's side edge, is present on each adhesive strip.

• Detach the initial battery adhesive tab from the battery's lower border using a suitable method.
• If grasping the tab proves difficult, utilize a tool to pass through the small loop situated centrally on each tab.
• Exercise caution to avoid puncturing the battery with any pointed instruments, as this could result in the release of hazardous substances or ignition.

• To detach the remaining two adhesive tabs, perform the previously described procedure once more, ensuring they are fully separated from the battery's lower edge.
• Exercise caution to prevent any harm to the speaker cable connector, which is located immediately beneath the central adhesive tab.

The subsequent instructions detail how to gently extend each adhesive tab, gradually separating the adhesive layer from beneath the battery; this specialized stretch-release adhesive diminishes its stickiness when extended, subsequently detaching in your hand, facilitating effortless battery removal.

Should any of the strips fracture, remain composed; their functionality isn't guaranteed. Continue reading for supplementary procedures to address broken strips.
To maximize the likelihood of a successful outcome:
Avoid applying downward pressure to the battery; instead, maintain a secure grip on the iPhone's sides.
Ensure the strips remain smooth and without creases while pulling.
Apply force with extreme slowness, permitting the strip adequate time to extend and detach; approximately 15 to 30 seconds of stretching are typically required for each strip's removal.
Maintain a shallow pulling angle to prevent the strip from catching on the battery's lower edge.
Should a strip break off and become inaccessible beneath the battery, proceed to the remaining strips and then follow the additional steps outlined below.

• Carefully detach one of the external battery adhesive strips by gently drawing it away from the battery surface, directing its movement towards the lower portion of the iPhone's chassis.
• Maintain a consistent, even force while pulling on the strip, ensuring it remains taut until it disengages from the space between the battery and the iPhone's rear enclosure.
• Expect the adhesive strip to elongate significantly, potentially stretching to several times its initial size; persist in pulling and reposition your grip along the strip's length near the battery as needed.
• Should any of the battery adhesive strips tear during the removal procedure, utilize your fingers or non-piercing tweezers to recover any detached portions of the adhesive, and then resume the pulling action.
• In the event that adhesive strips fracture beneath the battery and are inaccessible, attempt to remove the remaining strips and then follow the subsequent instructions.

• Detach the central portion of the component, exercising caution to prevent the speaker flex cable from becoming entangled.

• The last retaining tab is situated in immediate proximity to the Face ID components, demanding meticulous handling to avoid damage.The functionality of Face IDis restricted to Apple's repair services if compromised, necessitating careful execution of this procedure.
• Carefully detach the pull tab from the uppermost adhesive strip, which is positioned along the top edge of the upper battery cell.

• Detach and eliminate the last adhesive strip.
• During separation, the strip could propel the battery from the iPhone; therefore, position your hand above the battery to stabilize it, but avoid applying downward pressure, as this may cause the adhesive strip to fracture and remain beneath the battery.
• Should you successfully remove all four adhesive strips, proceed past the following instruction.
• Should the adhesive fragment and remain inaccessible beneath the battery, introduce a small quantity of isopropyl alcohol with a concentration exceeding 90% beneath the battery's edge, specifically targeting the area of the detached adhesive strip(s).
• Allow approximately one minute for the alcohol to diminish the adhesive's strength. Subsequently, utilize the planar end of a spudger to delicately elevate the battery.
• Refrain from employing excessive force to dislodge the battery; if necessary, introduce additional drops of alcohol to further reduce the adhesive's hold. Under no circumstances should you bend or penetrate the battery with your prying instrument.
• Exercise caution to prevent damage to the ribbon cables or the wireless charging coil located directly beneath the battery.
• For different approaches to separating the battery from the device's casing, consult the subsequent instructions.

• Should any of the adhesive strips detach and the battery remains adhered to the rear case, utilize an iOpener or apply heat to the rear case's surface immediately behind the battery with a hair dryer.
• Warm the iPhone until the rear case reaches a temperature that is slightly uncomfortable to touch, exercising caution to avoid excessive heat that could potentially cause battery ignition.
• Return the iPhone to its original orientation and carefully insert a durable string – such as dental floss or a slender guitar string – beneath the battery.
• Protect your fingers by enveloping the string's ends within a cloth or by wearing protective gloves.
• Employ a sawing motion, drawing the string laterally across the battery's entire length, to sever the adhesive bond; this process may require considerable time due to the adhesive's slow yielding characteristics, but persistence will ultimately release the battery without causing harm.
• Should you opt to employ prying implements to extract the battery from the iPhone, exercise utmost care to prevent damage to the delicate ribbon cables or the wireless charging coil situated directly beneath the battery.

• Securely hold the battery from its lower edge and detach it from the iPhone's internal structure.
• To prevent potential issues, thoroughly eliminate any residual alcohol solution from within the phone, either by wiping it away gently or permitting it to evaporate completely before proceeding with the new battery installation.
• Prior to installing the replacement battery, ensure the Taptic Engine and speaker are reattached. Maintaining this order assists in precise battery alignment during the installation process.
• To guarantee proper positioning within its designated space, briefly reconnect the battery connector to the logic board socket before securing the replacement battery in place.
• Once the battery is positioned, affix it, then disconnect it, and proceed with the remaining steps to reassemble your device.
• Should your replacement battery lack pre-applied adhesive, consult this guide for instructions on replacing the adhesive strips.
• Following the complete reassembly, execute a force restart to proactively address potential problems and streamline any necessary troubleshooting.

1. Employing the planar edge of a spudger tool, carefully release the connection points of the three cable harnesses linked to the front camera assembly.
   Specifically, detach the cable for the dot projector.
   Also, disconnect the cable associated with the front camera itself.
   Furthermore, release the cable connected to the infrared camera.

The camera cables are affixed to the midframe with a minimal adhesive.

Employing the pointed end of a spudger, initiate the separation process at the connector, then carefully move the spudger's tip in between the infrared camera cable and the device casing to detach the cable.

Perform this same procedure for the front-facing camera cable.

To release the bonding agent securing the front camera module, direct heat onto its surface.

Carefully detach the front-facing camera module.

• To proceed with the repair, first, carefully detach these cable connectors:
  The WiFi Antenna connection.
  The Wide-Angle Camera connection.
  The Power Button / Flash / Microphone connection.
  The Telephoto Camera connection.
  The Dock Flex connection.
  The Button / Wireless Charging connection.
  The Cellular Antenna connection.

To proceed with the repair, first detach theWiFi Antenna connector from its associated cable.

• To proceed with the logic board removal, first, detach the Dock Flex cable connector.
• Carefully manipulate the cable's position.Form a 90-degree angle.Then, orient the cable vertically to create sufficient space for the logic board's extraction.

• To prevent damage, detach the connector securing the Cellular Antenna cable.
• Carefully maneuver the cable aside to avoid obstruction.

• A single2.7millimeter Phillips screw is required.
• Also, a single2.1millimeter Phillips screw must be removed.

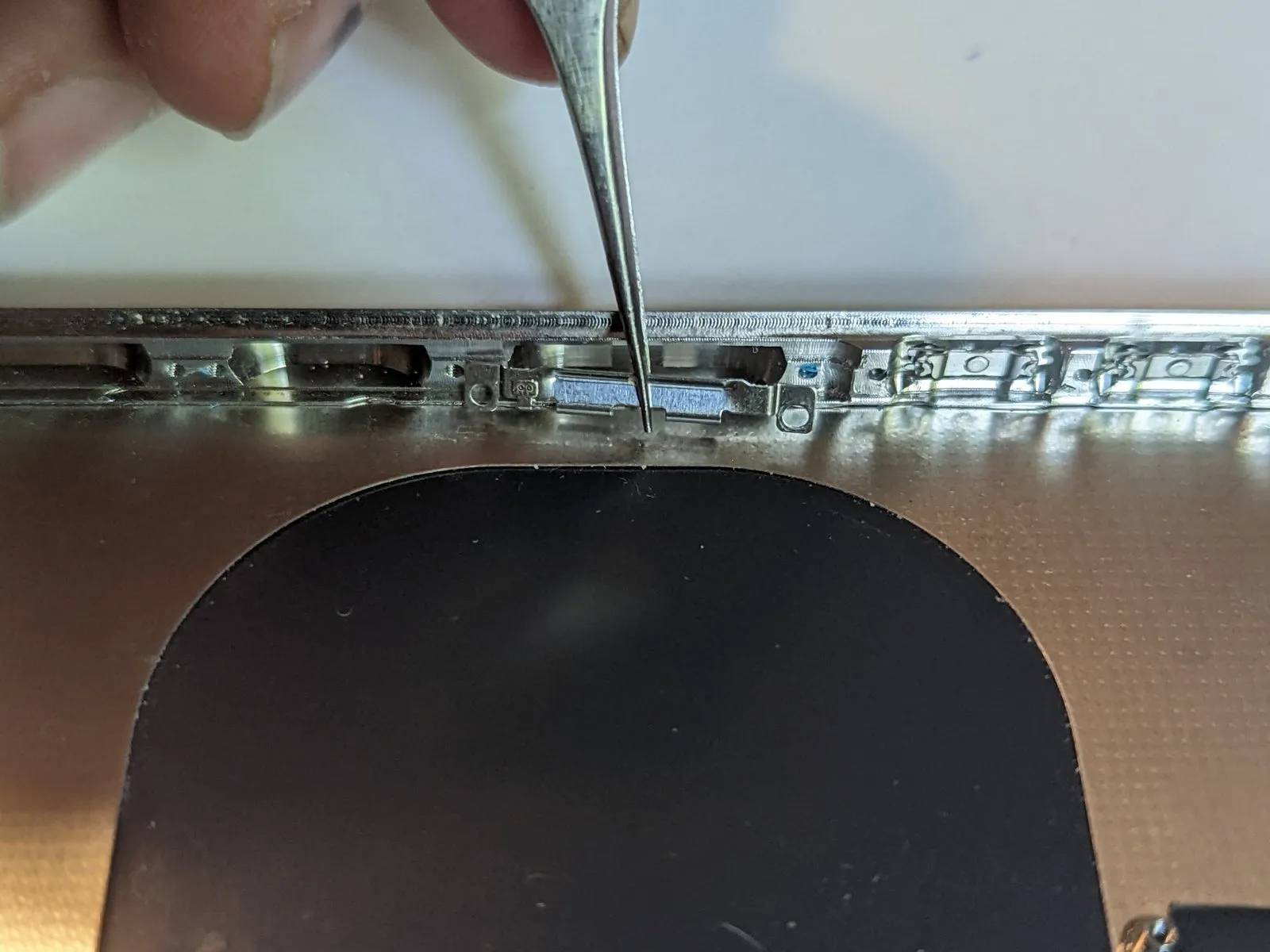

• Employing a set of precision tweezers, carefully maneuver the SIM card ejection lever in a direction parallel to the device's casing.

• To gain access to the power button and screen retaining components, carefully lift the edge of the dock connector.

• To detach the screen retaining clip, first eliminate the two screws that secure it in place.
• A 2.1 millimeter Phillips screw is required.
• Additionally, a 1.9 millimeter Phillips screw is needed.

• Detach the1.2 mm Y000 screwdriver-head screwthat fastens the cellular antenna cable to the screen support structure.
• Carefully deflect the antenna cable from the device's casing to gain access to the screws holding the support structure in place.

• To detach the display, begin by eliminating the three screws.Utilize a Phillips screwdriver with a 1.5 mm tip to loosen and remove these fasteners.These screws secure the screen retainer in place.
• Following screw removal, carefully take the retainer away from the device.

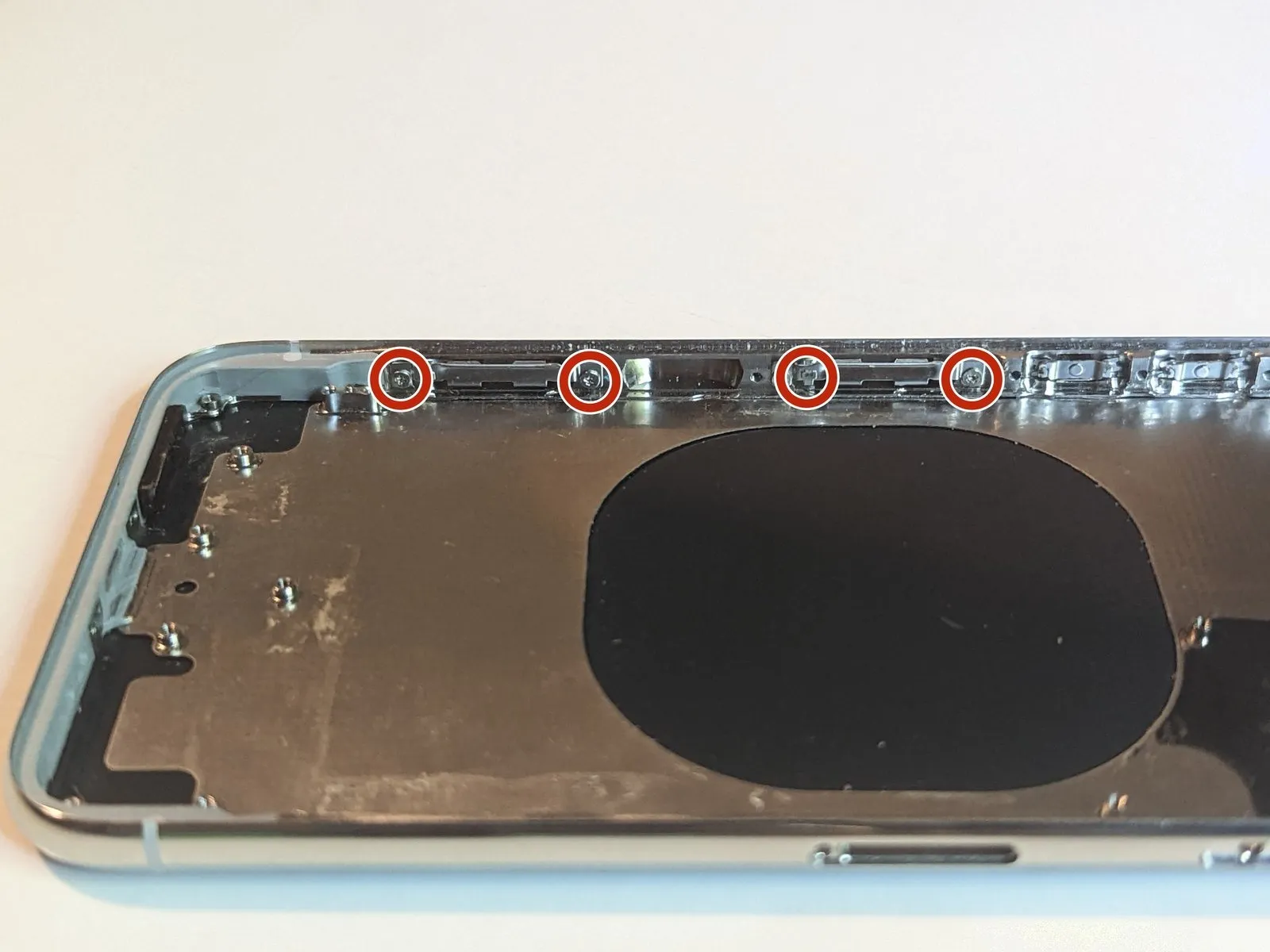

• To detach the two left-side screen retainer clips, first eliminate the four Phillips screws, each measuring 1.5 mm in diameter, that secure them..
• Proceed with the removal of the retainers themselves..
