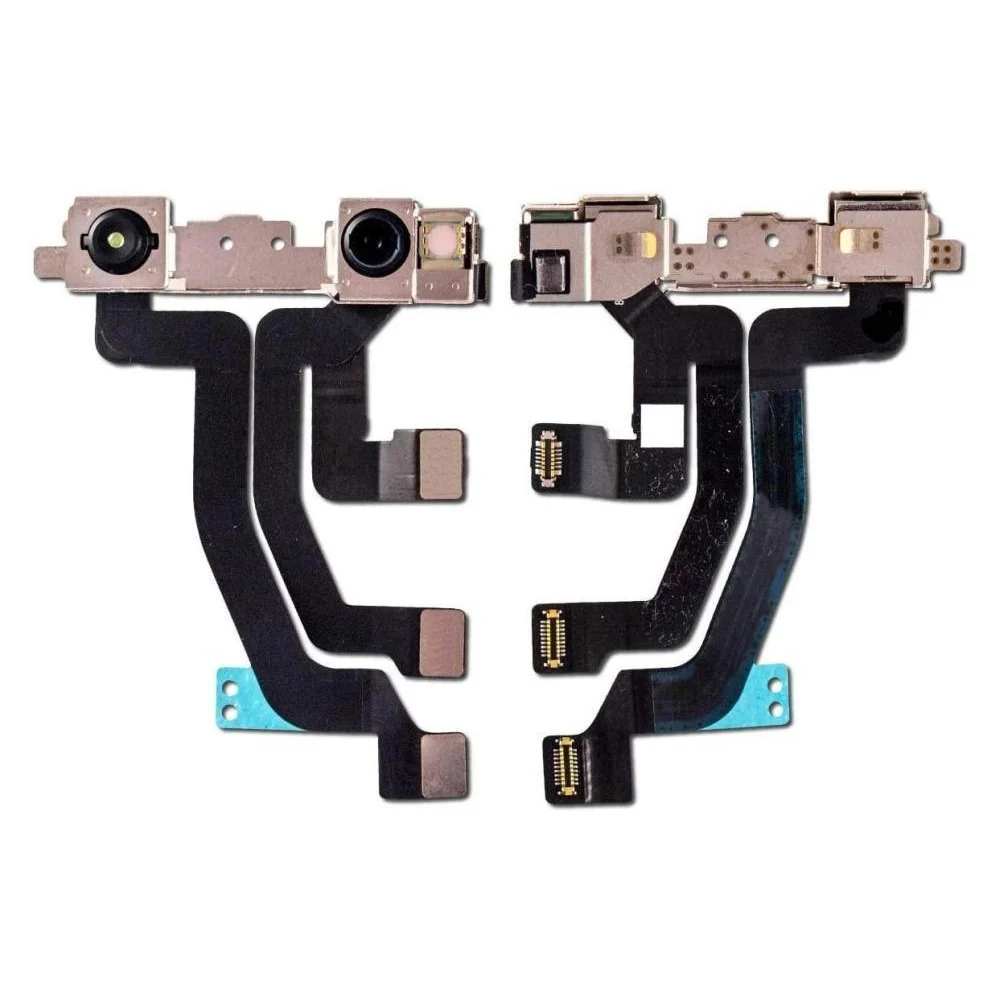

iPhone X Front Camera Assembly Replacement

• As a preliminary safety measure, ensure your iPhone's battery is depleted to a level below 25% prior to commencing the repair process.A fully charged lithium-ion batteryposes a significant fire and/or explosion hazard if it sustains accidental punctures.
• Deactivate your iPhone by powering it down completely before starting the disassembly procedure.
• Detach the pair of pentalobe screws, each measuring 6.9 mm in length, located along the iPhone's lower edge.
• Should the screws exhibit signs of damage or stripping, it is necessary to substitute them with replacements.screws.
• Disassembly of the iPhone's display assembly will inevitably damage its integrated waterproof seals; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent moisture ingress if you intend to reassemble the iPhone without new seals.

• To avoid potential harm to your device, ensure the opening pick does not penetrate excessively; this procedure details how to mark the pick, mitigating the risk of damage.
• Determine the distance of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indication on the opening pick.
• Distinct markings can also be applied to the pick's other corners, each representing a differentmeasurement.
• As an alternative method, affix a coin to the pick, positioning it precisely 3 mm from the tip.

• To minimize additional damage and potential injury while repairing a fractured iPhone display, secure the broken glass with adhesive tape.
• Apply multiple layers of transparent packing tape across the iPhone's screen surface, ensuring complete coverage of the entire front face.
• Always utilizesafety glassesas a precaution against glass fragments that may become dislodged during the repair process.
• Should the suction cup fail to adhere properly during subsequent procedures, create a handle by folding a robust tape, like duct tape, and employ it to gently raise the screen.
• As a last resort, you may secure thesuction cupdirectly to the screen using superglue.

The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the opening process; if you choose not to utilize this tool, proceed to the steps located three sections later for an alternative approach.

• Detailed guidance regarding the operation of the Anti-Clamp, is available in a separate instructional document.
• To release the locking mechanism, draw the blue handle towards the rear.
• Carefully position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, ensuring one is located on the front surface and the other on the rear.
• Apply pressure by compressing the cups together to establish a secure hold on the intended area.
• Should the iPhone's surface prove too slick for the Anti-Clamp to maintain adhesion, applying tape can provide a more textured interface.

• To secure the arm assemblies, advance the blue handle in its direction.
• Rotate the handle a full 360-degree circle, or continue turning until the suction cups exhibit signs of deformation.
• Maintain the parallel positioning of the suction cups; should they deviate from their intended alignment, a minor adjustment of the arm assemblies is necessary to restore proper positioning.

• Employing an iOpener, apply heat and guide it between the Anti-Clamp’s arms; alternatively, a hair dryer, heat gun, or hot plate may be utilized, however, exercise caution as excessive temperatures could potentially harm the display assembly and/or the internal battery.
• Position the iOpener so that it rests along the lower edge of the iPhone’s casing.
• Allow a sixty-second interval to permit the adhesive to loosen and establish a separation.
• Carefully slide an opening pick beneath the display and the surrounding plastic frame, ensuring it does not contact the screen’s surface directly.
• Should the Anti-Clamp fail to generate an adequate separation, increase the heat applied to the area and rotate the handle by ninety degrees.
• Avoid incremental rotations exceeding ninety degrees, and incorporate a sixty-second pause between each adjustment; rely on the Anti-Clamp’s mechanism and time to facilitate the separation.
• Omit the subsequent three steps.

• Applying warmth to the iPhone's bottom edge will aid in loosening the adhesive that holds the display in place, facilitating the opening process.
• Employing a hairdryer, heat gun, or iOpener, direct it towards the lower edge of the iPhone for roughly one minute to reduce the adhesive's tackiness.
• Exercise caution when utilizing a hairdryer or heat gun, as excessive heat exposure may cause damage to the display.

• When employing a solitary suction handle, position it against the lower boundary of the device, ensuring it does not contact the rounded glass section.

• Apply steady, consistent upward force to the suction cup to generate a small separation between the display assembly and the device's border.
• Carefully slide an opening tool into the created space, positioning it beneath the plastic trim surrounding the display, ensuring it does not contact the display glass itself.
• Due to the robust nature of the waterproof adhesive securing the display, a considerable amount of force may be required to initially separate the components; if difficulty arises, apply additional heat and gently oscillate the display in an upward and downward motion to reduce the adhesive's strength until a sufficient gap is achieved for tool insertion.

• Using a separation tool, carefully maneuver it along the bottom-left perimeter of the iPhone's display and upward along the left side, severing the adhesive securing the screen assembly.
• Exercise caution to prevent the tool's insertion depth from exceeding 3 millimeters, to avoid potential harm to the device's internal parts.

Fragile wiring is situated along the right-hand side of the iPhone; avoid inserting any tools in this area to prevent potential cable damage.

• Position your opening tool at the lower boundary of the iPhone's display, then advance it upwards along the right-hand side to further release the adhesive seal.
• Ensure the tool's insertion depth remains under 3 millimeters to prevent potential harm to the delicate display cable connections.

• Adhesive and retaining clips together fasten the display's uppermost boundary.
• Employing a separation tool, maneuver it along the upper corner of the display, applying slight downward traction or oscillation towards the Lightning port's location.
• Excessive force applied to the retaining clips will result in their breakage; therefore, proceed with caution and deliberate care.
• Limit pick insertion depth to a maximum of 3 millimeters to prevent potential harm to the front panel sensor array.
• Continue moving the separation tool to the opposing corner to sever any residual adhesive holding the display in place.

• To access the internal components, initiate the opening process by pivoting the display upwards from the left edge, mimicking the action of opening a book's cover.
• Refrain from completely detaching the display at this stage, because multiple delicate ribbon cables remain connected to the iPhone's logic board.
• Confirm, as illustrated, that the frame is disengaged from the device along with the display, preventing it from becoming lodged inside.
• Secure the display in an upright position using a support to maintain access to the internal components during the repair.
• When reassembling, position the display, ensuring the clips along the upper edge are properly aligned, and then gently apply pressure to the top edge before securing the remainder of the display. Should the display not easily engage, inspect the clips surrounding the display's perimeter for any signs of deformation.

• Detach the logic board connector bracket by first extracting the five Y000 screws that hold it in place.
• Utilize three screws, each measuring 1.1 millimeters in length.
• A single screw with a 3.1-millimeter dimension is also required.
• Additionally, one screw with a 3.7-millimeter length will be necessary.

• Detach the bracket.
• Thebracketmight be subtly affixed; apply a careful, yet resolute upward force to disengage it.

As you put the iPhone back together, it's advisable to activate the device and verify all operational capabilities before securing the display. Ensure the iPhone is fully powered off prior to proceeding with the repair.

• Employ the tip of a spudgeror a pristine fingernail to lift the battery connector's retaining clip from its corresponding receptacle on the logic board.
• Exercise caution to avoid harming the black silicone sealant that encases this and other board connectors, as it offers supplemental defense against water and particulate contamination.
• Slightly deflect the connector away from the logic board's surface to ensure it cannot inadvertently establish an electrical connection with the socket, thereby preventing power delivery to the device during the repair process.

Employing the tip of a spudger or a fingernail, carefully separate the front panel sensor assembly connector.spudgerDisconnect the front panel sensor assembly connector by utilizing the pointed end of a spudger or a fingernail.

• Employ the tip of a spudgeror a fingernail to release the OLED panel cable connector's securing mechanism.
• For reattachment, position the connectors similarly, meticulously aligning and applying pressure to a single edge until a distinct click is heard; subsequently, repeat this process on the opposing edge. Avoid applying pressure to the central portion of the connector, as misalignment can result in pin deformation and irreversible damage.

• Due to the connector's deeply situated design, reattachment can be challenging; exercise patience and ensure precise alignment before applying gentle fingertip pressure to secure it, initially on one side and subsequently on the other.
• A distinct clicking sound will indicate successful engagement.

• Gently raise the cable to release the adhesive bond.

• If you intend to substitute the waterproof sealant bordering the display's perimeter during reinstallation, briefly halt operations at this juncture.

• Detach the bracket situated beneath the Taptic Engine and speaker by removing the screws that hold it in place.
  • Utilize two screws of type Y000 with a 1.9 mm head.
  • Employ one screw of type Y000 with a 1.2 mm head.
  • Use one screw of type Y000 with a 1.6 mm head.
  • Apply one Phillips head screw measuring 2.4 mm.
  • Securely remove one Phillips head screw measuring 1.7 mm.
  • Extract one Phillips head screw measuring 1.5 mm.

• Avoid complete removal at this stage, because it remains tethered by a short, flexible cable.

• To prevent interference from the bracket, secure it aside, then utilize the tip of a spudger to carefully lift and detach the flex cable located beneath.

• Detach the retaining clip.

• To detach the speaker connector cover, first eliminate the Y000 screw, which has a size of 2.1 millimeters.

• To access the speaker terminals, detach the protective cover.

• Employ the pointed end of a spudgerto carefully lift and detach the speaker's electrical connector.

• Exercise caution while separating the speaker from the device, preventing harm to the flex cable that was recently detached.
  Should it be required, stabilize the speaker by holding it to one side, allowing for easier removal.
  Introduce a spudger beneath the upper boundary of the speaker, positioned close to the iPhone's casing.
  Apply slight upward pressure and elevate the speaker's upper edge with care.
  During the speaker's reinstallation, verify the flex cable's alignment and ensure it remains free from being pinched or secured beneath the speaker.

• Grasp the speaker assembly along its lateral borders, gently oscillating it to disengage the adhesive that bonds it to the iPhone's lower perimeter.
  Continue moving the speaker outward from the iPhone's base until the adhesive gasket, which provides a seal, fully detaches.

• Thespeaker's gasketBecause it cannot be used again, a replacement is necessary during reassembly.
• Employing tweezers, detach and eliminate every trace of the previous gasket material from both the frame and the speaker itself.
• Thoroughly cleanse all traces of the old gasket's adhesive from the frame and speaker surfaces by wiping with a microfiber cloth dampened with isopropyl alcohol.
• Prior to gasket installation, identify the correct alignment on the speaker's underside; the substantial aperture in the gasket must correspond with the speaker grille mesh.
• Detach the larger, transparent protective layer from the gasket and, utilizing tweezers, position the gasket precisely on the speaker's bottom surface.
• To prevent contamination of the adhesive, only handle the gasket by its liner's perimeter.
• Firmly affix the gasket using its adhesive by pressing it into place with your fingers or a spudger.
• Discard the remaining liner and install the speaker, ensuring the speaker connector remains free from obstruction.

• Four strips of stretch-release adhesive fasten the iPhone X's battery to the back enclosure; specifically, one secures the upper battery cell, while three affix the lower portion.

• Carefully detach the initial battery adhesive tab from the battery's lower border.
• If grasping the tab proves difficult, utilize a tool to pass through the small loop situated centrally on each tab.

• To detach the remaining two adhesive tabs, perform the previously described procedure again, ensuring they are fully released from the battery's lower edge.

• Should any of the strips fracture, remain composed; their functionality isn't guaranteed. Continue reading for supplementary procedures to address broken strips.
• To maximize the likelihood of a successful outcome:
  • Avoid applying downward pressure to the battery; instead, maintain a secure grip on the iPhone's sides.
  • Ensure the strips remain smooth and without creases while pulling.
  • Exercise extreme caution, allowing the strip adequate time to stretch and disengage; approximately 15 to 30 seconds of stretching is typically required for each strip's removal.
  • Maintain a shallow pulling angle to prevent the strip from catching on the battery's lower edge.
  • Should a strip fragment and become lodged beneath the battery, rendering retrieval impossible, proceed to the remaining strips and then follow the additional steps outlined below.

• Apply consistent, even force while pulling the strip, ensuring it remains taut until it disengages from the space between the battery and the rear enclosure.
• Expect the adhesive strip to elongate significantly, potentially extending to several times its initial size; persist in pulling and reposition your grip along the strip near the battery as needed.
• Should any of the battery adhesive strips tear during the removal procedure, utilize your fingers or non-sharp tweezers to recover the detached adhesive fragments, and continue the extraction process.
• In the event that adhesive strips fracture beneath the battery and are inaccessible, attempt to remove the remaining strips, then follow the subsequent instructions.

• Carefully detach the pull tab from the last adhesive strip, which is located along the top edge of the upper battery cell.

• Carefully detach and eliminate the last adhesive strip.
• Because the strip's release could dislodge the battery, position your hand above it to maintain stability; however, avoid applying downward pressure, as this might cause the adhesive strip to fracture and remain adhered to the battery's underside.
• Should you manage to remove all four adhesive strips without incident, proceed past the following instruction.
• In the event that fragments of the adhesive remain affixed to the battery and are inaccessible, introduce a small quantity of isopropyl alcohol, possessing a concentration exceeding 90%, beneath the battery's edge, specifically targeting the location of the detached adhesive strip(s).
• Allow approximately sixty seconds for the alcohol to diminish the adhesive's strength. Subsequently, utilize the planar end of a spudger to delicately raise the battery.
• Refrain from employing excessive force to extract the battery; if resistance is encountered, introduce additional drops of alcohol to further reduce the adhesive bond. It is imperative to prevent any deformation or perforation of the battery with the tool used for separation.
• Exercise caution to prevent damage to the ribbon cables or the wireless charging coil situated directly beneath the battery.
• For different approaches to separating the battery from the device's casing, consult the subsequent instructions.

• Should any of the adhesive strips detach and the battery persists in its adherence to the rear case, ready an iOpener or employ a hair dryer to apply heat directly to the rear case's surface behind the battery.
• Warm the iPhone until the rear case reaches a temperature that is slightly uncomfortable to touch, avoiding excessive heat that could potentially cause battery ignition.
• Return the iPhone to its original orientation and carefully slide a durable string – such as dental floss or a slender guitar string – beneath the battery.
• Protect your fingers by enveloping the string's ends within a cloth or by utilizing gloves.
• Employ a sawing motion, drawing the string laterally across the battery's entire length to sever the adhesive bond; this process may require considerable time due to the adhesive's slow yielding characteristics, but persistence will result in its release, ensuring the battery remains undamaged.
• Should you opt to utilize prying implements to extract the battery from the iPhone, exercise utmost care to prevent harm to the delicate ribbon cables or the wireless charging coil situated directly beneath the battery.

• Securely hold the battery from its lower edge and detach it from the iPhone's internal structure.
• To prevent damage, eliminate any residual alcohol solution from within the device, either by carefully wiping it away or permitting it to evaporate completely, prior to installing the new battery.
• Prior to installing the replacement battery, ensure the Taptic Engine and speaker are reattached. This procedure maintains proper alignment of the battery during the installation process.
• To guarantee accurate positioning within its designated space, briefly reconnect the battery connector to the logic board socket before securing the replacement battery.
• Attach the replacement battery, subsequently disconnect it, and proceed with the remaining reassembly steps for your device.
• Should your new battery lack pre-applied adhesive, consult this guide for instructions on replacing the adhesive strips.
• Following the complete reassembly, execute a forced restart; this action can proactively resolve potential problems and streamline any necessary troubleshooting.

• Employing the planar edge of a spudger, carefully separate the three connector interfaces associated with the front camera assembly:
  This includes the dot projector component.
  It also includes the primary front-facing camera.
  Furthermore, the infrared camera connection must be detached.

• The camera cables are attached to the midframe with a minimal adhesive.
  Employing the pointed end of a spudger, initiate the separation process at the connector, then gently insert the spudger's tip into the space between the infrared camera cable and the device casing to detach the cable.
• Perform this procedure again for the front-facing camera cable.

To release the bonding agent securing the front camera module, direct heat onto its surface.

Carefully detach the front-facing camera module.
