iPhone Air Screen Replacement

  • Important considerations exist for this procedure.Maintaining a powered-off state is crucial throughout the repair process, as battery disconnection is not possible.

Essential implements for this task include specialized plastic prying tools to prevent damage and caution against contact with sensitive electrical connections.

  • A fresh adhesive strip is required to secure the new display assembly.

Post-repair, functionality such as True Tone and automatic brightness adjustments might be temporarily unavailable.Employ Apple's Repair Assistant to reconfigure the replacement screen and reinstate these features.

Step 1 | Prepare your phone for disassembly

Step 1 image
Thumbnail 1
Thumbnail 2

To initiate the repair process, the phone's battery must be depleted to a level below 25% capacity.A compromised lithium-ion battery presents a fire hazard, necessitating careful handling.Complete battery discharge is essential to eliminate the potential for fire during the repair.
Disconnect all connecting cables from the phone prior to commencing work.Simultaneous pressure on the power button and volume button will force the device into an off state.The device's power function can be deactivated by holding both the power and volume keys concurrently.

  • To ensure safety, it is crucial to fully deplete the battery before proceeding with the repair.
  • Prior to any repair work, the phone's battery should be discharged to a minimum of 25% to mitigate fire risk.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Excessive insertion of a prying tool carries a risk of device impairment; therefore, marking the tool is crucial to avoid such incidents.To ensure safe operation, apply a permanent marker at a distance of precisely 3 millimeters from the tool's distal end.As an alternative method for limiting insertion depth, affix a coin to the tool's tip using adhesive tape, positioning it 3 millimeters away.
Carefully introduce the marked or taped prying tool into the designated aperture, ensuring the insertion does not exceed the established 3-millimeter limit.Preventing over-insertion is essential to safeguard the device's internal components from potential harm.The 3-millimeter measurement serves as a critical reference point for controlled tool advancement.

  • Employing a visual marker or a physical barrier, such as a coin, provides a reliable means of depth limitation.Maintaining strict adherence to the 3-millimeter depth restriction minimizes the possibility of accidental damage.A precise 3-millimeter depth restriction is necessary to avoid compromising the device's structural integrity.

Step 3 | Cracked glass preparation

Step 3 image

Because broken glass presents hazards during repair and may inflict harm, proceed with caution if the display is fractured.

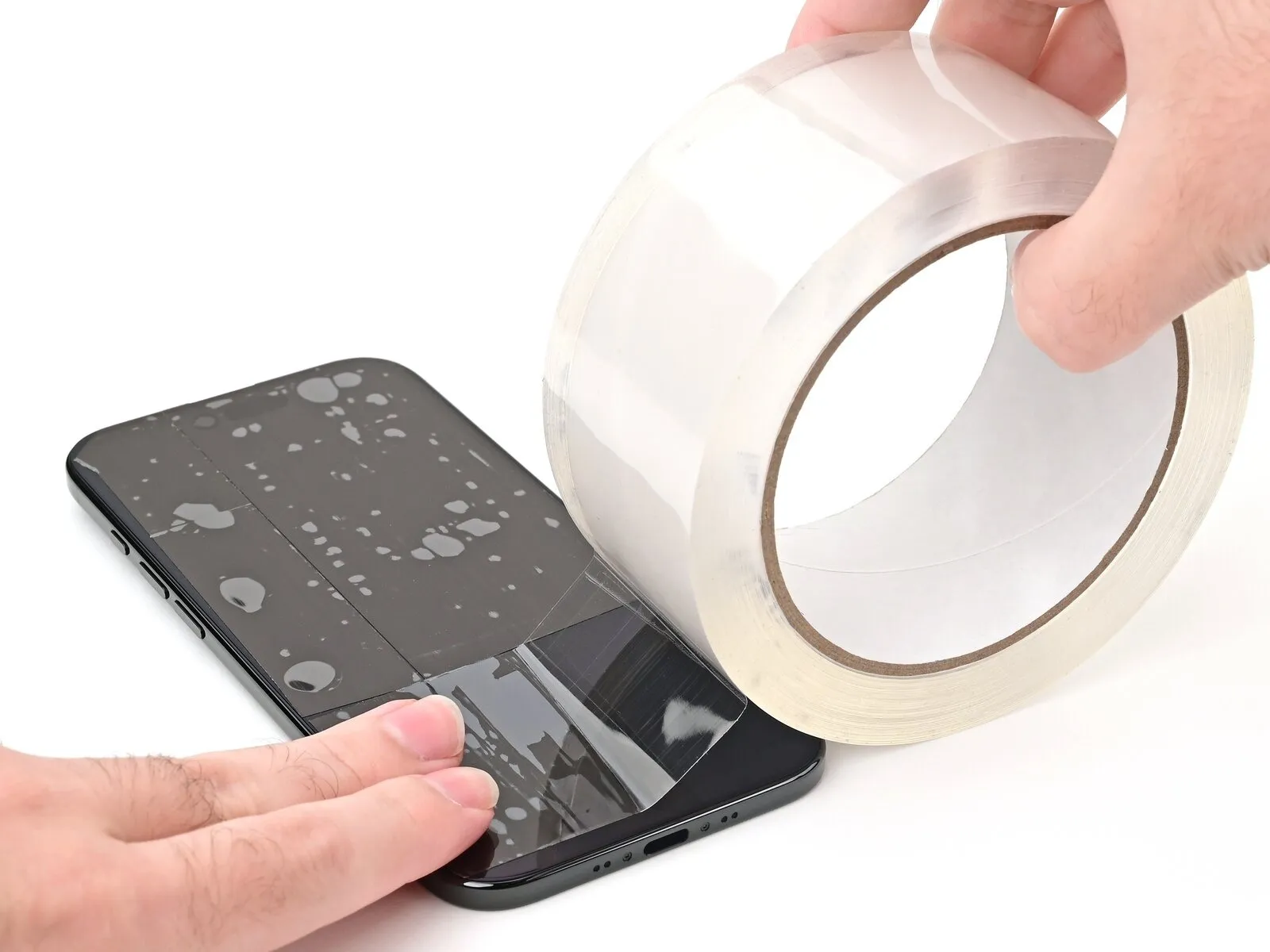

To prevent further fragmentation and potential injury, adhere packing tape across the entire damaged screen surface.
A solitary strip of tape should span the lower edge, providing sufficient area for a suction cup's attachment.
Avoid applying adhesive tape to the device's surrounding frame to prevent damage.

  • For eye protection against flying glass fragments, it is advisable to usesafety glassesas a preventative measure.

Step 4 | Remove the pentalobe screws

Step 4 image

Employ a P2 pentalobe screwdriver to detach the two screws.The screws securing the device are each 4.9 millimeters in length.These fasteners are situated on both lateral aspects of the USB-C connector.

  • This procedure requires no further explanatory details.

Step 5 | Heat the bottom edge

Step 5 image

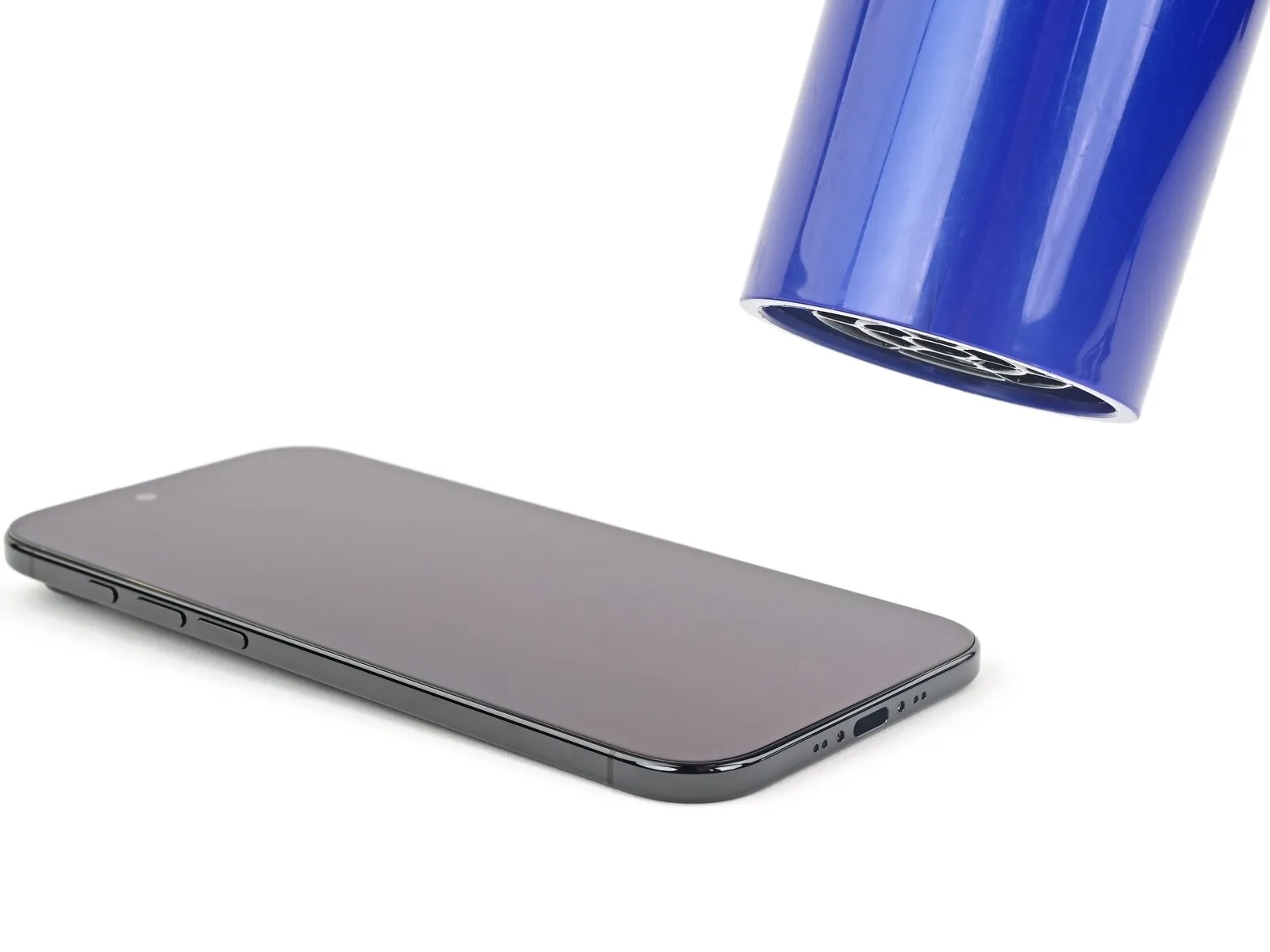

Apply warmth to the screen's lower border using a hairdryer or heat gun, raising its temperature to a point just beyond comfortable touch.
Incorrect operation of a heat gun carries the risk of irreparable damage to the display and/or battery; adhere strictly to the provided instructions.Refer to the linked instructions for detailed guidance on safe heat gun usage.This procedure requires no further explanation.

  • Proceeding to the next step is indicated by the completion of this action.

Step 6 | Insert an opening pick

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

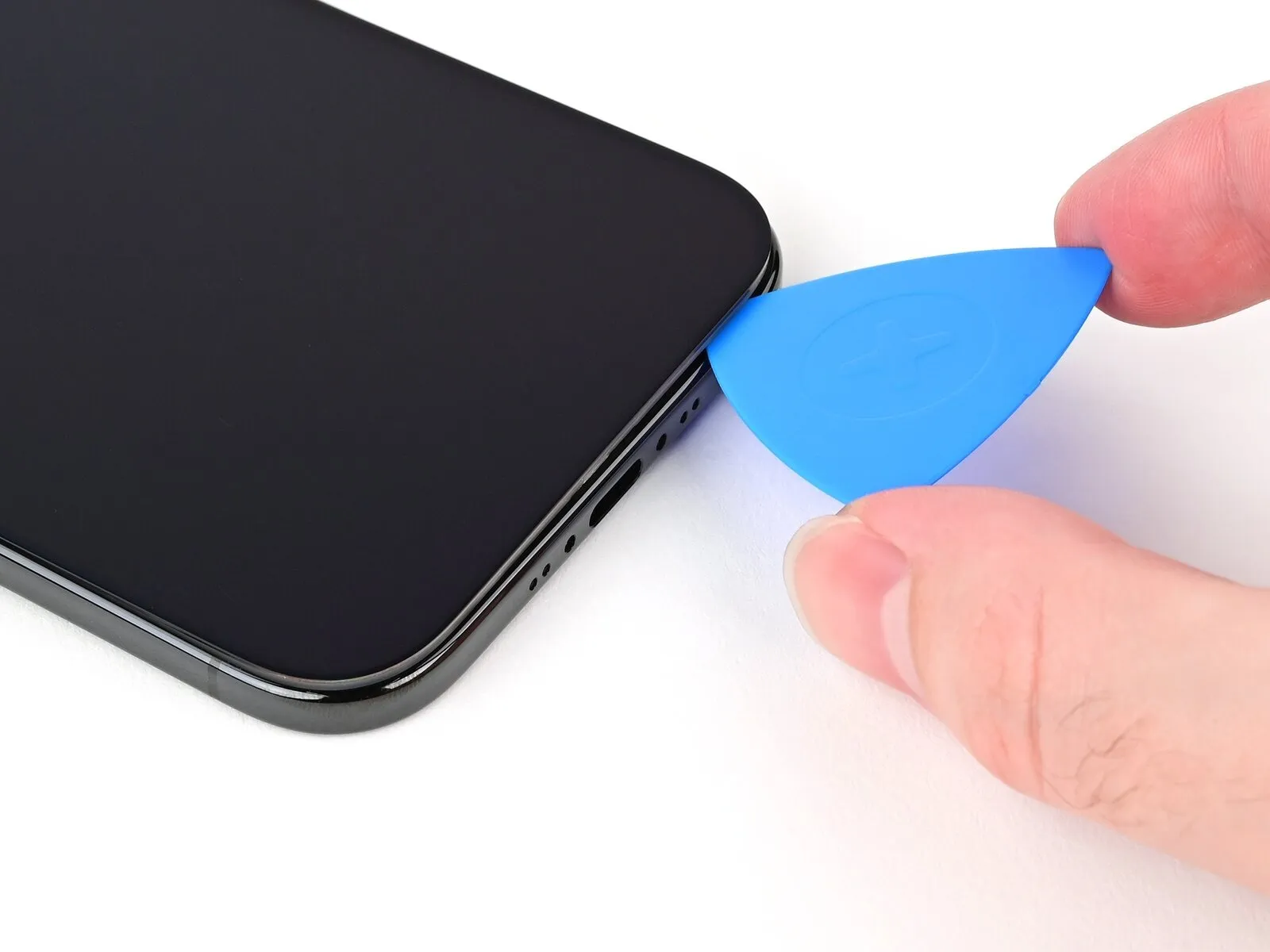

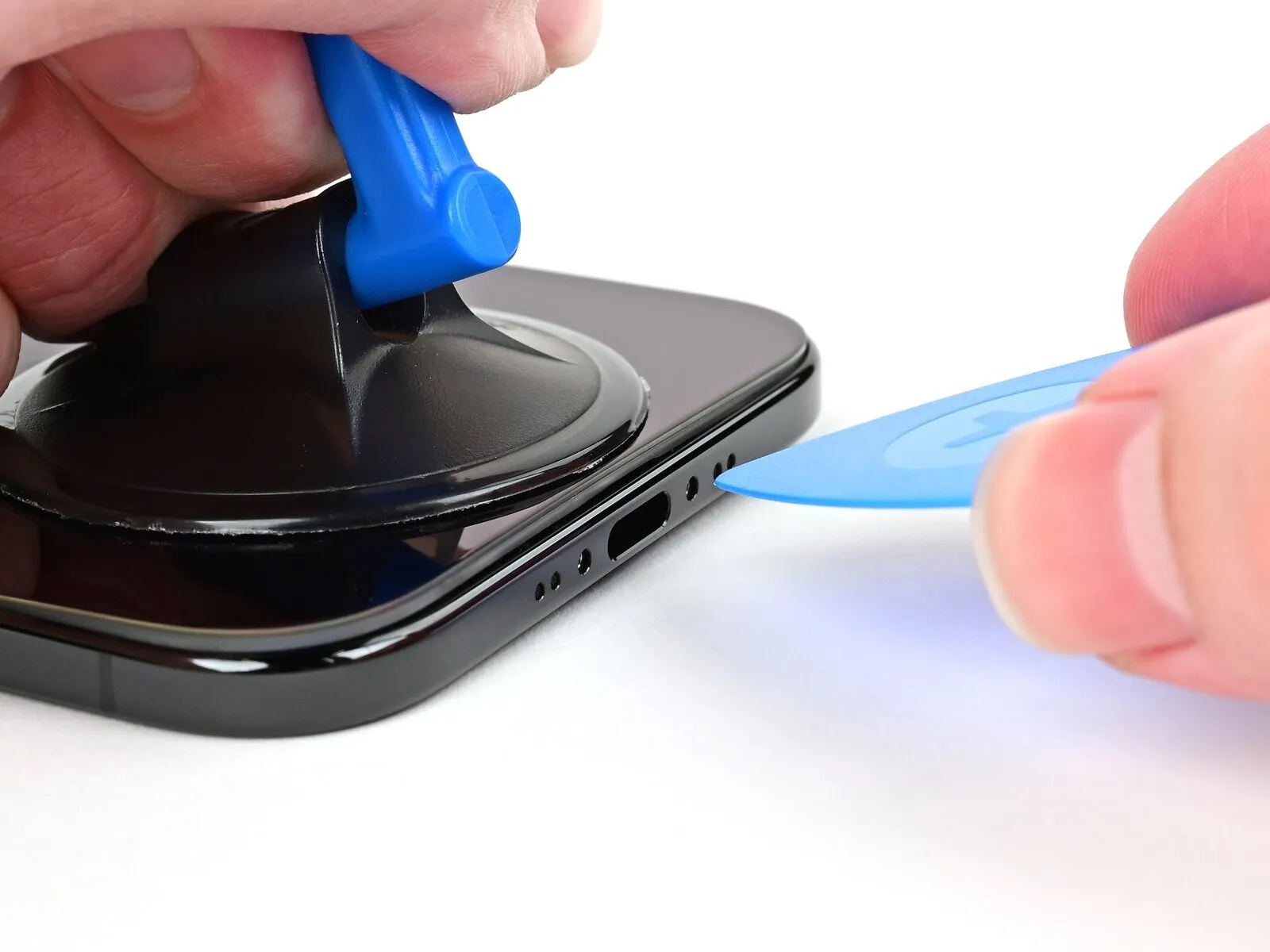

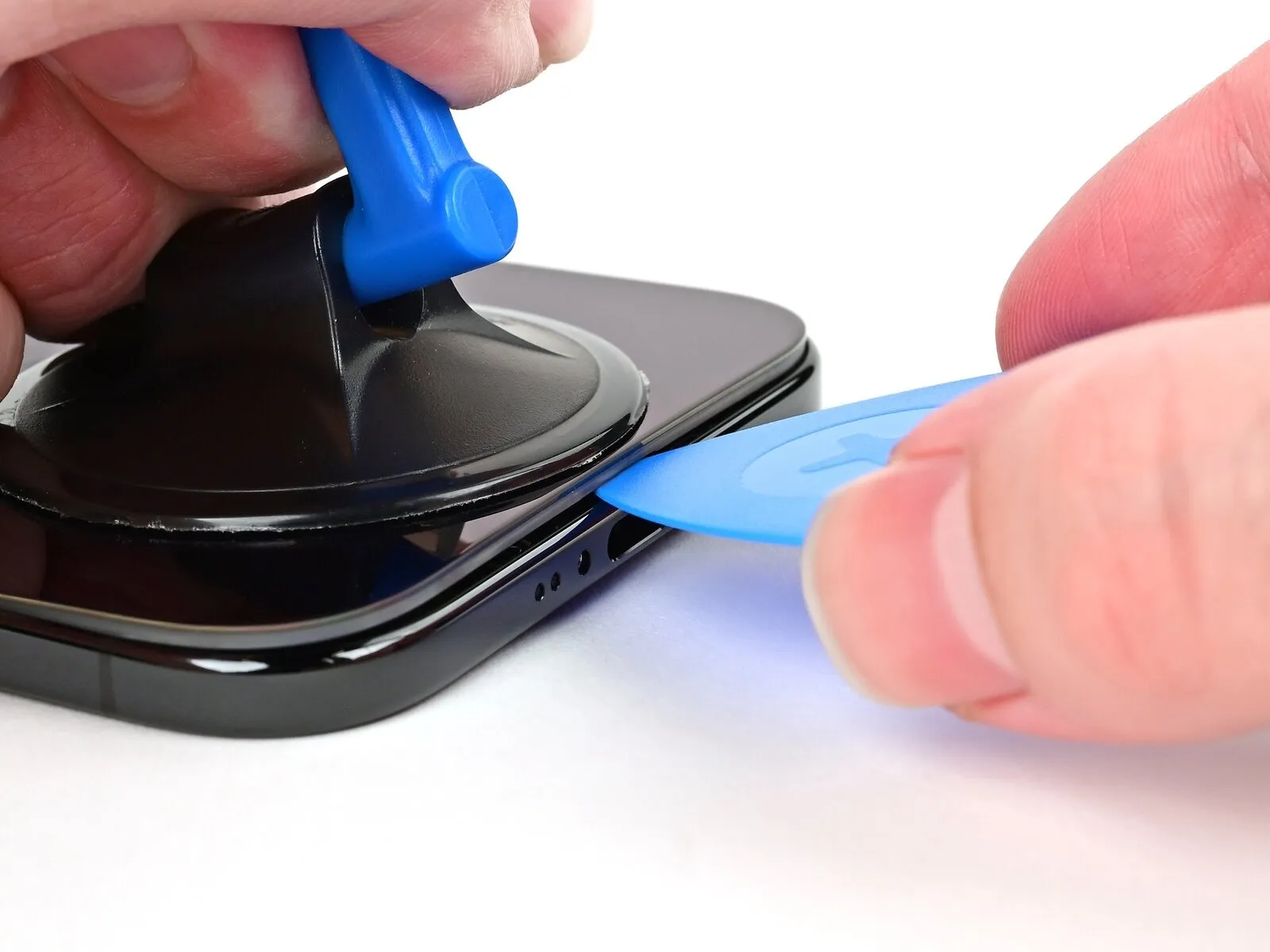

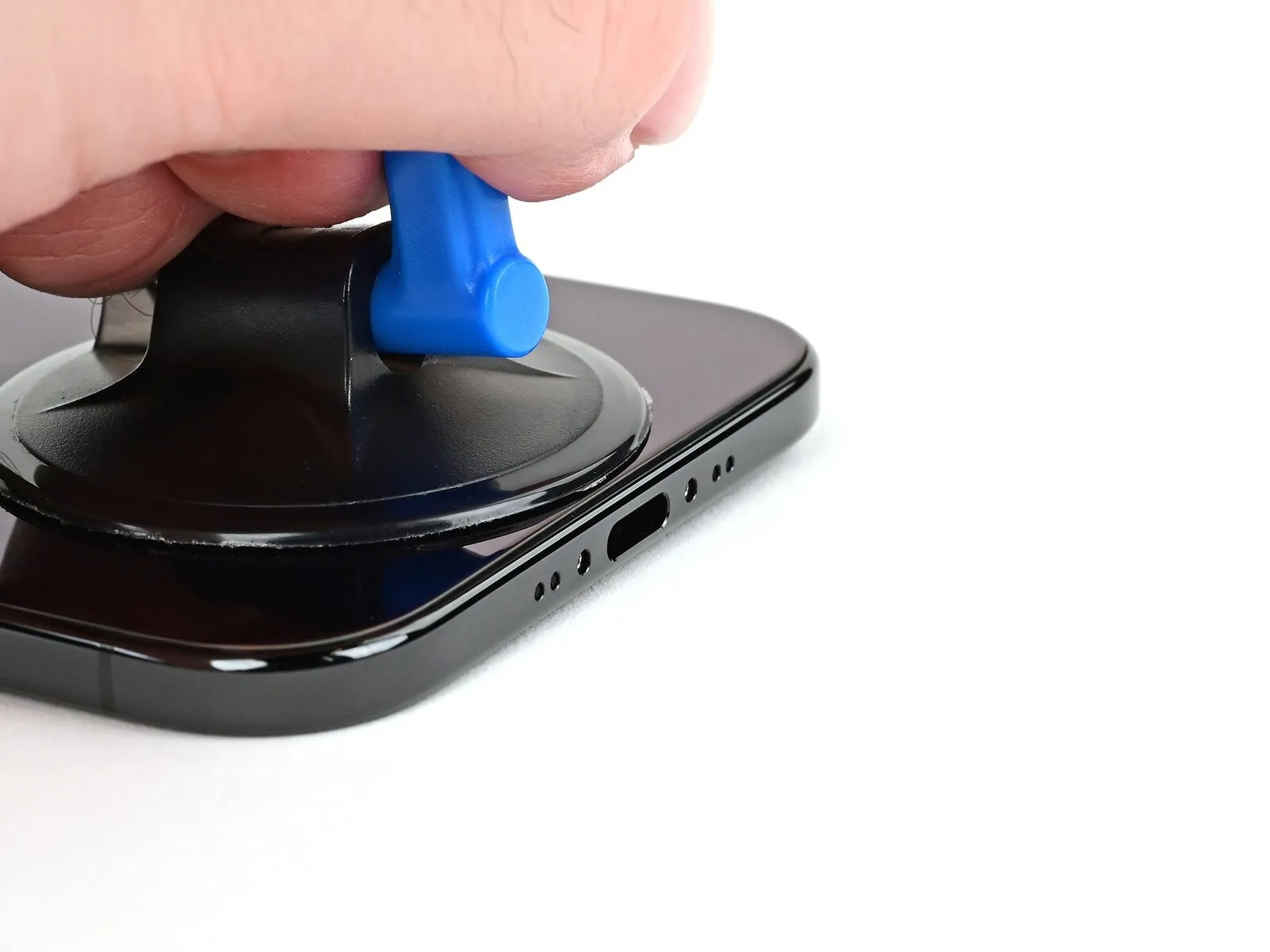

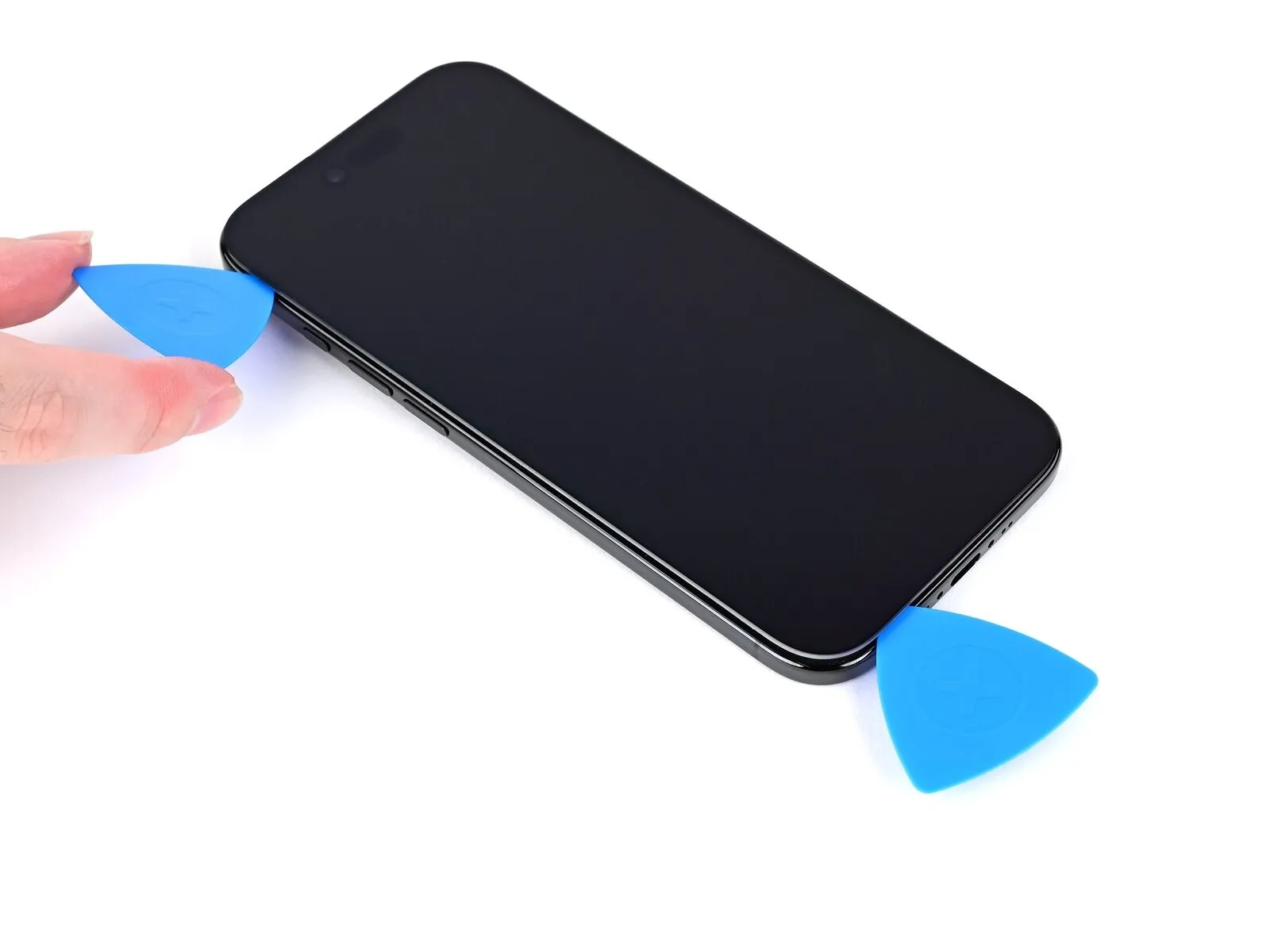

  • Secure a suction handle to the lower border of the display assembly.Exert significant, consistent upward pressure on the suction handle to generate separation between the display and its surrounding structure.
    Should a separation not form, reapply heat to the edge and attempt the process once more.Introduce the pointed end of a prying tool into the newly formed space.
    A firm, continuous pull on the suction handle is necessary to initiate the detachment.
    Reheating the adhesive edge may be required if initial attempts to create a gap are unsuccessful.The purpose of the suction handle is to facilitate the creation of a small space for tool insertion.

Step 7 | Screen information

Step 7 image

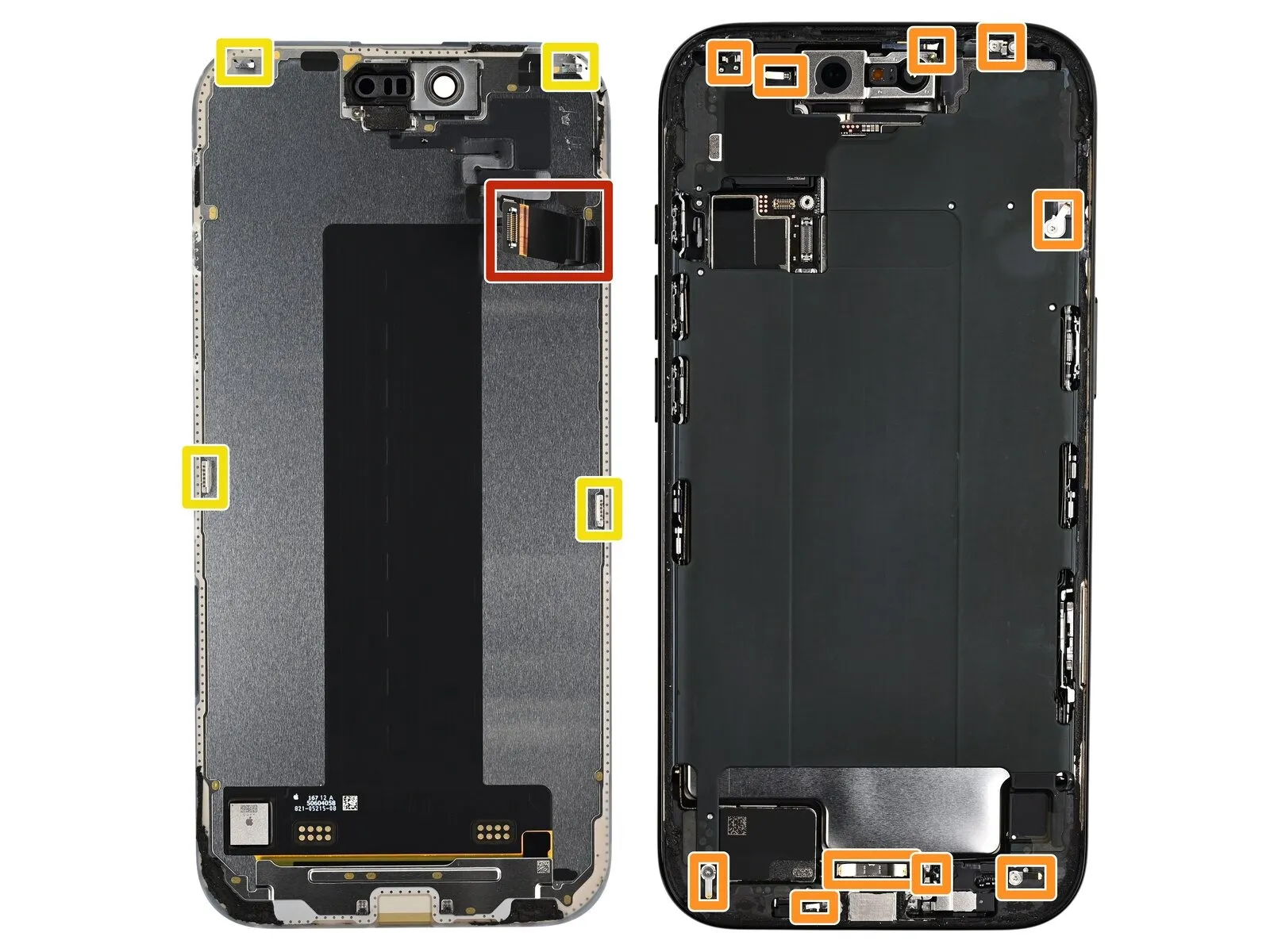

  • When separating the adhesive holding the display in place, maintain a maximum pick thickness of 3 mm to prevent potential harm to adjacent components.Two flexible cable assemblies, responsible for the display’s connection to the iPhone, are located; one sits directly above the Action button, and the other is positioned mid-way along the device’s left side.A series of spring-loaded contacts are situated around the iPhone's frame.
    Several retaining clips are positioned around the iPhone's circumference, designed to disengage as the display is slid outwards.Due to the inability to isolate the battery during this procedure, ensure the device remains powered off.
    Refrain from utilizing metal tools during separation to mitigate the risk of short circuits.Exercise extreme care to prevent contact between the prying tool and exposed electrical contacts.
    Careful separation of the adhesive is essential to prevent damage to internal components.The display assembly is secured by a combination of adhesive and mechanical fasteners.
    Maintaining a consistent and controlled force is critical during the separation process.Adherence to these precautions will minimize the likelihood of component failure.

Step 8 | Slice the bottom edge adhesive

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

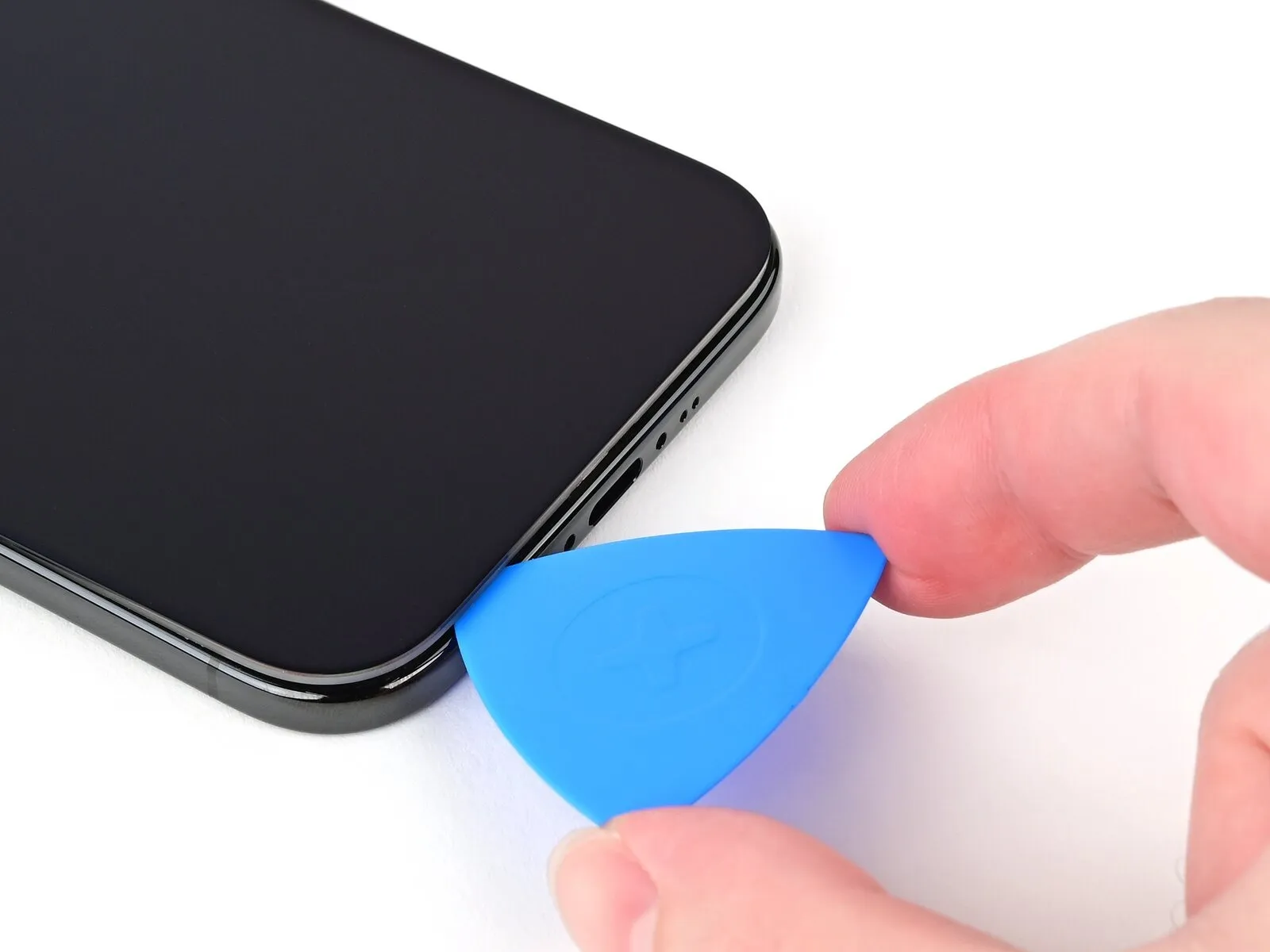

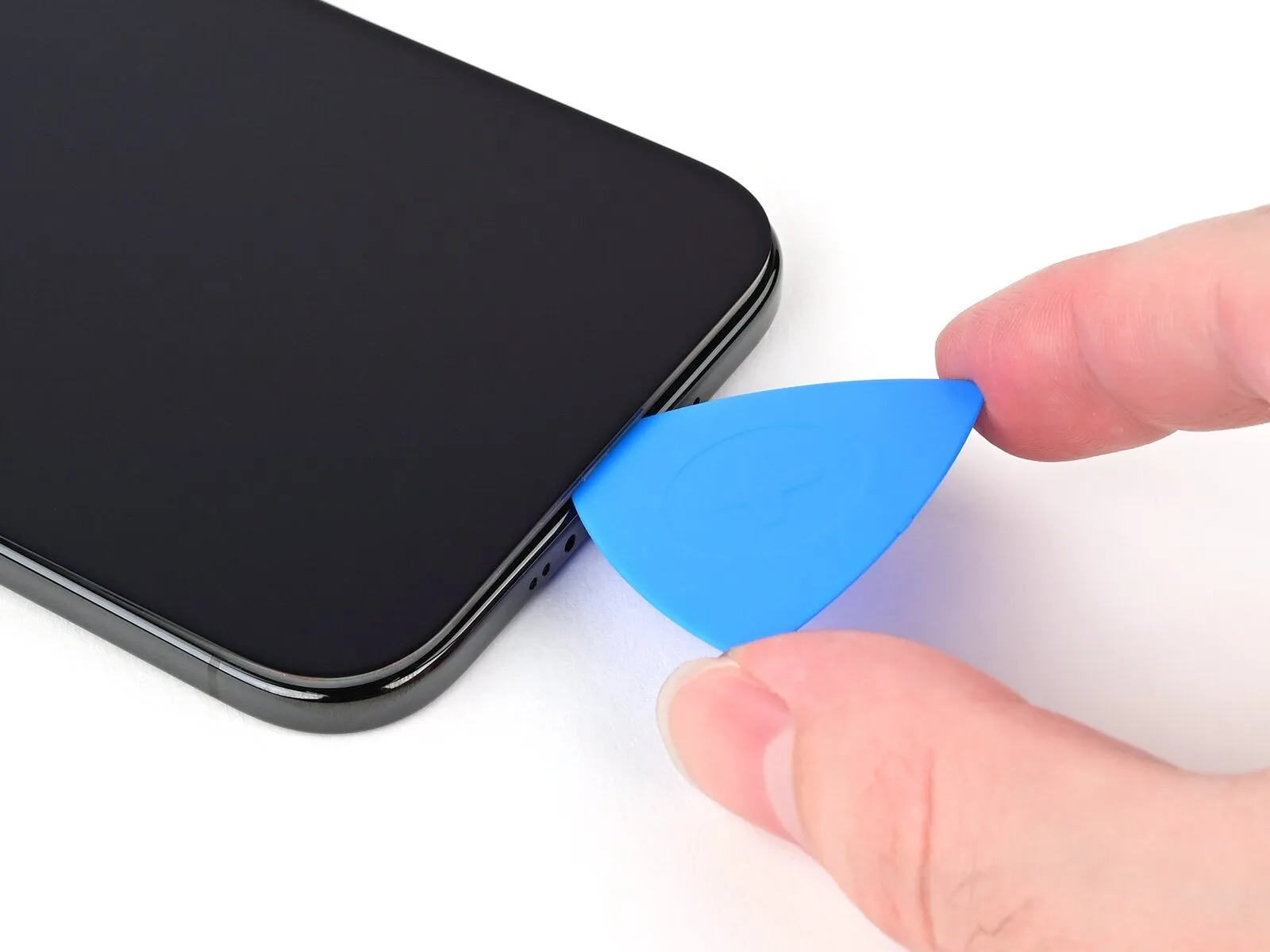

  • Insert the opening pick beneath the lower perimeter to break the adhesive bond.Should the adhesive prove resistant to separation, apply heat for approximately one minute to soften it.
    Maintain the opening pick positioned within the lower-left corner.
    This placement will inhibit the adhesive from reattaching.Preventing re-sealing ensures continued access for repair or disassembly.

Step 9 | Heat the left edge

Step 9 image

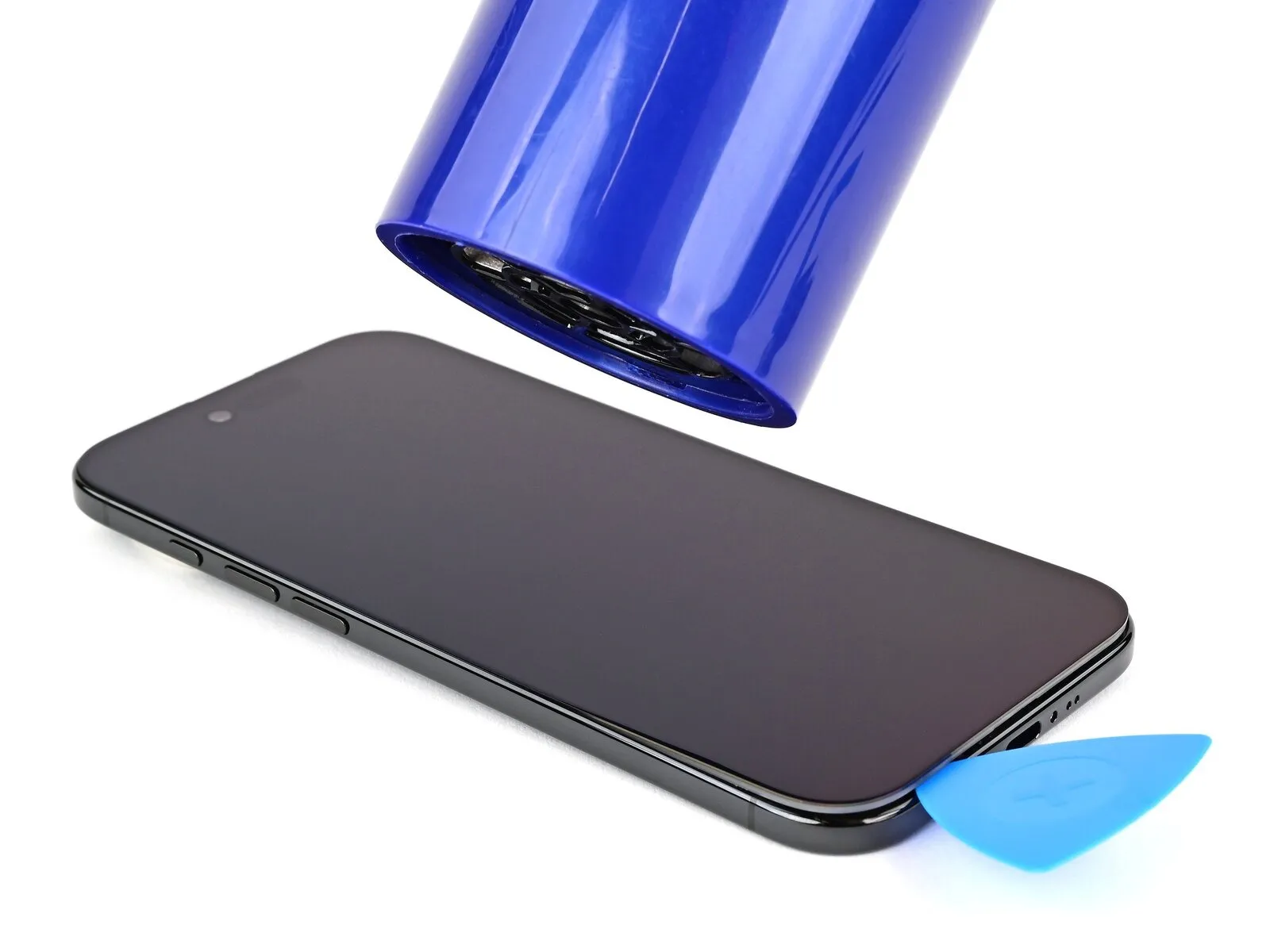

  • Apply warmth to the screen's left border utilizing a hairdryer or heat gun, ensuring the surface reaches a temperature comfortable to the touch.The application of heat should be performed with a hairdryer or heat gun, targeting the left edge of the screen until a tactile warmth is detected.

Step 10 | Separate the left edge adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

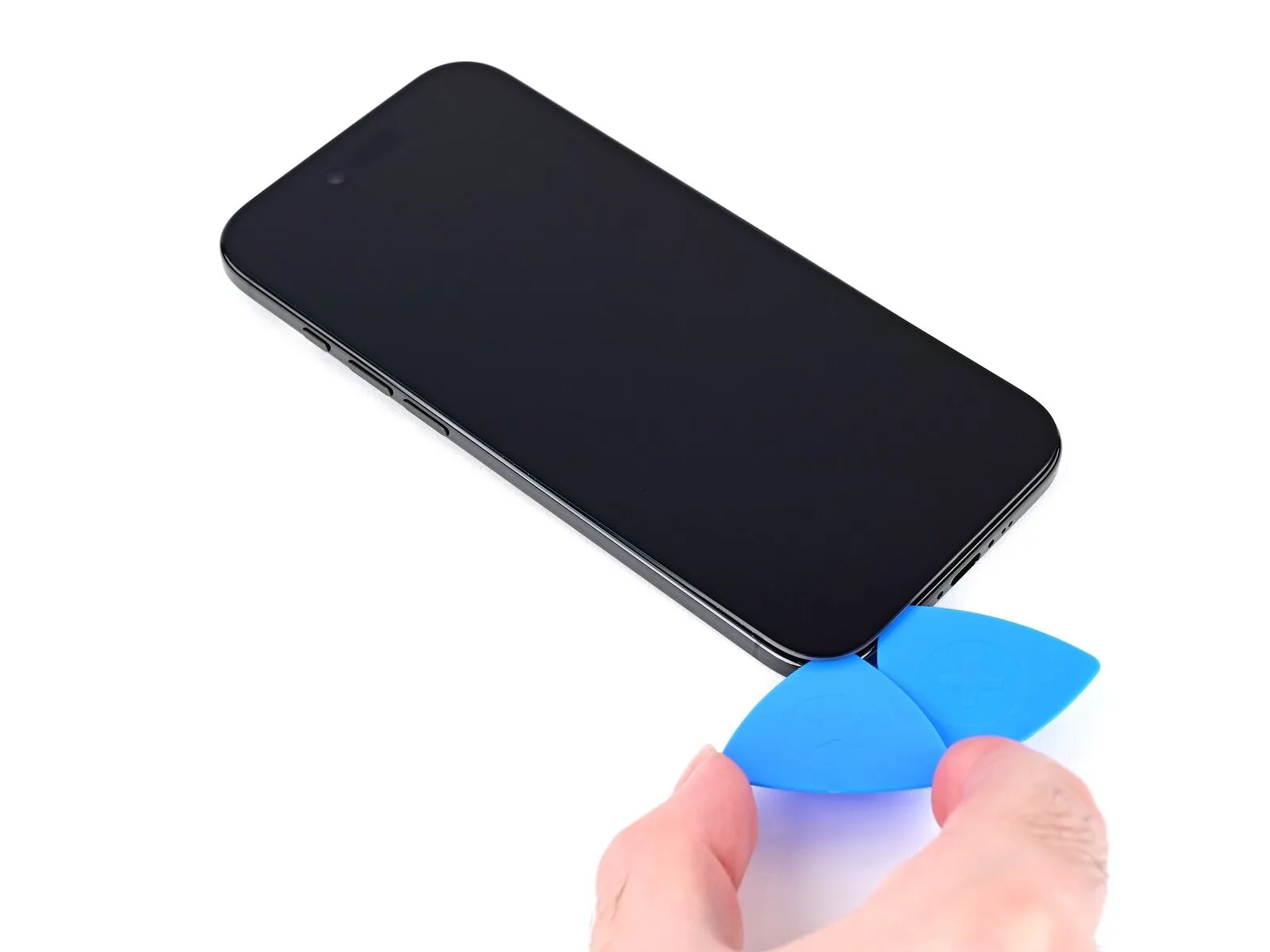

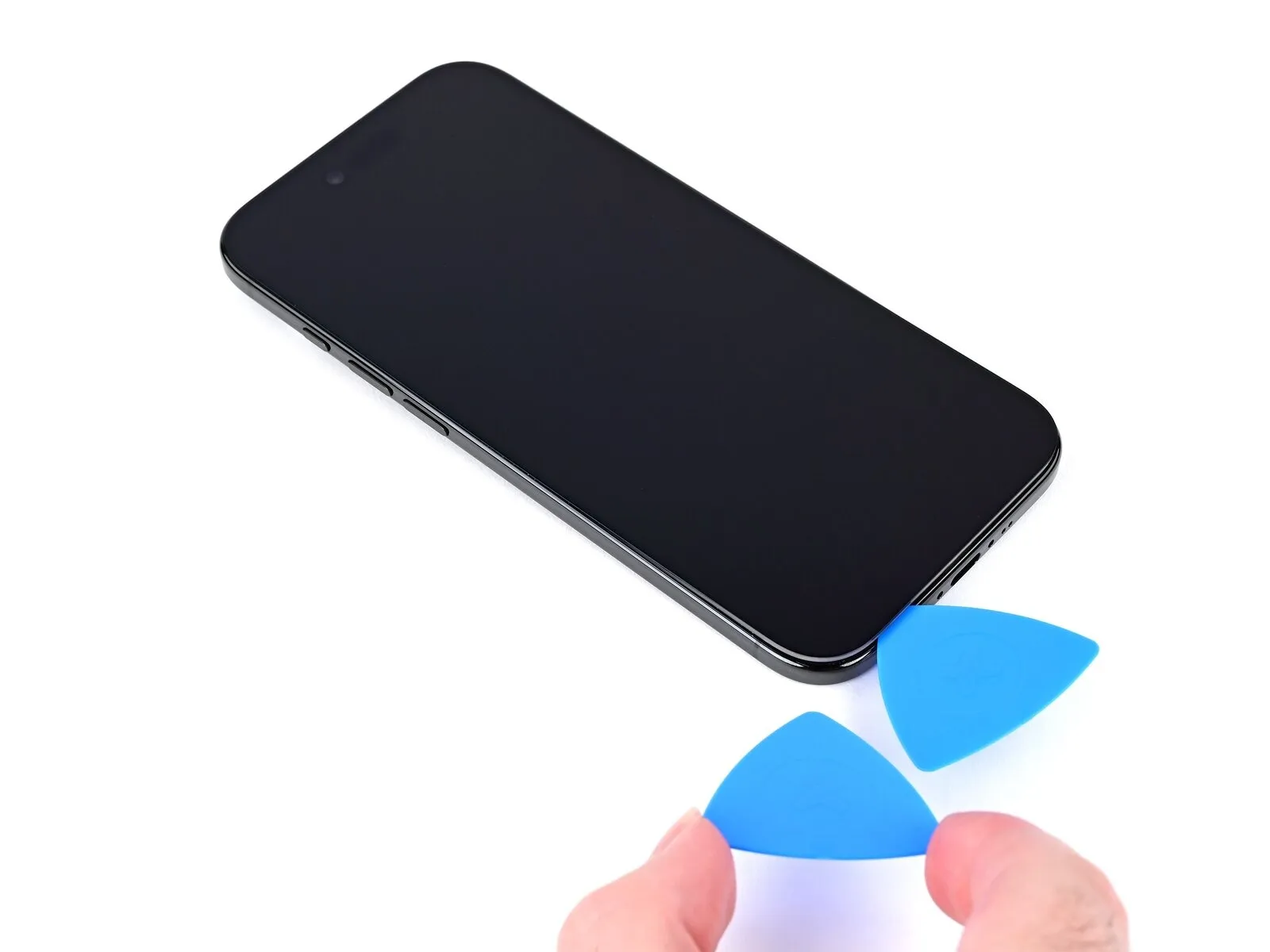

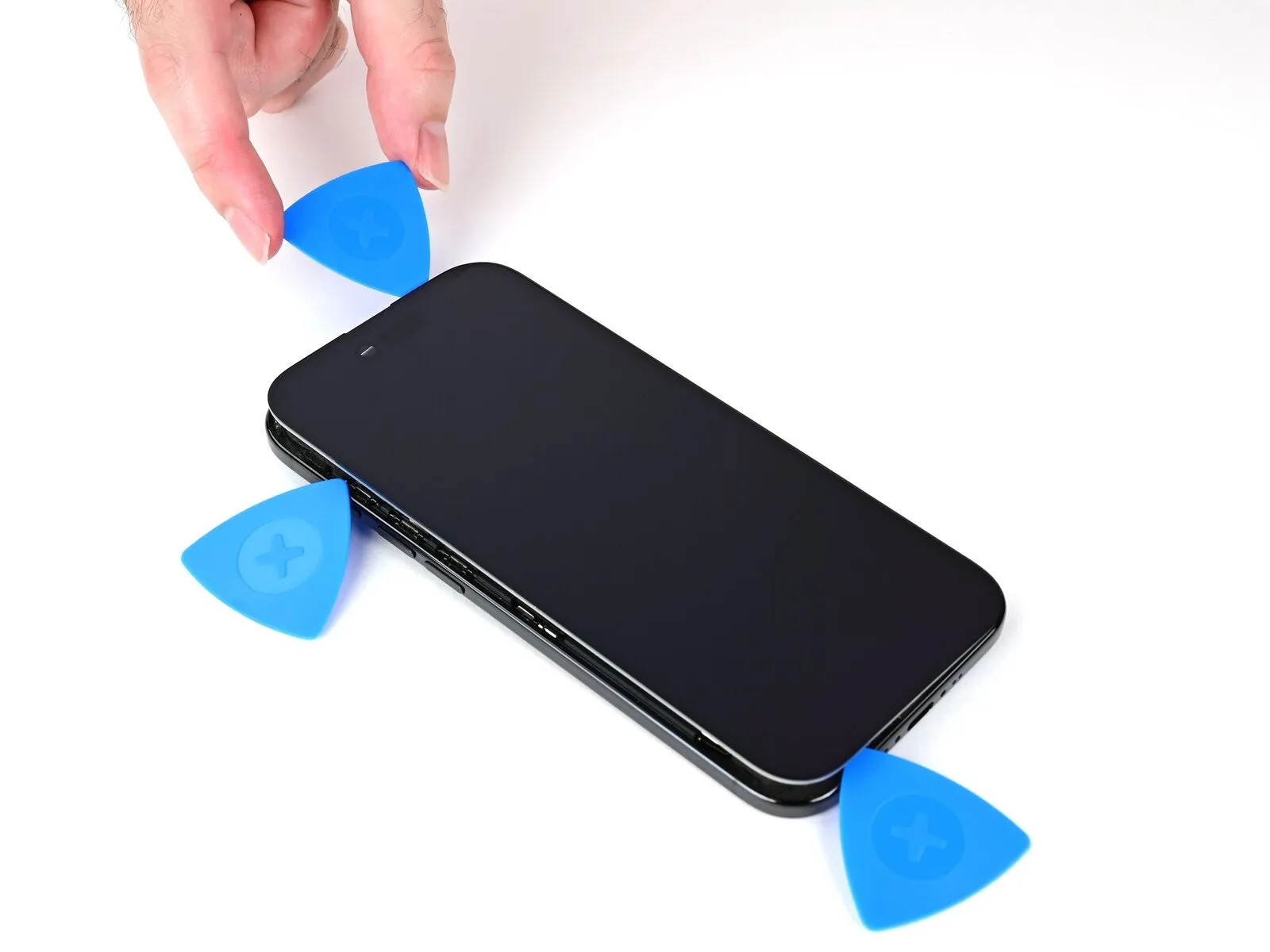

  • Ensure the repair tool does not penetrate beyond a depth of 3 millimeters to prevent harm to the delicate ribbon cables.Introduce a supplementary opening tool positioned in the lower-left area, close to the initial tool's location.Move the second opening tool along the screen's left border, facilitating adhesive separation and freeing the metal clip.
    An audible and tactile indication of the metal clip's release will occur during this sliding motion.Maintain the initial opening tool's placement in the upper-left corner to inhibit the adhesive from re-bonding.
    Preventing re-adhesion of the adhesive is achieved by keeping the first tool in place.The metal clip's detachment will be noticeable through both sound and physical sensation.
    Carefully position the secondary tool to avoid any contact with the ribbon cables.
    Adhesive separation and clip release are accomplished by sliding the tool along the left edge.A maximum insertion depth of 3 mm must be observed to safeguard the ribbon cable connections.

Step 11 | Separate the remaining adhesives

Step 11 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

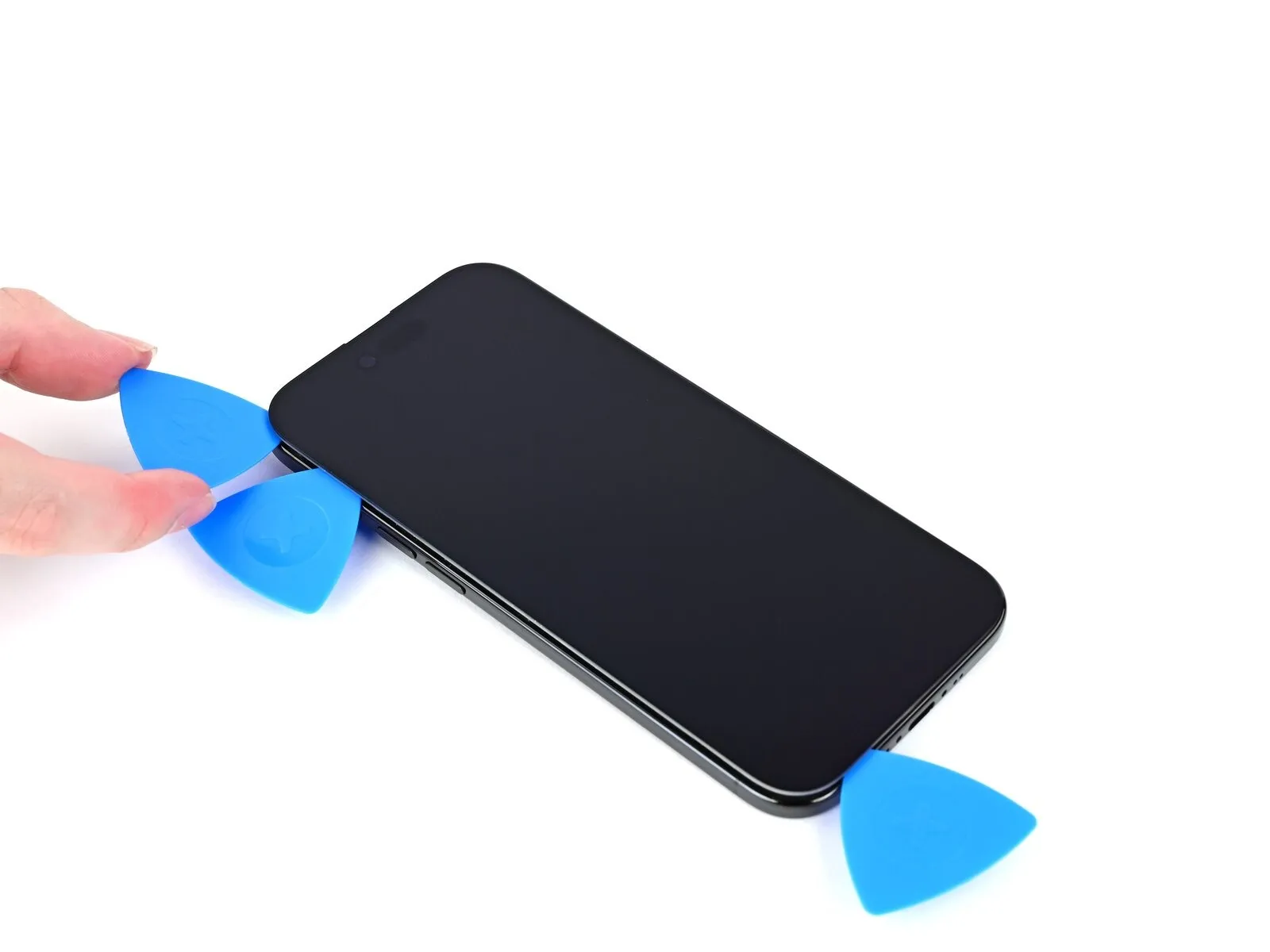

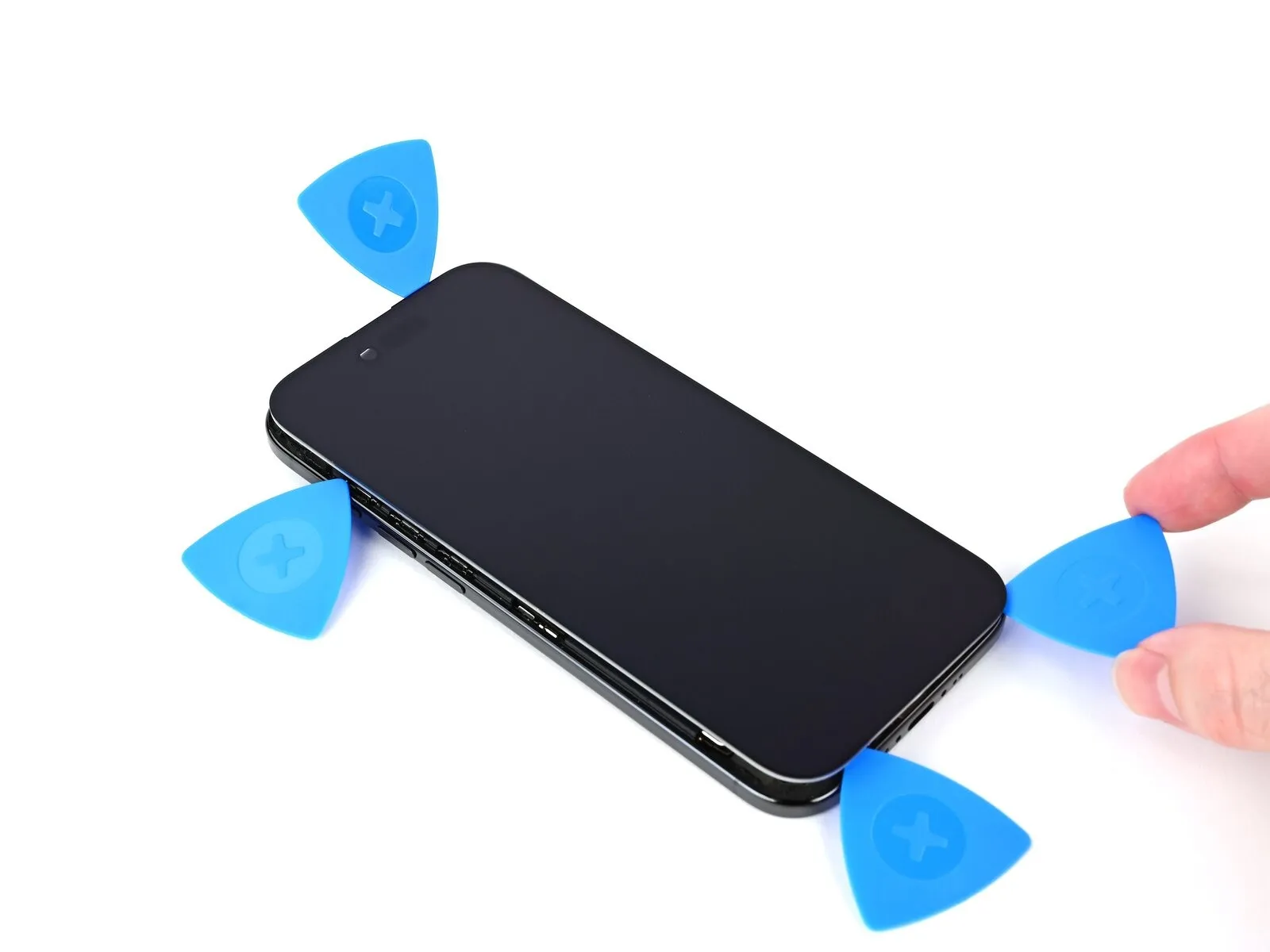

  1. To fully detach the display assembly, continue the process of applying heat and gently sliding the tools along the perimeter of the screen, which will further weaken the adhesive bonds and disengage the retaining clips.

Step 12 | Lift open the screen

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

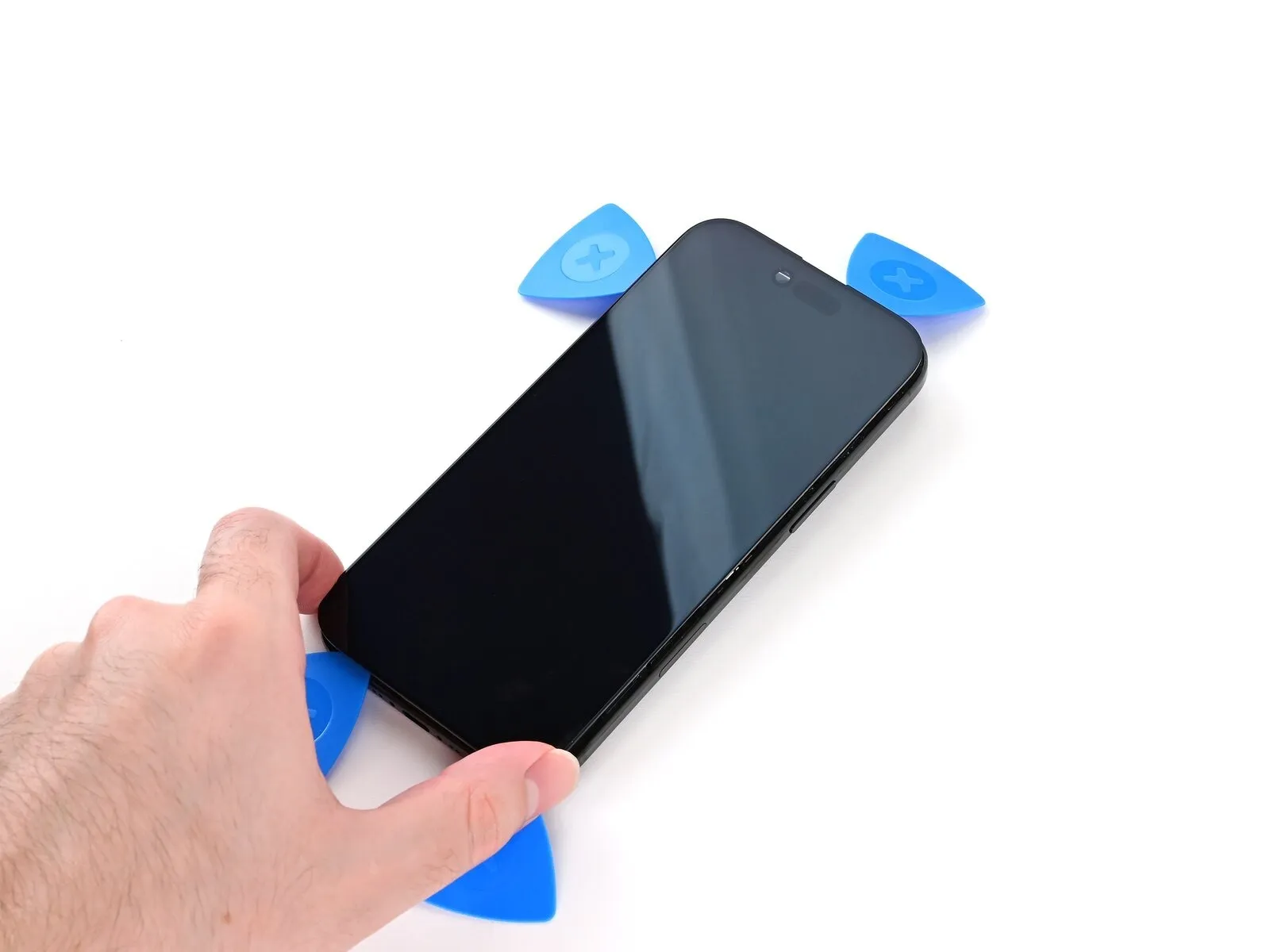

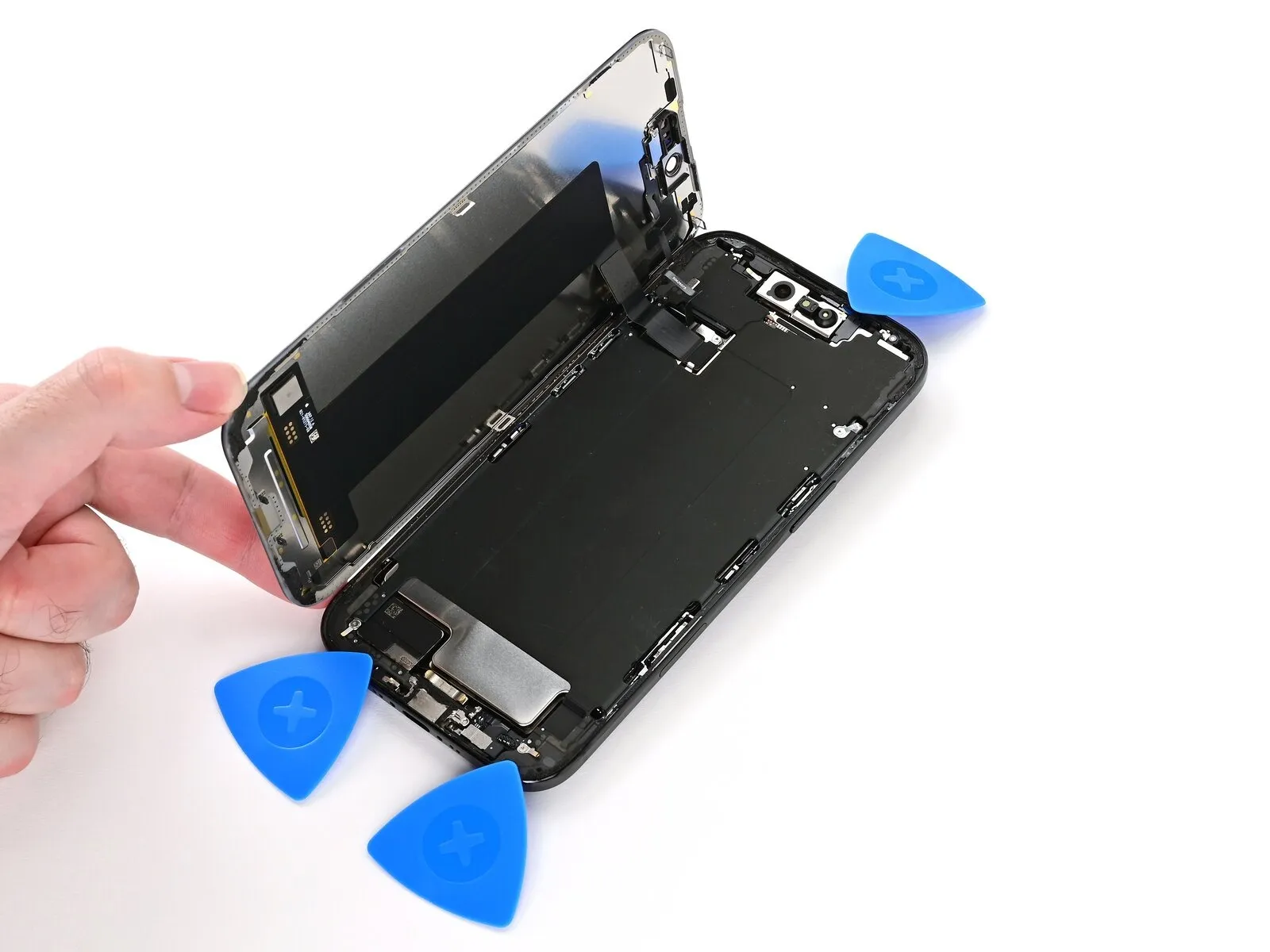

  • Ensure the display panel is completely detached from its surrounding frame at this point; if resistance is encountered, meticulously examine the edges again using the pick to release any remaining adhesive or trapped fasteners.

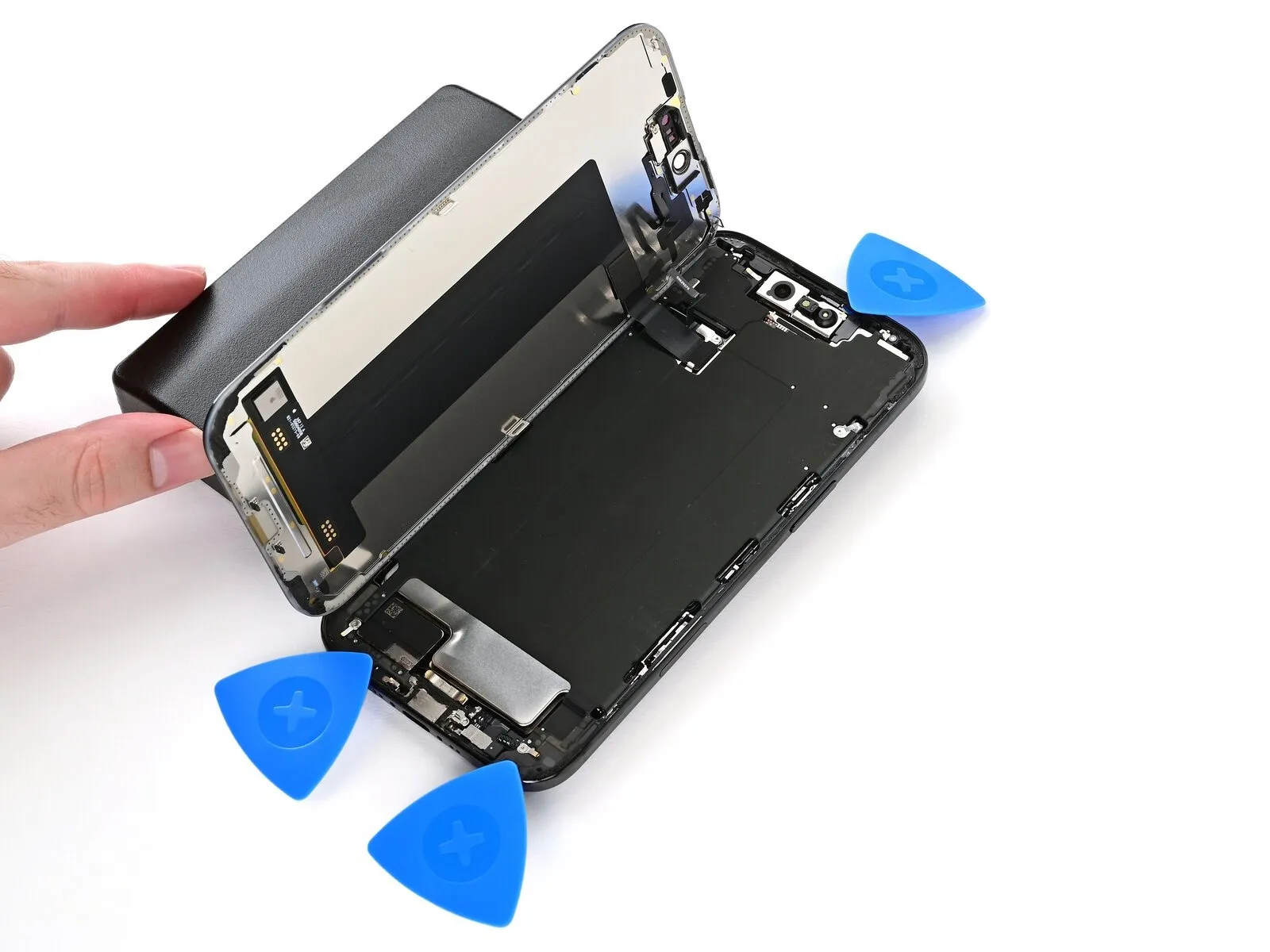

  • Gently raise the display assembly and rotate it towards the left side of the iPhone's chassis.
  • Secure the display in an upright position by utilizing a compact and robust support.

Step 13 | Protect the front cameras

Step 13 image
Thumbnail 1
Thumbnail 2

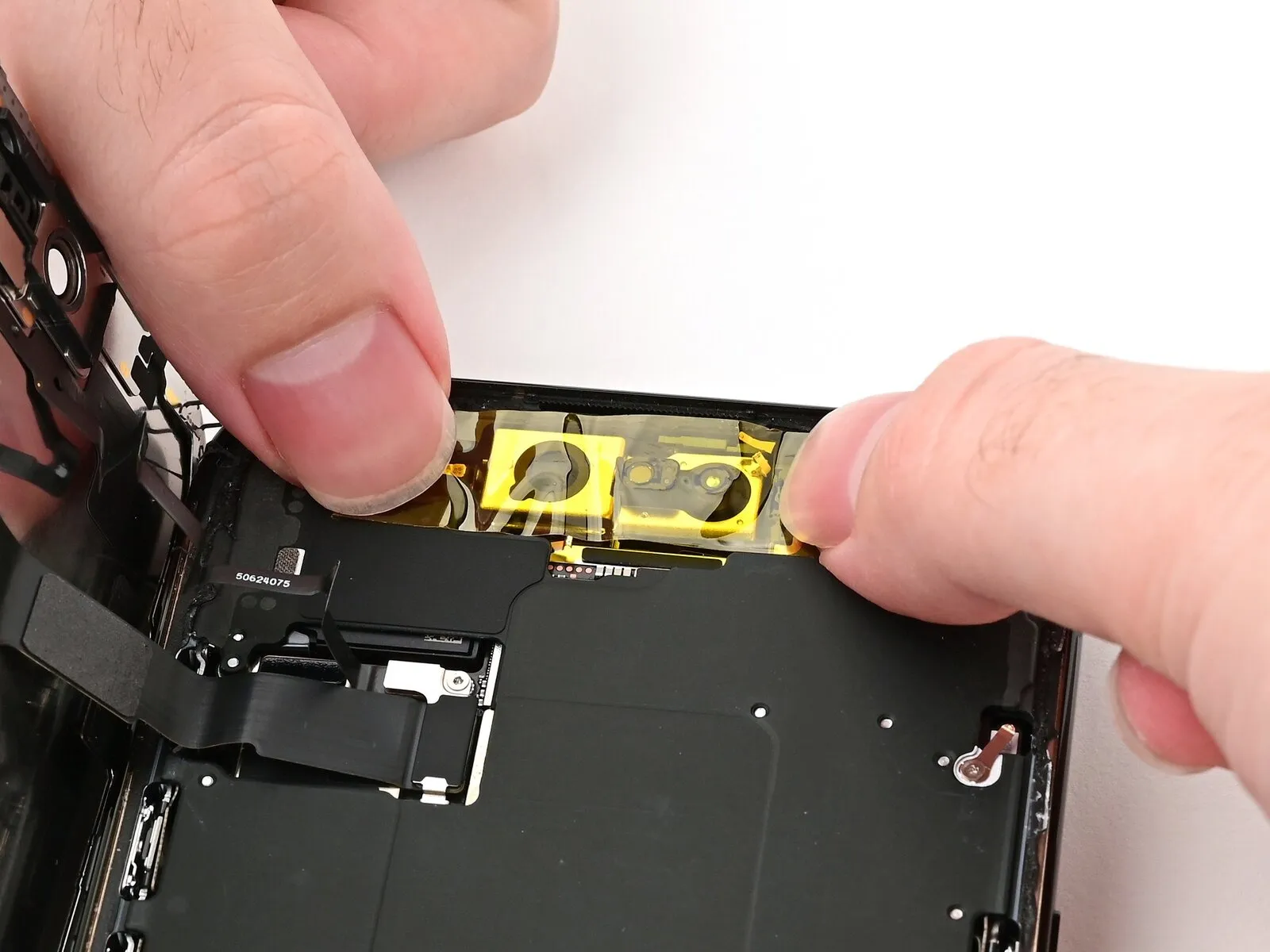

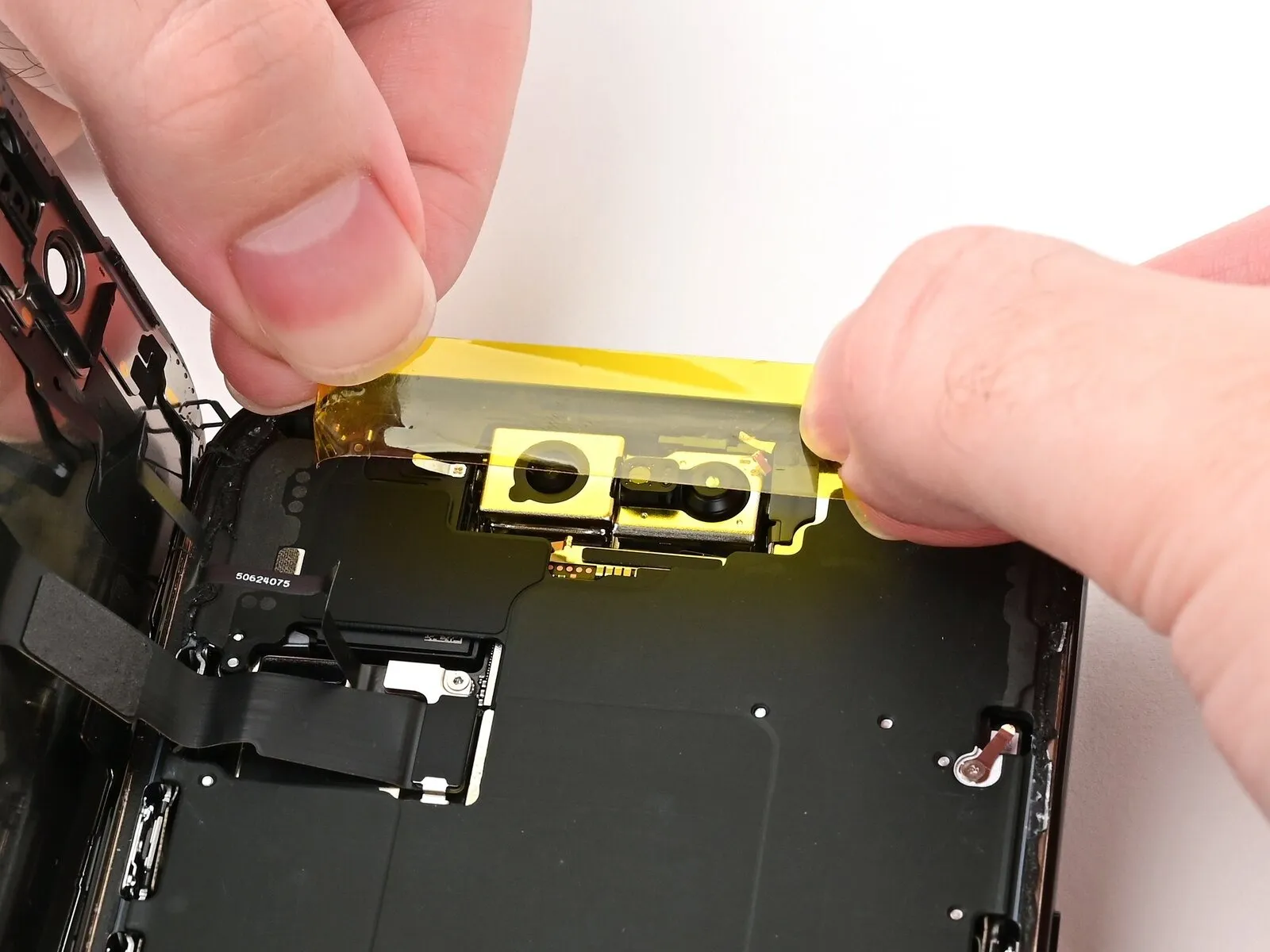

  1. To maintain cleanliness of the front-facing cameras, utilizing polyimide, also known as Kapton, tape is suggested.While this procedure is not mandatory, meticulous attention should be given to prevent any physical contact with the camera lenses.A length of polyimide tape should be applied across the front camera module.
  2. Secure the tape's adhesion by applying even pressure to both lateral edges of the camera assembly.Direct pressure on the camera module itself must be avoided to prevent potential damage.Employing Kapton tape provides a protective barrier during subsequent repair steps.

Step 14 | Remove the connector cover

Step 14 image

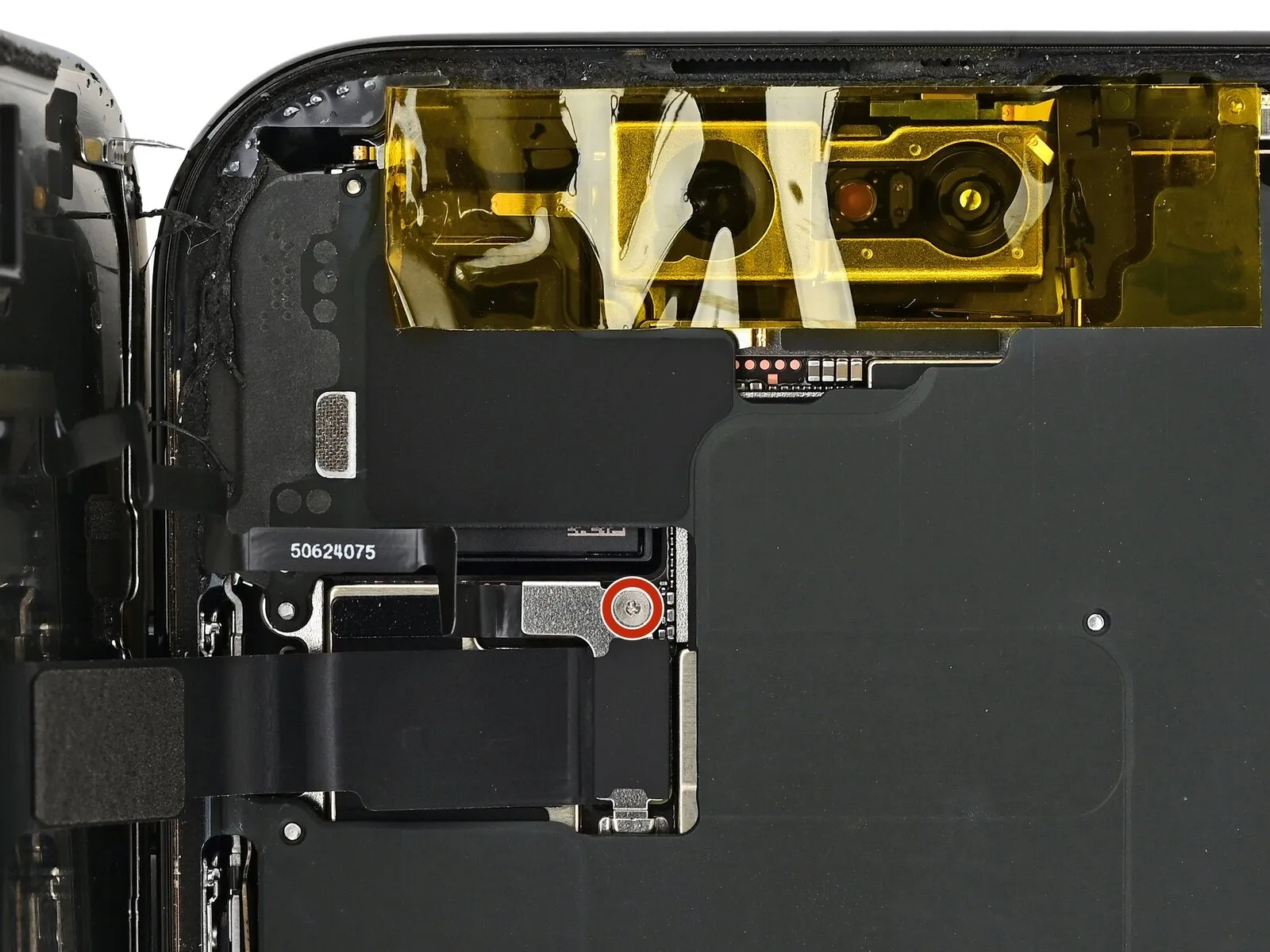

  • Employ a specialized tri-point Y000 driver for the task of detaching the screw that holds the front sensor and display connector cover in place.The screw, measuring 1.1 millimeters in length, requires a tri-point Y000 driver for its removal.To release the front sensor and display connector cover, utilize a tri-point Y000 driver to unscrew the fastener, which has a length of 1.1 mm.

Step 15

Step 15 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

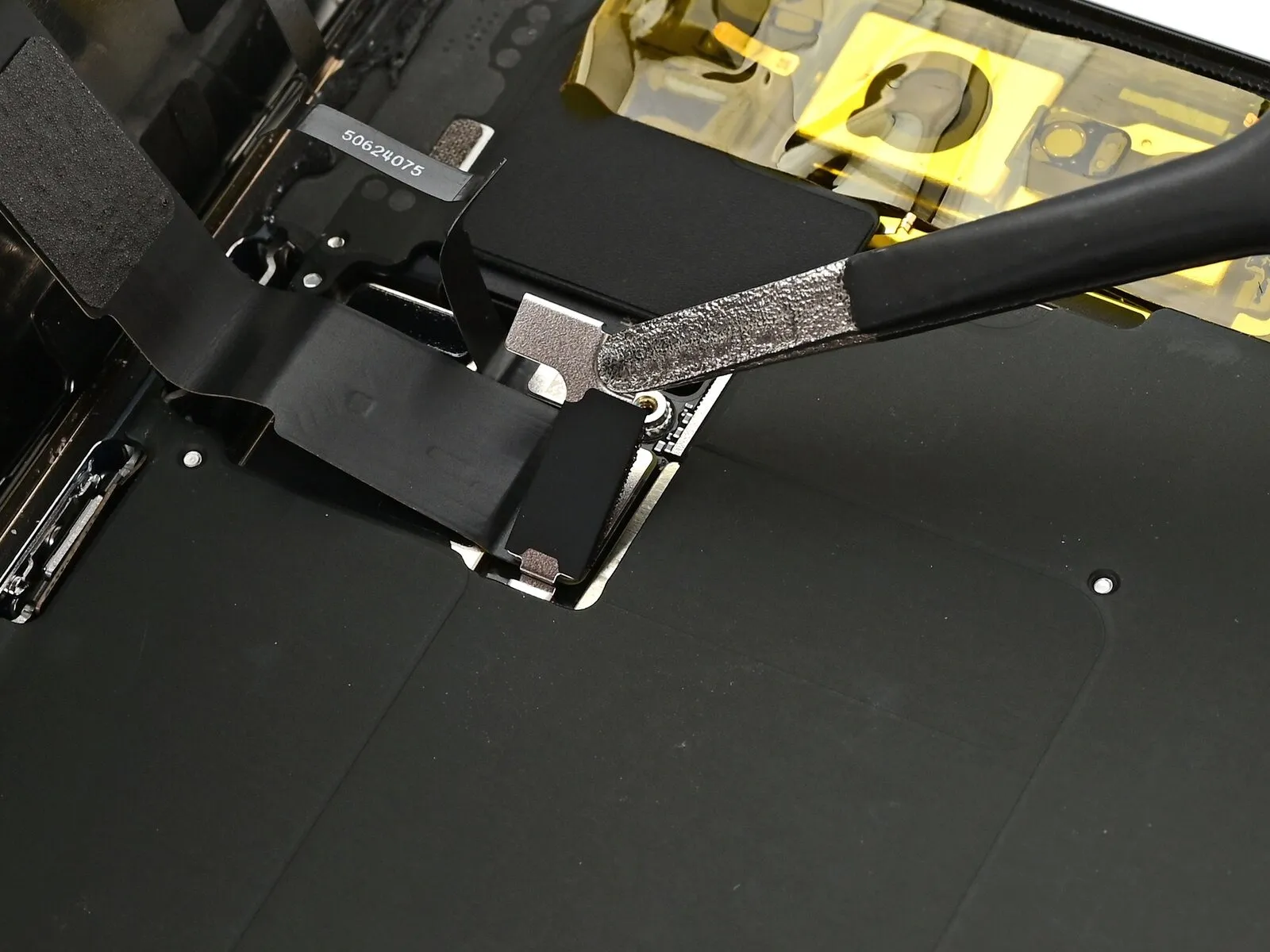

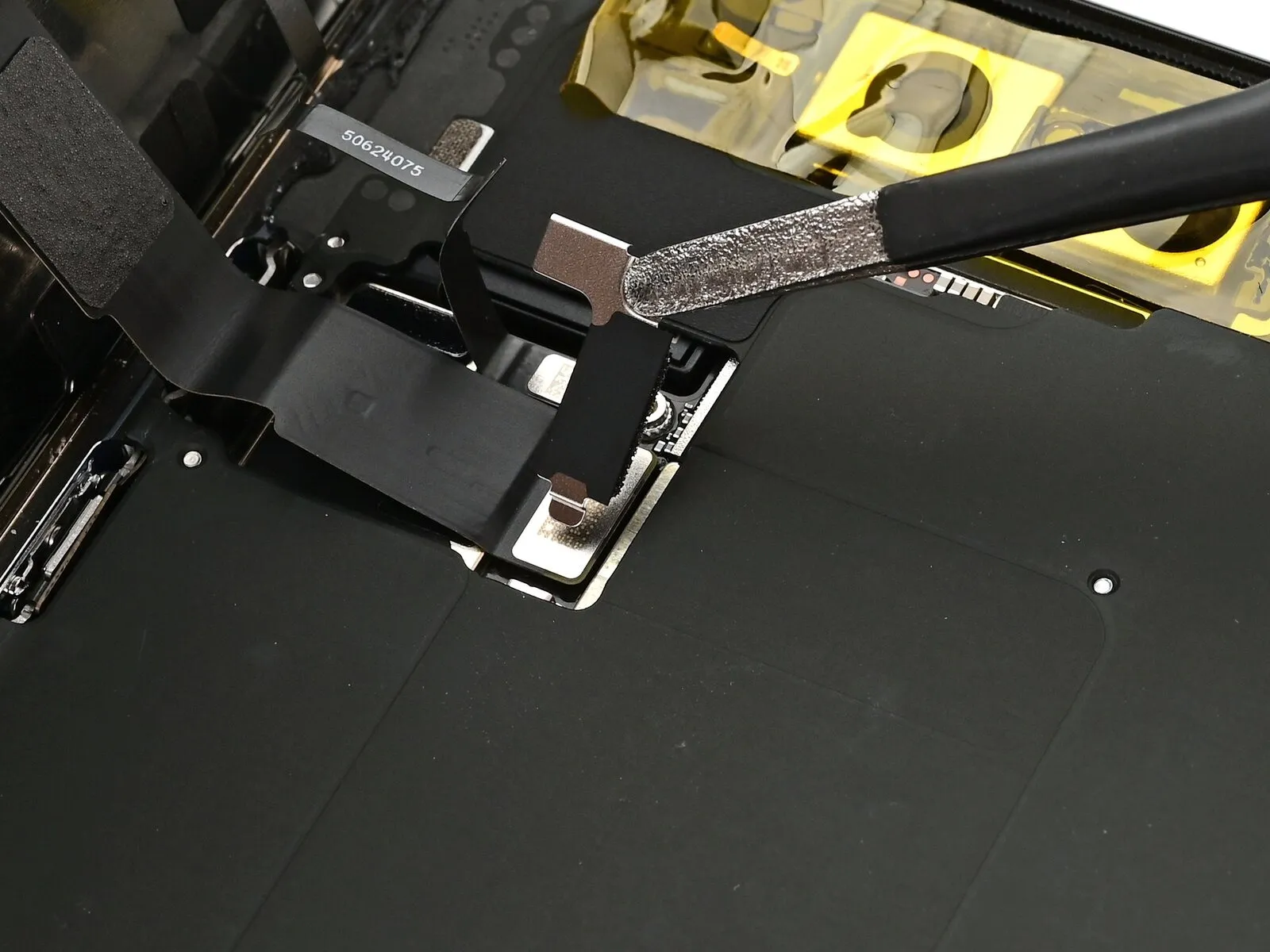

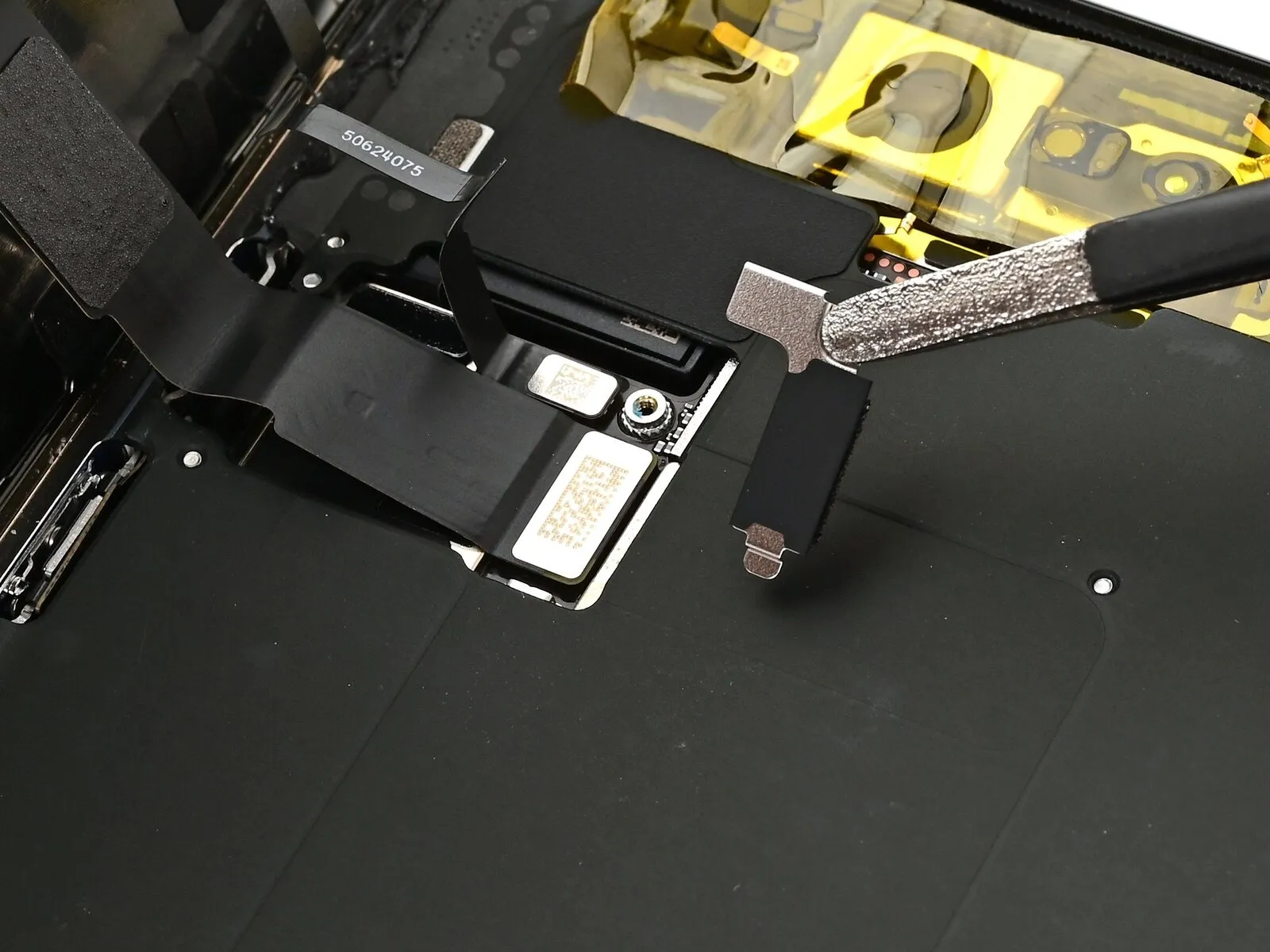

  1. Employ tweezers or manual dexterity to elevate the front sensor cover, angling it at 45 degrees, and detach it.
  2. When reassembling, guide each cover into position at a 45-degree angle to ensure the hook mechanism reconnects, subsequently positioning it flush against the press connector.

Step 16 | Disconnect the screen

Step 16 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

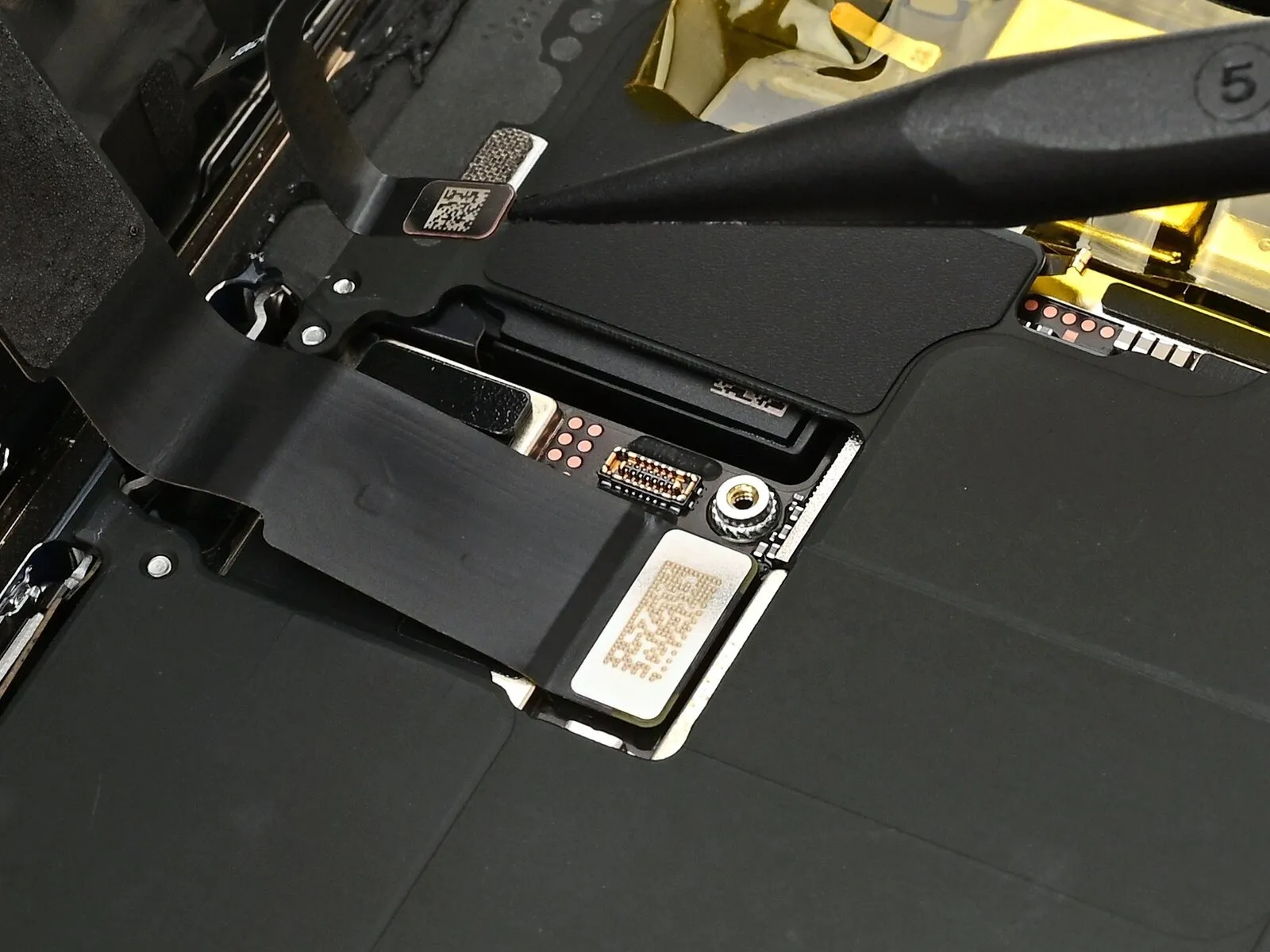

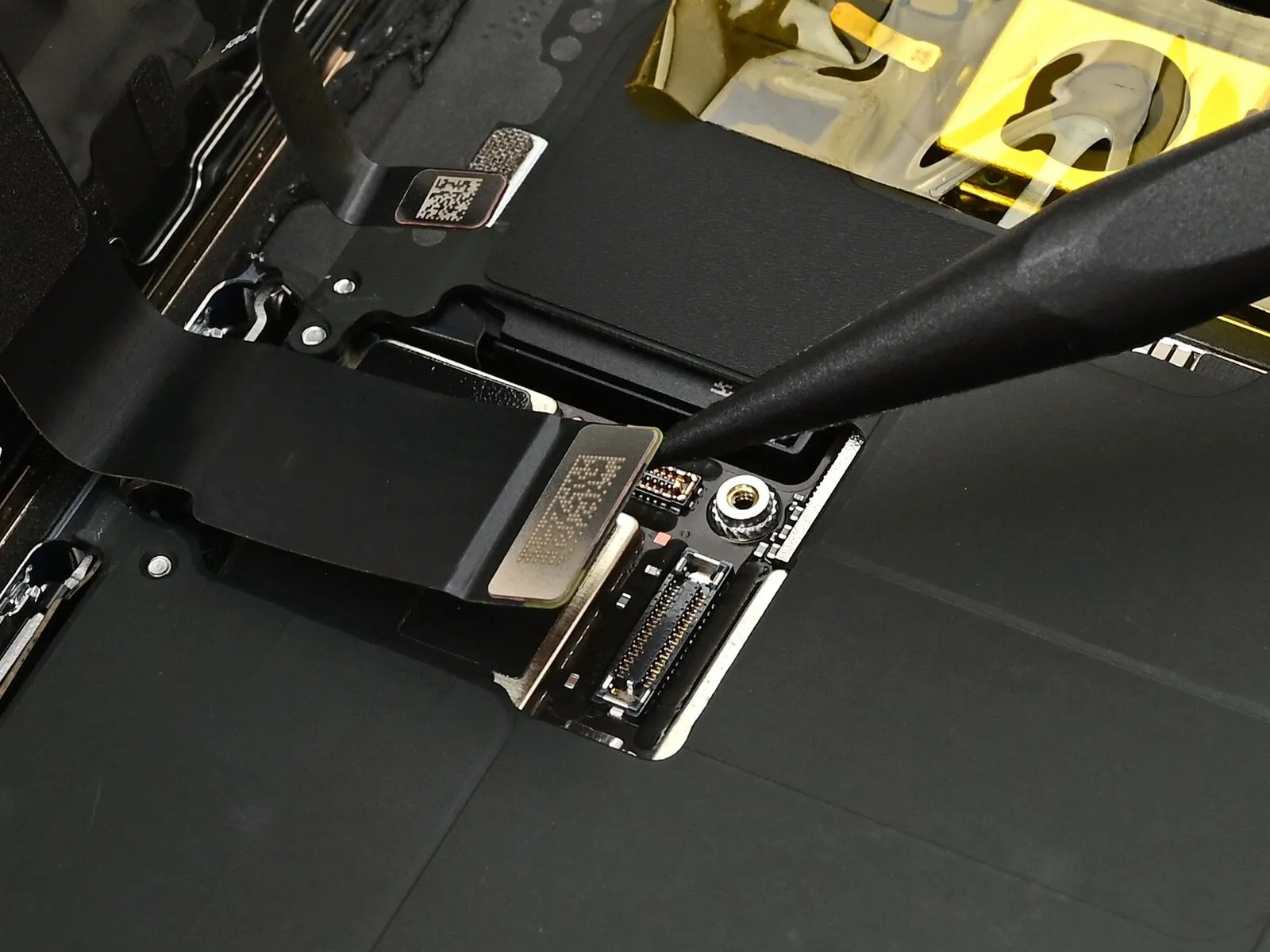

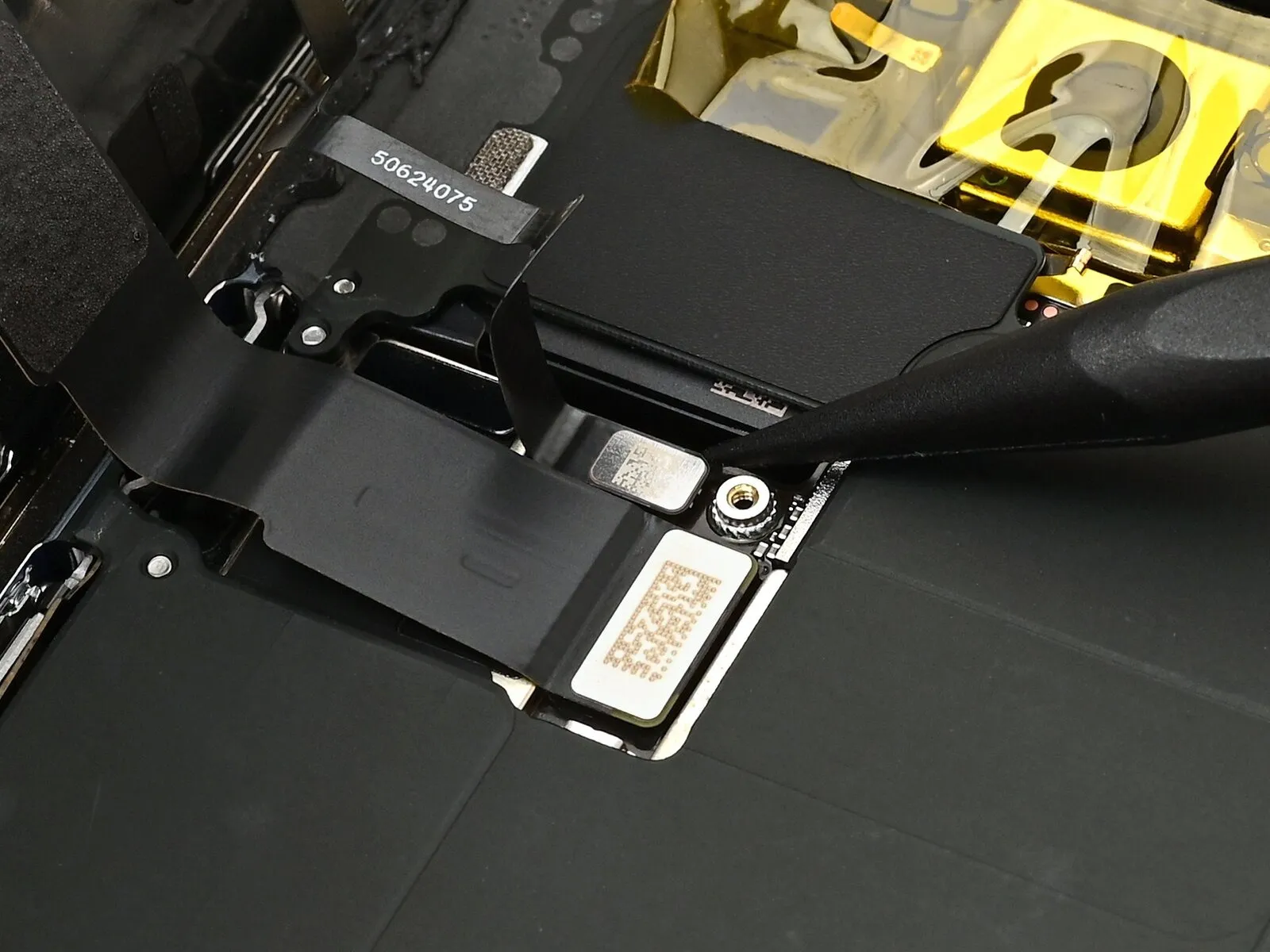

  • Employ the spudger's pointed end to gently separate and release the front sensor and screen press connectors from their positions.
  • When reassembling, meticulously position each connector above its corresponding socket, then secure it by applying pressure with a fingertip or the spudger's flat edge—initially on one side, followed by the opposite—until a distinct click confirms proper engagement, ensuring no excessive force is applied.
  • Should the connector fail to seat correctly, adjust its alignment and attempt the connection once more.

Step 17 | Remove the screen

Step 17 image
  • Detach the display assembly from the device.
  • Adhere the fresh screen component and secure it according to the provided instructions.
  • Exercise care to prevent harm to the spring contacts during frame cleaning procedures.
