iPhone Air Chip ID
The identification number for the integrated circuit utilized in the United States version of the iPhone Air is documented here.This guide pertains specifically to the iPhone Air.Refer to our comprehensive iPhone Air teardown documentation for additional information.This guide pertains specifically to the iPhone Air.We extend our gratitude to our community member.
Chunglin Chin provided valuable contributions to the creation of this repair guide.The assistance of Chunglin Chin was instrumental in the development of this resource.We acknowledge Chunglin Chin's support in the creation of this guide.This guide benefits from the collaborative efforts of our community members.
Step 1 | Main Board - Outer Side
- The Kioxia K8A7RJ5126 component provides 256 gigabytes of NAND flash memory storage.The NXP Semiconductors CBTL1701B0 manages communication through a USB Type-C port.
- Apple's APL1064/338S01279 handles the device's power distribution and regulation.A Texas Instruments CP3200C1H3 integrated circuit is responsible for charging the battery.
- Audio processing is facilitated by the Apple/Cirrus Logic 338S00967 component.Sound amplification is performed by the Apple/Cirrus Logic 338S01148.
- Wireless power transfer is controlled by the Broadcom BCM59367A1IUBG.A substantial 256 GB of data is stored on the Kioxia NAND flash memory.
- The USB Type-C port's operation is governed by the NXP Semiconductors controller.Power management functions are executed by the Apple APL1064/338S01279.
- The battery receives its charge through the Texas Instruments CP3200C1H3.The Apple/Cirrus Logic 338S00967 component converts analog audio signals.
- The Apple/Cirrus Logic 338S01148 boosts the audio signal for output.The Broadcom BCM59367A1IUBG facilitates inductive charging capabilities.

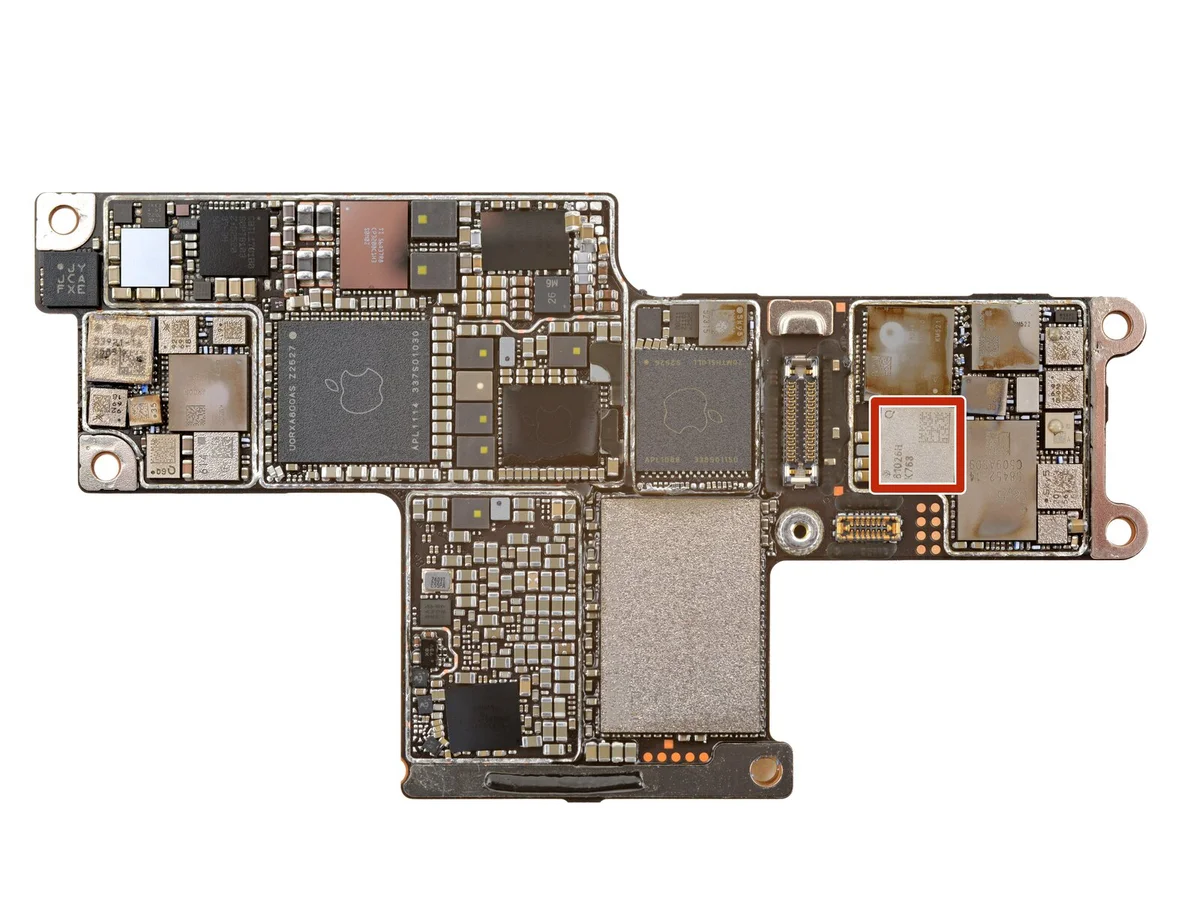

Step 2
- The Qorvo QM81026H component serves as an envelope detection circuit.This device functions as an envelope detector.

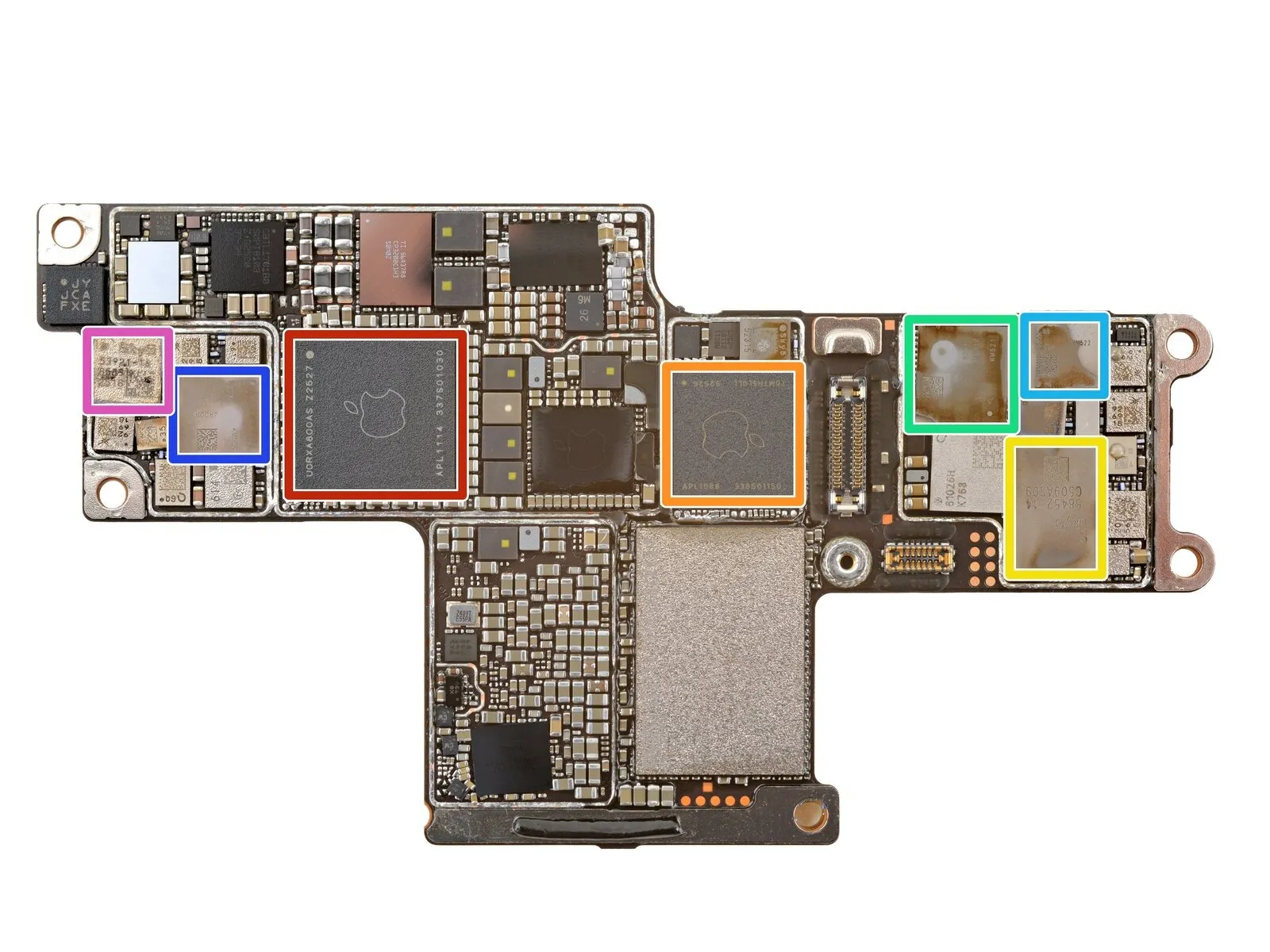

Step 3 | Main Board - Outer Side - Connectivity
- The Apple APL1114/337S01030 component functions as a 5G modem.An RF transceiver is represented by the Apple APL1088/338S01150.
- The Skyworks SKY58452-14 serves as a front-end module within the device.A front-end module is also provided by the Broadcom AFEM-8254.
- The device incorporates a front-end module identified as the Broadcom AFEM-8255.Another front-end module is present, designated as the Broadcom AFEM-8277.
- The Skyworks SKY53921-16 is utilized as a front-end module.The 5G modem, Apple APL1114/337S01030, enables cellular connectivity.
- The RF transceiver, Apple APL1088/338S01150, manages radio frequency signals.Skyworks manufactures the front-end module, SKY58452-14, for signal processing.
- Broadcom's AFEM-8254 contributes to the device's front-end functionality.The Broadcom AFEM-8255 component is a front-end module.
- The Broadcom AFEM-8277 provides additional front-end module capabilities.Skyworks' SKY53921-16 is integrated as a front-end module.
Step 4 | Main Board - Outer Side - Sensors
- Bosch Sensortec provides accelerometer and gyroscope functionality.The device incorporates both accelerometer and gyroscope components from Bosch Sensortec.
Step 5 | Main Board - Inner Side
- The Apple APL1V12/339S01839 is a hexa-core applications processor, incorporating a graphics processing unit and a neural engine, and is situated beneath a Samsung K3KLMLM0FM-HGGV 12 GB LPDDR5X SDRAM module.A Samsung K3KLMLM0FM-HGGV chip provides 12 GB of LPDDR5X SDRAM, which is directly integrated with the Apple APL1V12/339S01839 applications processor.
- The Texas Instruments TPS65658A0 component serves as the power supply specifically designed for the display circuitry.Powering the display requires the Texas Instruments TPS65658A0, which functions as a dedicated power supply.
- The Analog Devices MAX11390A facilitates the conversion of analog signals into digital data.Analog signals are transformed into a digital format using the Analog Devices MAX11390A.
- The DC-DC converter functionality is provided by the Analog Devices MAX20348P.The Analog Devices MAX20348P manages voltage regulation by operating as a DC-DC converter.
- A Texas Instruments CP5100A0, potentially, manages the operation of the camera flash system.Camera flash operations are likely controlled by a Texas Instruments CP5100A0 component.

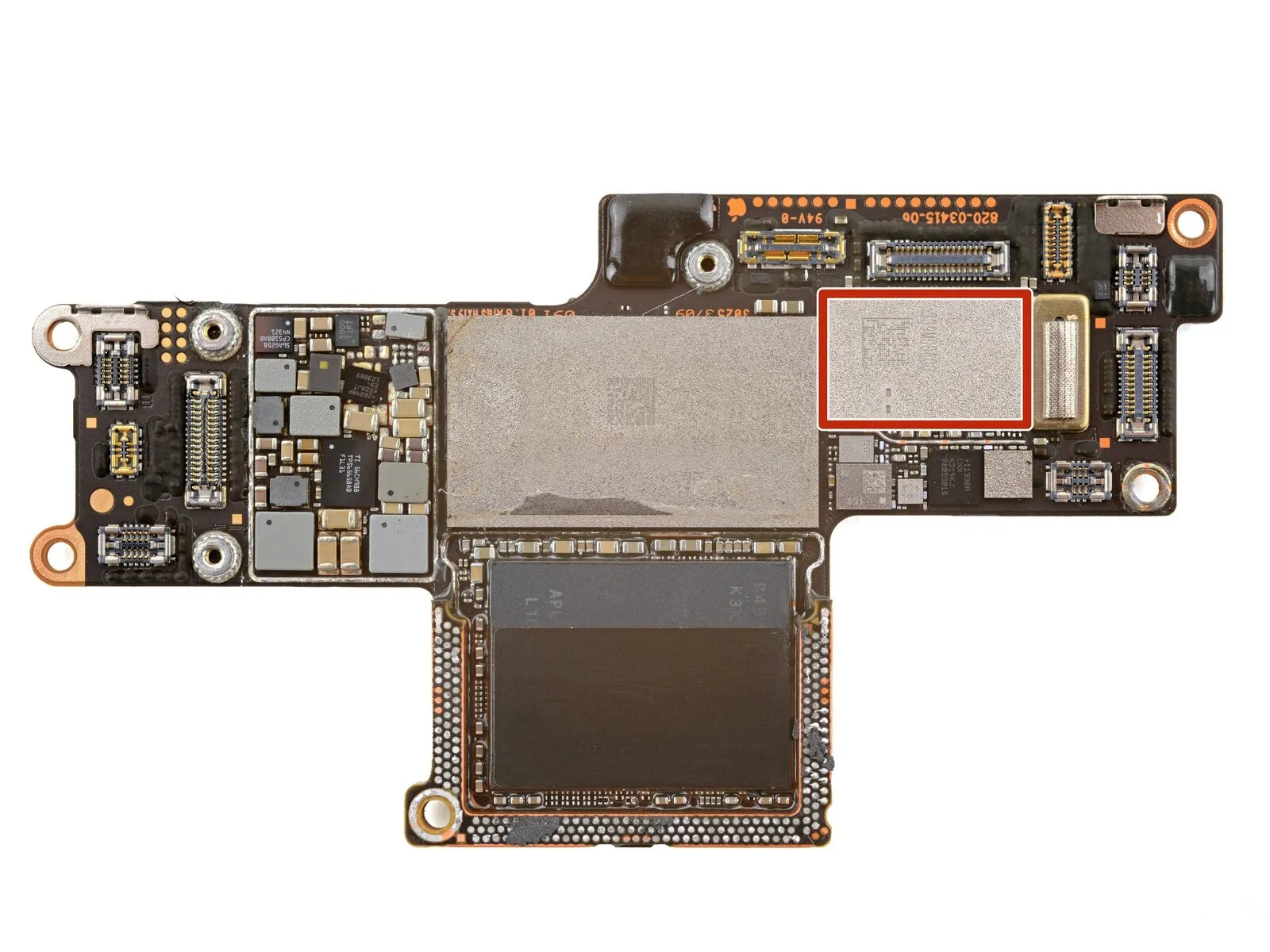

Step 6 | Main Board - Inner Side - Connectivity
- The USI 339M00400 component incorporates wireless networking capabilities, specifically supporting WiFi 7, Bluetooth 6, and Thread protocols.This module includes the Apple N1 chip as an integral part of its design.The functionality of this USI component provides integrated wireless communication solutions.

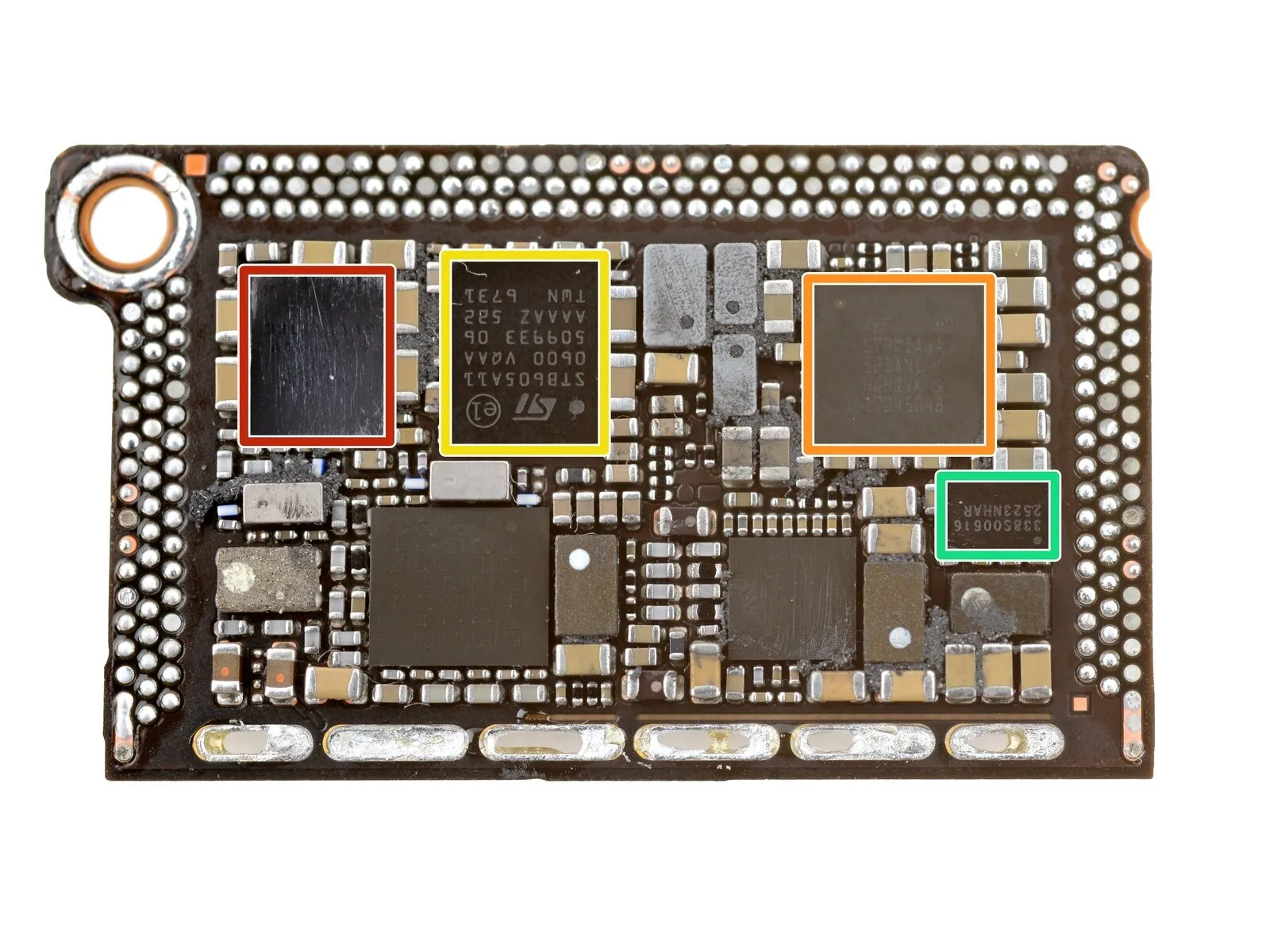

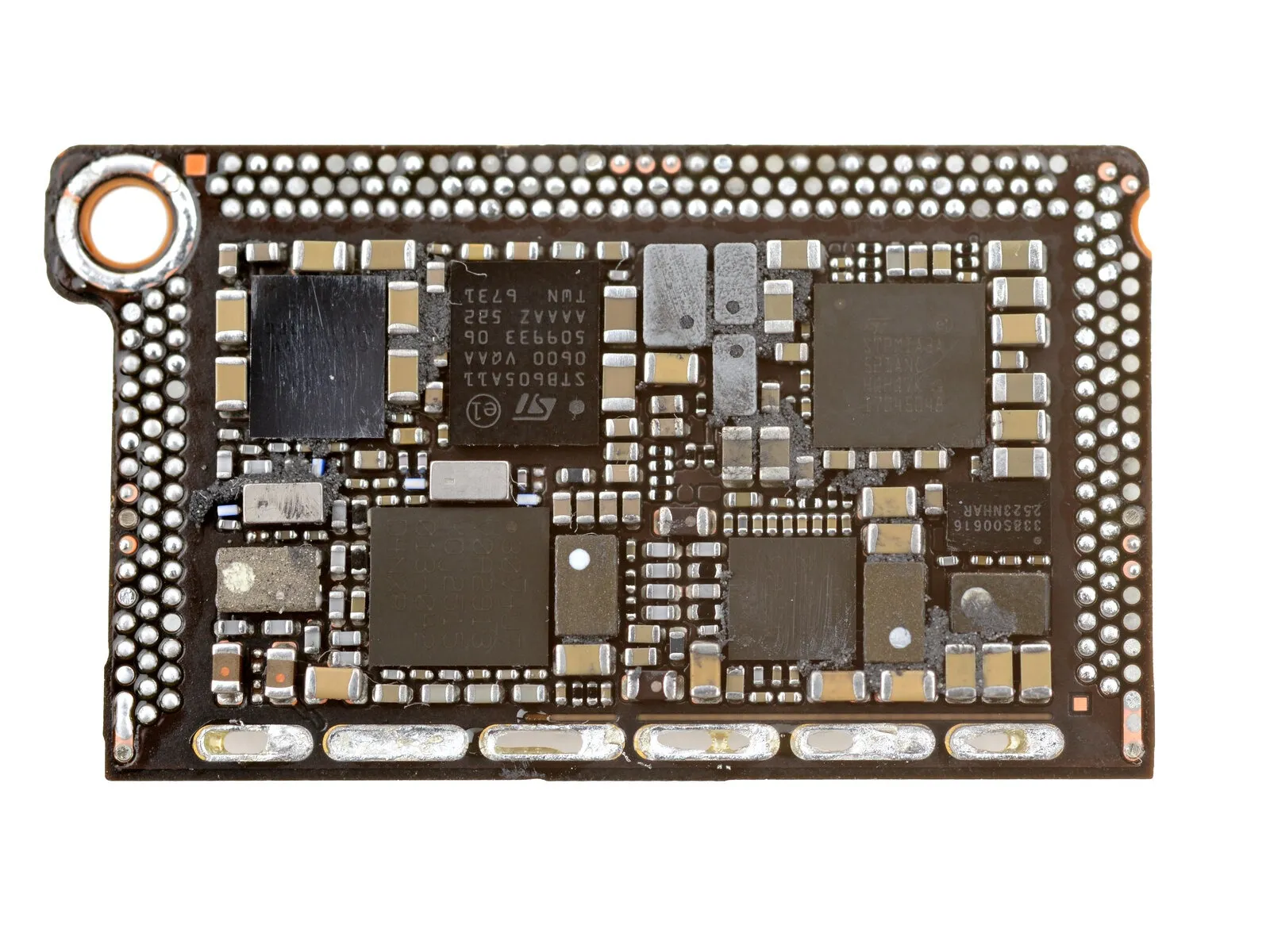

Step 7 | NFC Board
- The Apple Cirrus Logic 338S01148 component functions as an audio amplifier.Power management functionality is provided by the STMicroelectronics STPMIA3A integrated circuit.
- The STMicroelectronics STB605A11 is the probable power management solution.The Apple 338S00616 serves the purpose of a DC-DC converter.
- Audio signal amplification is the primary role of the Cirrus Logic 338S01148, a component manufactured by Apple.STMicroelectronics' STPMIA3A handles the device's power management requirements.
- Power regulation and distribution are facilitated by the STB605A11, identified as a potential component.A DC-DC conversion process is performed by the Apple-produced 338S00616 component.

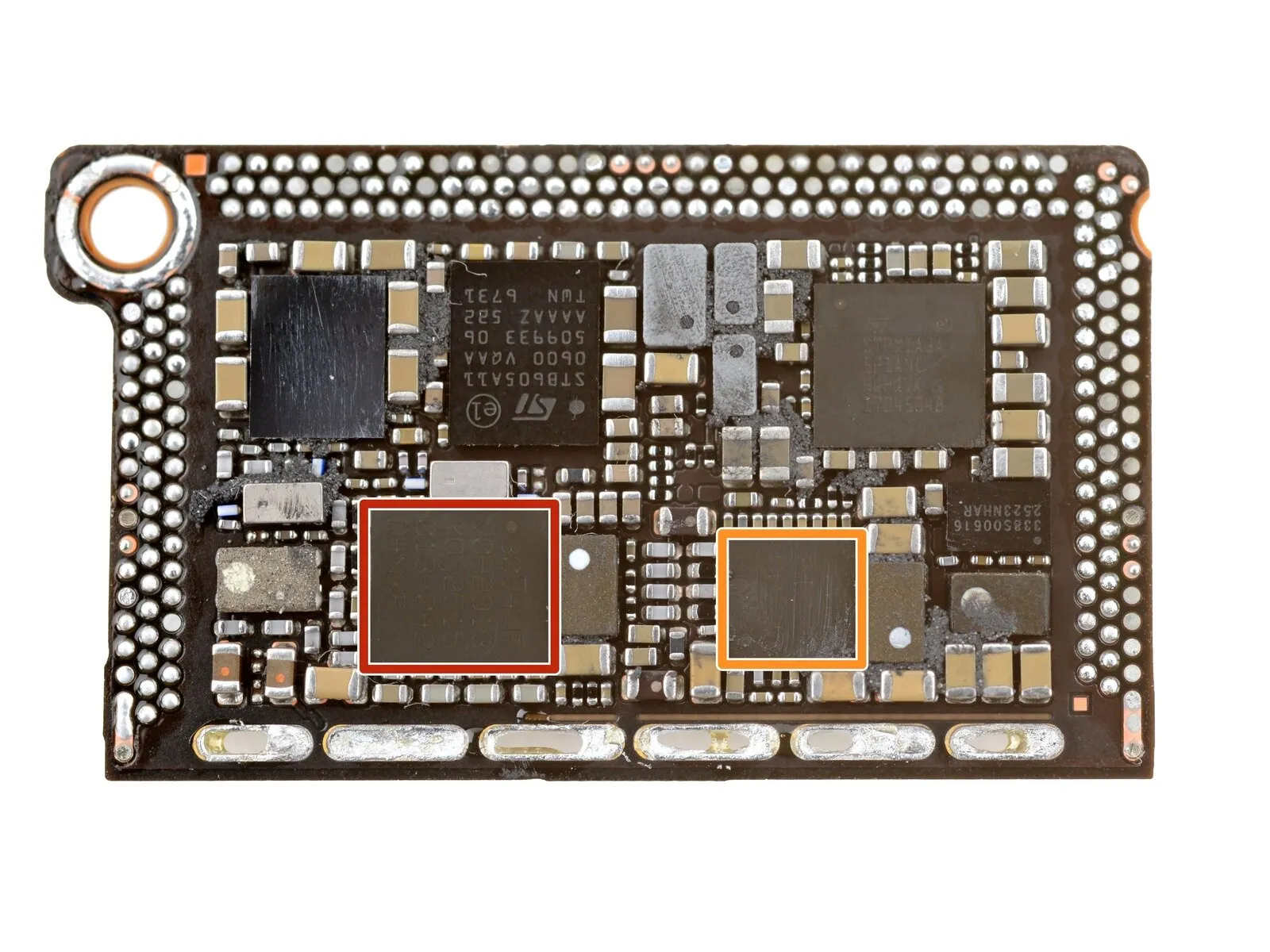

Step 8 | NFC Board - Connectivity
- The SN300, manufactured by NXP Semiconductors, functions as a near-field communication (NFC) controller.This integrated circuit incorporates an embedded subscriber identity module (eSIM) and a secure element for enhanced security features.
- Identification suggests the component is an NFC controller produced by NXP Semiconductors.

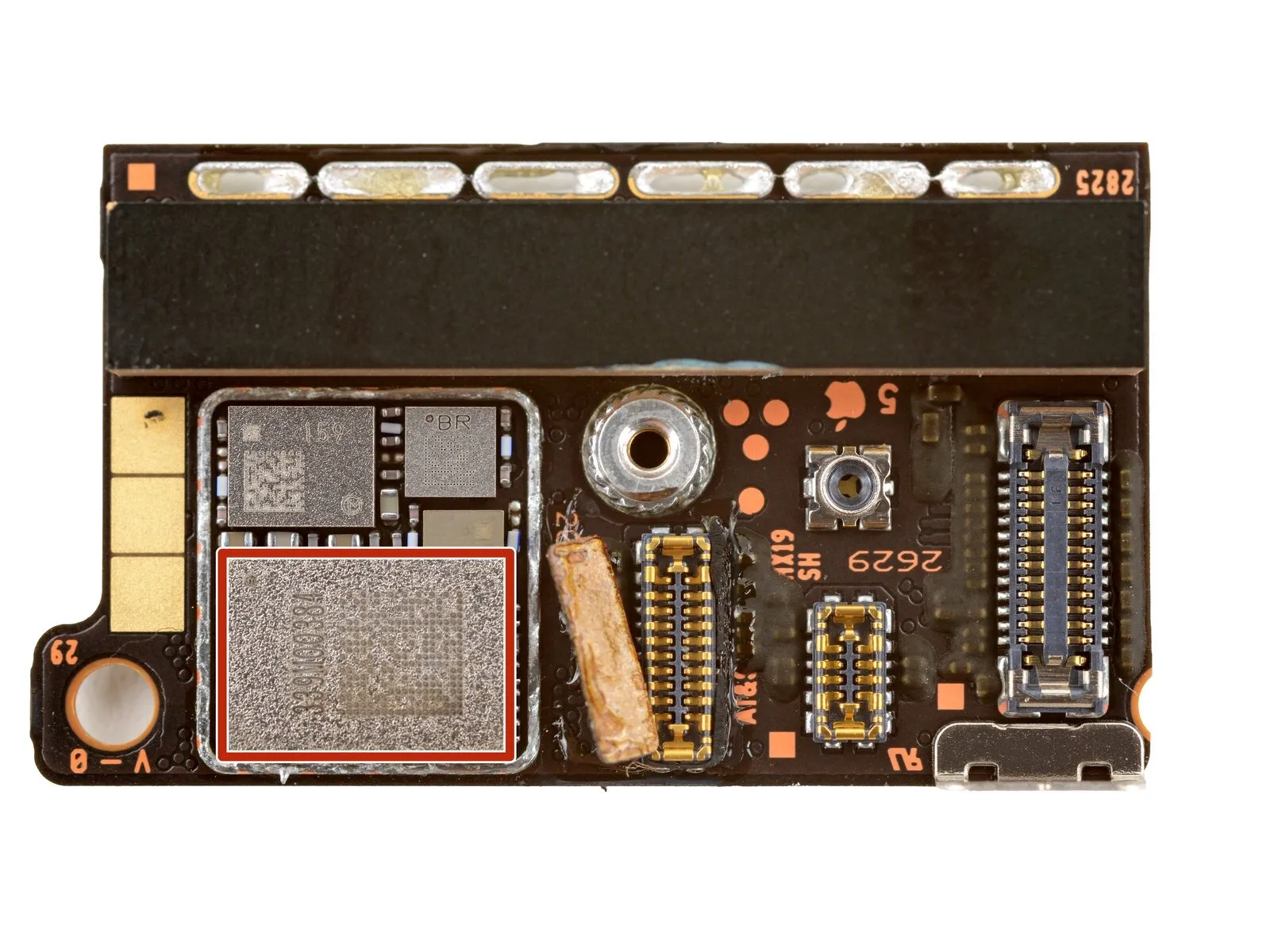

Step 9 | UWB Board - Connectivity
- The component identified as USI 339M00384 represents a short-range wireless module.This module incorporates Apple's U2 chip, which facilitates ultra-wideband (UWB) communication capabilities.The module's designation, USI 339M00384, specifically identifies it as an ultra-wideband (UWB) module containing the Apple U2 component.
