iPhone Air Battery Replacement

Follow these instructions to substitute a failing or worn-out battery within an iPhone Air.

After approximately 1,000 full charge cycles, an iPhone battery is expected to retain 80% of its original capacity; diminished battery performance, such as increased charging frequency or reduced operational speed, may indicate a need for battery replacement.

To detach the battery, which is secured with adhesive activated by electrical charge, apply power as instructed in the Apple repair documentation.Utilize a 9-volt battery.An alternative method involves applying power directly, using a power supply or power bank capable of delivering between 5 and 20 volts; the duration needed to soften the adhesive will depend on the specific power level used, but generally requires approximately 90 seconds.

Throughout this repair process, refer to the accompanying diagrams and schematics for visual clarification and detailed component identification.Employ the VoltClip diagnostic tool.Employ an alternative technique, ensuring the adhesive is fully detached.Utilize a 9-volt battery.Adhere to the standard repair instructions while also incorporating the specific operational guidelines provided by the power source manufacturer throughout the process.

  • A new back glass component is required.
  • Secure the battery in place using the provided adhesive.

Step 1 | Prepare your phone for disassembly

Step 1 image
Thumbnail 1
Thumbnail 2
To mitigate fire risk stemming from battery damage during the repair process, ensure the phone's battery level is depleted to less than 25% prior to commencing work.
Disconnect all wires and cords from the device.
To shut down the device, concurrently depress the power button and the volume button for as long as needed.

Step 2 | Mark your opening picks

Step 2 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Ensure device safety by accurately determiningThree millimeters.Using a permanent marker, make a visible indication at the opening's edge, starting from the pick's point.
    To aid in precise placement, the pick's remaining corners can be labeled with corresponding dimensions, or a coin can be temporarily affixed to the tool.Three millimeters.Beginning at the very end.

Step 3 | Cracked glass preparation

Step 3 image
  • Cover the entire damaged glass surface with packing tape to contain any potential fragments and minimize risk of cuts or difficulties during removal.
    Affix a strip of tape to the lower edge, sized to accommodate a suction cup.
    Avoid applying adhesive tape to the frame's surface.
    To safeguard your eyes from potential glass fragments that could detach during the procedure, it's advisable to use safety glasses.

Step 4 | Remove the pentalobe screws

Step 4 image
  • Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris, as the bolt may release with force.Use a P2 driver with a pentalobe tip.Detach the pair of fasteners.The specified dimension is 4.9 millimeters.Secure the USB-C port with the two long screws positioned on its left and right sides.

Step 5 | Heat the bottom edge

Step 5 image
Thumbnail 1
Thumbnail 2
  • Using a heated iOpener, apply warmth to the lower border of the rear glass panel for a duration of two minutes.
    Apply warmth to the lower border with a hairdryer or heat gun, ensuring the surface reaches a temperature just beyond comfortable touch.
    Adhering to the provided instructions is essential to prevent harm to the display or battery.

Step 6 | Insert an opening pick

Step 6 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Using a tool designed for creating vacuum, secure it to the designated area.Position the component against the lower border of the rear glass, ensuring it's situated as near to the perimeter as feasible.
  2. Apply firm, consistent upward pressure to the handle to separate the rear glass from the frame.
  3. Apply heat to the rear glass if it resists separation, then attempt the release procedure once more.
  4. Carefully slide the pointed end of a prying tool into the separation.

Step 7 | Back glass information

Step 7 image
Thumbnail 1
Thumbnail 2

Exercise extreme care while separating the rear glass, as the volume up button’s cable and the spring contacts positioned along the top edge are easily damaged.

Step 8 | Separate the bottom edge adhesive

Step 8 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Using a pick, gently work along the lower edge, moving it back and forth to release the adhesive bond.
  2. To stop the adhesive from bonding prematurely, maintain a pick in the lower left corner.

Step 9 | Heat the left edge

Step 9 image
  • Using a heat gun, apply warmth to the left side of the rear glass panel.Use a specialized iOpener tool.Allow the process to continue for a duration of 120 seconds.
  • Apply heat to the rear glass panel with a hair dryer or heat gun until the surface reaches a temperature that is comfortable to touch.

Step 10 | Separate the left edge adhesive

Step 10 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Position another opening pick adjacent to the first one, on its left side.
  • Using the second pick, carefully work it along the left side of the rear glass, starting at the lower corner, to sever the adhesive bond and disengage the metal clip.
  • Maintain the positioning of the pick in the upper left corner to obstruct adhesive re-bonding.

Step 11 | Heat the right edge

Step 11 image
  • Using a heating tool, apply warmth to the right side of the rear glass panel.Use the iOpener to gently warm the adhesive securing the display assembly to the device's midframe.Allow the component to remain in place for a duration of 120 seconds.
  • Apply heat to the rear glass surface with a hair dryer or heat gun until it reaches a temperature that is comfortable to touch.

Step 12 | Separate the right edge adhesive

Step 12 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Avoid pushing the tool beyond the specified depth.Three millimeters.To prevent ribbon cable damage, maneuver along the right side.
  • Position a third opening pick alongside the initial one, on the lower edge, offset to the right.
  • Using a pick, carefully work it between the lower-right corner and along the right side of the rear glass to loosen the adhesive and free the metal clip.
  • Maintain the pick's position in the upper right corner to obstruct adhesive re-bonding.

Step 13 | Separate the top edge adhesive

Step 13 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Avoid pushing the tool beyond the specified depth.Three millimeters.To prevent damage to the spring contacts, maneuver along the upper border.
  • To detach the back glass, alternate between applying heat and gently sliding a separating tool along the upper perimeter, which will sever the adhesive bond and disengage the retaining clips.

Step 14 | Swing open the back glass

Step 14 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Before completely detaching the rear glass, be aware that it remains connected via a fragile ribbon cable.
  • Carefully work a pick around the edges to release any adhesive or clips that are preventing the rear glass from pivoting open.
  • Carefully raise the rear glass panel, pivoting it away from the device until it rests against the volume controls.
  • To prevent cable stress, use a rigid, non-contaminating support—such as a small box—to hold the rear glass in place.

Step 15 | Protect the rear camera

Step 15 image
  • To prevent contamination of the camera lens, apply polyimide (kapton) tape if available; otherwise, proceed with caution, avoiding any contact with the lens surface.
  • To protect the rear camera lens during subsequent work, cover it with a strip of polyimide tape.
  • Avoid applying pressure to the rear camera assembly.
  • To avoid damaging the delicate stabilization system, meticulously detach the adhesive tape while ensuring the rear camera remains undisturbed.

Step 16 | Remove the left connector cover

Step 16 image
Thumbnail 1
Thumbnail 2
  • Detach the component.Remove the single screw that holds the left connector cover in place.A Y000 tri-point screwdriver is needed to remove a screw measuring less than 1.1 millimeters in length.Ensure a single unit is present.A Y000 tri-point screwdriver is required to remove a screw measuring less than 1.0 millimeters in length.Using a 5/32-inch hex key, tighten the screw to a torque of 4.5 Nm, ensuring the component remains aligned.A JIS 00 screw, measuring 3.2 millimeters in length, is required.To avoid damaging the screws, utilize a JIS PH 00 driver from iFixit, or a comparable Phillips screwdriver from another brand, recognizing that alternative drivers carry a risk of stripping the screw heads.

Step 17

Step 17 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  • Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.To detach the cover, gently raise it to disengage the retaining hook, then remove it. When reattaching, position the cover's hook into the corresponding slot on the logic board at a diagonal, and subsequently flatten it into place.

Step 18 | Disconnect the battery

Step 18 image
Thumbnail 1
Thumbnail 2
  • Carefully insert the tip of a screwdriver to.Use a plastic pry tool to gently separate.Use a prying tool to release the battery press connector, then ensure proper alignment with its socket during reassembly before securing it with fingertip pressure or the flat end of a tool.Use a plastic pry tool to gently separate.Align the component, engaging it gently on one side initially, then the opposite side, ensuring proper seating until you hear a distinct click. Avoid applying excessive pressure.

Step 19 | Remove the right connector cover

Step 19 image
Thumbnail 1
Thumbnail 2
  • Using a screwdriver, detach the right connector cover by unscrewing its three fasteners—two located on the top edge and one on the bottom.Use a specialized Y000 tri-point screwdriver to remove screws measuring less than 1.1 millimeters in length.Employ a single unit.A JIS 00 screw, measuring no more than 2.8 millimeters in length, is required..

Step 20

Step 20 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

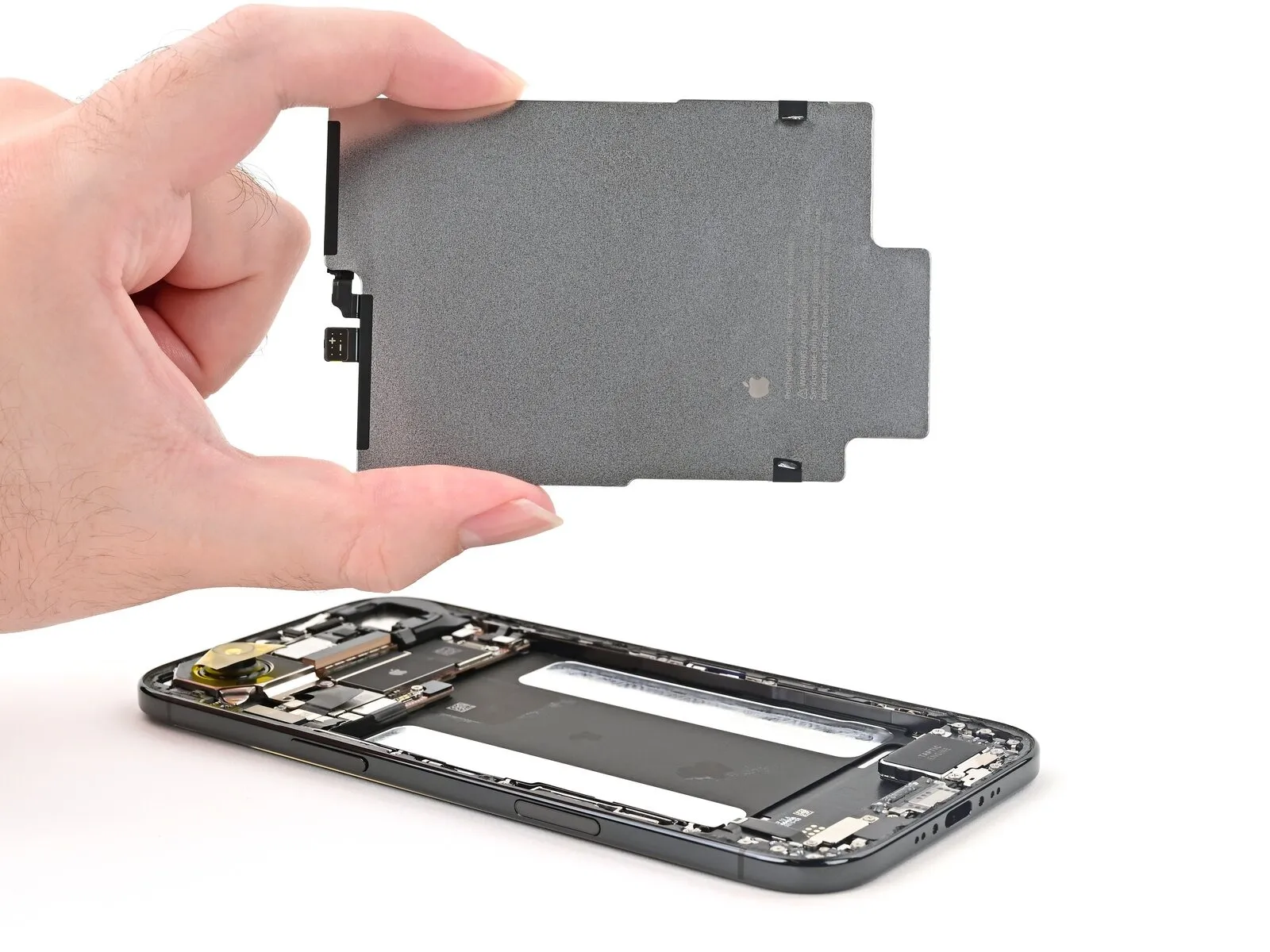

  • Employ the specified tool to perform the action.Employ fine-tipped pliers or similar precision instruments.To detach the cover, gently pry it upwards, disengaging the retaining hook, and then remove it. When reattaching, position the cover's hook into the corresponding slot on the logic board at a diagonal, ensuring it seats properly before flattening the cover.

Step 21 | Disconnect the back glass

Step 21 image
Thumbnail 1
Thumbnail 2

Carefully leverage a spudger to release and detach theConnect the press connector to the flash and wireless charging coil..

Step 22 | Remove the back glass

Step 22 image
Thumbnail 1
Thumbnail 2
  • Carefully detach the rear glass panel, ensuring no damage to surrounding components.
  • Using these instructions, you can substitute the existing adhesive and secure the rear glass assembly.

Step 23 | Assemble the VoltClip

Step 23 image
Thumbnail 1
Thumbnail 2

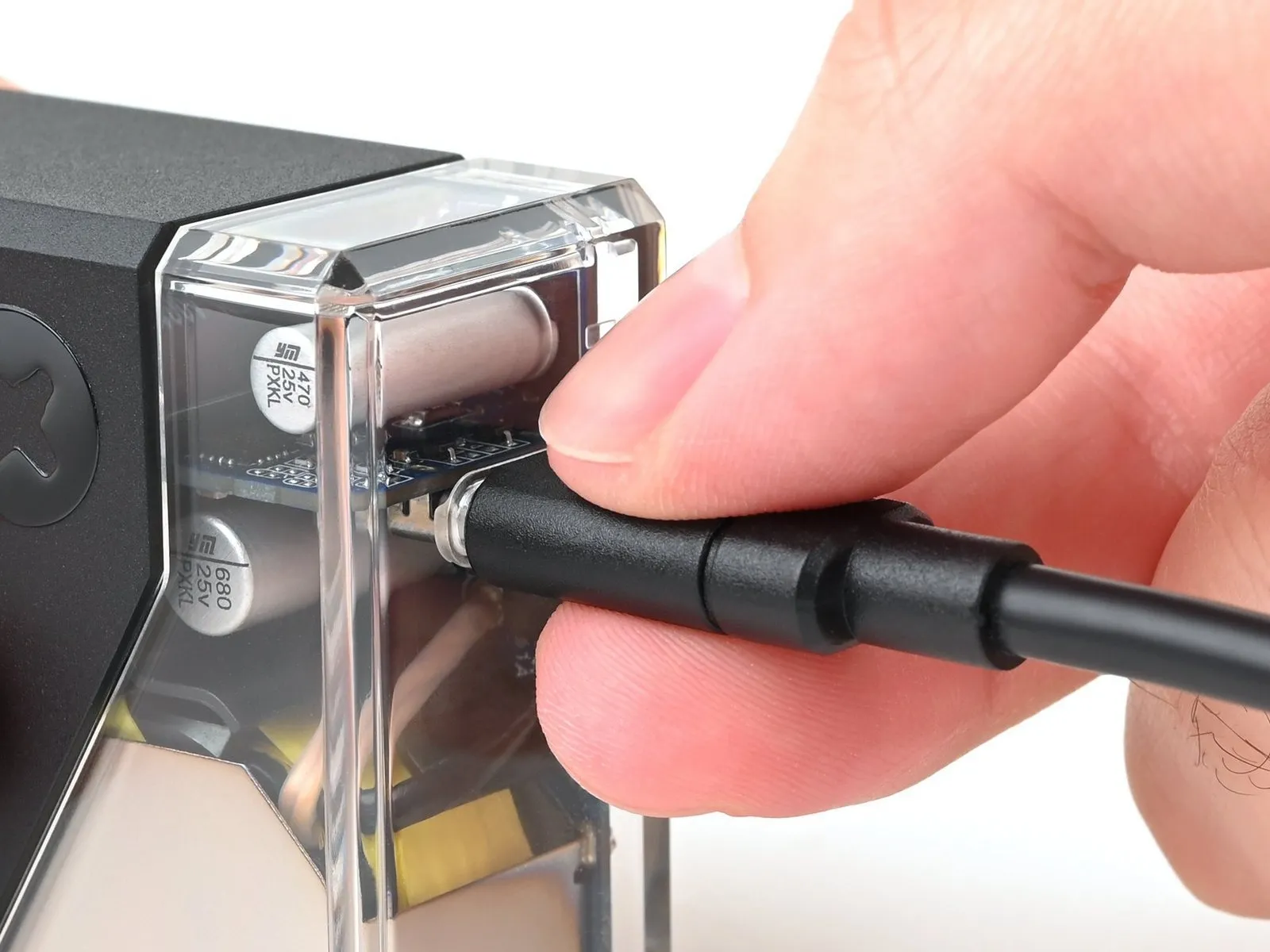

Connect the barrel connector of the VoltClip directly to the USB-C elbow.
To avoid unintended electrical faults, refrain from attaching the VoltClip to any power supply at this stage.

Step 24 | Peel up the silver tab

Step 24 image
Thumbnail 1
Thumbnail 2

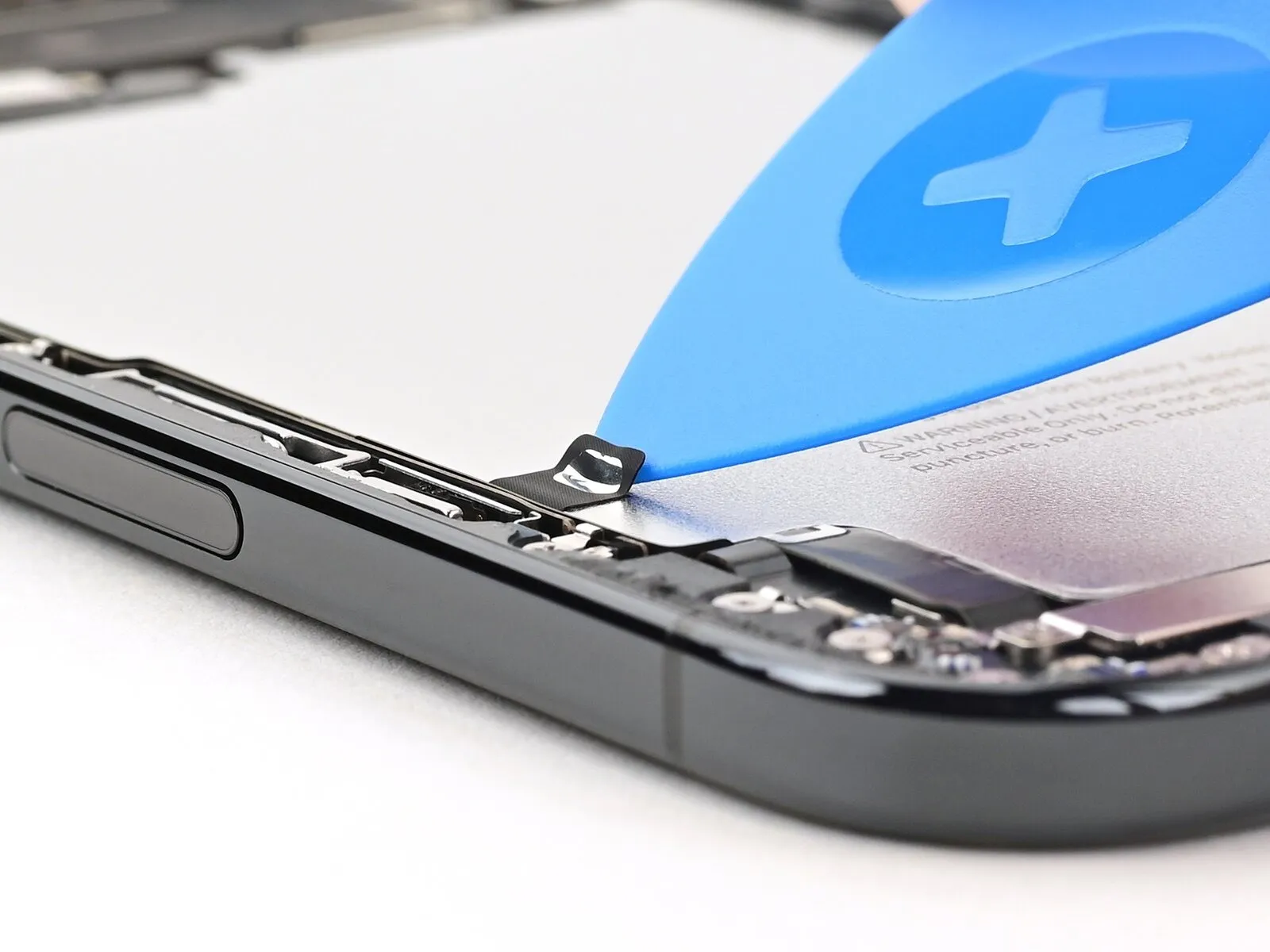

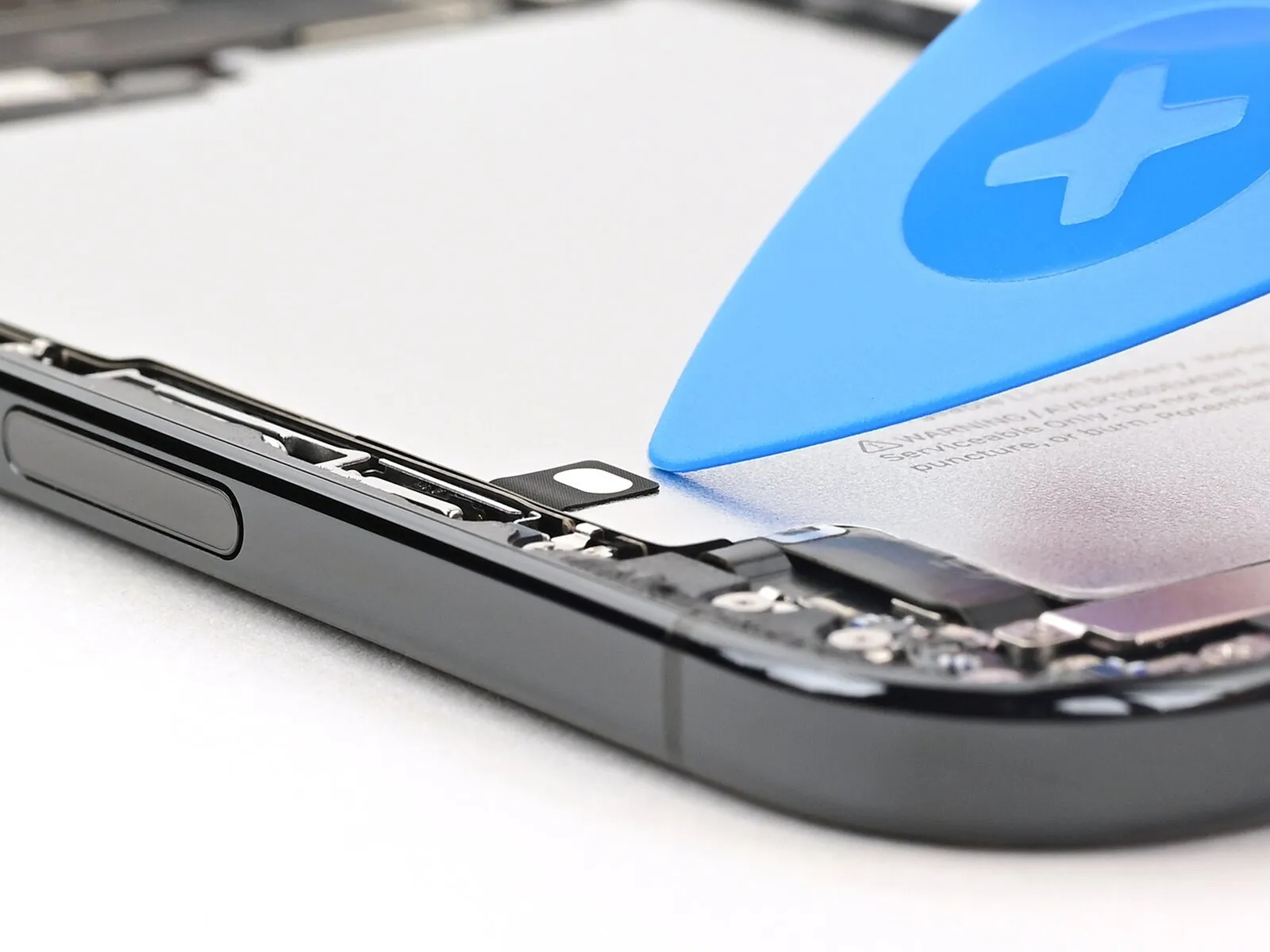

  • Carefully lift a corner of one of the battery's silver tabs using a clean fingernail or a specialized opening tool.

Step 25 | Attach the alligator clips

Step 25 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

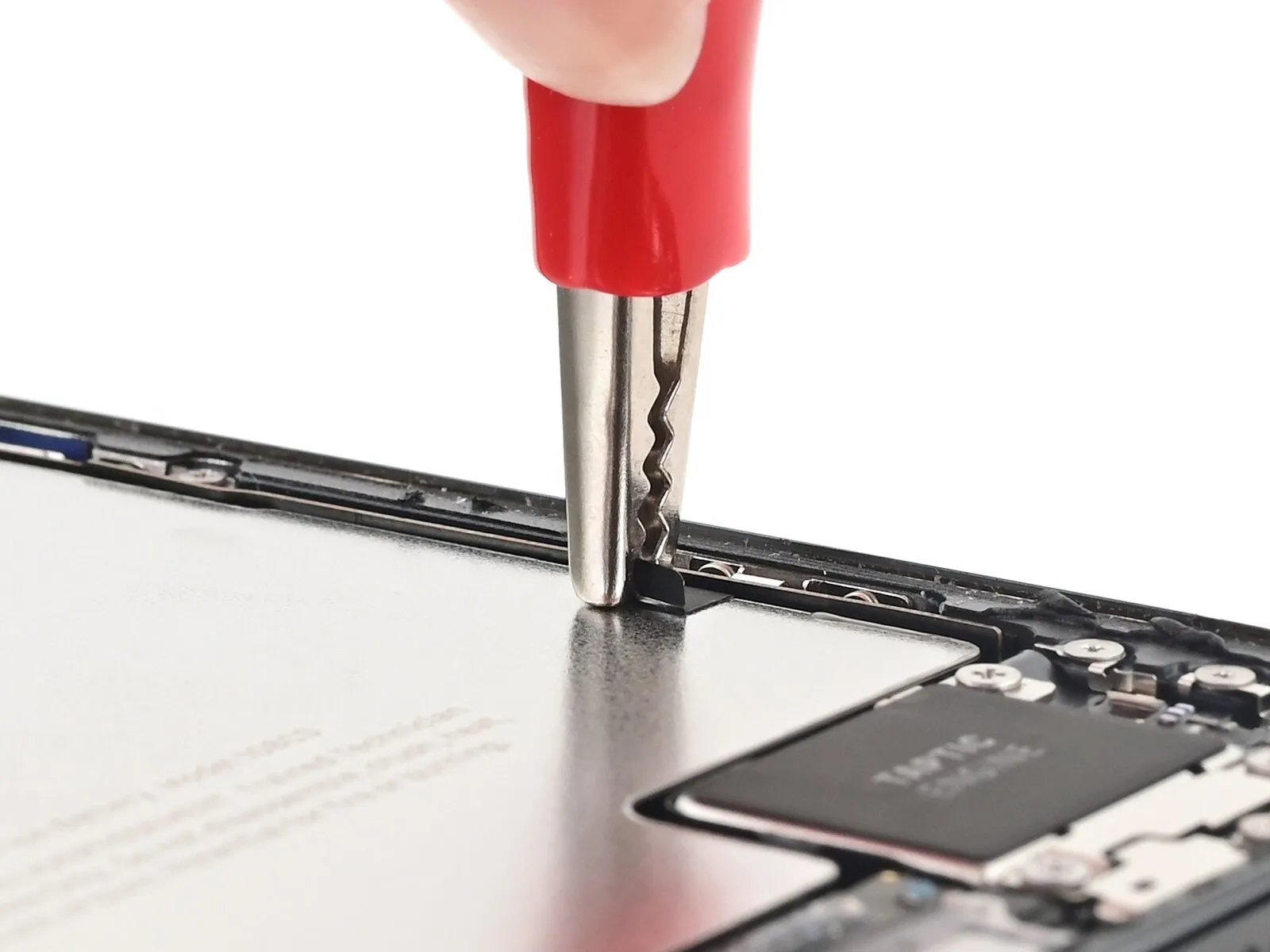

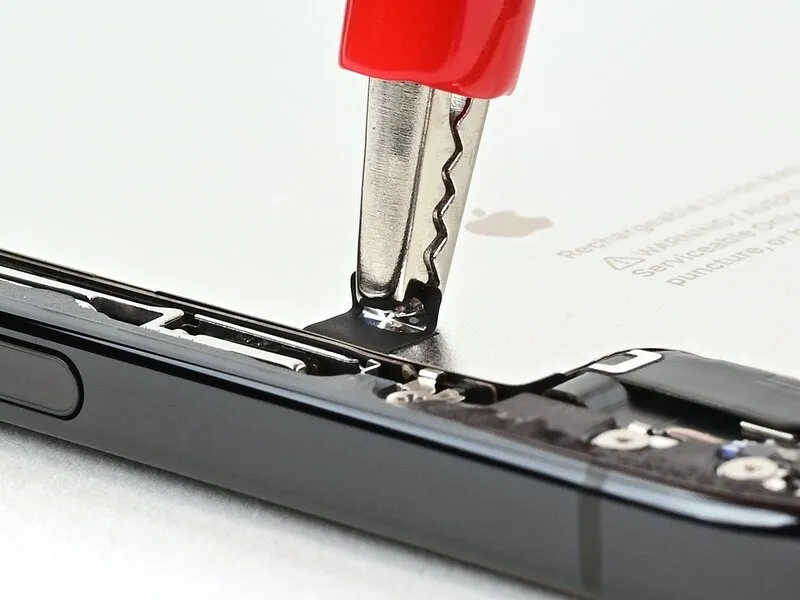

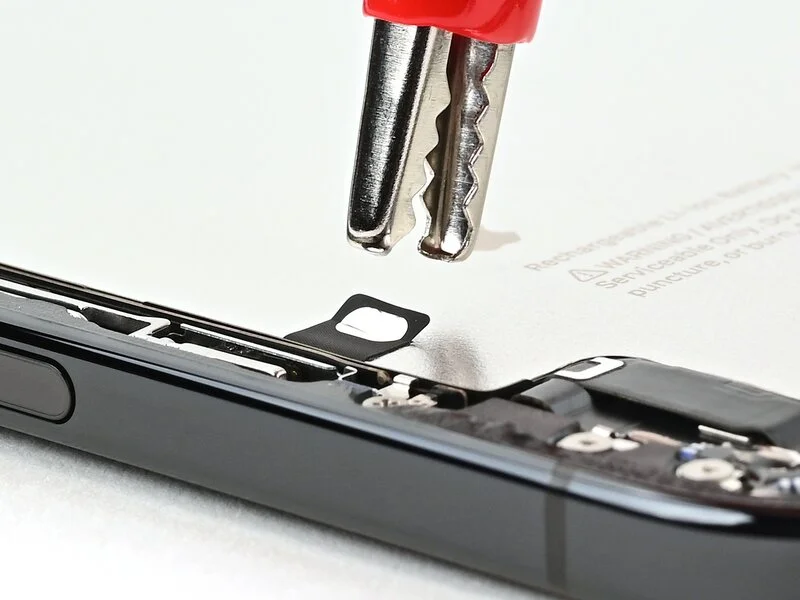

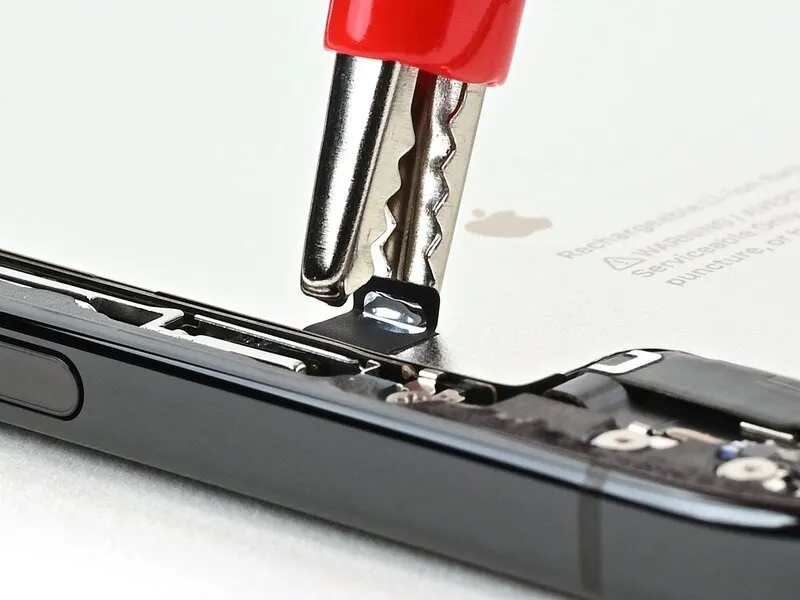

  • Securely fasten theA clip featuring an alligator jaw design and a red exterior.Raise the component.A metallic strip coated with silver.Apply pressure directly to the battery surface.

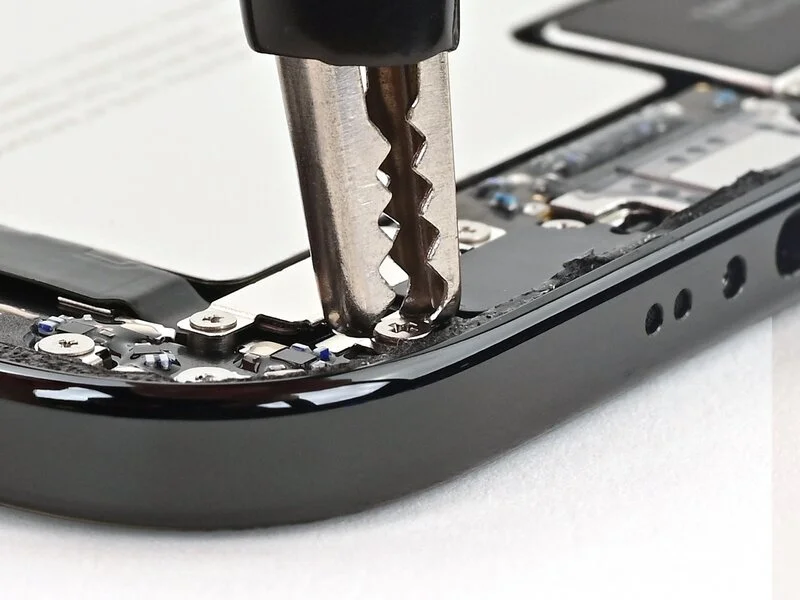

  • Secure theA clip made of black alligator material.Secure the connection to the grounding screw, which is located on the left-hand side of the lower edge.

Step 26 | Connect power to the VoltClip

Step 26 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Confirm the firm connection of the red alligator clip.Should the black alligator clip become detached, first unplug the USB-C cable, then firmly reattach the clip, and attempt the procedure once more.
  2. Establish an electrical connection between theA 90-degree USB-C connector.Connect the device to power and allow a 90-second period for the adhesive to soften.

Step 27 | Disconnect the VoltClip

Step 27 image
Thumbnail 1
Thumbnail 2
Thumbnail 3
  1. Detach the USB-C cable from the elbow joint, subsequently releasing the alligator clips.

Step 28 | Loosen the second strip

Step 28 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

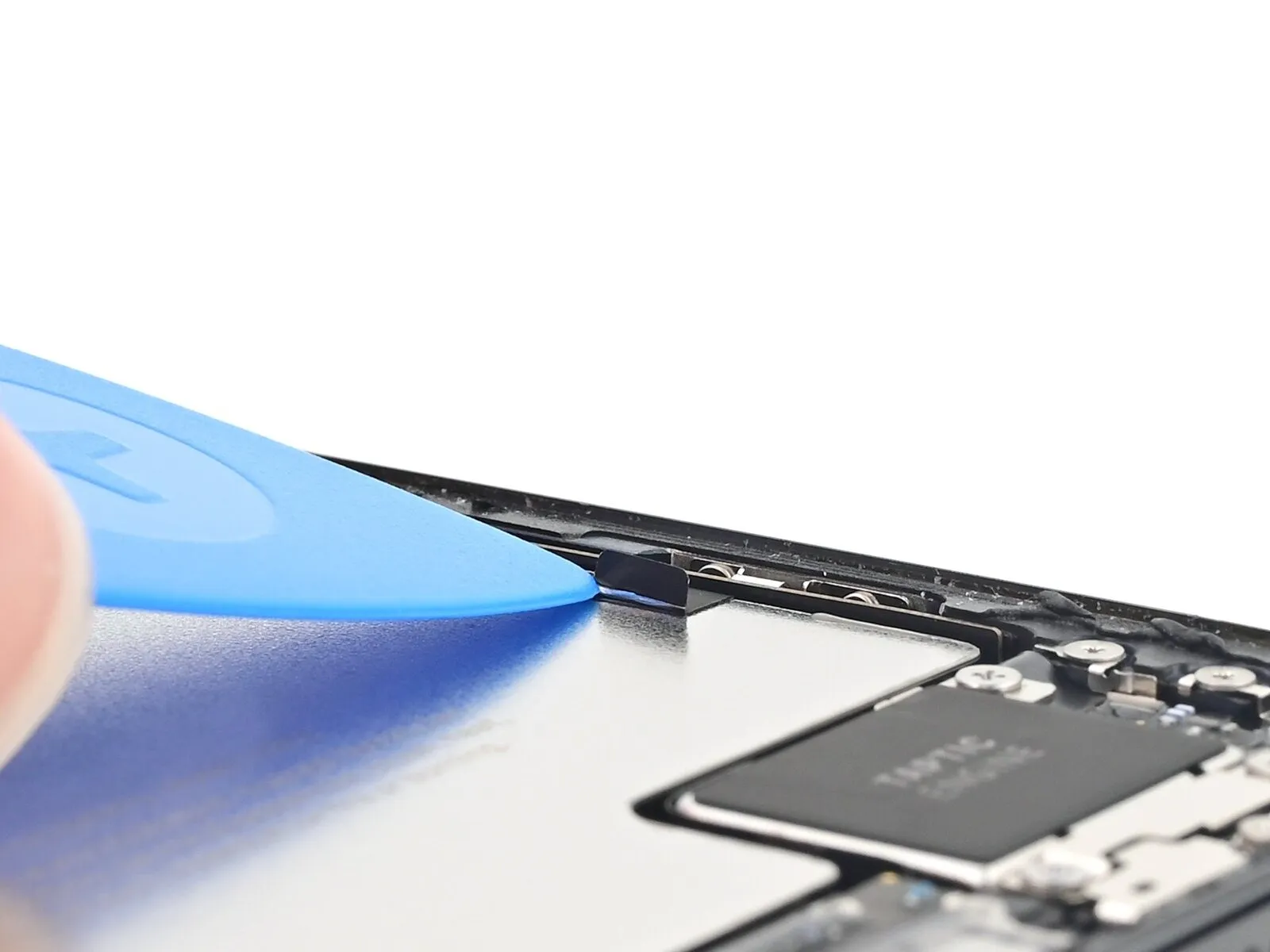

  1. Perform the same steps again for the remaining component.A metallic strip, typically composed of silver, is present.Carefully release the tension on the second adhesive strip.

Step 29 | Remove the battery

Step 29 image
Thumbnail 1
Thumbnail 2
Thumbnail 3

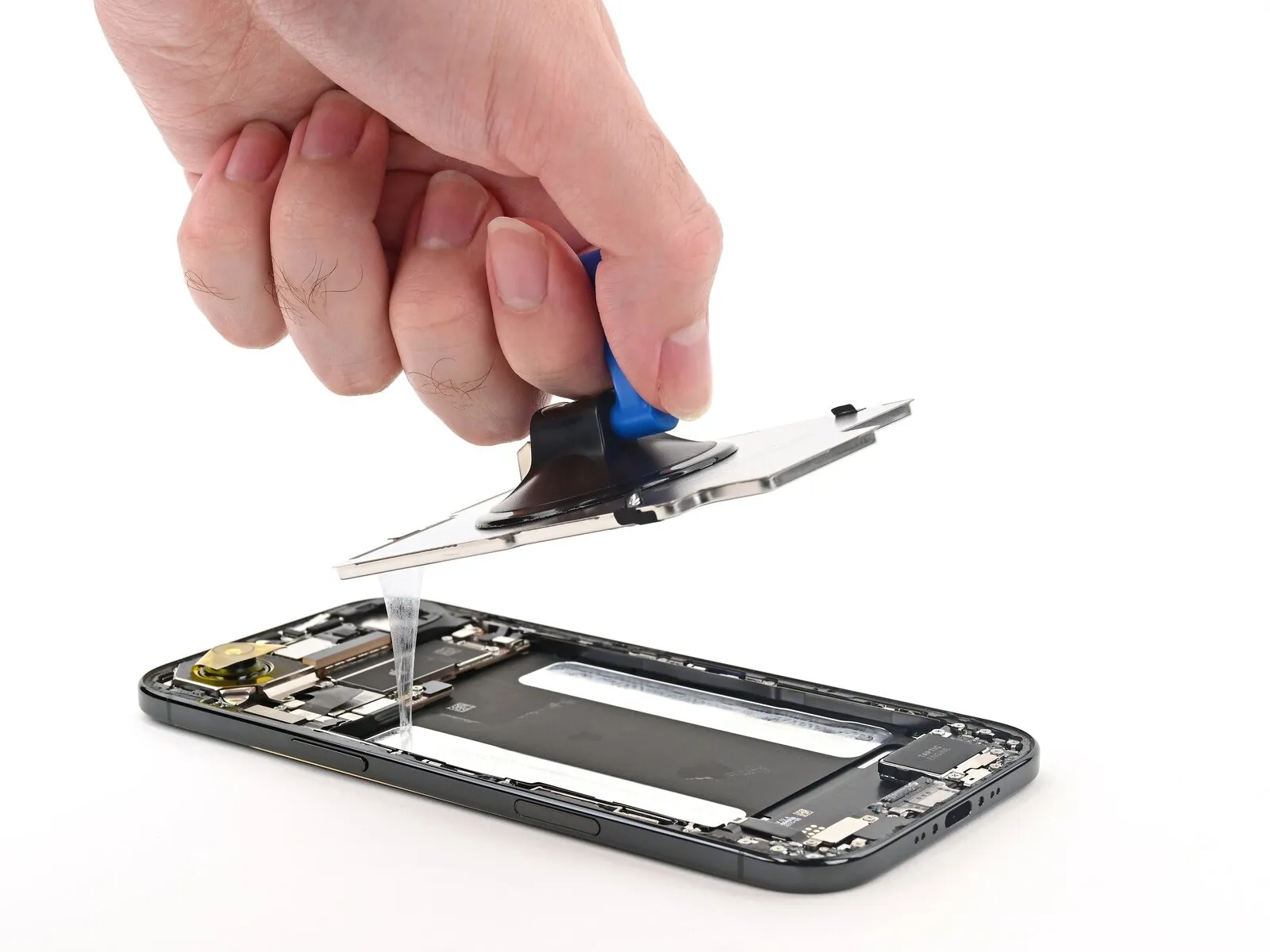

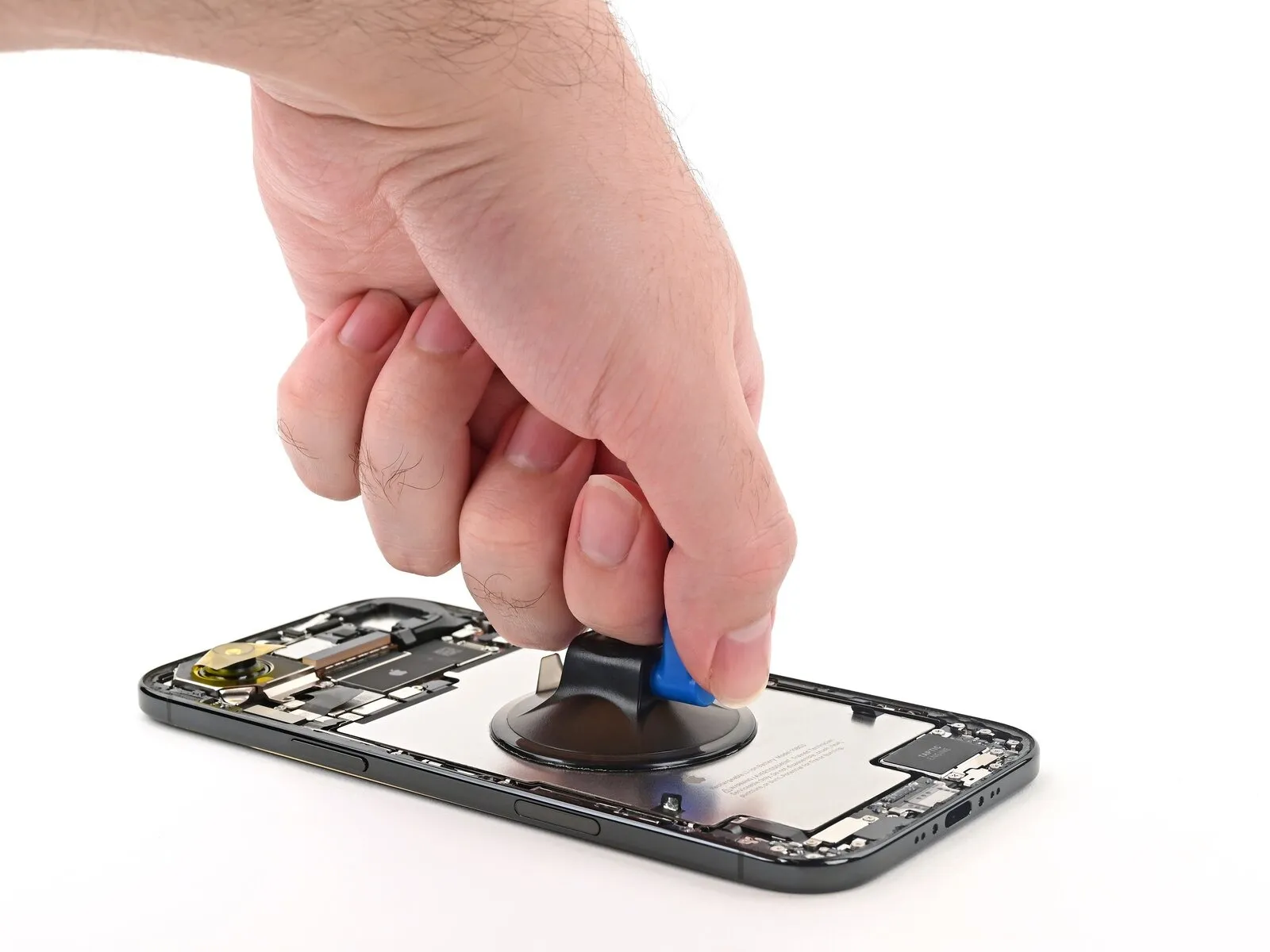

  • Using a suction tool, gently raise the battery from its position by applying even pressure until it disengages.
  • To facilitate battery removal, apply power via the VoltClip to each adhesive strip for a full minute if necessary.
  • To ensure proper attachment during reassembly, apply adhesive to the replacement battery if it wasn't factory-applied, adhering to the instructions provided. Subsequently, use the same instructions to secure the back glass.
