iPhone 8 Disassembly - iPhone 8

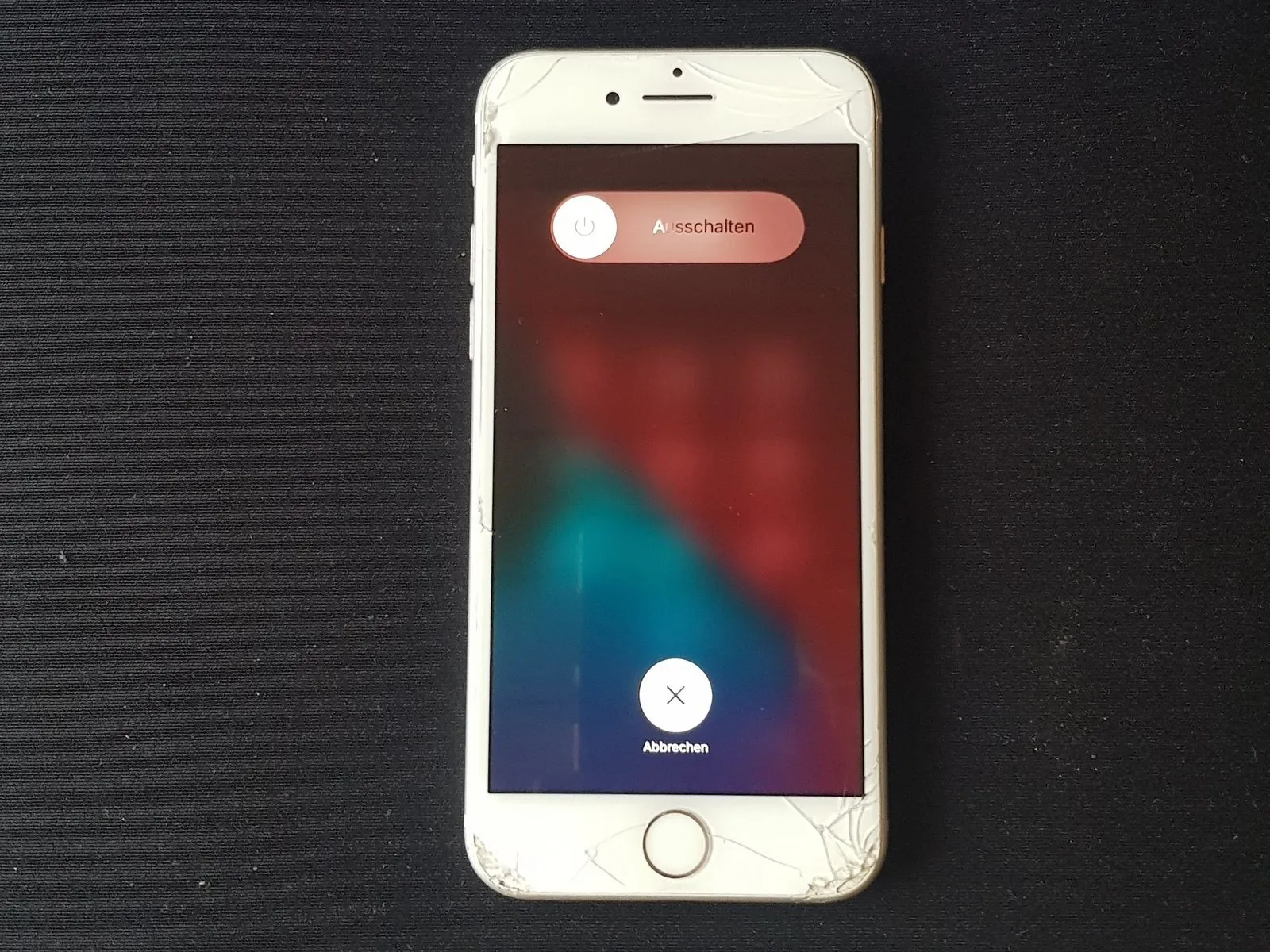

Step 1 | Power Off

Deactivate the equipment's power supply to prevent potential harm while taking it apart.Disassembly procedures should only be performed after the device is completely powered down, safeguarding it from possible damage.

Step 2 | Unscrew

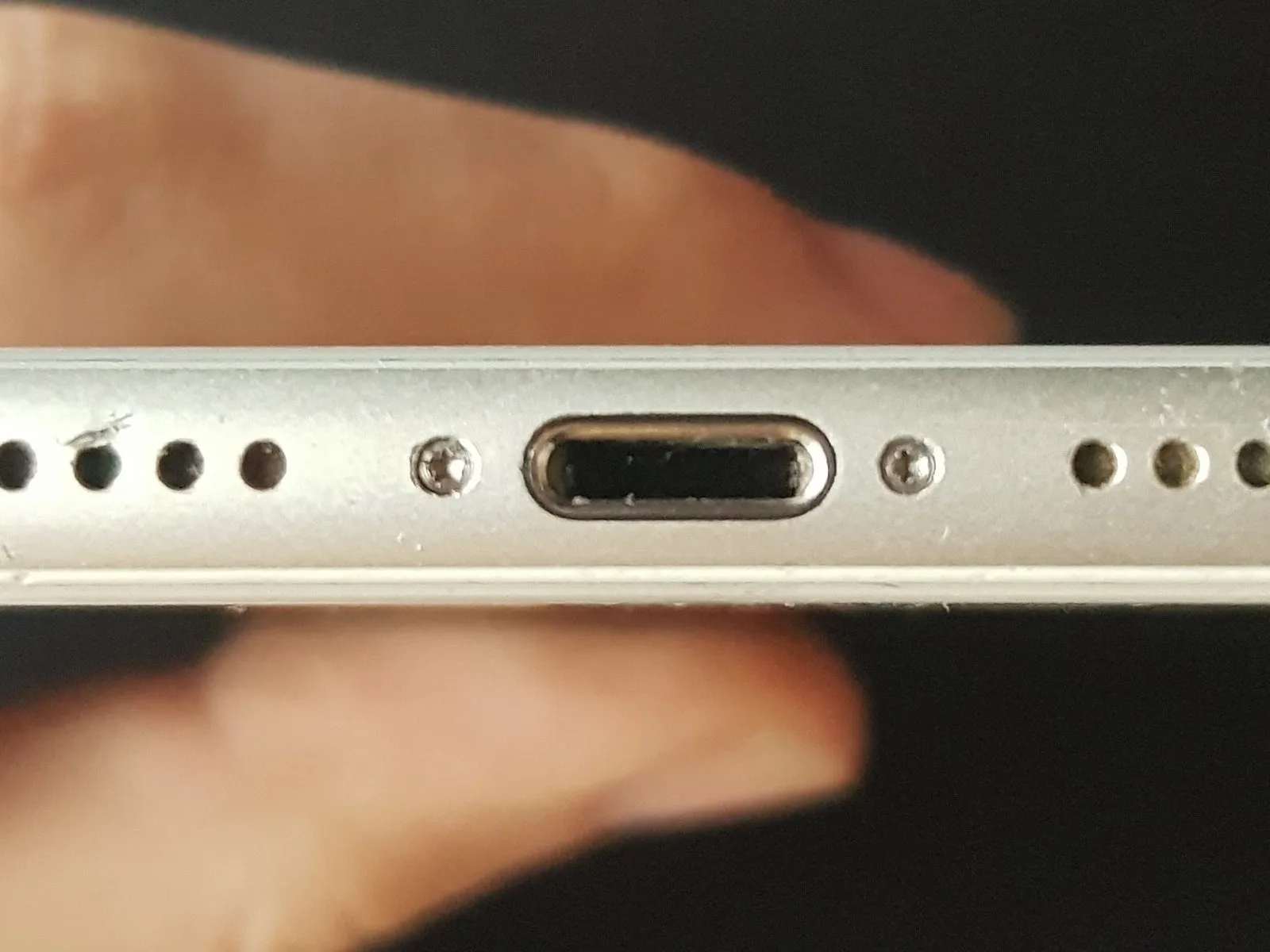

Employing an appropriately sized screwdriver, detach the two screws situated on either side of the combined charging and headphone port.

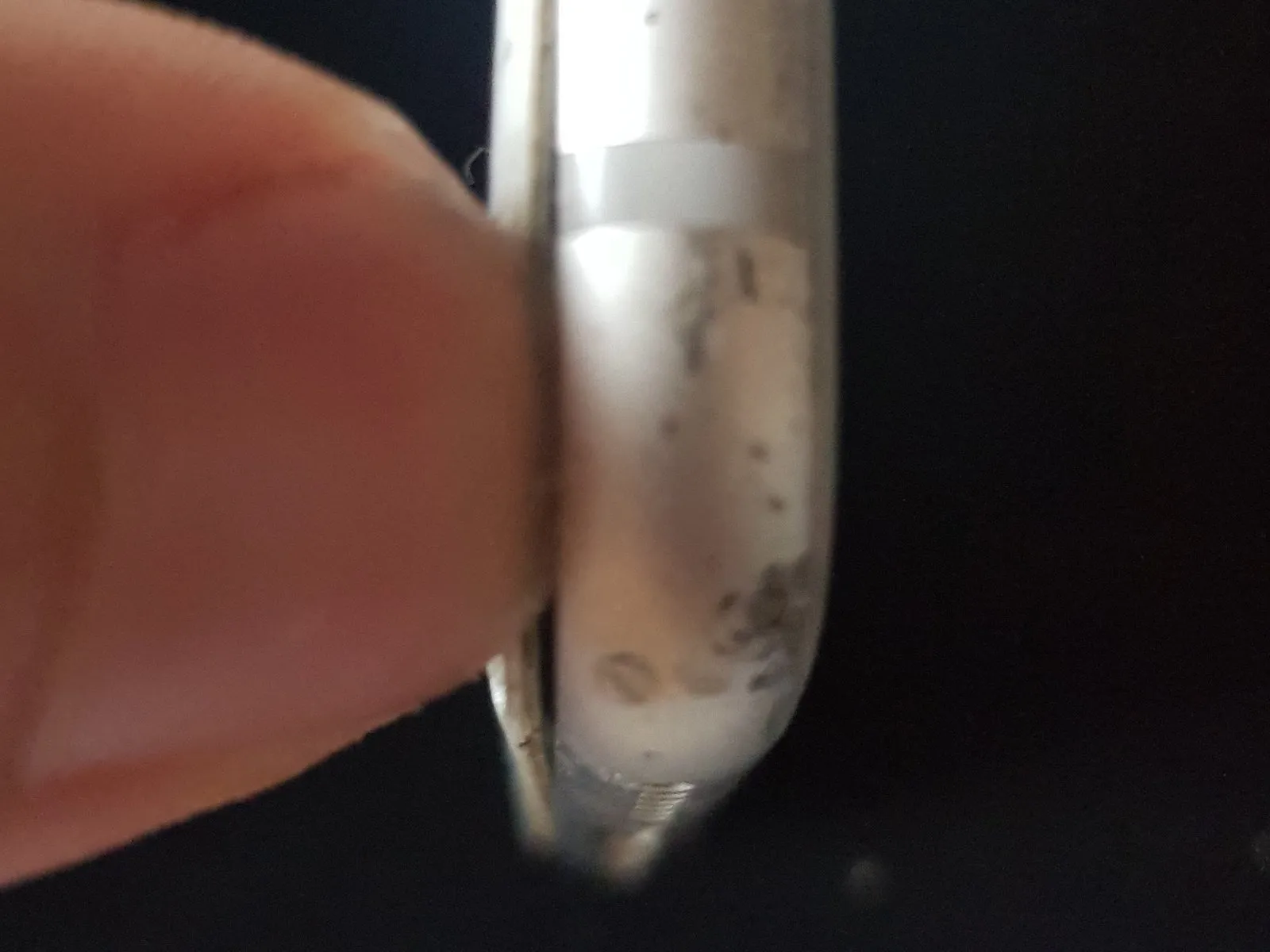

Step 3 | Loosen the display

Using a specialized opening tool, or carefully with a fingernail, gently separate the iPhone's exterior casing by working along its perimeter, beginning at a corner, to release the adhesive and securing clips.

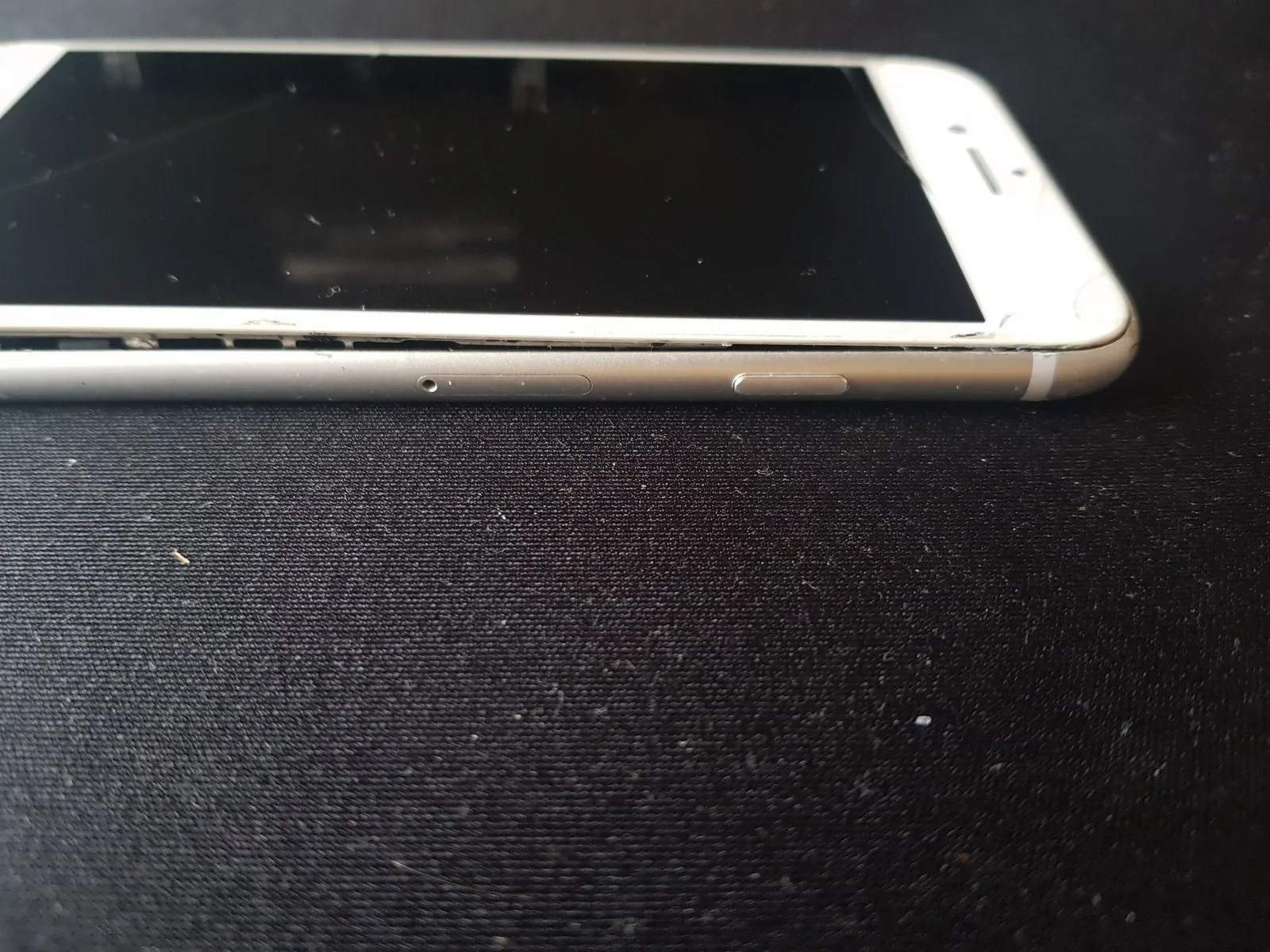

Following this initial separation, the display panel ought to rest slightly detached from the chassis, creating an approximate 2mm space.

Caution:Exercise meticulous care when applying force to lift the screen assembly, particularly at the top edge, as the display remains affixed to the frame at this point.

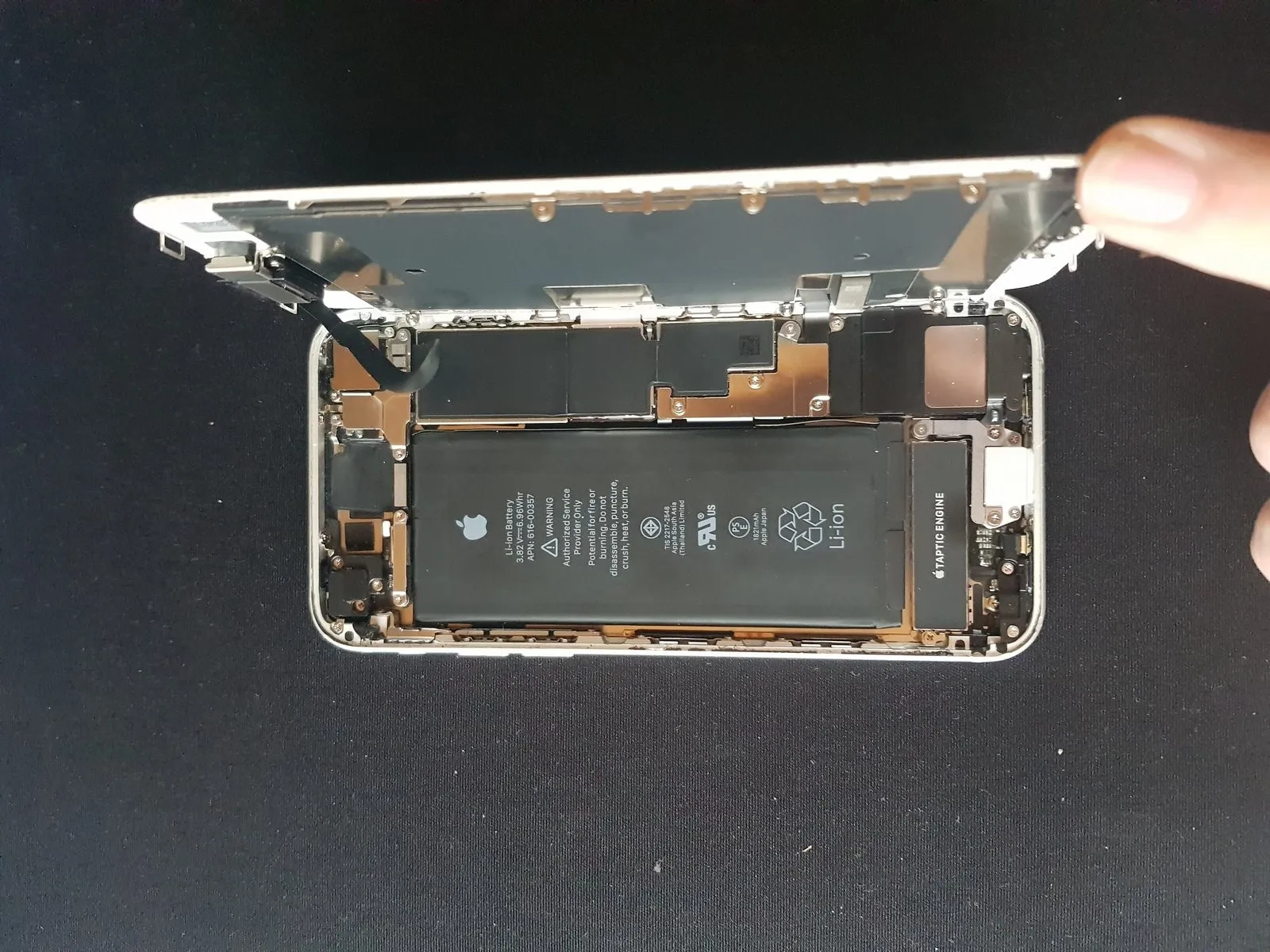

Step 4 | Open the cell phone

Proceed with opening the display assembly on the left-hand side.Caution:Limit the opening angle to a maximum of 90 degrees to prevent damage to the display's ribbon cable connectors.

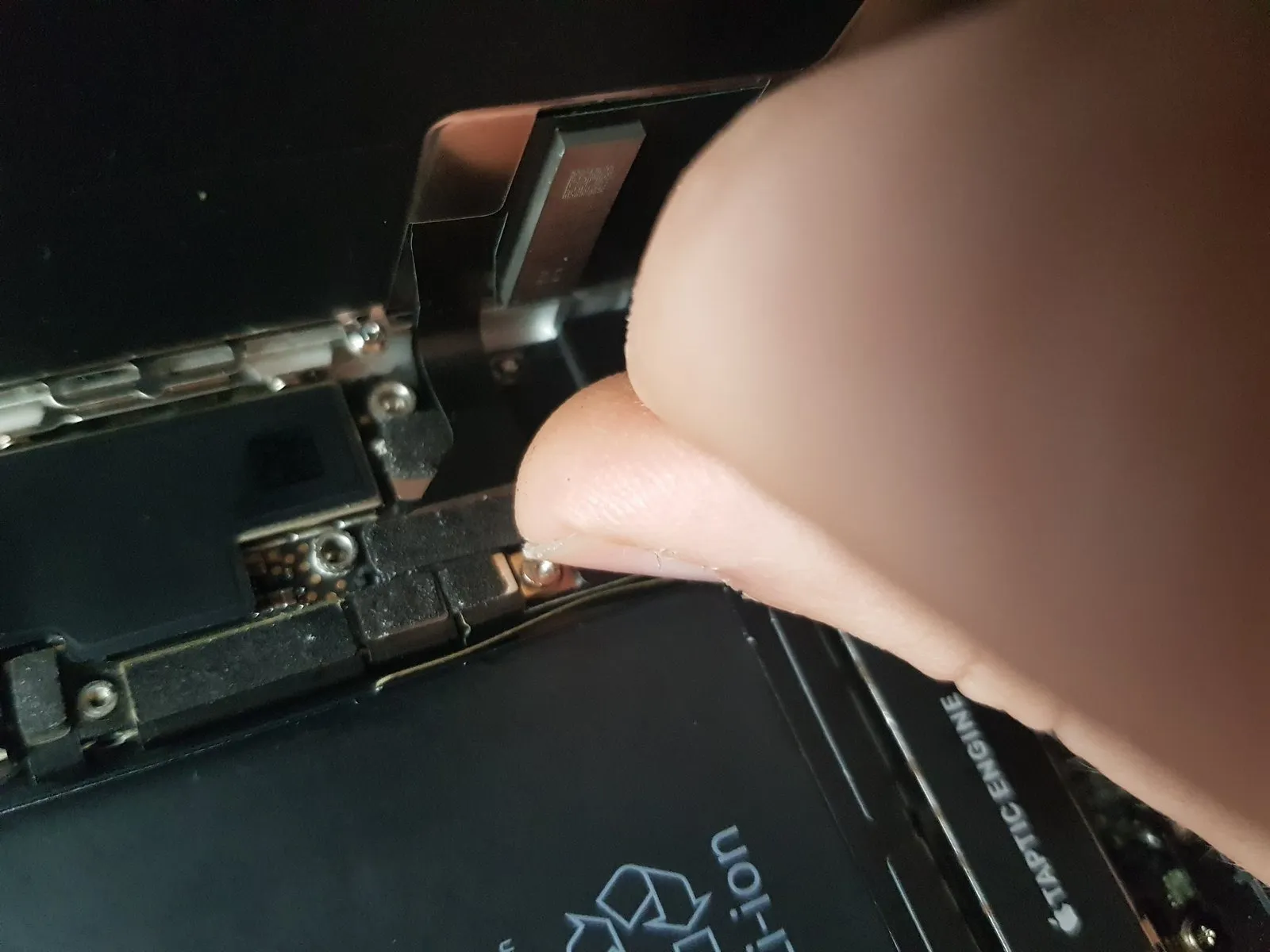

Step 5 | Detach the display cable

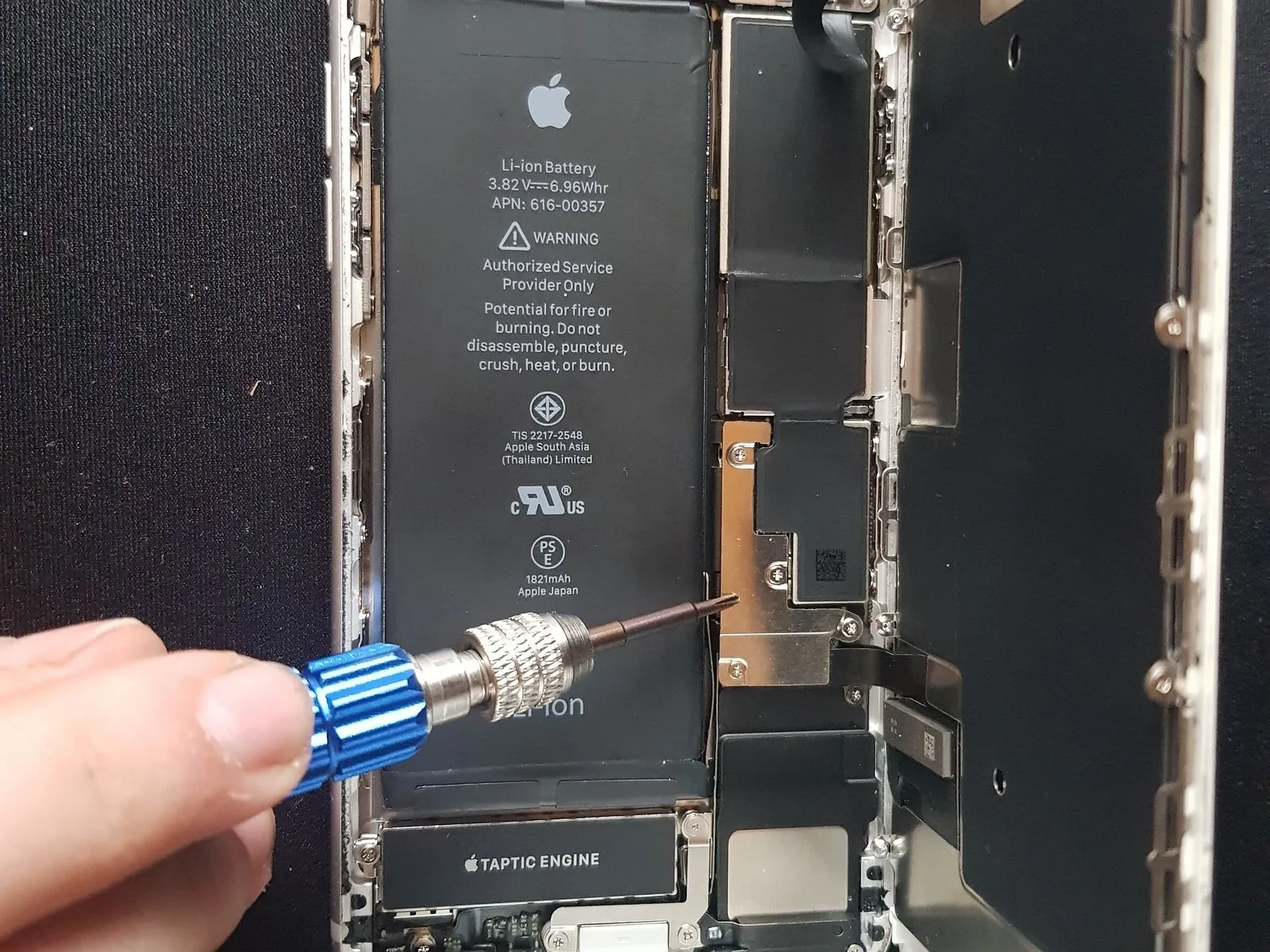

Located beneath this sheet of metal reside the phone's essential wiring harnesses.The sheet is secured using four minuscule Phillips screws.Following the removal of the sheet, gently detach the two display cable connectors from their positions on the circuit board by leveraging your fingernail.

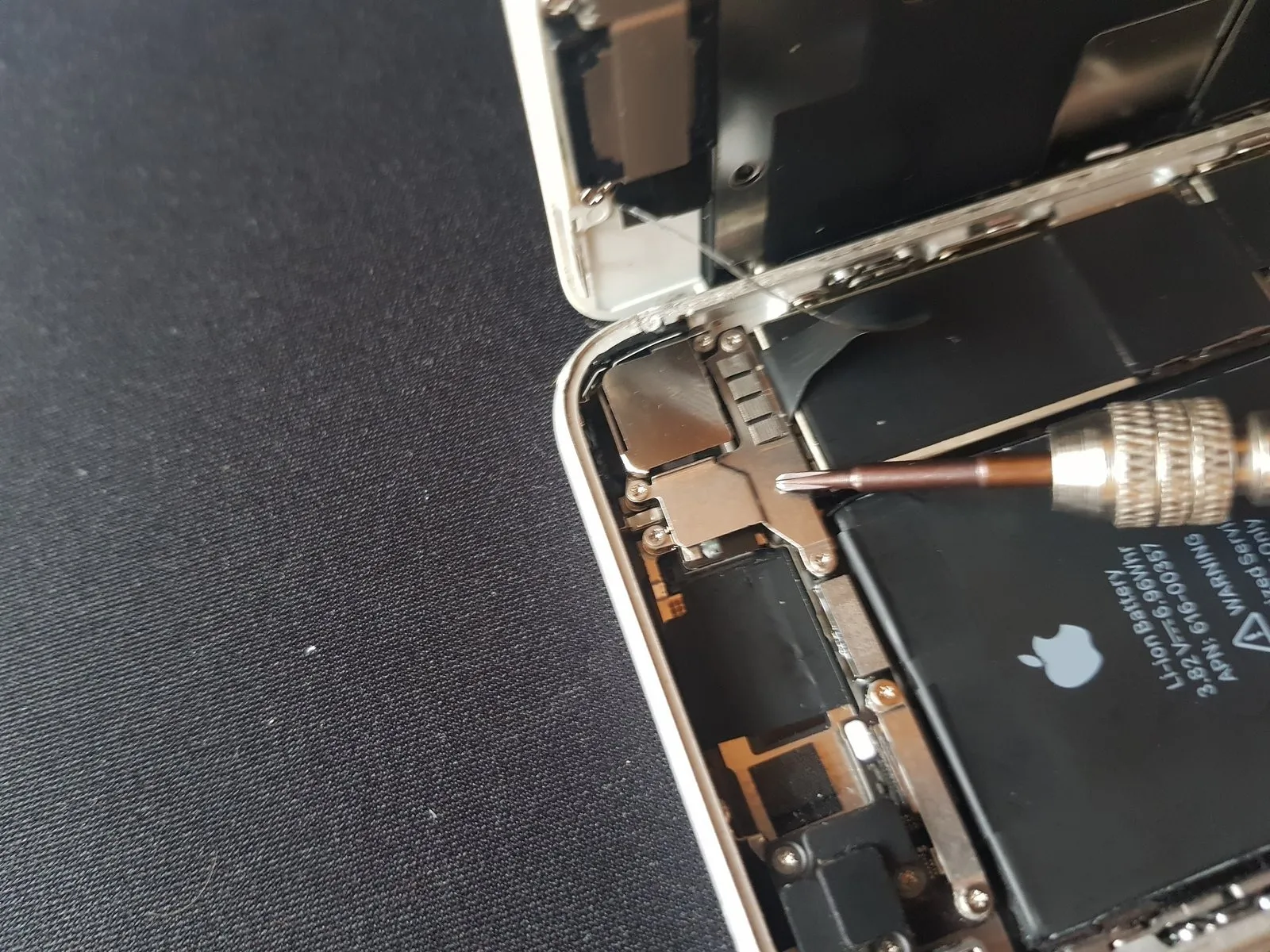

Step 6 | Detach the second display cable

Beneath this protective covering, you will find the wiring harnesses connecting the speaker/front-facing camera and the primary camera. To facilitate complete display detachment, initially disconnect the front camera cable.

Step 7 | Remove Camera and Bluetooth Antenna

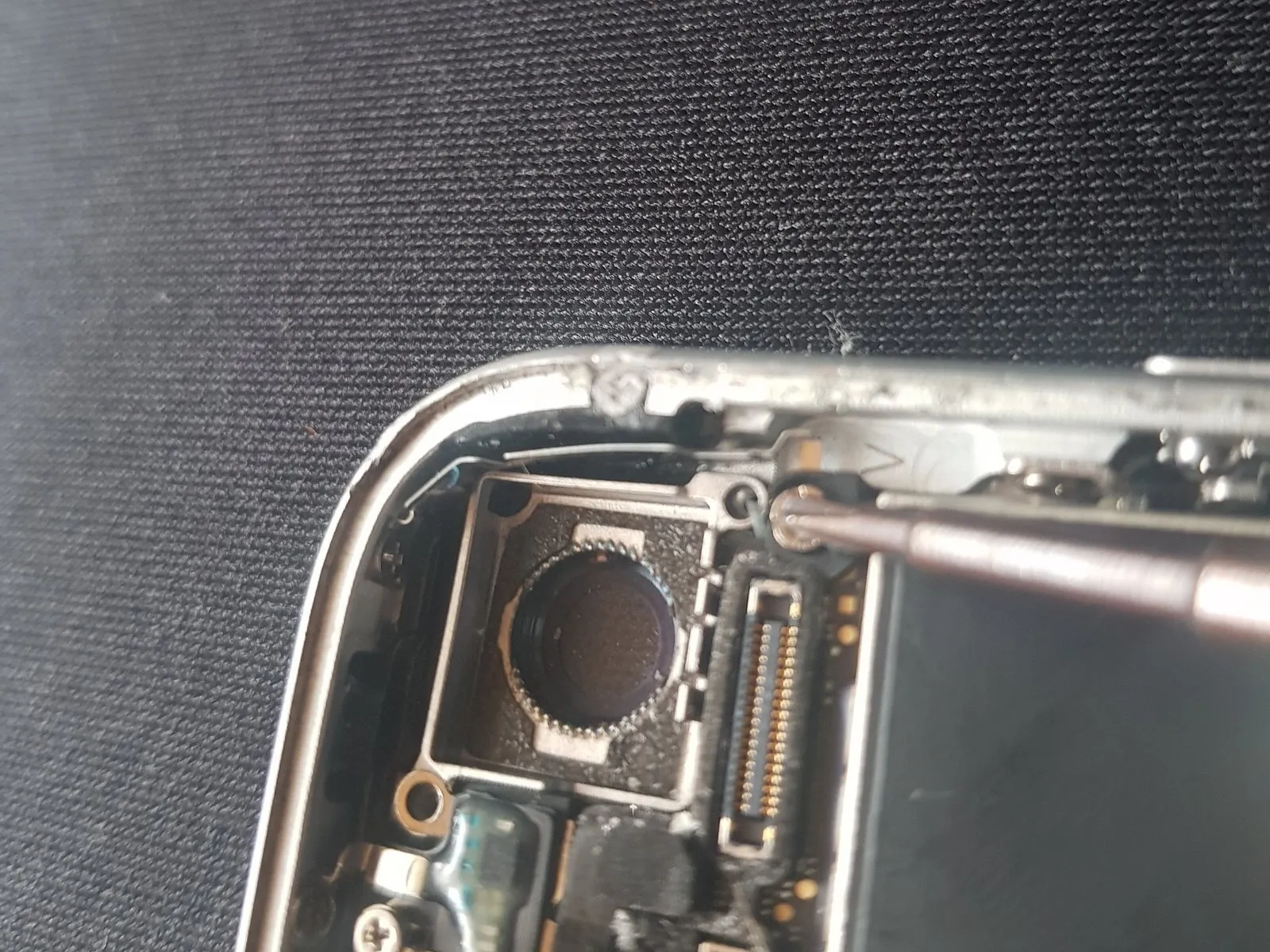

This sheet metal cover shields the camera component, positioning it beneath its surface.Two screws maintain the sheet metal's position.Once the sheet metal is detached, disconnect the camera's cable and then extract the camera itself.
The Bluetooth antenna's design incorporates a curved shape, fitting into the phone's corner.A screw fastens the antenna to the phone's housing.An additional screw secures the antenna to the circuit board.This second screw provides further stability for the antenna.

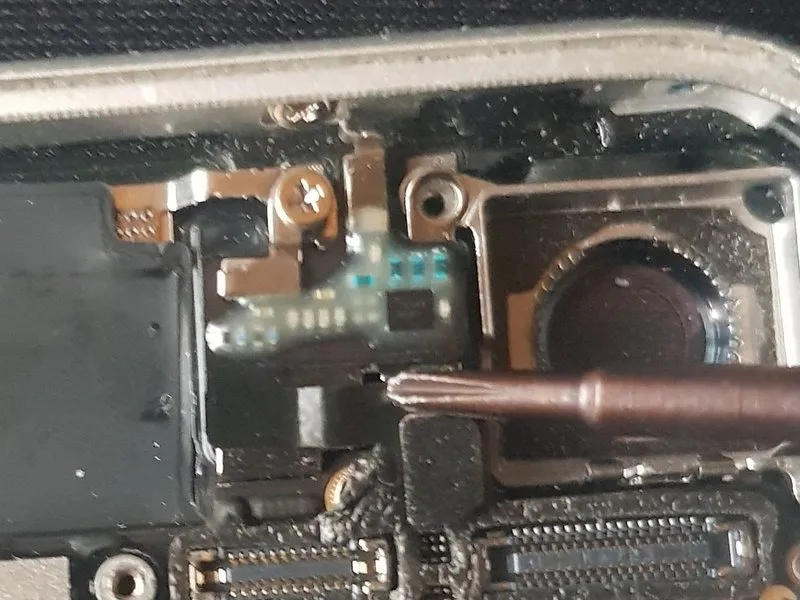

Step 8 | Removing the rear microphone

A fastener secures the microphone to the enclosure's body, utilizing a screw.The securing fastener is a screw.Another screw fastens the microphone to the rear panel.This second fastener is also a screw.Removal of both screws is necessary for disassembly; be aware that adhesive is also used to affix the microphone.

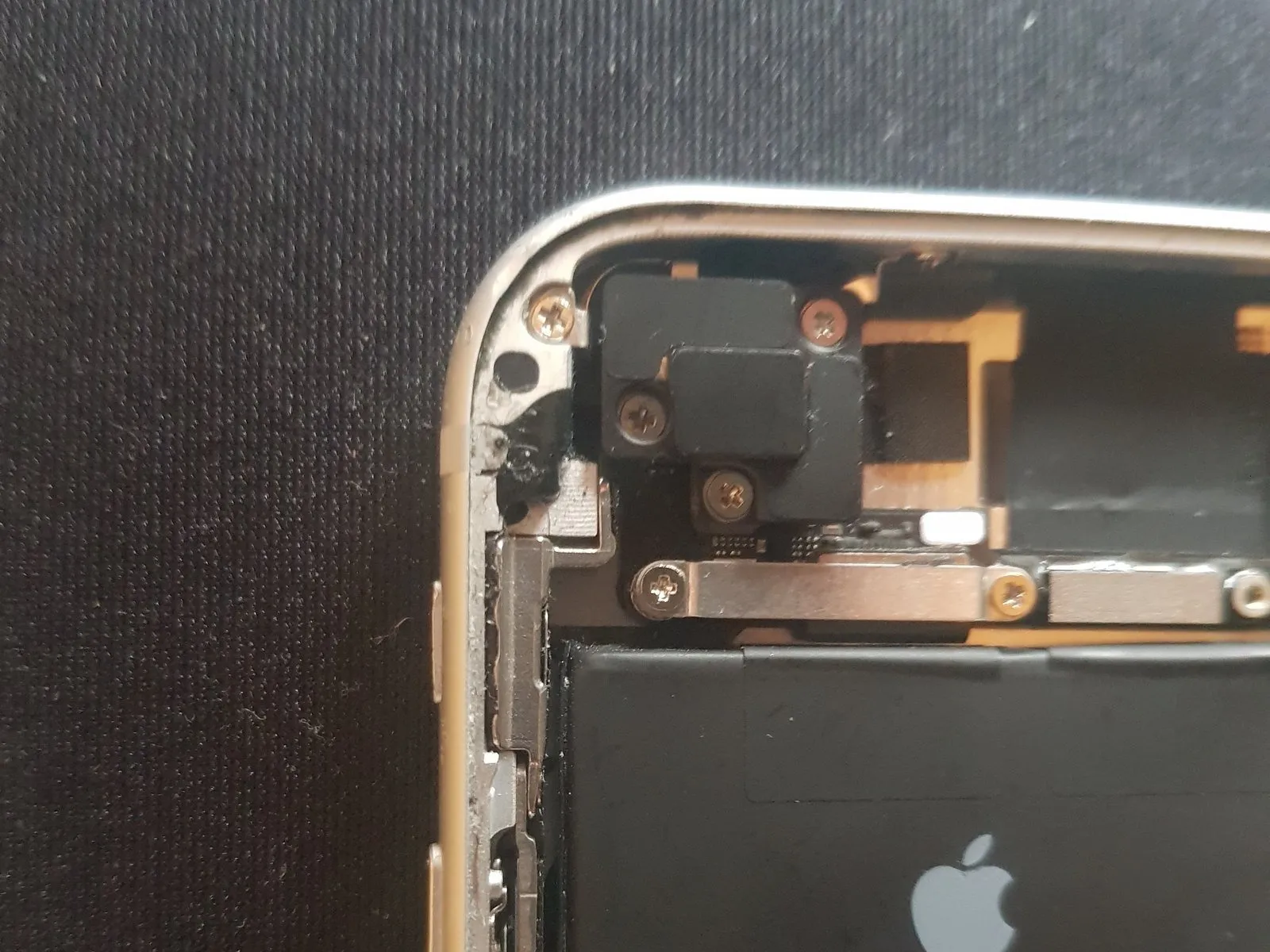

Step 9 | Remove NFC Cover

Proceed to detach the NFC device's protective cover. Once the cover is removed, the circuit board remains secured solely by

three screws

.
