iPhone 7 Volume Control Buttons Replacement

• To ensure safety prior to commencing the repair, allow the iPhone's battery to deplete to a level below 25%.A fully charged lithium-ion batterypresents a risk of ignition and/or forceful rupture if inadvertently damaged.
• Deactivate the iPhone's power supply before initiating the disassembly process.
• Utilize a tool to extract the pair of 3.4 mm pentalobe screws located along the iPhone's lower edge.
• Separating the iPhone's display assembly will negatively impact its water resistance capabilities; therefore, prepare replacement seals beforehand, or exercise extreme caution to prevent moisture contact if reassembling the iPhone without new seals.

• To avoid potential harm to your device, ensure the opening pick isn't inserted beyond its intended depth; this procedure will help you identify a safe insertion point.
• Determine the distance of3 mmfrom the pick's leading edge, then use a permanent marker to create a visible indicator on the opening pick.
• For added precision, consider marking the pick's other corners with varying measurements to suit different needs.
• As another option, affix a coin to the pick's shaft,3 mmaway from its tip.

The following three procedures illustrate the function of the Anti-Clamp, a specialized tool developed to simplify the initial opening process; should you choose not to utilize this tool, proceed past three steps to an alternative approach.

Detailed instructions regarding the Anti-Clamp's operation can be found in a separate, dedicated guide.

• To release the Anti-Clamp's gripping arms, retract the blue handle towards the rear.
• Position the arms across either the left or right side of your iPhone.
• Place the suction cups close to the lower edge of the iPhone, situated directly above the home button—one on the front face and one on the rear.
• Apply pressure by compressing the cups together to create a secure vacuum seal on the intended surface.
• Should the iPhone's surface prove excessively slick, preventing adequate adhesion by the Anti-Clamp, applying adhesive tape can provide a more textured interface for improved grip.

• To secure the arms, advance the blue handle in its direction.
• Rotate the handle in a clockwise direction,covering a full circle of 360 degrees,or continue turning until the suction cups begin to expand.
• Maintain the proper positioning of the suction cups relative to one another; should they become misaligned, slightly release the suction cups and readjust the arms.

• Employ a heating device to warm aniOpenerand carefully guide it between the arms of theAnti-Clamp.
• Alternative heat sources, such as a hair dryer, heat gun, or hot plate, are acceptable; however, exercise caution as excessive temperatures may compromise the display or internal battery.
• Position theiOpenerin a folded position, resting against the lower edge of the iPhone.
• Allow a period of sixty seconds to permit the adhesive to soften and create a separation.
• Introduce an opening pick into the newly formed gap.
• Should theAnti-Clamp fail to generate an adequate separation, increase the heat applied to the area and rotate the handle by ninety degrees.
• Avoid excessive rotation, limiting adjustments to ninety-degree increments, and allow sixty seconds between each rotation. Rely on theAnti-Clampand time to facilitate the separation.

The following three procedures detail the process of detaching the display assembly with the aid of a suction cup.

Applying heat to the bottom edge of the iPhone facilitates the loosening of the adhesive bonds holding the display in place, which simplifies the separation process.

Employ a hairdryer, or alternatively, prepare aniOpenerand apply it to the lower edge of the device for approximately 90 seconds to reduce the adhesive's tackiness.

Securely affix a suction cup to the bottom portion of the front panel, positioning it directly over the home button area.

Ensure the suction cup's surface remains clear of the home button's location to guarantee a complete and airtight bond between the cup and the glass.

Apply steady, consistent upward force to the suction cup to generate a small separation between the display assembly and the device's surrounding structure.

Carefully slide an opening tool into the newly formed space.

Due to the robust nature of the waterproof sealant securing the display, establishing this initial separation requires considerable effort; should you encounter difficulty, apply additional heat and gently oscillate the display in an upward and downward motion to reduce the adhesive's strength, facilitating the creation of a sufficient gap for tool insertion.

• Begin separating the phone's display by inserting a prying tool beneath the left edge, initiating at the bottom and progressing towards the volume controls and the silent switch, to sever the adhesive securing the display.
• Cease the separation process in the vicinity of the display's upper-left corner.
• Refrain from attempting to disengage the display's top edge from the rear casing, because it is fastened with fragile plastic clips that are susceptible to breakage.

Along the right side of your iPhone, you'll find sensitive wiring; avoid inserting any tools in this area to prevent potential cable damage.

• To release the adhesive, carefully reposition your tool at the lower-right edge of the iPhone, then maneuver it along the corner and up the right side, sliding to detach the adhesive.
• Ensure your tool does not penetrate beyond 3 mm, to prevent potential harm to the delicate display cable connections.

• Carefully elevate the display's lower border by applying upward force to the suction cup.
• Avoid lifting the display beyond an angle of15 degreesas exceeding this limit could potentially damage or sever the flexible ribbon cables that provide the display's electrical connections.
• Detach the suction cup from the front panel by grasping and pulling on the small protrusion located on its surface.

• Initiate the iPhone's disassembly process by pivoting the screen upwards, originating from the left edge, employing a motion similar to opening a book's cover.
• Refrain from completely disconnecting the display assembly at this stage, because multiple delicate ribbon cables remain attached to the iPhone's main circuit board.
• Secure the display in an upright position using a support to maintain access to the internal components during the repair procedure.

• To detach the lower connector bracket, initially extract the four Y000 tri-point screws that hold it in place, noting their specific dimensions.
• Specifically, three screws measure 1.2 millimeters in length.
• A single screw is 2.4 millimeters long.
• During the entire repair process, meticulously organize and document the location of each screw, ensuring their precise replacement to prevent potential damage to the iPhone.

• Employ the tip of a spudgerto disengage the battery connector from its corresponding receptacle on the logic board.
• Gently elevate the connector cable a small amount to ensure it remains disconnected from the socket, thereby preventing any electrical current from reaching the device.

• Prior to detaching or reattaching any cables within this procedure, confirm the battery is disconnected to prevent potential electrical hazards.
• Employ a spudger alternatively, a fingernail can be utilized to release the two lower display connectors; lift them vertically from their corresponding positions on the logic board.
• When reattaching these connectors, apply pressure to one end until an audible click is heard, then repeat the process on the opposing end; avoid applying pressure to the central portion. Any slight misalignment during reconnection can result in bending, which may lead to irreversible damage.
• Should you observe a blank screen, the appearance of white lines on the display, or a diminished or absent touch response following reassembly, attempt to carefully detach and reconnect both cables, ensuring they are completely and securely positioned.

• Detach the pair of screws, utilizing a Phillips screwdriver of size #000 and a 1.3 mm bit, which fasten the bracket that covers the connector for the front panel sensor assembly.1.3 mm Phillips #000These screws hold the bracket in place, protecting the front panel sensor assembly connector.
• Certain devices may be designated as Y000; Apple introduced this identifier during the product's lifespan.

• To prevent damage, detach the connector linking the front panel sensor assembly to its receptacle on the main circuit board.
• To reduce the potential for deformation, ensure this press-fit connector is reattached incrementally, engaging one side initially.

• Detach the display assembly from the device.
• If you intend to substitute the adhesive securing the display's perimeter during reassembly, halt the process at this juncture.

• To access the SIM card, utilize a SIM card eject tool or a straightened paperclip, carefully inserting it into the aperture located on the SIM card tray.
• Apply pressure to the tray, which will cause it to release.A considerable amount of force might be necessary for this action.Prior to applying force, confirm the eject tool is precisely positioned to prevent potential damage to the internal ejection components within the device.
• Carefully extract the SIM card tray assembly from the iPhone.
• During the reinsertion of the SIM card, verify its correct alignment with the tray.

Employ the planar edge of a spudgerto carefully separate the rear-facing camera's electrical connector.

• To detach the rear camera bracket, you must first eliminate these fasteners.Utilize a Phillips
  screwdriver to loosen a 1.3-millimeter screw.
  Additionally, a 2.5-millimeter screw must also be removed.

• Detach the bracket from its affixed location.

• Employ the tapered tip of a spudger tool to carefully lift and detach the antenna bus connector, situated to the left of the rear camera module.

• Detach the upper cable bracket by eliminating the two1.2 mm tri-point screwsthat hold it in place.

• Three1.2millimeters
• One1.7millimeters

• To disassemble, detach thesingle 1.3-millimeter screw
• Additionally, detach thesingle 2.2-millimeter screw

• To detach the2.2 mm standoff screw from the grounding bracket, proceed with removal.
• Employing a standoff screwdriver or bit is the preferred method for extracting standoff screws.
• If a standoff screwdriver isn't available, a small flathead screwdriver can be utilized as a substitute; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

• To proceed with disassembly, first eliminate these fasteners:
  A single Phillips screw with a 1.4-millimeter head must be taken out.
• Three screws, each measuring 2.2 millimeters, secure the standoffs and require removal.
• Employing a standoff driver is the preferred method for extracting standoff screws.A standoff driver is the ideal tool for this task..
• If a standoff driver is unavailable, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

• Employ the planar edge of aspudgerto carefully elevate the battery connector section of the logic board.
• Confirm that your lifting action isn't creating tension on any wires; should you encounter opposition, meticulously inspect all cabling, connections, and parts to ensure they are unobstructed from the board.

• To disconnect the logic board, raise the battery connector end and subsequently detach it from the rear case.
• Exercise caution to prevent the logic board from contacting or damaging any connected cables.

• To ensure successful removal, maintain the strips' flatness and prevent wrinkles; creases can cause them to adhere and tear rather than detach smoothly.

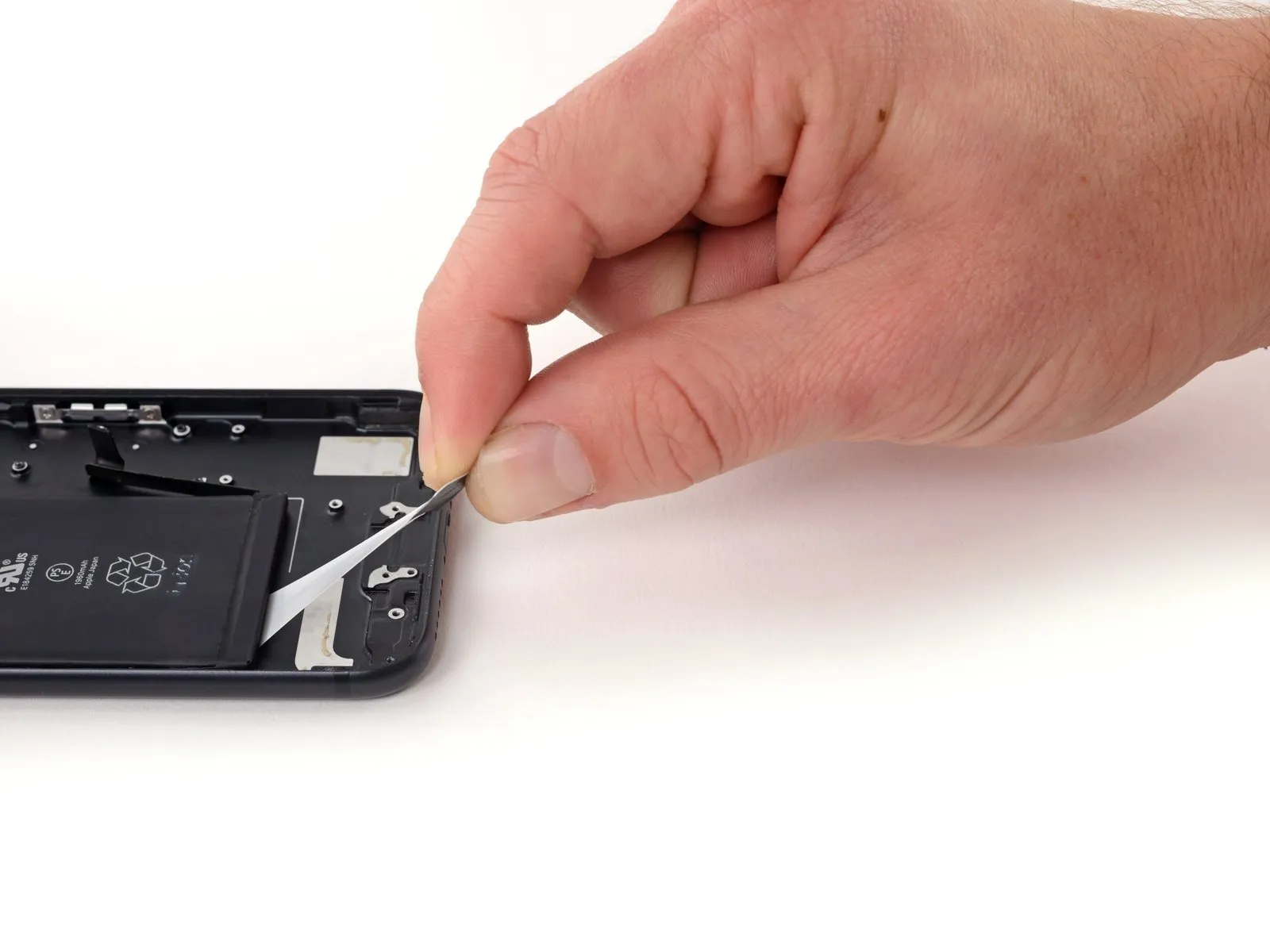

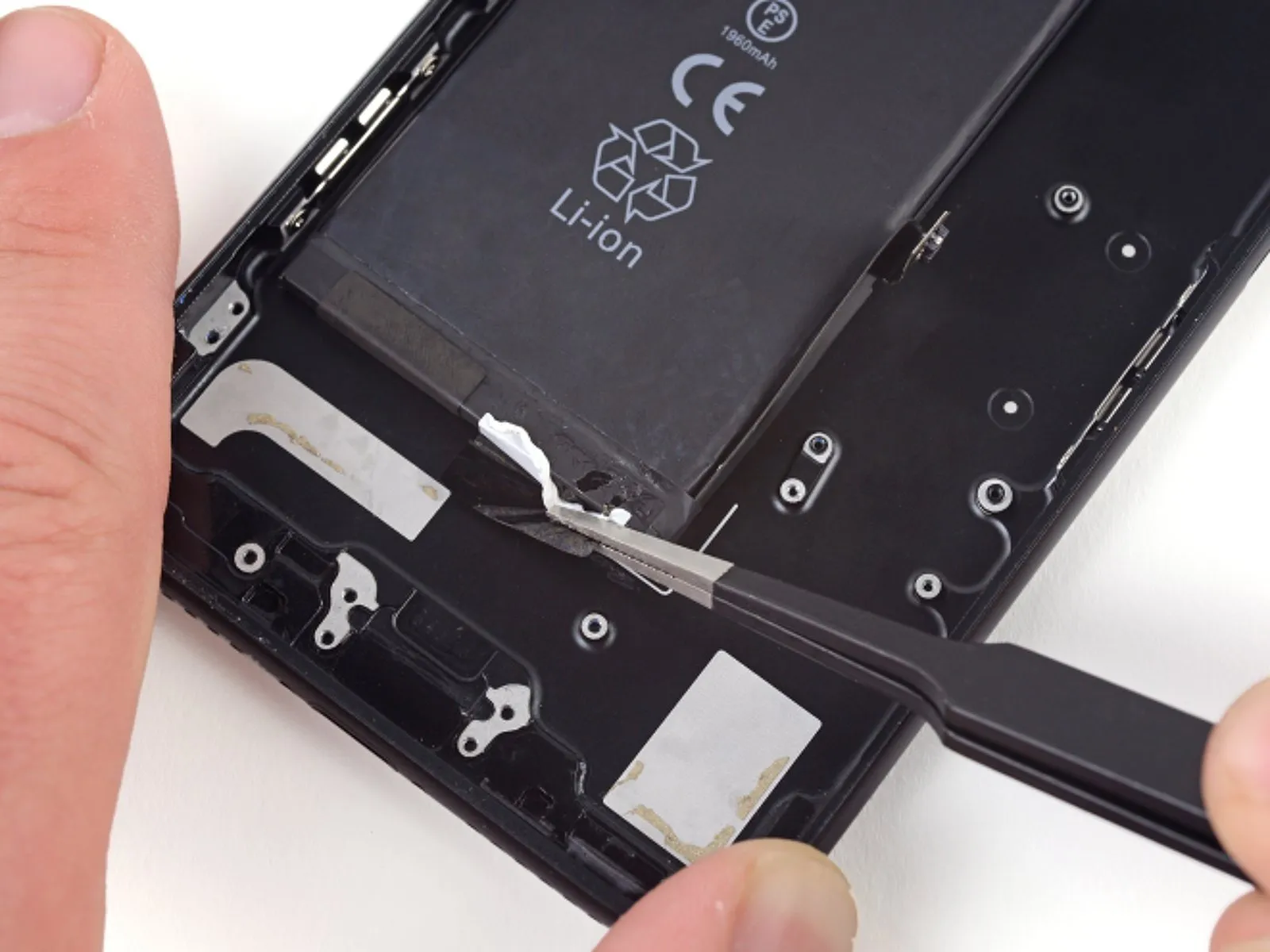

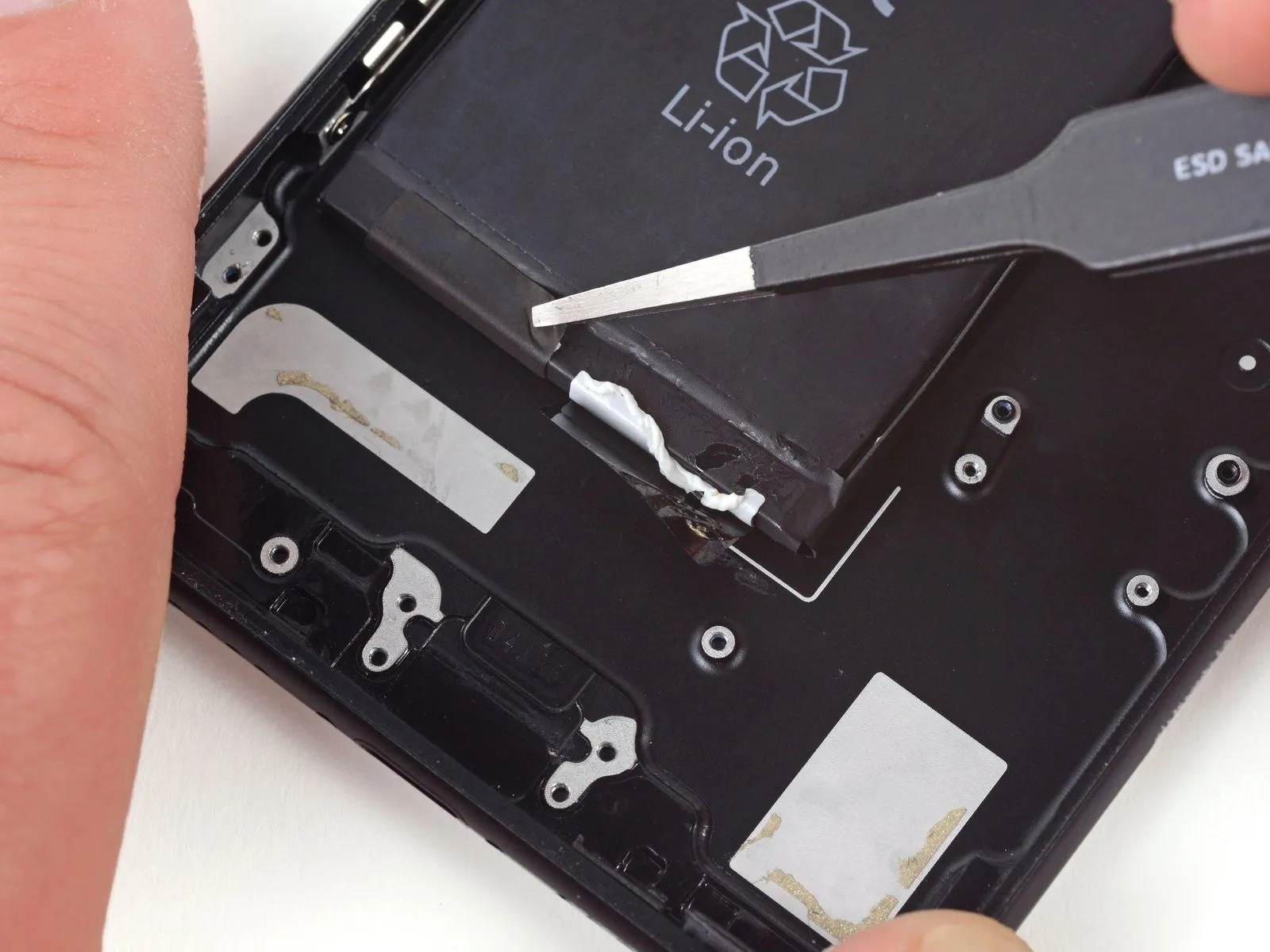

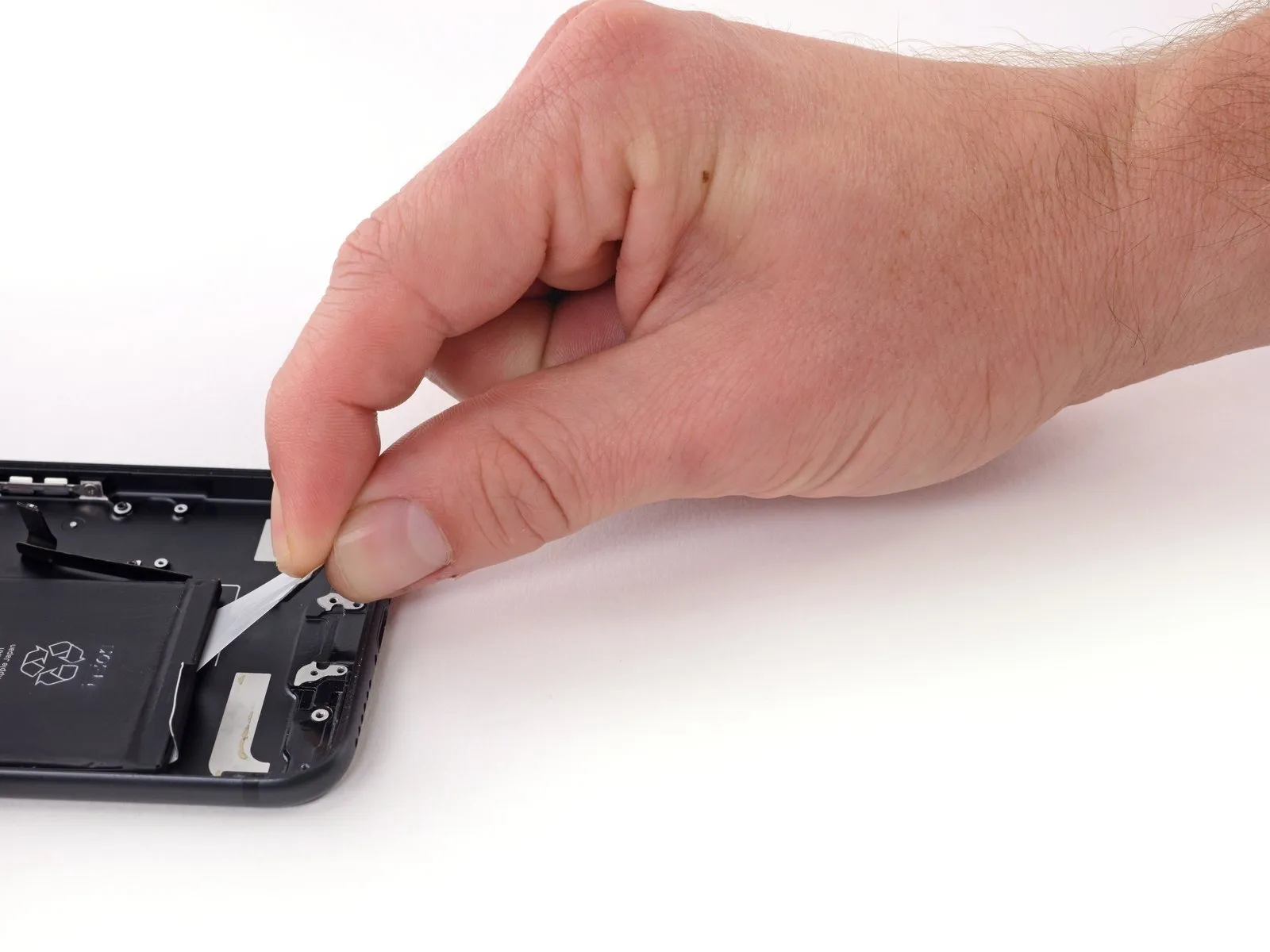

• Gently initiate the extraction of a single battery adhesive tab by drawing it away from the battery's surface, directing it towards the iPhone's lower section.
• Apply consistent, even force while pulling, keeping the strip under constant tension until it disengages from the space between the battery and the rear enclosure. Optimal results are achieved when the strip is pulled at an angle of 60 degrees or less.
• Expect the strip to elongate significantly, extending to multiple times its initial size; if needed, continue pulling and reposition your grip closer to the battery to maintain control.

• Replicate the prior procedure for the remaining adhesive strip.
• Maintain pressure on the batteryduring the removal of the second strip to prevent the battery from being ejected from the device's housing during separation.
• Should both adhesive strips be successfully detached, proceed to the subsequent instruction.
• Conversely, should a portion of either adhesive strip remain adhered to the battery and be inaccessible, proceed with the following steps.

Should the adhesive strips have been completely detached, proceed to the subsequent instruction; if not, you must carefully separate thebattery from the rear housing.

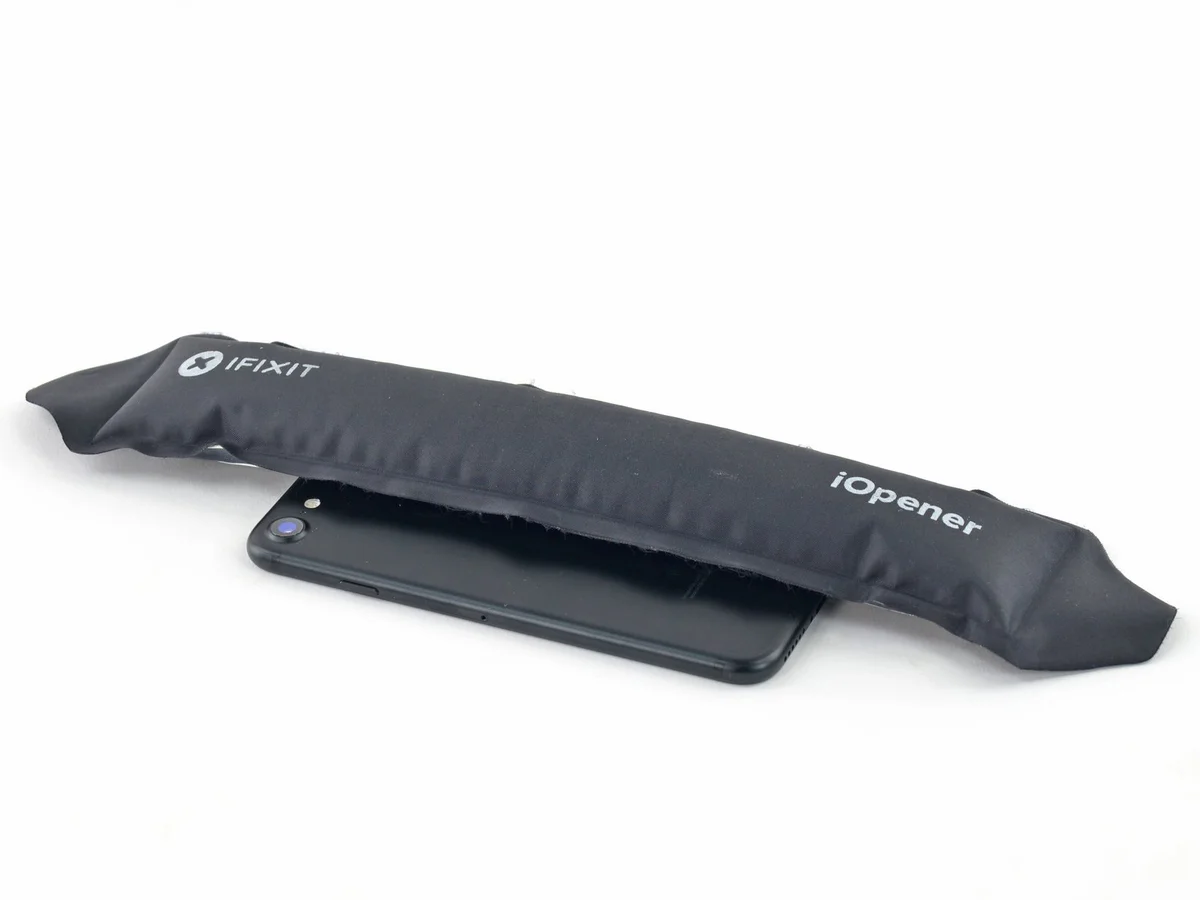

To facilitate separation, utilize an iOpener and position it on the rear case's exterior, precisely above the location of the battery. As an alternative method, apply warmth to the rear case using either a heat gun or a hair dryer.
Following approximately sixty seconds of heat application, remove the iOpener, rotate the device to its face-up orientation, and employ a plastic card to disrupt any residual adhesive adhering to thebattery.

Exercise caution to prevent flexing thebattery. Compromising the battery's integrity can result in the release of hazardous substances and potentially initiate combustion.
Refrain from inserting the prying tool beneath the uppermost one-third of thebattery, as this action carries a risk of damaging the volume button ribbon cable.

• Disconnect the power source by extracting the battery from within the device's rear enclosure.
• During battery replacement, consult these instructions to ensure proper adhesion of the battery's adhesive backing.

• To proceed with the repair, detach the listed components.Utilize a Phillips head screwdriver to remove these fasteners.:
  Detach 1.9 millimeter screws that hold the power button in place.
  Subsequently, remove 2.3 millimeter screws which are responsible for securing the volume buttons.

• To proceed with the repair, detach the subsequent fasteners:Specifically, utilize a 1.3 mm Phillips screwdriver to remove:
  Locate and unscrew a single fastener situated adjacent to the rear-facing camera.
  Additionally, a single screw is affixed to the rear case; carefully remove it.

• Using a spudger's tip, depress the hold switch inward, against the phone's back cover.
• By performing this maneuver, the hold switch and its associated gasket will become disengaged from the rear case assembly.

• Commencing from the power button vicinity of the device, employ a prying tool to detach the adhesive securing the antenna flex cable to the rear cover.

• Carefully insert the tip of a prying tool beneath the antenna flex cable, positioned near the phone's upper edge, to detach the residual adhesive.

• Employing tweezers, carefully reposition the antenna flex cable, distancing it from the phone's perimeter to disengage the screw bracket from the back cover.
• Detach the antenna flex cable.

• Detach the flash bracket from the rear case by unscrewing the 2.3-millimeter standoff screw.
• Employing a specialized standoff screw removal tool is the preferred method for removing these fasteners. [linked product missing or disabled: IF145-343] along with a driver handle provides optimal control.
• Should a dedicated tool be unavailable, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.

Carefully maneuver the power button assembly away from the perimeter of the rear housing using a folding motion.

• Utilize the blade of a halberd spudgerto carefully release the adhesive securing the button cable to the rear case, initiating the separation process at the power button end.
• Proceed with adhesive separation, directing the blade's movement towards the upper portion of the device's frame.

• Proceed with carefully sliding the blade of the halberd spudgerbeneath the cable assembly responsible for power and volume control functions.
• Advance with deliberate slowness, ensuring the cable remains undamaged throughout the separation process.

• Position thehalberd spudgerbeneath the section of the button cable associated with the volume control.
• Carefully maneuver the blade's edge beneath the cable, progressing towards the phone's lower edge to release the residual adhesive.

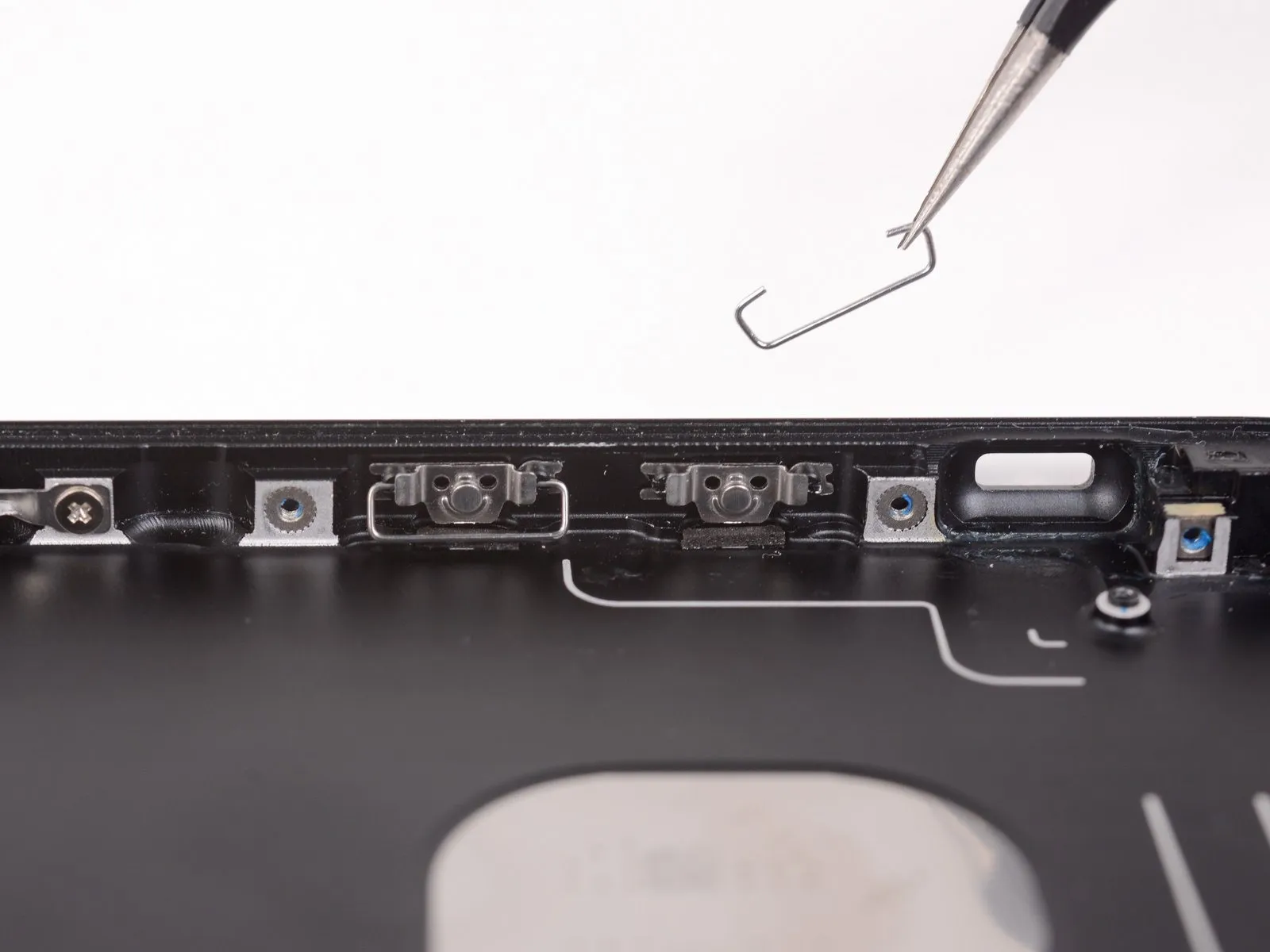

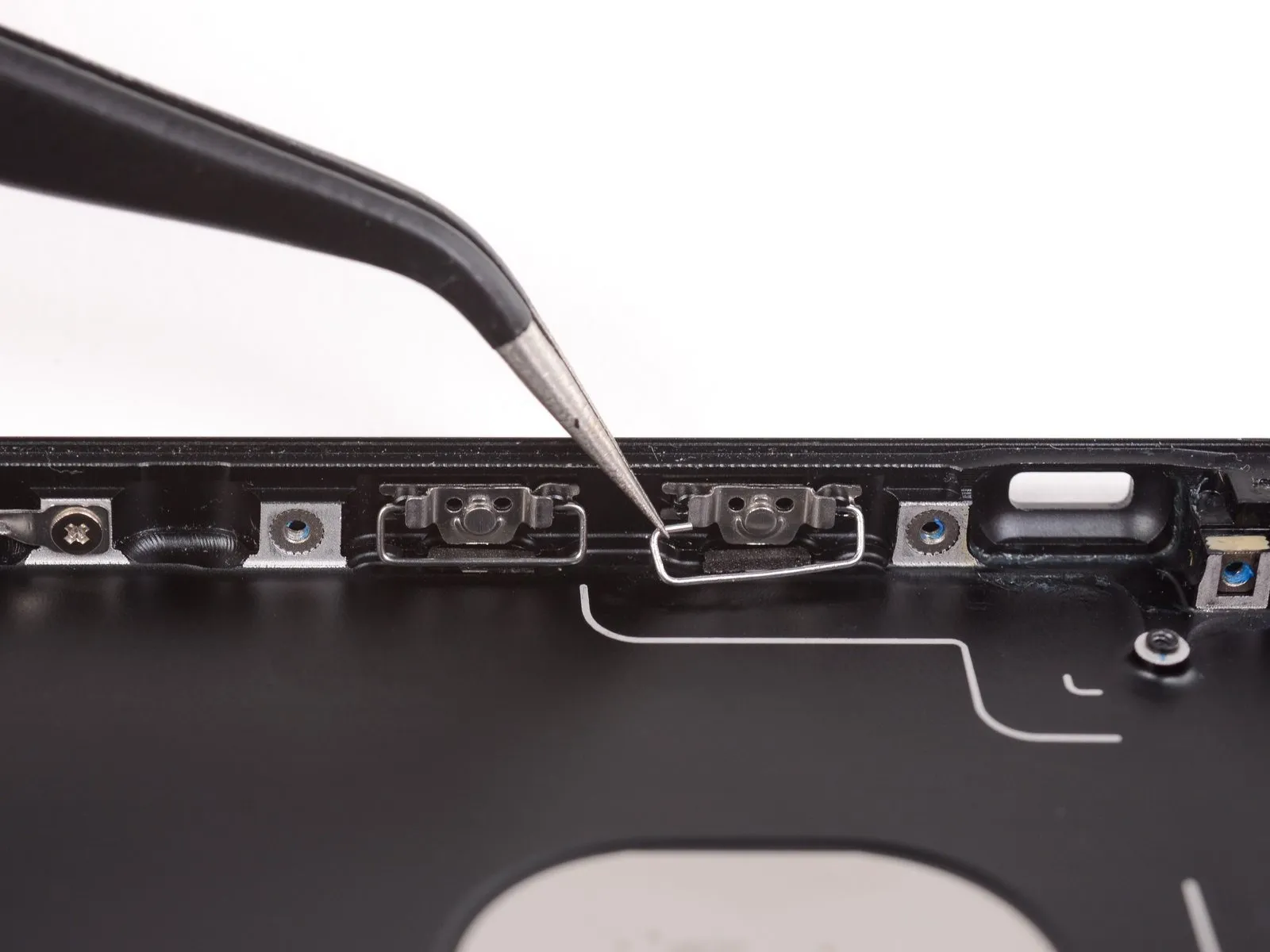

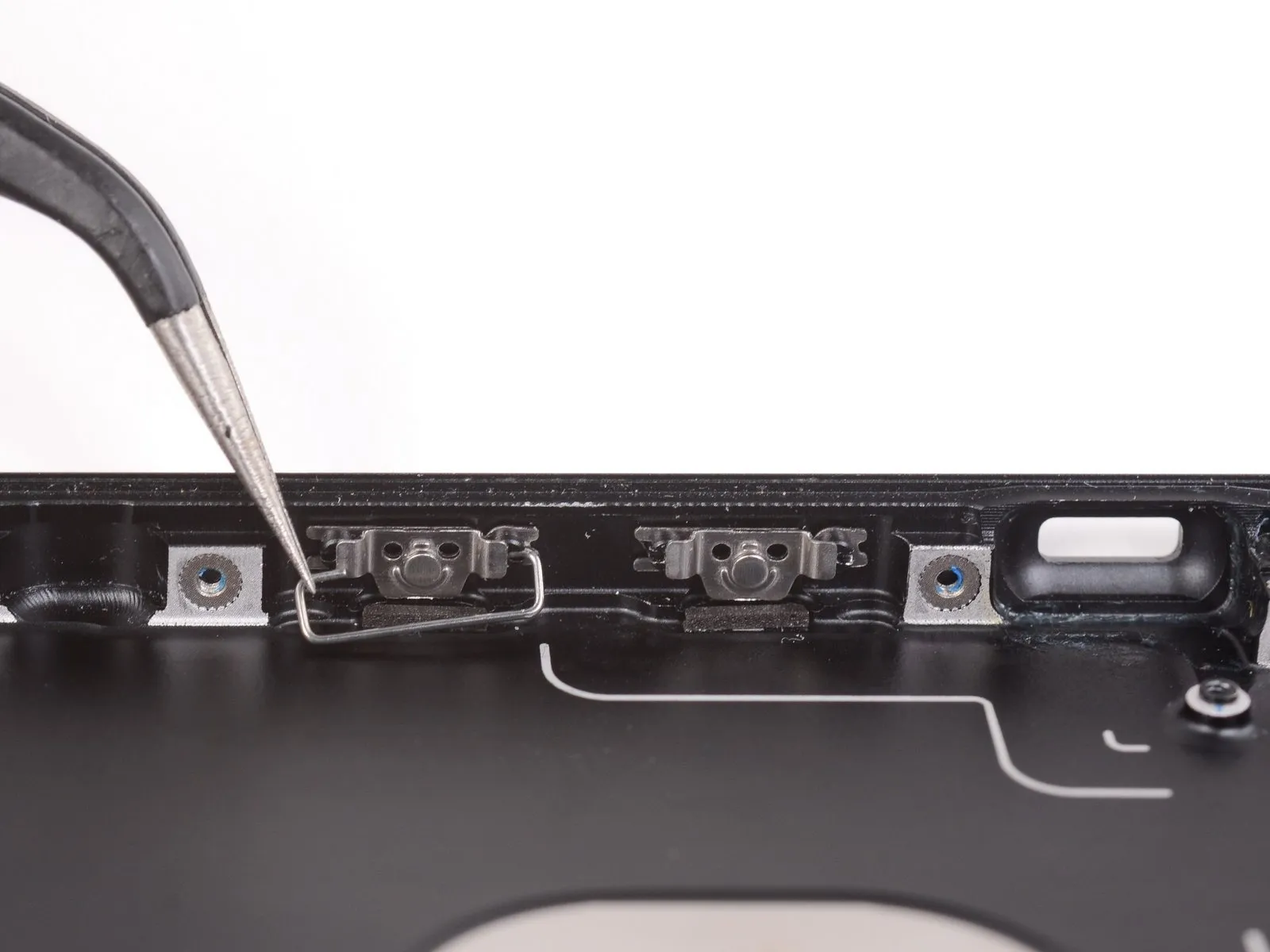

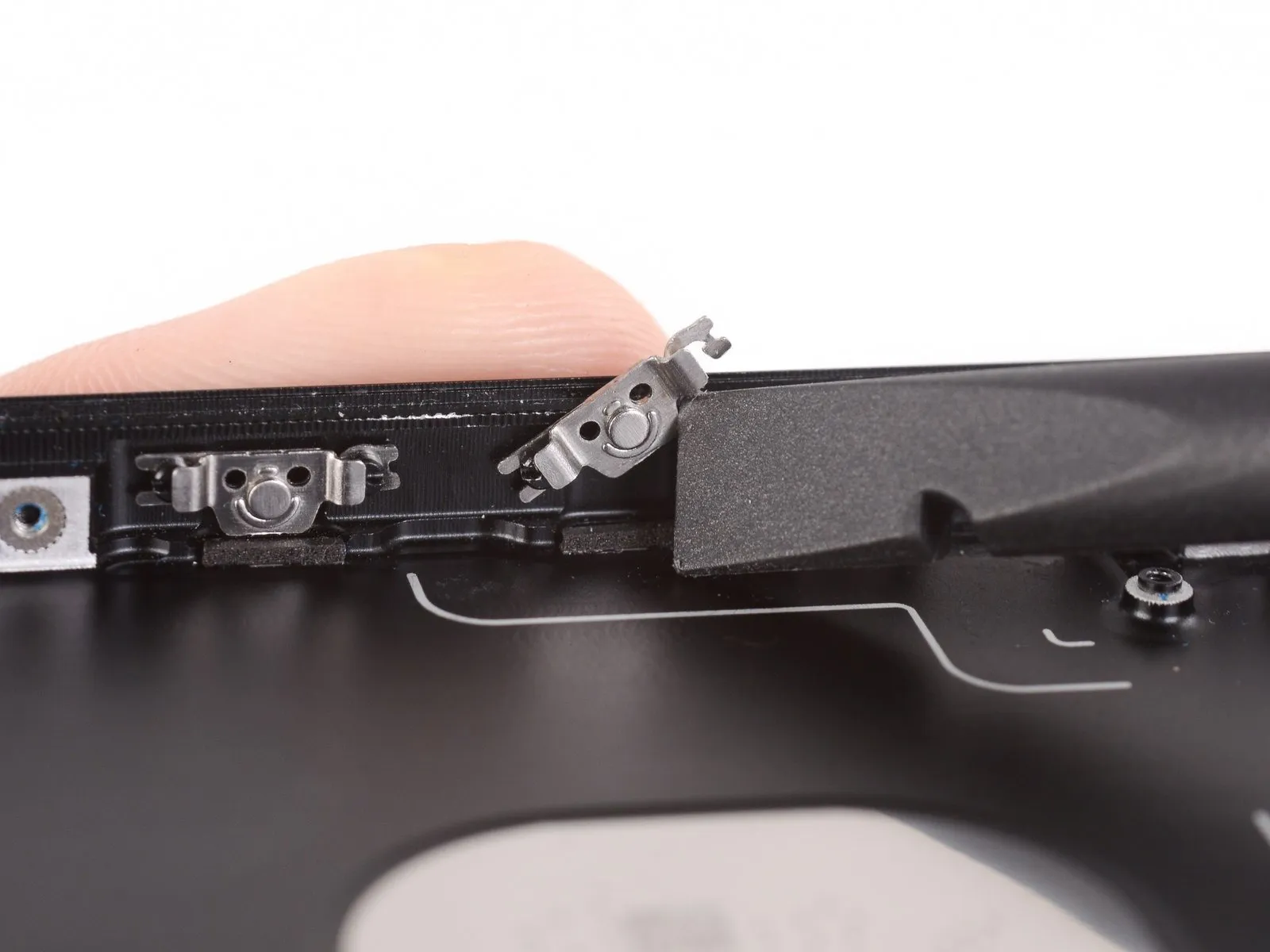

• To release the component, maneuver the volume button clip in a downward direction, applying force towards the lower edge of the device's chassis to disengage it from its securing mount.

• To detach the component, draw the clip upward, in the direction of the phone's upper edge.

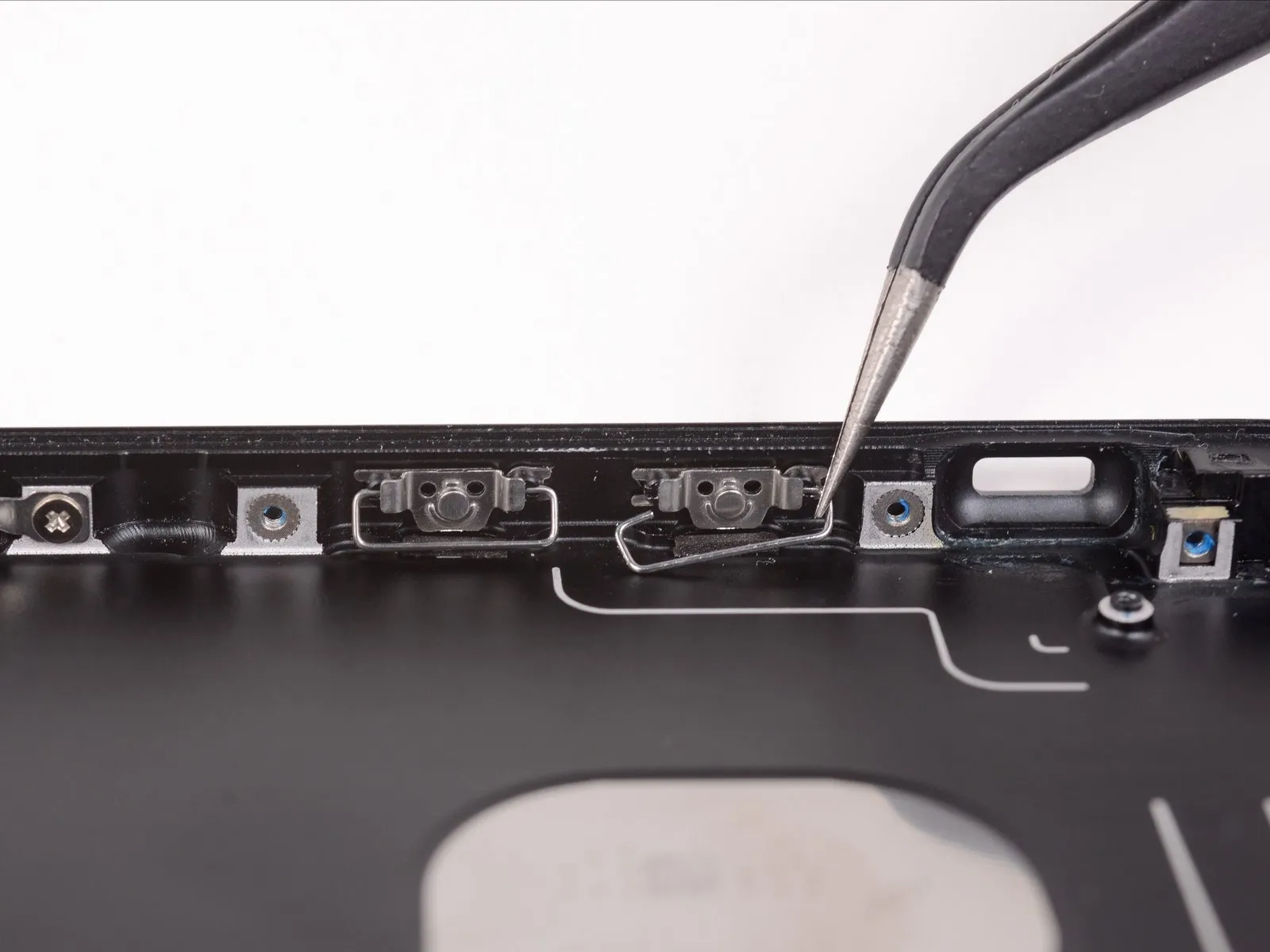

• To release the component, maneuver the volume button clip in a downward direction, towards the lower edge of the device, disengaging it from its securing position.
• Subsequently, to detach the clip reposition it by moving it upwards, towards the upper portion of the phone.

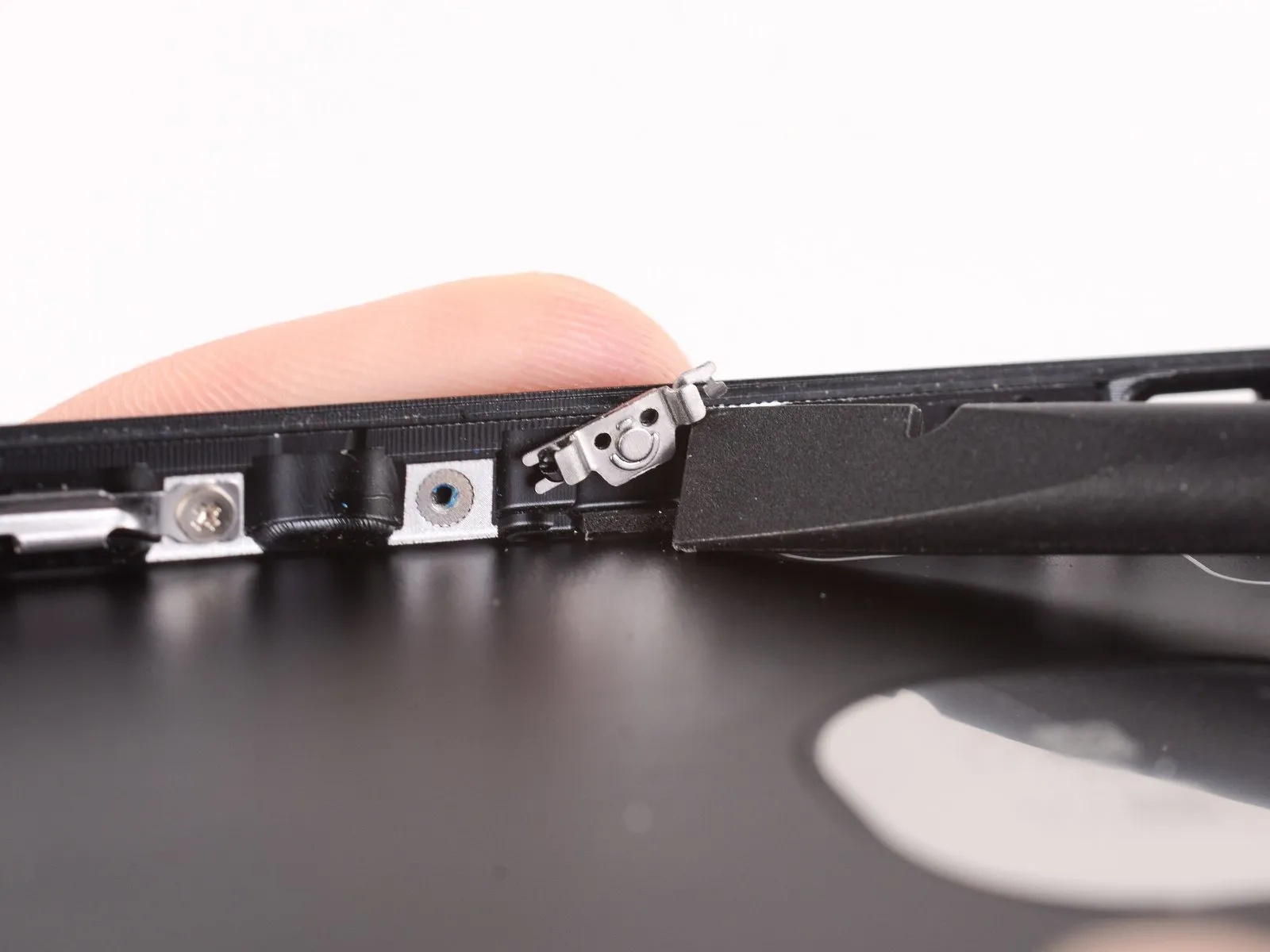

• Employ the planar extremity of a specialized prying tool.spudgerto gain access beneath the lower boundary of the volume button mounting plate.
• Carefully reposition thespudgerto ensure separation from the device's rear enclosure, avoiding contact with the projecting fastener securing the volume button.
• Pivot thespudgerto disengage the mounting plate from the volume button's retaining peg.

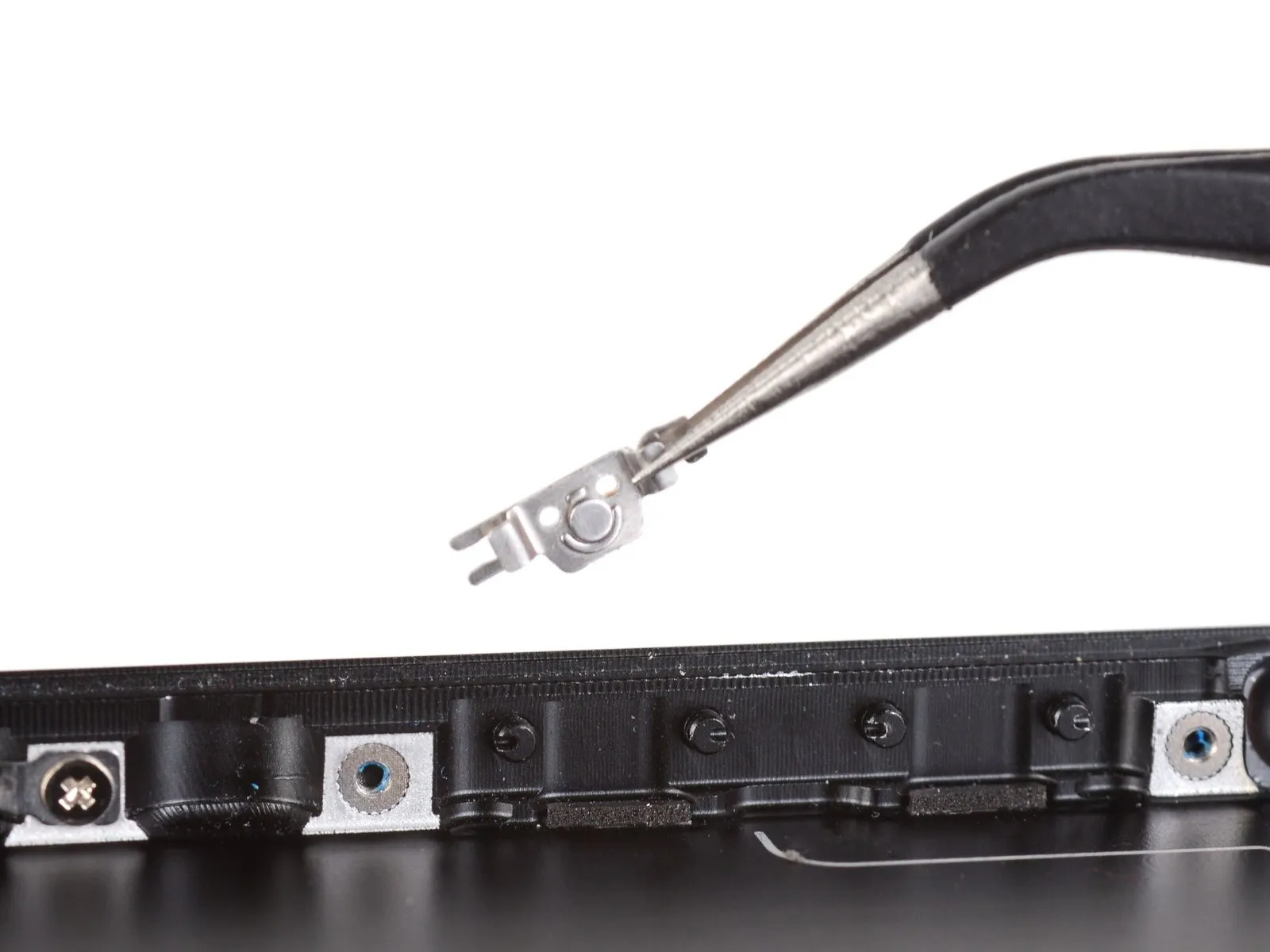

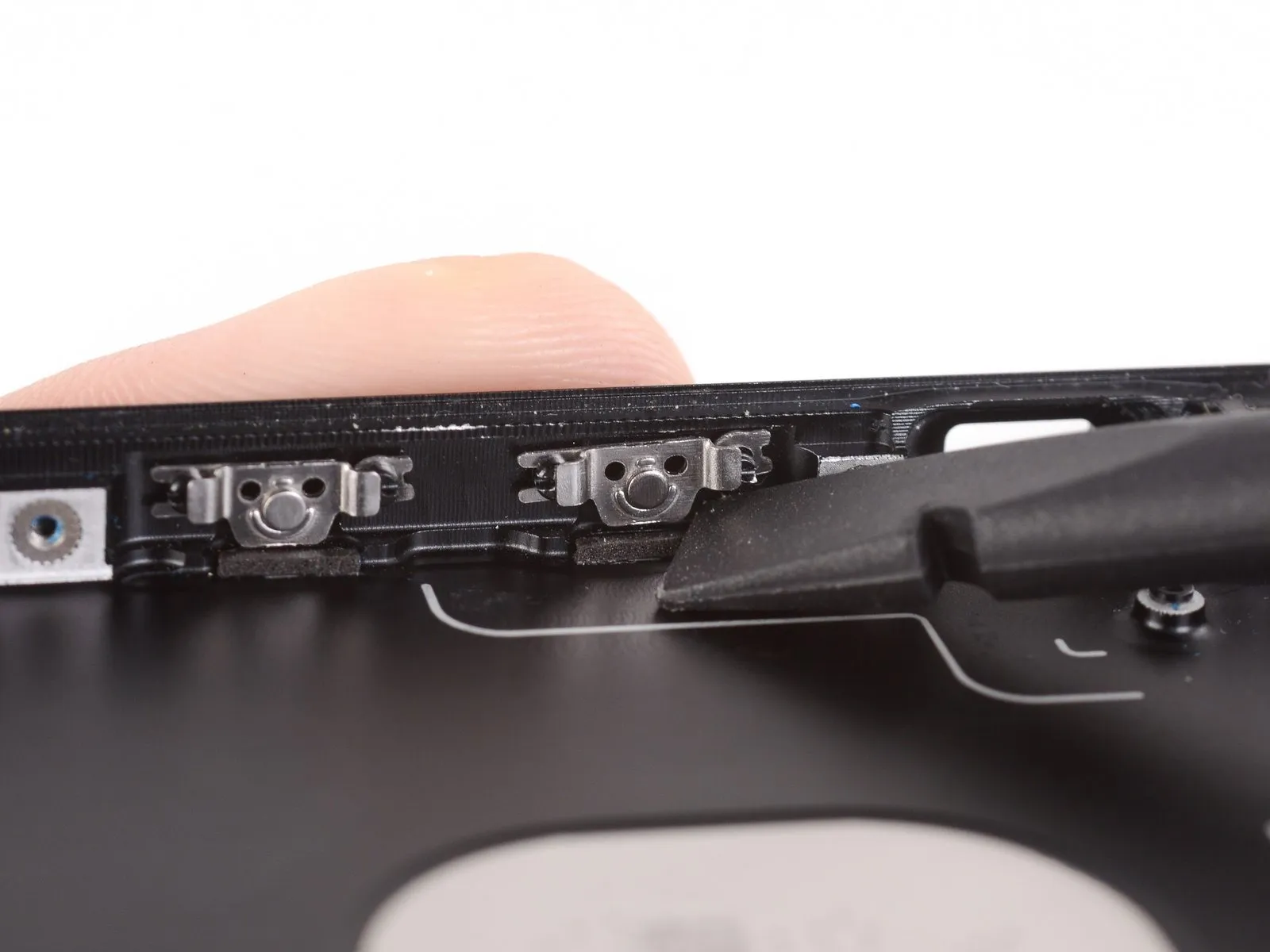

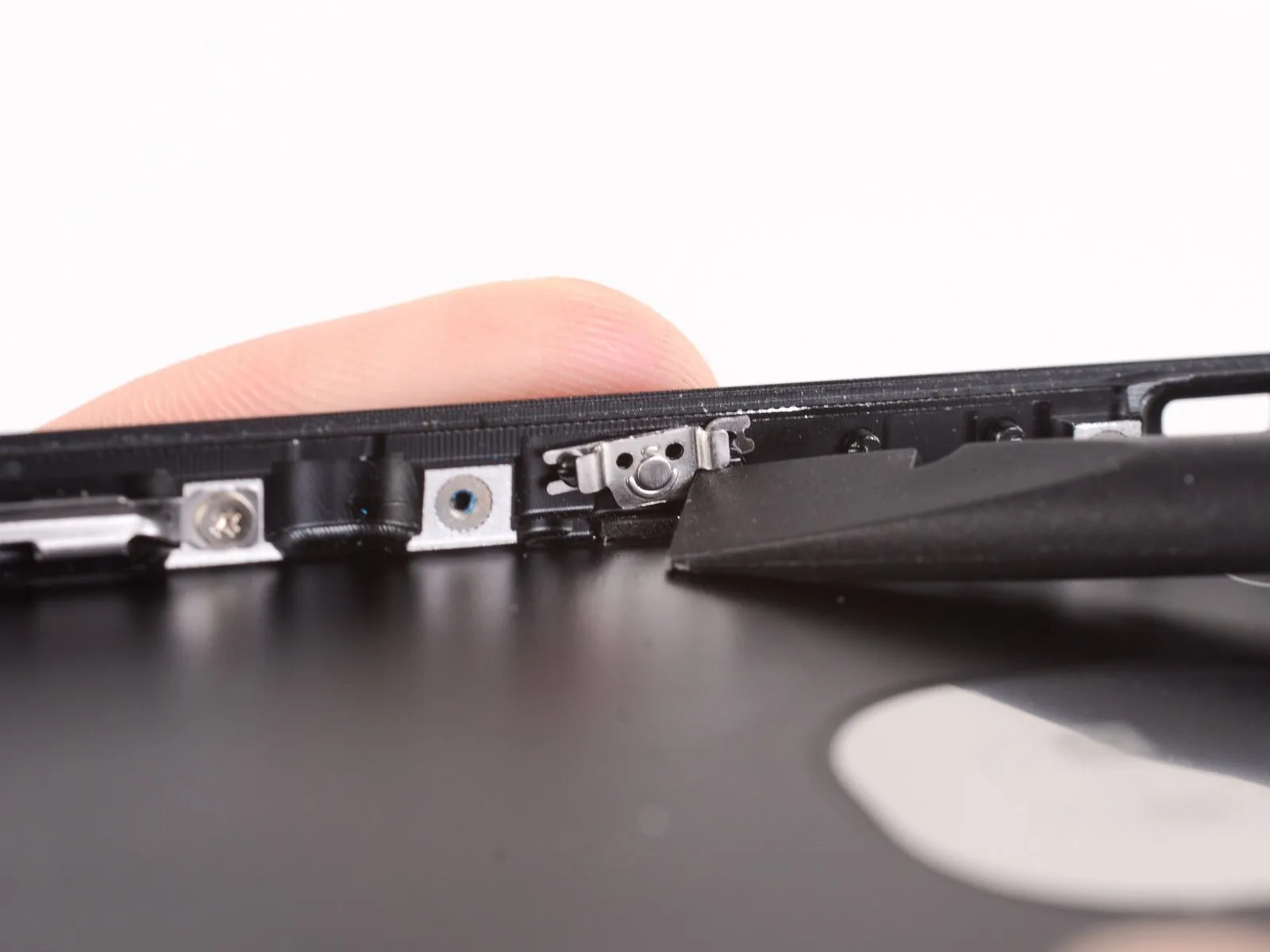

Detach the bracket by grasping it and moving it away from the rear case assembly.

To detach the remaining volume button bracket, execute the same steps previously described.

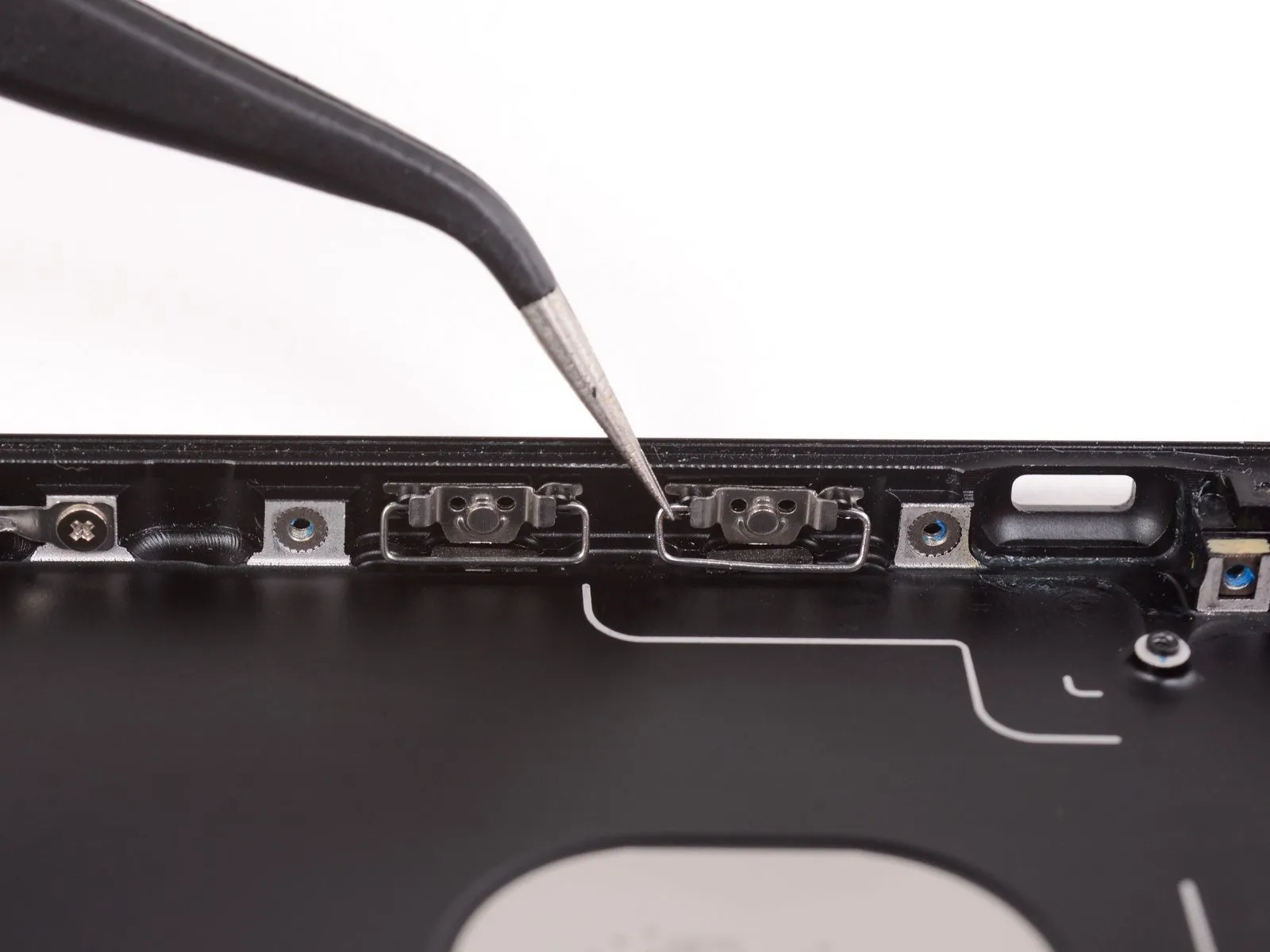

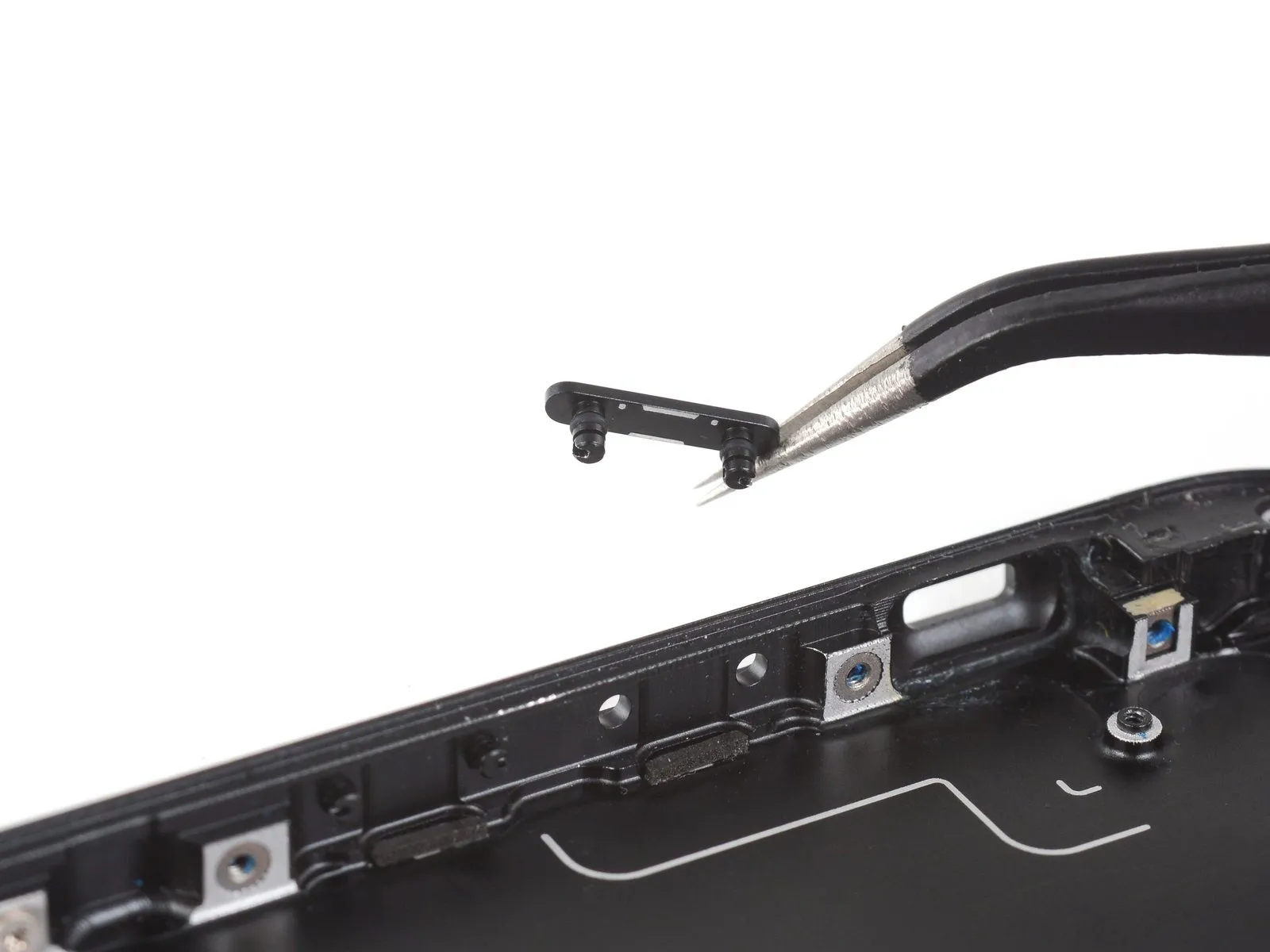

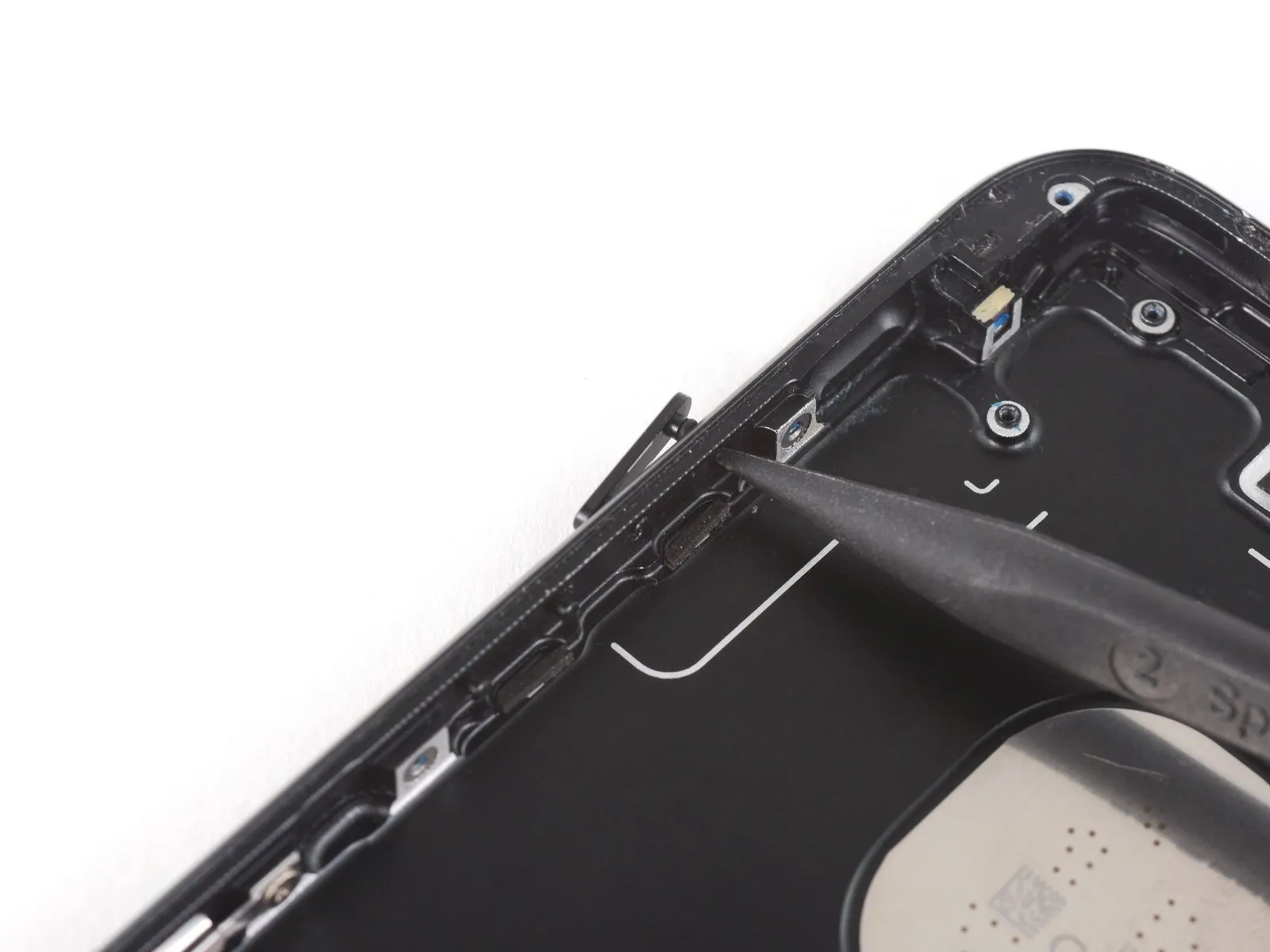

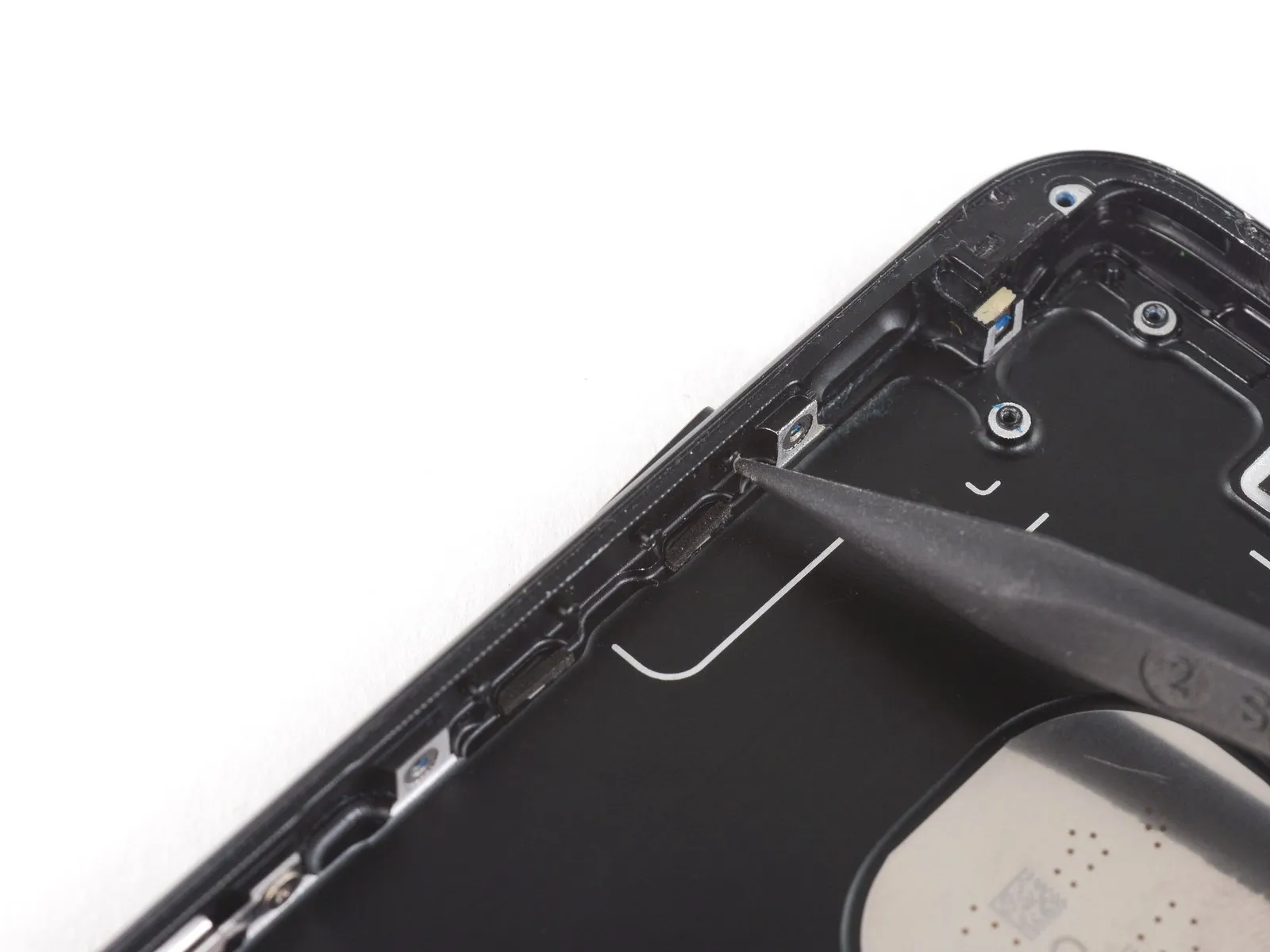

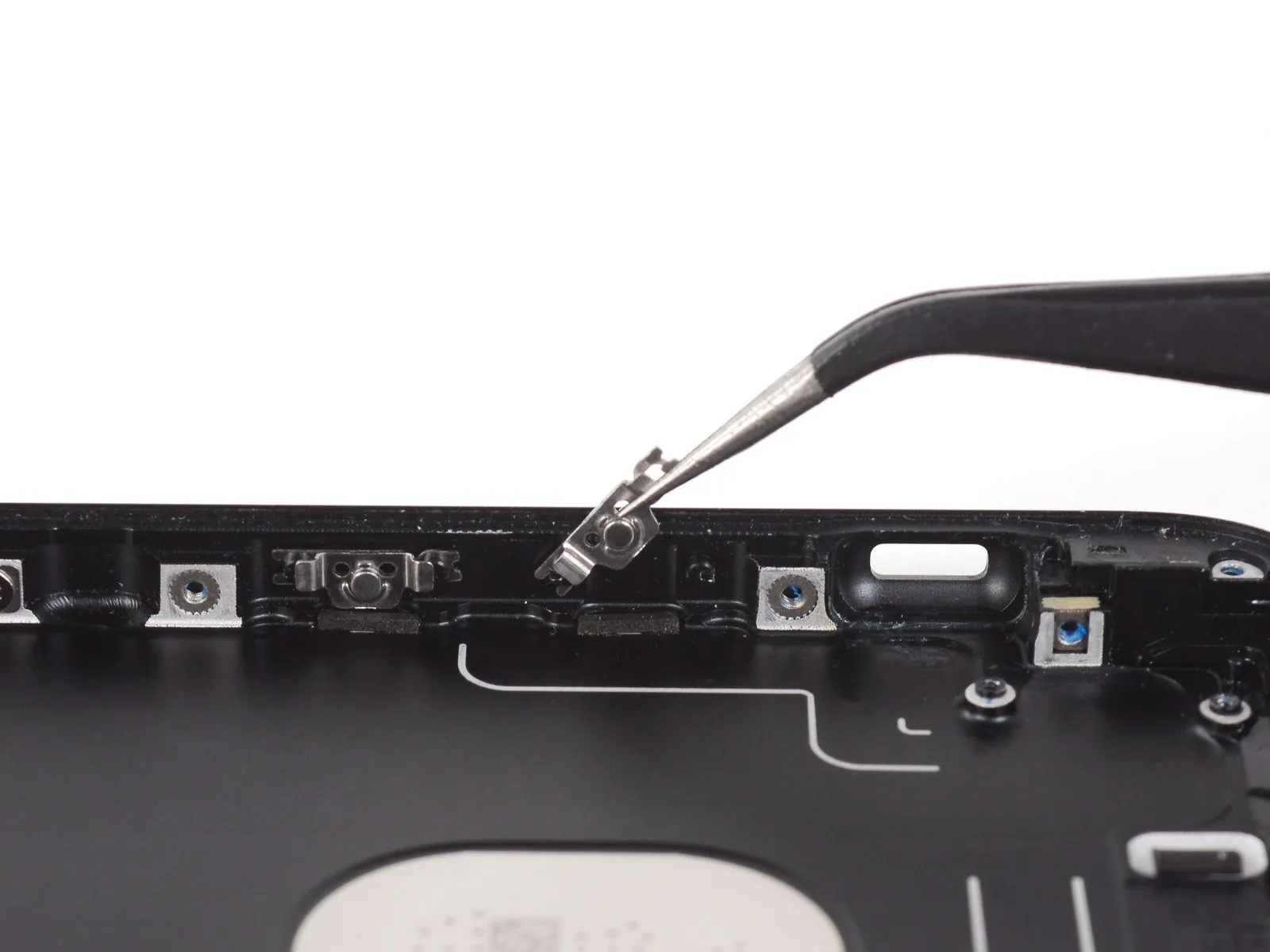

• Employ the tapered tip of a spudgerto carefully dislodge the volume button covers from the back housing.
• Proceed to detach the volume button covers.
