iPhone 6s Plus FaceTime Camera and Sensor Assembly Replacement

• To prevent potential hazards and damage, ensure the battery's charge level is reduced to less than 25% prior to beginning any disassembly procedures on your iPhone.A lithium-ion battery must be fully charged.A puncture can lead to combustion and/or a forceful rupture.
• To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
• Using a Pentalobe screwdriver, detach the two screws, each measuring 3.4 mm, located on both sides of the Lightning port.

• To simplify the subsequent disassembly, the following actions utilize the Anti-Clamp, a specialized tool; if you do not have this tool, proceed to the instructions three steps further down.
• Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
• To release the Anti-Clamp’s arms, move the blue handle in a rearward direction.
• Position the arms so they extend across the phone's left or right side.
• Affix two suction cups, one to the front and one to the rear of the iPhone, placing them close to the lower edge, directly above the home button.
• Apply vacuum by pressing the cups firmly against the surface you intend to work on.
• To improve the Anti-Clamp's grip on your iPhone if the exterior feels excessively slick, apply adhesive tape to the device's surface.

• To secure the arms, advance the blue handle in the direction indicated.
• Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
• Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
• Once sufficient space is created by the Anti-Clamp, slide a separation tool beneath the display panel.
• To ensure adequate separation, reposition the handle by 90 degrees.
• Apply adjustments in increments of no more than 90 degrees, pausing several seconds after each adjustment to allow the Anti-Clamp device and settling time to take effect.

• Lacking an Anti-Clamp tool, proceed with the following three steps to utilize a suction handle.
• Using a hair dryer or iOpener, gently warm the iPhone's bottom edge with moderate heat for approximately one minute.
• Applying heat will loosen the adhesive that holds the display in place, facilitating separation.

• Removing the 6s Plus display releases a perimeter adhesive strip; replacement adhesive strips should be prepared beforehand if desired. Functionality remains unaffected whether the adhesive is replaced or not.
• Using a suction cup, secure its surface to the display assembly's lower left corner.
• To facilitate suction cup attachment on a severely cracked display, apply a layer of clear packing tape across the damage; as an alternative, a robust adhesive tape can be substituted for the suction cup. Should these methods prove ineffective, secure the suction cup directly to the fractured screen using superglue.

• Apply steady, even force to lift the suction cup, generating a small separation between the front panel and the rear case.
• To avoid display assembly damage, use minimal force when separating it from the rear case, creating only a slight space.

• To avoid damage, begin separating the front panel by gently levering it away from the chassis at the indentation situated directly over the headphone jack.
• Using continued suction with the cup, carefully slide a spudger's flat end into the separation between components, positioning it right over the headphone jack.

• Using a spudger, gently increase the space separating the front panel from the rear case.

• Using a screwdriver with a flat head, carefully guide the tip into the designated space.Use a plastic pry tool, often referred to as a spudger, to avoid scratching surfaces.Locate the component along the display's right side.
• Carefully move theUse a plastic pry tool, often referred to as a spudger.Raise the component along the right-hand vertical plane.

• Employ a 5/32-inch hex key to tighten the retaining screw to a torque of 6-8 inch-pounds; ensure proper alignment to prevent damage to the threaded insert.Use a plastic pry tool.Maintain pressure on the rear case while lifting the suction cup to release the phone.
• Carefully detach the display from its mounting points, but leave it connected to the system, avoiding full removal.Care must be taken to avoid damaging the display's data cables, which are located along the upper edge of the iPhone.

• Employing a careful grip on the display assembly, raise it to separate the phone, leveraging the front panel's top clips to act as a pivot point.
• Carefully separate the display assembly from the device housing, creating a gap of approximately 1 millimeter.Rotate to a 90-degree angle.Position the device at an angle, securing it in place with support to prevent it from falling during the repair process.
• To prevent damage, limit display exposure during the repair process.Ensure the angle is precisely 90 degrees.Care must be taken during separation as the display, digitizer, and front camera remain linked to the upper portion of the device via delicate cables prone to damage.
• To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
• As a temporary measure, an unopened, standard-sized canned drink can provide the necessary support for the display.

• Detach two.Use a Phillips head screwdriver.Fasten the battery connector bracket to the logic board, ensuring the screws are tightened to the specified lengths.
• Begin the process by executing the action designated as "One."Use a 2.9-millimeter screw.
• Begin the process by executing the action designated as "one."Use a 2.3-millimeter screw.

To prevent irreversible damage, meticulously organize all screws during disassembly, ensuring each is returned to its original location during reassembly.

Employ a 3/8-inch socket wrench to loosen the retaining bolt, ensuring you maintain a firm grip and wear safety glasses to protect against potential debris; subsequently, carefully detach the component.Use a plastic pry tool, often referred to as a spudger.Carefully detach the battery connector from the logic board by applying upward pressure with a clean fingernail or similar tool, ensuring it disengages directly.

To prevent unintended electrical connections, carefully reshape the connector and then activate the iPhone to facilitate further repair procedures.

• Detach the listed components.Use a Phillips head screwdriver.:

  • A quantity of three is required.Use screws with a diameter of 1.3 millimeters.
  • Begin the process by executing the action designated as "one."Use a 1.6-millimeter screw.
  • Begin the process by executing the singular action.Use a screw with a diameter of 3.0 millimeters.
• Ensure correct positioning of this component during reassembly.Use a screw with a diameter of 3.0 millimeters.Ensure the component is positioned precisely in the upper-right quadrant of the bracket; improper placement risks logic board damage.

Using a T5 Torx screwdriver, detach the display cable bracket.

• Exercise caution to prevent injury.Apply lifting force exclusively to the connector body, avoiding any stress on the socket secured to the logic board.

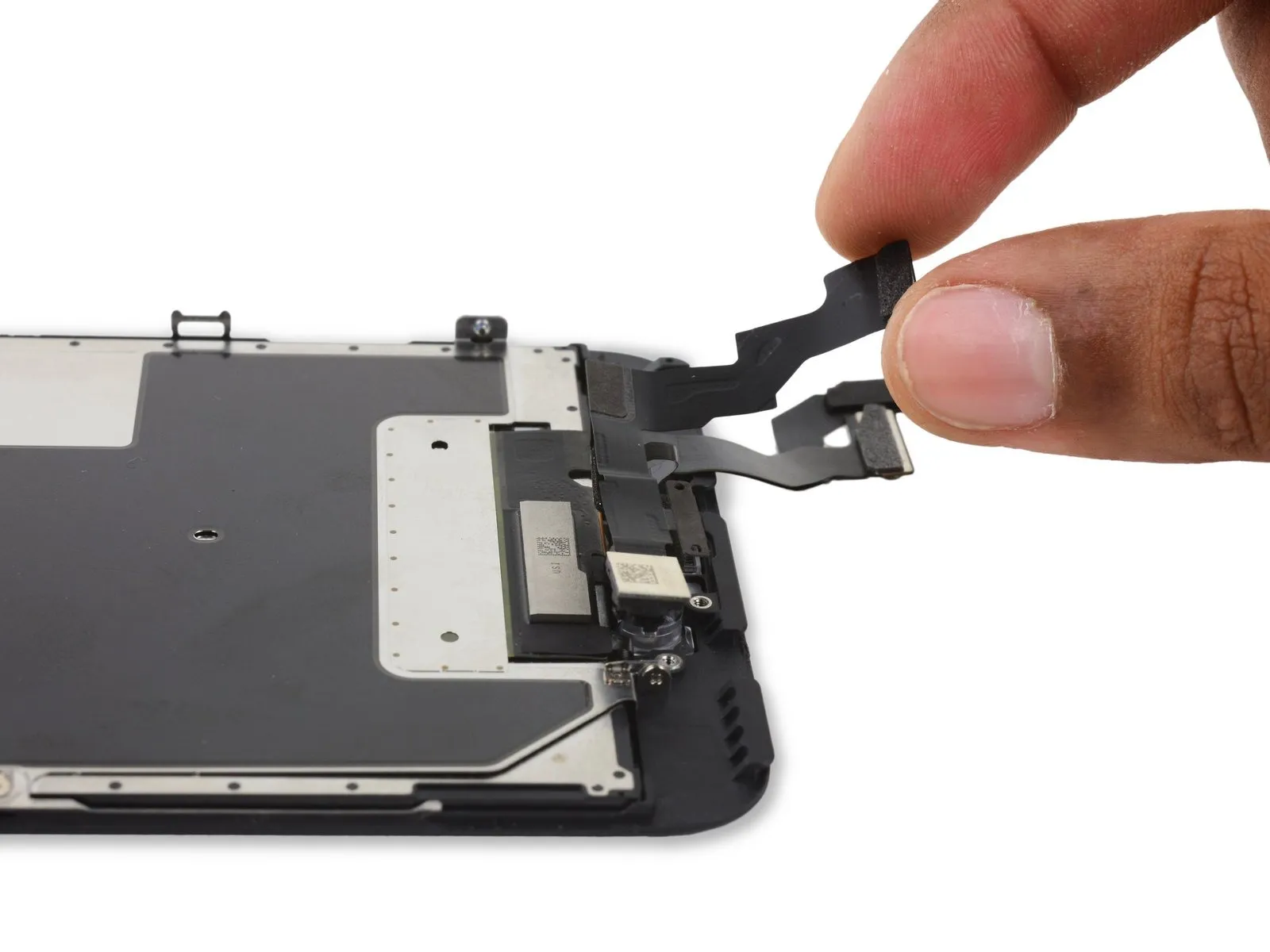

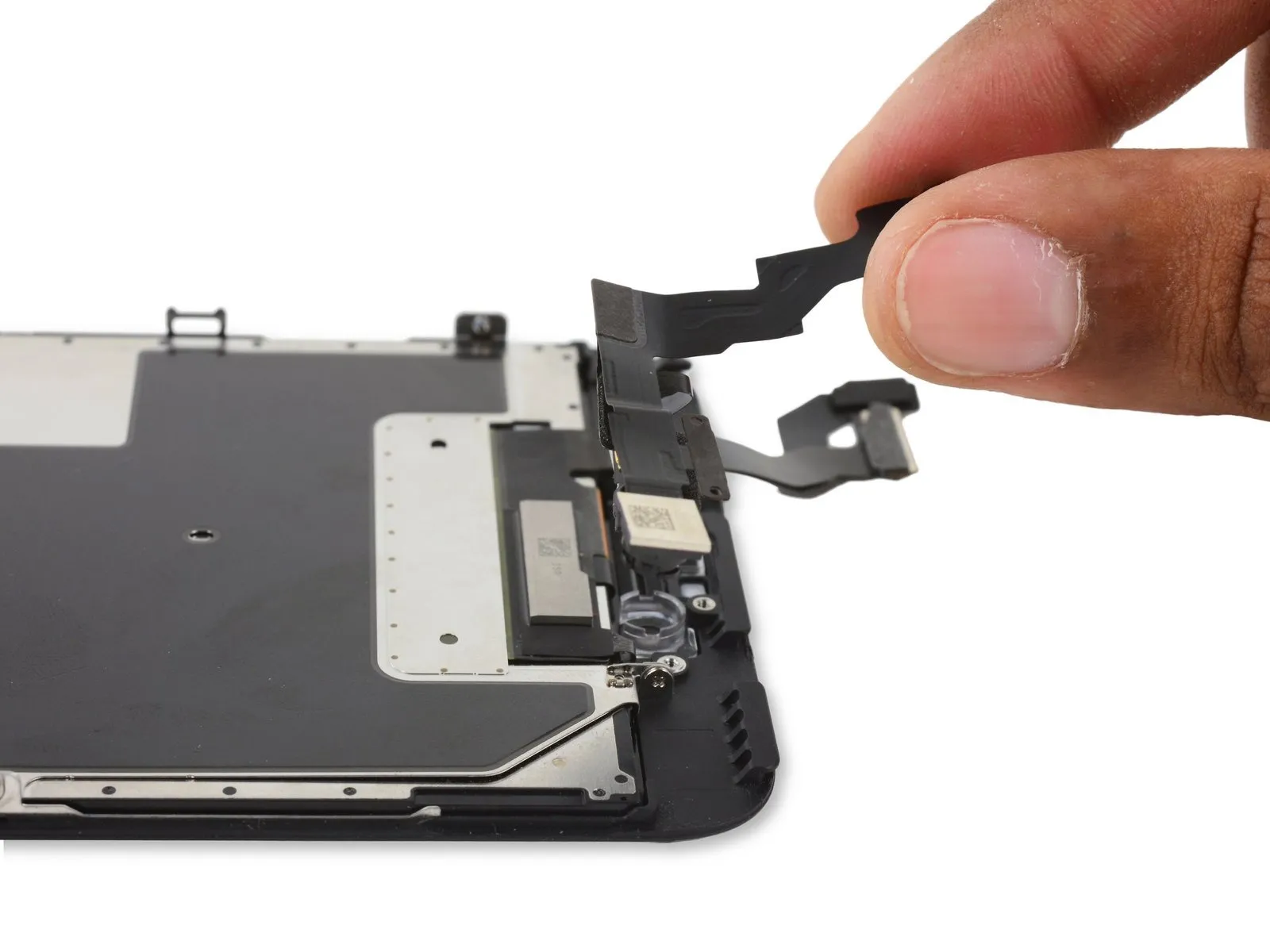

• Carefully detach the front camera and its associated sensor cable from the device assembly using a plastic pry tool.Secure the electrical coupling to the corresponding port, ensuring proper alignment and a firm, consistent connection..

• Carefully separate the digitizer from the device body using a plastic opening tool.Connect the wire harness, ensuring the connector is fully seated and secured to prevent damage.Carefully lift the component directly upward, disengaging it from its connection within the logic board.
• Ensure the digitizer is properly reattached.Connect the wire, ensuring it's properly routed and secured to prevent damage, using appropriate connectors and following all safety precautions.Avoid applying pressure to the central portion of the component.Secure the electrical coupling by ensuring proper alignment and a firm connection.Apply pressure to one terminus of theEmploy the appropriate crimping tool to securely affix the terminal to the wire, ensuring the insulation is properly seated within the connector body and that the specified 2.8mm² wire gauge is used, referencing the manufacturer's wiring diagram for correct orientation and referencing the torque specification of 0.5 Nm when tightening the retaining screw, and always wear safety glasses during this process.Apply force to the opposing extremity, ensuring pressure is focused on the central region.Employing appropriate force, secure the component to its designated location, ensuring proper alignment and a firm connection.Excessive force applied to this part may result in deformation and subsequent failure of the touchscreen.

• Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
• Carefully detach the home button assembly, which incorporates the fingerprint sensor.Connect the wire harness, ensuring proper alignment and secure fastening to prevent disconnections and maintain electrical continuity.Carefully disengage the component by applying upward pressure directly perpendicular to its mounting point within the logic board's socket.

• Carefully detach the display assembly, ensuring no damage occurs.
• If you're replacing the edge adhesive during reassembly, stop at this point.Ensure the screen is visually inspected for cracks, damage, or discoloration, and measure its resistance between pins 1 and 2 using a multimeter set to the appropriate ohms range, confirming a value within the specified 100-150 ohms tolerance; if abnormalities are detected, replace the display unit with a compatible part, observing all static discharge precautions and disconnecting the power supply beforehand..

• Carefully detach these three components.Use a Phillips head screwdriver.:
  Use two screws, each measuring 2.7 millimeters.
  A screw with a 1.4 millimeter head diameter is required.

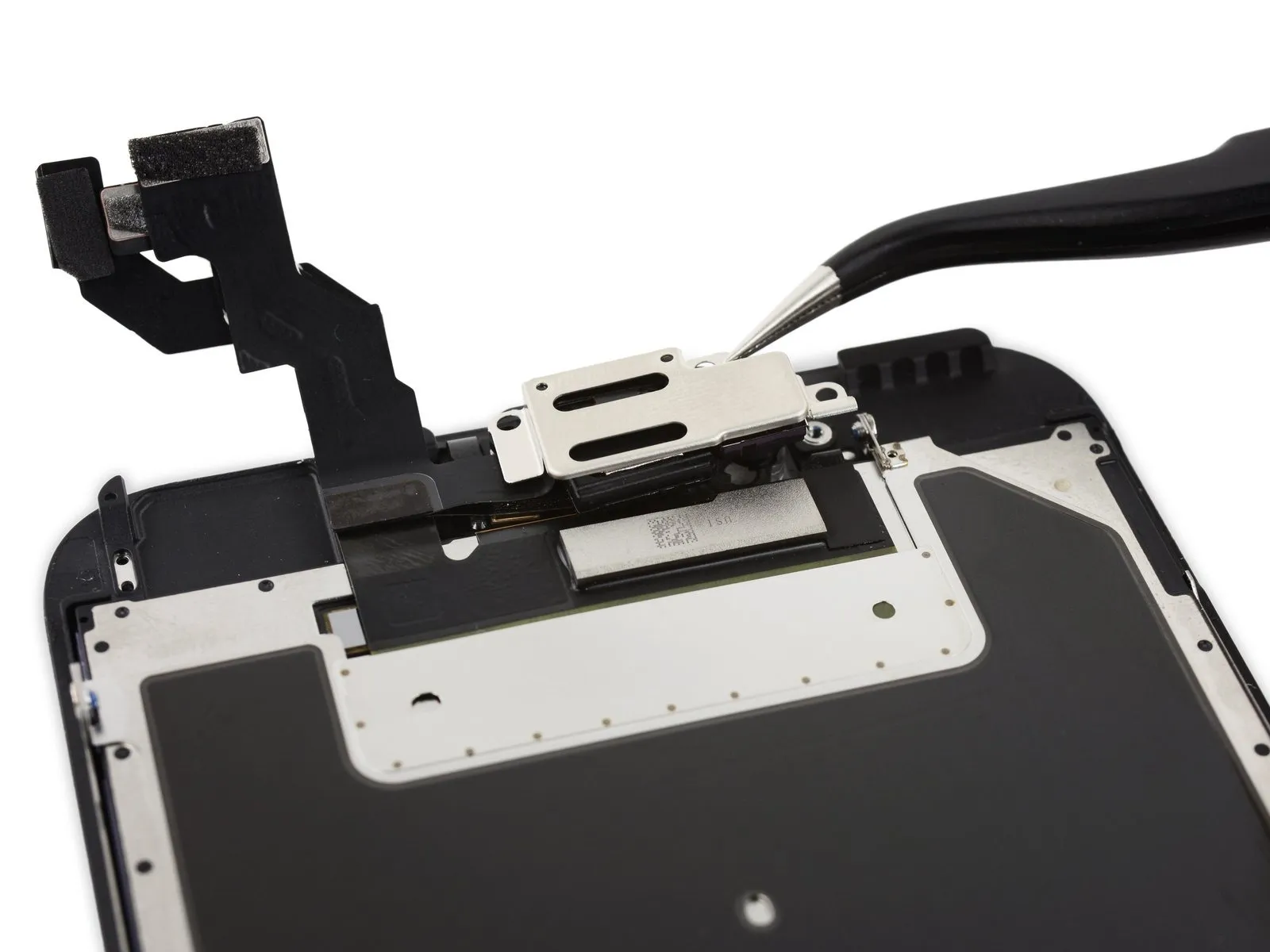

Using a 2.5mm hex screwdriver, detach the bracket securing the earpiece speaker.

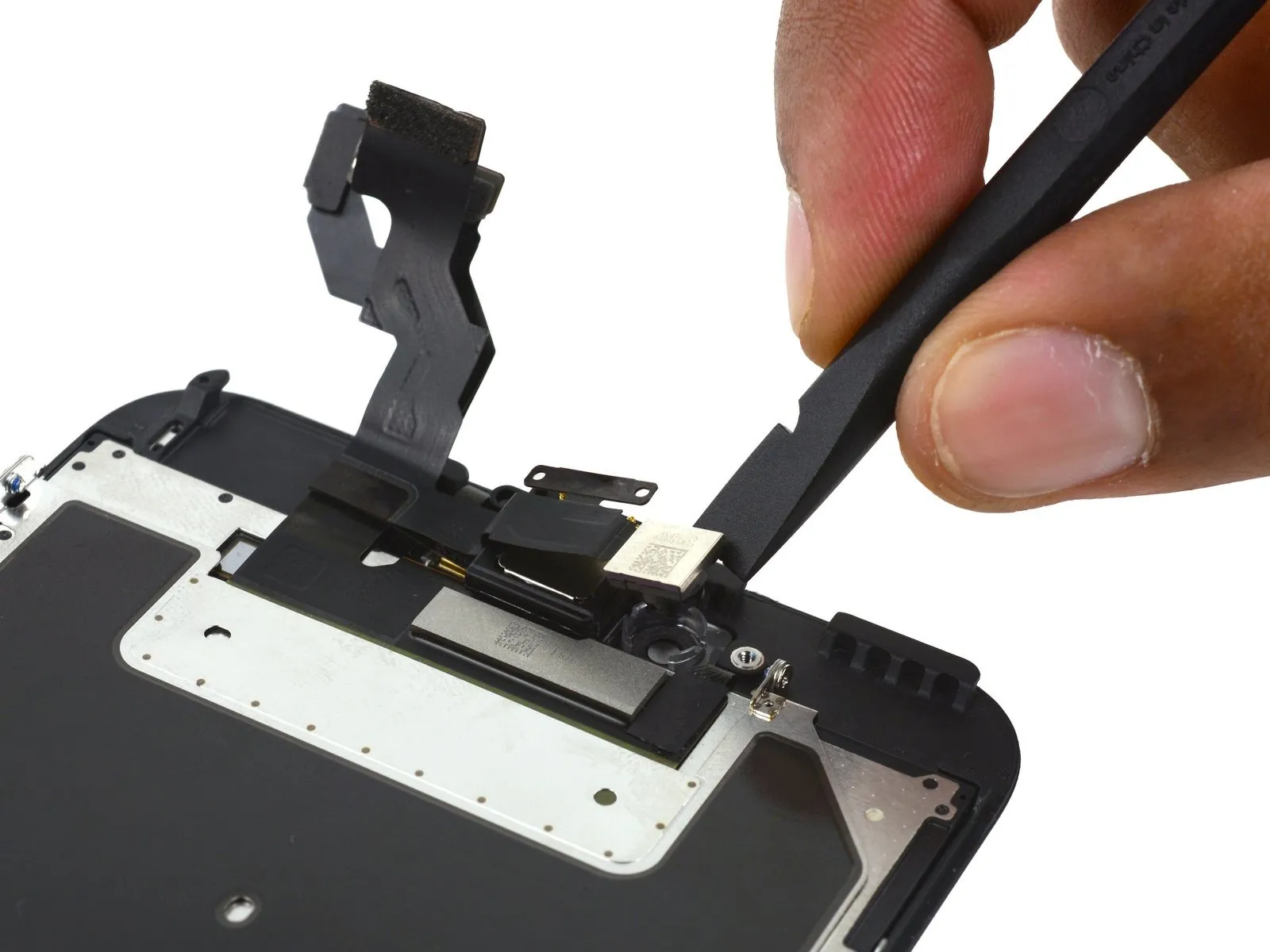

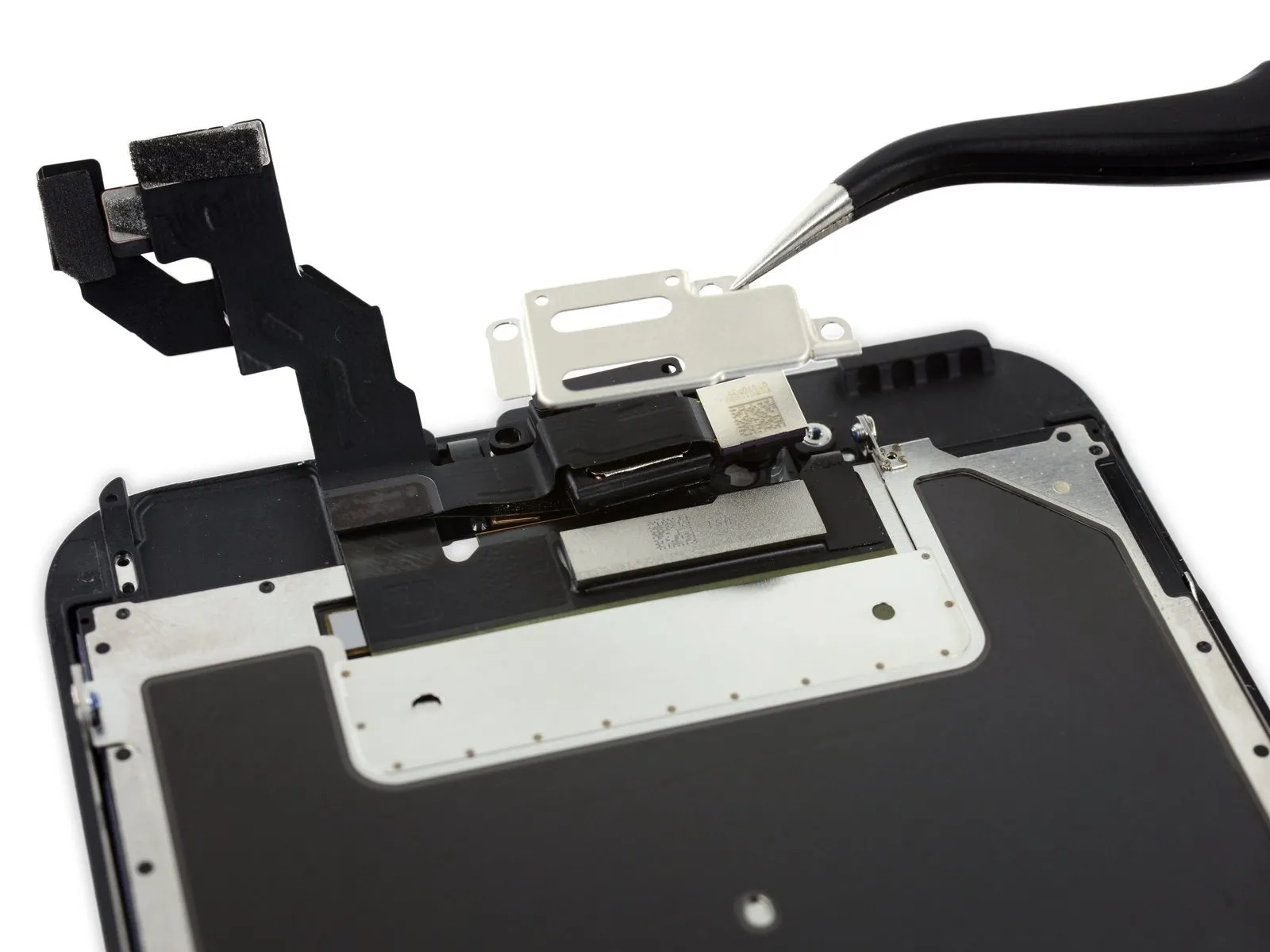

Employ the tool's planar edge.Use a plastic spudger.Employ a lifting device to raise theThe front-facing camera used for FaceTime video calls.Carefully extract the component from its enclosure.

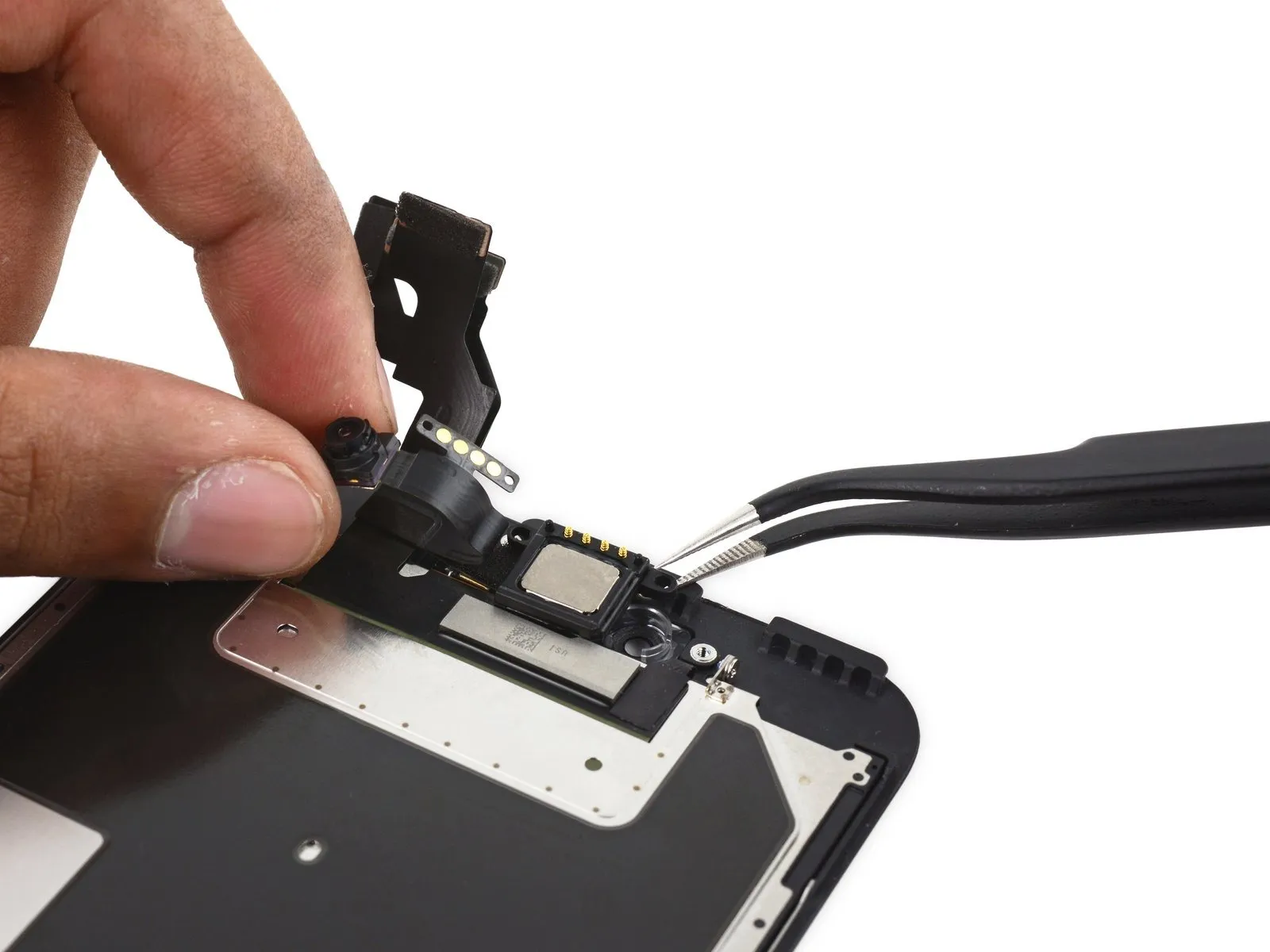

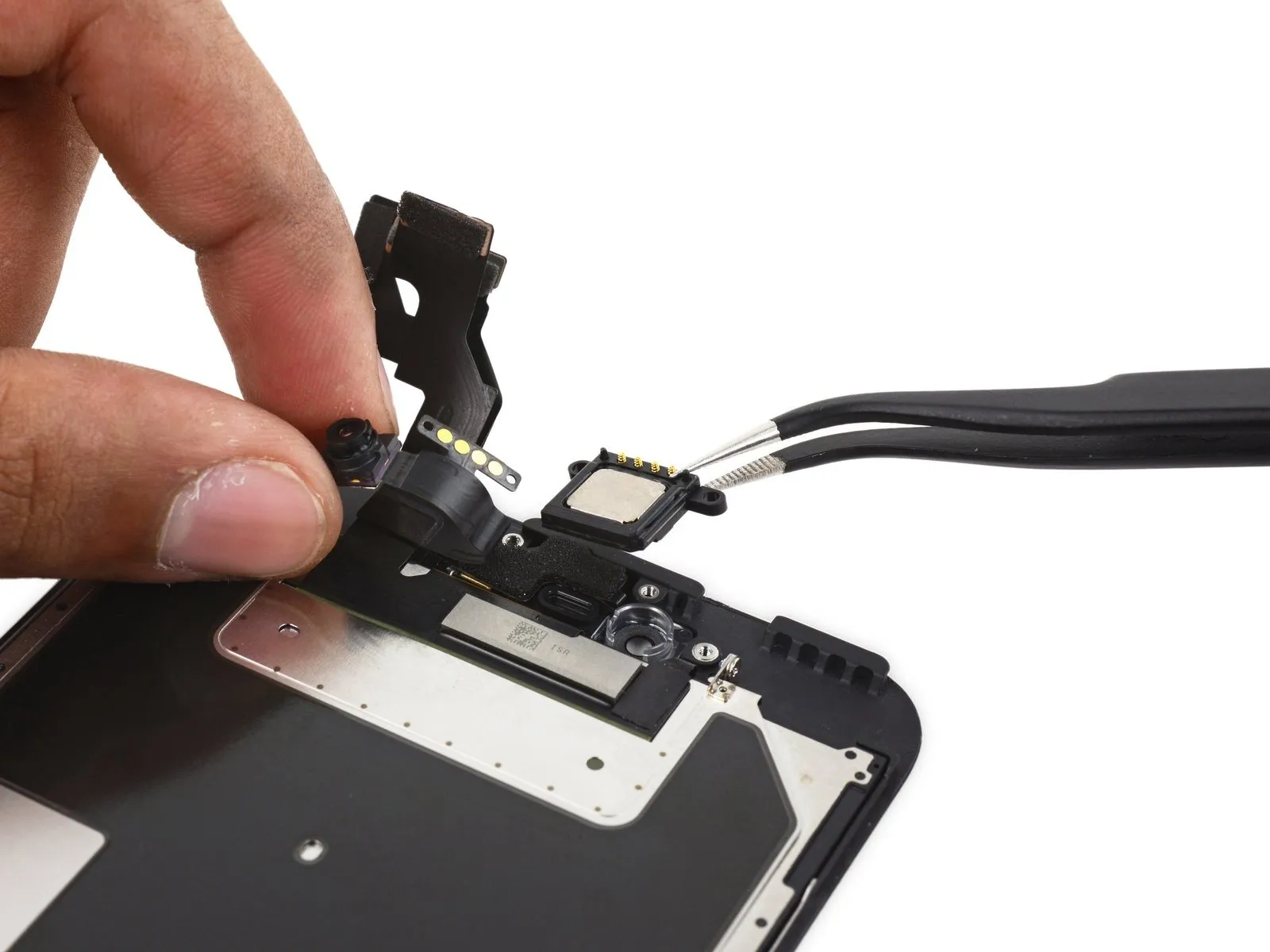

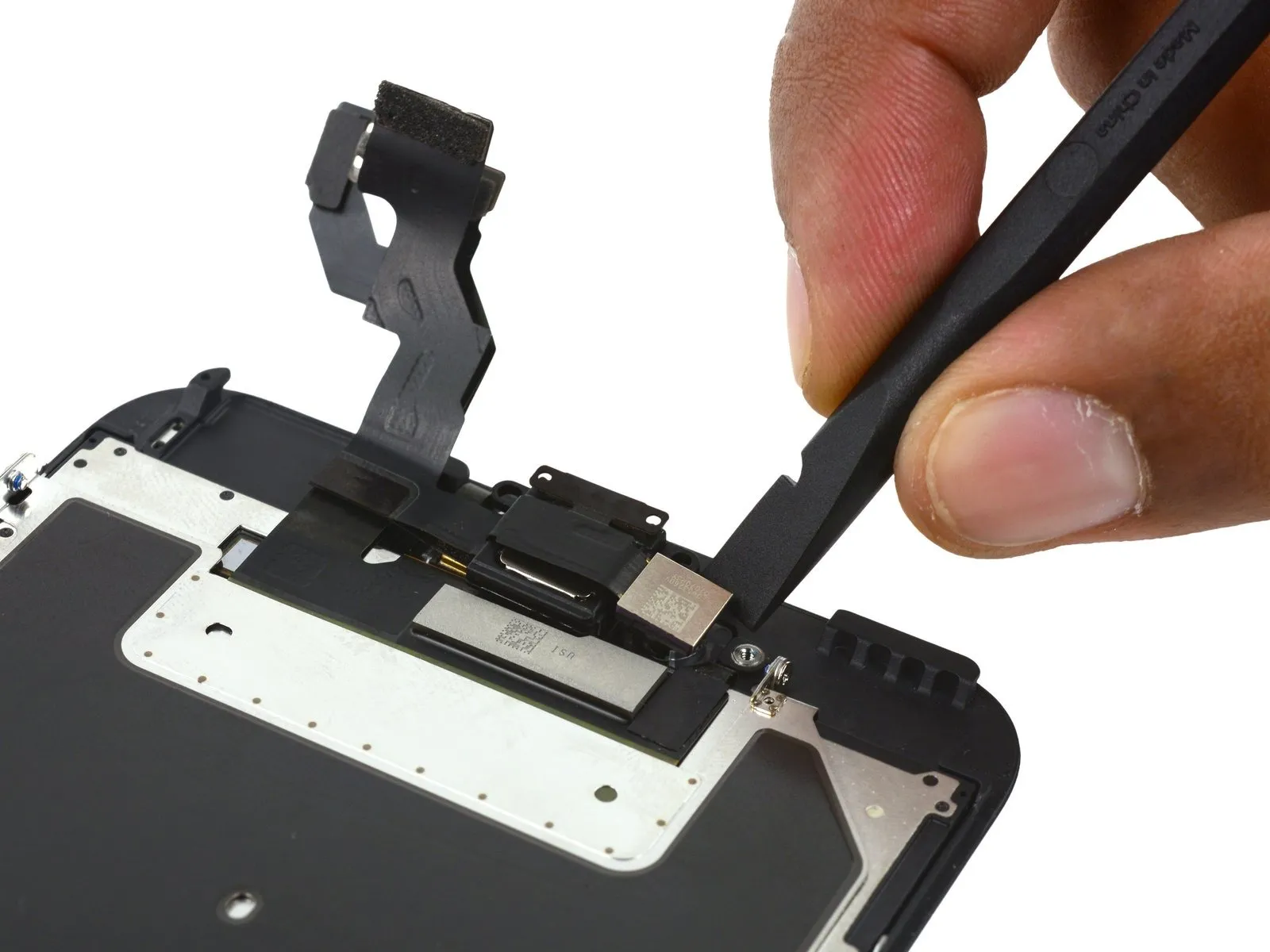

Grasp and draw the component outward.Front-facing cameraCarefully detach the earpiece speaker from its position.

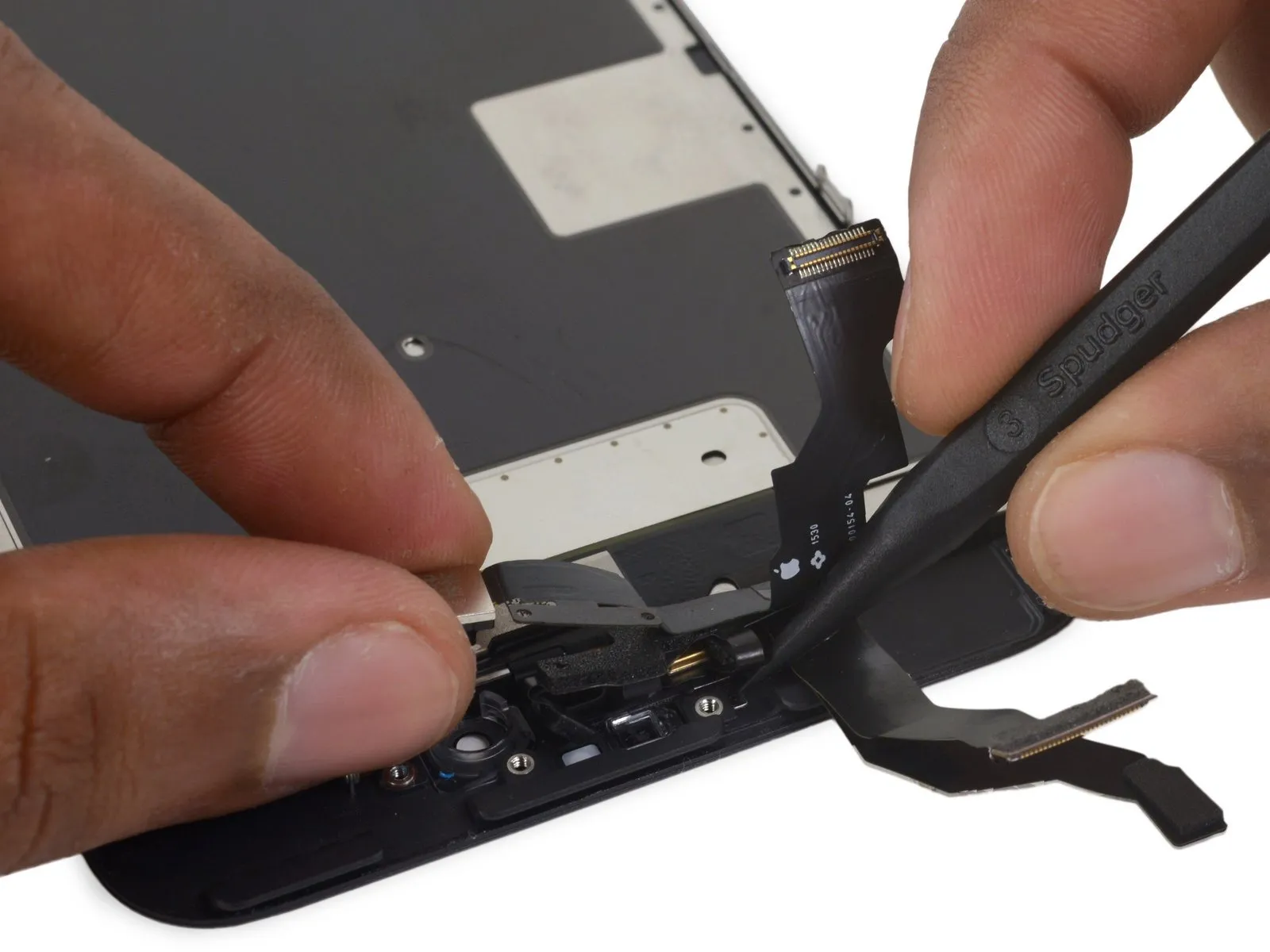

• Carefully insert the tip of the tool into.Use a plastic pry tool, often referred to as a spudger.Carefully detach the ambient light sensor from its surrounding structure within the front panel.

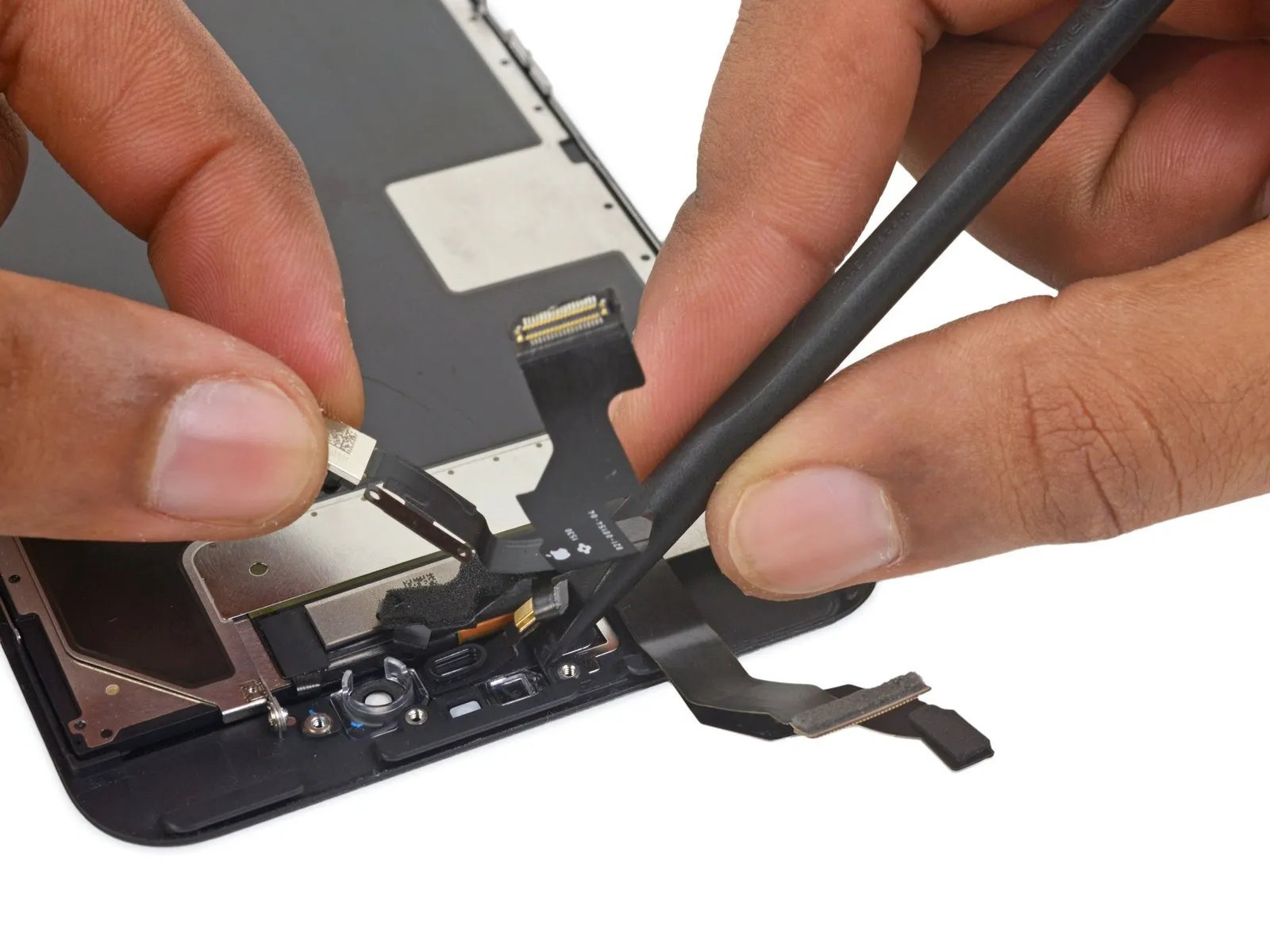

• Carefully guide the tapered end of a screwdriver into.Use a plastic pry tool, often referred to as a spudger.Carefully separate the microphone flex cable from the front panel by releasing the adhesive bond.

• Employ the spudger's flat-tipped end.Carefully raise the microphone and earpiece gasket.

• Carefully detach the FaceTime camera and its associated sensor unit..
