iPhone 6 Plus Logic Board Replacement
This document provides instructions for substituting the iPhone 6s Plus logic board.
- Due to a factory pairing process, the iPhone's logic board and Touch ID sensor function as a matched set; substituting the logic board necessitates a compatible home button, also correctly paired to the new logic board, to maintain Touch ID functionality.
Step 1 | Pentalobe Screws
Begin the process by ensuring the 1.5mm Allen wrench is used to loosen the retaining screw securing the 3.2V capacitor, observing caution to prevent electrostatic discharge damage to the component.
To prevent a potential fire or explosion hazard from the lithium-ion battery, ensure its charge level is less than 25% prior to beginning any disassembly procedures on your iPhone; a fully charged battery poses a significant risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm, which are located adjacent to the Lightning connector.
To prevent a potential fire or explosion hazard from the lithium-ion battery, ensure its charge level is less than 25% prior to beginning any disassembly procedures on your iPhone; a fully charged battery poses a significant risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm, which are located adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
Using a 5/32-inch hex key, carefully loosen the four retaining screws securing the fan assembly—ensure you do not overtighten—and gently slide the fan unit outward from the motor housing, observing the 1.25-inch clearance required to prevent damage to the wiring harness.
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding the Anti-Clamp's operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix two suction cups to the iPhone's front and back surfaces, placing them close to the lower edge and directly over the home button.
Apply vacuum to the targeted surface by pressing the cups firmly against each other.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding the Anti-Clamp's operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix two suction cups to the iPhone's front and back surfaces, placing them close to the lower edge and directly over the home button.
Apply vacuum to the targeted surface by pressing the cups firmly against each other.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 3
Using a 5/32-inch hex key, carefully tighten the three retaining screws securing the motor assembly to the housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings during reinstallation to avoid incorrect wiring, and be aware that the motor weighs 1.75 pounds.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, use a prying tool or opening pick to gain access beneath the display panel.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow a maximum 90-degree rotation per adjustment, pausing several seconds after each turn to enable the Anti-Clamp feature and allow sufficient time for settling.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, use a prying tool or opening pick to gain access beneath the display panel.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow a maximum 90-degree rotation per adjustment, pausing several seconds after each turn to enable the Anti-Clamp feature and allow sufficient time for settling.
Step 4 | Front Panel Assembly
Using a 5/32-inch hex key, carefully tighten the three mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to avoid damaging the plastic threads; observe a torque limit of 3 in-lbs per screw.
Carefully employ a suction cup to raise the front panel.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying the cup against the screen's surface.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used directly. Should neither of these methods prove effective, secure the suction cup to the screen using superglue.
Carefully employ a suction cup to raise the front panel.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying the cup against the screen's surface.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used directly. Should neither of these methods prove effective, secure the suction cup to the screen using superglue.
Step 5
Using a 5/32-inch hex key, carefully tighten the three retaining screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings during reinstallation.
Using one hand to secure the iPhone, lift the suction cup vertically to create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully detach the multiple retaining clips, potentially employing both a suction cup and a plastic opening tool to facilitate separation.
Using one hand to secure the iPhone, lift the suction cup vertically to create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully detach the multiple retaining clips, potentially employing both a suction cup and a plastic opening tool to facilitate separation.
Step 6
To detach the suction cup, depress the small plastic projection to break the airtight connection.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7
Carefully pivot the front panel assembly upwards, leveraging the phone's upper edge as a fulcrum to disengage the home button area from the rear case.
Carefully position the display at a roughly 90-degree angle, then secure it in place using a support to prevent movement during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
As a temporary substitute, an unused, sealed can of soda can be employed to secure the display in place.
Carefully position the display at a roughly 90-degree angle, then secure it in place using a support to prevent movement during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
As a temporary substitute, an unused, sealed can of soda can be employed to secure the display in place.
Step 8
The front panel assembly pivots outward, resembling a book opening, due to multiple clips situated along its upper edge, which function as a partial hinge.
Ensure the clips, positioned directly beneath the rear case's upper boundary, are properly aligned before sliding the front panel upwards. The front panel's top edge should be level with the rear case's top edge upon completion.
Ensure the clips, positioned directly beneath the rear case's upper boundary, are properly aligned before sliding the front panel upwards. The front panel's top edge should be level with the rear case's top edge upon completion.
Step 9
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A single screw, measuring 2.3 millimeters, is required.
A single screw, measuring 3.1 millimeters, is required.
A single screw, measuring 2.3 millimeters, is required.
A single screw, measuring 3.1 millimeters, is required.
Step 10
Using a precision screwdriver, detach the metal bracket securing the battery connector.
Step 11
Carefully lift the battery connector away from its corresponding socket on the logic board, employing either a clean fingernail or the tip of a specialized opening tool to avoid damage.
To prevent damage, lift solely on the battery connector itself; applying force to the logic board socket risks complete connector failure.
To prevent damage, lift solely on the battery connector itself; applying force to the logic board socket risks complete connector failure.
Step 12
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.5 mm head diameter is required.
A screw with a diameter of 2.9 millimeters is required.
Using screws longer than the specified length in the red-marked holes risks causing permanent damage to the logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.5 mm head diameter is required.
A screw with a diameter of 2.9 millimeters is required.
Using screws longer than the specified length in the red-marked holes risks causing permanent damage to the logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four actions, ensure that lifting force is applied solely to the cable connectors themselves, avoiding any upward pressure on the corresponding sockets located on the logic board.
Carefully maintain support for the front panel and then, using a fingernail or a thin opening tool, separate the front camera and earpiece speaker connector from its socket.
Carefully maintain support for the front panel and then, using a fingernail or a thin opening tool, separate the front camera and earpiece speaker connector from its socket.
Step 15
Carefully detach the connector securing the home button cable.
Step 16
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector using a plastic opening tool.
A detached display data cable during reassembly may cause a blank screen or white lines upon powering on; to resolve this, reattach the cable and restart the device by briefly disconnecting and reconnecting the battery connector.
Carefully detach the display data cable connector using a plastic opening tool.
A detached display data cable during reassembly may cause a blank screen or white lines upon powering on; to resolve this, reattach the cable and restart the device by briefly disconnecting and reconnecting the battery connector.
Step 17
Carefully detach the digitizer cable connector.
To avoid potential digitizer damage or component bending, apply pressure to opposing ends of the digitizer cable connector during reconnection, rather than the central portion.
To avoid potential digitizer damage or component bending, apply pressure to opposing ends of the digitizer cable connector during reconnection, rather than the central portion.
Step 18
Detach the front panel assembly from the rear case.
Step 19 | 5GHz Wi-Fi Antenna
Detach the antenna bracket from the rear case by unscrewing the specified fasteners.
Utilize a Phillips screwdriver, size #00, to engage a 1.5 mm screw.
Utilize a Phillips screwdriver, size #00, to engage a screw with a 2.8 mm head.
Utilize a Phillips screwdriver, size #00, to engage a 1.5 mm screw.
Utilize a Phillips screwdriver, size #00, to engage a screw with a 2.8 mm head.
Step 20
Using tweezers, carefully detach the 5GHz Wi-Fi antenna bracket from the iPhone.
Step 21
Using a plastic tool designed for delicate work, gently lift the 5GHz Wi-Fi antenna connector away from the logic board.
Step 22
Using tweezers, carefully detach the 5GHz Wi-Fi antenna connector from its securing clip located on the logic board.
Step 23
A single adhesive tab secures the two connectors together; separation can result in both components detaching simultaneously.
Carefully detach the power button cable connector and the audio control cable connector from their designated sockets on the logic board.
Carefully detach the power button cable connector and the audio control cable connector from their designated sockets on the logic board.
Step 24
Detach the 5GHz Wi-Fi antenna from the rear case by unscrewing the screws holding it in place.
Utilize a Phillips screwdriver, size #00, to engage a screw measuring 2.8 millimeters.
Use Phillips head screwdrivers, size #00, to tighten two screws measuring 1.6 millimeters.
Utilize a Phillips screwdriver, size #00, to engage a screw measuring 2.8 millimeters.
Use Phillips head screwdrivers, size #00, to tighten two screws measuring 1.6 millimeters.
Step 25
Carefully detach the 5GHz Wi-Fi antenna from the iPhone using tweezers.
When putting the 5GHz Wi-Fi antenna back together, position the small washer precisely in the upper left corner.
When putting the 5GHz Wi-Fi antenna back together, position the small washer precisely in the upper left corner.
Step 26 | Disconnect Charge Port
Using a spudger's flat tip, carefully lift the charge port connector cable away from its corresponding socket on the logic board.
Step 27
Carefully detach the interconnect antenna cable from its socket on the logic board by using the pointed end of a spudger.
Step 28
Using tweezers, gently free the interconnect antenna cable from its designated pathway on the vibrator assembly.
Step 29
Using a Phillips #00 screwdriver, detach the vibrator from the rear case by unscrewing the two 2.5 mm screws that hold it in place.
Step 30
Carefully detach the iPhone’s vibrator component.
Step 31 | SIM Card
- Using a SIM card eject tool or a straightened paperclip, gently push into the tiny aperture located on the SIM card tray to release it.
- Apply pressure until the tray releases and extends.
Applying considerable pressure might be necessary.
Step 32
- Using the SIM eject tool or a similar small, pointed object, carefully depress the SIM Card tray release until the tray pops out, then gently pull it free from the device.
Confirm the SIM card's alignment within the tray before sliding it back in, matching its position to the tray's design.

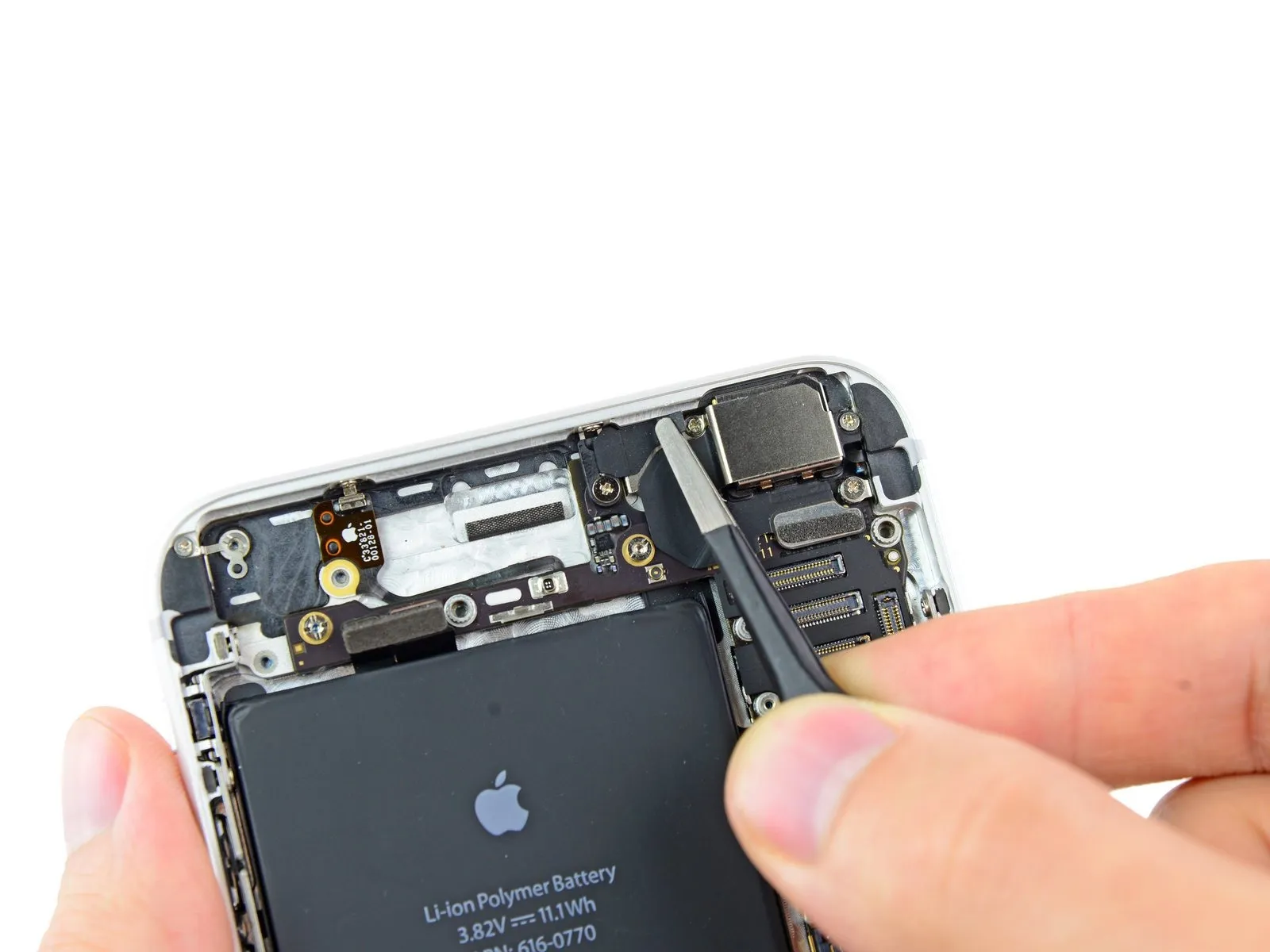

Step 33 | Rear Facing Camera
Carefully lift the tape obscuring the screw that holds the rear camera bracket in place on the back housing, utilizing tweezers for precise manipulation.

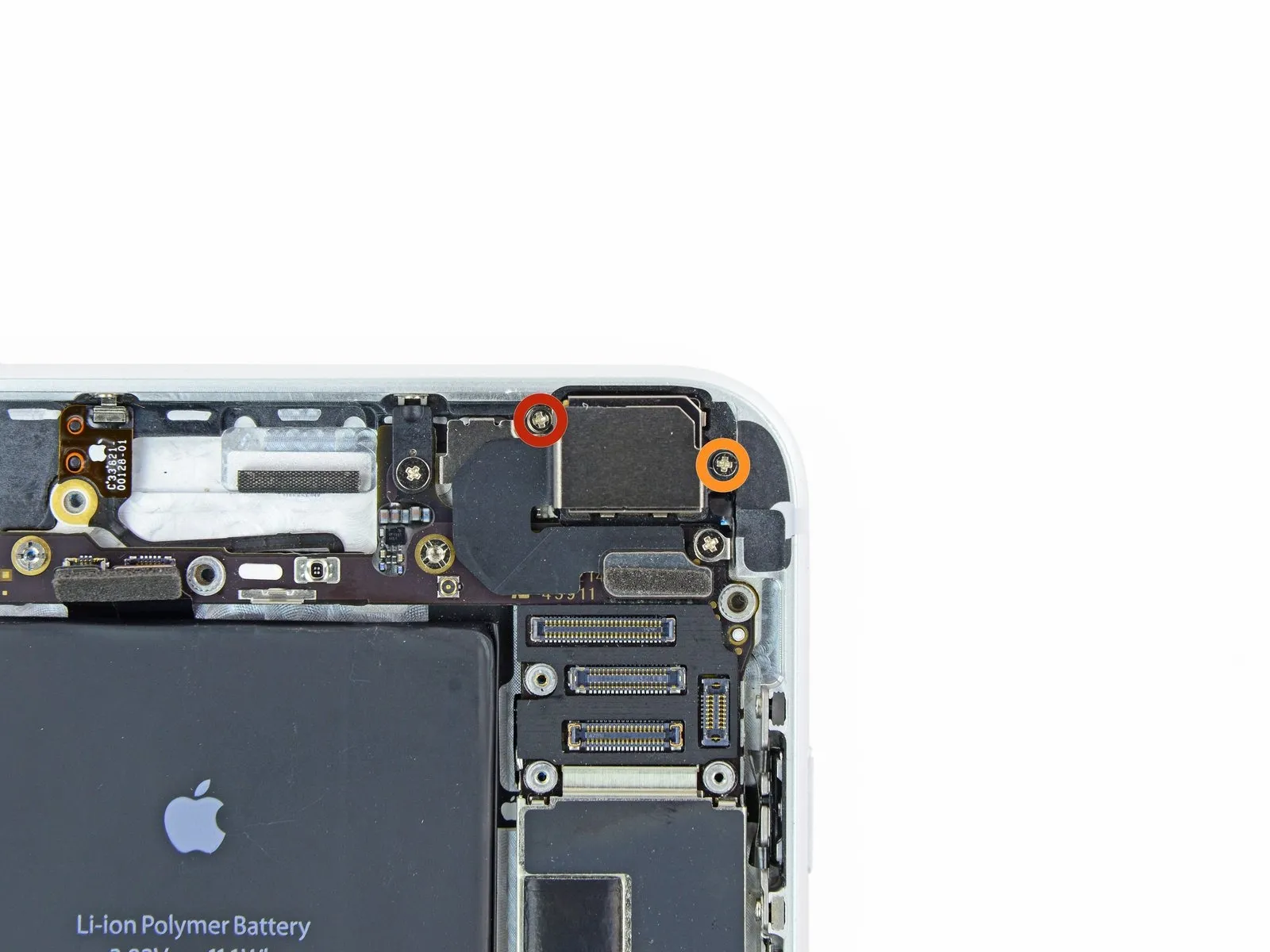

Step 34
- Using appropriate tools, detach the rear case from the rear-facing camera bracket by unscrewing the fasteners holding them together.
A Phillips #00 screwdriver bit is needed to tighten a 1.7-millimeter screw.
A Phillips #00 screwdriver is needed to remove a 2.3-millimeter screw.

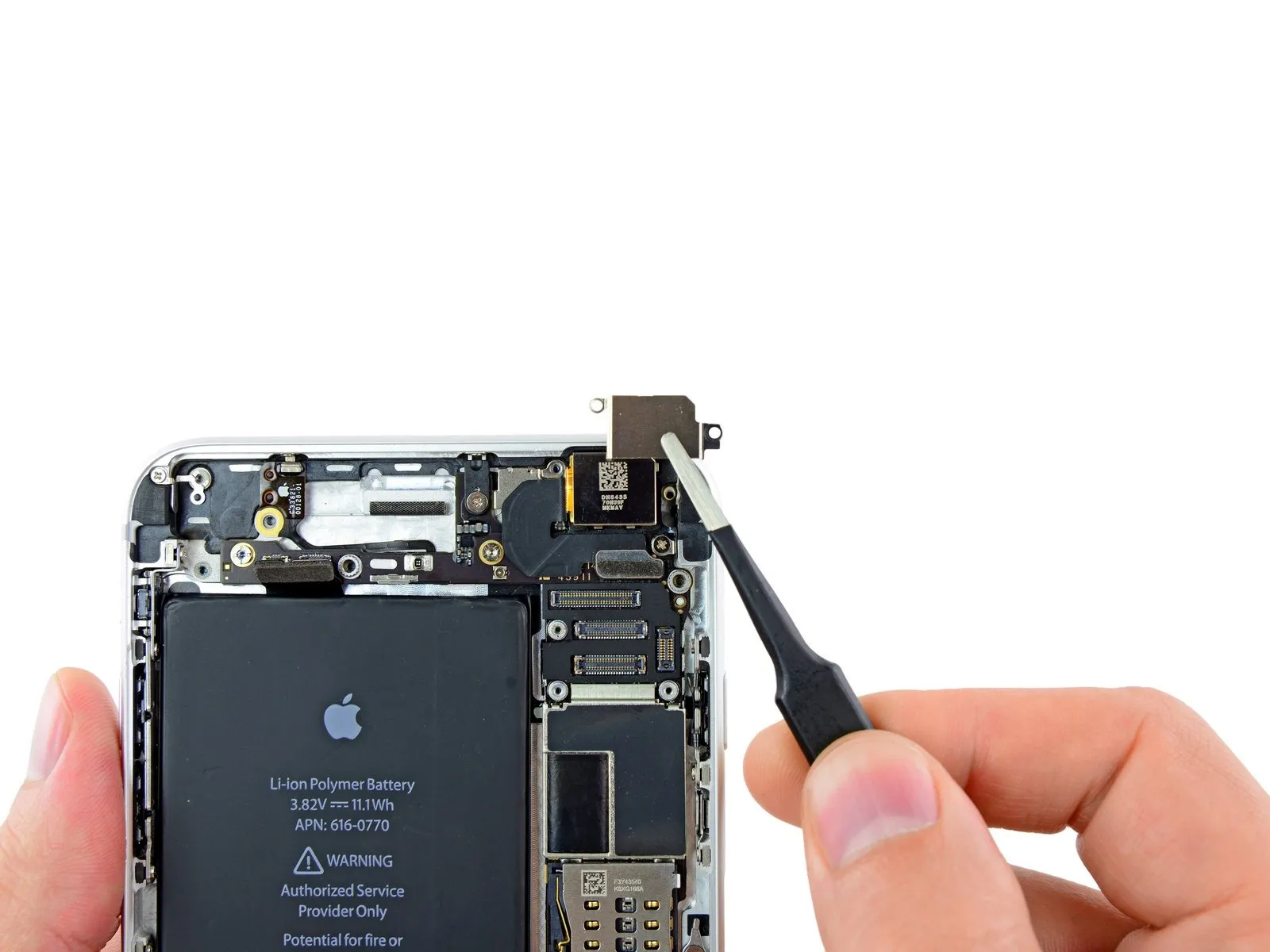

Step 35
Carefully detach the rear-facing camera bracket from the rear-facing camera assembly.

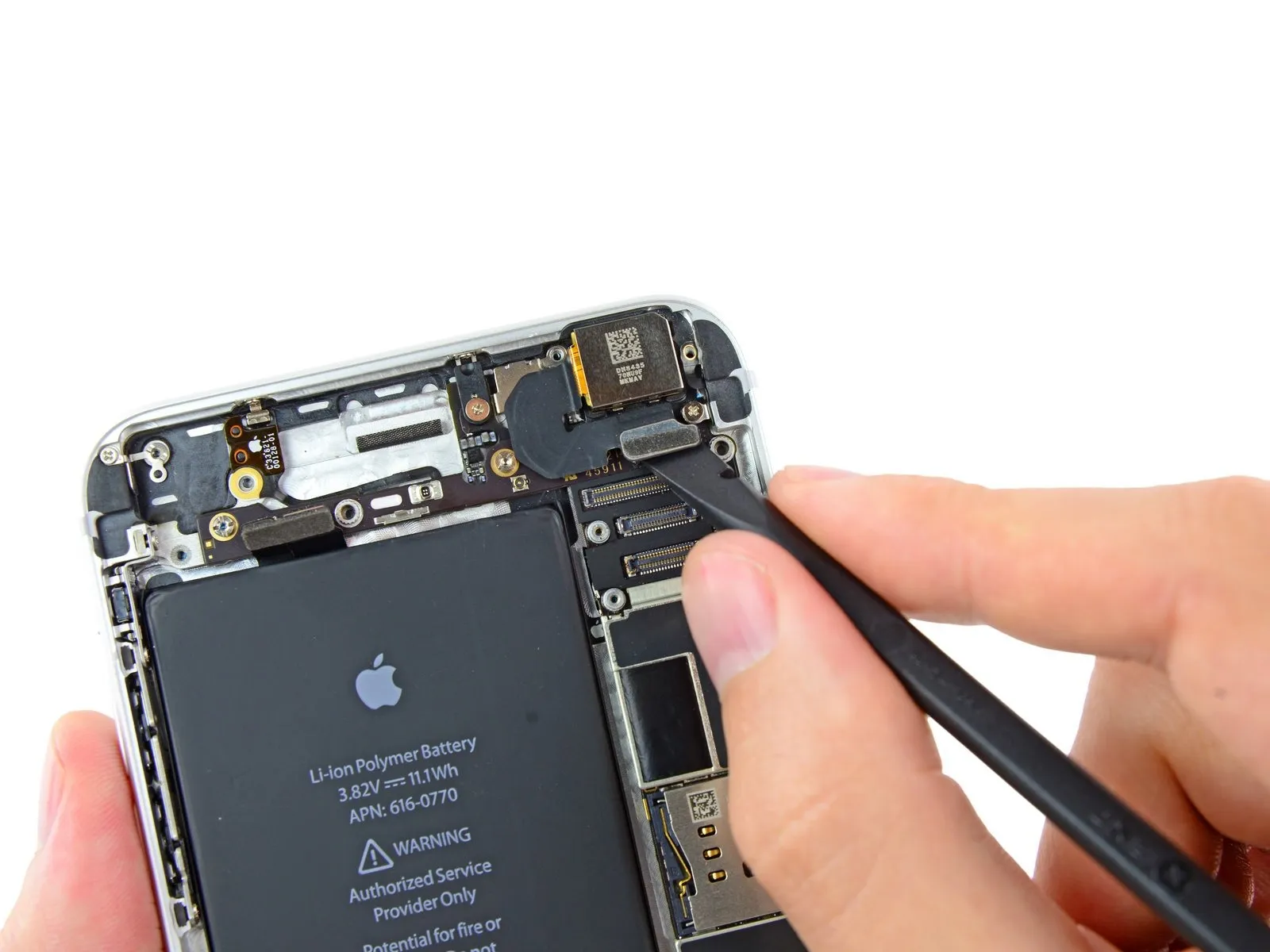

Step 36
Carefully separate the rear-facing camera connector from its corresponding socket on the logic board, utilizing the flat edge of a spudger for disconnection.

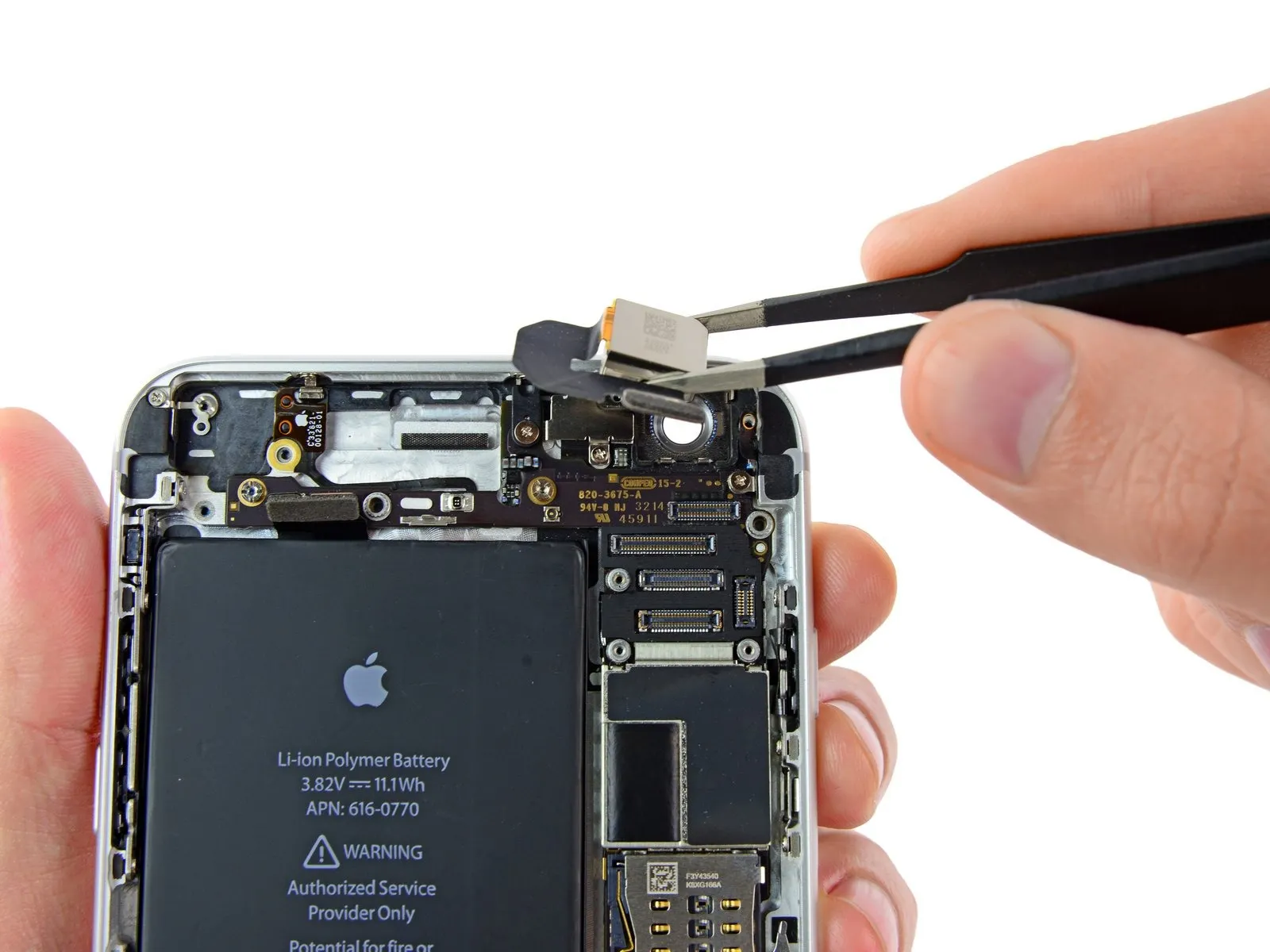

Step 37
Gently detach the rear camera assembly from the iPhone, ensuring no force is applied.

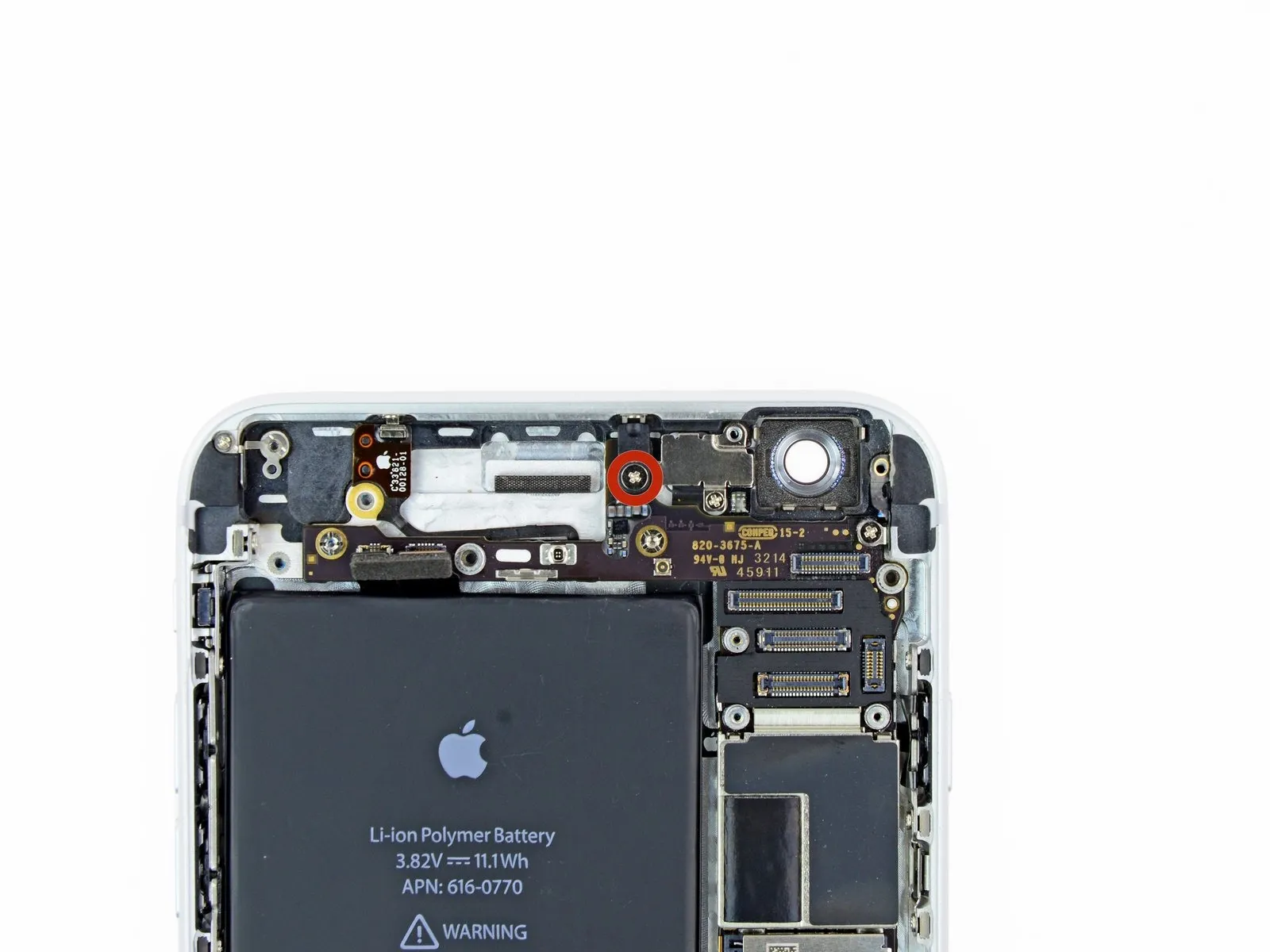

Step 38 | Logic Board Assembly
Using a Phillips #00 screwdriver, detach the plastic clip from the logic board by unscrewing the 2.8 mm screw that holds it in place.
Step 39
Using a Phillips #00 screwdriver, detach the 1.3 mm screw that is flush with the rear case's upper surface.

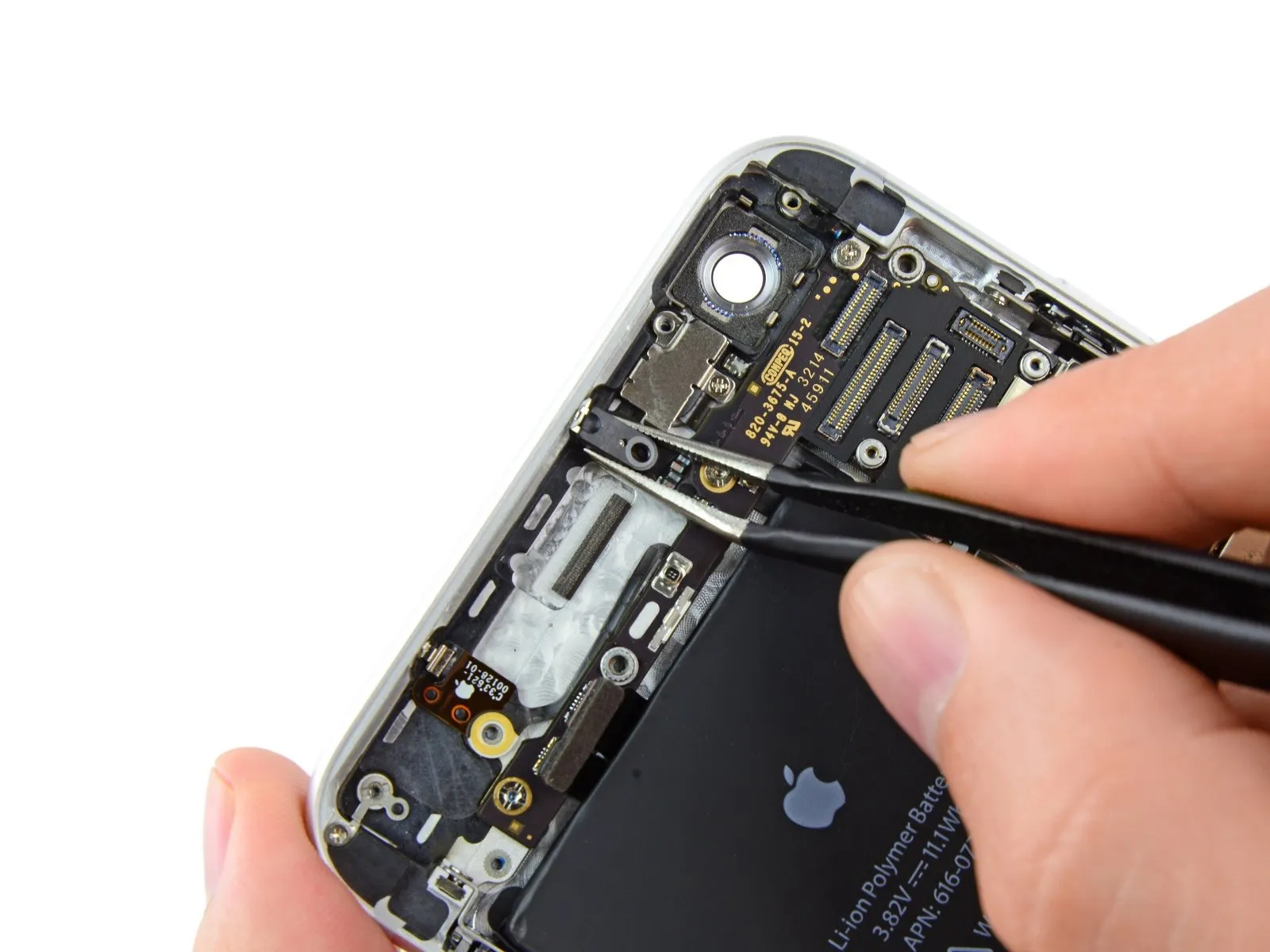

Step 40
Carefully use tweezers to secure the plastic clip and detach it from the iPhone.

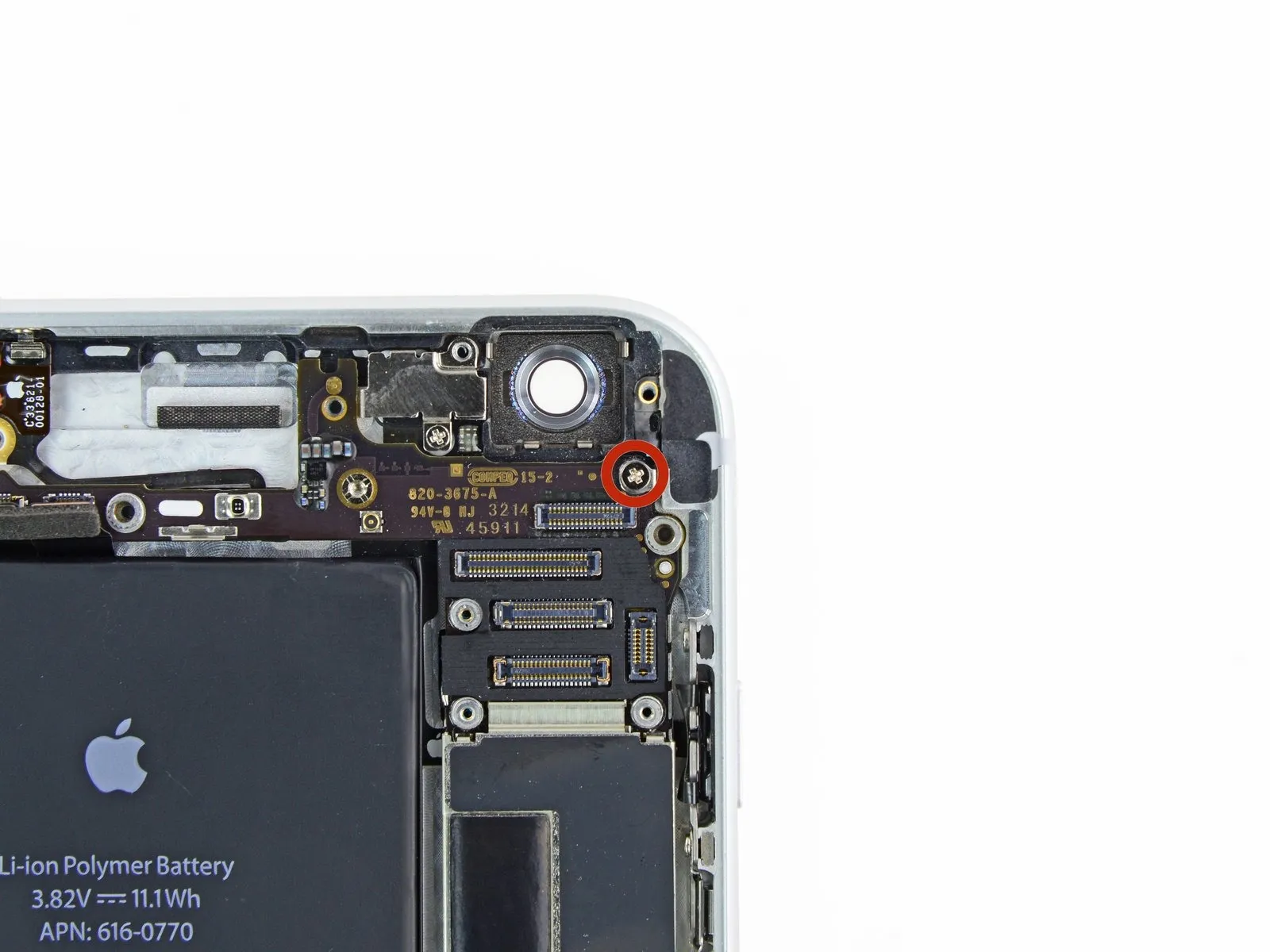

Step 41
Using a Phillips #00 screwdriver, detach the antenna clip from the rear case by unscrewing the 1.6 mm screw that holds it in place.

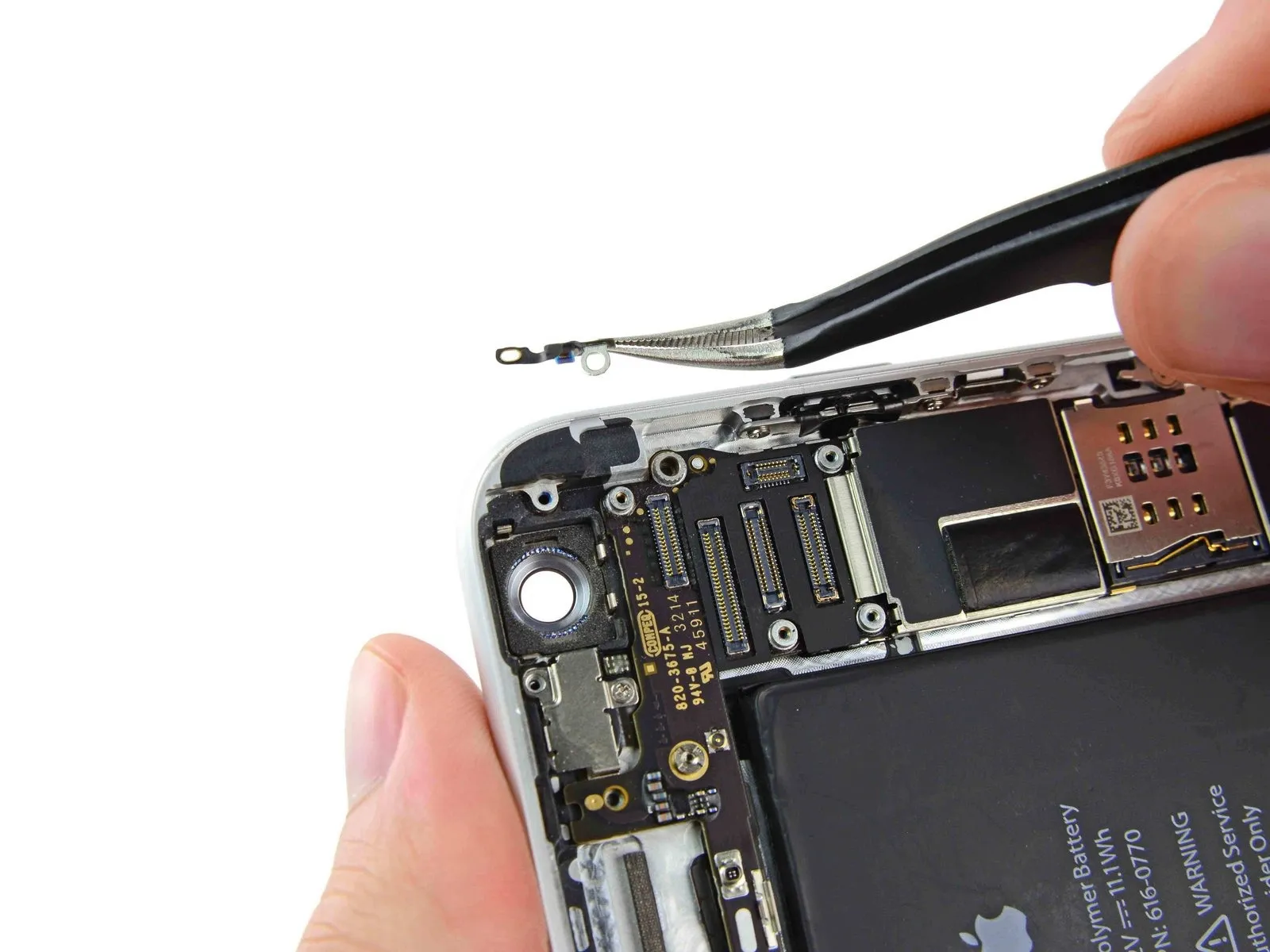

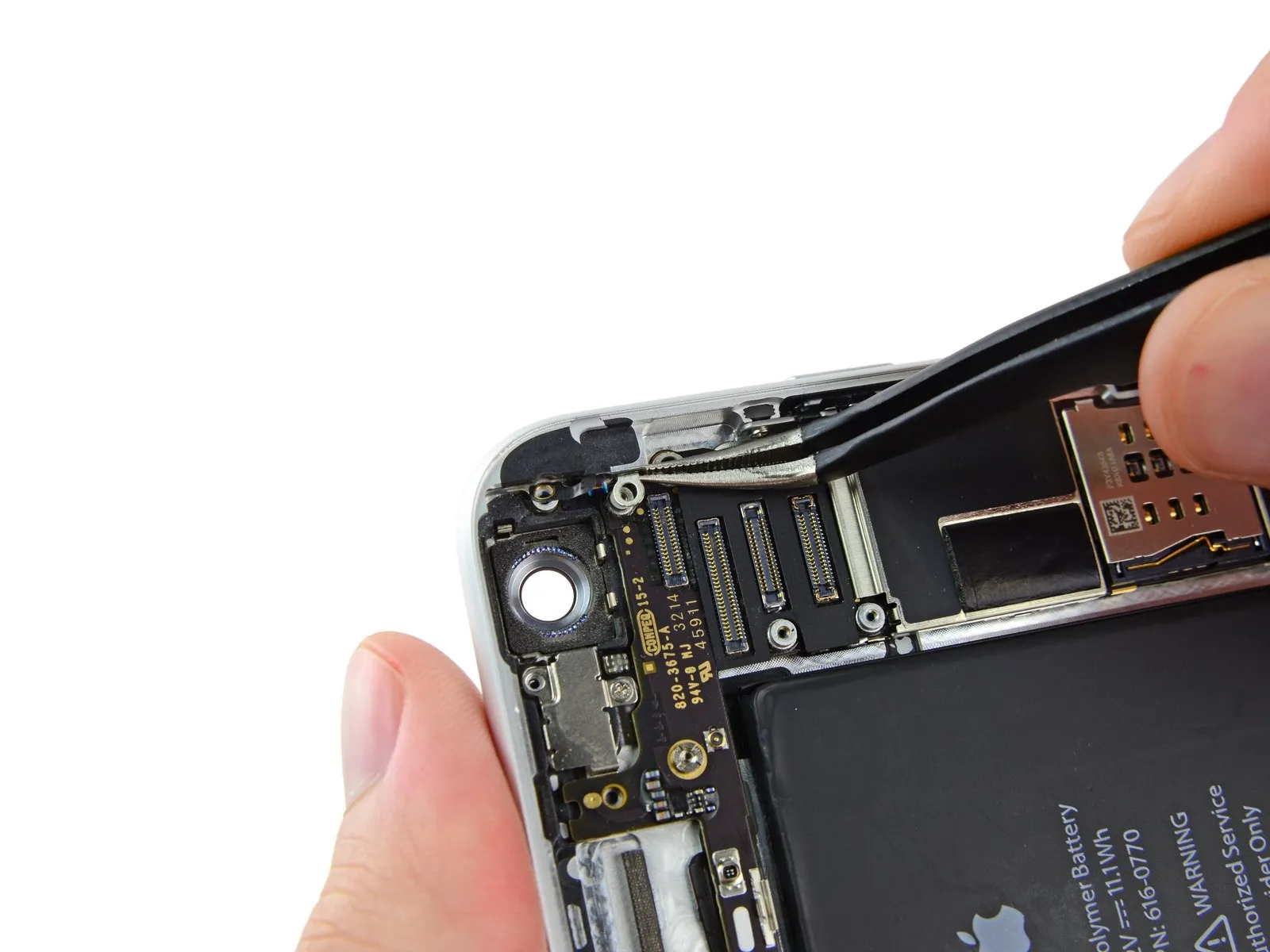

Step 42
Using tweezers, gently detach the antenna clip from the iPhone.

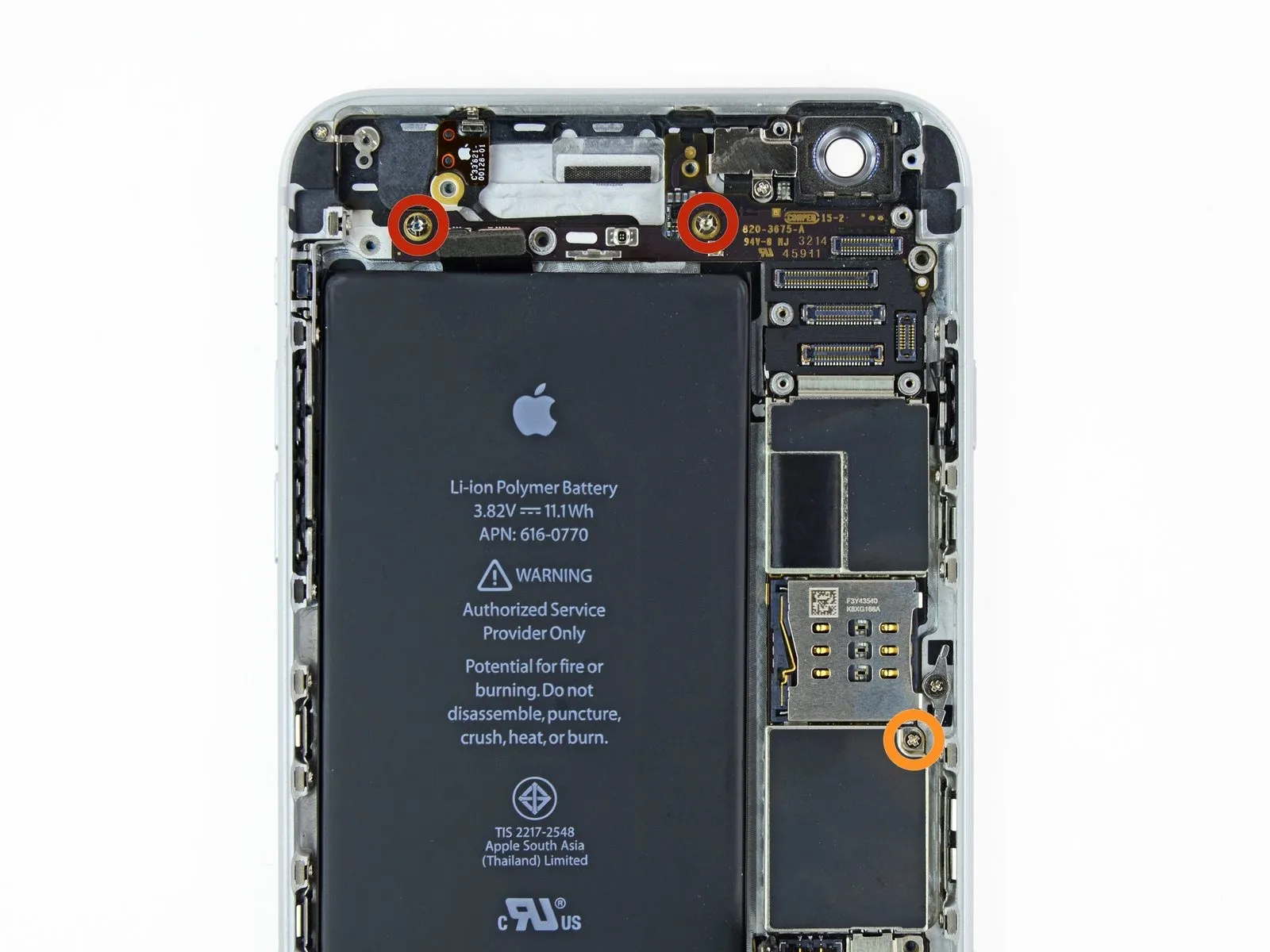

Step 43 | Logic Board
Using the appropriate screwdriver, detach the logic board from the rear case by unscrewing all listed fasteners.
Use two screws, each measuring 2.4 millimeters in diameter.
To extract standoff screws, utilize a specialized standoff screwdriver or driver bit; alternatively, a small flathead screwdriver may be employed, but exercise heightened care to prevent slippage and potential harm to nearby parts.
A Phillips head screw, size #00 and measuring 2.1 millimeters.
Use two screws, each measuring 2.4 millimeters in diameter.
To extract standoff screws, utilize a specialized standoff screwdriver or driver bit; alternatively, a small flathead screwdriver may be employed, but exercise heightened care to prevent slippage and potential harm to nearby parts.
A Phillips head screw, size #00 and measuring 2.1 millimeters.

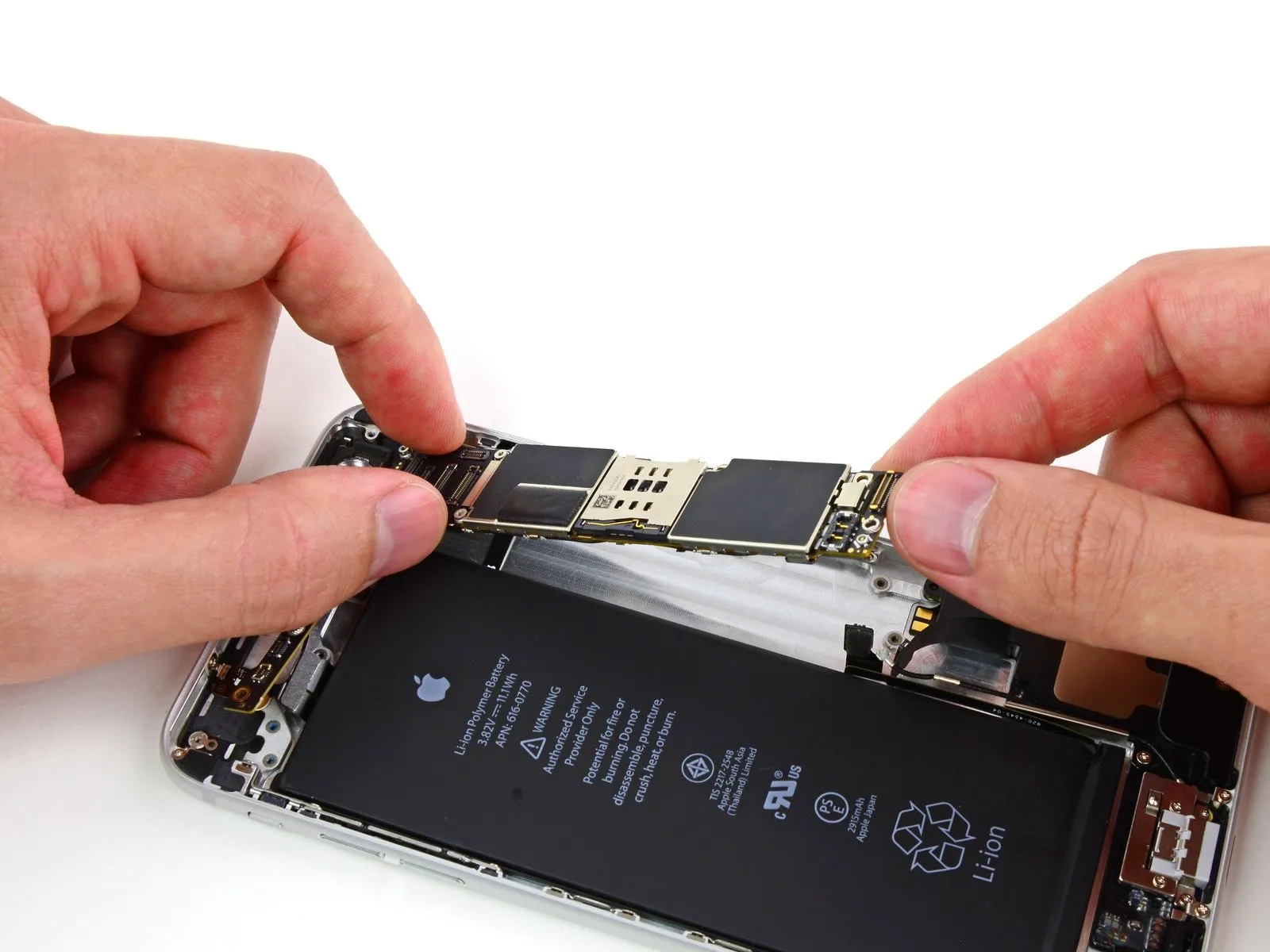

Step 44
Gently elevate the logic board, ensuring it remains seated, by lifting from the lower edge closest to the Lightning connector.

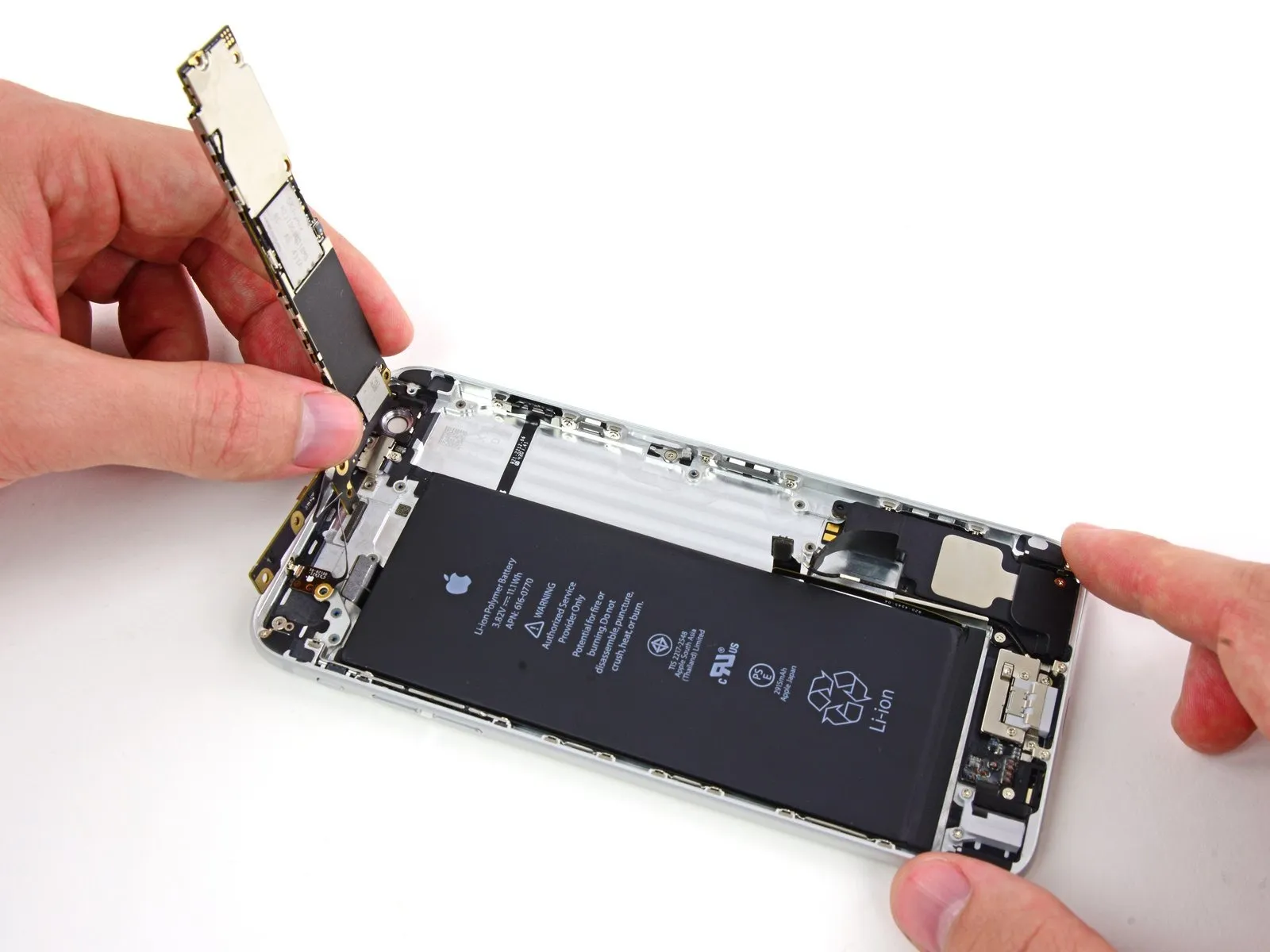

Step 45
Disconnecting the antenna connector is necessary to free the logic board, but do not detach the board itself.
Gently raise the logic board's underside, maintaining control, until it achieves a 90-degree angle relative to the chassis.
Gently raise the logic board's underside, maintaining control, until it achieves a 90-degree angle relative to the chassis.
Step 46
Carefully align the 4mm hex key to the retaining screw, ensuring it is fully seated, and then rotate the screw clockwise until it is snug, but do not overtighten, as this could damage the threads or the surrounding plastic.
Position the iPhone so the rear case supports the logic board, ensuring it rests securely with the component side facing upward.
Carefully detach the antenna connector from its socket on the logic board's rear surface, employing the flat spudger tip for separation.
Position the iPhone so the rear case supports the logic board, ensuring it rests securely with the component side facing upward.
Carefully detach the antenna connector from its socket on the logic board's rear surface, employing the flat spudger tip for separation.
Step 47
Using a 5/32-inch hex key, carefully tighten the four M4x8 Phillips head screws securing the fan assembly to the heatsink, ensuring a torque of 4 in-lbs to prevent damage.

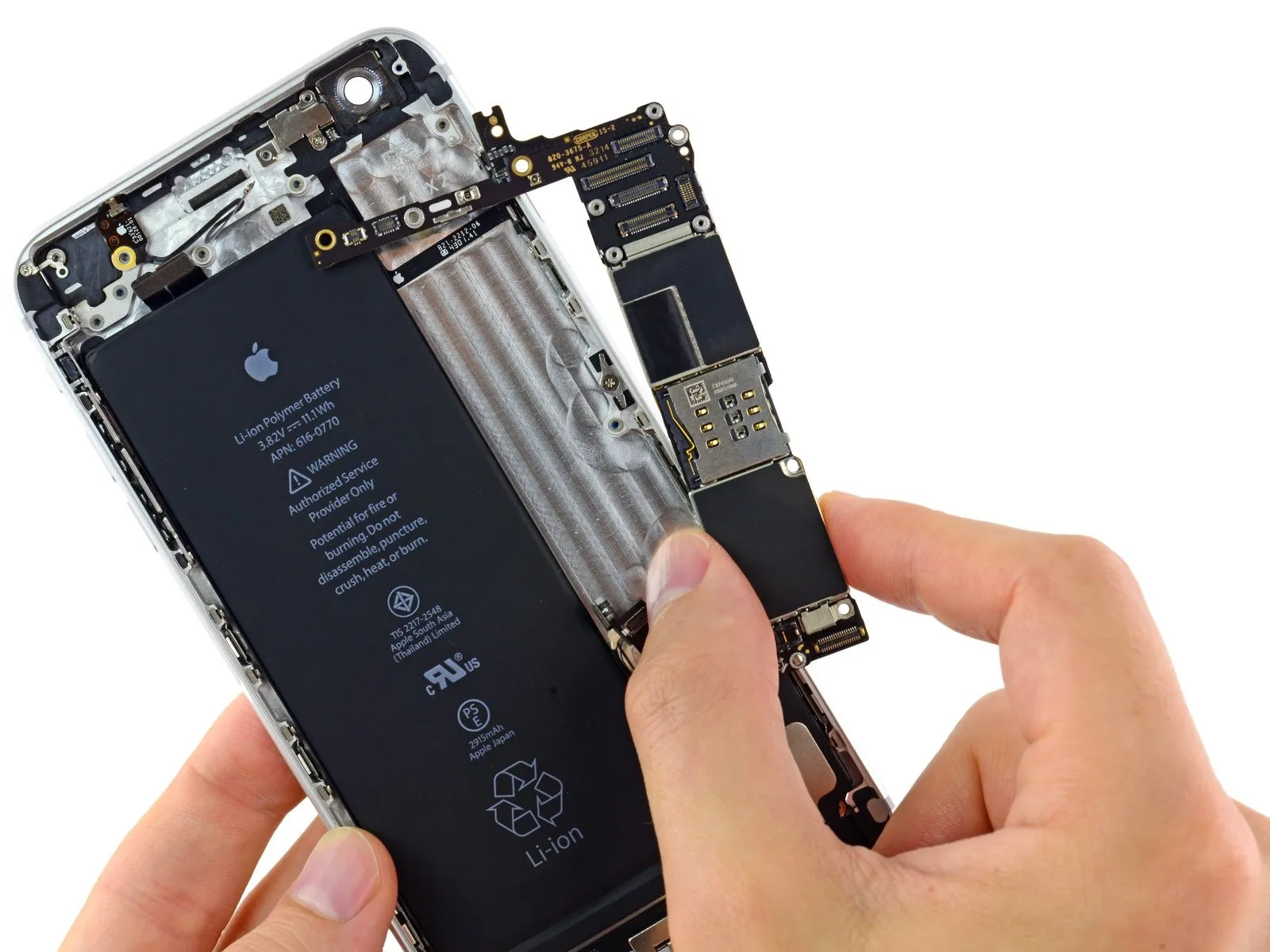

Carefully raise the logic board from its position within the iPhone, ensuring it is fully disengaged.
Carefully raise the logic board from its position within the iPhone, ensuring it is fully disengaged.
