iPhone 6 Volume Control Buttons Replacement
This document details the procedure for physically removing and substituting the volume button covers on an iPhone 6; it addresses only the external button components and excludes the underlying electronic mechanisms.
- To substitute the volume control cable, consult an alternative repair procedure.
Step 1 | Pentalobe Screws
To prevent a potential fire or explosion hazard from the lithium-ion battery during disassembly, ensure its charge level is reduced to less than 25% beforehand; a fully charged battery poses a significant risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the subsequent opening process, the following instructions utilize the Anti-Clamp tool, a custom design; if you do not have this tool, proceed to the steps three sections later for an alternative approach.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix two suction cups to the iPhone's front and rear surfaces, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To enhance the Anti-Clamp's grip if the iPhone's exterior feels excessively slick, apply adhesive tape to the device's surface.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix two suction cups to the iPhone's front and rear surfaces, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To enhance the Anti-Clamp's grip if the iPhone's exterior feels excessively slick, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, carefully slide a prying tool beneath the display.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow the Anti-Clamp device to function, pausing for several seconds and limiting each rotation to a maximum of 90 degrees to ensure proper settling.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, carefully slide a prying tool beneath the display.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow the Anti-Clamp device to function, pausing for several seconds and limiting each rotation to a maximum of 90 degrees to ensure proper settling.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure a firm, even contact between the cup and the screen surface to guarantee a leak-proof connection.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used in place of the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure a firm, even contact between the cup and the screen surface to guarantee a leak-proof connection.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used in place of the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require utilizing both the suction cup and plastic opening tool.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require utilizing both the suction cup and plastic opening tool.
Step 6
To detach the suction cup, depress the small plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Carefully detach the front panel assembly from the rear case by pivoting it outward, leveraging the phone's upper edge as a fulcrum, beginning at the home button end.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Position the clips beneath the upper boundary of the rear case, then advance the front panel vertically until its superior edge is level with the rear case's top edge.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Position the clips beneath the upper boundary of the rear case, then advance the front panel vertically until its superior edge is level with the rear case's top edge.
Step 8
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the standard 12-ounce size.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the standard 12-ounce size.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent potential damage to the device.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent potential damage to the device.
Step 10
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to surrounding components.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool.
To avoid damaging the logic board socket, apply lifting force solely to the battery connector; applying force to the socket itself risks complete connector failure.
To avoid damaging the logic board socket, apply lifting force solely to the battery connector; applying force to the socket itself risks complete connector failure.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws holding it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A single screw with a diameter of 3.1 millimeters is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A single screw with a diameter of 3.1 millimeters is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four steps, ensure that you lift solely on the cable connectors themselves, avoiding any upward force applied to the sockets they connect to on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or fingernail.
Step 16
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector using a spudger or fingernail.
Should the display data cable become detached from its connector during reassembly, a blank screen or white lines may appear upon powering on the device. To resolve this, reattach the cable and restart the phone; for a complete restart, disconnect and reconnect the battery connector.
Carefully detach the display data cable connector using a spudger or fingernail.
Should the display data cable become detached from its connector during reassembly, a blank screen or white lines may appear upon powering on the device. To resolve this, reattach the cable and restart the phone; for a complete restart, disconnect and reconnect the battery connector.
Step 17
Carefully separate the digitizer cable connector from its socket using the flat tool end of a spudger.
To avoid damaging the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure can distort the component.
To avoid damaging the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure can distort the component.
Step 18 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.
Step 19 | Battery
Carefully lift the adhesive securing the battery, starting at the lower right corner.
Exercise caution and avoid sharp tools; accidental puncture of the lithium-ion battery presents a fire hazard and potential release of hazardous materials.
To ease battery strip removal, you can choose to detach the vibrator by freeing it from its two Phillips screws and then raising it, providing greater working space.
Exercise caution and avoid sharp tools; accidental puncture of the lithium-ion battery presents a fire hazard and potential release of hazardous materials.
To ease battery strip removal, you can choose to detach the vibrator by freeing it from its two Phillips screws and then raising it, providing greater working space.
Step 20
To prevent the strips from adhering and tearing, ensure they remain smooth and free of creases throughout this step.
Gently draw the adhesive strip, moving it downwards along the iPhone's base, to release the battery.
Exercise caution during removal to prevent damage to the adhesive strip by ensuring it doesn't catch on the vibrator or surrounding parts close to the battery.
Apply continuous, even force to the strip, ensuring it remains taut as it disengages from the space between the battery and the rear case; to optimize the process, limit the pulling angle to 60 degrees or less.
Expect the strip to extend significantly, potentially several times its initial length; to maintain tension and progress, reposition your grip closer to the battery as needed.
Should the pull tab fracture, attempt to recover the detached portion using tweezers, exercising caution to avoid battery damage, and proceed with pulling. If the strip breaks and remains inaccessible beneath the battery, move forward with the subsequent instructions.
Gently draw the adhesive strip, moving it downwards along the iPhone's base, to release the battery.
Exercise caution during removal to prevent damage to the adhesive strip by ensuring it doesn't catch on the vibrator or surrounding parts close to the battery.
Apply continuous, even force to the strip, ensuring it remains taut as it disengages from the space between the battery and the rear case; to optimize the process, limit the pulling angle to 60 degrees or less.
Expect the strip to extend significantly, potentially several times its initial length; to maintain tension and progress, reposition your grip closer to the battery as needed.
Should the pull tab fracture, attempt to recover the detached portion using tweezers, exercising caution to avoid battery damage, and proceed with pulling. If the strip breaks and remains inaccessible beneath the battery, move forward with the subsequent instructions.
Step 21
Carefully align the 4mm hex key to the setscrew, ensuring it engages fully, then gradually tighten the setscrew to a torque of 1.5 Nm using the torque wrench.
Perform the same procedure on the remaining strip.
To prevent the battery from being ejected unexpectedly during strip removal, maintain consistent pressure on it.
To release a battery where the underlying adhesive has detached and is irretrievable, carefully introduce a small amount of isopropyl alcohol—with a concentration exceeding 90%—beneath the battery's edge, specifically targeting the location of the damaged adhesive strip(s).
Allow approximately one minute for the alcohol to dissolve the adhesive securing the battery, then carefully pry the battery loose using the spudger’s flat end.
To prevent damage, avoid using excessive force when removing the battery; instead, if necessary, add additional alcohol droplets to dissolve the adhesive bond. Ensure the pry tool does not puncture or warp the battery casing during separation.
Applying force to the logic board can result in device damage.
To prevent damage to the volume control cable located beneath, avoid using the spudger in the space situated between the volume down (-) button and the battery's top edge.
If the adhesive strips located beneath the battery are damaged or irretrievable, proceed to the subsequent instruction.
Perform the same procedure on the remaining strip.
To prevent the battery from being ejected unexpectedly during strip removal, maintain consistent pressure on it.
To release a battery where the underlying adhesive has detached and is irretrievable, carefully introduce a small amount of isopropyl alcohol—with a concentration exceeding 90%—beneath the battery's edge, specifically targeting the location of the damaged adhesive strip(s).
Allow approximately one minute for the alcohol to dissolve the adhesive securing the battery, then carefully pry the battery loose using the spudger’s flat end.
To prevent damage, avoid using excessive force when removing the battery; instead, if necessary, add additional alcohol droplets to dissolve the adhesive bond. Ensure the pry tool does not puncture or warp the battery casing during separation.
Applying force to the logic board can result in device damage.
To prevent damage to the volume control cable located beneath, avoid using the spudger in the space situated between the volume down (-) button and the battery's top edge.
If the adhesive strips located beneath the battery are damaged or irretrievable, proceed to the subsequent instruction.
Step 22 | Unstick the battery from the case
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4 in-lbs to prevent damage.
To release a battery adhered to the rear case, apply heat using an iOpener or hair dryer to the back cover's area immediately behind the battery; the surface temperature should reach a level just beyond comfortable touch.
Carefully pry the battery free using a plastic opening tool, applying gentle force.
Exposure to excessive heat presents a fire risk for the iPhone's battery.
Should the battery adhere firmly to the rear enclosure, reposition the iPhone and carefully slide dental floss or durable string between the battery and the case. Gently work the floss or string back and forth, using a sawing action, to loosen and release the adhesive bond.
For cleaning between teeth, a 0.009 inch diameter E string from a 12-string guitar set can be used as a robust substitute for traditional floss.
To release a battery adhered to the rear case, apply heat using an iOpener or hair dryer to the back cover's area immediately behind the battery; the surface temperature should reach a level just beyond comfortable touch.
Carefully pry the battery free using a plastic opening tool, applying gentle force.
Exposure to excessive heat presents a fire risk for the iPhone's battery.
Should the battery adhere firmly to the rear enclosure, reposition the iPhone and carefully slide dental floss or durable string between the battery and the case. Gently work the floss or string back and forth, using a sawing action, to loosen and release the adhesive bond.
For cleaning between teeth, a 0.009 inch diameter E string from a 12-string guitar set can be used as a robust substitute for traditional floss.
Step 23 | Removing the battery
Carefully align the 4mm hex key to the setscrew, ensuring it engages fully, then tighten the setscrew to a torque of 1.5 Nm using the torque wrench.
Disconnecting the iPhone's internal battery requires careful attention to avoid damage; therefore, proceed to detach it.
Carefully slide the protective plastic covering off the new battery, ensuring you don't snag or damage the ribbon cable during removal.
To prevent damage, ensure all traces of the alcohol solution are removed by wiping with a clean cloth or by letting it evaporate completely before proceeding with the new battery installation.
To guarantee correct positioning within its designated space, briefly plug the battery connector back into the logic board's socket prior to securing the new battery.
Secure the battery in place, then sever its electrical connection before proceeding with the remaining assembly steps.
To secure a battery lacking factory-applied adhesive, follow the instructions detailed in this guide for adhesive strip replacement.
Following reassembly, execute a factory reset to proactively avoid potential problems and streamline any subsequent diagnostic procedures.
Disconnecting the iPhone's internal battery requires careful attention to avoid damage; therefore, proceed to detach it.
Carefully slide the protective plastic covering off the new battery, ensuring you don't snag or damage the ribbon cable during removal.
To prevent damage, ensure all traces of the alcohol solution are removed by wiping with a clean cloth or by letting it evaporate completely before proceeding with the new battery installation.
To guarantee correct positioning within its designated space, briefly plug the battery connector back into the logic board's socket prior to securing the new battery.
Secure the battery in place, then sever its electrical connection before proceeding with the remaining assembly steps.
To secure a battery lacking factory-applied adhesive, follow the instructions detailed in this guide for adhesive strip replacement.
Following reassembly, execute a factory reset to proactively avoid potential problems and streamline any subsequent diagnostic procedures.
Step 24 | Volume Control Cable
Using a 5/32-inch hex key, carefully tighten the four M4x8mm screws securing the fan assembly to the heatsink, ensuring a torque of no more than 0.5 Nm to prevent damage.
Using a Phillips #00 screwdriver, detach the upper cable bracket by unscrewing the included screws.
A screw with a 2.9 mm diameter is required.
A screw with a 2.2 mm head diameter is required.
Using a Phillips #00 screwdriver, detach the upper cable bracket by unscrewing the included screws.
A screw with a 2.9 mm diameter is required.
A screw with a 2.2 mm head diameter is required.
Step 25
Carefully align the 4mm hex key to the setscrew, ensuring the screwdriver bit remains perpendicular, and tighten it to a torque of 3.2 Nm to secure the motor shaft.
Detach the iPhone’s upper cable bracket.
Detach the iPhone’s upper cable bracket.
Step 26
Using a Phillips head screwdriver, size #00, detach the four screws securing the contact bracket.
- A screw with a 1.5 mm head diameter is required.
- Employ a 1.4-millimeter screw.
- Use two screws, each measuring 2.1 millimeters.
Step 27
Carefully detach the contact bracket, a component located within the iPhone, ensuring no damage occurs.
Step 28
Employing the flat spudger tip, carefully disengage the volume control cable connector from its socket.
To prevent irreversible harm, apply lifting force solely to the connector itself; do not apply pressure to the logic board socket.
To prevent irreversible harm, apply lifting force solely to the connector itself; do not apply pressure to the logic board socket.
Step 29
Using a Phillips #00 screwdriver, detach the screws securing the volume control cable brackets.
- Use two screws, each measuring 2.3 millimeters.
- A screw with a 1.8 mm diameter is required.
Step 30
To gain access to the button covers, detach the brackets securing the hold switch and volume control button from the rear case.
Step 31
- Carefully lift the volume control button cable away from the rear case, beginning at the connector.
Exercise caution and avoid forceful movements while lifting the delicate cable sections away from the enclosure.
Disconnect the cable that connects to the volume control button from the rear case.

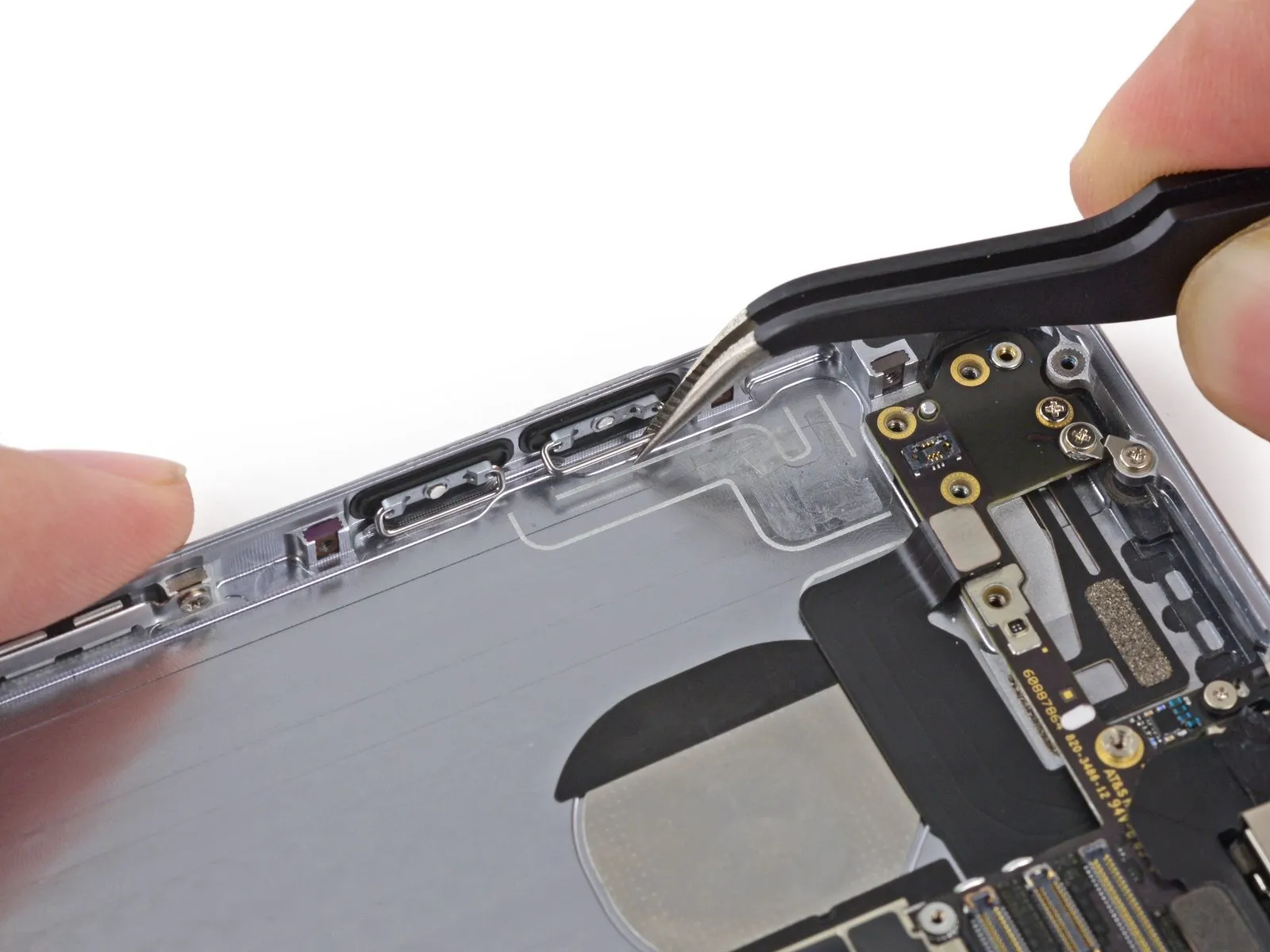

Step 32 | Volume Control Buttons

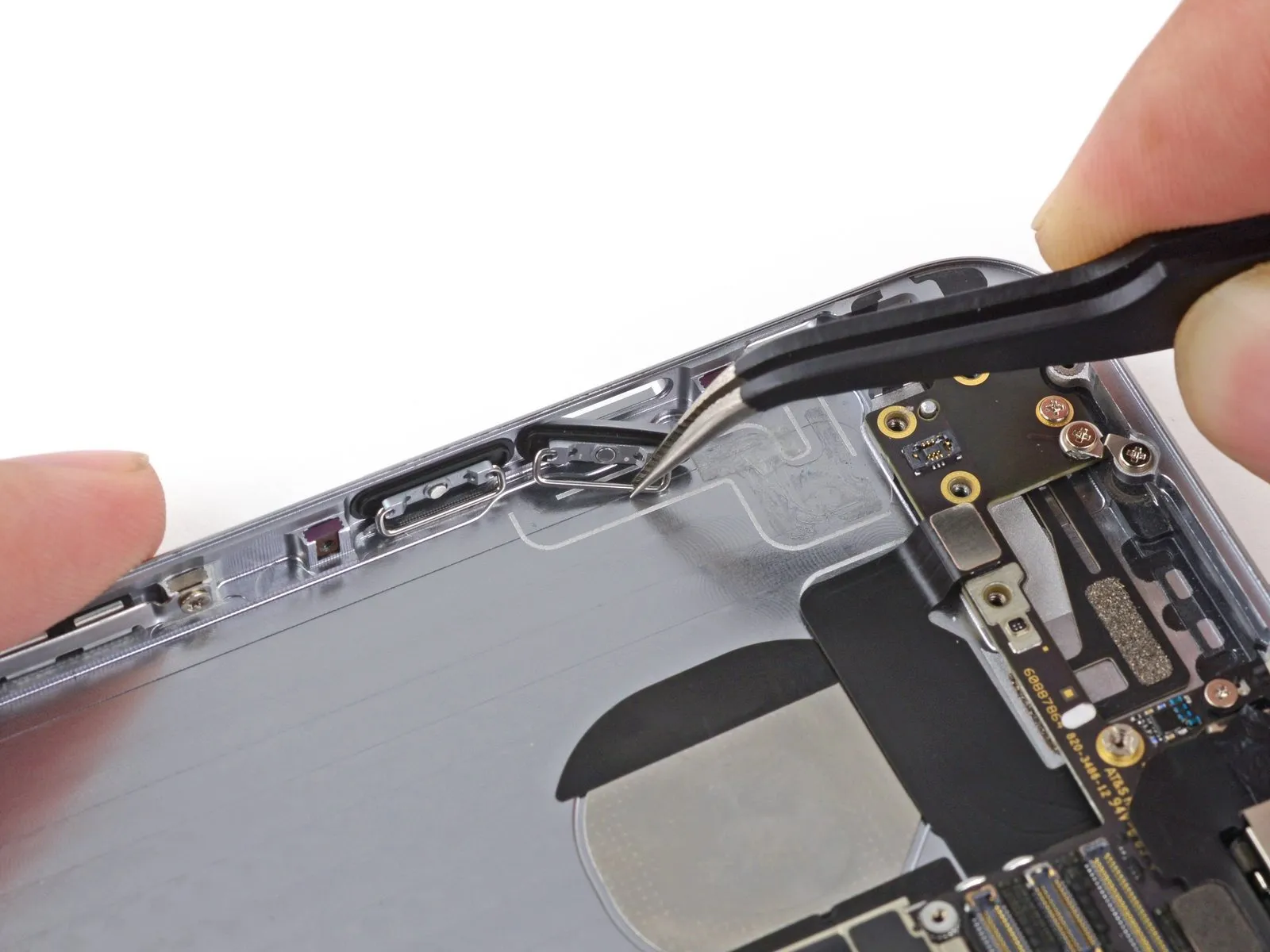

- To detach the volume control buttons, grasp the metal bar they are affixed to and draw outwards, disengaging them from the rear case.
To detach the buttons, gently separate them from the case housing, being mindful of the adhesive gasket to avoid tearing the underlying membrane.
