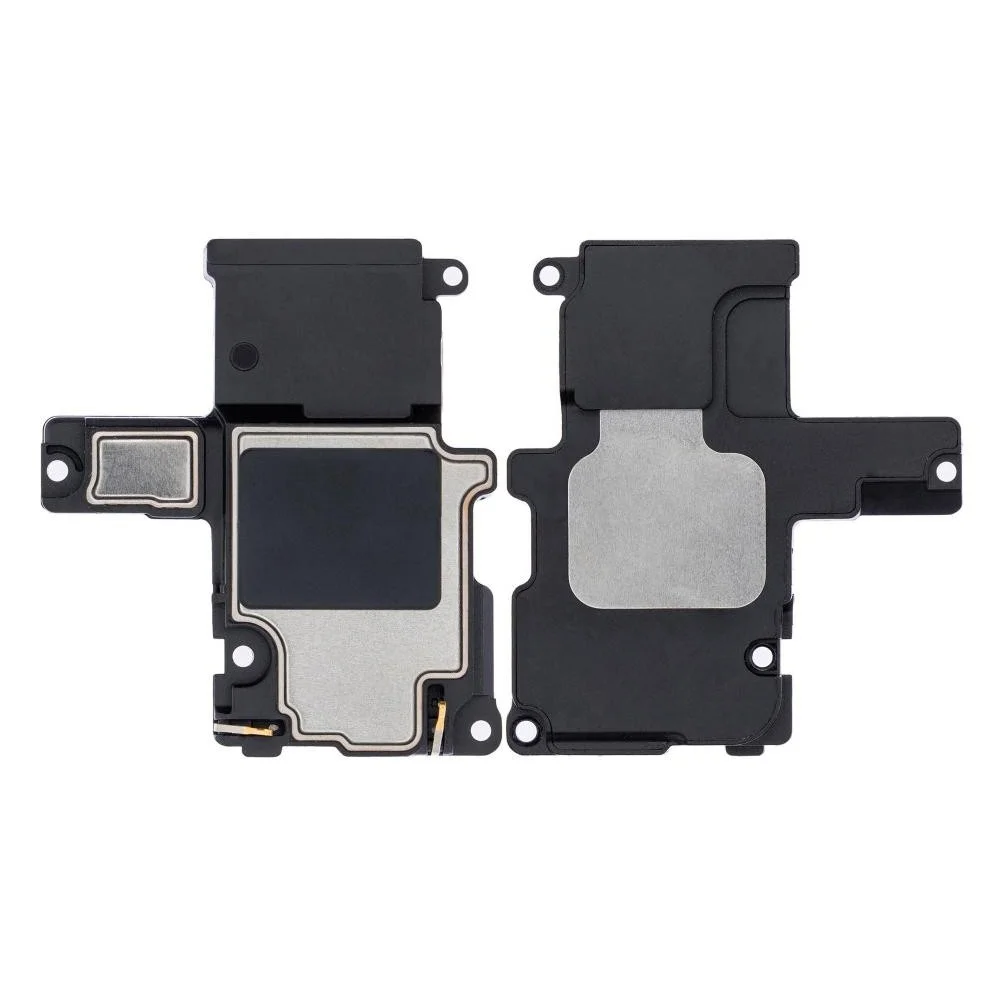

iPhone 6 Speaker Replacement
Follow these instructions to substitute a damaged speaker unit within your iPhone 6.
- To protect the display cables from potential damage during the repair process, detach the front panel assembly as outlined in this guide.
- For those confident in manually stabilizing the display, bypassing complete display detachment is permissible; proceed directly to the speaker removal procedure.
Step 1 | Pentalobe Screws
To prevent a fire or explosion hazard from a potentially damaged lithium-ion battery, ensure its charge level is less than 25% prior to beginning any disassembly procedures on your iPhone.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to commencing the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, located adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to commencing the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, located adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding the Anti-Clamp's operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Secure the iPhone by placing suction cups—one on the front surface, directly above the home button, and one on the rear—close to the lower edge.
Apply vacuum by pressing the cups firmly against the surface you intend to work on.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding the Anti-Clamp's operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Secure the iPhone by placing suction cups—one on the front surface, directly above the home button, and one on the rear—close to the lower edge.
Apply vacuum by pressing the cups firmly against the surface you intend to work on.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, reposition the handle by 90 degrees.
Allow several seconds of settling time between each incremental tightening, limiting each adjustment to a maximum of 90 degrees. Permit the Anti-Clamp feature and time to facilitate proper seating.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, reposition the handle by 90 degrees.
Allow several seconds of settling time between each incremental tightening, limiting each adjustment to a maximum of 90 degrees. Permit the Anti-Clamp feature and time to facilitate proper seating.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure a leak-proof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be used in place of the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure a leak-proof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be used in place of the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the retaining clips, which may require using both the suction cup and plastic opening tool.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the retaining clips, which may require using both the suction cup and plastic opening tool.
Step 6
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Employing the phone's upper edge as a pivot point, carefully detach the front panel assembly from the rear case by moving the home button end outward.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips located immediately beneath the rear case's upper border are properly positioned during reassembly, subsequently sliding the front panel vertically until its superior edge is level with the rear case's top edge.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips located immediately beneath the rear case's upper border are properly positioned during reassembly, subsequently sliding the front panel vertically until its superior edge is level with the rear case's top edge.
Step 8
Carefully position the display at a roughly 90-degree angle, then secure it in a supported position to prevent movement during the repair process.
If a suitable replacement is unavailable, a factory-sealed, unopened can of soda may be temporarily used.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a suitable replacement is unavailable, a factory-sealed, unopened can of soda may be temporarily used.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the screws securing the battery connector bracket.
A 2.2-millimeter screw is required.
A single fastener, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent phone damage.
A 2.2-millimeter screw is required.
A single fastener, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent phone damage.
Step 10
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage occurs to surrounding components.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its corresponding socket on the logic board, employing a plastic opening tool to avoid damage.
To prevent damage, lift solely on the battery connector itself, avoiding any force applied to the logic board socket; applying pressure to the socket risks complete connector failure.
To prevent damage, lift solely on the battery connector itself, avoiding any force applied to the logic board socket; applying pressure to the socket risks complete connector failure.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm diameter is required.
A single screw with a diameter of 3.1 millimeters is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm diameter is required.
A single screw with a diameter of 3.1 millimeters is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four steps, ensure that you lift exclusively on the cable connectors themselves, avoiding any upward force applied to the sockets where they are seated on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or fingernail.
Step 16
Using a 5/32-inch hex key, carefully tighten the four M4 x 8mm screws securing the fan assembly to the heatsink, ensuring a torque of 4.0 to 4.5 Nm to prevent damage.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully separate the display data cable connector from its socket using a spudger or similar tool.
Should the display data cable become detached from its connector during reassembly, powering on the device may produce a blank screen or display white lines; to resolve this, re-engage the cable with the connector and restart the phone, preferably by disconnecting and reconnecting the battery connector to ensure a complete power cycle.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully separate the display data cable connector from its socket using a spudger or similar tool.
Should the display data cable become detached from its connector during reassembly, powering on the device may produce a blank screen or display white lines; to resolve this, re-engage the cable with the connector and restart the phone, preferably by disconnecting and reconnecting the battery connector to ensure a complete power cycle.
Step 17
Carefully secure the 1/4-inch diameter hose clamp using pliers to fasten the new 3-inch diameter fan blade onto the motor shaft, ensuring the blade is centered and aligned; observe the warning label regarding rotating parts before proceeding.
Carefully separate the digitizer cable connector from its socket using the flat spudger.
To avoid damaging the digitizer, ensure even pressure when attaching the digitizer cable connector; apply force to one end, then the opposite end, rather than the connector's center, as central pressure may deform the component.
Carefully separate the digitizer cable connector from its socket using the flat spudger.
To avoid damaging the digitizer, ensure even pressure when attaching the digitizer cable connector; apply force to one end, then the opposite end, rather than the connector's center, as central pressure may deform the component.
Step 18 | Separating front panel assembly and rear case
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the chassis, ensuring a torque of no more than 4 in-lbs to prevent damage to the threads.
Detach the front panel assembly by disengaging it from the rear case.
Detach the front panel assembly by disengaging it from the rear case.
Step 19 | Speaker
Carefully align the 4mm hex key to the setscrew, ensuring it engages fully, then gradually tighten the setscrew to a torque of 1.5 Nm using the torque wrench.
Carefully detach the Lightning connector assembly cable from its socket using the flat spudger, then maneuver it aside to avoid interference with the speaker.
Carefully detach the Lightning connector assembly cable from its socket using the flat spudger, then maneuver it aside to avoid interference with the speaker.
Step 20
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4.0 to 5.5 in-lbs to prevent damage.
Carefully leverage the antenna cable connector away from its socket on the logic board using a spudger's tip.
Carefully leverage the antenna cable connector away from its socket on the logic board using a spudger's tip.
Step 21
- Using a Phillips screwdriver, detach the speaker by unscrewing the four screws that hold it in place.
Use two screws, each measuring 2.9 millimeters.
Use two screws, each measuring 2.3 millimeters.
Step 22

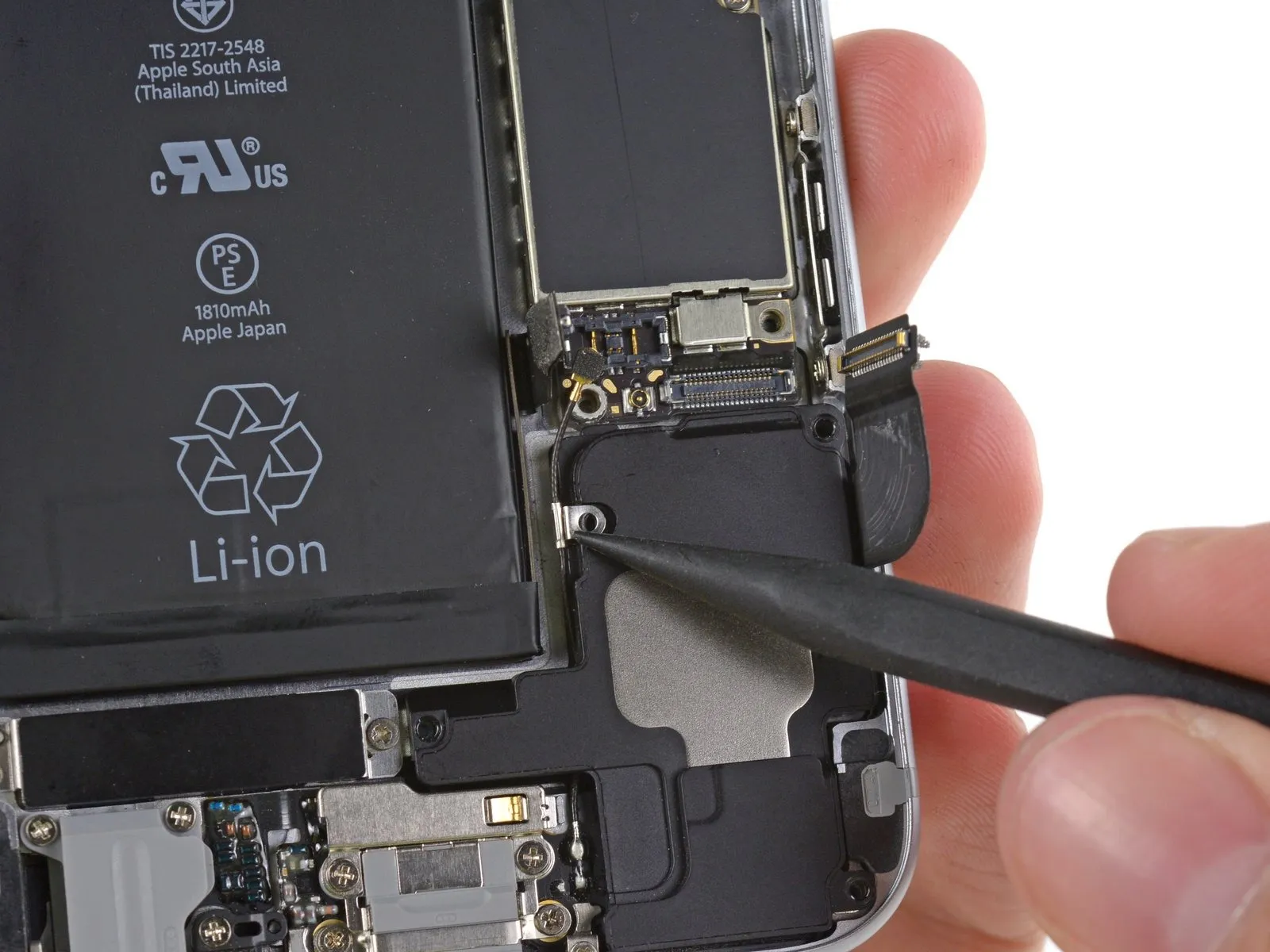

- Carefully disengage the antenna interconnect cable clip from the speaker housing by applying pressure with a spudger.
Step 23

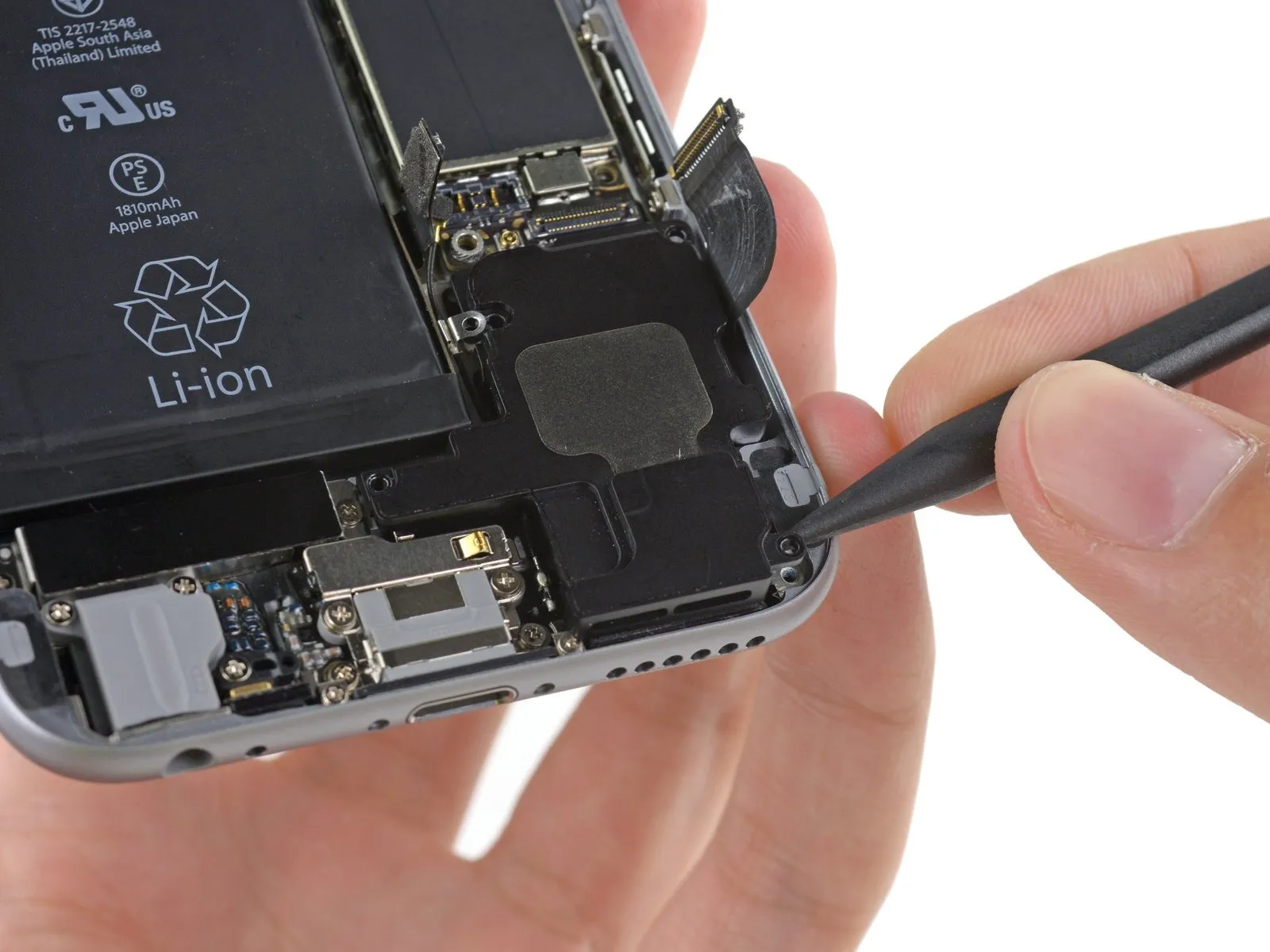

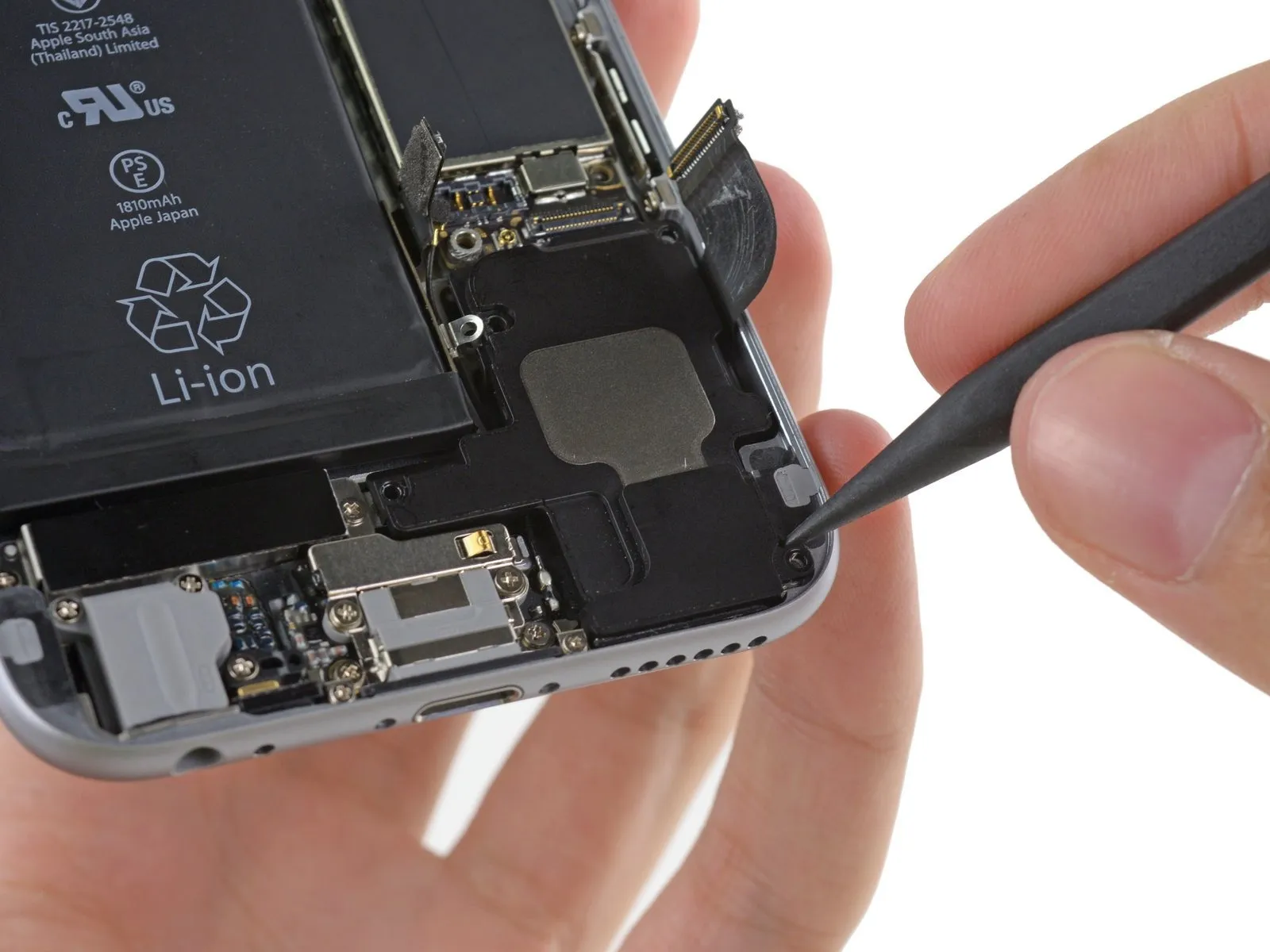

- Carefully insert the spudger tip between the speaker and the rear case to release it, then lift the speaker outward.

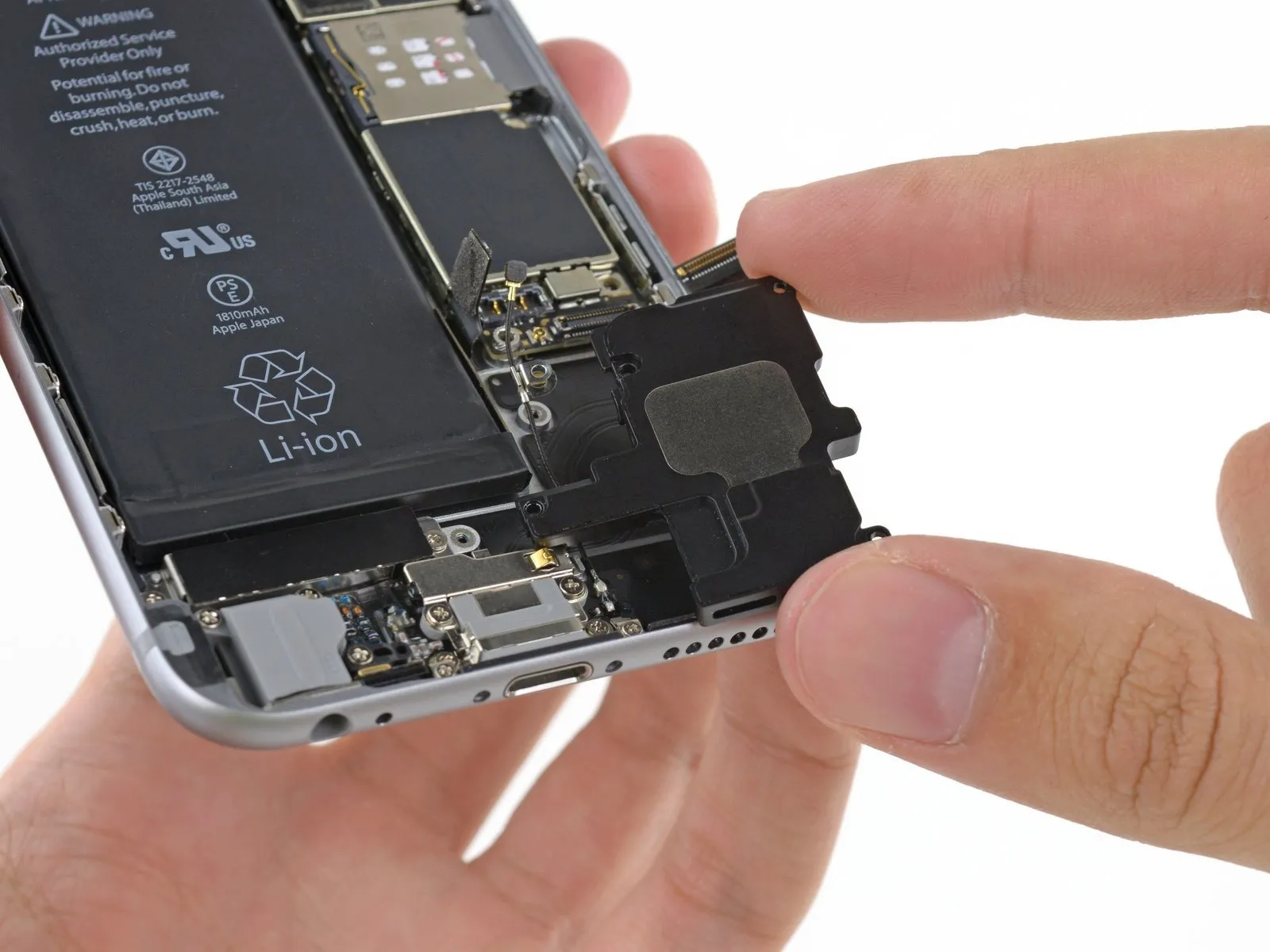

Carefully detach the speaker component from the iPhone.
