iPhone 6 SIM Eject Lever Replacement
If the SIM eject lever is preventing proper SIM card operation on your iPhone 6, follow these instructions to either replace it or reposition it.
Step 1 | Pentalobe Screws
To prevent a potential fire or explosion hazard from the lithium-ion battery during disassembly, ensure its charge level is reduced to less than 25% beforehand; a fully charged battery poses a significant risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the opening process, the following two steps utilize the Anti-Clamp tool; if you do not have this tool, proceed to the instructions three steps further down.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then gently move them into place.
Affix two suction cups to the iPhone's front and rear surfaces, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To enhance the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then gently move them into place.
Affix two suction cups to the iPhone's front and rear surfaces, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To enhance the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow several seconds to elapse and avoid rotating the component beyond a 90-degree increment during each adjustment; permitting the Anti-Clamp feature and sufficient settling time to facilitate proper engagement.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate clearance, reposition the handle by 90 degrees.
Allow several seconds to elapse and avoid rotating the component beyond a 90-degree increment during each adjustment; permitting the Anti-Clamp feature and sufficient settling time to facilitate proper engagement.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Using a suction cup, apply it to the display surface, positioning it directly over the home button area.
Ensure the screen is firmly seated against the cup to create a complete seal.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be used directly. Should neither method prove effective, superglue can be employed to secure the suction cup to the fractured screen.
Using a suction cup, apply it to the display surface, positioning it directly over the home button area.
Ensure the screen is firmly seated against the cup to create a complete seal.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be used directly. Should neither method prove effective, superglue can be employed to secure the suction cup to the fractured screen.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the device's back cover.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully lift the rear case from the display assembly by applying upward force with a suction cup and gently separating the components with a plastic opening tool.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require alternating use of the suction cup and plastic opening tool.
Exercise caution and use steady, even pressure when installing the display assembly, as it requires a significantly tighter fit than typical device components.
Carefully lift the rear case from the display assembly by applying upward force with a suction cup and gently separating the components with a plastic opening tool.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require alternating use of the suction cup and plastic opening tool.
Step 6
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Employing the phone's top edge as a pivot point, carefully detach the front panel assembly from the rear case by initiating a sweeping motion originating from the home button end.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips located immediately beneath the rear case's upper border are properly positioned during reassembly, subsequently sliding the front panel upwards until its superior edge aligns perfectly with the rear case's top edge.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips located immediately beneath the rear case's upper border are properly positioned during reassembly, subsequently sliding the front panel upwards until its superior edge aligns perfectly with the rear case's top edge.
Step 8
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the specified volume.
To avoid stressing the display's wiring during the repair process, secure the display with a rubber band.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the specified volume.
To avoid stressing the display's wiring during the repair process, secure the display with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent phone damage.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembling them in their original positions is crucial to prevent phone damage.
Step 10
Using a precision screwdriver, detach the metal fixture securing the battery connector.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool, ensuring no force is applied.
To prevent damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks irreversible connector breakage.
To prevent damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks irreversible connector breakage.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm diameter is required.
A single screw with a diameter of 3.1 millimeters is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm diameter is required.
A single screw with a diameter of 3.1 millimeters is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the cable bracket securing the front panel assembly wiring harness from the logic board.
Step 14
When proceeding with the following four steps, ensure that you lift exclusively on the cable connectors themselves, avoiding any upward force applied to the sockets they connect to on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or fingernail.
Step 16
Carefully align the 4mm diameter dowel pins with their corresponding holes in both the upper and lower chassis halves, then gently press the two sections together until fully seated, ensuring no gaps remain.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector from its socket using a spudger or similar non-conductive tool.
Should the display data cable become detached from its connector during reassembly, powering on the device may cause a blank screen or display white lines; to resolve this, reattach the cable and restart the phone by disconnecting and reconnecting the battery connector.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector from its socket using a spudger or similar non-conductive tool.
Should the display data cable become detached from its connector during reassembly, powering on the device may cause a blank screen or display white lines; to resolve this, reattach the cable and restart the phone by disconnecting and reconnecting the battery connector.
Step 17
Using a 5/32-inch hex key, carefully tighten the four M4x8mm screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Carefully employ the flat spudger tip to separate the digitizer cable connector.
To avoid damaging the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure may warp the component.
Carefully employ the flat spudger tip to separate the digitizer cable connector.
To avoid damaging the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure may warp the component.
Step 18 | Separating front panel assembly and rear case
Carefully align the 4mm hex key to the retaining screw, ensuring it sits flush with the screw head, then tighten the screw to a torque of 1.5 Nm using the torque wrench.
Detach the front panel assembly from the rear case.
Detach the front panel assembly from the rear case.

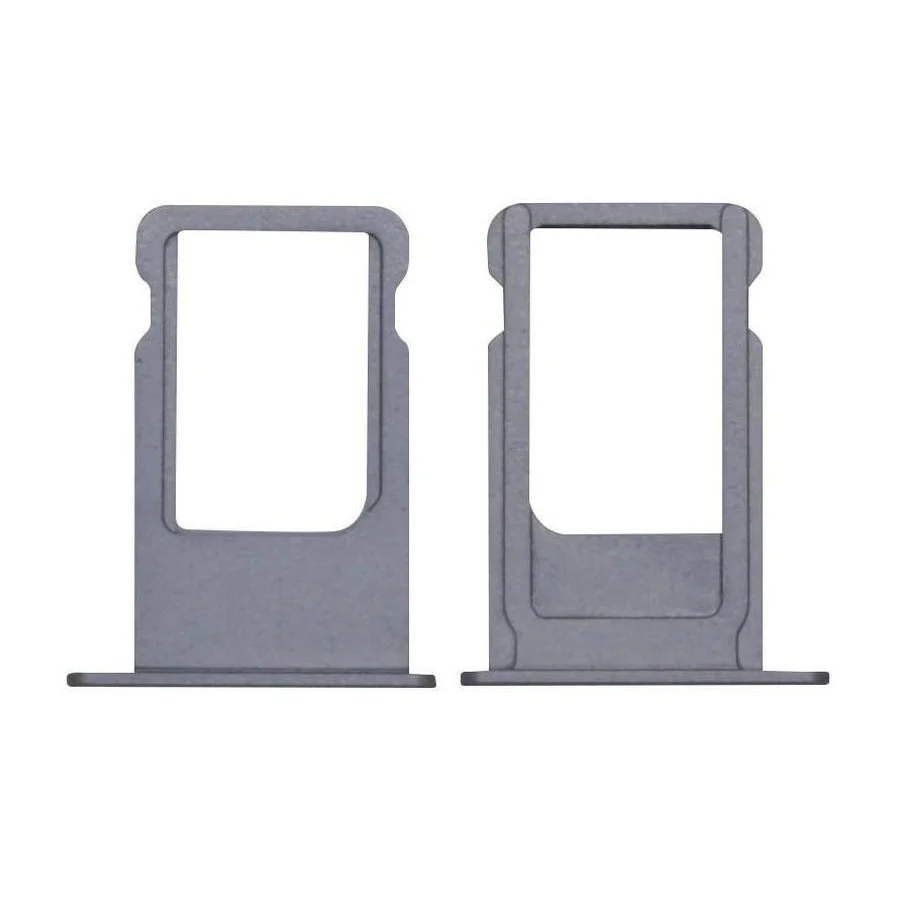

Step 19 | SIM Card
Using a 5/32-inch hex key, carefully tighten the four M4x8 socket head cap screws securing the motor assembly to the chassis, ensuring a torque of 4 in-lbs is applied to each screw to prevent damage.
Using a SIM card eject tool or a straightened paperclip, gently push into the tiny aperture located on the SIM card tray to release it.
Apply pressure to release the tray.
Applying considerable pressure might be necessary.
Using a SIM card eject tool or a straightened paperclip, gently push into the tiny aperture located on the SIM card tray to release it.
Apply pressure to release the tray.
Applying considerable pressure might be necessary.
Step 20
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4 in-lbs to prevent damage.
Using a SIM ejection tool or a small, sturdy paperclip, carefully release and extract the SIM card tray assembly from the iPhone.
Confirm the SIM card's alignment within the tray before sliding it back in, matching its position to the tray's design.
Using a SIM ejection tool or a small, sturdy paperclip, carefully release and extract the SIM card tray assembly from the iPhone.
Confirm the SIM card's alignment within the tray before sliding it back in, matching its position to the tray's design.
Step 21 | SIM Eject Lever
Detach the component.Please provide the original text you want me to rewrite. I need the sentence or instruction to be able to fulfill your request.Use a Phillips head screwdriver, size #00, with a tip measuring 1.7 millimeters.Using the appropriate screwdriver, loosen and remove the screw that holds the SIM eject lever in place.
Step 22
Detach the component.Use the SIM eject tool or a small, sturdy paperclip to depress the iPhone’s SIM eject lever.
Ensure correct placement during reassembly by aligning the component's broader extremity with the SIM card release aperture.
Ensure correct placement during reassembly by aligning the component's broader extremity with the SIM card release aperture.
