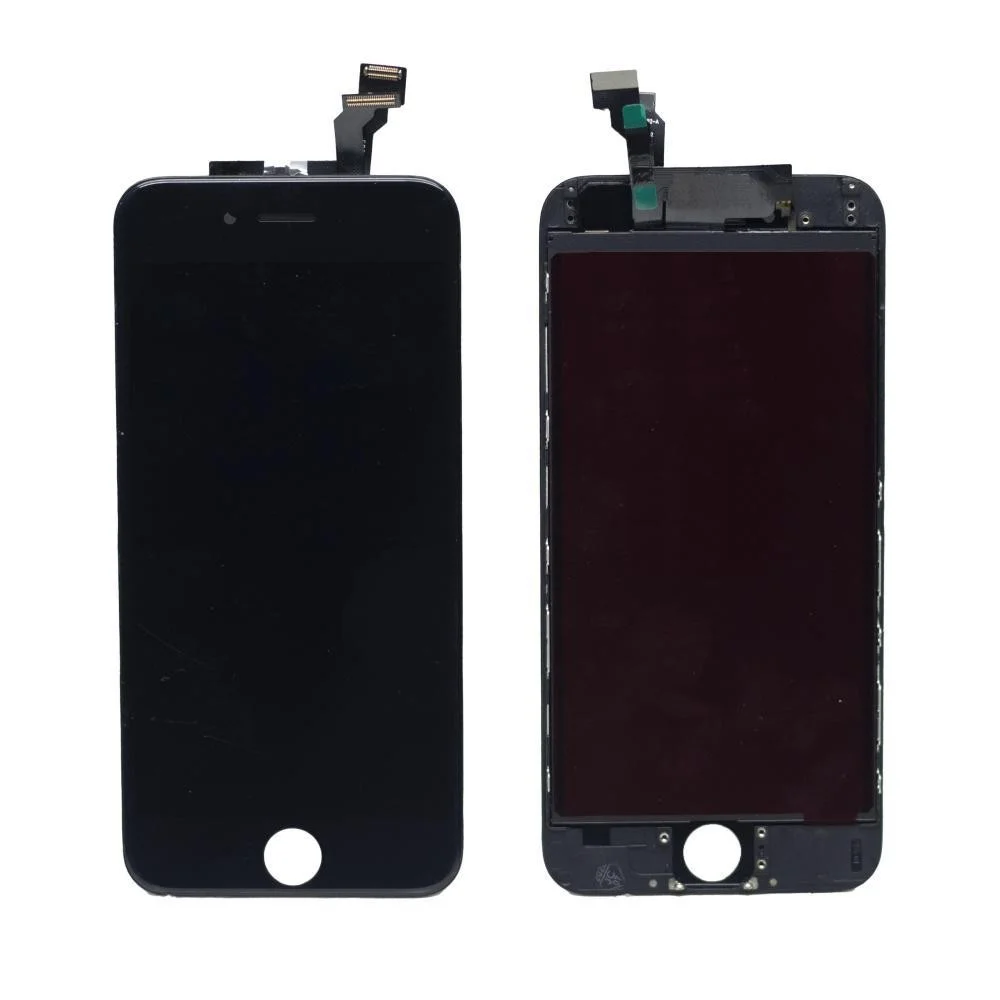

iPhone 6 Screen Replacement
To simplify the iPhone 6 screen replacement process, the included component features a pre-installed front camera, earpiece speaker, and LCD shield plate.
- Carefully detach the existing display assembly, then relocate the home button to the replacement screen.
- This document also provides instructions for substituting the cable bracket that secures the front panel assembly.
Step 1 | Pentalobe Screws
To prevent a potential fire or explosion hazard from the lithium-ion battery during disassembly, ensure its charge level is reduced to less than 25% beforehand; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, which are situated adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, which are situated adjacent to the Lightning connector.
Step 2 | Tape over the display
To avoid injury and contain shattered fragments while you work, secure the cracked display glass with tape.
Apply clear packing tape in successive layers across the iPhone screen, ensuring complete coverage of the display surface.
To prevent glass fragments from scattering and maintain stability during the display separation process, this step is crucial.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Should the fractured glass prevent a secure suction cup attachment during subsequent procedures, use a sturdy tape—like duct tape—folded into a grip to carefully raise the display.
Apply clear packing tape in successive layers across the iPhone screen, ensuring complete coverage of the display surface.
To prevent glass fragments from scattering and maintain stability during the display separation process, this step is crucial.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Should the fractured glass prevent a secure suction cup attachment during subsequent procedures, use a sturdy tape—like duct tape—folded into a grip to carefully raise the display.
Step 3 | Anti-Clamp instructions
To simplify the subsequent opening process, the following instructions utilize the Anti-Clamp tool, a custom design; if you do not have this tool, proceed directly to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Secure two suction cups, one to the front and one to the rear surface of the iPhone, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively slick, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Secure two suction cups, one to the front and one to the rear surface of the iPhone, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively slick, apply adhesive tape to the device's surface.
Step 4
Moving the blue handle in a forward direction will engage the locking mechanism for the arms.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, adjust the handle's position by 90 degrees.
Allow the Anti-Clamp device to function and permit several seconds of settling time between each incremental adjustment, limiting each rotation to a maximum of 90 degrees.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, adjust the handle's position by 90 degrees.
Allow the Anti-Clamp device to function and permit several seconds of settling time between each incremental adjustment, limiting each rotation to a maximum of 90 degrees.
Step 5 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.

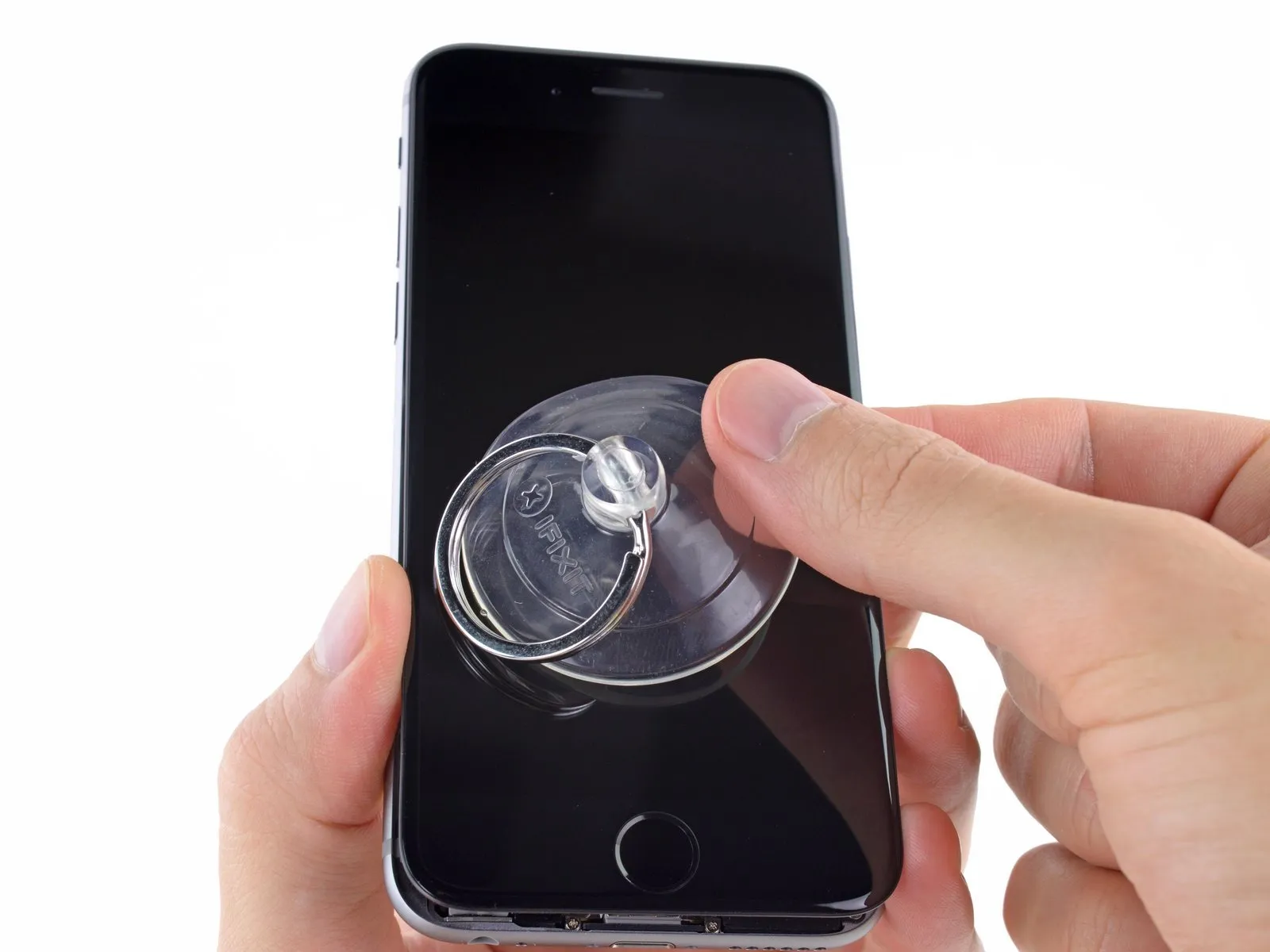

Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be substituted for the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a leakproof connection by firmly applying pressure to the cup against the screen's surface.
To facilitate suction cup attachment on a severely cracked display, apply a sheet of clear packing tape across the damage; as an alternative, a robust adhesive tape can be substituted for the suction cup. As a last resort, secure the suction cup directly to the fractured screen using superglue.
Step 6
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not overtightened to prevent damage.

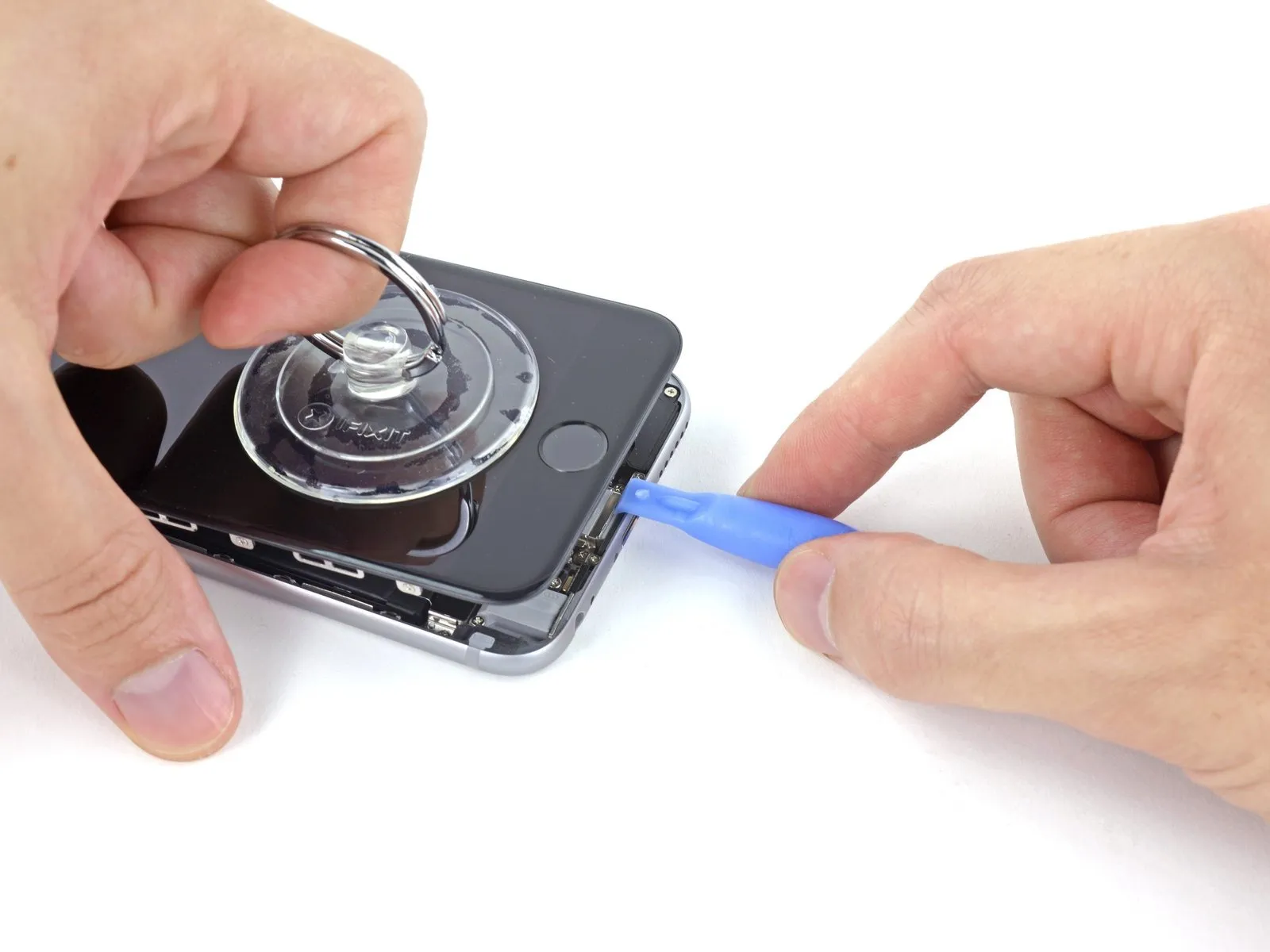

Using one hand to secure the iPhone, gently lift the suction cup to create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the retaining clips, which may require using both the suction cup and the plastic opening tool in conjunction.
Using one hand to secure the iPhone, gently lift the suction cup to create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the retaining clips, which may require using both the suction cup and the plastic opening tool in conjunction.
Step 7
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 6 in-lbs, ensuring not to overtighten and potentially strip the threads; observe caution to prevent damage to the motor windings.
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
To detach the suction cup, depress the plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Step 8 | Opening up the phone
Using a 5/32-inch hex key, carefully tighten the four retaining screws securing the motor assembly to the housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings during reinstallation to avoid incorrect wiring, and be aware that the motor weighs approximately 1.5 pounds, requiring a firm grip to prevent accidental drops.

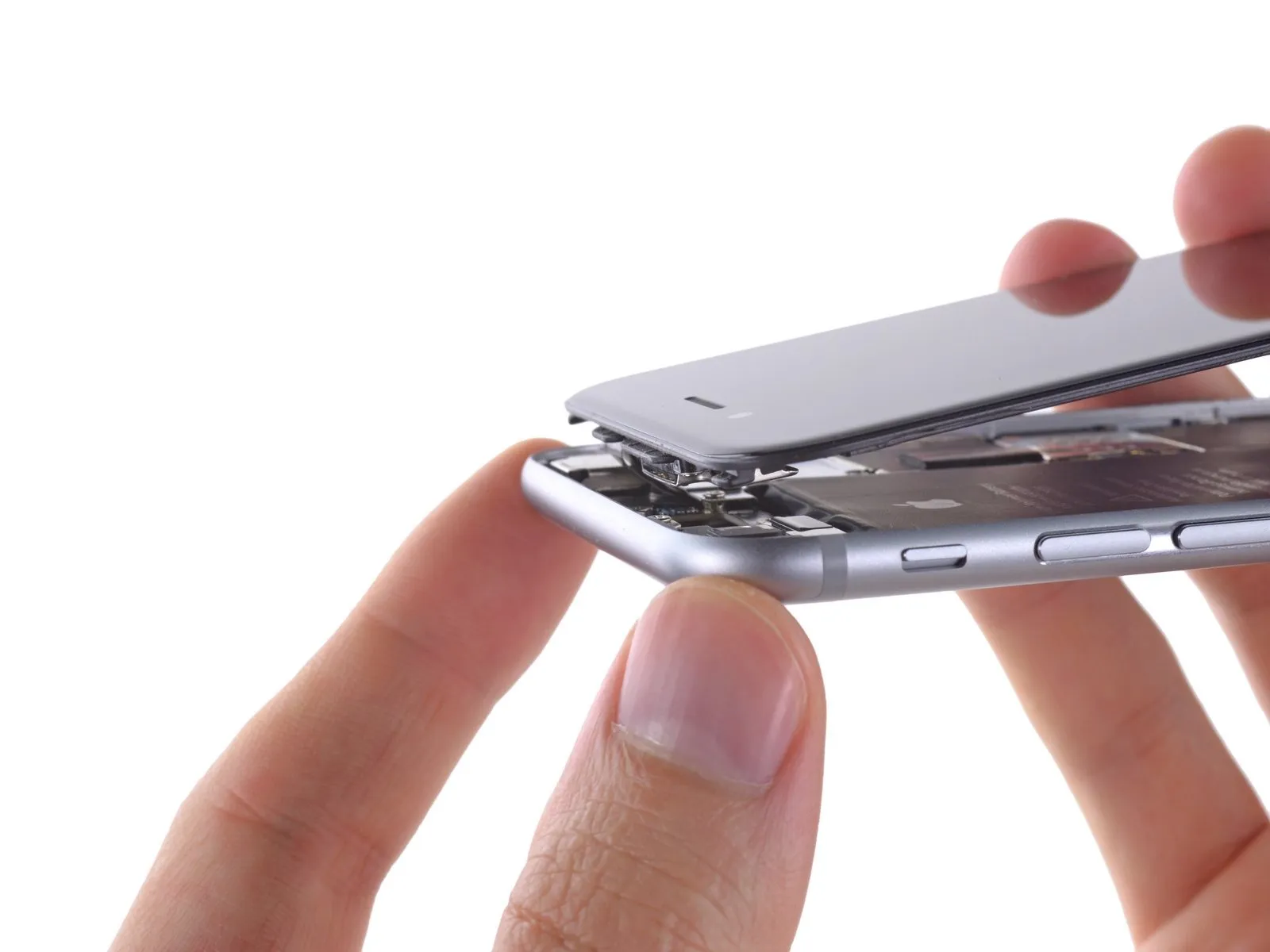

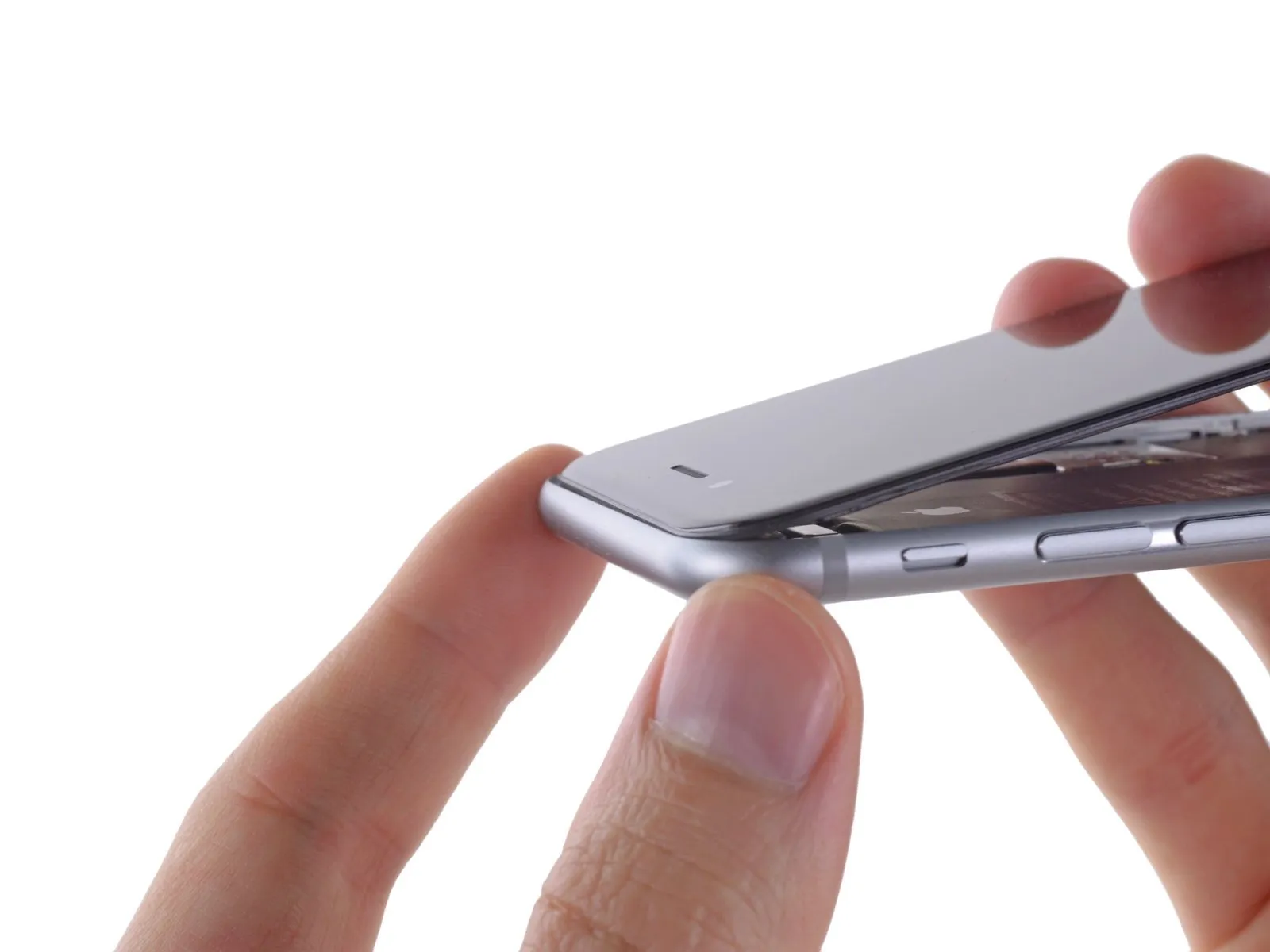

Employing the phone's upper edge as a pivot point, carefully detach the front panel assembly from the rear case by applying force to the home button end, creating a swinging motion.
Along the front panel's upper edge, multiple clips function as a partial hinge.
To reassemble, position the clips beneath the rear case's upper border, and subsequently move the front panel vertically until its superior edge is level with the rear case's superior edge.
Employing the phone's upper edge as a pivot point, carefully detach the front panel assembly from the rear case by applying force to the home button end, creating a swinging motion.
Along the front panel's upper edge, multiple clips function as a partial hinge.
To reassemble, position the clips beneath the rear case's upper border, and subsequently move the front panel vertically until its superior edge is level with the rear case's superior edge.
Step 9
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to prevent damage; observe the torque limit of 6 in-lbs per screw.

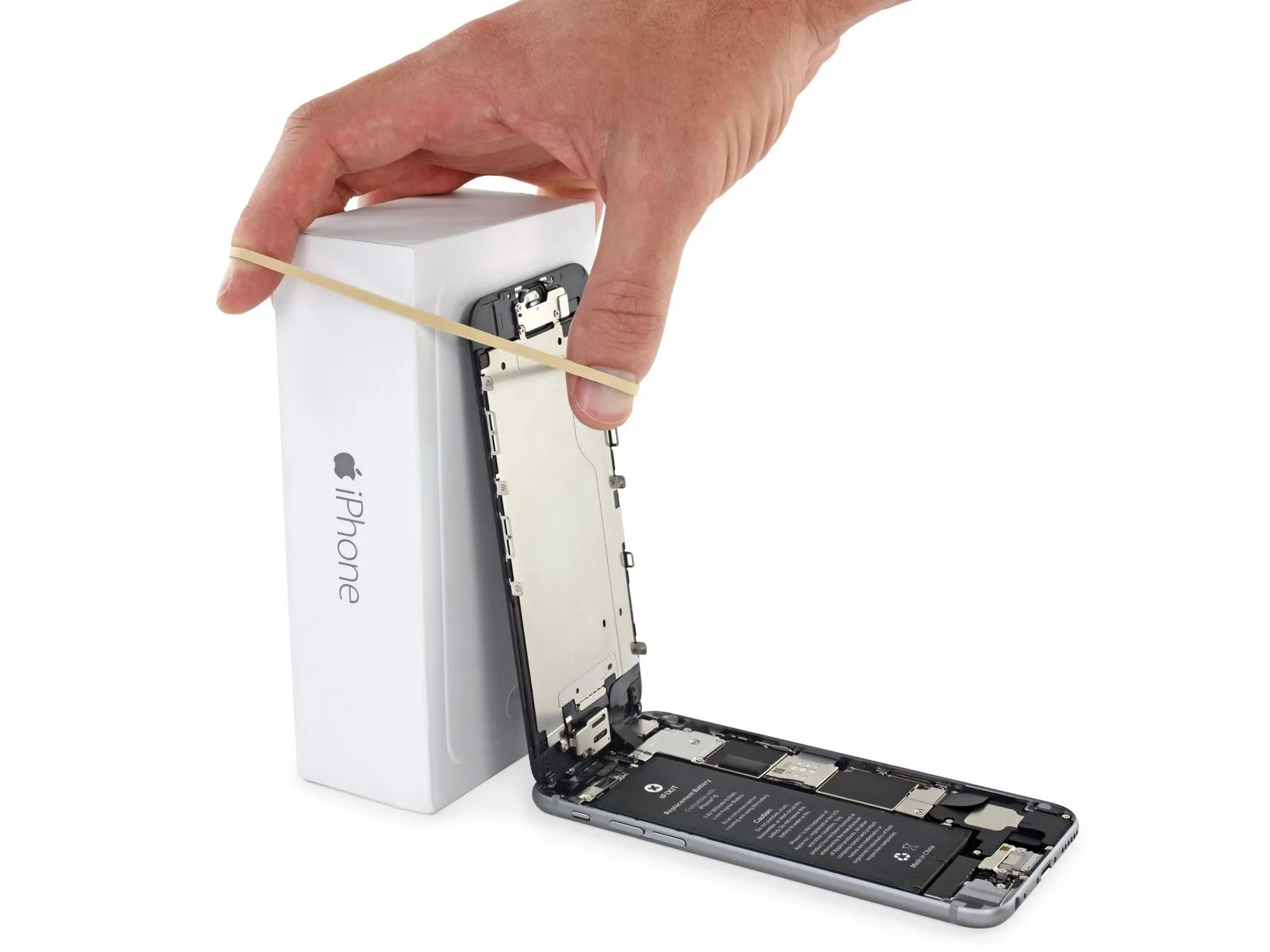

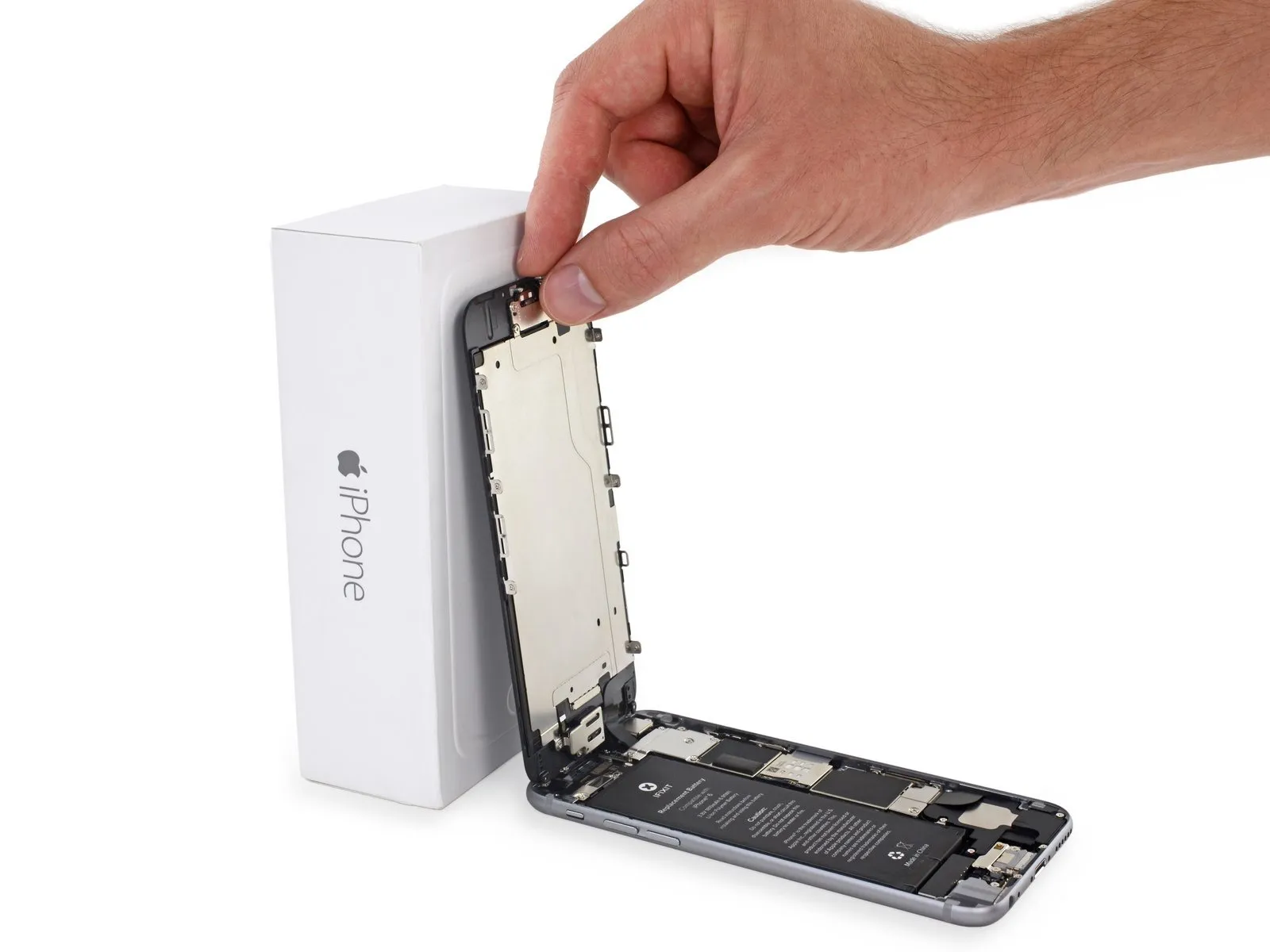

Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the specified volume.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the specified volume.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 10 | Removing the battery connector bracket screws
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage.
Using a Phillips screwdriver, detach the bracket securing the battery connector by unscrewing the included fasteners.
A screw with a 2.2-millimeter head diameter is required.
Use a 3.2-millimeter screw.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent potential damage to the device.
Using a Phillips screwdriver, detach the bracket securing the battery connector by unscrewing the included fasteners.
A screw with a 2.2-millimeter head diameter is required.
Use a 3.2-millimeter screw.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent potential damage to the device.
Step 11
Detach the bracket securing the battery connector using a tri-point screwdriver.
Step 12 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool, ensuring no force is applied.
To avoid irreparable damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks fracturing the connector.
To avoid irreparable damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks fracturing the connector.
Step 13 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws it holds in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm diameter is required.
A screw with a 3.1 mm diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm diameter is required.
A screw with a 3.1 mm diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 14
Detach the bracket securing the front panel assembly cable to the logic board.
Step 15
When proceeding with the following four actions, ensure that you apply lifting force solely to the connector housings, avoiding any stress on the corresponding receptacles mounted to the logic board.

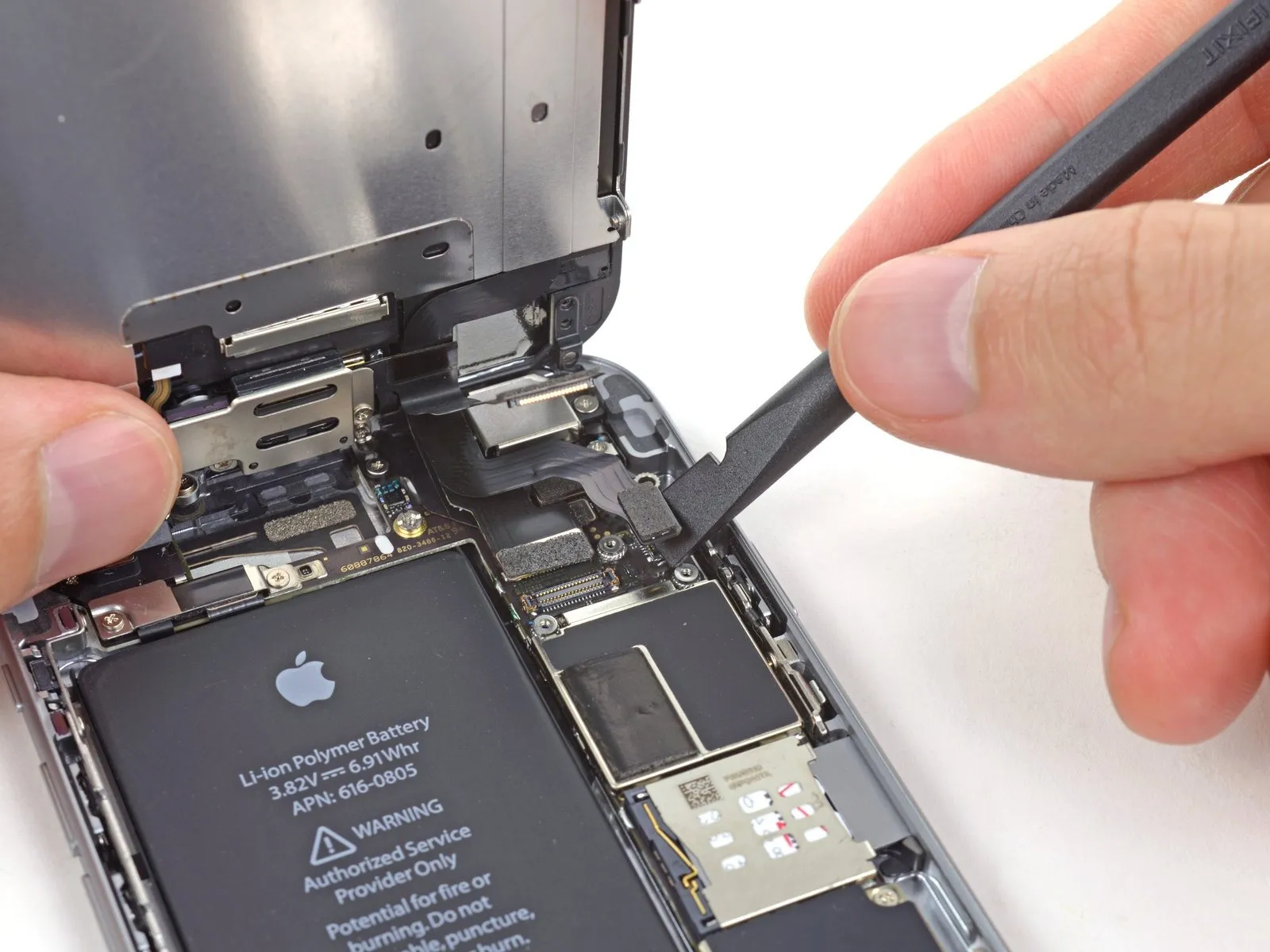

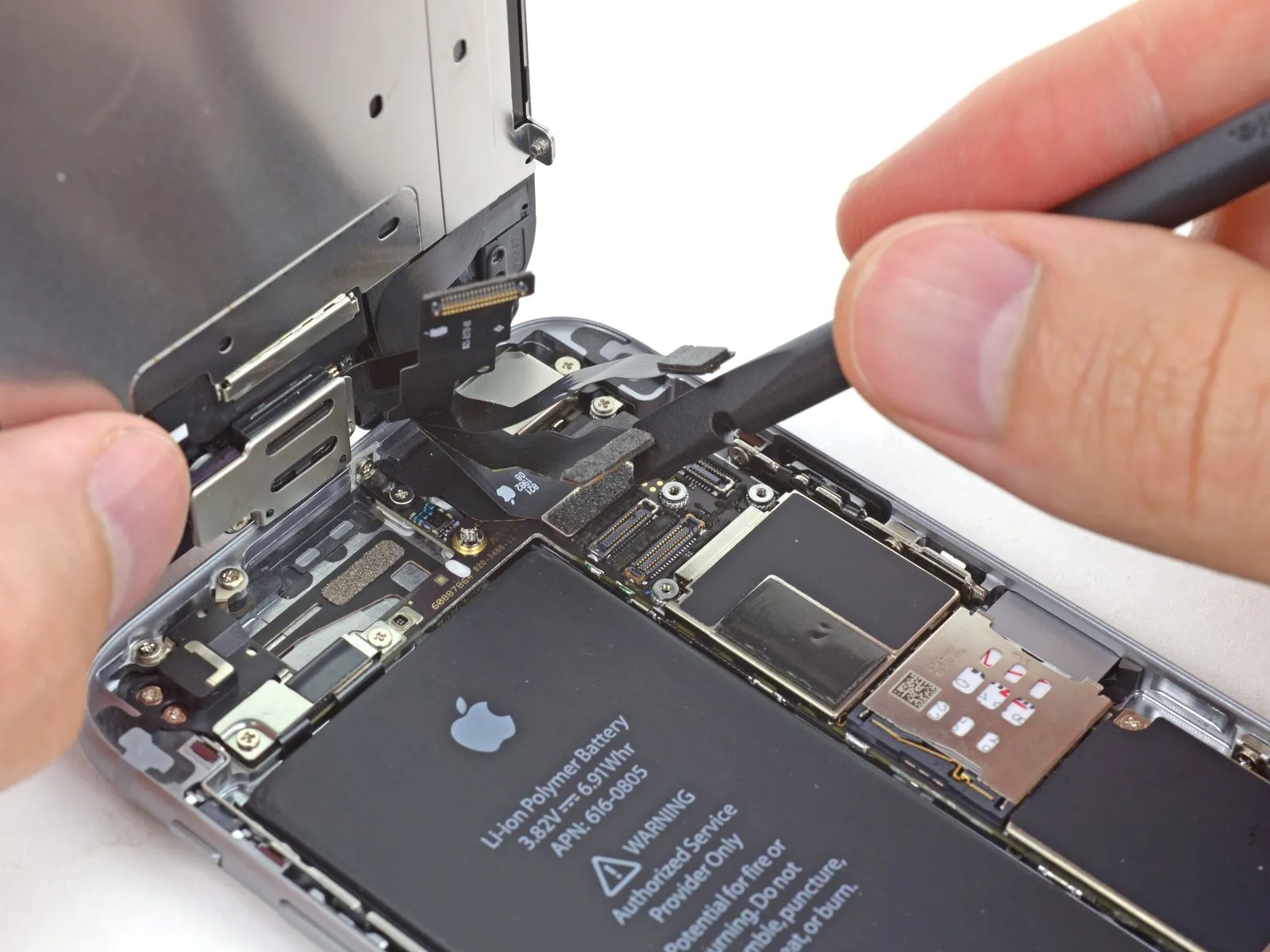

Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar non-conductive tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar non-conductive tool.
Step 16
Carefully detach the home button cable connector using a spudger or fingernail.
Step 17
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.

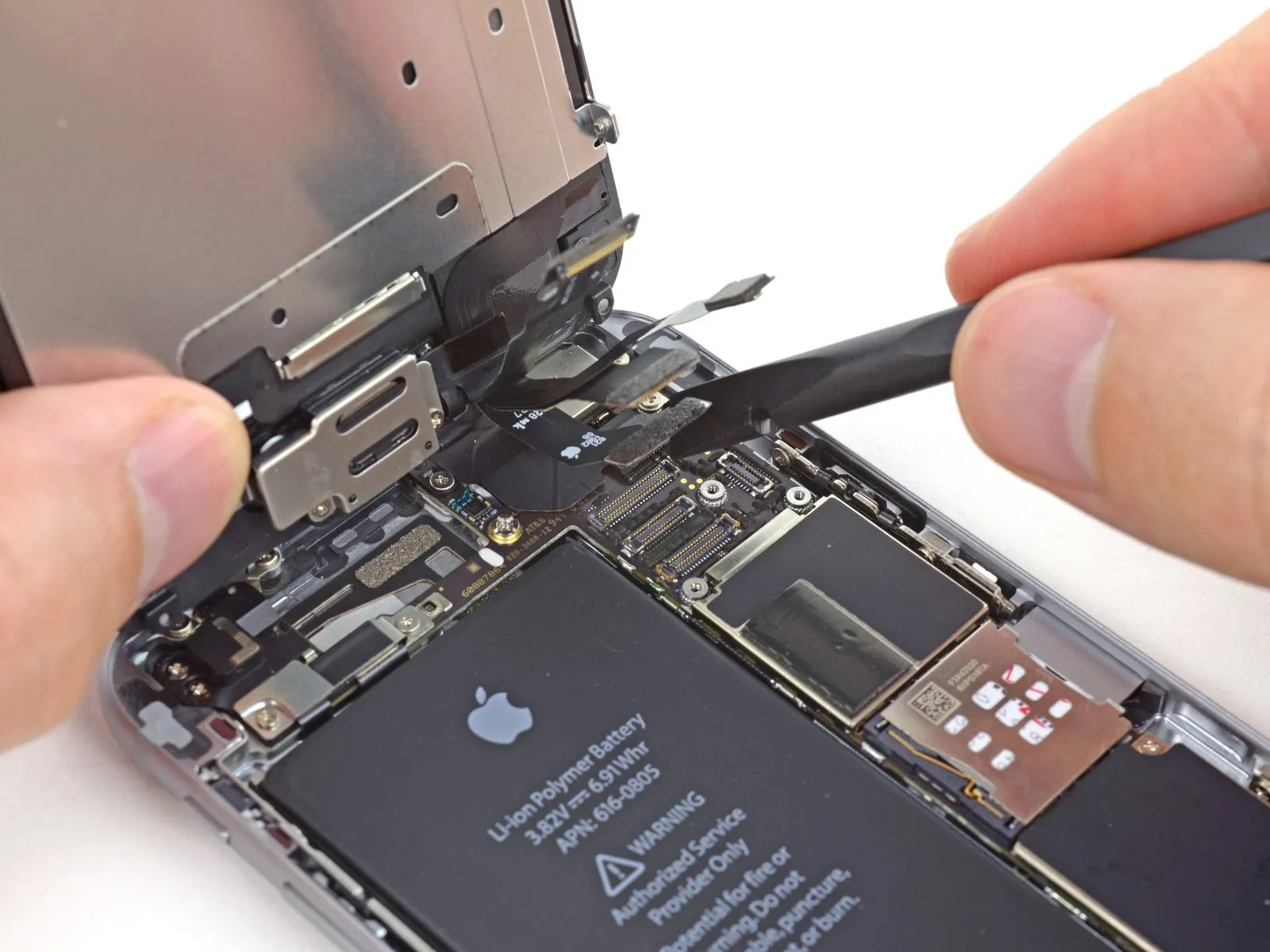

Carefully detach the display data cable connector from its socket using a spudger or similar tool.
To avoid a blank screen or display lines after reassembly, ensure the display data cable remains securely attached to its connector; should this disconnection occur, restore functionality by reattaching the cable and then performing a power cycle, which is most reliably achieved by briefly disconnecting and reconnecting the battery connector.
Carefully detach the display data cable connector from its socket using a spudger or similar tool.
To avoid a blank screen or display lines after reassembly, ensure the display data cable remains securely attached to its connector; should this disconnection occur, restore functionality by reattaching the cable and then performing a power cycle, which is most reliably achieved by briefly disconnecting and reconnecting the battery connector.
Step 18
Carefully separate the digitizer cable connector from its socket using the flat spudger tip.
To avoid potential damage to the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure can deform the component.
To avoid potential damage to the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure can deform the component.
Step 19 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.
Step 20 | Home Button
Using a Phillips screwdriver, detach the home button bracket by unscrewing the two screws, each measuring 1.9 mm.

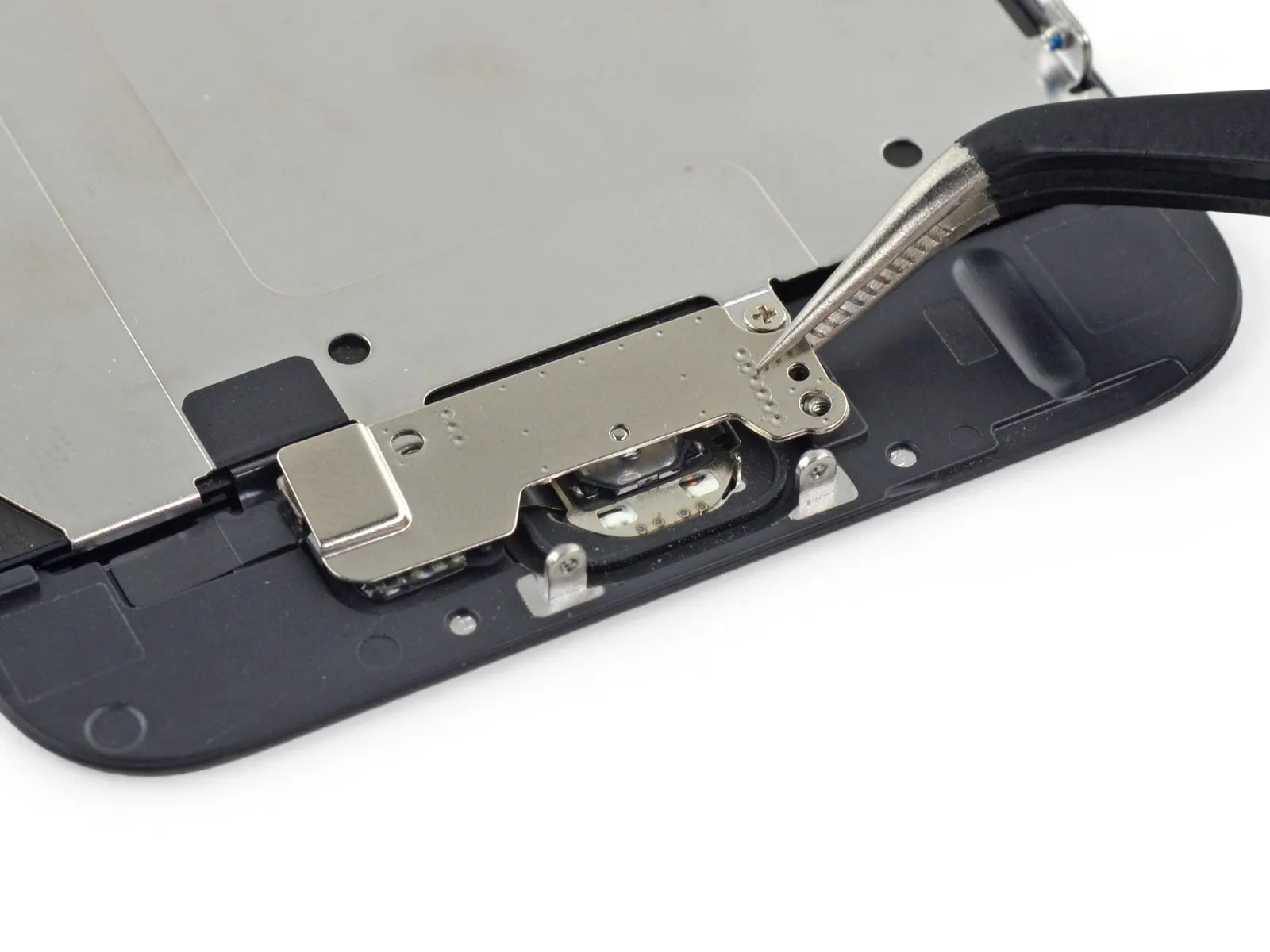

Step 21

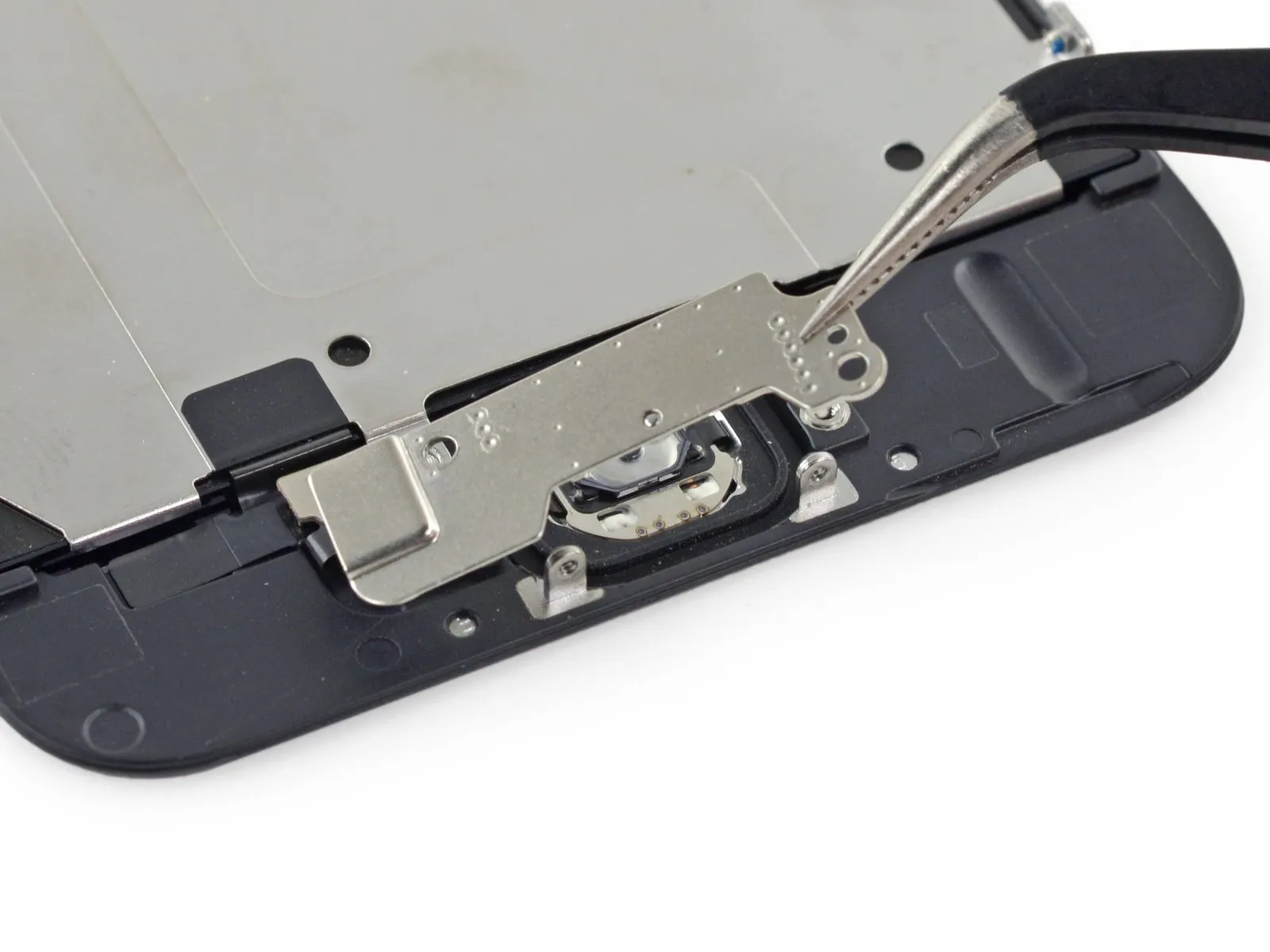

Detach the front panel's home button bracket.
Step 22
Carefully leverage a spudger to release the home button cable connector, lifting it upwards and away from the home button.
Step 23

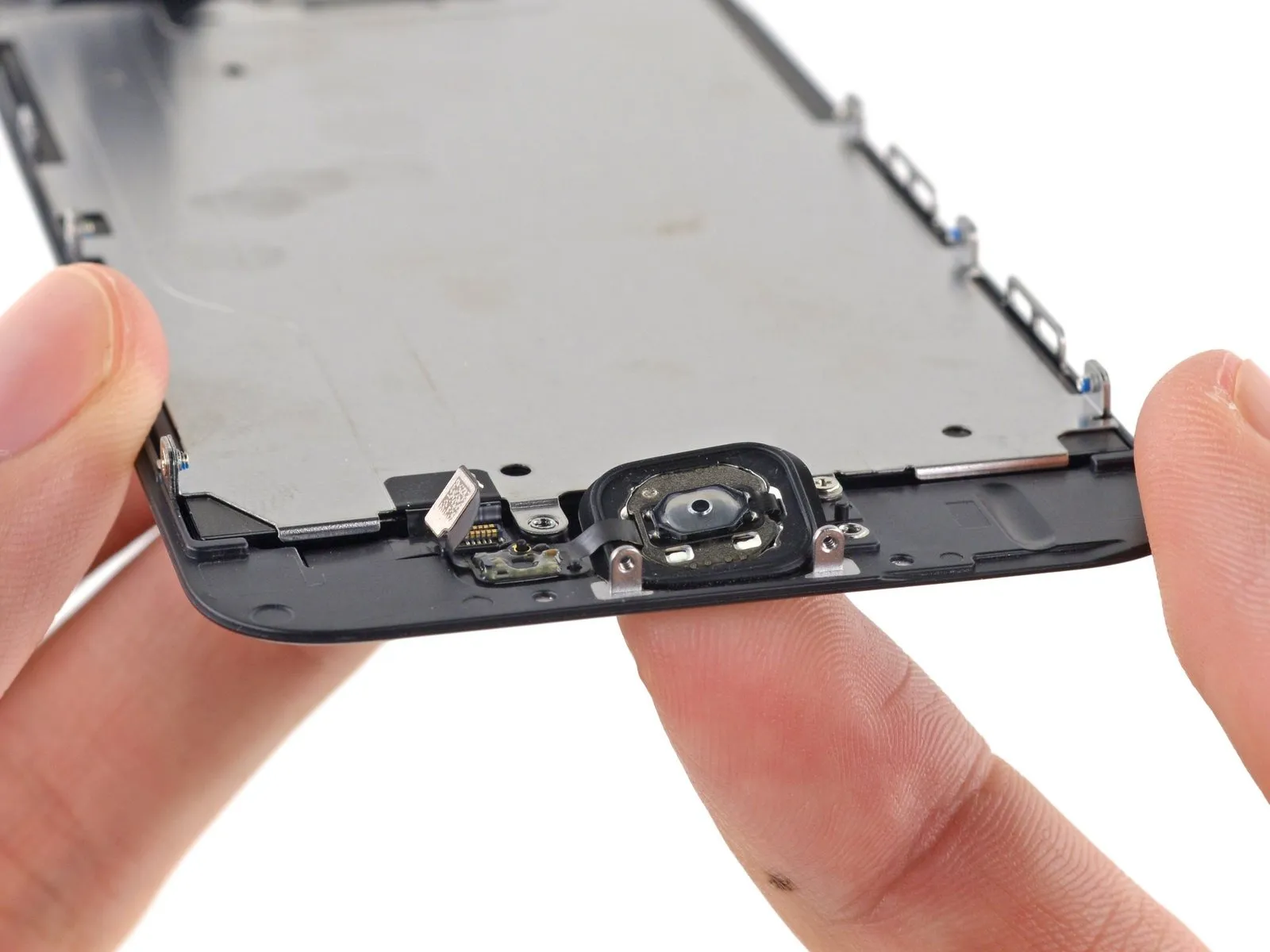

Exercise extreme caution when handling the home button’s surrounding rubber membrane, as its delicate construction makes it susceptible to tearing.
To ease separation, gently warm the home button membrane's adhesive using an iOpener, heat gun, or hair dryer.
Exert steady, even force with your fingertip on the home button’s face, pushing from the display assembly’s front surface to initiate separation of the membrane from the front panel.

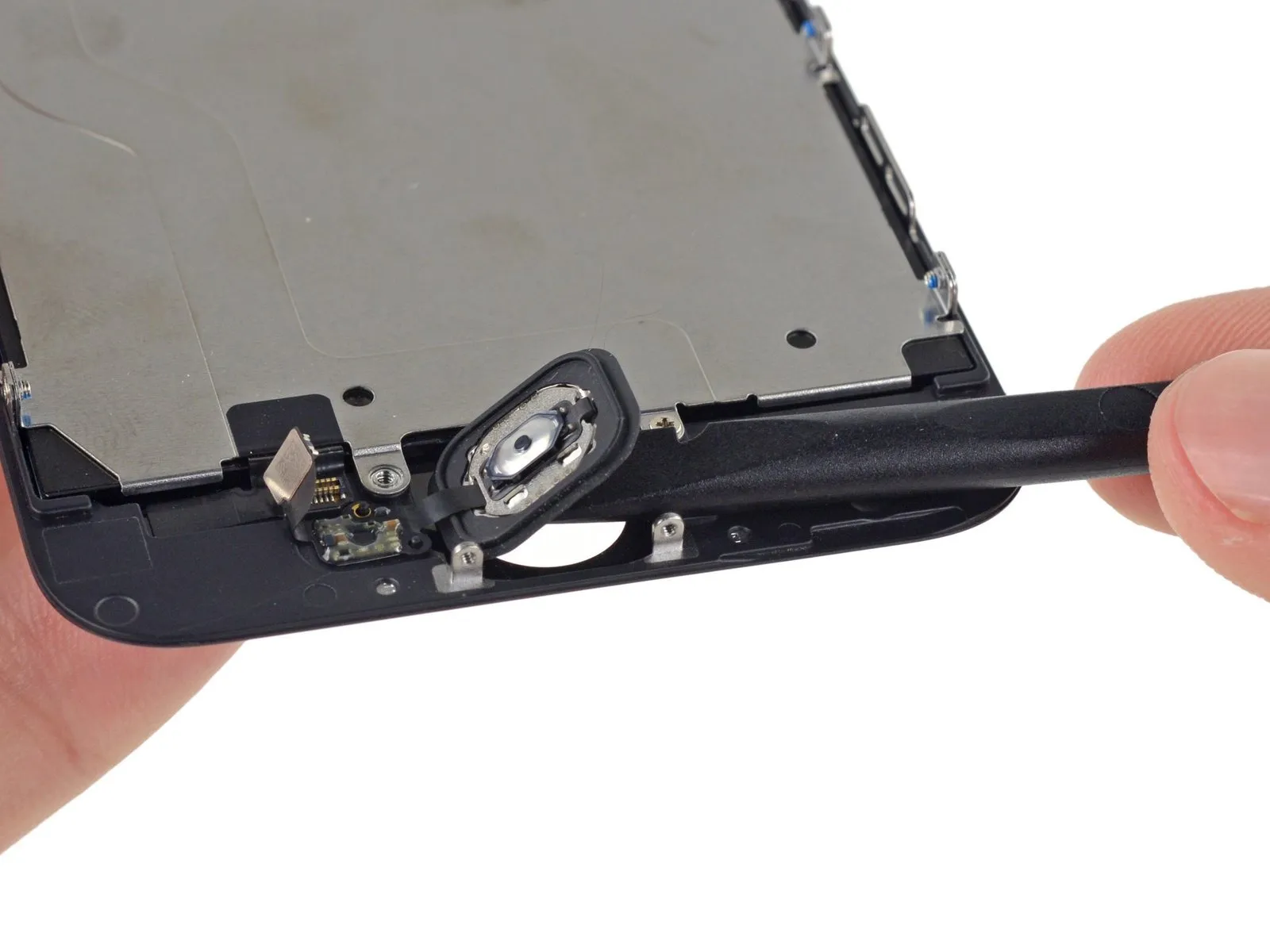

Partially depress the home button; it's sufficient to dislodge one corner, allowing for separation using a spudger.
To ease separation, gently warm the home button membrane's adhesive using an iOpener, heat gun, or hair dryer.
Exert steady, even force with your fingertip on the home button’s face, pushing from the display assembly’s front surface to initiate separation of the membrane from the front panel.
Partially depress the home button; it's sufficient to dislodge one corner, allowing for separation using a spudger.
Step 24
Carefully use a spudger to detach the remaining adhesive securing the home button to the display, applying gentle pressure.

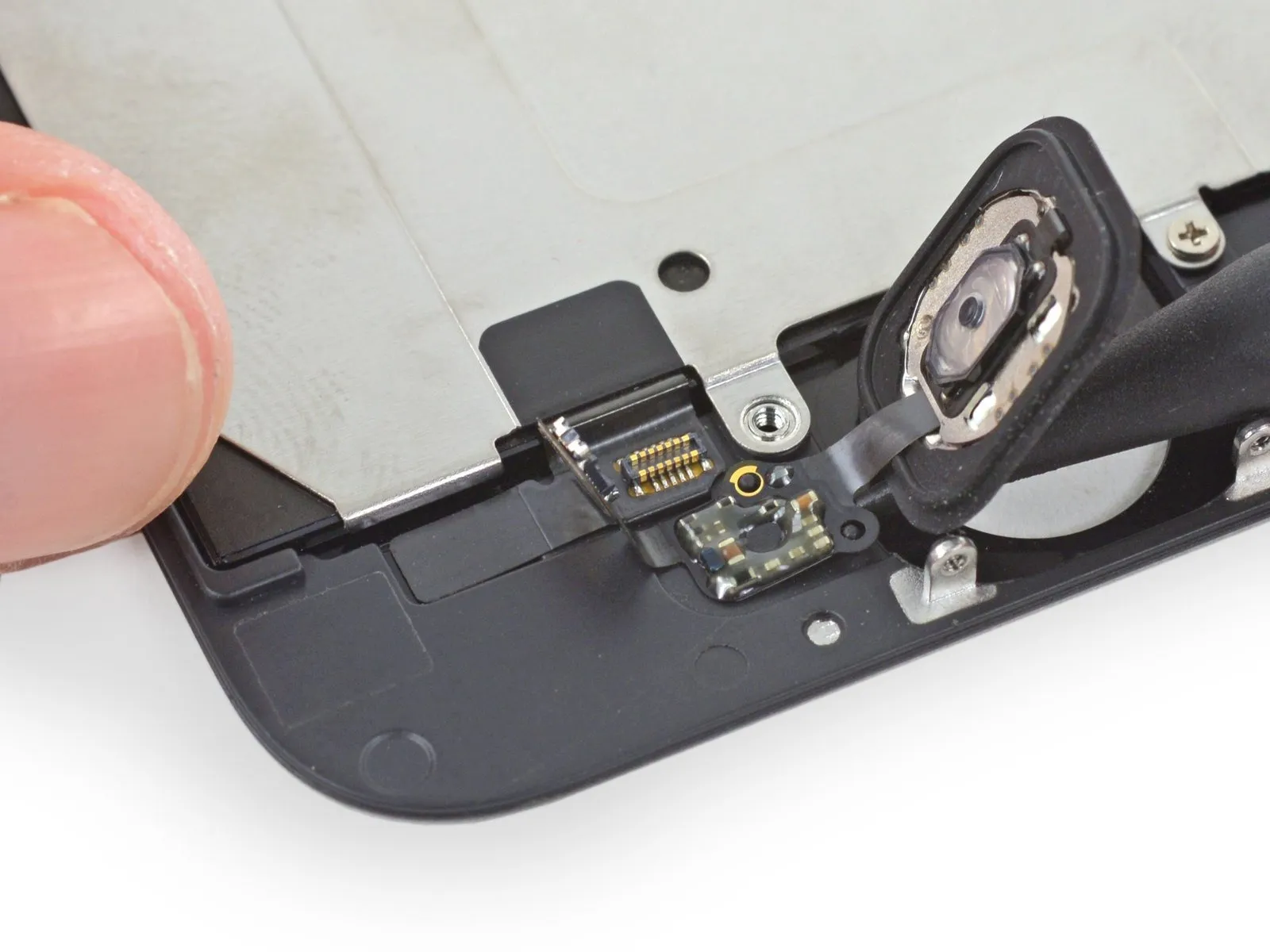

Step 25

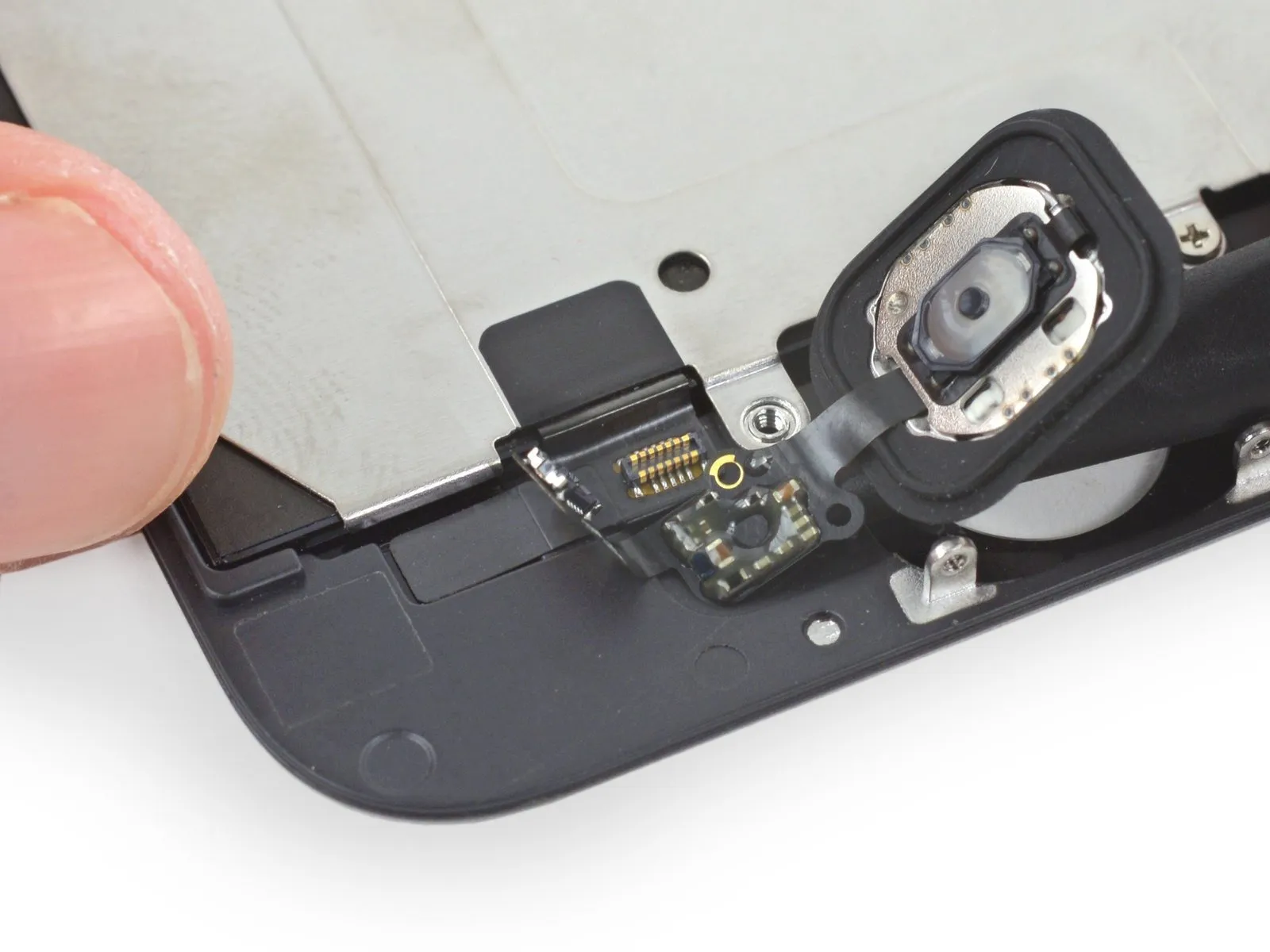

Gently detach the home button cable from the front panel's adhesive using a spudger tip.
To facilitate cable detachment, if initial attempts are unsuccessful, gently warm the area with an iOpener or hair dryer to reduce adhesive bond strength, then retry separation, exercising caution to prevent cable damage.
To facilitate cable detachment, if initial attempts are unsuccessful, gently warm the area with an iOpener or hair dryer to reduce adhesive bond strength, then retry separation, exercising caution to prevent cable damage.
Step 26

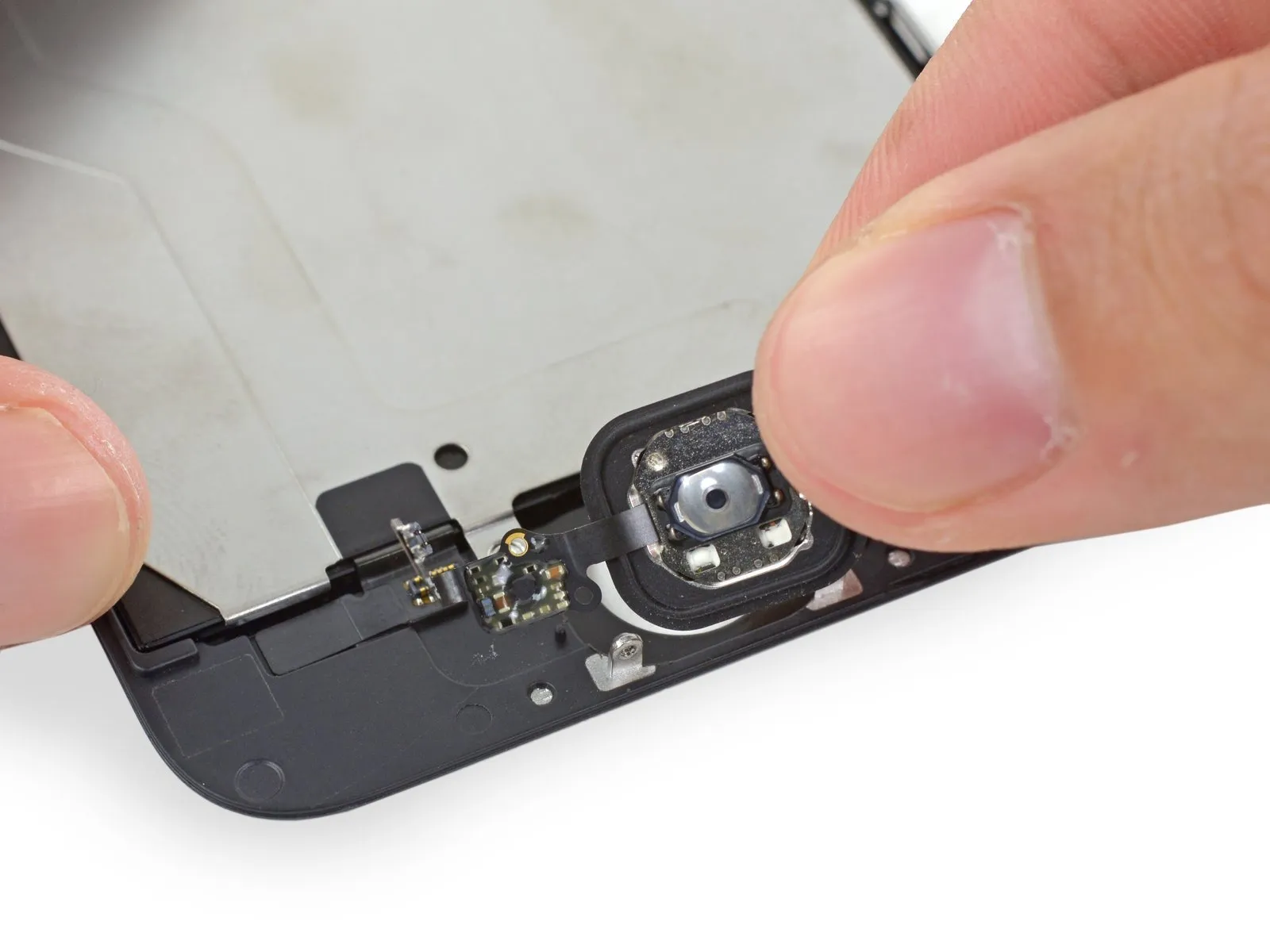

- After ensuring complete separation of the adhesive, carefully detach the home button assembly from the front panel.
- Before installing a replacement front panel, thoroughly clear any glass fragments adhering to the home button, as these fragments can damage the new display.
- To proceed with reattaching the home button bracket, discard any additional Phillips screw that might be pre-installed on the left side of the Home Button.
