iPhone 6 Rear Facing Camera Replacement
This guide details the process of either removing, cleaning, or substituting a malfunctioning rear-facing camera within your iPhone 6, and also covers replacement of the rear camera bracket.
Step 1 | Pentalobe Screws
To prevent a fire hazard or explosion due to accidental puncture, ensure the lithium-ion battery's charge level is less than 25% prior to beginning any disassembly procedures on your iPhone.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, positioned adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the subsequent opening process, the following instructions utilize the Anti-Clamp tool, a custom design; if you do not have this tool, proceed directly to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Secure the iPhone by placing suction cups—one on the front surface and one on the rear—close to the lower edge, situated directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels too slick, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Secure the iPhone by placing suction cups—one on the front surface and one on the rear—close to the lower edge, situated directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels too slick, apply adhesive tape to the device's surface.
Step 3
Moving the blue handle in a forward direction will engage the locking mechanism for the arms.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, reposition the handle by 90 degrees.
Allow several seconds of settling time between each incremental tightening, limiting each rotation to a maximum of 90 degrees. Permit the Anti-Clamp feature and time to facilitate the process.
Rotate the handle fully, completing a 360-degree turn, observing for the initial signs of cup expansion.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, reposition the handle by 90 degrees.
Allow several seconds of settling time between each incremental tightening, limiting each rotation to a maximum of 90 degrees. Permit the Anti-Clamp feature and time to facilitate the process.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a firm contact between the cup and the screen to guarantee a leak-proof connection.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used in place of the suction cup. Should neither of these methods prove effective, secure the suction cup directly to the fractured screen using superglue.
Securely affix a suction cup to the display surface, positioning it directly over the home button area.
Ensure a firm contact between the cup and the screen to guarantee a leak-proof connection.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used in place of the suction cup. Should neither of these methods prove effective, secure the suction cup directly to the fractured screen using superglue.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise patience and use steady, even pressure when installing the display assembly, as it requires a more precise fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require using both the suction cup and plastic opening tool in conjunction.
Exercise patience and use steady, even pressure when installing the display assembly, as it requires a more precise fit than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display with the suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require using both the suction cup and plastic opening tool in conjunction.
Step 6
To detach the suction cup, depress the small plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Carefully detach the front panel assembly from the rear case by pivoting it outward, leveraging the phone's upper edge as a fulcrum, starting at the home button end.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips, located immediately beneath the rear case's upper border, are properly positioned during reassembly, and subsequently move the front panel vertically until its superior edge is level with the rear case's top edge.
The front panel's upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips, located immediately beneath the rear case's upper border, are properly positioned during reassembly, and subsequently move the front panel vertically until its superior edge is level with the rear case's top edge.
Step 8
Carefully position the display at a roughly 90-degree angle, then secure it in a supported position to prevent movement during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can serve as a substitute.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can serve as a substitute.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the bracket securing the battery connector by unscrewing the included screws.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent potential damage to the device.
A single screw, measuring 2.2 millimeters, is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent potential damage to the device.
Step 10
Detach the bracket securing the battery connector using a Tri-Point Y000 screwdriver.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool.
To prevent damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks irreversible connector breakage.
To prevent damage, focus your lifting force solely on the battery connector itself; applying pressure to the logic board socket risks irreversible connector breakage.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the cable bracket from the front panel assembly by unscrewing the five screws that hold it in place.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm head diameter is required.
A single screw, measuring 3.1 millimeters, is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7 mm head diameter is required.
A single screw, measuring 3.1 millimeters, is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the cable bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four steps, ensure you apply lifting force solely to the cable connectors themselves, avoiding any stress on the sockets they connect to on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or fingernail.
Step 16
Carefully align the 4mm hex key to the setscrew, ensuring it engages fully, then gradually tighten the setscrew to a torque of 1.5 Nm using the torque wrench.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector from its socket using a spudger or similar non-conductive tool.
Should the display data cable detach from its connector during reassembly, powering on the device might produce a blank screen or display white lines; to resolve this, re-engage the cable with the connector and restart the phone, preferably by disconnecting and reconnecting the battery connector to ensure a complete power cycle.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully detach the display data cable connector from its socket using a spudger or similar non-conductive tool.
Should the display data cable detach from its connector during reassembly, powering on the device might produce a blank screen or display white lines; to resolve this, re-engage the cable with the connector and restart the phone, preferably by disconnecting and reconnecting the battery connector to ensure a complete power cycle.
Step 17
Using a 5/32-inch hex key, carefully tighten the four mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-tightened to avoid damaging the plastic threads; observe torque specifications of 4 in-lbs per screw.
Carefully separate the digitizer cable connector from its socket using the flat tool end of a spudger.
To avoid potential damage to the digitizer, ensure the connector is properly seated by applying pressure to its opposing ends, rather than the central portion; central pressure may warp the component.
Carefully separate the digitizer cable connector from its socket using the flat tool end of a spudger.
To avoid potential damage to the digitizer, ensure the connector is properly seated by applying pressure to its opposing ends, rather than the central portion; central pressure may warp the component.
Step 18 | Separating front panel assembly and rear case
Using a 5/32-inch hex key, carefully tighten the four M4x8 pan head screws securing the fan assembly to the heatsink, ensuring a torque of 4 in-lbs to prevent damage.
Detach the front panel assembly by disengaging it from the rear case.
Detach the front panel assembly by disengaging it from the rear case.
Step 19 | Rear Facing Camera
Carefully align the 4mm hex key to the setscrew located on the motor shaft, ensuring it is securely seated, then tighten the setscrew to a torque of 3.5 Nm using the torque wrench, observing the warning against over-tightening which could damage the shaft.

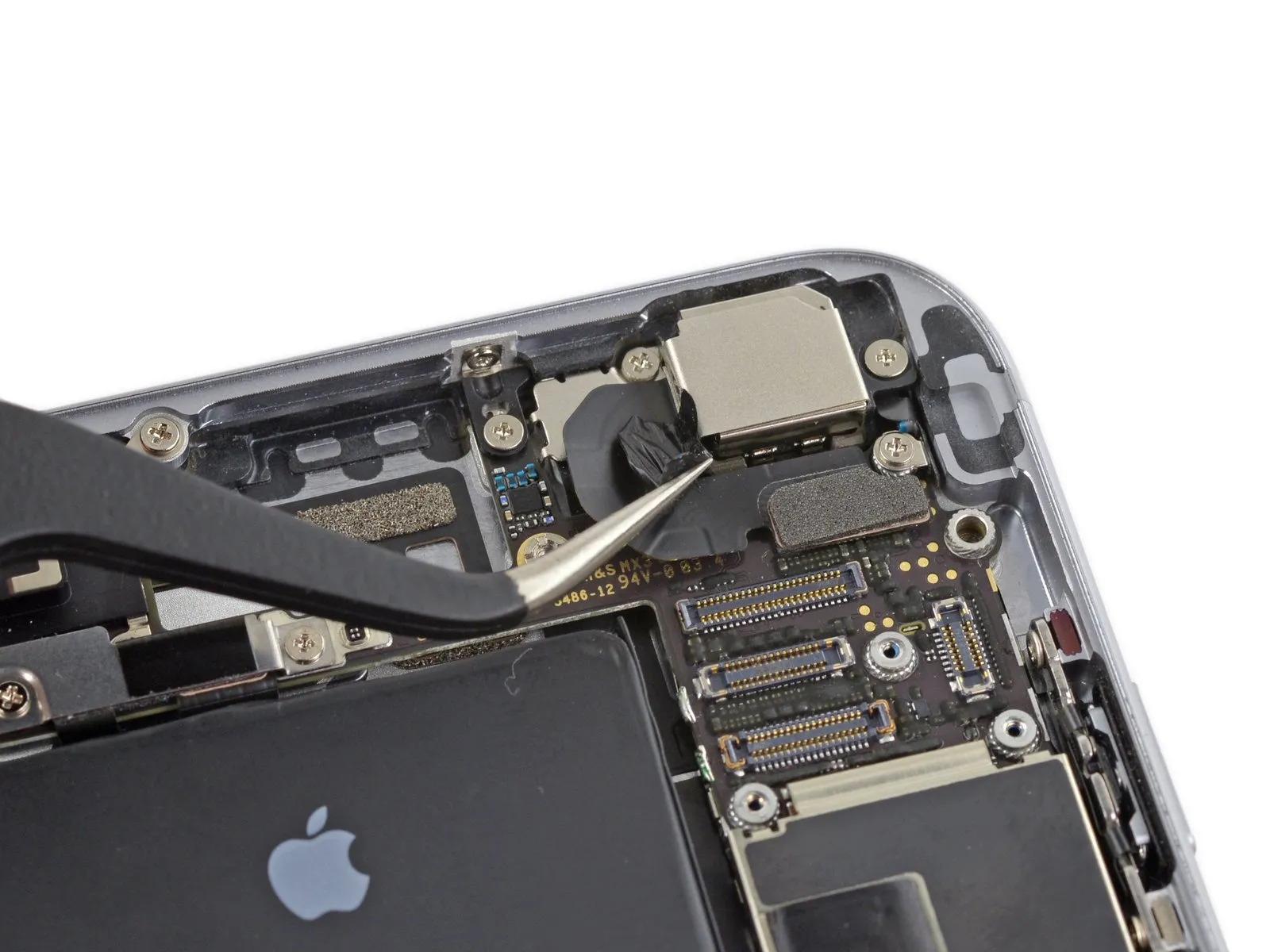

Carefully detach the adhesive tape securing the screw on the upper left side of the rear camera assembly.
Carefully detach the adhesive tape securing the screw on the upper left side of the rear camera assembly.
Step 20
Carefully align the 4mm diameter dowel pins with their corresponding holes in both the upper and lower chassis sections, then gently press the sections together until fully seated, ensuring no gaps remain and avoiding damage to the pins.

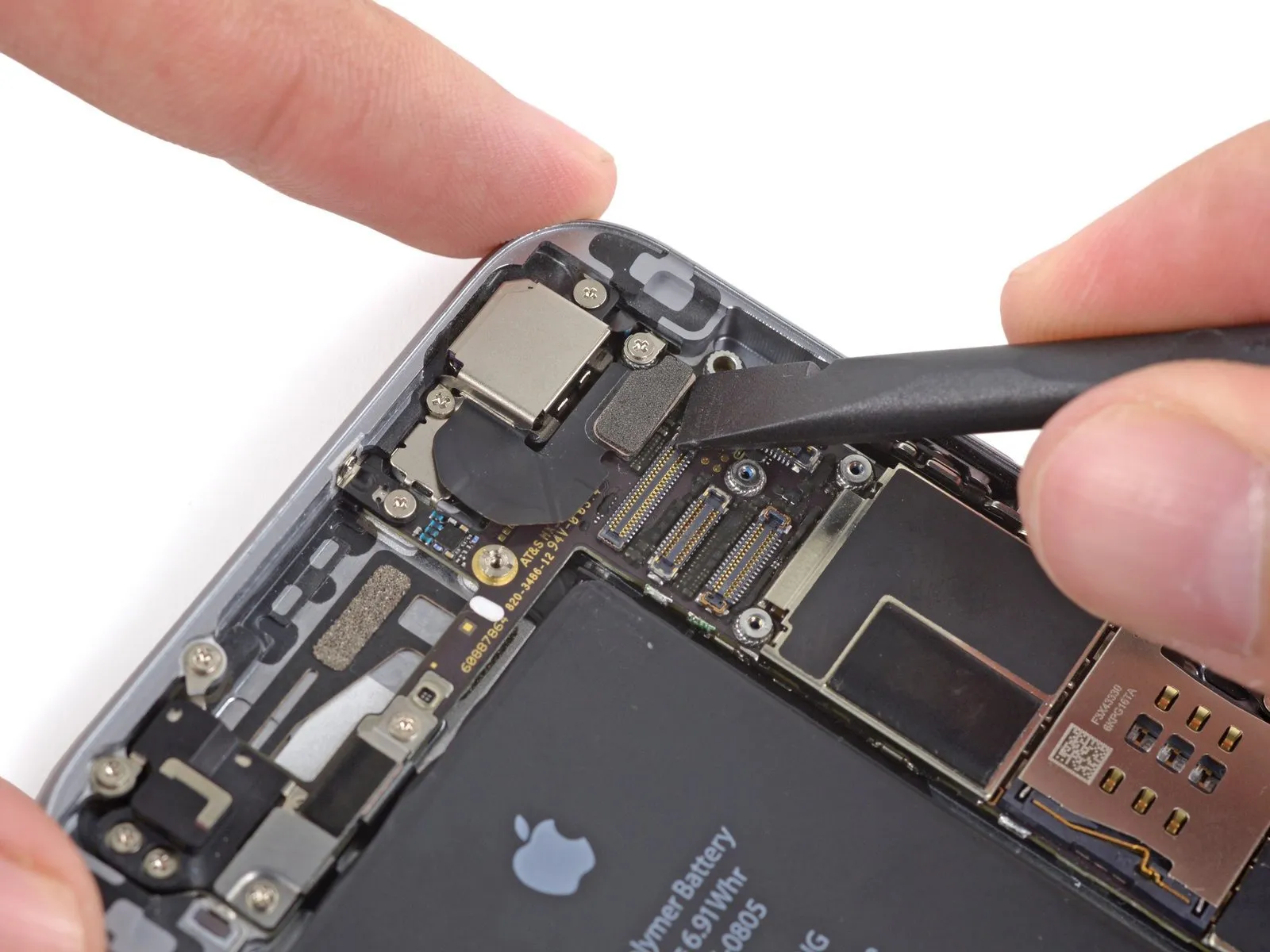

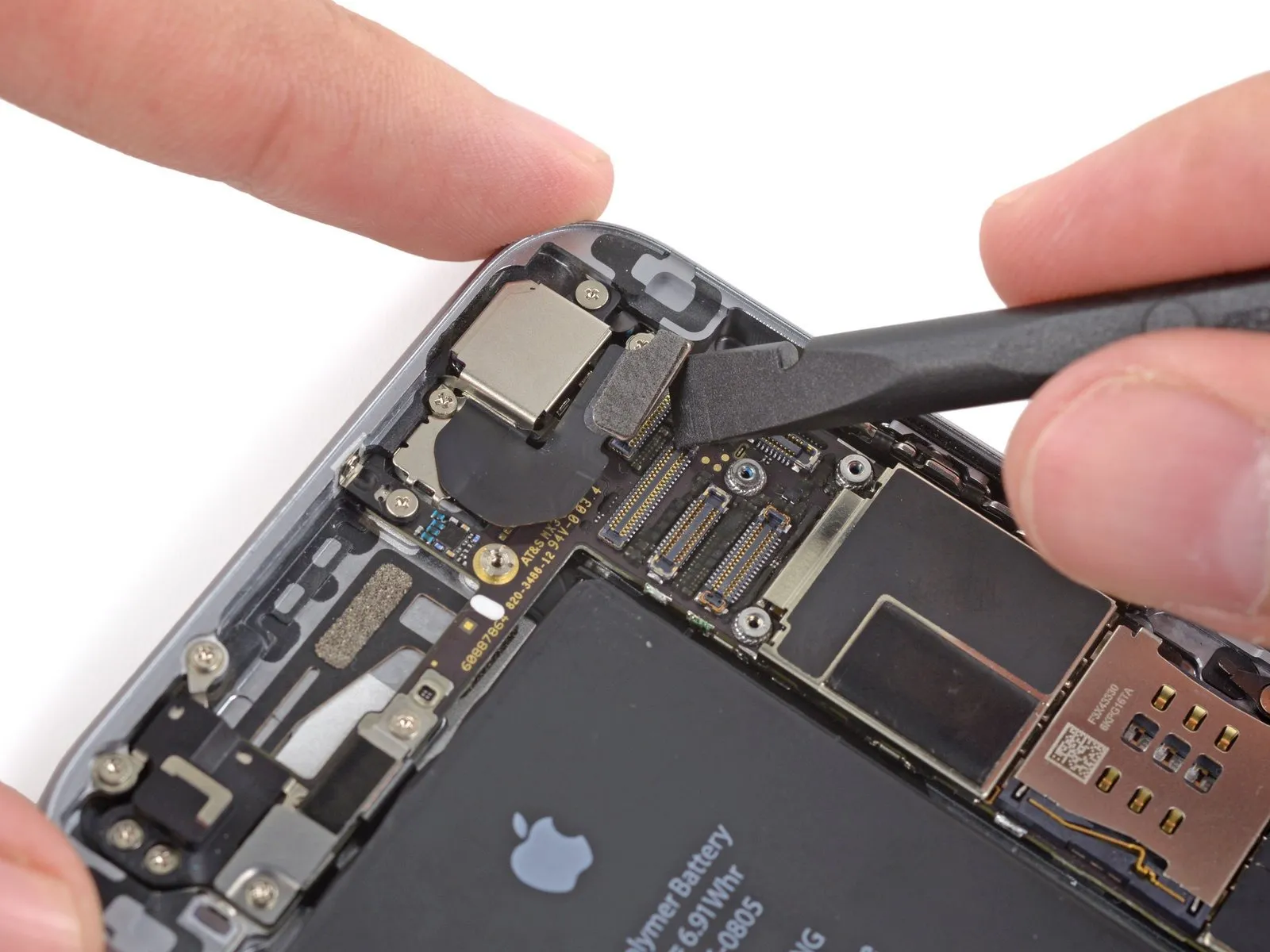

Carefully employ the flat spudger tip to disengage the rear camera connector from its corresponding socket on the logic board.
To avoid logic board damage, apply force solely to the connector when releasing it, ensuring you do not contact the socket.
Carefully employ the flat spudger tip to disengage the rear camera connector from its corresponding socket on the logic board.
To avoid logic board damage, apply force solely to the connector when releasing it, ensuring you do not contact the socket.
Step 21
- Using a Phillips #00 screwdriver, detach the rear-facing camera bracket by unscrewing the screws affixed to it.
A screw with a 1.5 mm diameter is required.
A screw with a 2.1 mm head diameter is required.
Step 22

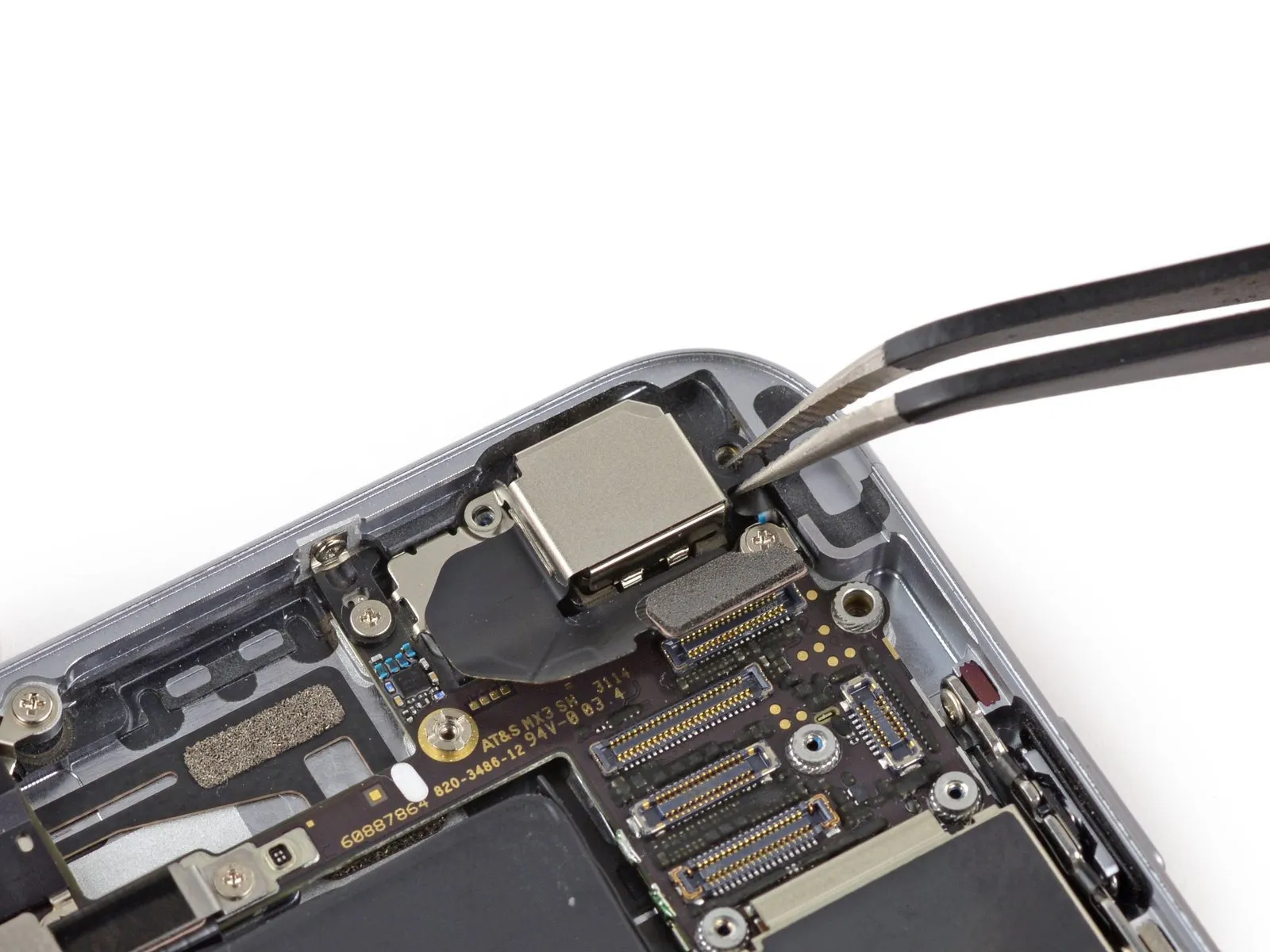

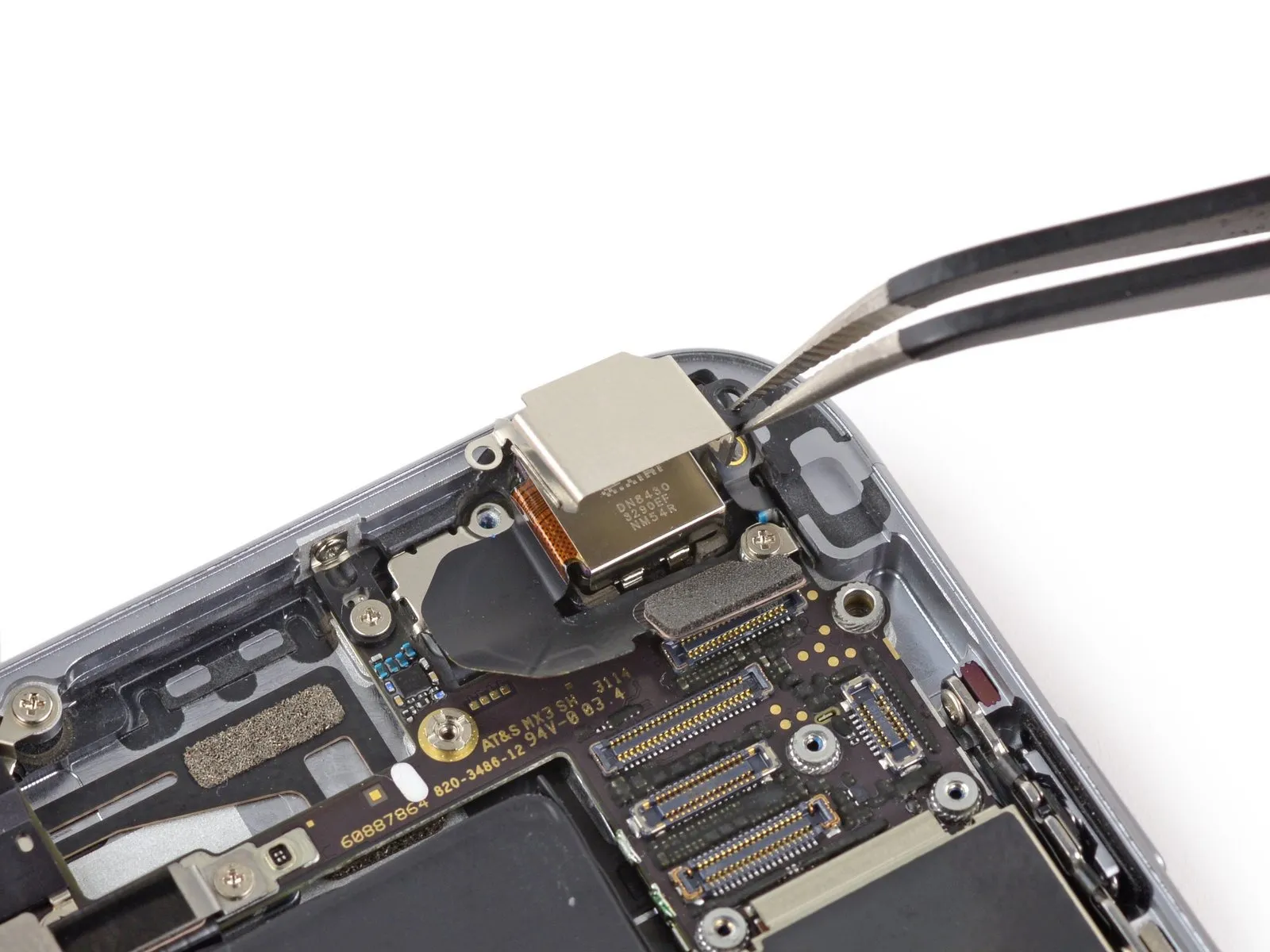

- Detach the bracket securing the rear camera assembly.
Step 23

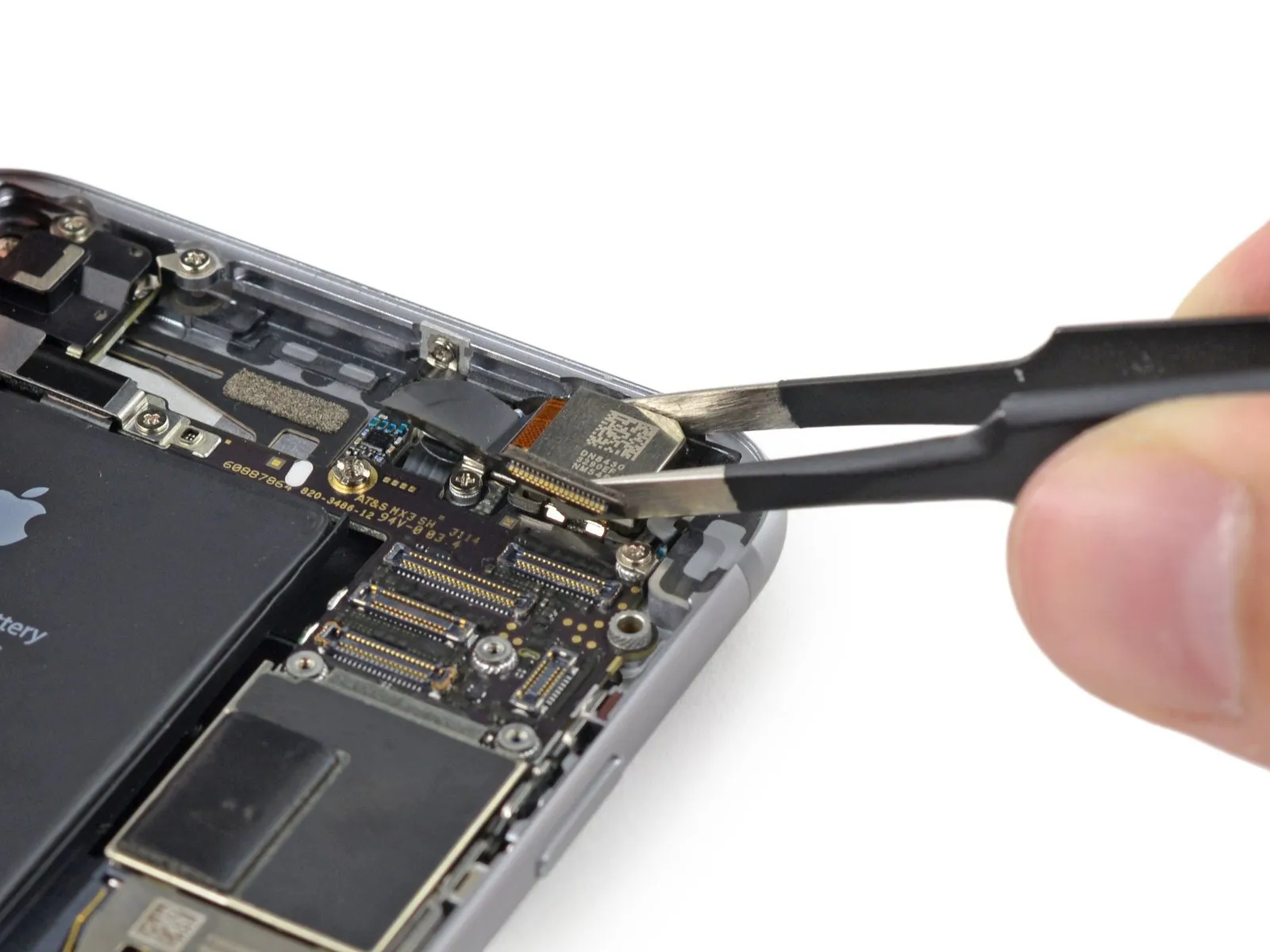

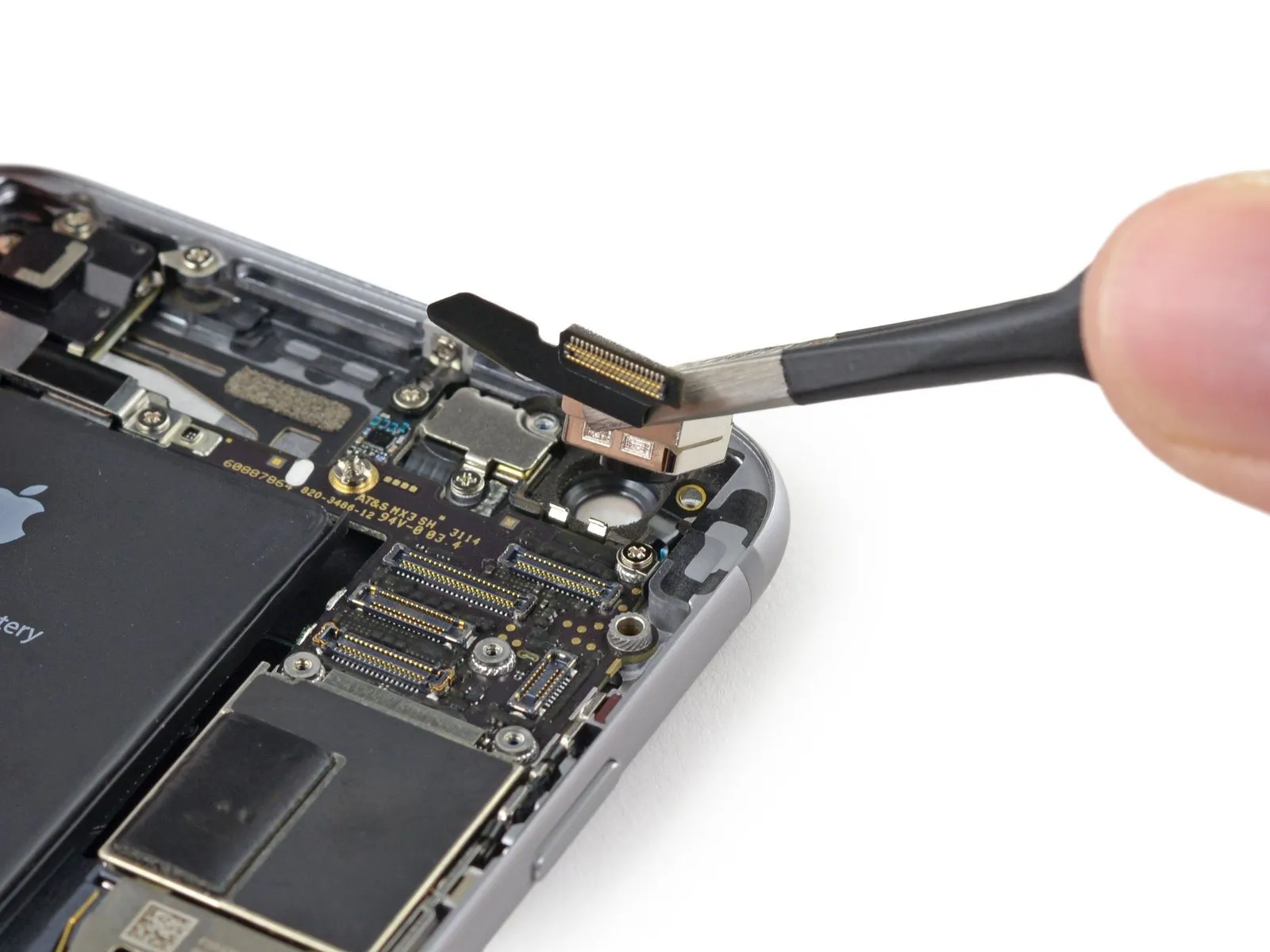

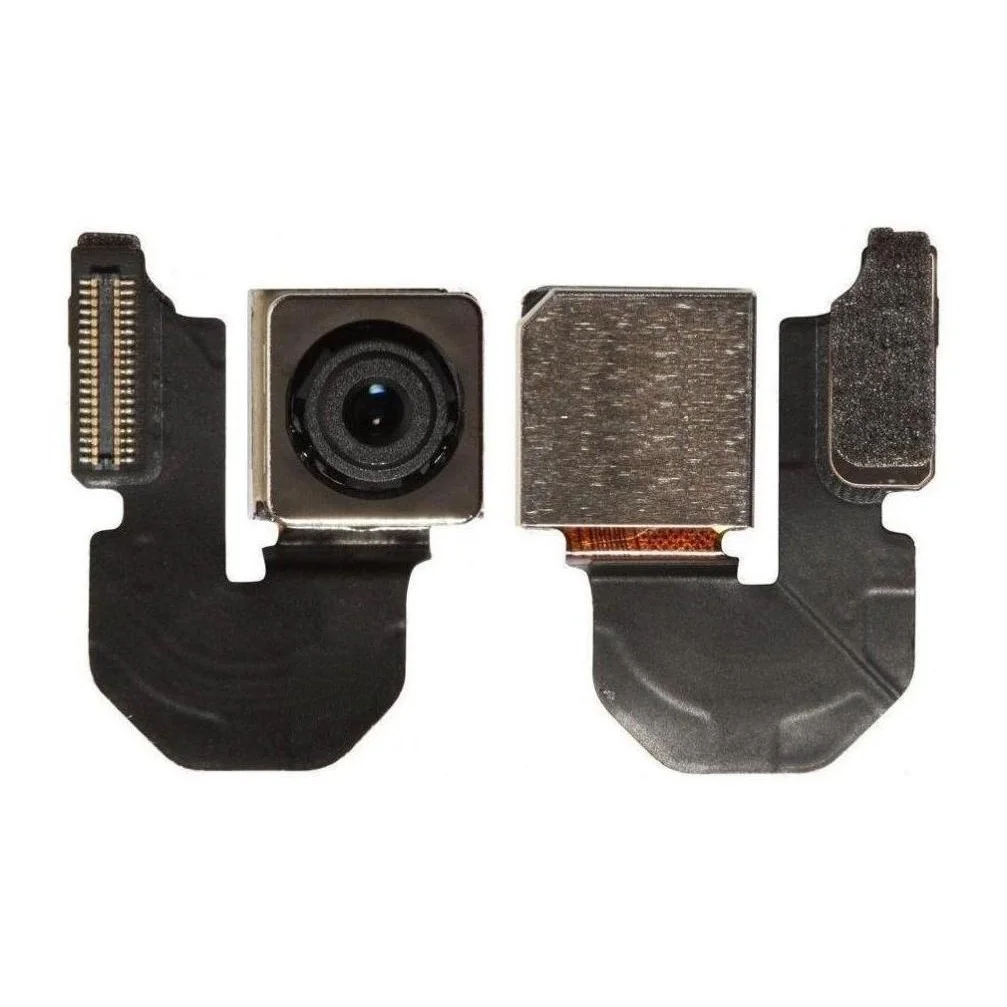

- Carefully detach the iPhone's rear camera assembly.
