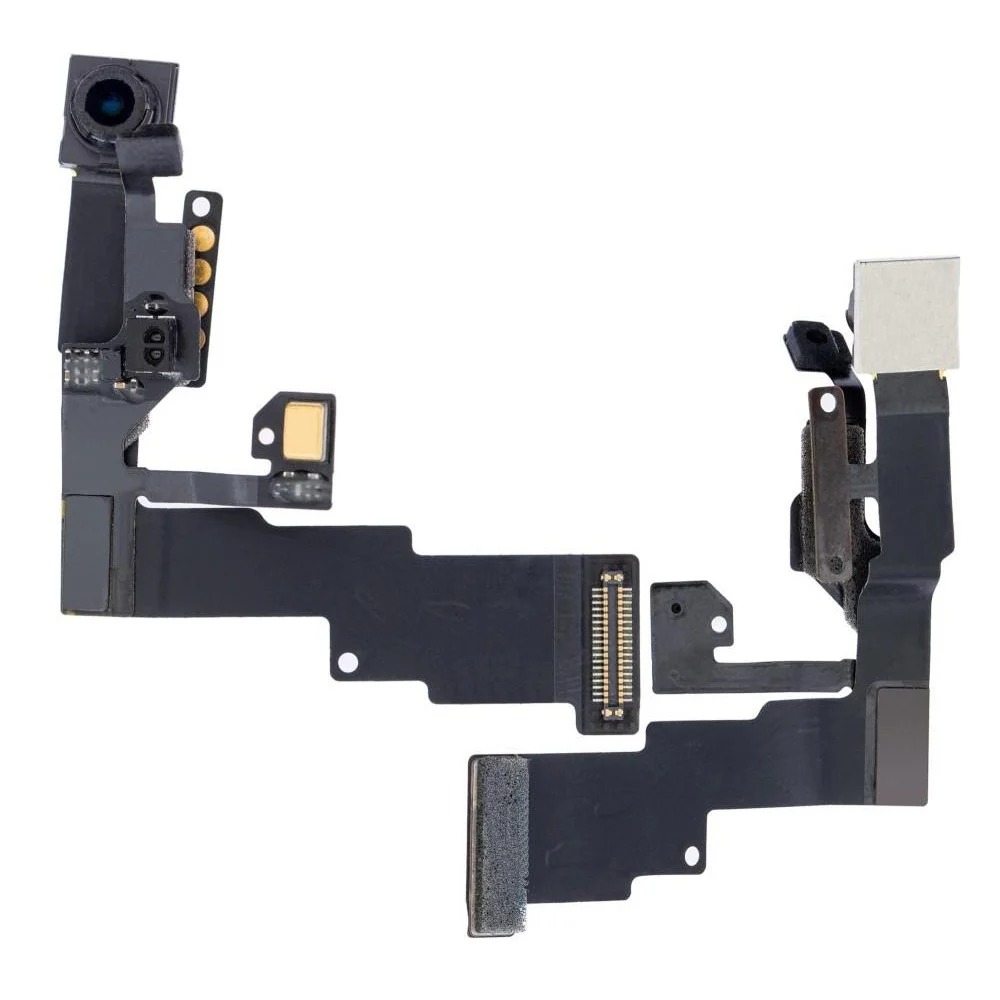

iPhone 6 Front-Facing Camera and Sensor Cable Replacement
Follow these instructions to substitute the front camera assembly, which incorporates the camera itself, microphone, and associated sensors, along with its connecting cable.
- During this repair process, the earpiece speaker will be detached; remember to retain it and install it into the new cable assembly during reassembly.
This document also provides instructions for substituting these components.
Step 1 | Pentalobe Screws
To prevent a fire hazard or explosion due to accidental puncture, ensure the lithium-ion battery's charge level is less than 25% prior to beginning any disassembly procedures on your iPhone.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, which are situated adjacent to the Lightning connector.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm in length, which are situated adjacent to the Lightning connector.
Step 2 | Anti-Clamp instructions
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed to the instructions three steps further down.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix one suction cup to the front surface of the iPhone, close to the lower edge and directly over the home button, and secure a second suction cup to the rear surface in the same relative position.
Apply vacuum by pressing the cups firmly against the surface you intend to work on.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Refer to the included guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
Affix one suction cup to the front surface of the iPhone, close to the lower edge and directly over the home button, and secure a second suction cup to the rear surface in the same relative position.
Apply vacuum by pressing the cups firmly against the surface you intend to work on.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 3
To secure the arms, advance the blue handle in its direction.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate clearance, reposition the handle by 90 degrees if the Anti-Clamp fails to establish the necessary separation.
Allow the Anti-Clamp device to function and permit several seconds of inactivity following each incremental adjustment, limiting each rotation to a maximum of 90 degrees.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' hold and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate clearance, reposition the handle by 90 degrees if the Anti-Clamp fails to establish the necessary separation.
Allow the Anti-Clamp device to function and permit several seconds of inactivity following each incremental adjustment, limiting each rotation to a maximum of 90 degrees.
Step 4 | Manual Opening Procedure
Lacking an Anti-Clamp tool, secure the front panel with a single suction cup for lifting.
Position a suction cup directly on the display surface, situated immediately above the home button.
Ensure a firm contact between the cup and the screen to establish a leakproof connection.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used directly. Should neither of these methods prove effective, a small amount of superglue can be used to secure the suction cup to the fractured screen.
Position a suction cup directly on the display surface, situated immediately above the home button.
Ensure a firm contact between the cup and the screen to establish a leakproof connection.
To facilitate suction cup attachment when the display has severe cracking, apply a sheet of clear packing tape across the damaged area; as an alternative, a robust adhesive tape can be used directly. Should neither of these methods prove effective, a small amount of superglue can be used to secure the suction cup to the fractured screen.
Step 5
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display using a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require employing both the suction cup and plastic opening tool.
Exercise caution and use steady, even pressure when installing the display assembly, as its fit is considerably more snug than typical device components.
Carefully separate the rear case from the display assembly by gently levering it downwards with a plastic opening tool, maintaining upward traction on the display using a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require employing both the suction cup and plastic opening tool.
Step 6
To detach the suction cup, depress the small plastic projection to break the airtight seal.
Detach the display assembly's suction cup.
Detach the display assembly's suction cup.
Step 7 | Opening up the phone
Using the phone's top edge as a pivot point, carefully detach the front panel assembly from the rear case by moving the home button end outwards.
The front panel’s upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips, positioned directly beneath the rear case's upper border, are properly aligned before sliding the front panel upwards. The front panel's top edge should then be level with the rear case's top edge.
The front panel’s upper edge incorporates multiple clips that function as a partial hinge.
Ensure the clips, positioned directly beneath the rear case's upper border, are properly aligned before sliding the front panel upwards. The front panel's top edge should then be level with the rear case's top edge.
Step 8
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent movement during the repair process.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the correct volume.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
If a dedicated calibration tool is unavailable, a factory-sealed, unopened can of soda can be substituted, provided it is the correct volume.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 9 | Removing the battery connector bracket screws
Using a Phillips screwdriver, detach the battery connector bracket by unscrewing the included fasteners.
A 2.2-millimeter screw is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent potential damage to the device.
A 2.2-millimeter screw is required.
A single screw, measuring 3.2 millimeters, is required.
Carefully note the location of every screw during disassembly, as reassembly requires placing each one in its original position to prevent potential damage to the device.
Step 10
Detach the bracket securing the battery connector using a tri-point screwdriver, ensuring no damage to surrounding components.
Step 11 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool, applying gentle force.
To avoid damaging the logic board socket, focus your prying action solely on the battery connector; applying force to the socket itself risks irreversible connector failure.
To avoid damaging the logic board socket, focus your prying action solely on the battery connector; applying force to the socket itself risks irreversible connector failure.
Step 12 | Removing the front panel assembly cable bracket screws
Using a Phillips screwdriver, detach the five screws that hold the cable bracket in place on the front panel assembly.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A single fastener with a 3.1 mm diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Use three screws, each measuring 1.2 millimeters.
A screw with a 1.7-millimeter head diameter is required.
A single fastener with a 3.1 mm diameter is required.
Improper screw installation during reassembly can result in irreversible harm to the iPhone's logic board.
Step 13
Detach the bracket securing the front panel assembly cable to the logic board.
Step 14
When proceeding with the following four actions, ensure that you lift solely on the cable connectors themselves, avoiding any upward force applied to the sockets they connect to on the logic board.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Carefully detach the front camera and sensor cable connector from its socket using a spudger or similar tool.
Step 15
Carefully detach the home button cable connector using a spudger or fingernail.
Step 16
Carefully align the 4mm hex key to the setscrew, ensuring it engages fully, then tighten the setscrew to a torque of 1.5 Nm using the torque wrench.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully separate the display data cable connector from its socket using a spudger or similar tool.
Should the display data cable become detached from its connector during reassembly, a blank screen or white lines might appear upon powering on the device; to resolve this, reattach the cable and restart the phone, preferably by briefly disconnecting and reconnecting the battery connector.
Prior to either detaching or reattaching the cable in this procedure, ensure the battery is disconnected.
Carefully separate the display data cable connector from its socket using a spudger or similar tool.
Should the display data cable become detached from its connector during reassembly, a blank screen or white lines might appear upon powering on the device; to resolve this, reattach the cable and restart the phone, preferably by briefly disconnecting and reconnecting the battery connector.
Step 17
Using a 5/32-inch hex key, carefully tighten the four M4x8 socket head cap screws securing the motor assembly to the frame, ensuring a torque of 4.5 Nm to prevent damage.
Carefully detach the digitizer cable connector by inserting the flat end of a spudger between the connector and the circuit board.
To avoid potential damage to the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure can deform the component.
Carefully detach the digitizer cable connector by inserting the flat end of a spudger between the connector and the circuit board.
To avoid potential damage to the digitizer, when attaching the digitizer cable, apply pressure to opposing ends of the connector instead of the central area; central pressure can deform the component.
Step 18 | Separating front panel assembly and rear case
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Detach the front panel assembly from the rear case.
Detach the front panel assembly from the rear case.
Step 19 | Earpiece Speaker
Carefully align the 4mm diameter dowel pins with their corresponding holes in both the upper and lower chassis halves, then gently press the two sections together until flush, ensuring no gaps exist and avoiding damage to the pins.
Using a Phillips screwdriver, detach the earpiece speaker/front-facing camera bracket by unscrewing the screws affixed to it.
A screw with a 2.3 mm head diameter is required.
A single screw with a 3.0-millimeter diameter is required.
A screw with a 2.2-millimeter head diameter is required.
Using a Phillips screwdriver, detach the earpiece speaker/front-facing camera bracket by unscrewing the screws affixed to it.
A screw with a 2.3 mm head diameter is required.
A single screw with a 3.0-millimeter diameter is required.
A screw with a 2.2-millimeter head diameter is required.
Step 20
Using a 5/32-inch hex key, carefully tighten the four M4x8 screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
Detach the bracket securing the earpiece speaker and front-facing camera from the front panel.
Detach the bracket securing the earpiece speaker and front-facing camera from the front panel.

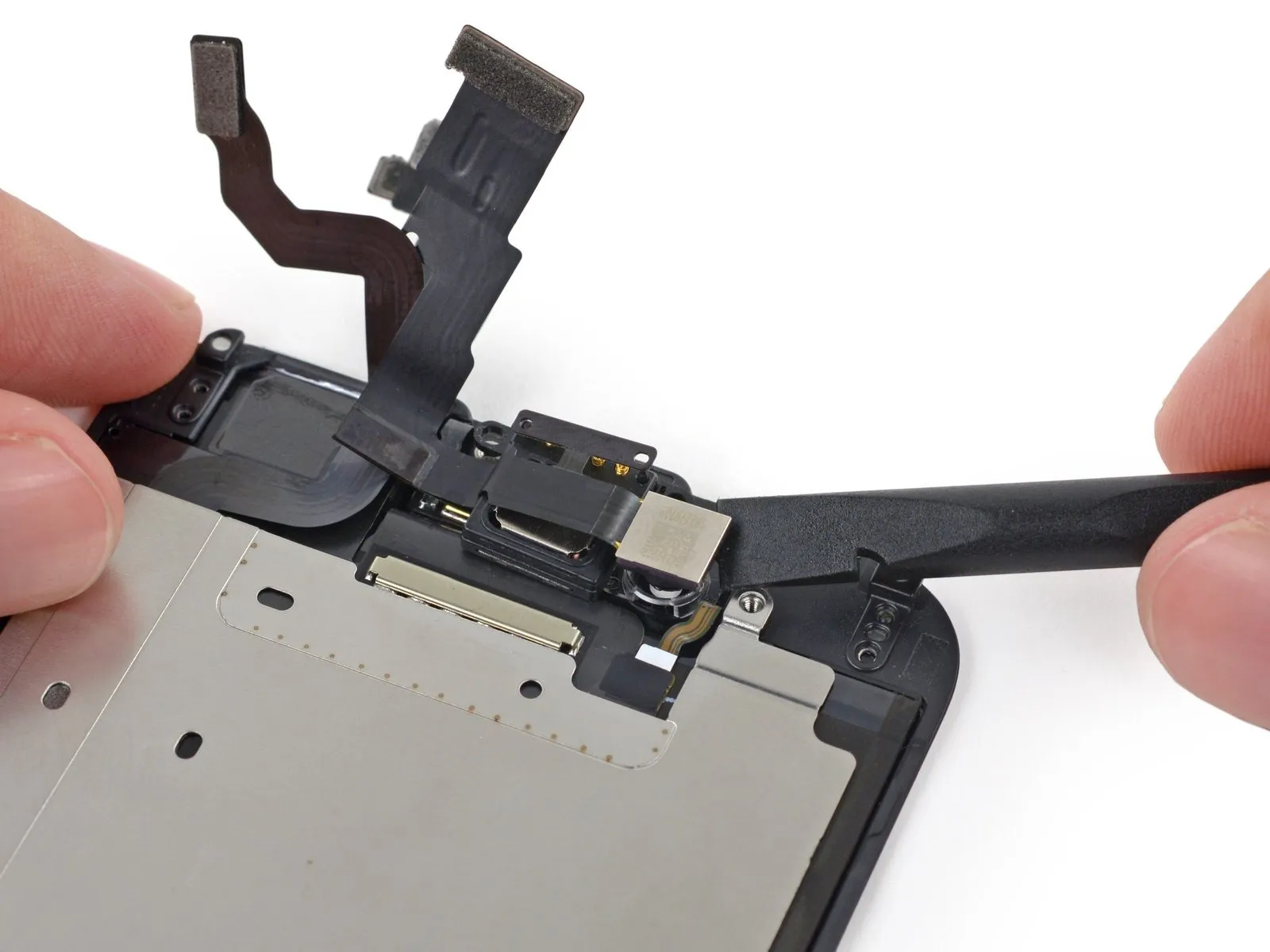

Step 21
Carefully extract the front camera assembly from its designated space within the front panel.
Step 22

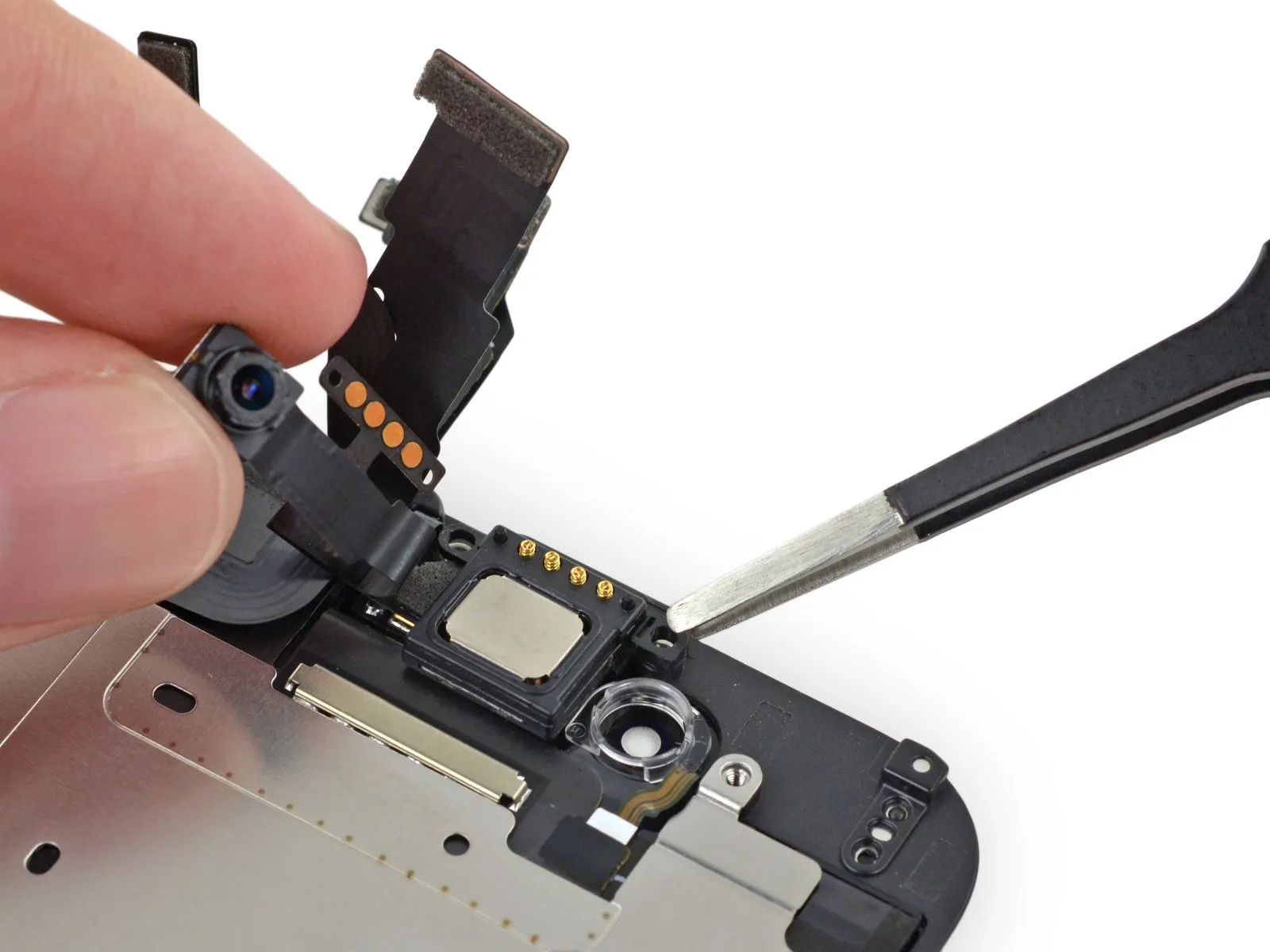

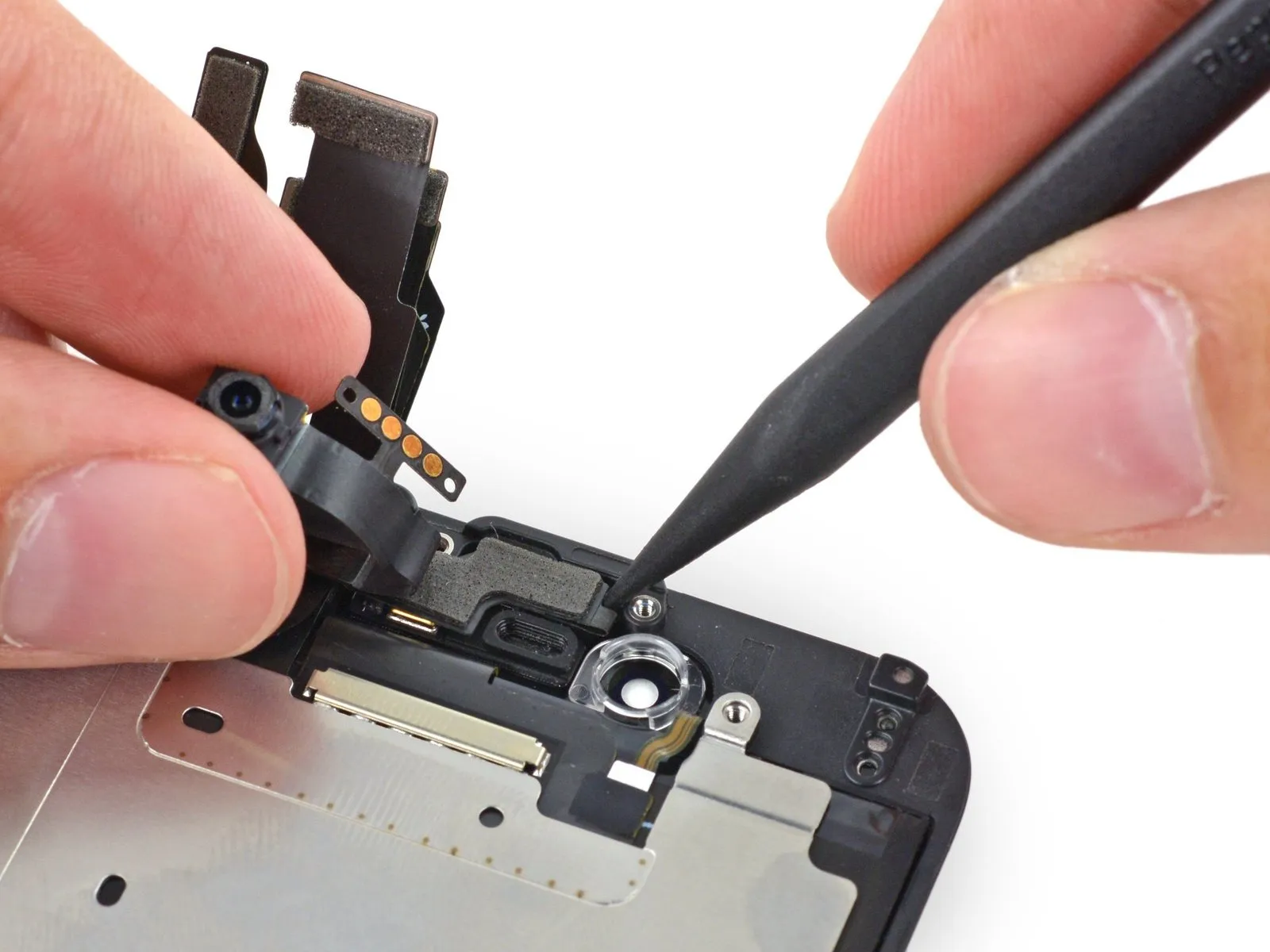

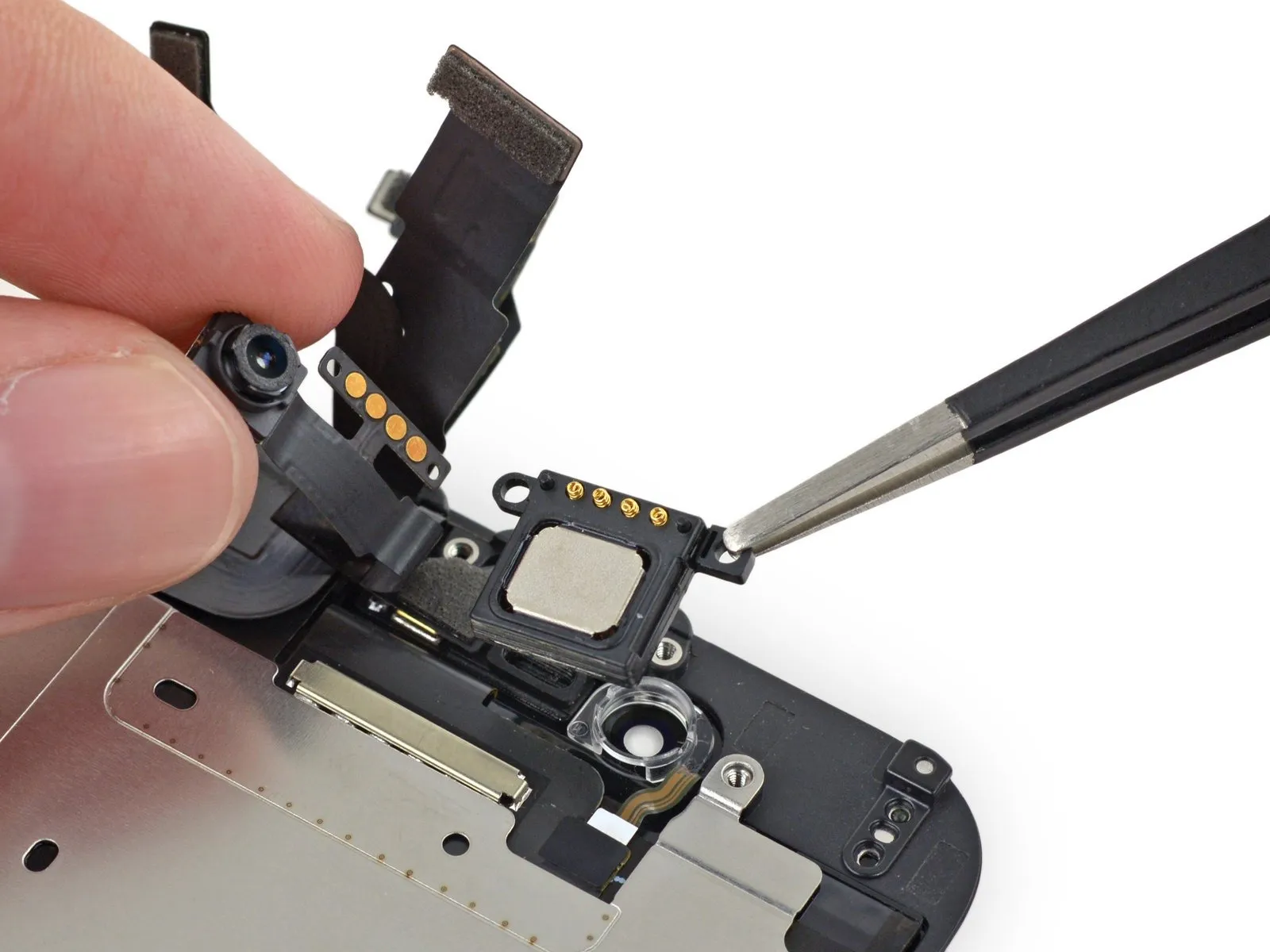

Carefully move the front-facing camera aside, then detach the earpiece speaker assembly from the front panel.
To prevent connection issues and potential damage, avoid contact with speaker and cable contacts; should contact occur, carefully clean with a small amount of isopropyl alcohol and allow several moments for complete evaporation.
To prevent connection issues and potential damage, avoid contact with speaker and cable contacts; should contact occur, carefully clean with a small amount of isopropyl alcohol and allow several moments for complete evaporation.
Step 23 | Front-Facing Camera and Sensor Cable

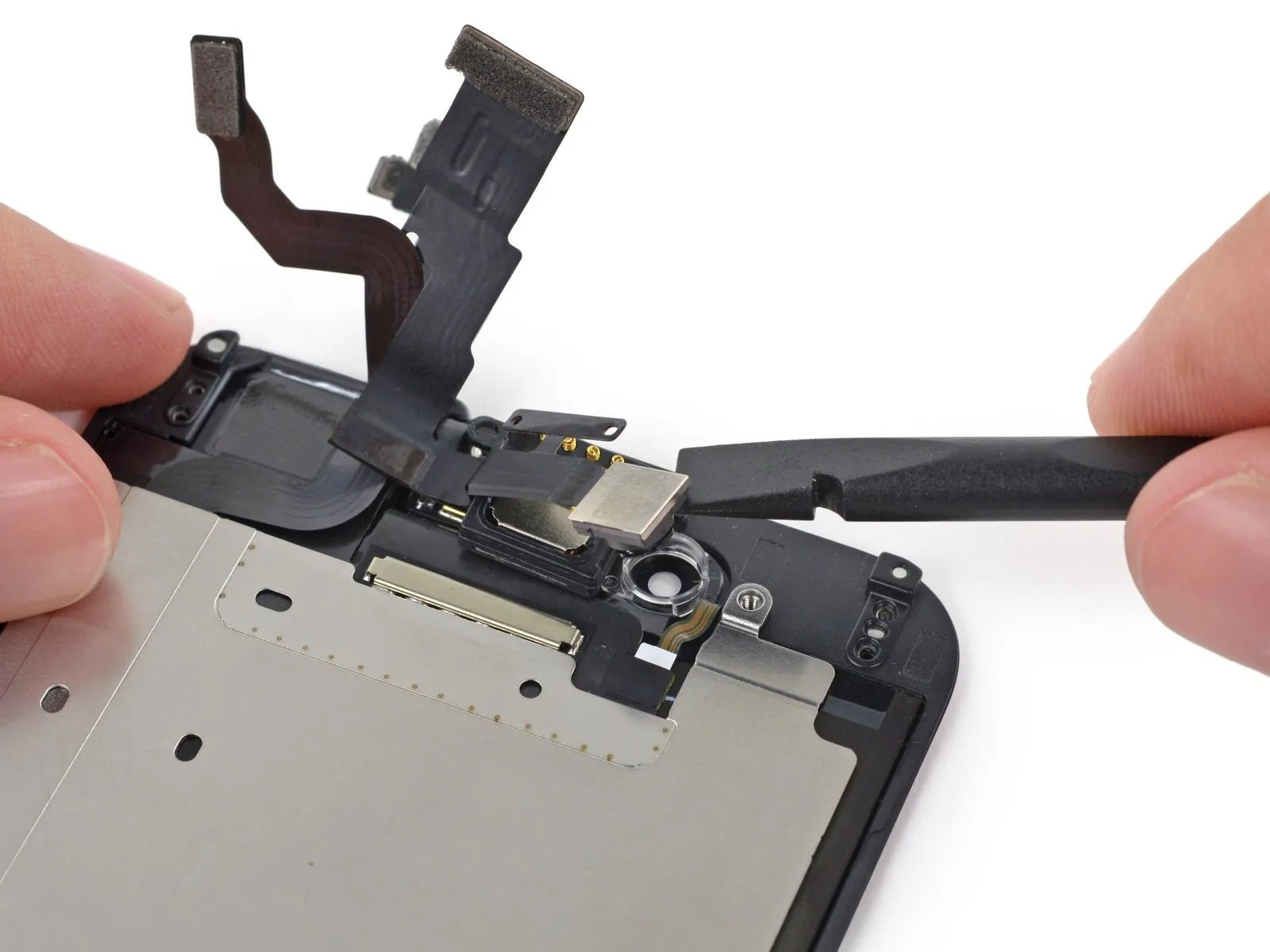

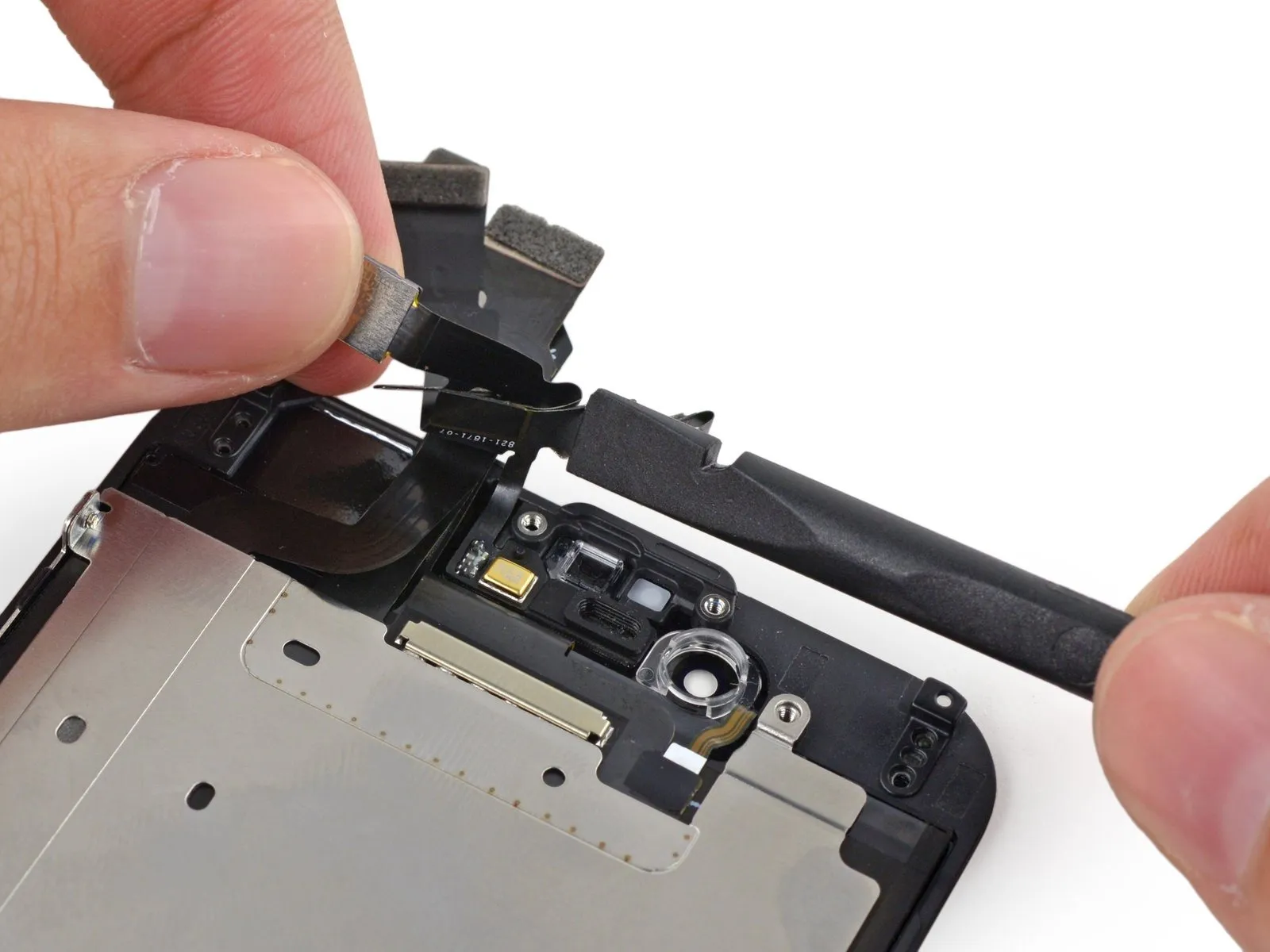

Carefully maneuvering the front camera to avoid damage, employ the tip of a spudger to gently lift the ambient-light sensor from its seating within the front panel.
Step 24

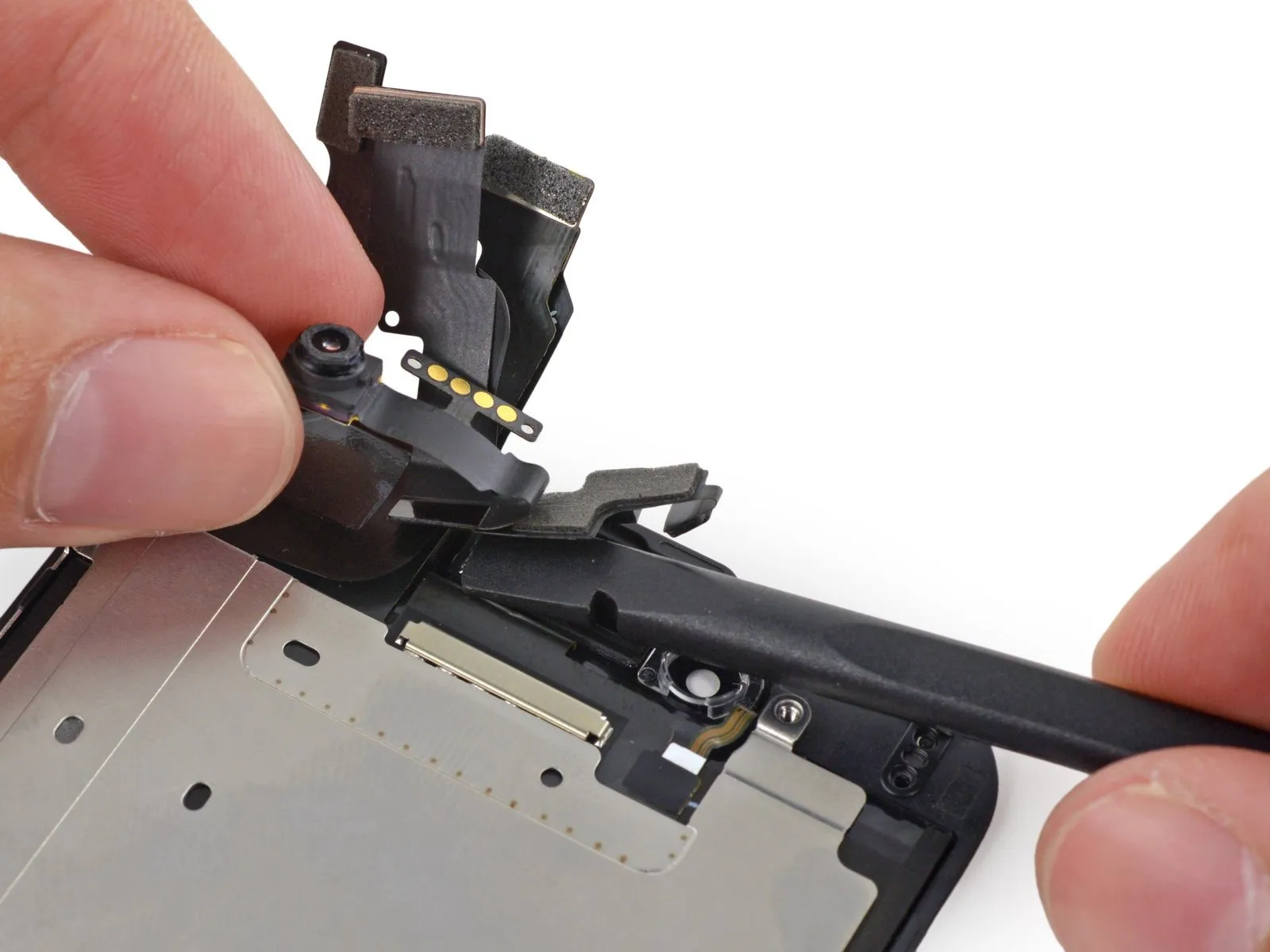

To reach the microphone, carefully lift the front camera assembly and its attached cable.
Step 25

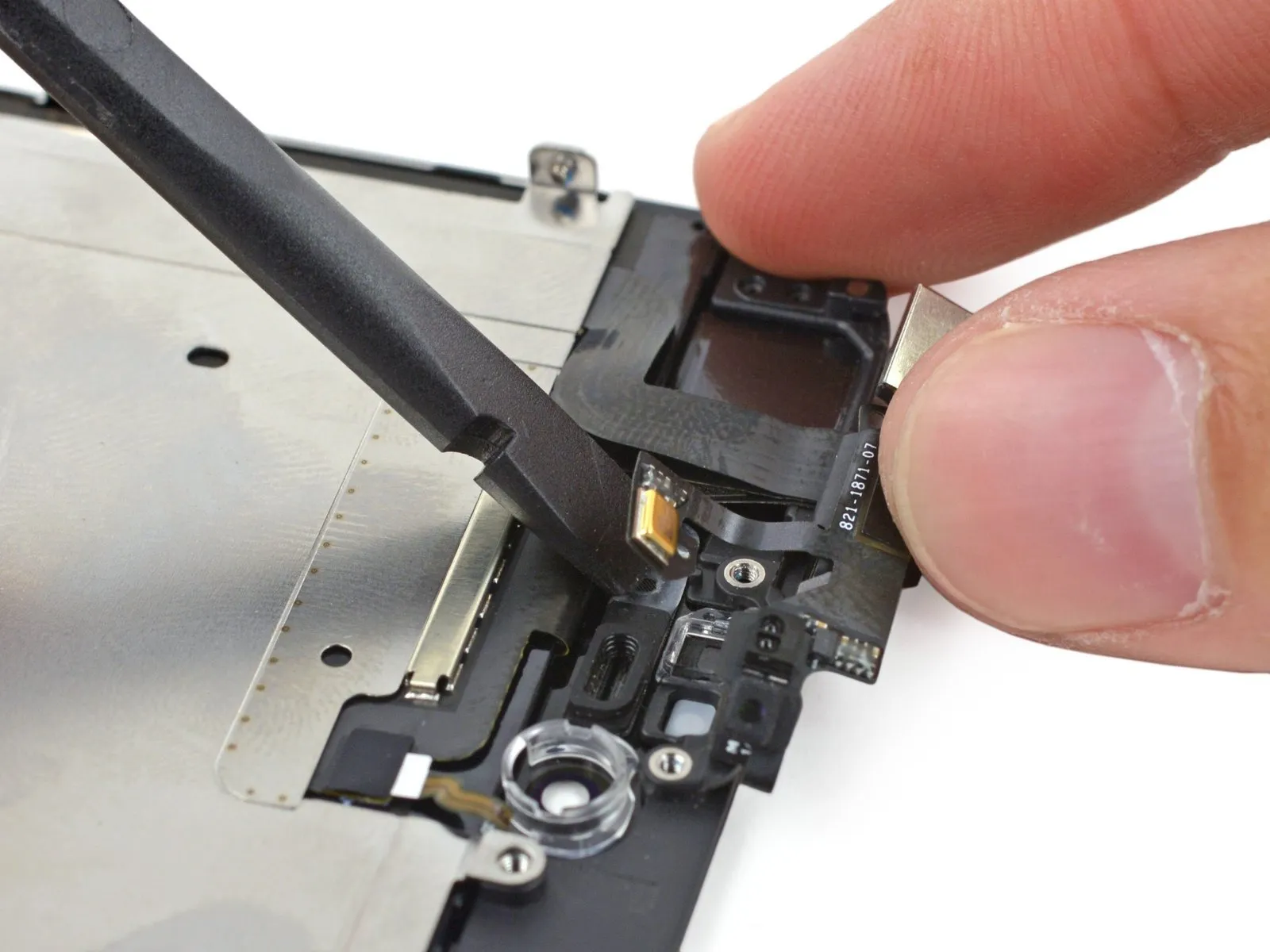

Using gentle force, detach the sensor cable's microphone connector from the adhesive securing it to the front panel.
Step 26
Disconnect the front panel's front-facing camera and its associated sensor cable.
