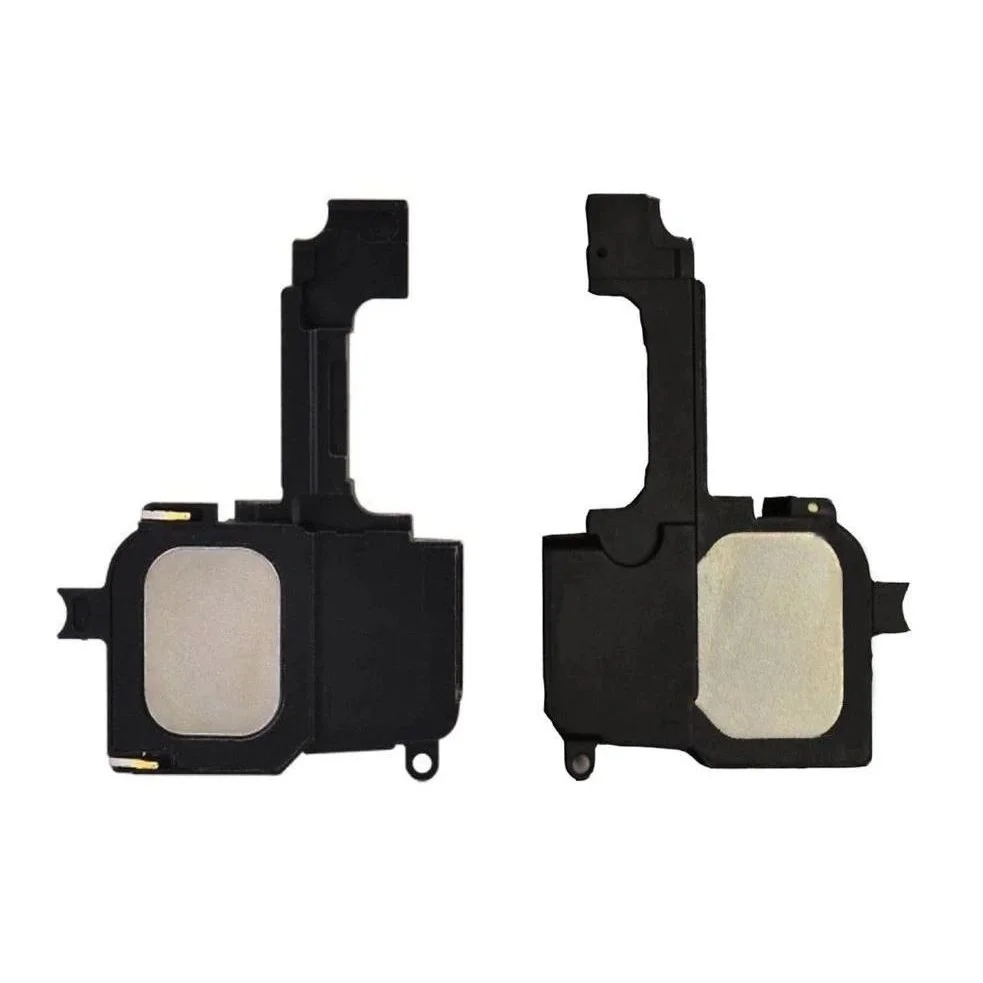

iPhone 5 Speaker Enclosure Replacement
To restore audio functionality to your iPhone 5, substitute the damaged speaker unit.
Step 1 | Taping the display glass
Begin the process by ensuring the 1.5mm Allen wrench is used to loosen the retaining screw, which secures the 3.2V regulator to the circuit board, and be aware that static discharge can damage the component; ground yourself before proceeding.
To mitigate the risk of additional shattering and potential injury while performing the repair, secure any cracked display glass with tape.
Completely cover the iPhone's screen with overlapping clear packing tape strips.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
To mitigate the risk of additional shattering and potential injury while performing the repair, secure any cracked display glass with tape.
Completely cover the iPhone's screen with overlapping clear packing tape strips.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Step 2 | Remove the Pentalobe screws
Using a 5/32-inch hex key, carefully loosen the four screws securing the fan assembly to the motor housing; ensure you maintain a firm grip on the fan to prevent it from rotating and potentially damaging the internal wiring, and note that these screws are easily stripped, so avoid excessive force.
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a significant risk of combustion if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.
To prevent potential fire or explosion hazards during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a significant risk of combustion if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.
Step 3 | How to prevent display separation
Using a 5/32-inch hex key, carefully tighten the three retaining screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings on the wiring harness during reattachment to avoid electrical malfunction.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display assembly, irrespective of the chosen tool.
When separation between the glass and plastic is observed, matching the visual example provided, use a plastic opening tool to carefully insert it into the gap between the plastic frame and the phone’s metal chassis, releasing the metal clips securing the case.
To ensure proper closure during reassembly of a phone featuring a detached display bezel, apply a narrow adhesive strip positioned between the plastic bezel and the glass surface.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display assembly, irrespective of the chosen tool.
When separation between the glass and plastic is observed, matching the visual example provided, use a plastic opening tool to carefully insert it into the gap between the plastic frame and the phone’s metal chassis, releasing the metal clips securing the case.
To ensure proper closure during reassembly of a phone featuring a detached display bezel, apply a narrow adhesive strip positioned between the plastic bezel and the glass surface.
Step 4 | Anti-Clamp instructions
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft aligns correctly and avoiding over-tightening which could damage the threads.
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further for an alternative procedure.
Refer to the accompanying documentation for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Affix two suction cups to the iPhone’s front and rear surfaces, placing them close to the lower edge, directly over the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply tape to the device's surface to increase friction.
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further for an alternative procedure.
Refer to the accompanying documentation for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Affix two suction cups to the iPhone’s front and rear surfaces, placing them close to the lower edge, directly over the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's adherence if the iPhone's exterior feels excessively smooth, apply tape to the device's surface to increase friction.
Step 5
Using a 5/32-inch hex key, carefully tighten the four M4 x 8mm screws securing the fan assembly to the heatsink, ensuring a torque of 4.5 in-lbs to prevent damage.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the point at which the cups begin to expand.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component beyond a 90-degree increment per adjustment; this permits the Anti-Clamp feature to function effectively.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the point at which the cups begin to expand.
Maintain parallel positioning of the suction cups; should misalignment occur, gently release the suction cups' grip and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component beyond a 90-degree increment per adjustment; this permits the Anti-Clamp feature to function effectively.
Step 6 | Manual Opening Procedure
Secure a suction cup to the display surface, positioning it directly over the home button area.
Ensure the screen's entire surface area is covered by the cup to guarantee a secure connection.
To prevent shattered glass fragments from scattering and to provide a secure attachment point for the suction cup, apply several strips of packing tape to the face of the iPhone, carefully smoothing them to eliminate air pockets.
Ensure the screen's entire surface area is covered by the cup to guarantee a secure connection.
To prevent shattered glass fragments from scattering and to provide a secure attachment point for the suction cup, apply several strips of packing tape to the face of the iPhone, carefully smoothing them to eliminate air pockets.
Step 7 | Start lifting the front panel assembly
Secure the front panel assembly to the suction cup, ensuring a strong bond.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the device's back cover.
Exercise caution and use steady, even pressure when installing, as the display assembly has a more precise fit than typical device components.To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require employing both the suction cup and a plastic opening tool.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the device's back cover.
Exercise caution and use steady, even pressure when installing, as the display assembly has a more precise fit than typical device components.
Step 8 | Detaching the front panel side clips
Carefully work a prying tool along the left and right edges of the front panel assembly to release the retaining clips.
Step 9 | Opening up the phone
Disconnecting the front panel assembly entirely from the rear case is not recommended; several ribbon cables remain connected at the top of the iPhone.
After disengaging the retaining clips located on the lower and lateral edges of the front panel assembly, separate the assembly's lower edge from the rear case by applying gentle outward pressure.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
To avoid stressing the display's wiring during the repair process, secure the display with a rubber band.
After disengaging the retaining clips located on the lower and lateral edges of the front panel assembly, separate the assembly's lower edge from the rear case by applying gentle outward pressure.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
To avoid stressing the display's wiring during the repair process, secure the display with a rubber band.
Step 10 | Removing the battery connector bracket screws
Using appropriate tools, detach the two screws that fasten the metal bracket holding the battery connector to the logic board.
Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
Use a Phillips screwdriver to tighten a single screw with a 1.6 mm head.
Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
Use a Phillips screwdriver to tighten a single screw with a 1.6 mm head.
Step 11 | Removing the battery connector bracket
Detach the bracket securing the battery connector using a tri-point screwdriver.
Step 12 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board using a plastic opening tool.
Exercise caution to avoid disturbing the tiny components positioned near the socket.
Exercise extreme caution during the lifting process, ensuring you apply force solely to the battery connector; applying pressure to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Exercise caution to avoid disturbing the tiny components positioned near the socket.
Exercise extreme caution during the lifting process, ensuring you apply force solely to the battery connector; applying pressure to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Step 13 | Removing the front panel assembly cable bracket screws
Detach the cable bracket, which holds the front panel assembly wiring, from the logic board by unscrewing the screws listed below.
Use two Phillips head screws, each measuring 1.2 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Due to its material properties, this screw does not readily respond to magnetic screwdrivers.
To prevent interference with the compass, exercise caution during removal and ensure proper replacement of the screw, as a magnetized screw can disrupt its function.
Use two Phillips head screws, each measuring 1.2 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.6 mm head.
Due to its material properties, this screw does not readily respond to magnetic screwdrivers.
To prevent interference with the compass, exercise caution during removal and ensure proper replacement of the screw, as a magnetized screw can disrupt its function.
Step 14 | Removing the front panel assembly cable bracket
To detach the display cable bracket, raise it in the direction of the battery, then take it out of the iPhone.
To reassemble, position the bracket outward while securing it with the left-hand hooks on the logic board.
To reassemble, position the bracket outward while securing it with the left-hand hooks on the logic board.
Step 15 | Disconnecting the front panel assembly cables
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is disconnected.
Carefully separate the three front panel assembly cables from their connectors using a plastic opening tool or fingernail.
Carefully disconnect and then reconnect the cable linking the front camera module and its associated sensor.
Carefully disconnect the display connector's ribbon cable.
Carefully disconnect the digitizer cable.
Ensure the LCD cable remains securely connected to its connector during reassembly; a disconnection can result in display abnormalities, such as white lines or a complete lack of image when the device is powered on.
Should this occur, restore the connection to the cable and restart the device; for optimal results, detach and reattach the battery.
Carefully separate the three front panel assembly cables from their connectors using a plastic opening tool or fingernail.
Carefully disconnect and then reconnect the cable linking the front camera module and its associated sensor.
Carefully disconnect the display connector's ribbon cable.
Carefully disconnect the digitizer cable.
Ensure the LCD cable remains securely connected to its connector during reassembly; a disconnection can result in display abnormalities, such as white lines or a complete lack of image when the device is powered on.
Should this occur, restore the connection to the cable and restart the device; for optimal results, detach and reattach the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly from the rear case.
Step 17 | Speaker Enclosure
Carefully leverage a spudger tip to release the antenna cable's connection from the logic board.
Step 18
Using the appropriate screwdriver, detach the speaker enclosure from the rear case by unscrewing the designated fasteners.
If a dedicated tool isn't available, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.
- Use a Phillips screwdriver to remove a single screw with a 2.5 mm head.
- Use a Phillips screwdriver to remove a single screw with a 1.5 mm head.
- Use a Phillips screwdriver to remove a screw with a 2.5 mm head.
- A screw with a 2.7 mm diameter is required.
If a dedicated tool isn't available, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.
Step 19

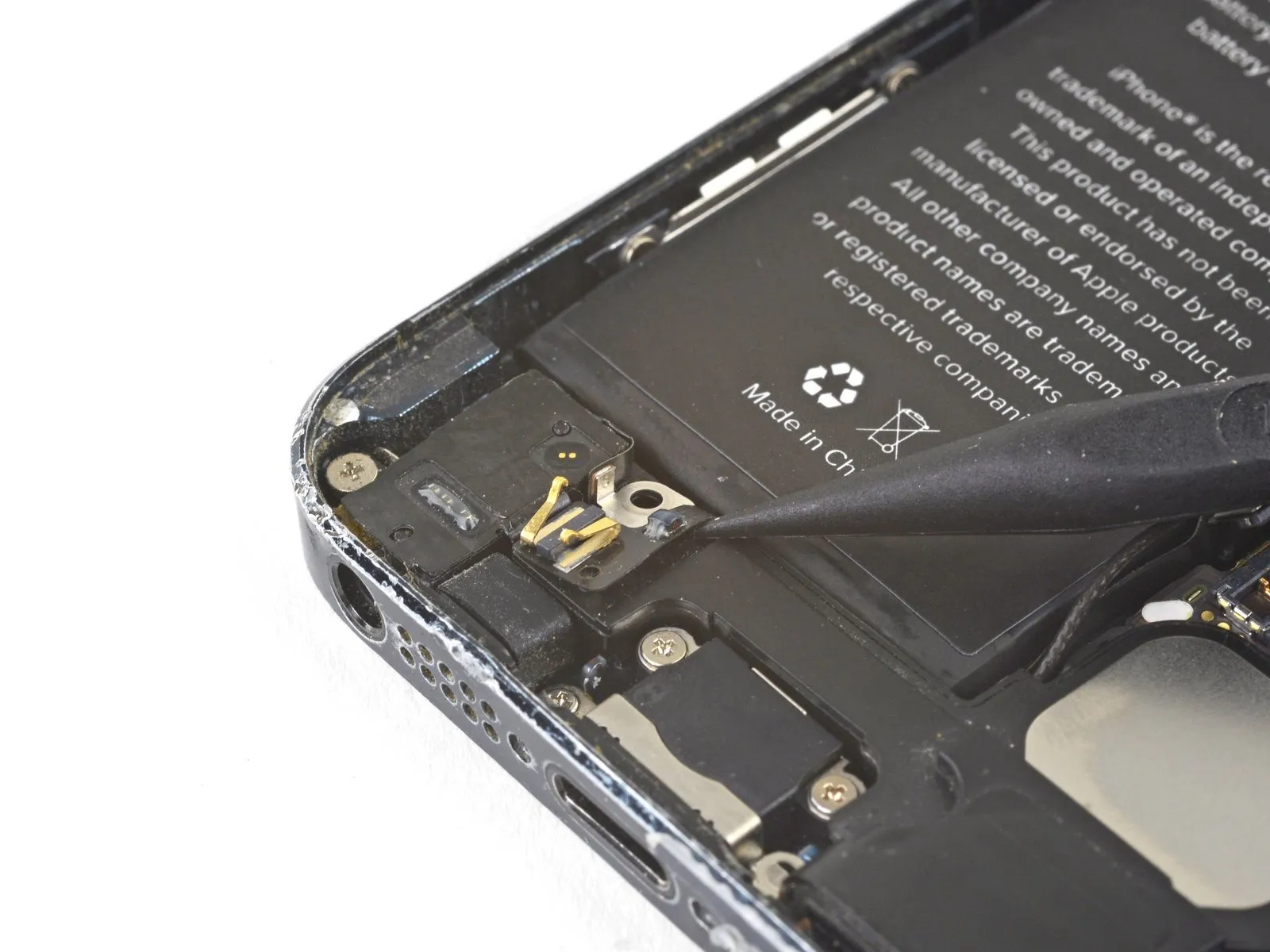

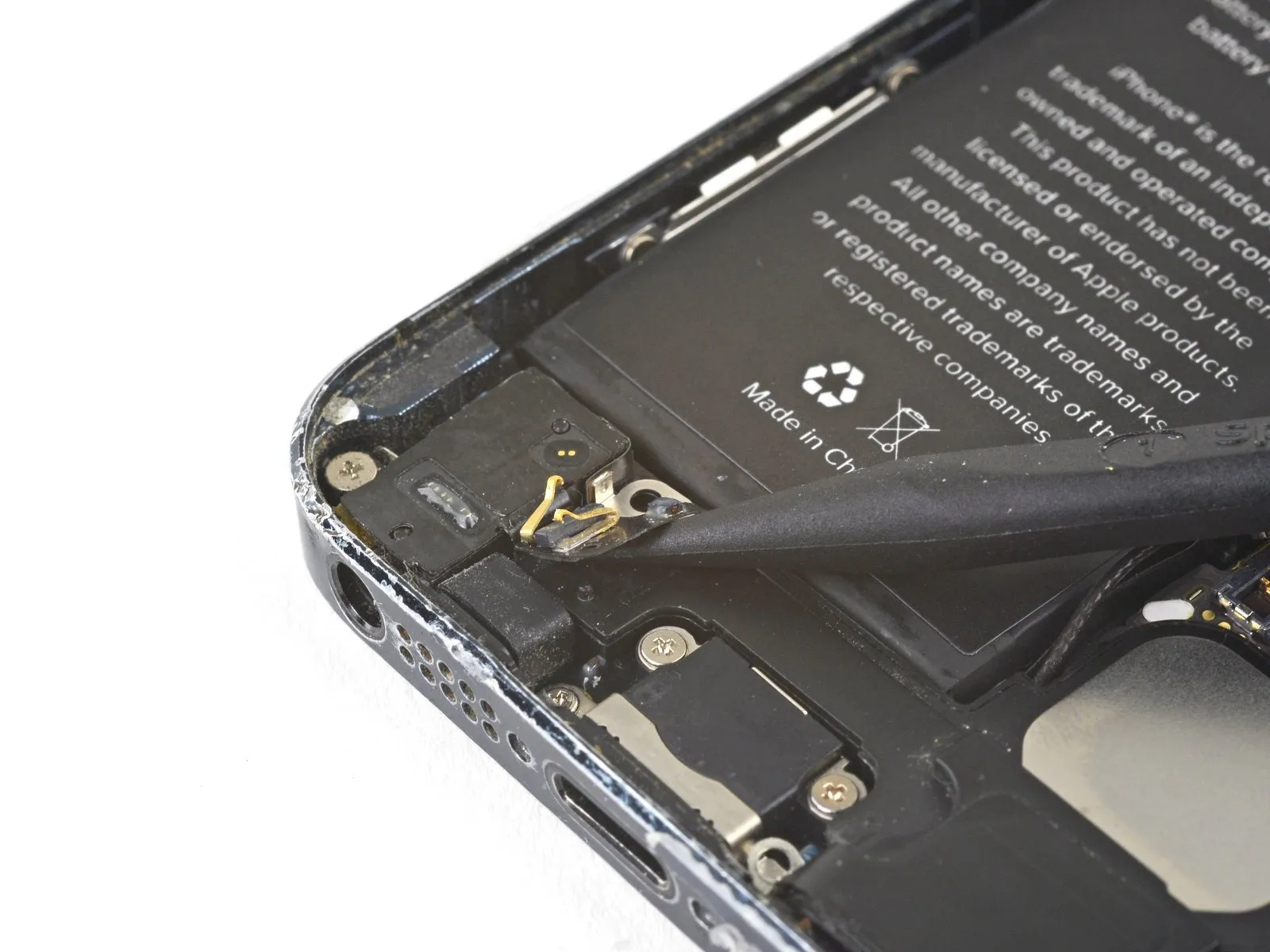

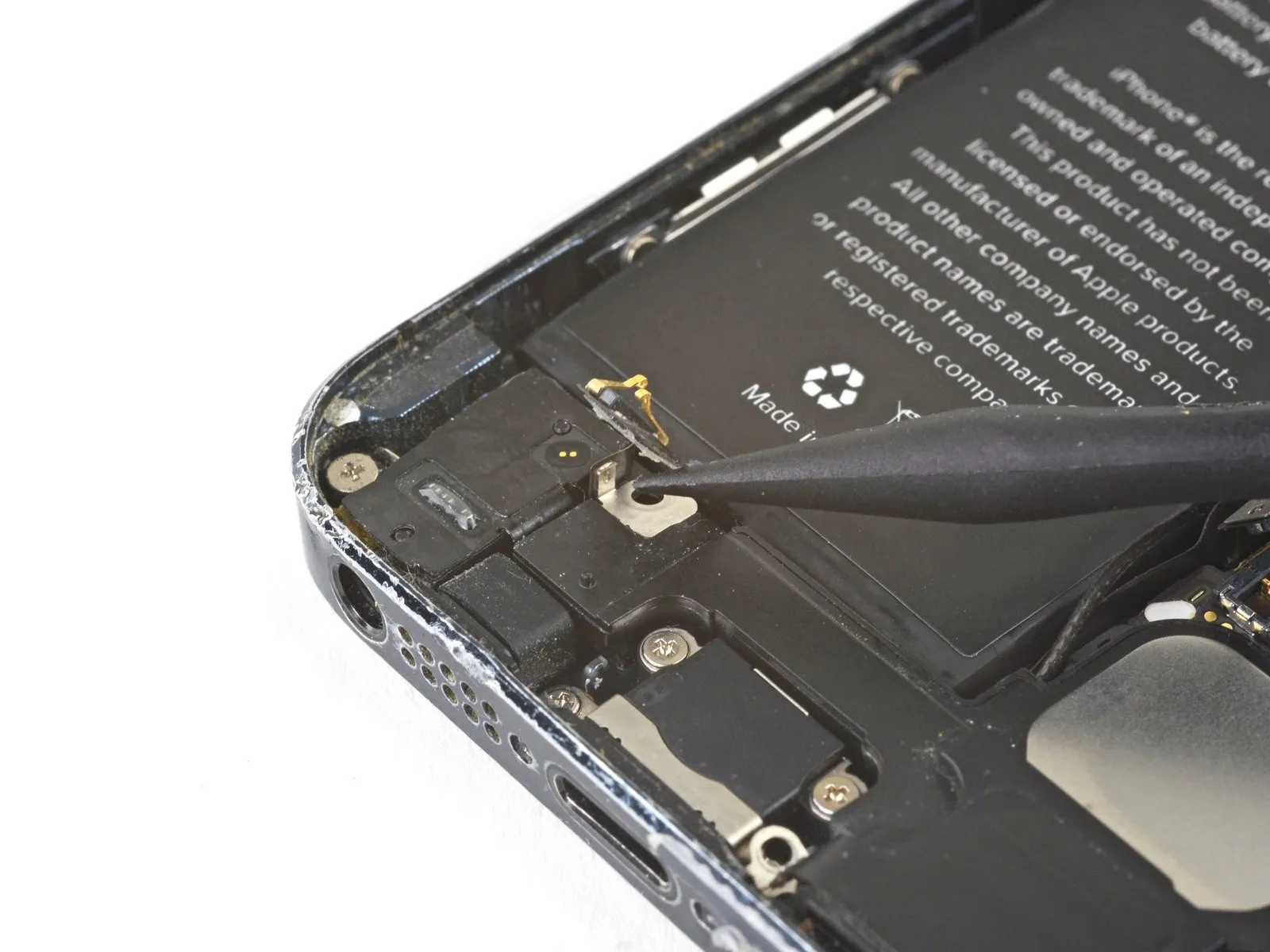

Using a spudger, carefully separate the spring contact flex cable from the speaker enclosure by gently prying it loose from beneath.
Step 20

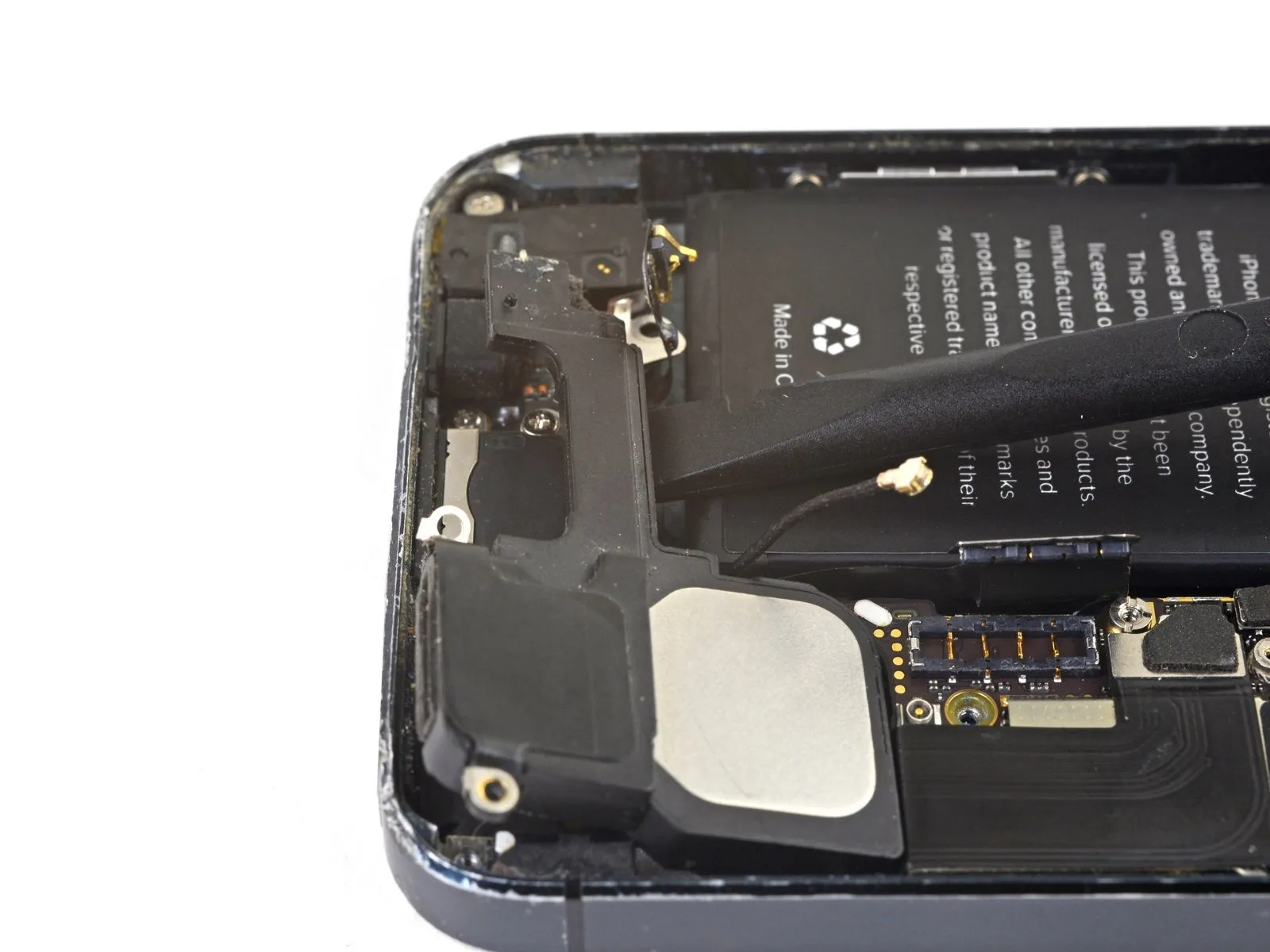

Carefully insert the flat spudger tip between the speaker enclosure and the rear case to gently separate them.

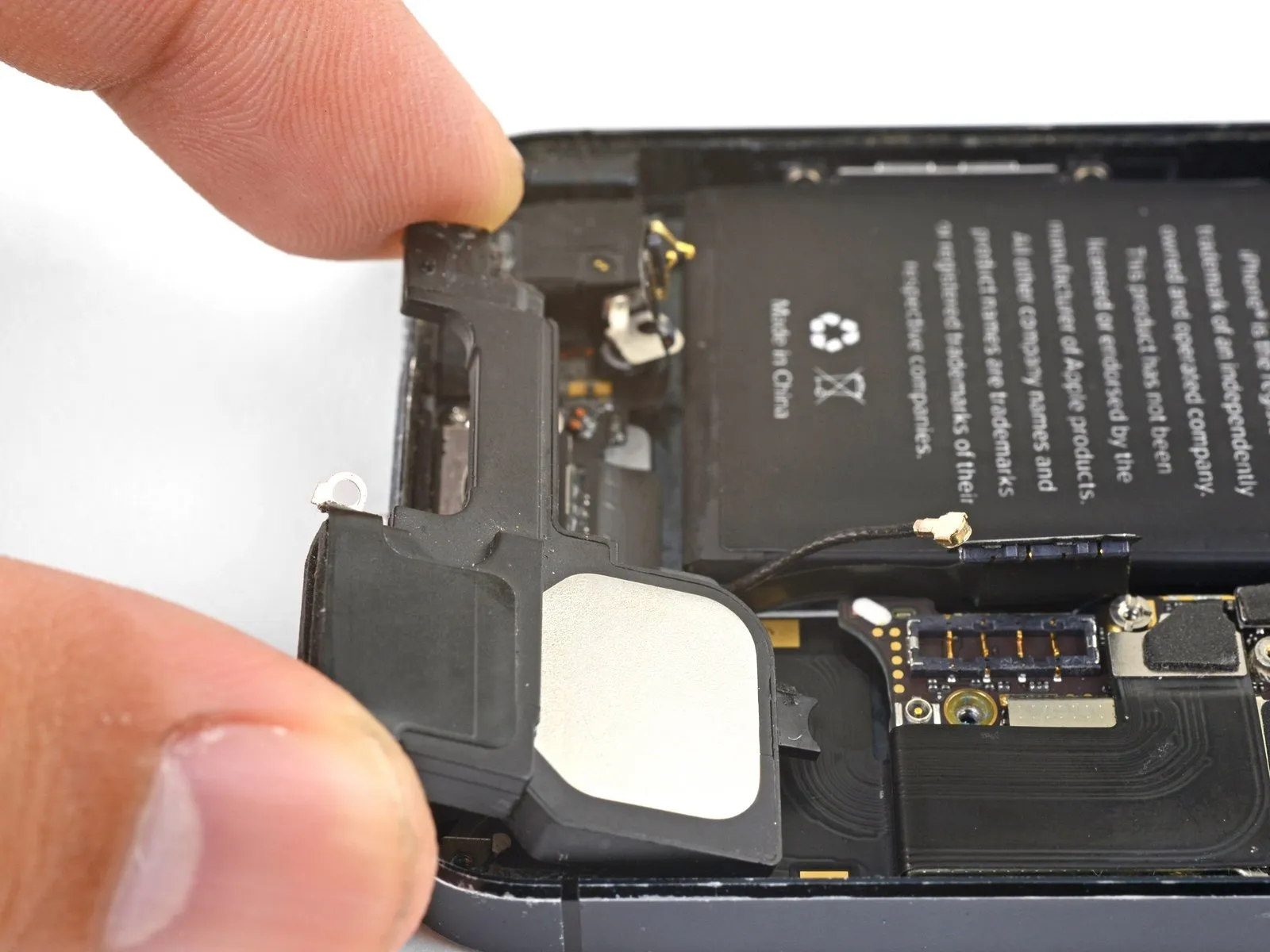

Carefully extract the speaker enclosure from its designated cavity.
To ensure proper reassembly, position the speaker enclosure so it passes beneath the metal washer.
Carefully extract the speaker enclosure from its designated cavity.
To ensure proper reassembly, position the speaker enclosure so it passes beneath the metal washer.
Step 21

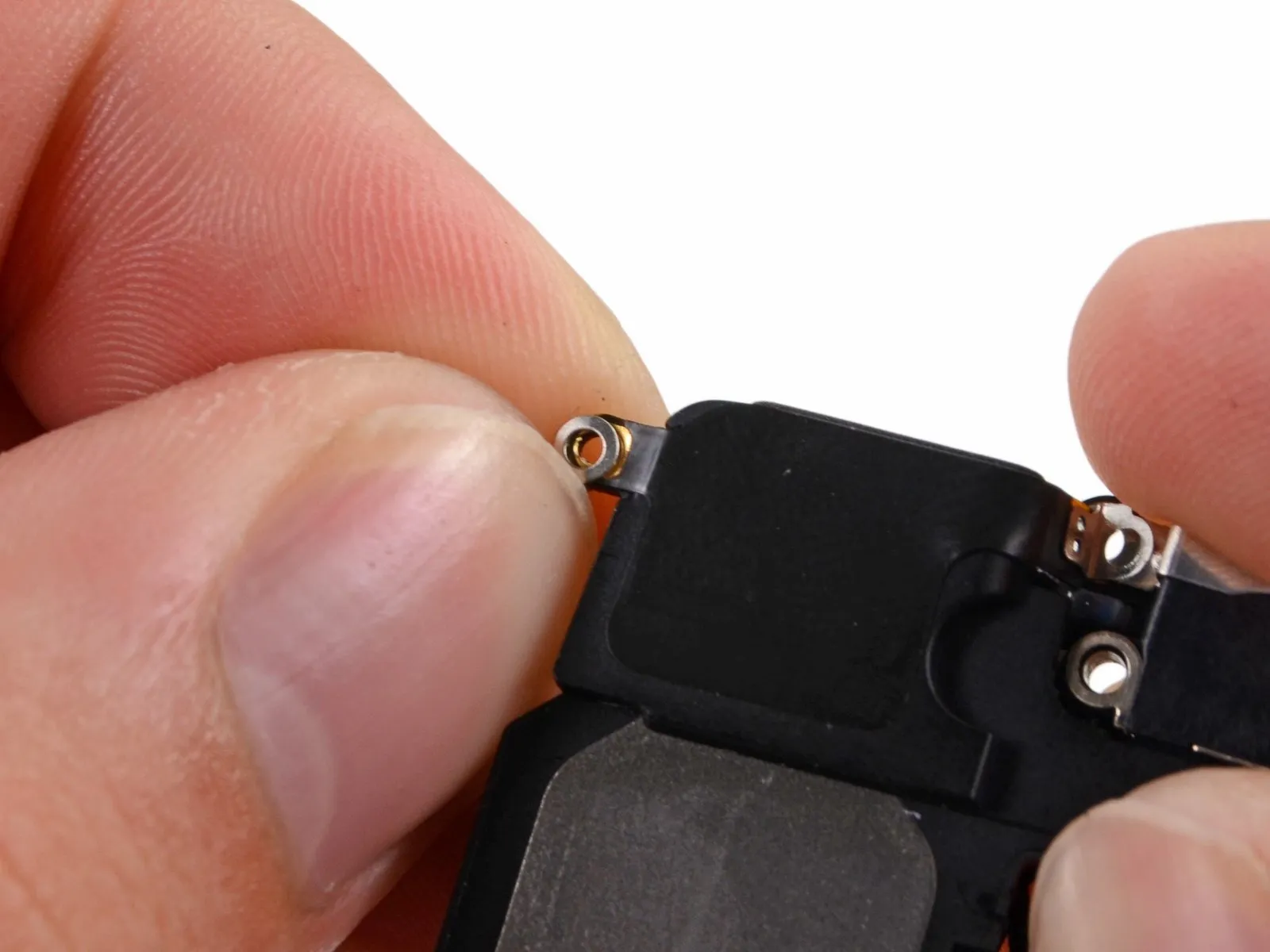

- Detach the speaker enclosure's metal washer, which is a small component secured with adhesive on both sides.
Carefully move it to the new component.
