iPhone 5 Lightning Connector and Headphone Jack Replacement
Because the Lightning connector, headphone jack, and cellular antenna are integrated into a single component, they require simultaneous removal and replacement; attempting to clean the Lightning port alone won't resolve charging or connectivity problems, necessitating replacement of this entire assembly.
- This document provides instructions for microphone gasket replacement as well.
Step 1 | Taping the display glass
Begin the process by ensuring the 1/4-inch hex key is used to loosen the four screws securing the battery cover, then carefully remove the cover to access the battery compartment.
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure it with tape.
Completely cover the iPhone's screen with overlapping strips of clear packing tape to protect it.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure it with tape.
Completely cover the iPhone's screen with overlapping strips of clear packing tape to protect it.
To safeguard your eyes from potential glass fragments released during the repair process, always use safety glasses.
Step 2 | Remove the Pentalobe screws
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring you do not overtighten and damage the threads.
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of combustion if damaged.
Prior to starting the iPhone's disassembly process, ensure the device is completely de-energized.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to less than 25% capacity prior to beginning work; a fully charged battery poses a risk of combustion if damaged.
Prior to starting the iPhone's disassembly process, ensure the device is completely de-energized.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm located adjacent to the Lightning connector.
Step 3 | How to prevent display separation
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft aligns correctly and observing the warning against over-tightening that could damage the threads.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedure.
Ensure complete removal of the display assembly, irrespective of the chosen tool.
When the glass and plastic layers detach, referencing the initial image for visual guidance, use a plastic opening tool to insert it into the gap between the plastic frame and the phone's metal chassis, carefully levering each metal clip free from the plastic housing.
To ensure proper closure when reattaching a display bezel, apply a narrow adhesive strip positioned between the plastic bezel and the glass.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedure.
Ensure complete removal of the display assembly, irrespective of the chosen tool.
When the glass and plastic layers detach, referencing the initial image for visual guidance, use a plastic opening tool to insert it into the gap between the plastic frame and the phone's metal chassis, carefully levering each metal clip free from the plastic housing.
To ensure proper closure when reattaching a display bezel, apply a narrow adhesive strip positioned between the plastic bezel and the glass.
Step 4 | Anti-Clamp instructions
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring not to overtighten and potentially strip the threads; failure to adhere to this torque specification could result in motor malfunction.
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further for an alternative procedure.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
To secure the device for repair, place a suction cup on the front surface, close to the lower edge and directly over the home button, and another suction cup on the rear, in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
To simplify the opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further for an alternative procedure.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they clear the left or right side of the iPhone, then move them into place.
To secure the device for repair, place a suction cup on the front surface, close to the lower edge and directly over the home button, and another suction cup on the rear, in the same relative position.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 5
Using a 5/32-inch hex key, carefully tighten the four retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring you do not overtighten and damage the threads.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the point when the cups begin to expand.
Maintain parallel positioning of the suction cups; should misalignment occur, gently reduce the suction and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle by 90 degrees.
Allow the Anti-Clamp device to function for a full minute after each incremental adjustment, limiting each turn to a maximum of 90 degrees.
To secure the arms, advance the blue handle in the direction indicated.
Rotate the handle fully, completing a 360-degree turn, observing for the point when the cups begin to expand.
Maintain parallel positioning of the suction cups; should misalignment occur, gently reduce the suction and reposition the arms.
Once sufficient separation is achieved by the Anti-Clamp, slide a prying tool beneath the display panel.
To ensure adequate separation, increase the heat applied to the component and then rotate the handle by 90 degrees.
Allow the Anti-Clamp device to function for a full minute after each incremental adjustment, limiting each turn to a maximum of 90 degrees.
Step 6 | Manual Opening Procedure
Using a suction cup, apply it to the display surface, positioning it directly over the home button area.
Ensure the screen's entire surface is covered by the cup to guarantee a secure connection.
To prevent further glass fragmentation and facilitate a secure grip for the suction cup, apply several strips of packing tape to the face of iPhones exhibiting cracked glass, ensuring any air pockets are thoroughly removed.
Ensure the screen's entire surface is covered by the cup to guarantee a secure connection.
To prevent further glass fragmentation and facilitate a secure grip for the suction cup, apply several strips of packing tape to the face of iPhones exhibiting cracked glass, ensuring any air pockets are thoroughly removed.
Step 7 | Start lifting the front panel assembly
Secure the front panel assembly to the suction cup, ensuring a strong adhesion.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure during installation, as the display assembly fits more snugly than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require utilizing both the suction cup and a plastic opening tool.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure during installation, as the display assembly fits more snugly than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To release the front panel assembly from the rear case, carefully disengage the multiple retaining clips, which may require utilizing both the suction cup and a plastic opening tool.
Step 8 | Detaching the front panel side clips
Carefully work a prying tool around the front panel assembly's edges to release the retaining clips on both the left and right sides.
Step 9 | Opening up the phone
Disconnecting the front panel assembly entirely from the rear case is not recommended; several ribbon cables remain connected at the top of the iPhone.
After disengaging the retaining clips located along the lower edge and sides of the front panel assembly, separate the assembly's bottom edge from the rear case by applying gentle outward pressure.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
After disengaging the retaining clips located along the lower edge and sides of the front panel assembly, separate the assembly's bottom edge from the rear case by applying gentle outward pressure.
Carefully position the display at a 90-degree angle, then secure it in an upright position using a support to allow for hands-free access during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 10 | Removing the battery connector bracket screws
Using a screwdriver, detach the metal bracket that holds the battery connector in place by unscrewing the two screws that fasten it to the logic board.
Use a Phillips screwdriver to remove a single screw with a 1.8 mm head.
Use a Phillips screwdriver to remove a single screw measuring 1.6 millimeters.
Use a Phillips screwdriver to remove a single screw with a 1.8 mm head.
Use a Phillips screwdriver to remove a single screw measuring 1.6 millimeters.
Step 11 | Removing the battery connector bracket
Detach the bracket securing the battery connector using a tri-point screwdriver.
Step 12 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board, employing a plastic opening tool to avoid damage.
Exercise caution to prevent displacement of the tiny components positioned near the socket.
Exercise extreme caution when releasing the battery connector, focusing force solely on the connector; applying pressure to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Exercise caution to prevent displacement of the tiny components positioned near the socket.
Exercise extreme caution when releasing the battery connector, focusing force solely on the connector; applying pressure to the logic board socket or the board itself risks socket destruction or damage to adjacent components.
Step 13 | Removing the front panel assembly cable bracket screws
Detach the cable bracket that holds the front panel assembly wiring by unscrewing the screws listed below.
Use two Phillips head screws, each measuring 1.2 millimeters.
Utilize a Phillips screwdriver, size 1.6 mm, to proceed.
Because this fastener lacks magnetic properties, use caution during removal to prevent loss, and ensure it's correctly positioned afterward; a magnetized replacement could disrupt the compass's functionality.
Use two Phillips head screws, each measuring 1.2 millimeters.
Utilize a Phillips screwdriver, size 1.6 mm, to proceed.
Because this fastener lacks magnetic properties, use caution during removal to prevent loss, and ensure it's correctly positioned afterward; a magnetized replacement could disrupt the compass's functionality.
Step 14 | Removing the front panel assembly cable bracket
To detach the display cable bracket, raise it in the direction of the battery, then take it away from the iPhone.
To reassemble, position the bracket outward and secure it by engaging the left-hand hooks with the logic board.
To reassemble, position the bracket outward and secure it by engaging the left-hand hooks with the logic board.
Step 15 | Disconnecting the front panel assembly cables
To prevent short circuits, detach the battery before proceeding with cable disconnection or reconnection.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
Connect the front camera assembly and its associated sensor cable.
Connect the display panel's flat, flexible ribbon cable to the motherboard's corresponding connector, ensuring proper alignment and secure seating, typically using a plastic alignment tool to prevent damage to the delicate pins; refer to the service manual for specific connector location and orientation.
The flexible ribbon cable connecting the display's touch sensor to the mainboard is the digitizer cable.
Should the LCD cable become detached from its connector during reassembly, the phone may exhibit display abnormalities, such as vertical white lines or a complete lack of image, upon startup. To resolve this, re-establish the cable's connection to the connector and then restart the device; for a complete restart, it is recommended to briefly sever and reconnect the battery connection.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
Connect the front camera assembly and its associated sensor cable.
Connect the display panel's flat, flexible ribbon cable to the motherboard's corresponding connector, ensuring proper alignment and secure seating, typically using a plastic alignment tool to prevent damage to the delicate pins; refer to the service manual for specific connector location and orientation.
The flexible ribbon cable connecting the display's touch sensor to the mainboard is the digitizer cable.
Should the LCD cable become detached from its connector during reassembly, the phone may exhibit display abnormalities, such as vertical white lines or a complete lack of image, upon startup. To resolve this, re-establish the cable's connection to the connector and then restart the device; for a complete restart, it is recommended to briefly sever and reconnect the battery connection.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly by disengaging it from the rear case.
Step 17 | Speaker Enclosure
Carefully leverage the antenna cable away from the logic board using a spudger tip to release the connection.
Step 18
Using the appropriate screwdriver, detach the speaker enclosure from the rear case by unscrewing the specified fasteners.
A Phillips-head screw, measuring 2.5 millimeters, is required.
Use a Phillips screwdriver to remove a single screw with a 1.5 mm head.
Use a Phillips screwdriver to remove a single screw with a 2.5 mm head.
A standoff screw, measuring 2.7 millimeters in diameter, is required.
To detach standoff screws, utilize a standoff screwdriver or bit specifically designed for the task.
If a dedicated tool isn't available, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.
A Phillips-head screw, measuring 2.5 millimeters, is required.
Use a Phillips screwdriver to remove a single screw with a 1.5 mm head.
Use a Phillips screwdriver to remove a single screw with a 2.5 mm head.
A standoff screw, measuring 2.7 millimeters in diameter, is required.
To detach standoff screws, utilize a standoff screwdriver or bit specifically designed for the task.
If a dedicated tool isn't available, a small flathead screwdriver can be substituted; however, exercise heightened care to prevent slippage and potential harm to nearby parts.
Step 19
Using a spudger, carefully separate the spring contact flex cable from the speaker enclosure by inserting the tool's tip beneath it and applying slight upward pressure.
Step 20
Carefully insert the flat spudger tip between the speaker enclosure and the rear case to gently separate them.
Carefully extract the speaker enclosure from its designated cavity.
Ensure the speaker enclosure is positioned so it passes beneath the metal washer during reassembly.
Carefully extract the speaker enclosure from its designated cavity.
Ensure the speaker enclosure is positioned so it passes beneath the metal washer during reassembly.
Step 21
Carefully detach the metal washer, which is affixed with adhesive on both sides, from the speaker enclosure and reuse it on the new component.
Step 22 | Lightning Connector and Headphone Jack

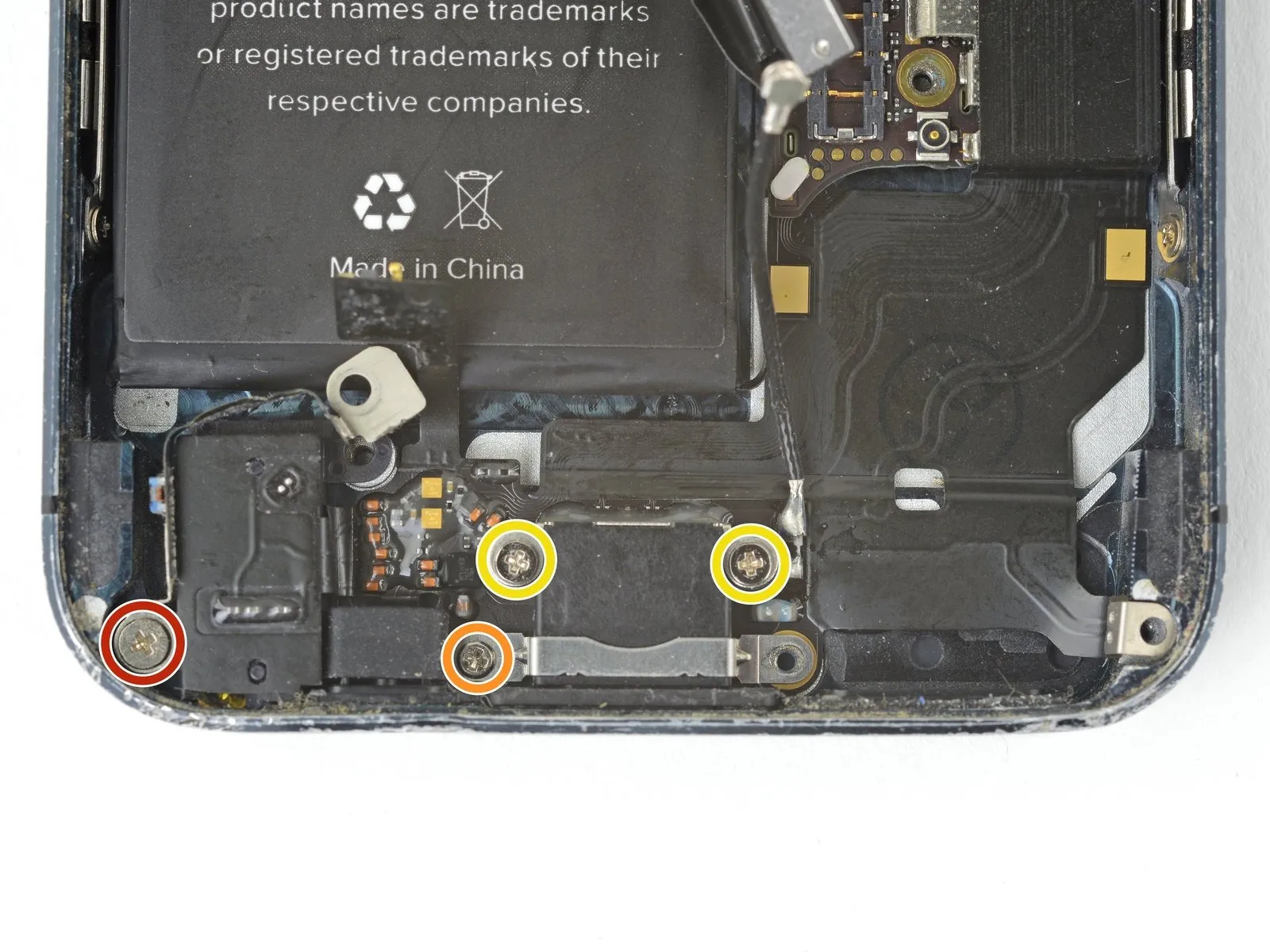

Using the appropriate screwdriver, detach the Lightning connector assembly from the rear case by unscrewing the specified fasteners.
- Use a Phillips screwdriver to remove a single screw with a 2.9 mm head.
- Ensure the plastic projection on the headphone jack extends beyond the metal washer during reassembly.
- Use a Phillips screwdriver to remove a single screw with a 1.5 mm head.
- Use two Phillips head screws, each measuring 3.3 millimeters.
Step 23
Carefully leverage the opening tool to release the Lightning connector cable connector from its corresponding socket on the logic board.
Step 24

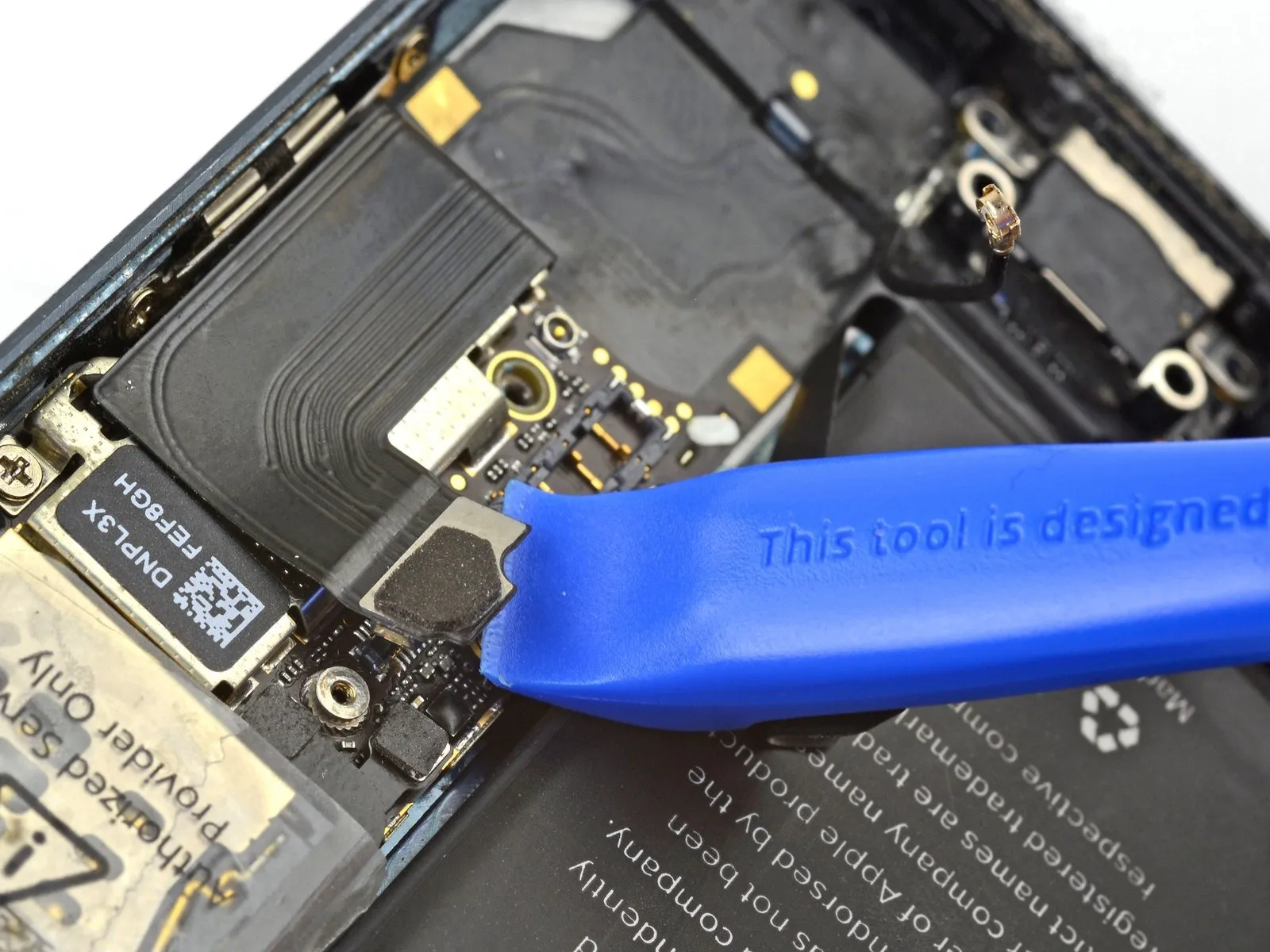

Using a heat source like an iOpener, warm the right side of the phone's perimeter for one minute while the display is facing upwards.
Step 25

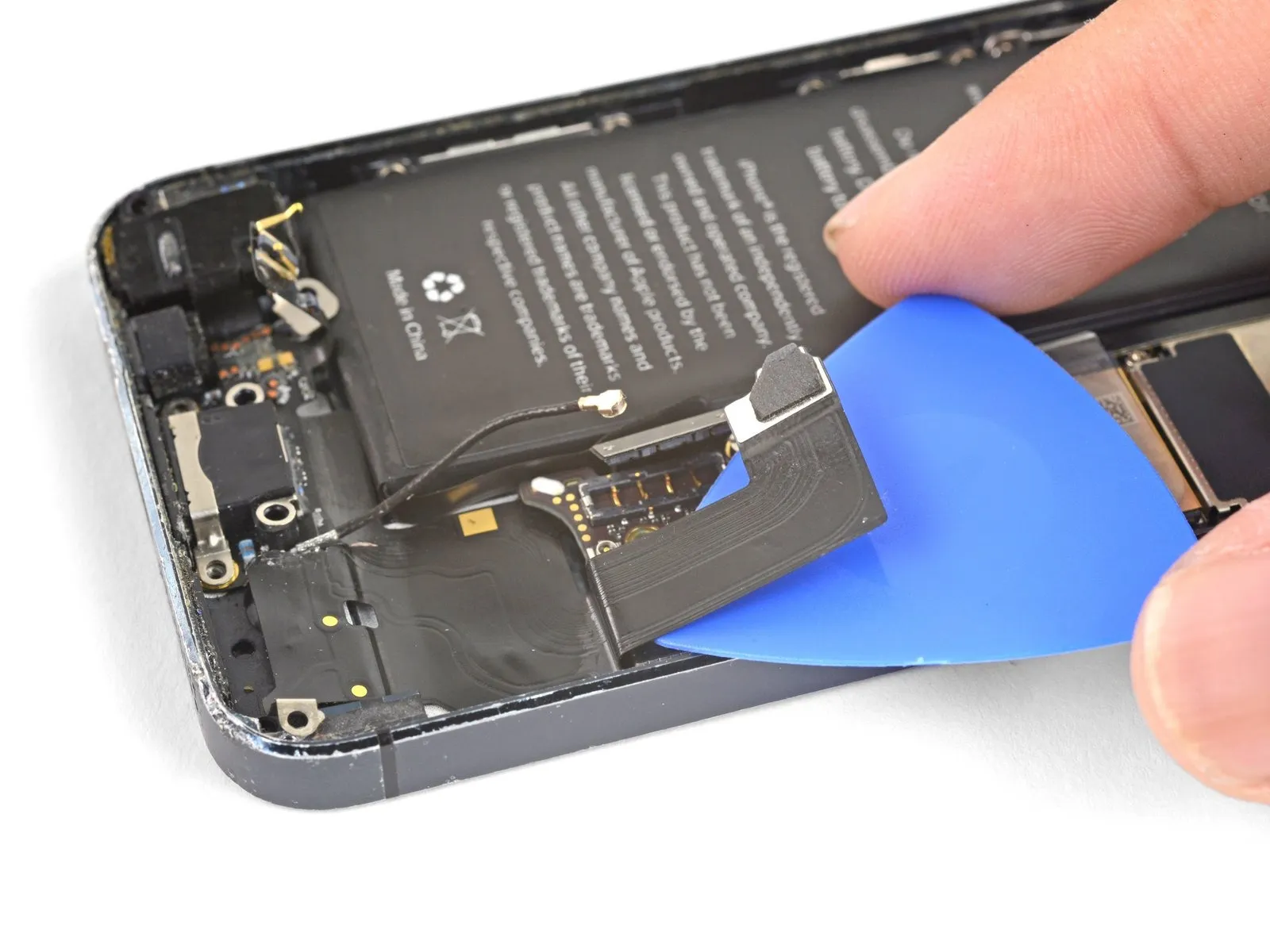

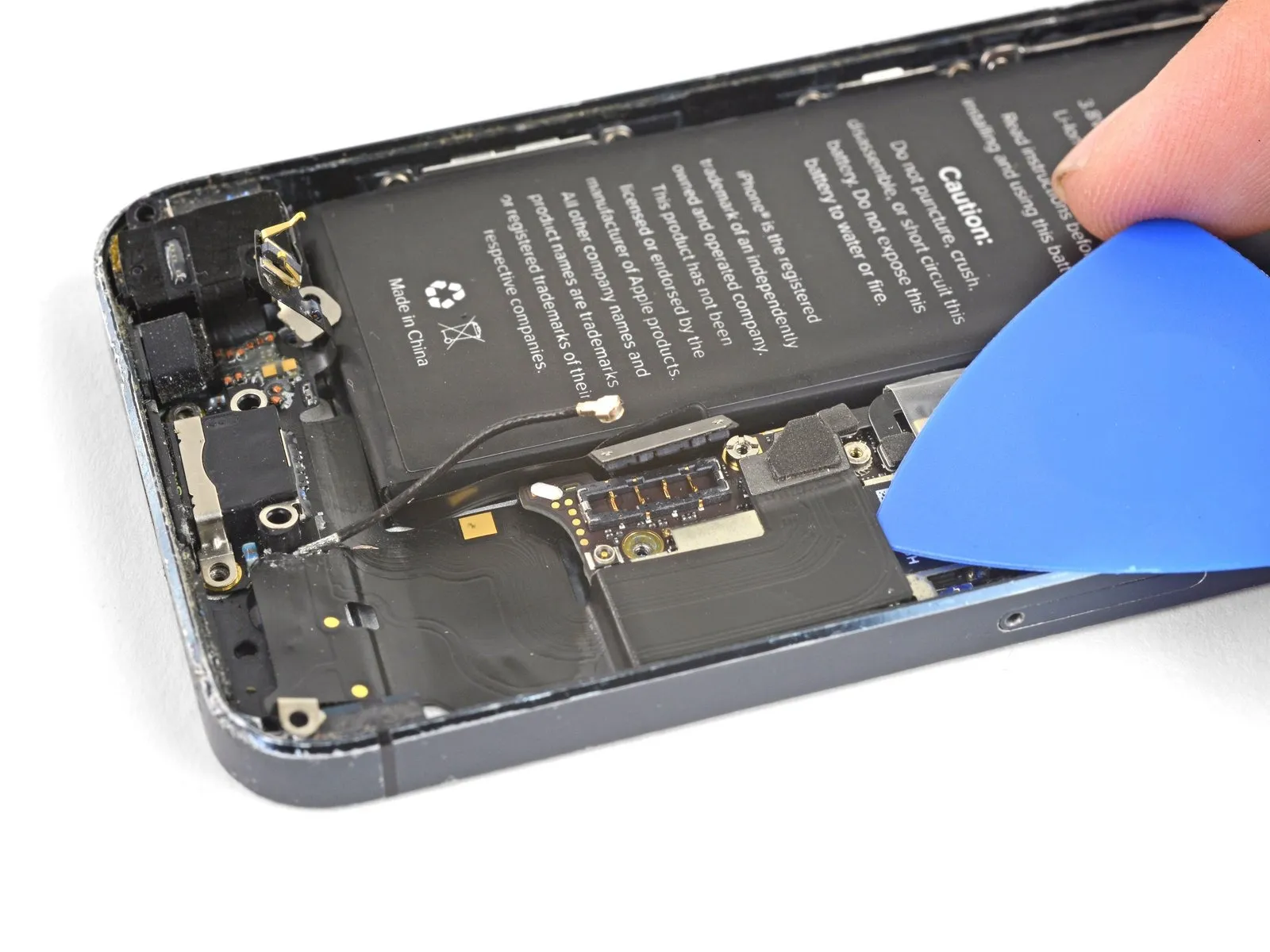

Using an opening pick, carefully separate the Lightning connector flex cable from both the logic board and the rear case by gently sliding the pick between them.
Step 26

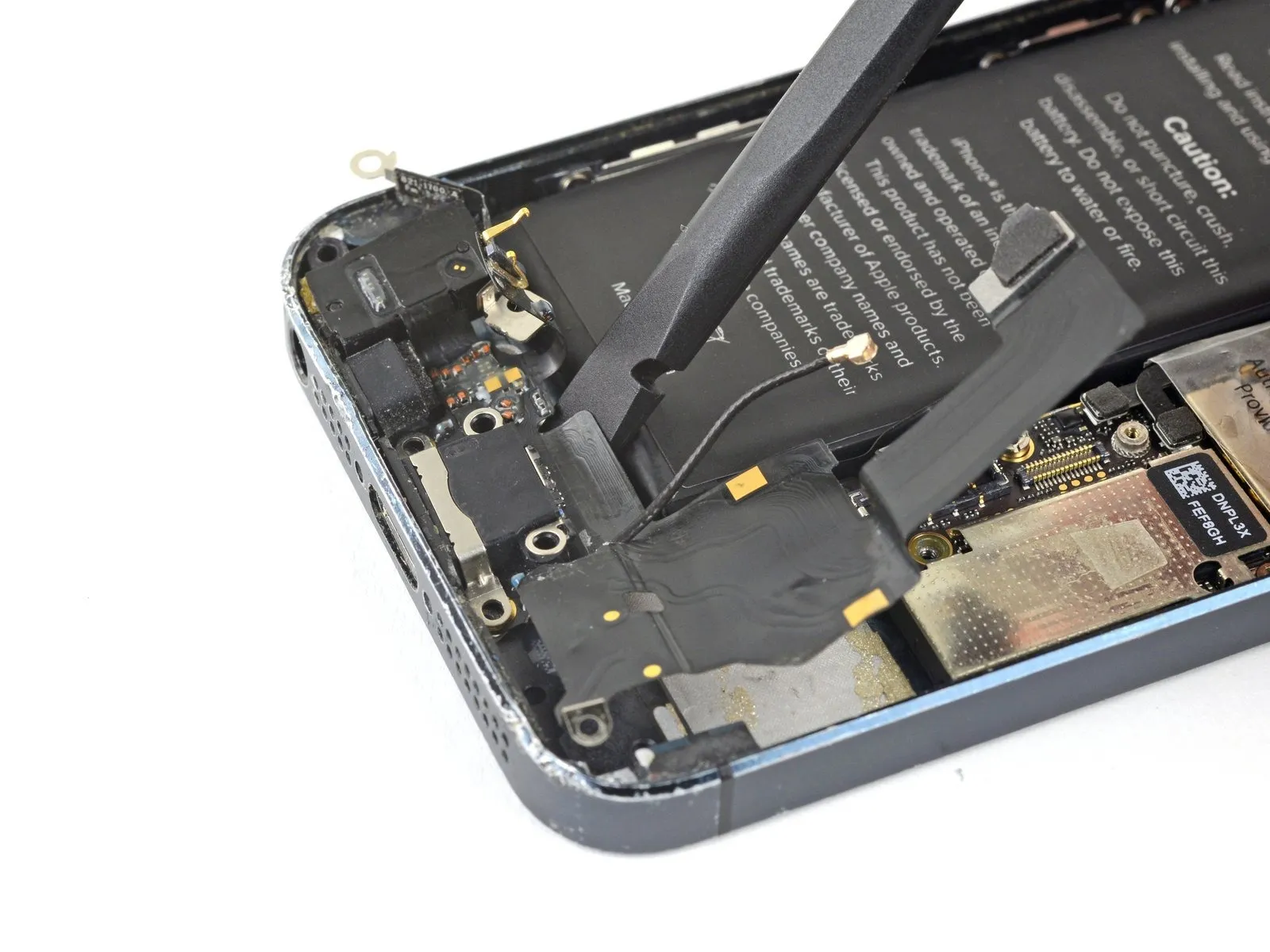

Carefully slide the spudger's flat edge between the Lightning connector housing and the rear case to release the adhesive securing it.
Step 27
Carefully tilt the Lightning connector assembly and extract it from its housing.

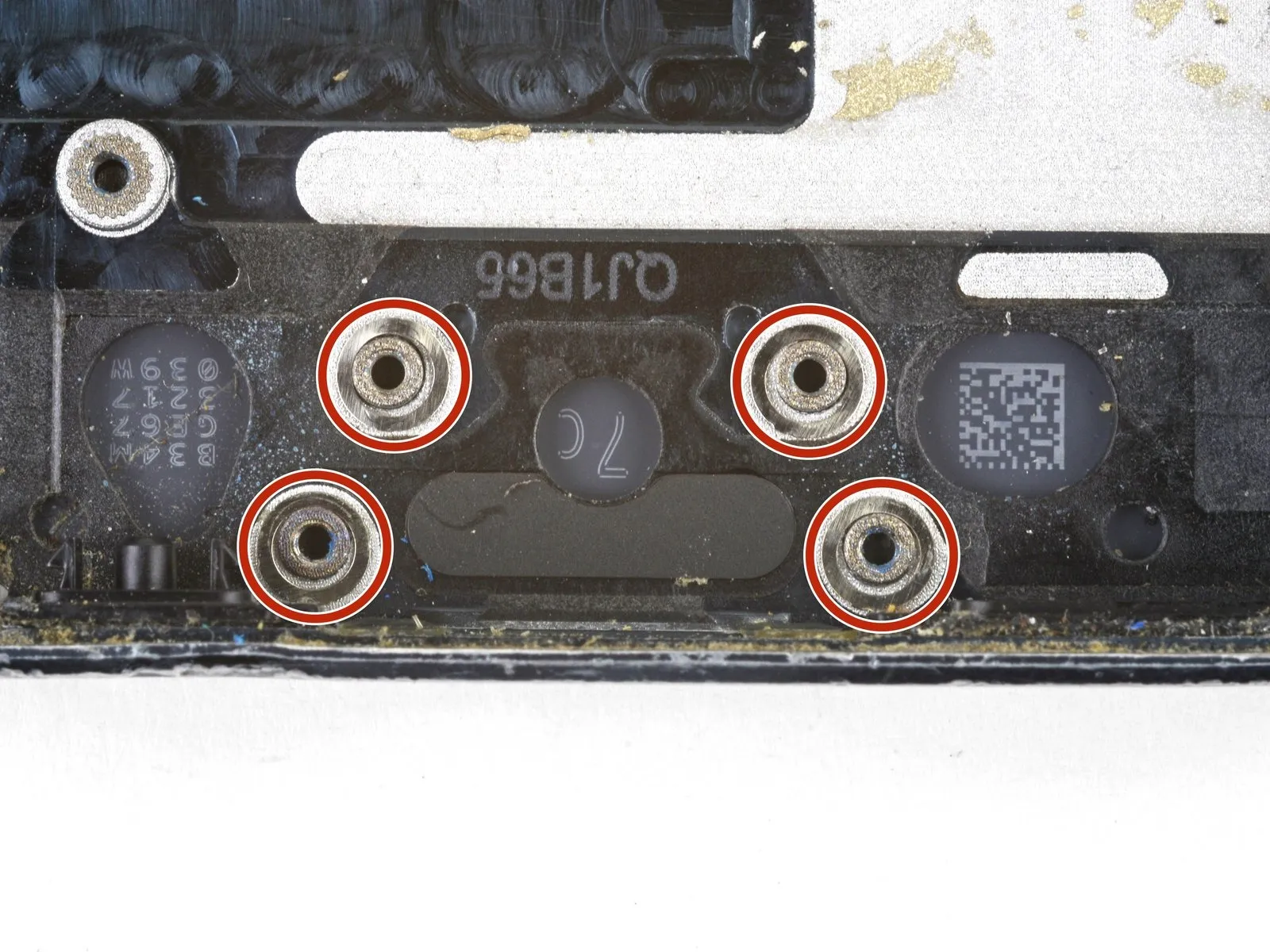

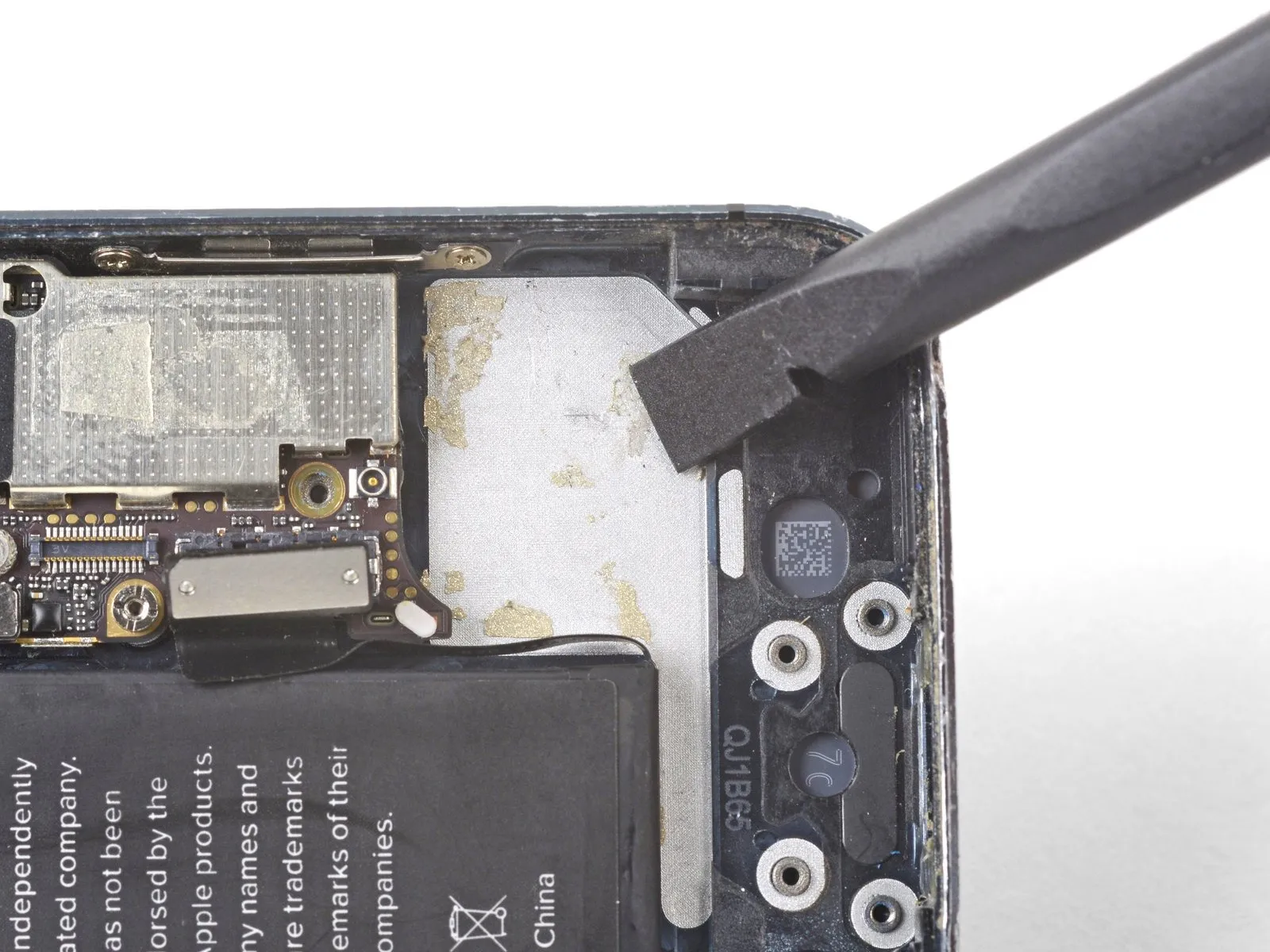

Carefully detach the four metal washers, ensuring they are kept in a safe location for later reinstallation.
To ensure proper closure, completely eliminate any leftover adhesive on the rear case by carefully scraping it away with the opening tool or the spudger's flat edge; persistent residue can be softened with high-concentration isopropyl alcohol.
Carefully detach the four metal washers, ensuring they are kept in a safe location for later reinstallation.
To ensure proper closure, completely eliminate any leftover adhesive on the rear case by carefully scraping it away with the opening tool or the spudger's flat edge; persistent residue can be softened with high-concentration isopropyl alcohol.
Step 28

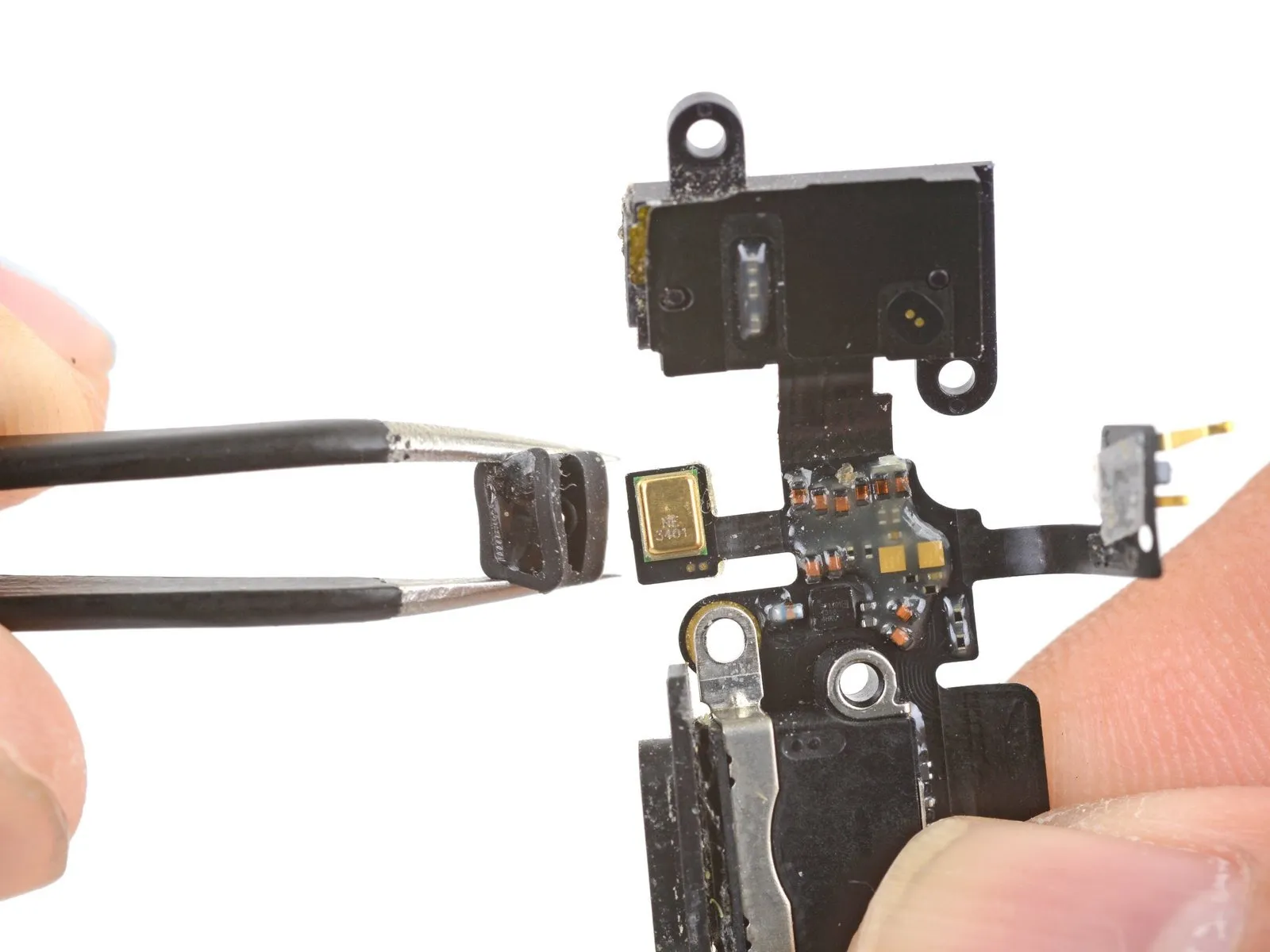

Carefully extract the rubber microphone sleeve from the microphone using tweezers, applying gentle force.
Carefully slide the sleeve over the new component, ensuring proper alignment.
Carefully slide the sleeve over the new component, ensuring proper alignment.
