iPhone 5 Front Panel Clips Replacement

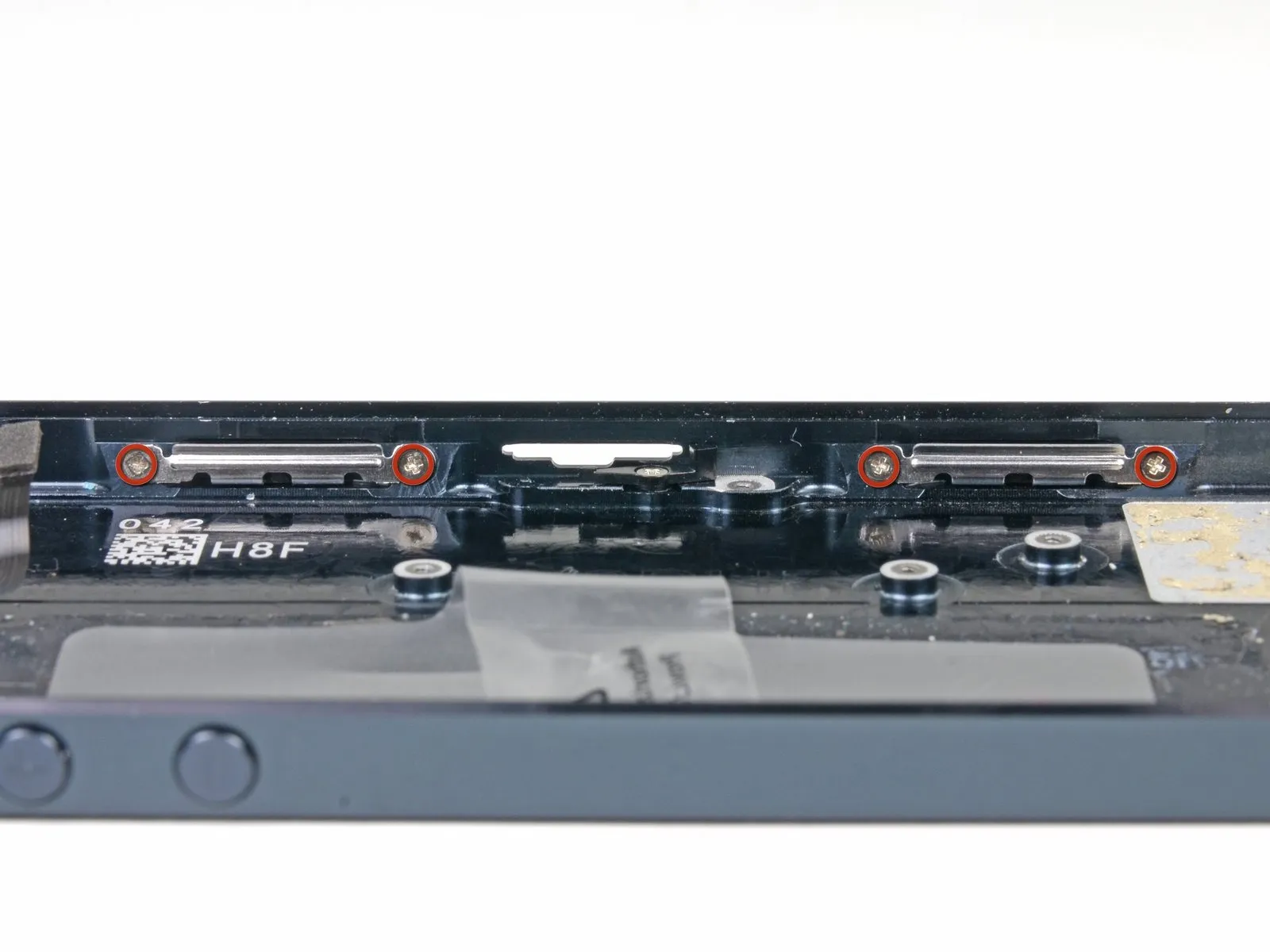

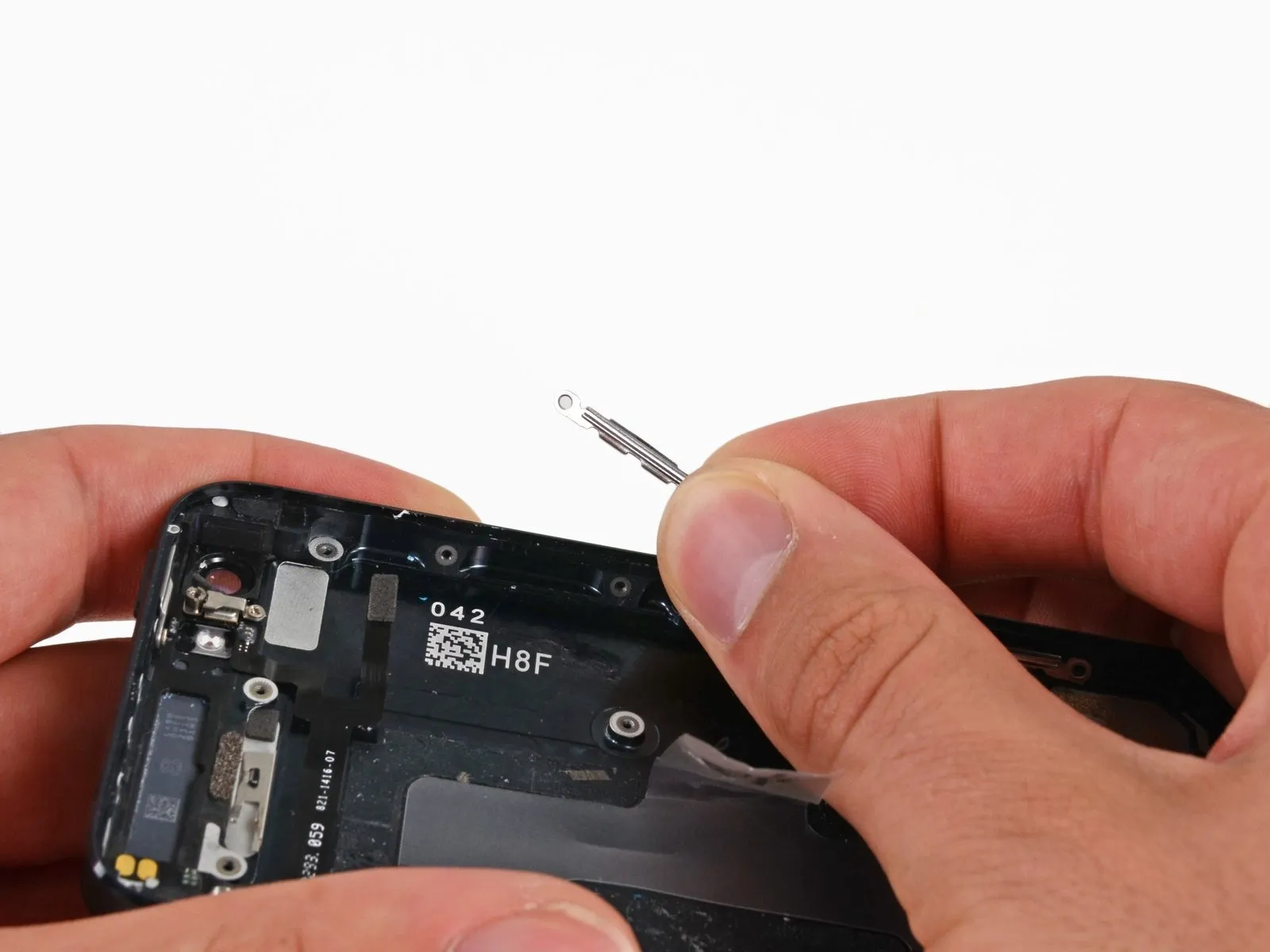

Four metal clips, each featuring a rubber pad for cushioning, fasten the display assembly to the rear case; refer to this guide for instructions on replacing individual clips or multiple clips as needed.
Step 1 | Taping the display glass
Begin by disconnecting the power supply, ensuring it's unplugged from the electrical outlet, then carefully remove the 10mm retaining bolt securing the fan motor to the compressor housing, utilizing a socket wrench for this task; be aware that the motor may be heavier than anticipated, so support it during removal to prevent damage.
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure the glass with tape.
Completely cover the iPhone's screen with overlapping strips of clear packing tape.
To safeguard your vision, always use safety glasses while working, as fragments of glass may become dislodged.
To mitigate the risk of additional shattering and potential injury while repairing a cracked display glass, secure the glass with tape.
Completely cover the iPhone's screen with overlapping strips of clear packing tape.
To safeguard your vision, always use safety glasses while working, as fragments of glass may become dislodged.
Step 2 | Remove the Pentalobe screws
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft aligns correctly and avoiding damage to the threads.
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to a level below 25% prior to commencing work; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm, located adjacent to the Lightning connector.
To prevent a potential fire or explosion hazard during repair, ensure the iPhone's lithium-ion battery is depleted to a level below 25% prior to commencing work; a fully charged battery poses a risk of ignition if damaged.
To prevent electrical shock or damage, ensure the iPhone is completely de-energized prior to starting the repair process.
Using a Pentalobe screwdriver, detach the two screws measuring 3.6 mm, located adjacent to the Lightning connector.
Step 3 | How to prevent display separation
Using a 5/32-inch hex key, carefully tighten the retaining screw on the motor assembly to a torque of 3.5 Nm, ensuring the motor shaft aligns correctly and avoiding damage to the threads.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display unit, irrespective of the tool selected.
When the glass and plastic layers detach, mirroring the visual in the initial image, use a plastic opening tool to gently disengage the metal clips from the plastic frame by sliding it into the gap between the frame and the phone's metal chassis.
To ensure proper closure when reattaching a display bezel, apply a narrow adhesive strip between the plastic bezel and the glass surface.
Carefully lift the display assembly—consisting of a glass screen, a plastic bezel, and integrated metal clips—from within the phone's chassis during the subsequent procedures.
Ensure complete removal of the display unit, irrespective of the tool selected.
When the glass and plastic layers detach, mirroring the visual in the initial image, use a plastic opening tool to gently disengage the metal clips from the plastic frame by sliding it into the gap between the frame and the phone's metal chassis.
To ensure proper closure when reattaching a display bezel, apply a narrow adhesive strip between the plastic bezel and the glass surface.
Step 4 | Anti-Clamp instructions
Using a 5/32-inch hex key, carefully tighten the three mounting screws securing the fan assembly to the motor housing, ensuring each is snug but not over-torqued to prevent damage; observe polarity markings when reattaching the wiring harness.
To simplify the subsequent opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further for an alternative procedure.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Affix two suction cups to the iPhone's front and back surfaces, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
To simplify the subsequent opening process, the following two steps utilize the Anti-Clamp tool, a custom-designed aid; if you do not have this tool, proceed two steps further for an alternative procedure.
Refer to the accompanying guide for detailed procedures regarding Anti-Clamp operation.
To release the Anti-Clamp's arms, move the blue handle in a rearward direction.
Position the arms so they extend across the iPhone's left or right side.
Affix two suction cups to the iPhone's front and back surfaces, placing them close to the lower edge, directly above the home button.
Apply vacuum by pressing the cups firmly against the surface needing treatment.
To improve the Anti-Clamp's grip if the iPhone's exterior feels excessively smooth, apply adhesive tape to the device's surface.
Step 5
Using a 5/32-inch hex key, carefully tighten the three retaining screws on the motor assembly to a torque of 3.5 inch-pounds, ensuring the motor remains securely positioned and avoiding damage to the threads.
Moving the blue handle in a forward direction secures the locking arms.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently reduce the suction and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, increase the heat applied to the area and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component more than 90 degrees incrementally, permitting the Anti-Clamp device and time to facilitate the process.
Moving the blue handle in a forward direction secures the locking arms.
Rotate the handle fully, completing a 360-degree turn, observing for the initial expansion of the cups.
Maintain parallel positioning of the suction cups; should misalignment occur, gently reduce the suction and reposition the arms.
Once sufficient space is created by the Anti-Clamp, slide a prying tool beneath the display.
To ensure adequate separation, increase the heat applied to the area and then rotate the handle 90 degrees.
Allow one minute to elapse and avoid rotating the component more than 90 degrees incrementally, permitting the Anti-Clamp device and time to facilitate the process.
Step 6 | Manual Opening Procedure
Position a suction cup directly on the display surface, situated slightly higher than the home button's location.
Ensure the screen's entire surface is covered by the cup to guarantee a secure connection.
To prevent shattered glass fragments from scattering and to provide a secure attachment point for the suction cup, apply several strips of packing tape to the face of the iPhone, ensuring any air pockets are thoroughly removed.
Ensure the screen's entire surface is covered by the cup to guarantee a secure connection.
To prevent shattered glass fragments from scattering and to provide a secure attachment point for the suction cup, apply several strips of packing tape to the face of the iPhone, ensuring any air pockets are thoroughly removed.
Step 7 | Start lifting the front panel assembly
Secure the front panel assembly to the suction cup, ensuring a strong bond.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing, as the display assembly has a more precise fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To detach the front panel assembly from the rear case, be prepared to employ both the suction cup and plastic opening tool, as multiple clips secure the two components together.
Using one hand to secure the iPhone, lift the suction cup vertically to gently create a small gap between the front panel and the rear enclosure.
Exercise caution and use steady, even pressure when installing, as the display assembly has a more precise fit than typical device components.
Using a plastic opening tool, carefully separate the rear case from the display assembly by gently levering it upwards, simultaneously applying upward traction with a suction cup.
To detach the front panel assembly from the rear case, be prepared to employ both the suction cup and plastic opening tool, as multiple clips secure the two components together.
Step 8 | Detaching the front panel side clips
Carefully work a prying tool along the left and right edges of the front panel assembly to release the retaining clips.
Step 9 | Opening up the phone
Disconnecting the front panel assembly from the rear case is not recommended; several ribbon cables remain connected to the top edge of the iPhone and attempting full separation will likely damage them.
After disengaging the retaining clips located along the lower edge and sides of the front panel assembly, separate the assembly's lower section from the rear case by applying gentle pulling force.
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent it from moving during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
After disengaging the retaining clips located along the lower edge and sides of the front panel assembly, separate the assembly's lower section from the rear case by applying gentle pulling force.
Carefully position the display at a roughly 90-degree angle, then secure it in an upright position using a support to prevent it from moving during the repair process.
To avoid stressing the display's wiring during the repair process, secure it with a rubber band.
Step 10 | Removing the battery connector bracket screws
Using appropriate tools, detach the two screws that fasten the metal battery connector bracket to the logic board.
Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
Use a Phillips screwdriver to remove a single screw measuring 1.6 millimeters.
Use a Phillips screwdriver to remove a single screw measuring 1.8 millimeters.
Use a Phillips screwdriver to remove a single screw measuring 1.6 millimeters.
Step 11 | Removing the battery connector bracket
Detach the bracket securing the battery connector using a tri-point screwdriver.
Step 12 | Disconnecting the battery connector
Carefully lift the battery connector away from its connection on the logic board, employing a plastic opening tool to avoid damage.
Exercise caution to prevent disturbance of the tiny components positioned near the socket.
Exercise extreme caution during disconnection, applying force solely to the battery connector; avoid any leverage against the logic board socket or the board's surface to prevent socket destruction or adjacent component damage.
Exercise caution to prevent disturbance of the tiny components positioned near the socket.
Exercise extreme caution during disconnection, applying force solely to the battery connector; avoid any leverage against the logic board socket or the board's surface to prevent socket destruction or adjacent component damage.
Step 13 | Removing the front panel assembly cable bracket screws
Detach the cable bracket, which holds the front panel assembly cable, from the logic board by unscrewing the screws listed in the parts list.
Use two Phillips screws, each measuring 1.2 mm.
Use a Phillips screwdriver to remove a screw with a 1.6 mm head.
Due to its material properties, this screw is unlikely to respond to magnetic screwdrivers.
To prevent interference with the compass, exercise caution during removal to avoid losing the magnetized screw, and ensure it's correctly replaced.
Use two Phillips screws, each measuring 1.2 mm.
Use a Phillips screwdriver to remove a screw with a 1.6 mm head.
Due to its material properties, this screw is unlikely to respond to magnetic screwdrivers.
To prevent interference with the compass, exercise caution during removal to avoid losing the magnetized screw, and ensure it's correctly replaced.
Step 14 | Removing the front panel assembly cable bracket
To detach the display cable bracket, raise it in the direction of the battery, then take it away from the iPhone.
To complete reassembly, secure the logic board by engaging the left-hand hooks, then carefully lower the bracket in the direction of the phone's exterior.
To complete reassembly, secure the logic board by engaging the left-hand hooks, then carefully lower the bracket in the direction of the phone's exterior.
Step 15 | Disconnecting the front panel assembly cables
Prior to either detaching or reattaching the cables in this procedure, ensure the battery is disconnected.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
The assembly connecting the front camera and its associated sensor
Connect the display panel's flat, ribbon-like cable, ensuring proper alignment to the connector pins, and secure it with the retaining clip.
The flexible ribbon cable connecting the display's touch sensor to the mainboard is the digitizer cable.
Ensure the LCD cable remains securely attached to its connector during reassembly, as a disconnection can result in display abnormalities like white lines or a complete lack of image when the device is powered on.
Should this occur, restore the connection to the cable and restart the device; for optimal results, detach and reattach the battery.
Carefully detach the three front panel assembly cables by gently separating them using a plastic opening tool or your fingernail.
The assembly connecting the front camera and its associated sensor
Connect the display panel's flat, ribbon-like cable, ensuring proper alignment to the connector pins, and secure it with the retaining clip.
The flexible ribbon cable connecting the display's touch sensor to the mainboard is the digitizer cable.
Ensure the LCD cable remains securely attached to its connector during reassembly, as a disconnection can result in display abnormalities like white lines or a complete lack of image when the device is powered on.
Should this occur, restore the connection to the cable and restart the device; for optimal results, detach and reattach the battery.
Step 16 | Separating front panel assembly and rear case
Detach the front panel assembly from the rear case.
Step 17 | Lifting the battery
Gently lift the battery from its adhesive backing by grasping the visible, transparent plastic tab.
Should the battery's adhesive prevent easy removal, or if the battery tab fractures during separation, carefully introduce a small quantity of isopropyl alcohol with a concentration exceeding 90% beneath the battery's edge.
Allow approximately one minute for the alcohol to dissolve the adhesive securing the battery. Then, carefully use an opening tool to pry the battery upwards, engaging its edge.
To prevent damage, avoid using excessive force when removing the battery. Should the battery remain stuck, add additional alcohol droplets to dissolve more of the adhesive. Ensure the pry tool does not bend, break, or penetrate the battery casing during the separation process.
To prevent damage, ensure all traces of the alcohol solution are removed by wiping with a clean cloth or by permitting complete evaporation before proceeding with the new battery installation.
To assist with battery separation if adhesion persists, apply warmth to the iPhone's rear case using an iOpener or hair dryer to loosen the adhesive.
Exposure to excessive heat presents a fire risk for the iPhone's battery.
Should the battery's adhesive prevent easy removal, or if the battery tab fractures during separation, carefully introduce a small quantity of isopropyl alcohol with a concentration exceeding 90% beneath the battery's edge.
Allow approximately one minute for the alcohol to dissolve the adhesive securing the battery. Then, carefully use an opening tool to pry the battery upwards, engaging its edge.
To prevent damage, avoid using excessive force when removing the battery. Should the battery remain stuck, add additional alcohol droplets to dissolve more of the adhesive. Ensure the pry tool does not bend, break, or penetrate the battery casing during the separation process.
To prevent damage, ensure all traces of the alcohol solution are removed by wiping with a clean cloth or by permitting complete evaporation before proceeding with the new battery installation.
To assist with battery separation if adhesion persists, apply warmth to the iPhone's rear case using an iOpener or hair dryer to loosen the adhesive.
Exposure to excessive heat presents a fire risk for the iPhone's battery.
Step 18 | Prying up the battery
Carefully lift the battery from its compartment using the plastic opening tool, applying force solely to the outermost perimeter of the device; avoid prying near the logic board to prevent potential damage.
Gently increase the application of isopropyl alcohol until the battery releases from its housing.
To prevent damage and potential fire risk, carefully release the battery using even pressure, ensuring it remains undamaged.
Avoid applying force to the battery's upper edge, as this could damage the volume control cables.
Gently increase the application of isopropyl alcohol until the battery releases from its housing.
To prevent damage and potential fire risk, carefully release the battery using even pressure, ensuring it remains undamaged.
Avoid applying force to the battery's upper edge, as this could damage the volume control cables.
Step 19 | Removing the battery
Disconnect the power source by extracting the battery.
Carefully detach the protective plastic covering from the new battery by gently separating it from the ribbon cable.
To guarantee correct positioning within its designated space, briefly plug the battery connector back into the motherboard socket prior to securing the new battery.
Secure the battery in place, then sever its electrical connection before proceeding with the remaining assembly steps.
To avoid harming other parts, ensure the battery makes full contact with the back cover during reassembly.
Following reassembly, execute a complete system reset to proactively avoid potential problems and streamline any subsequent diagnostic procedures.
Carefully detach the protective plastic covering from the new battery by gently separating it from the ribbon cable.
To guarantee correct positioning within its designated space, briefly plug the battery connector back into the motherboard socket prior to securing the new battery.
Secure the battery in place, then sever its electrical connection before proceeding with the remaining assembly steps.
To avoid harming other parts, ensure the battery makes full contact with the back cover during reassembly.
Following reassembly, execute a complete system reset to proactively avoid potential problems and streamline any subsequent diagnostic procedures.
Step 20 | Logic Board Assembly
Carefully lift the cellular data antenna cable connector from its corresponding socket on the logic board, located directly above the speaker enclosure, employing the pointed end of a spudger.
Step 21
- Using a Phillips screwdriver, detach the two screws that fasten the top logic board bracket to the rear case.
Use a Phillips screwdriver to remove a single screw with a 1.5 mm head.
Use a Phillips screwdriver to remove a screw with a 2.3 mm head.
Step 22
- Carefully detach the bracket, located on the logic board's upper surface.
Carefully avoid damaging the small grounding tab extending from the bracket adjacent to the rear camera; it is crucial for proper electrical connection.
Depending on the model, the bracket might be integrated with the camera housing, preventing full removal.
Step 23
- Carefully separate the three listed cables from the logic board by gently sliding the flat edge of a spudger between each cable connector and the board.
The cable connecting to the upper circuit board.
The flexible cable connecting the button assembly is referred to as the button assembly cable.
Disconnect the interconnect cable from its connector.
Step 24
- Using a Phillips screwdriver, detach the two screws, each measuring 1.3 mm, located on the interior top surface of the rear case.
Step 25
- Using a Phillips screwdriver, detach the 1.2 mm screw securing the mid-section logic board bracket.
Step 26
Detach the bracket securing the central portion of the logic board.
Step 27
Carefully lift the Lightning connector cable connector away from its socket on the logic board using a spudger.
Carefully retract the cable, ensuring it clears the logic board.
Carefully retract the cable, ensuring it clears the logic board.
Step 28
Using a SIM card eject tool or a straightened paperclip, push in the SIM card release located on the iPhone’s right side to release and extract the SIM card tray.
Using a spudger's flat end, carefully push the SIM card eject lever inward.
Using a SIM ejection tool or a straightened paperclip, carefully depress the small release button located on the side of the iPhone to release and extract the SIM card tray.
Using a spudger's flat end, carefully push the SIM card eject lever inward.
Using a SIM ejection tool or a straightened paperclip, carefully depress the small release button located on the side of the iPhone to release and extract the SIM card tray.
Step 29
Loosen and detach the logic board from the rear case by unscrewing the listed fasteners.
Use two Phillips screws, each measuring 2.3 mm.
Use two screws, each measuring 2.7 millimeters in diameter.
Employ a standoff screwdriver or bit to extract standoff screws.
If a specialized tool isn't available, a small flathead screwdriver can be carefully substituted; however, exercise heightened awareness to prevent slippage and potential harm to nearby parts.
A 2.7-millimeter standoff screw, constructed from a non-magnetic material, is required.
To prevent issues with the digital compass, ensure the screw is reinstalled in its initial location on the logic board. Using a magnetized screw in this position can cause interference.
Use two Phillips screws, each measuring 2.3 mm.
Use two screws, each measuring 2.7 millimeters in diameter.
Employ a standoff screwdriver or bit to extract standoff screws.
If a specialized tool isn't available, a small flathead screwdriver can be carefully substituted; however, exercise heightened awareness to prevent slippage and potential harm to nearby parts.
A 2.7-millimeter standoff screw, constructed from a non-magnetic material, is required.
To prevent issues with the digital compass, ensure the screw is reinstalled in its initial location on the logic board. Using a magnetized screw in this position can cause interference.
Step 30
To facilitate access, pivot the logic board assembly so that it faces the battery compartment at the rear of the device.
Before detaching the logic board assembly from the rear case, be aware that a single cable remains connected to its underside. Complete separation at this stage is not recommended.
To secure proper function, the flash surround is affixed to both the flash unit and the rear case; if the surround remains attached to the rear case during reassembly, carefully detach it using tweezers and reposition it onto the flash unit.
During reassembly, ensure the lower interconnect cable remains free from being positioned beneath the logic board.
Before detaching the logic board assembly from the rear case, be aware that a single cable remains connected to its underside. Complete separation at this stage is not recommended.
To secure proper function, the flash surround is affixed to both the flash unit and the rear case; if the surround remains attached to the rear case during reassembly, carefully detach it using tweezers and reposition it onto the flash unit.
During reassembly, ensure the lower interconnect cable remains free from being positioned beneath the logic board.
Step 31
Carefully lift the Wi-Fi antenna cable connector away from its socket on the logic board's underside, utilizing the pointed end of a spudger.
Step 32
Carefully detach the logic board assembly from the rear case.
To safeguard the logic board's delicate internal components from electrostatic discharge, place it on an anti-static mat while the board is disconnected from the phone.
To safeguard the logic board's delicate internal components from electrostatic discharge, place it on an anti-static mat while the board is disconnected from the phone.
Step 33 | Front Panel Clips
Each of the four front panel clips is secured using two Phillips screws, measuring 1.3 mm in diameter.
To replace a clip, detach the securing screws.
To replace a clip, detach the securing screws.
Step 34
Detach the clips individually, only when necessary.
The left-side clip at the device's top is distinguished by its smaller size compared to the remaining three clips.
The left-side clip at the device's top is distinguished by its smaller size compared to the remaining three clips.
