Замена прокладки кнопки Home iPhone 4S - iPhone 4s

Step 1 | Задняя панель

Ensure the iPhone is powered off and disconnected from its power adapter before proceeding with disassembly.
Using appropriate tools, loosen and remove the two 3.6 mm Pentalobe screws positioned adjacent to the connector.
To simplify reassembly, substitute the original Pentalobe screws with Phillips screws of the same size; the Liberation Kit contains both the necessary tools and the replacement screws for this modification.
To prevent damage to the screws, use the Pentalobe P2 Screwdriver just once, as repeated use may cause the screw heads to become stripped.

Step 2

Using a prying tool, carefully slide the rear panel away from the top edge.
Expect the panel to shift approximately 2 millimeters.

Step 3

Carefully pull the rear cover away, being mindful to avoid damage to the plastic clips.
Carefully detach the rear panel.

Step 4 | Аккумулятор

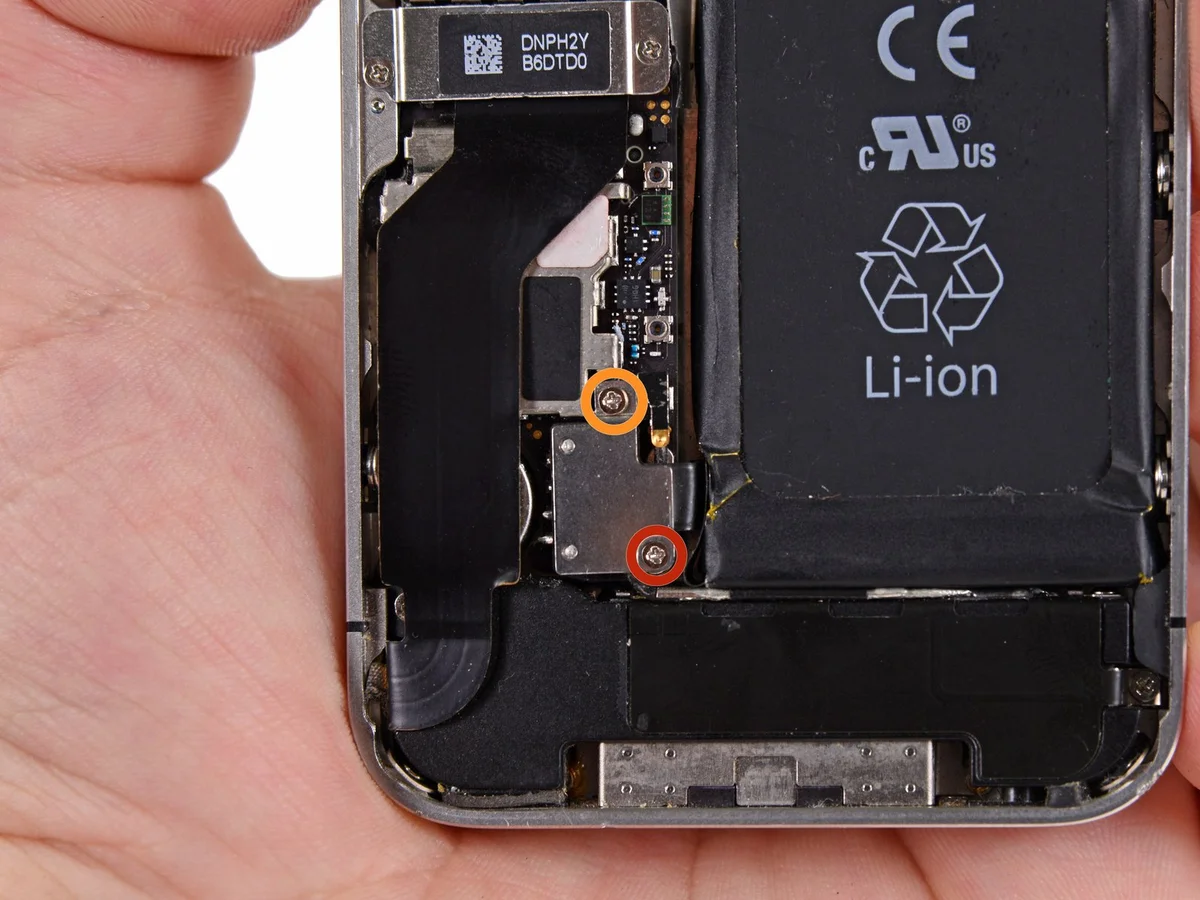

Detach the battery connector from the motherboard by removing the listed screws.
Use a 1.7 mm Phillips head screwdriver.
Use a Phillips head screwdriver, size 1.5mm.

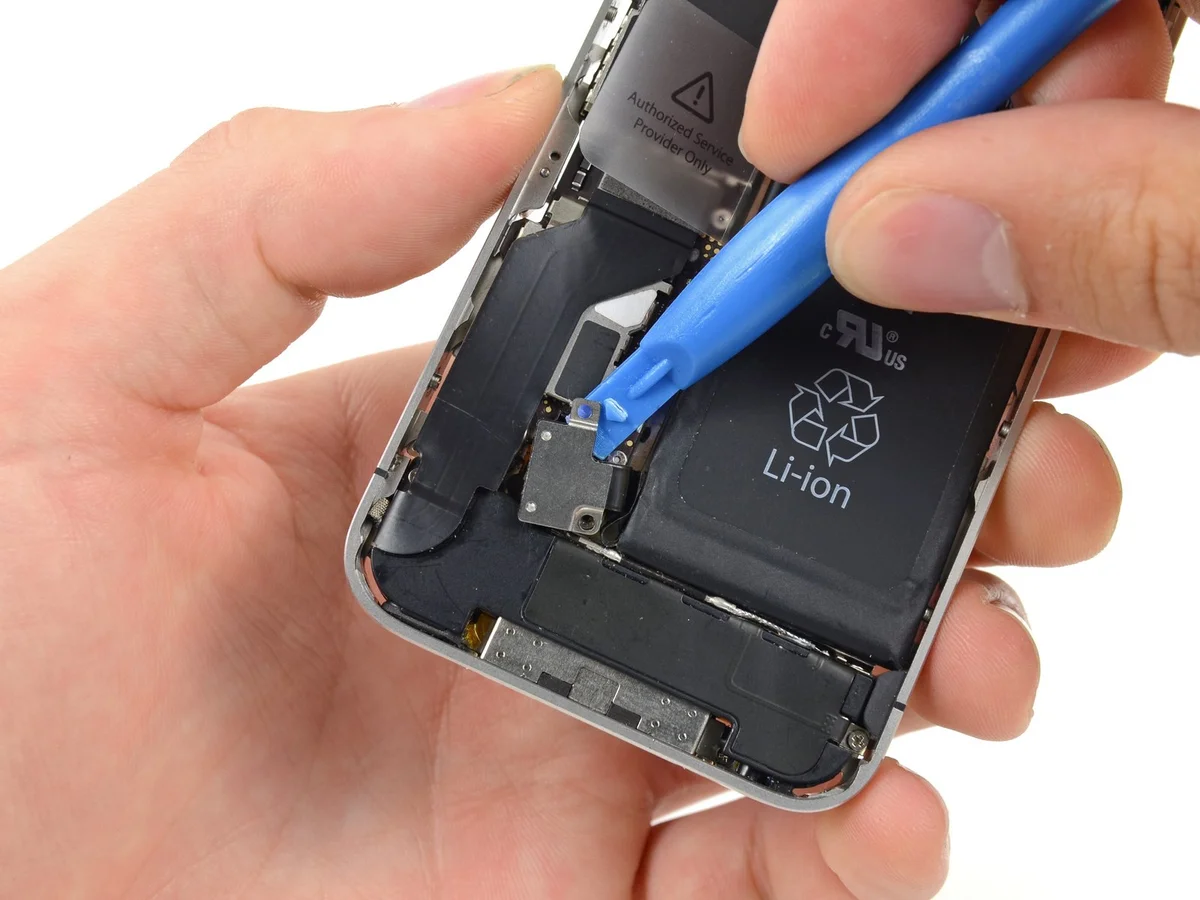

Employ a plastic tool to disconnect the battery connector from the device.
To detach the battery connector, move it straight up away from the logic board; avoid any lateral pressure.

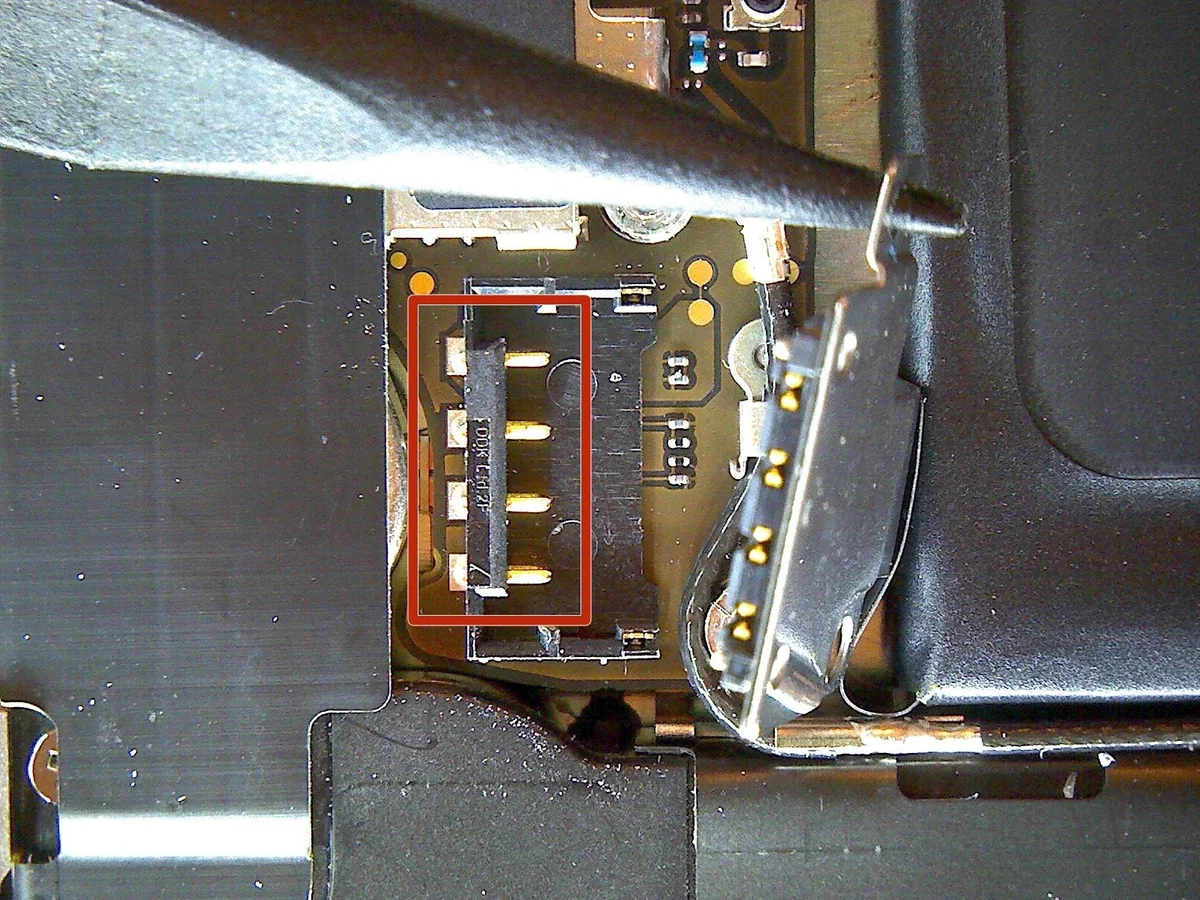

Ensure the pressure contact located beneath the uppermost screw of the battery connector remains secure, as it can detach during removal from its socket.

Step 5

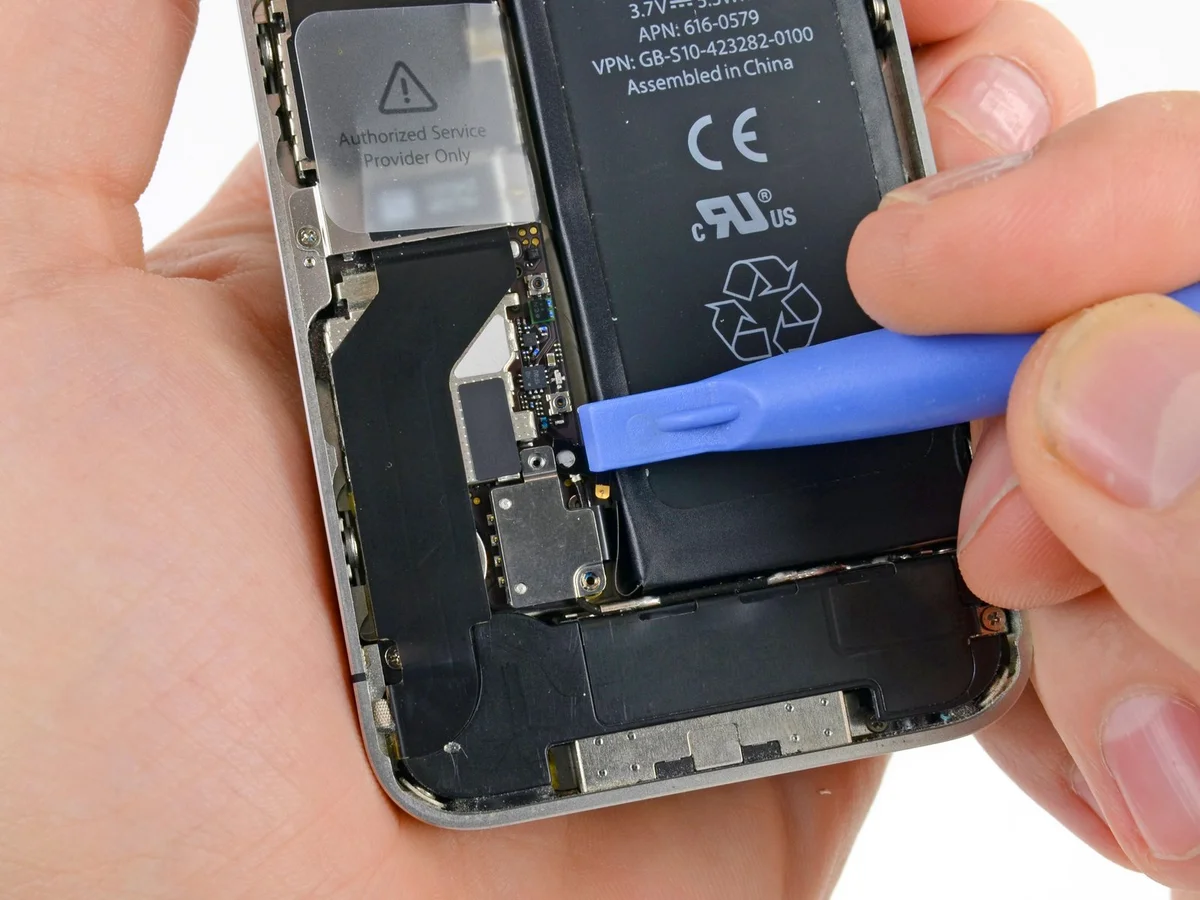

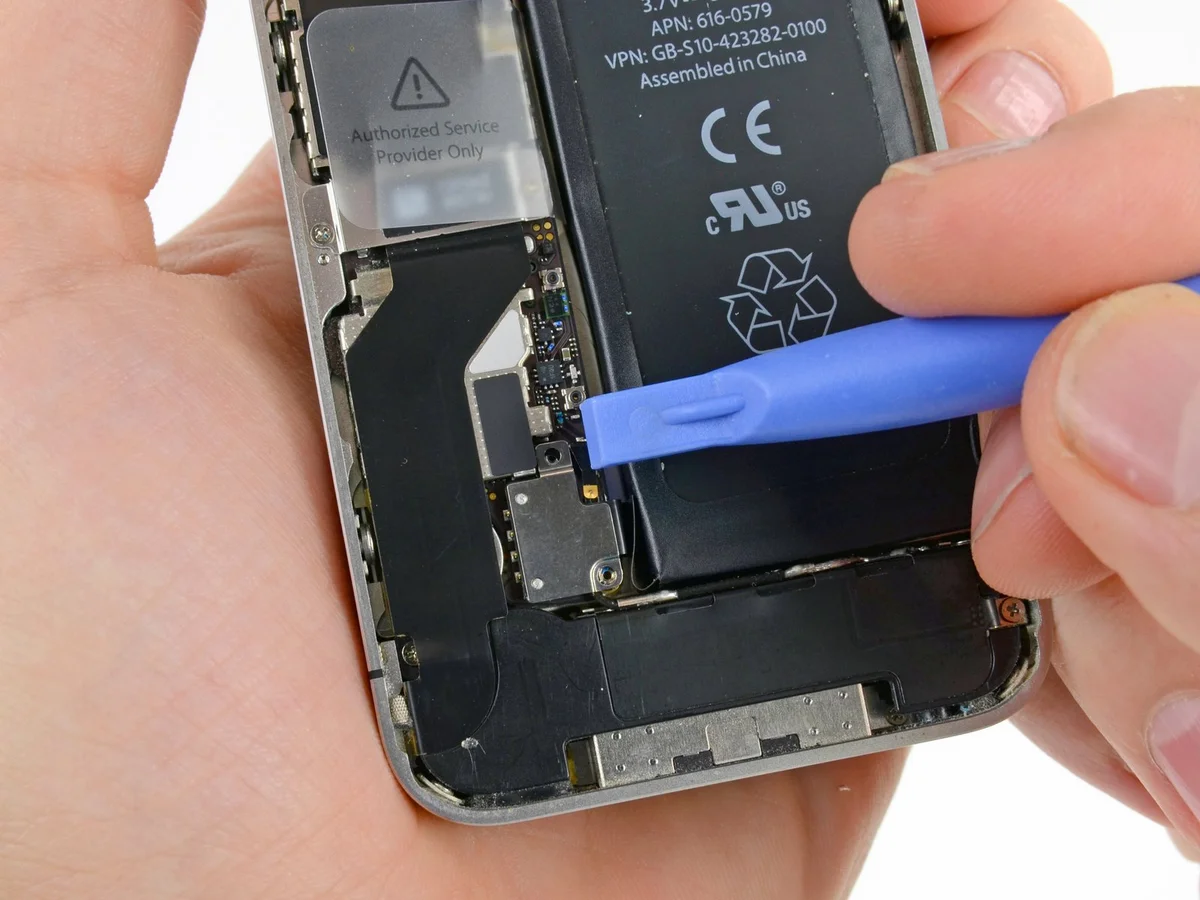

Employ a plastic tool to disconnect the battery harness connector.
Before reattaching the ribbon cable, clean it to remove any grease; oils from your fingers can interfere with proper electrical connection.

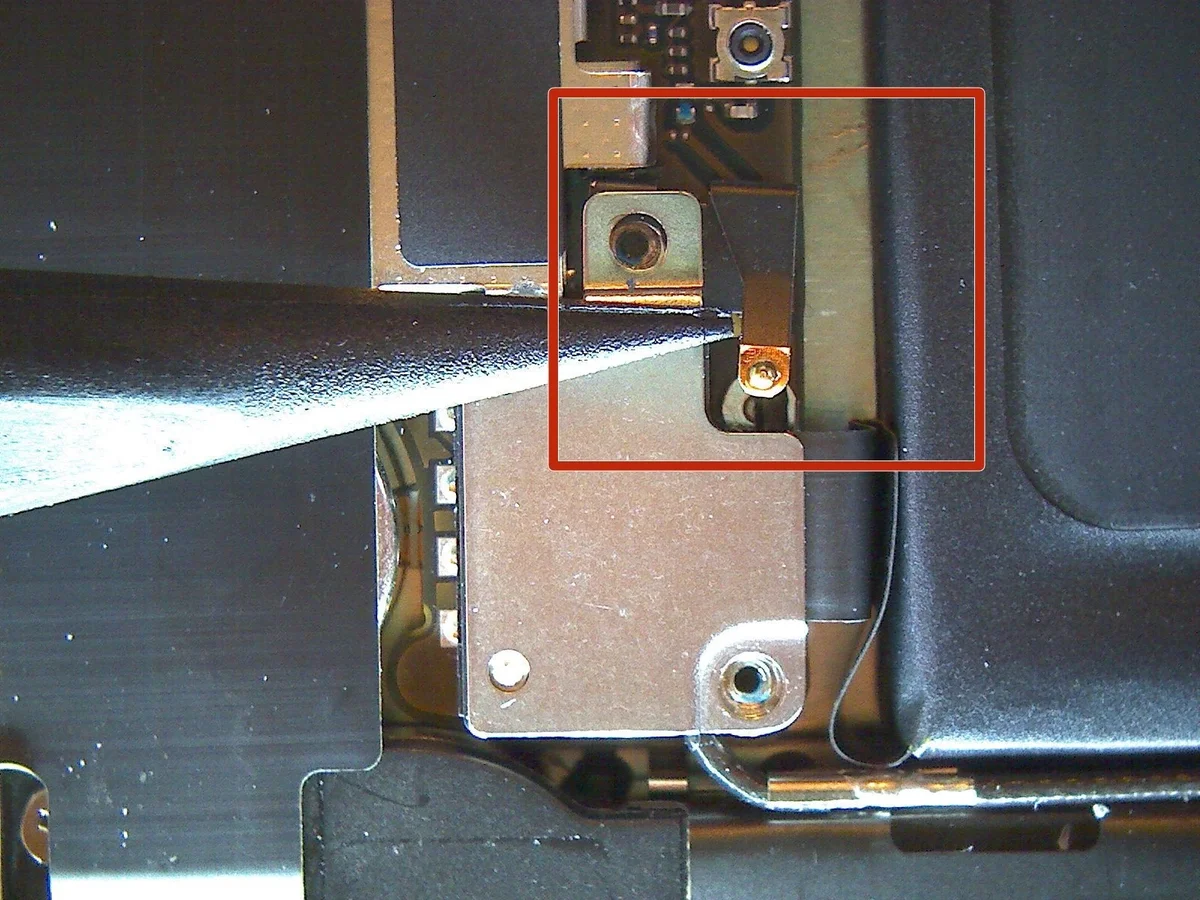

Ensure the antenna retainer, secured solely by the upper screw, is correctly positioned; during reinstallation of the cable, align it so the gold contact makes contact with the rear cover.
Exercise extreme caution when disconnecting the battery cable; the connector is secured to the motherboard by four tiny solder joints and can easily be detached if handled carelessly.

Step 6

Using a plastic pry tool, carefully insert it between the battery and the device's outer casing, focusing on the lower-left corner.
Using a spatula, carefully separate the battery from the device housing by sliding it along the right edge.

Step 7

To release the battery, grasp and pull the plastic tab.
Disconnect the battery.

Step 8 | Разъём док-станции

Using the appropriate screwdriver, detach the docking station connector cable from the motherboard by unscrewing the securing screws.

Use a Phillips screwdriver to remove a 1.5mm screw.

Use a 1.2 mm Phillips head screwdriver to tighten one screw.
Remove the metal fastener securing the docking station connector cable.

Step 9

Using a plastic opening tool, carefully disconnect the cable connector from its socket on the motherboard.

Step 10

Carefully detach the docking station connector cable and external speaker cable from their respective connections on the motherboard.

Step 11

Using a plastic spudger, carefully disconnect the antenna wire from its connector on the motherboard.
Carefully detach the antenna cable from its metal retaining clips.

Step 12 | Задняя камера

Exercise caution regarding the small plastic ring situated around the flash unit; it is easily misplaced and should be removed during disassembly.
Employ a pair of tweezers, a plastic pry tool, or a probe to carefully remove the plastic retaining ring.

Step 13

Using a screwdriver, loosen and remove the four screws securing the shield cover.

Use a Phillips head screwdriver, size 2.7mm, to loosen the screw.
A Phillips head screwdriver, size 2.6mm, is required.
Use a Phillips head screwdriver, size 1.3mm.
Use a Phillips screwdriver with a 1.2 mm tip to drive in the screw.

Step 14

Use a plastic spatula to gently pry up the shield cover.
Grasp the upper edge to disengage and remove it.

Step 15

Using a plastic pry tool, carefully release the camera cable connector from its socket on the motherboard.
Exercise caution to avoid damaging any components mounted on the motherboard.
Disconnect and remove the camera assembly.
Ensure the small rubber seal is properly positioned on the camera before reassembly.

Step 16 | SIM-карта

To access the SIM card tray, utilize a SIM ejection tool or a straightened paperclip to release the latch.
Apply gentle force as needed.
Carefully extract the SIM card and its tray.

Step 17 | Материнская плата

Disable the five connectors located at the top of the motherboard, proceeding in this specific sequence.

The cable connecting the headphones and volume buttons
The front camera cable.
The sensor cable
The display cable
The power button cable, situated beneath the headphone and volume button cables (as illustrated in the second image), requires attention.

Employ a plastic spatula to gently pry the connectors upwards for disconnection.
Exercise caution to avoid damaging delicate components on the motherboard while disconnecting connectors.

Step 18

Using a Phillips screwdriver, loosen the 1.5mm screw that secures the ground plate to the motherboard, positioning it near the headphone jack.

Step 19

Using a probe or spatula, carefully disconnect the small ground connector from the motherboard.
Carefully detach the grounding connector.
Before reassembly, ensure all metallic contacts are free of grease and oil, as residue from your fingers can impede proper electrical connection.

Step 20

Using a small flathead screwdriver, loosen the 4.8mm standoff positioned adjacent to the headphone jack.

Step 21

Using a plastic opening tool, carefully detach the Wi-Fi antenna from the motherboard.

Step 22

Carefully peel back a section of the black tape to expose the screw located adjacent to the power button.
Using a Phillips screwdriver, loosen the 2.6 mm screw positioned near the power button.
Exercise caution when removing this screw, as the ground contact located beneath the circuit board is secured by it and may be dislodged simultaneously.
Carefully note the small rubber gasket situated beneath the display and touch sensor connectors (visible above the QR code), as it is prone to displacement, potentially falling behind the motherboard or becoming lodged within the connectors.

Step 23

Carefully unscrew the screws securing the motherboard to the computer case.
A 2.5mm Phillips screwdriver is needed to access a screw located adjacent to the vibration motor.
A Phillips head screwdriver, size 2.4mm, is required.
Locate a 3.6 mm standoff affixed to the motherboard, positioned near the battery.
Employ a small flathead screwdriver to loosen the 3.6 mm post.

Step 24

Carefully lift the motherboard, accessing it from the external speaker side, and move it toward the device’s bottom edge.
Carefully detach the motherboard from the computer case.
Before reassembly, ensure all metallic contacts are free of grease by cleaning them; residue from your fingers can impede proper electrical connection.
The small rubber gasket securing the edges of the motherboard protects the surrounding cables; it may become lodged within the cables or fall beneath the motherboard itself, and further details can be found in step 22.

Step 25

Verify the small grounding connector for the rear camera remains present; it's situated on the circuit board's upper surface and secured with a screw covered by black tape.

Step 26 | Вибромотор

Employ a plastic spatula to dislodge the vibration motor.
Using a prying tool, carefully lift the vibrator motor to separate it from the adhesive.
Disconnect the vibrator motor.

Step 27 | Внешний динамик

Using a Phillips screwdriver, loosen and remove the two 2.4mm screws securing the outer speaker.

Step 28

Carefully remove the small plastic retaining clip located beneath the screw adjacent to the docking connector cable.

Step 29

Carefully detach the iPhone's external speaker from its housing.
Before reinstalling the external speaker's securing screws, verify that the Wi-Fi ground contacts are making contact with the iPhone’s metal chassis, as illustrated in the second image.
Before reassembly, ensure all metallic contacts are free of grease by cleaning them; residue from your fingers can impede proper electrical connection.

Step 30 | Дисплей

Carefully remove the small sections of black tape that cover the display's mounting hardware.
These angular screws are distinct from other screws, measuring 1.5 mm in size; set them aside for safekeeping.

Step 31

Loosen the fastener.Use a Phillips screwdriver with a 1.5 mm tip.Secure the display screen using the retaining clip located adjacent to the power button.

Step 32

Loosen the fastener.Use a Phillips head screwdriver, sized 1.5 millimeters, to tighten or loosen the screw.Near the headphone jack.
Accessing the screw is simplified by detaching the headphone jack, especially when putting the device back together; consult the iPhone 4S Headphone Jack Cable guide for instructions on headphone jack removal if you encounter difficulties.

Step 33

Loosen the fastener.Use a Phillips head screwdriver to tighten or loosen the 1.5-millimeter screw.Locate the lower microphone.

Step 34

Loosen the fastener.Use a Phillips head screwdriver, sized 1.5 millimeters, to tighten or loosen the screw.Locate the connection port for the docking station.

Step 35

Using the appropriate tool, reduce the tightness of the three large bolts.Use a Phillips head screwdriver.Rotate the volume adjustment buttons by 180 degrees.
The screws do not need to be fully unscrewed; when reinstalling the display, ensure the fasteners are seated flush against their heads, as illustrated in the second image.

Step 36

Using a Phillips screwdriver, rotate each of the three large screws on the opposite side a quarter turn to loosen them.

Step 37

Carefully use a plastic pry tool to release the display screen along its entire edge, then detach it. During reassembly, ensure the display and sensor ribbon cable completely passes through the opening cut into the device’s frame; otherwise, it will not connect to the motherboard. Remember to transfer the rubber Home button from the old display to the new one, exercising caution due to its delicate nature to prevent tearing. Also, confirm the speaker mesh is present on the new display; if absent, move it from the old display. Replacement displays typically lack the 7 mm plastic ring surrounding the front-facing camera, so transfer this ring from the original display. Finally, apply a protective film to shield the new display from scratches.

Step 38

Carefully detach the display assembly from the iPhone.

Step 39

Ensure proper installation of the new or replacement display assembly by observing these crucial steps: The home button, typically not included with new displays, must be transferred from the original unit. Handle the thin rubber gasket associated with the home button with caution to prevent damage. Verify the replacement display includes the speaker mesh; if absent, relocate it from the original display. Remove the protective film, commonly blue or pink, from the display’s surface prior to installation. If the replacement display lacks the 7 mm clear plastic ring around the front-facing camera, carefully move it from the old display.

Step 40

To prevent damage, ensure the digitizer and LCD data cables are free of kinks and properly routed through the designated opening in the outer case; avoid folding the digitizer cable as demonstrated in the accompanying image of an incorrect installation.
Ensure the digitizer cable extends completely to its connection point on the logic board, as illustrated in the adjacent image; improper installation prevents full insertion. Avoid forceful manipulation, which risks cable damage. Instead, disassemble the display assembly, carefully realign the cable, and guide it through to its proper position.

Step 41

To prevent LCD malfunctions during reassembly, avoid contact with the metal section at the LCD data cable's base; if accidental contact occurs, carefully wipe the area with an alcohol wipe before proceeding.
To prevent display issues potentially caused by static electricity, use an alcohol wipe to thoroughly clean the touchscreen before powering on the iPhone following reassembly.
To ensure proper initialization following reassembly, first plug the iPhone into standard AC power and then activate it; after successful startup, you may then remove the AC power connection.
To prevent surface damage, apply a fresh screen protector to the display following reassembly.

Step 42 | Кнопка Home в сборе

Carefully separate the Home button from the display surface, initiating the release from the lower right area with a plastic spatula.

Step 43

Employing tweezers, detach the Home button from the display assembly with caution.
Carefully detach the Home button assembly.

Step 44

Carefully detach the Home button gasket.

Step 45 | Прокладка кнопки Home

The gasket for the Home button is still in place.
